STM32项目分享：基于STM32的智能洗衣机

ai 2025/8/26 7:14:31

“我们不做一锤子买卖，只做技术成长的长期伙伴！”

一、视频展示

二、项目简介

三、原理图设计

四、PCB硬件设计

五、程序设计

六、资料分享

一、视频展示

基于STM32的智能洗衣机 -视频分享

二、项目简介

题目：洗衣机
主控:STM32
显示:OLED显示屏
DS18B20温度传感器
水位传感器
湿度传感器
控制模块:抽水继电器➕排水继电器
声光报警：LED+蜂鸣器
功能：
1、可按键选择模式（快洗，慢洗，甩干，速度不同），时间，水位等数据。
2、选择完毕之后按下开始，进行抽水，当水位超过阈值后开始根据模式进行转动，转动时间根据设定时间进行转动，一共三次，等完毕后，打开排水，直到水位小于10，最后快速甩干。然后结束蜂鸣器报警两下，中间可按键暂停，暂停中蜂鸣器报警。

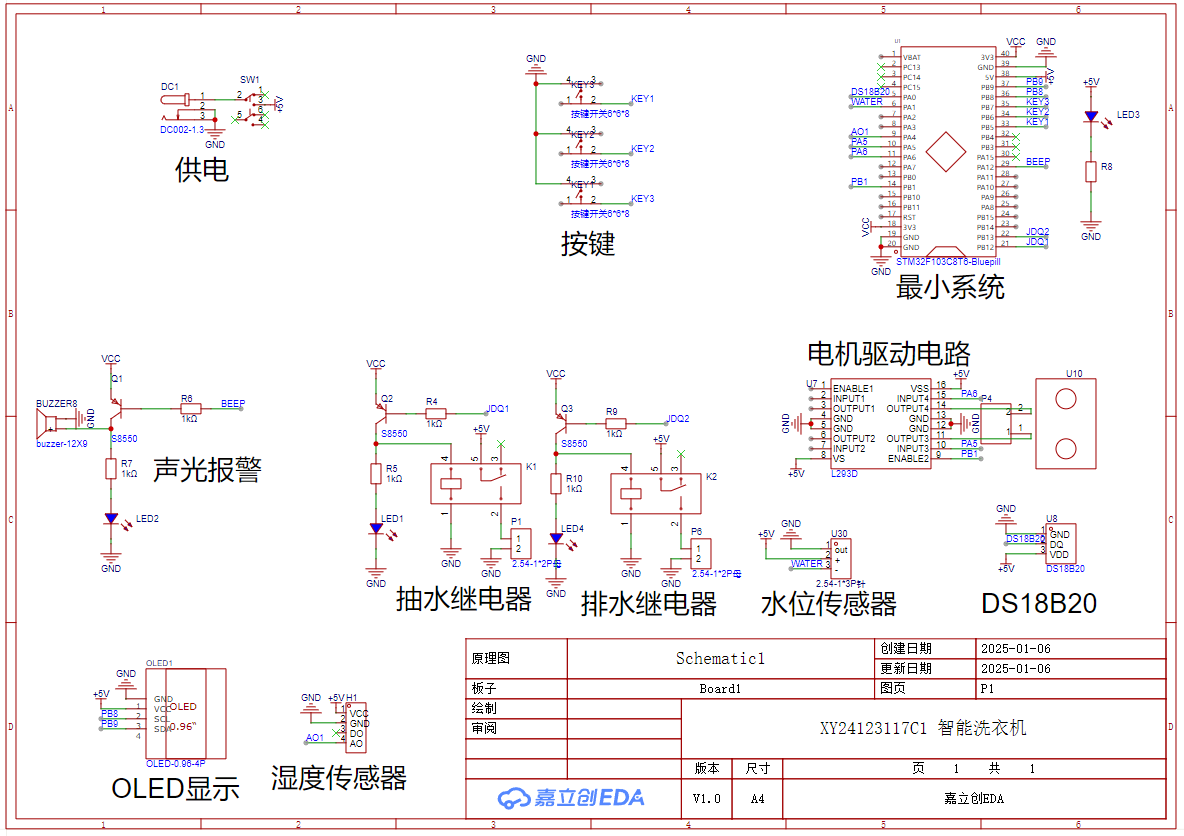

三、原理图设计

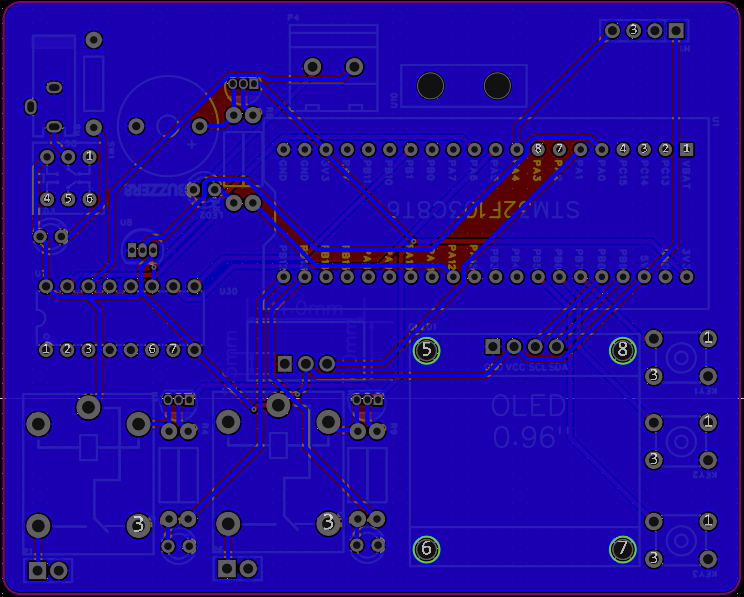

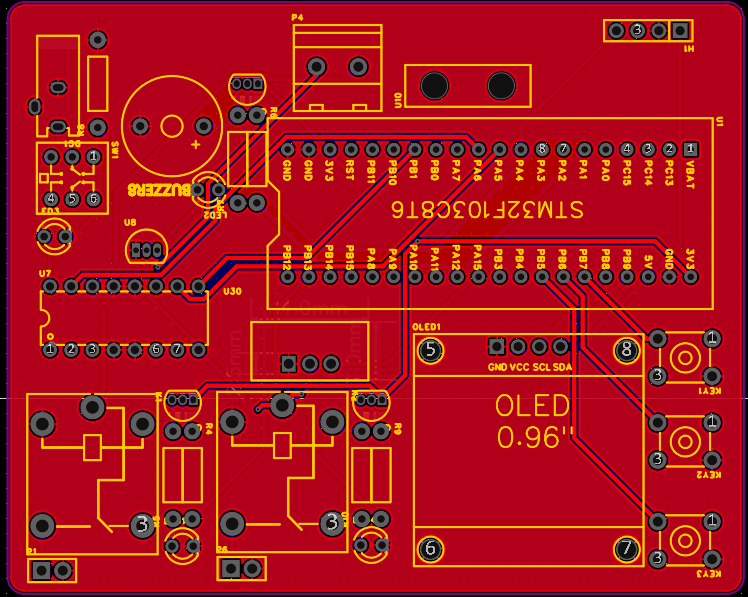

四、PCB硬件设计
