【电机控制器】PY32MD310K18U7TR——ADC、UART

文章目录

@[TOC](文章目录)

前言
一、接线
二、芯片手册
三、代码
四、实验
四、参考资料
总结

前言

使用工具：
1.仿真器：STLINK
2.串口工具：USB-TTL

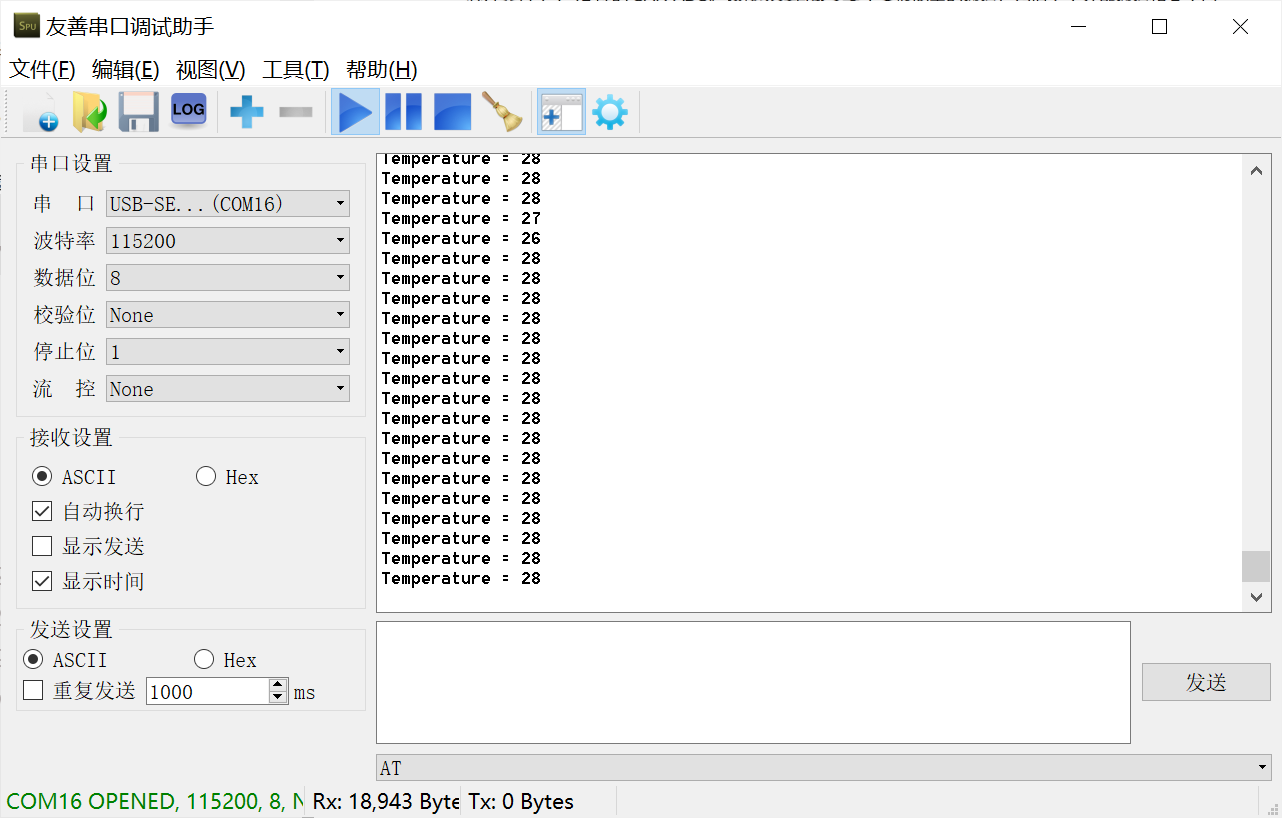

3.上位机串口调试助手

提示：以下是本篇文章正文内容，下面案例可供参考

一、接线

VCC——3.3
GND——GND
SWDIO——SWDIO
SWCLK——SWCLK

二、芯片手册

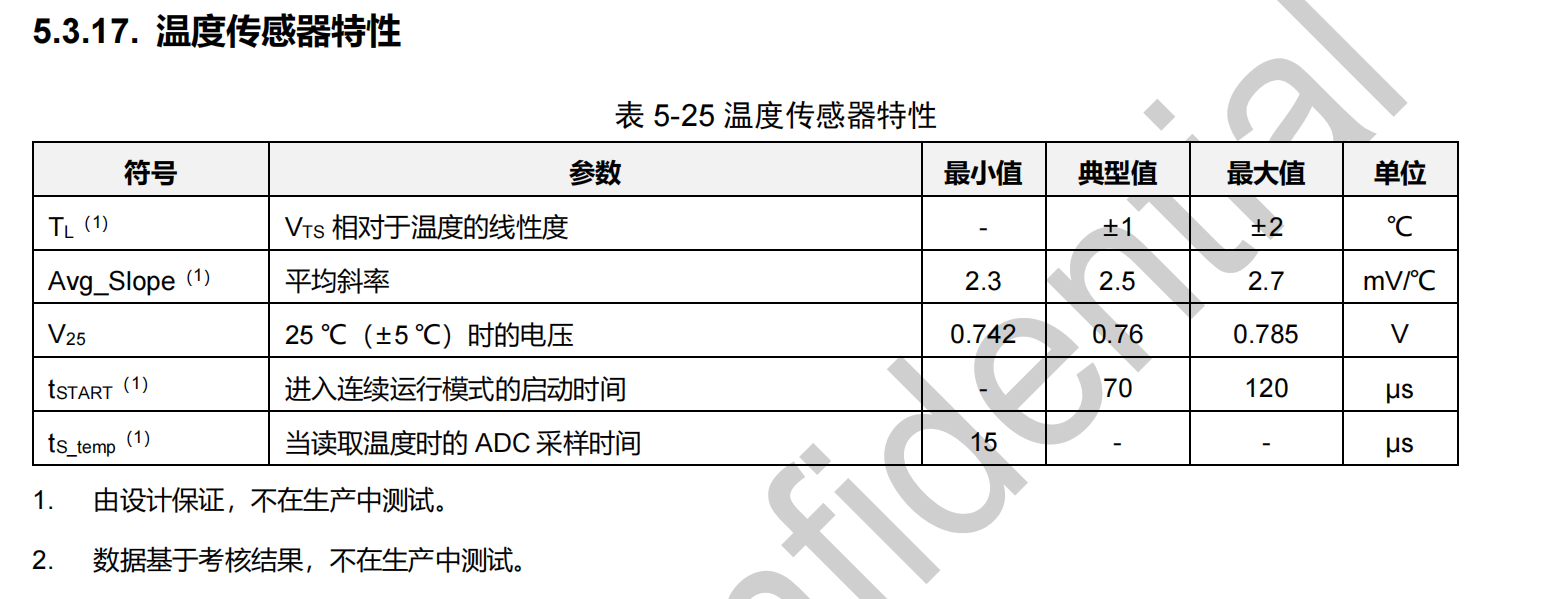

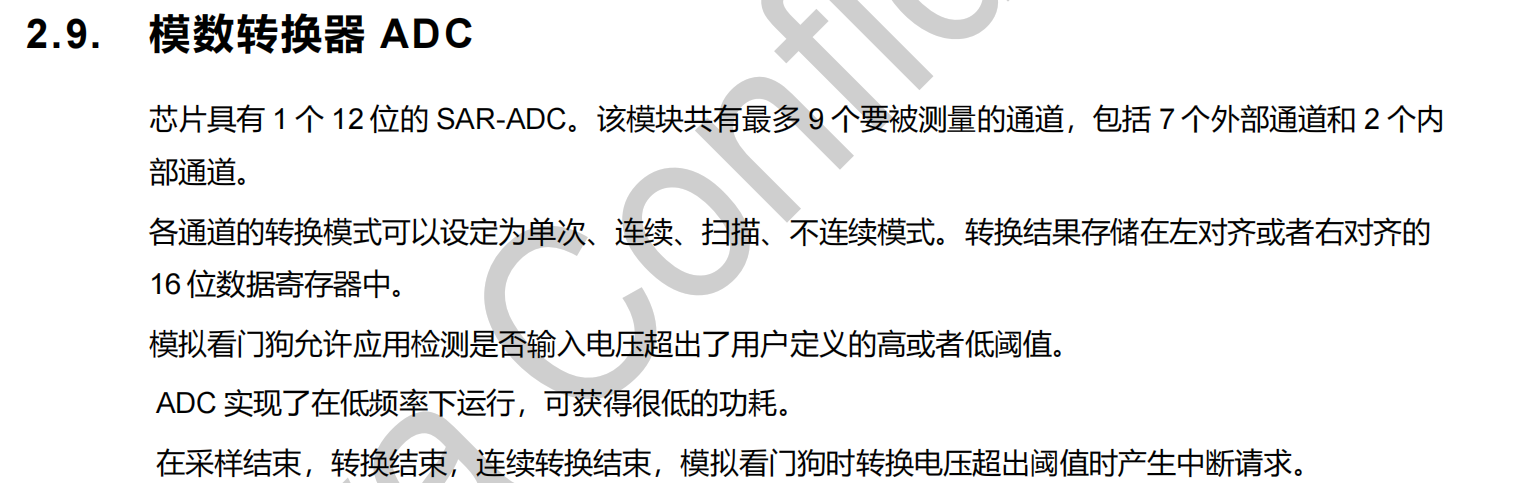

在这里插入图片描述

三、代码

int main(void)
{/* Reset of all peripherals, Initializes the Systick */HAL_Init();                                                            /* Initialize LED */BSP_LED_Init(LED_GREEN);/* Initialize UART */DEBUG_USART_Config();                                                  /* Initialize ADC */APP_AdcConfig();                                                       while (1){HAL_Delay(500); /* Start ADC and enable ADC interrupts */if (HAL_ADC_Start_IT(&AdcHandle) != HAL_OK)                           {APP_ErrorHandler();}}
}
