3.微服务架构编码Base工程模块构建

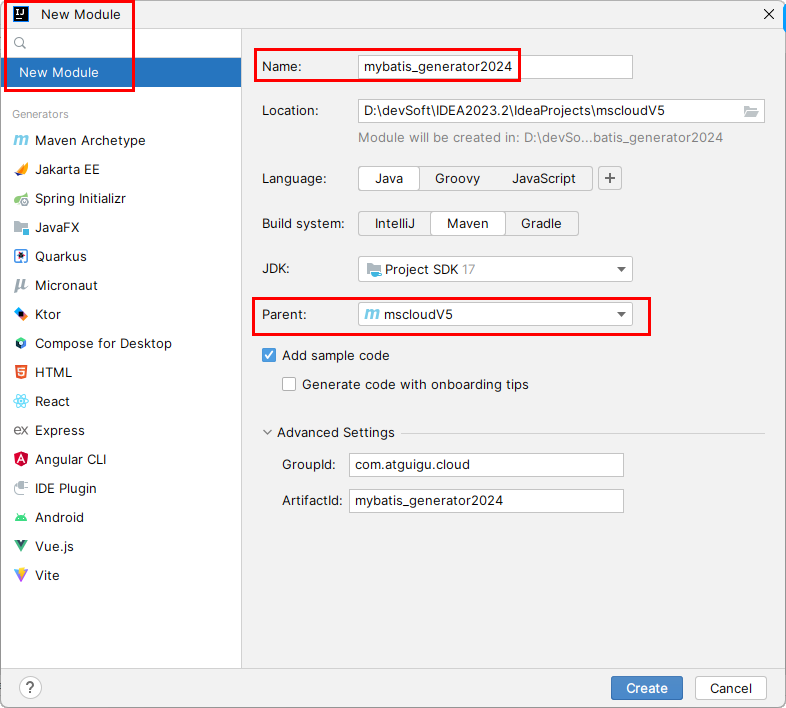

• 普通Maven工程
• mybatis_generator2024

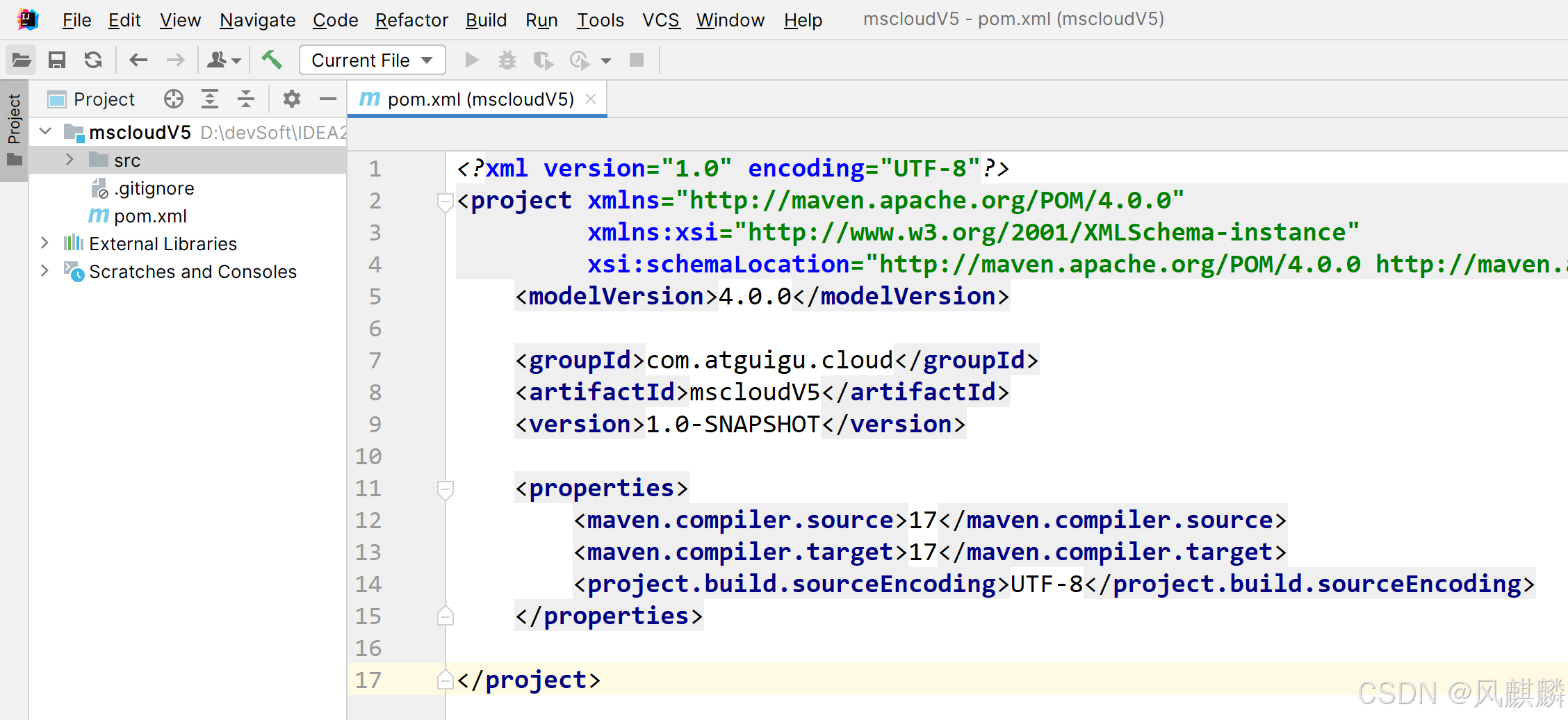

3.POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.kylin.cloud</groupId><artifactId>mscloudV5</artifactId><version>1.0-SNAPSHOT</version></parent><!--我自己独一份，只是一个普通Maven工程，与boot和cloud无关--><artifactId>mybatis_generator2024</artifactId><properties><maven.compiler.source>17</maven.compiler.source><maven.compiler.target>17</maven.compiler.target><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding></properties><dependencies><!--Mybatis 通用mapper tk单独使用，自己独有+自带版本号--><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId><version>3.5.13</version></dependency><!-- Mybatis Generator 自己独有+自带版本号--><dependency><groupId>org.mybatis.generator</groupId><artifactId>mybatis-generator-core</artifactId><version>1.4.2</version></dependency><!--通用Mapper--><dependency><groupId>tk.mybatis</groupId><artifactId>mapper</artifactId></dependency><!--mysql8.0--><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><!--persistence--><dependency><groupId>javax.persistence</groupId><artifactId>persistence-api</artifactId></dependency><!--hutool--><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId></dependency><!--lombok--><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope><exclusions><exclusion><groupId>org.junit.vintage</groupId><artifactId>junit-vintage-engine</artifactId></exclusion></exclusions></dependency></dependencies><build><resources><resource><directory>${basedir}/src/main/java</directory><includes><include>**/*.xml</include></includes></resource><resource><directory>${basedir}/src/main/resources</directory></resource></resources><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId><configuration><excludes><exclude><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></exclude></excludes></configuration></plugin><plugin><groupId>org.mybatis.generator</groupId><artifactId>mybatis-generator-maven-plugin</artifactId><version>1.4.2</version><configuration><configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile><overwrite>true</overwrite><verbose>true</verbose></configuration><dependencies><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>8.0.33</version></dependency><dependency><groupId>tk.mybatis</groupId><artifactId>mapper</artifactId><version>4.2.3</version></dependency></dependencies></plugin></plugins></build></project>

4.配置路径

src\main\resources路径下新建

config.properties

mysql5

#User表包名
package.name=com.atguigu.cloud
# mysql5.7
jdbc.driverClass = com.mysql.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.user = root
jdbc.password =123456

mysql8

#t_pay表包名
package.name=com.atguigu.cloud# mysql8.0
jdbc.driverClass = com.mysql.cj.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
jdbc.user = root
jdbc.password =123456

generatorConfig.xml 配置内容

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfigurationPUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN""http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd"><generatorConfiguration><properties resource="config.properties"/><context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat"><property name="beginningDelimiter" value="`"/><property name="endingDelimiter" value="`"/><plugin type="tk.mybatis.mapper.generator.MapperPlugin"><property name="mappers" value="tk.mybatis.mapper.common.Mapper"/><property name="caseSensitive" value="true"/></plugin><jdbcConnection driverClass="${jdbc.driverClass}"connectionURL="${jdbc.url}"userId="${jdbc.user}"password="${jdbc.password}"></jdbcConnection><javaModelGenerator targetPackage="${package.name}.entities" targetProject="src/main/java"/><sqlMapGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java"/><javaClientGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java" type="XMLMAPPER"/><table tableName="t_pay" domainObjectName="Pay"><generatedKey column="id" sqlStatement="JDBC"/></table></context>
</generatorConfiguration>

一键生成

双击插件mybatis-generator:gererate一键生成

生成entity+mapper接口+xml实现SQL

四、Rest通用Base工程构建

基础工程

1.cloud-provider-payment8001微服务提供者支付Module模块

微服务口诀

1.建module

2.改POM

3.写YML

4.主启动

5.业务类

实现步骤

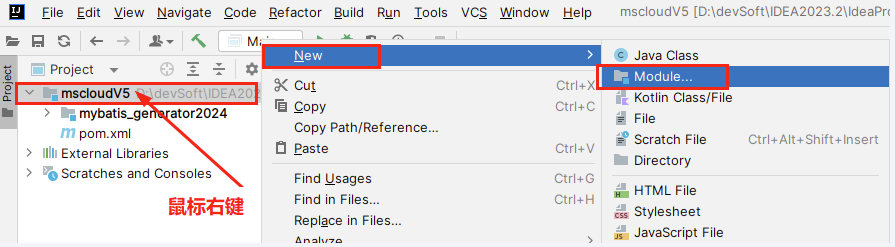

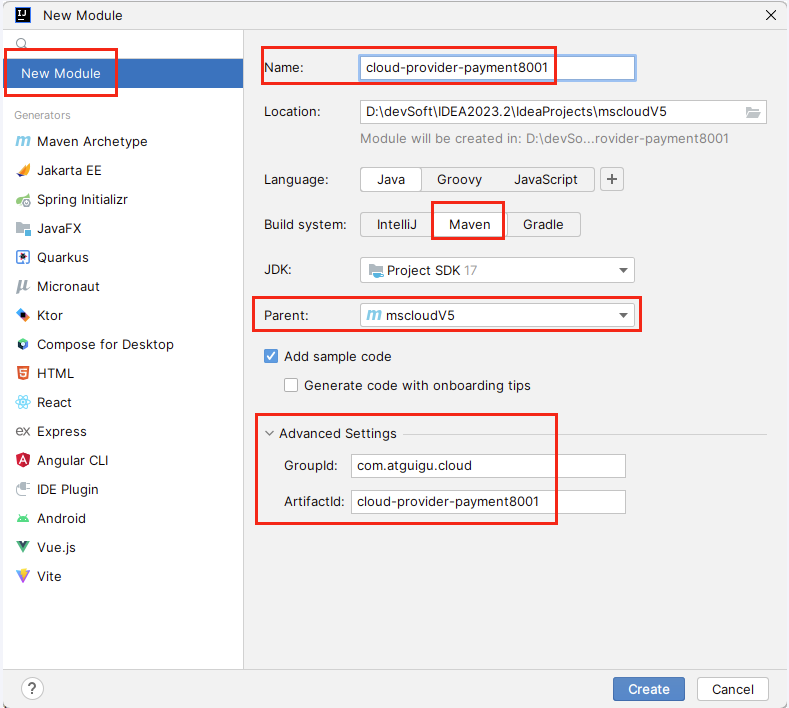

1.建module

建普通Maven模块cloud-provider-payment8001

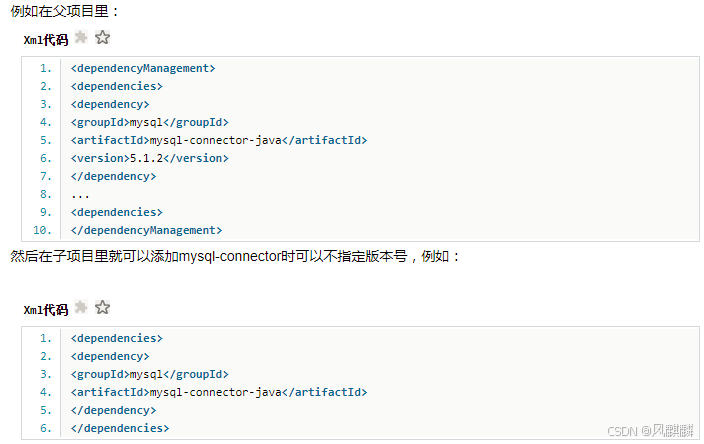

创建完成后请回到父工程查看pom文件变化

<modules><module>mybatis_generator2024</module><module>cloud-provider-payment8001</module>
</modules>

2.改POM

通过dependencies 标签，将启动类使用的依赖包从父类引入子模块

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.atguigu.cloud</groupId><artifactId>mscloudV5</artifactId><version>1.0-SNAPSHOT</version></parent><artifactId>cloud-provider-payment8001</artifactId><properties><maven.compiler.source>17</maven.compiler.source><maven.compiler.target>17</maven.compiler.target><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding></properties><dependencies><!--SpringBoot通用依赖模块--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency><!--SpringBoot集成druid连接池--><dependency><groupId>com.alibaba</groupId><artifactId>druid-spring-boot-starter</artifactId></dependency><!-- Swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html --><dependency><groupId>org.springdoc</groupId><artifactId>springdoc-openapi-starter-webmvc-ui</artifactId></dependency><!--mybatis和springboot整合--><dependency><groupId>org.mybatis.spring.boot</groupId><artifactId>mybatis-spring-boot-starter</artifactId></dependency><!--Mysql数据库驱动8 --><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><!--persistence--><dependency><groupId>javax.persistence</groupId><artifactId>persistence-api</artifactId></dependency><!--通用Mapper4--><dependency><groupId>tk.mybatis</groupId><artifactId>mapper</artifactId></dependency><!--hutool--><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId></dependency><!-- fastjson2 --><dependency><groupId>com.alibaba.fastjson2</groupId><artifactId>fastjson2</artifactId></dependency><!--lombok--><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><version>1.18.28</version><scope>provided</scope></dependency><!--test--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

3.写YML

application.yml

server:port: 8001# ==========applicationName + druid-mysql8 driver===================
spring:application:name: cloud-payment-servicedatasource:type: com.alibaba.druid.pool.DruidDataSourcedriver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=trueusername: rootpassword: 123456# ========================mybatis===================
mybatis:mapper-locations: classpath:mapper/*.xmltype-aliases-package: com.atguigu.cloud.entitiesconfiguration:map-underscore-to-camel-case: true

4.主启动(修改Main类名Main8001)

package com.atguigu.cloud;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import tk.mybatis.spring.annotation.MapperScan;@SpringBootApplication
@MapperScan("com.atguigu.cloud.mapper") //import tk.mybatis.spring.annotation.MapperScan;
public class Main8001
{public static void main(String[] args){SpringApplication.run(Main8001.class,args);}
}

5.业务类

5.1 将之前一键生成的代码直接拷贝进8001模块

5.2 entities

主实体Pay

package com.atguigu.cloud.entities;import java.math.BigDecimal;
import java.util.Date;
import javax.persistence.*;/*** 表名：t_pay* 表注释：支付交易表
*/
@Table(name = "t_pay")
public class Pay {@Id@GeneratedValue(generator = "JDBC")private Integer id;/*** 支付流水号*/@Column(name = "pay_no")private String payNo;/*** 订单流水号*/@Column(name = "order_no")private String orderNo;/*** 用户账号ID*/@Column(name = "user_id")private Integer userId;/*** 交易金额*/private BigDecimal amount;/*** 删除标志，默认0不删除，1删除*/private Byte deleted;/*** 创建时间*/@Column(name = "create_time")private Date createTime;/*** 更新时间*/@Column(name = "update_time")private Date updateTime;/*** @return id*/public Integer getId() {return id;}/*** @param id*/public void setId(Integer id) {this.id = id;}/*** 获取支付流水号** @return payNo - 支付流水号*/public String getPayNo() {return payNo;}/*** 设置支付流水号** @param payNo 支付流水号*/public void setPayNo(String payNo) {this.payNo = payNo;}/*** 获取订单流水号** @return orderNo - 订单流水号*/public String getOrderNo() {return orderNo;}/*** 设置订单流水号** @param orderNo 订单流水号*/public void setOrderNo(String orderNo) {this.orderNo = orderNo;}/*** 获取用户账号ID** @return userId - 用户账号ID*/public Integer getUserId() {return userId;}/*** 设置用户账号ID** @param userId 用户账号ID*/public void setUserId(Integer userId) {this.userId = userId;}/*** 获取交易金额** @return amount - 交易金额*/public BigDecimal getAmount() {return amount;}/*** 设置交易金额** @param amount 交易金额*/public void setAmount(BigDecimal amount) {this.amount = amount;}/*** 获取删除标志，默认0不删除，1删除** @return deleted - 删除标志，默认0不删除，1删除*/public Byte getDeleted() {return deleted;}/*** 设置删除标志，默认0不删除，1删除** @param deleted 删除标志，默认0不删除，1删除*/public void setDeleted(Byte deleted) {this.deleted = deleted;}/*** 获取创建时间** @return createTime - 创建时间*/public Date getCreateTime() {return createTime;}/*** 设置创建时间** @param createTime 创建时间*/public void setCreateTime(Date createTime) {this.createTime = createTime;}/*** 获取更新时间** @return updateTime - 更新时间*/public Date getUpdateTime() {return updateTime;}/*** 设置更新时间** @param updateTime 更新时间*/public void setUpdateTime(Date updateTime) {this.updateTime = updateTime;}
}

传递数值PayDTO

package com.atguigu.cloud.entities;import io.swagger.v3.oas.annotations.media.Schema;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;import java.io.Serializable;
import java.math.BigDecimal;@Data
@AllArgsConstructor
@NoArgsConstructor
public class PayDTO implements Serializable
{private Integer id;//支付流水号private String payNo;//订单流水号private String orderNo;//用户账号IDprivate Integer userId;//交易金额private BigDecimal amount;
}

5.3 mapper

Mapper接口PayMapper

package com.atguigu.cloud.mapper;import com.atguigu.cloud.entities.Pay;
import tk.mybatis.mapper.common.Mapper;public interface PayMapper extends Mapper<Pay> {
}

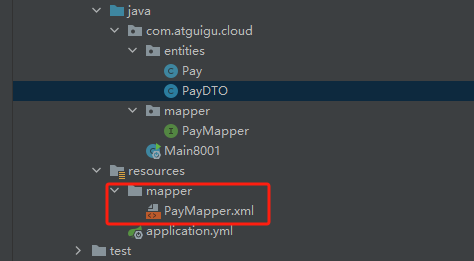

映射文件PayMapper.xml

src\main\resources路径下，新建文件夹mapper

拷贝PayMapper.xml进上一步的mapper文件夹

PayMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.cloud.mapper.PayMapper"><resultMap id="BaseResultMap" type="com.atguigu.cloud.entities.Pay"><!--WARNING - @mbg.generated--><id column="id" jdbcType="INTEGER" property="id" /><result column="pay_no" jdbcType="VARCHAR" property="payNo" /><result column="order_no" jdbcType="VARCHAR" property="orderNo" /><result column="user_id" jdbcType="INTEGER" property="userId" /><result column="amount" jdbcType="DECIMAL" property="amount" /><result column="deleted" jdbcType="TINYINT" property="deleted" /><result column="create_time" jdbcType="TIMESTAMP" property="createTime" /><result column="update_time" jdbcType="TIMESTAMP" property="updateTime" /></resultMap>
</mapper>

5.4 service

服务接口PayService

package com.atguigu.cloud.service;import com.atguigu.cloud.entities.Pay;import java.util.List;public interface PayService
{public int add(Pay pay);public int delete(Integer id);public int update(Pay pay);public Pay   getById(Integer id);public List<Pay> getAll();
}

实现类PayServicelmpl

package com.atguigu.cloud.service.impl;import com.atguigu.cloud.entities.Pay;
import com.atguigu.cloud.mapper.PayMapper;
import com.atguigu.cloud.service.PayService;
import jakarta.annotation.Resource;
import org.springframework.stereotype.Service;import java.util.List;@Service
public class PayServiceImpl implements PayService{@ResourcePayMapper payMapper;@Overridepublic int add(Pay pay){return payMapper.insertSelective(pay);}@Overridepublic int delete(Integer id){return payMapper.deleteByPrimaryKey(id);}@Overridepublic int update(Pay pay){return payMapper.updateByPrimaryKeySelective(pay);}@Overridepublic Pay getById(Integer id){return payMapper.selectByPrimaryKey(id);}@Overridepublic List<Pay> getAll(){return payMapper.selectAll();}
}

5.5 controller

package com.atguigu.cloud.controller;import com.atguigu.cloud.entities.Pay;
import com.atguigu.cloud.entities.PayDTO;
import com.atguigu.cloud.service.PayService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.annotation.Resource;
import org.springframework.beans.BeanUtils;
import org.springframework.web.bind.annotation.*;@RestController
public class PayController{@Resource PayService payService;@PostMapping(value = "/pay/add")public String addPay(@RequestBody Pay pay){System.out.println(pay.toString());int i = payService.add(pay);return "成功插入记录，返回值："+i;}@DeleteMapping(value = "/pay/del/{id}")public Integer deletePay(@PathVariable("id") Integer id) {return payService.delete(id);}@PutMapping(value = "/pay/update")public String updatePay(@RequestBody PayDTO payDTO){Pay pay = new Pay();BeanUtils.copyProperties(payDTO, pay);int i = payService.update(pay);return "成功修改记录，返回值："+i;}@GetMapping(value = "/pay/get/{id}")public Pay getById(@PathVariable("id") Integer id){return payService.getById(id);}//全部查询getall作为家庭作业
}

代码测试

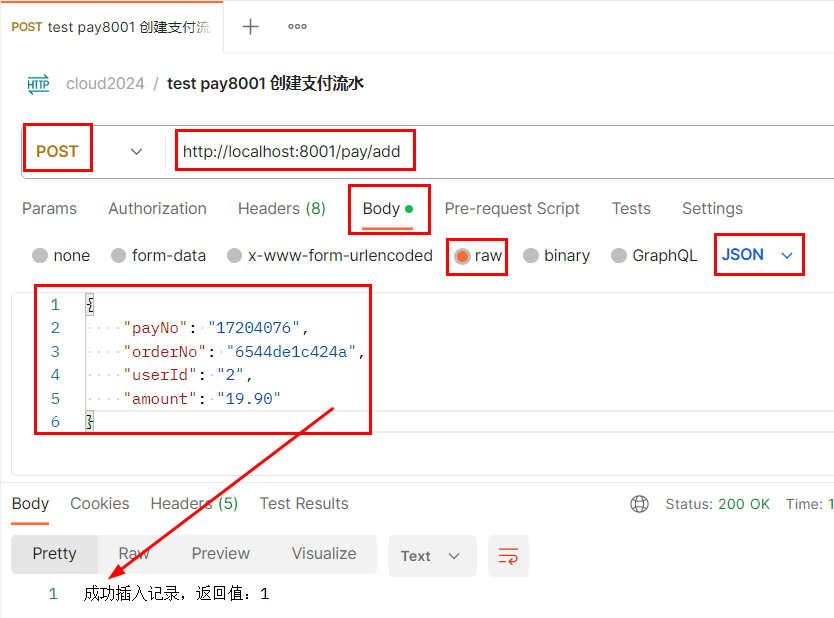

PostMan

add

{"payNo": "17204076","orderNo": "6544de1c424a","userId": "2","amount": "19.90"
}

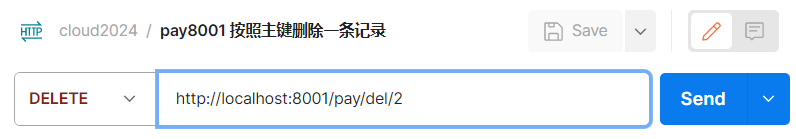

delete

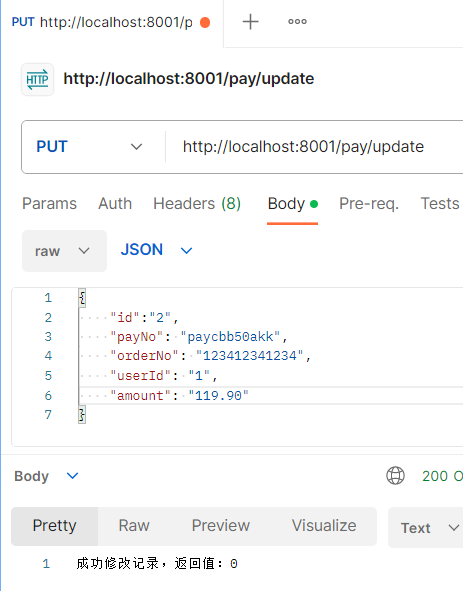

update

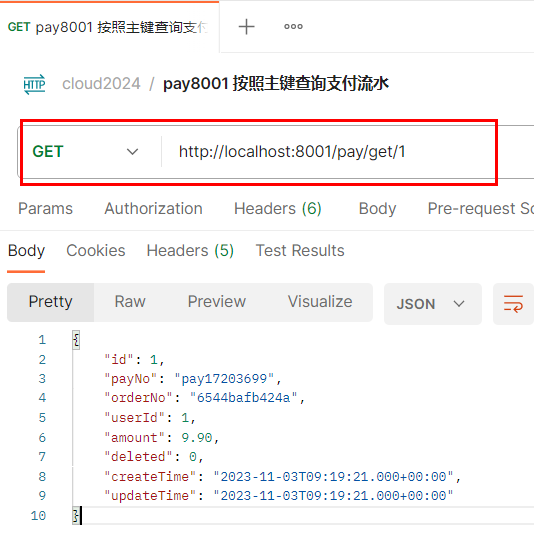

select

Swagger3

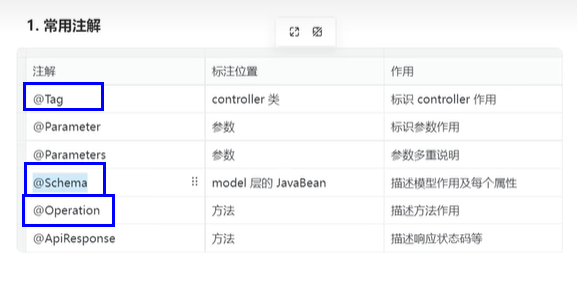

常用注解

1. 注解列表

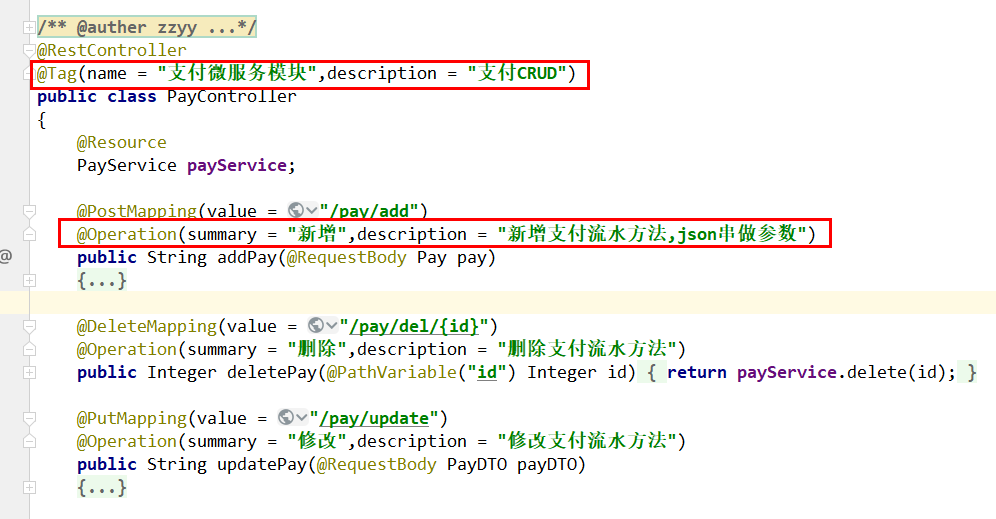

2. Controller

@Tag

修改PayController

package com.atguigu.cloud.controller;import com.atguigu.cloud.entities.Pay;
import com.atguigu.cloud.entities.PayDTO;
import com.atguigu.cloud.service.PayService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.annotation.Resource;
import org.springframework.beans.BeanUtils;
import org.springframework.web.bind.annotation.*;@RestController
@Tag(name = "支付微服务模块",description = "支付CRUD")
public class PayController
{@ResourcePayService payService;@PostMapping(value = "/pay/add")@Operation(summary = "新增",description = "新增支付流水方法,json串做参数")public String addPay(@RequestBody Pay pay){System.out.println(pay.toString());int i = payService.add(pay);return "成功插入记录，返回值："+i;}@DeleteMapping(value = "/pay/del/{id}")@Operation(summary = "删除",description = "删除支付流水方法")public Integer deletePay(@PathVariable("id") Integer id) {return payService.delete(id);}@PutMapping(value = "/pay/update")@Operation(summary = "修改",description = "修改支付流水方法")public String updatePay(@RequestBody PayDTO payDTO){Pay pay = new Pay();BeanUtils.copyProperties(payDTO, pay);int i = payService.update(pay);return "成功修改记录，返回值："+i;}@GetMapping(value = "/pay/get/{id}")@Operation(summary = "按照ID查流水",description = "查询支付流水方法")public Pay getById(@PathVariable("id") Integer id){return payService.getById(id);}//全部查询getall作为家庭作业
}

3. 方法

@Operation

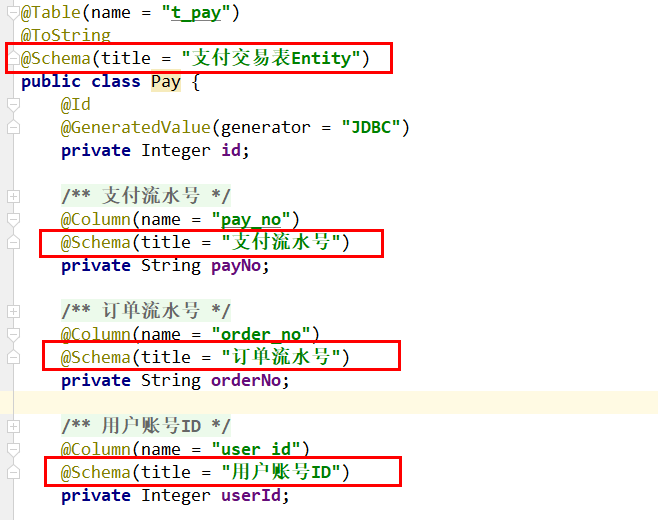

4.entity或者DTO

@Schema

含分组迭代的Config配置类

Swagger3Config.java

package com.atguigu.cloud.config;import io.swagger.v3.oas.models.ExternalDocumentation;
import io.swagger.v3.oas.models.OpenAPI;
import io.swagger.v3.oas.models.info.Info;
import org.springdoc.core.models.GroupedOpenApi;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;@Configuration
public class Swagger3Config
{@Beanpublic GroupedOpenApi PayApi(){return GroupedOpenApi.builder().group("支付微服务模块").pathsToMatch("/pay/**").build();}@Beanpublic GroupedOpenApi OtherApi(){return GroupedOpenApi.builder().group("其它微服务模块").pathsToMatch("/other/**", "/others").build();}/*@Beanpublic GroupedOpenApi CustomerApi(){return GroupedOpenApi.builder().group("客户微服务模块").pathsToMatch("/customer/**", "/customers").build();}*/@Beanpublic OpenAPI docsOpenApi(){return new OpenAPI().info(new Info().title("cloud2024").description("通用设计rest").version("v1.0")).externalDocs(new ExternalDocumentation().description("www.atguigu.com").url("https://yiyan.baidu.com/"));}
}

调用方式

http://localhost:8001/swagger-ui/index.html

测试接口通过try it out 进行测试

工程代码优化

解决:时间格式问题

解决:统一返回值

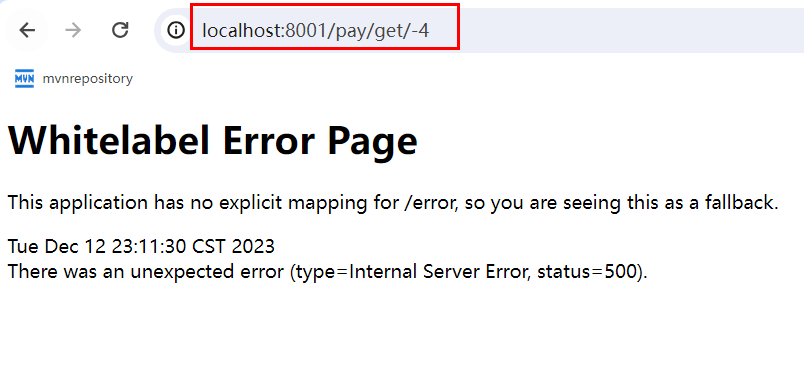

解决:全局异常接入返回的标准格式

...

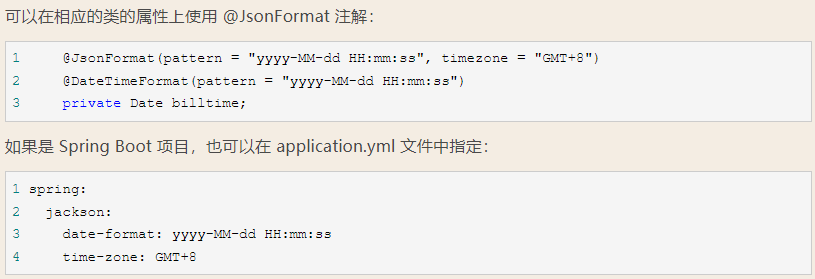

解决:时间格式问题

/*** 创建时间*/
@Column(name = "create_time")
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date createTime;/*** 更新时间*/
@Column(name = "update_time")
@JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
private Date updateTime;

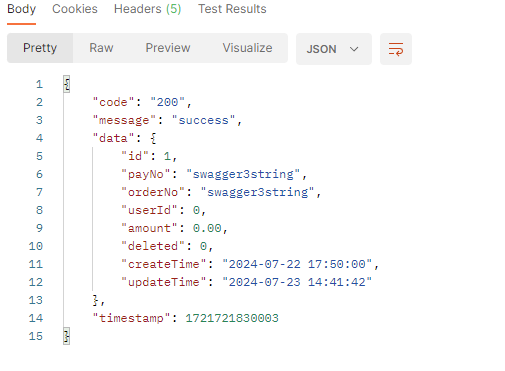

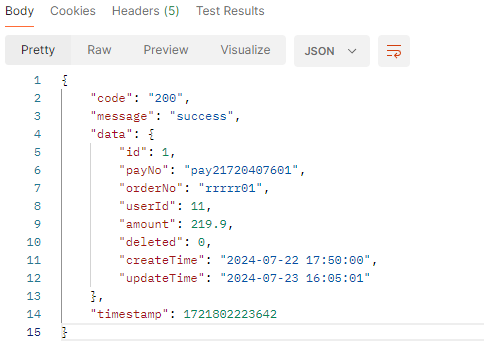

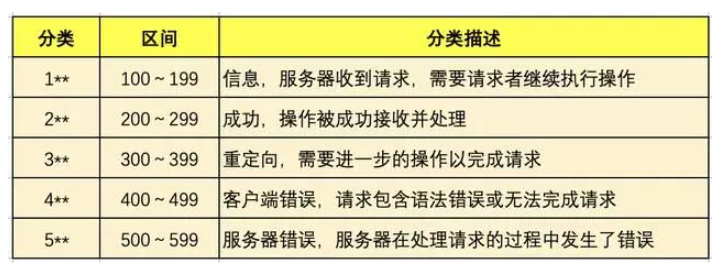

解决:统一返回值

思路

步骤

1.新建枚举类ReturnCodeEnum

package com.atguigu.cloud.resp;import lombok.Getter;import java.util.Arrays;@Getter
public enum ReturnCodeEnum {//1.举值/**操作失败**/RC999("999","操作XXX失败"),/**操作成功**/RC200("200","success"),/**服务降级**/RC201("201","服务开启降级保护,请稍后再试!"),/**热点参数限流**/RC202("202","热点参数限流,请稍后再试!"),/**系统规则不满足**/RC203("203","系统规则不满足要求,请稍后再试!"),/**授权规则不通过**/RC204("204","授权规则不通过,请稍后再试!"),/**access_denied**/RC403("403","无访问权限,请联系管理员授予权限"),RC404("404","404页面找不到的异常"),/**服务异常**/RC500("500","系统异常，请稍后重试"),RC375("375","数学运算异常，请稍后重试"),INVALID_TOKEN("2001","访问令牌不合法"),ACCESS_DENIED("2003","没有权限访问该资源"),CLIENT_AUTHENTICATION_FAILED("1001","客户端认证失败"),USERNAME_OR_PASSWORD_ERROR("1002","用户名或密码错误"),BUSINESS_ERROR("1004","业务逻辑异常"),UNSUPPORTED_GRANT_TYPE("1003", "不支持的认证模式");//2.构造/**自定义状态码**/private final String code;/**自定义描述**/private final String message;ReturnCodeEnum(String code, String message) {this.code = code;this.message = message;}//3.遍历//3.1传统   根据输入的code返回相应的ReturnCodeEnum 一组枚举参数public static ReturnCodeEnum getReturnCodeEnuV1(String code){for (ReturnCodeEnum element : ReturnCodeEnum.values()) {if(element.getCode().equalsIgnoreCase(code)){return  element;}}return null;}//3.2 Stream流式计算版public static ReturnCodeEnum getReturnCodeEnuV2(String code){return Arrays.stream(ReturnCodeEnum.values()).filter(x -> x.getCode().equalsIgnoreCase(code)).findFirst().orElse(null);}public static void main(String[] args) {System.out.println(getReturnCodeEnuV1("200"));System.out.println(getReturnCodeEnuV1("200").getCode());System.out.println(getReturnCodeEnuV1("200").getMessage());System.out.println("----------------");System.out.println(getReturnCodeEnuV2("404"));System.out.println(getReturnCodeEnuV2("404").getCode());System.out.println(getReturnCodeEnuV2("404").getMessage());}//枚举编写口诀：1.举值-2.构造-3.遍历
}

package com.atguigu.cloud.resp;import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class ResultData <T>{private String code;/** 结果状态 ,具体状态码参见枚举类ReturnCodeEnum.java*/private String message;private T data;private long timestamp;//接口返回数据的时间public ResultData() {this.timestamp = System.currentTimeMillis();}//接口返回的参数值-成功 successpublic static<T> ResultData<T> success(T data){ResultData resultData= new ResultData();resultData.setCode(ReturnCodeEnum.RC200.getCode());resultData.setMessage(ReturnCodeEnum.RC200.getMessage());resultData.setData(data);return resultData;}//接口返回的参数值-失败 failpublic static<T> ResultData<T> fail(String code,String message){ResultData resultData= new ResultData();resultData.setCode(code);resultData.setMessage(message);resultData.setData(null);return resultData;}
}

package com.atguigu.cloud.controller;import com.atguigu.cloud.entities.Pay;
import com.atguigu.cloud.entities.PayDTO;
import com.atguigu.cloud.resp.ResultData;
import com.atguigu.cloud.service.PayService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.annotation.Resource;
import org.springframework.beans.BeanUtils;
import org.springframework.web.bind.annotation.*;@RestController
@Tag(name = "支付微服务模块",description = "支付CRUD")
public class PayController
{@ResourcePayService payService;@PostMapping(value = "/pay/add")@Operation(summary = "新增",description = "新增支付流水方法,json串做参数")public ResultData<String> addPay(@RequestBody Pay pay){System.out.println(pay.toString());int i = payService.add(pay);return ResultData.success("成功插入记录，返回值："+i);}@DeleteMapping(value = "/pay/del/{id}")@Operation(summary = "删除",description = "删除支付流水方法")public ResultData<Integer> deletePay(@PathVariable("id") Integer id) {int i = payService.delete(id);return ResultData.success(i);}@PutMapping(value = "/pay/update")@Operation(summary = "修改",description = "修改支付流水方法")public ResultData<String> updatePay(@RequestBody PayDTO payDTO){Pay pay = new Pay();BeanUtils.copyProperties(payDTO, pay);int i = payService.update(pay);return ResultData.success("成功修改记录，返回值："+i);}@GetMapping(value = "/pay/get/{id}")@Operation(summary = "按照ID查流水",description = "查询支付流水方法")public ResultData<Pay> getById(@PathVariable("id") Integer id){Pay pay = payService.getById(id);return ResultData.success(pay);}//全部查询getall作为家庭作业
}

package com.atguigu.cloud.exp;import com.atguigu.cloud.resp.ResultData;
import com.atguigu.cloud.resp.ReturnCodeEnum;
import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.annotation.RestControllerAdvice;/*** 全局异常处理*/
@Slf4j
//@Slf4j注解的主要作用包括简化日志记录器的创建、提供不同日志级别的记录方法、自动添加类名和行号信息，以及简化日志配置的切换。
@RestControllerAdvice
// @RestControllerAdvice是 Spring Boot 提供的注解，用于实现全局范围内的异常处理和数据绑定设置。它基于 Spring MVC 的HandlerExceptionResolver和HandlerMethodReturnValueHandler实现，并通过 AOP 和事件机制来拦截和处理异常。这种机制使得全局异常处理和数据绑定可以集中管理，并提供了灵活性和扩展性。
public class GlobalExceptionHandler {@ExceptionHandler({RuntimeException.class})@ResponseStatus(HttpStatus.INTERNAL_SERVER_ERROR)public ResultData<String> exception(Exception e){System.out.println("#### come in GlobalExceptionHandler");log.error("全局异常信息：{}",e.getMessage(),e);return ResultData.fail(ReturnCodeEnum.RC500.getCode(), e.getMessage());}
}

{"code": "500","message": "id不能为负数","data": null,"timestamp": 1721723040483
}

@GetMapping(value = "/pay/error")
public ResultData<Integer> getPayError(){Integer integer = Integer.valueOf(200);try{System.out.println("come in payerror test");int age =100/0;}catch (Exception e){e.printStackTrace();return ResultData.fail(ReturnCodeEnum.RC500.getCode(), e.getMessage());}return ResultData.success(integer);
}

{"code": "500","message": "/ by zero","data": null,"timestamp": 1721723853568
}

package com.atguigu.cloud.controller;import com.atguigu.cloud.entities.Pay;
import com.atguigu.cloud.entities.PayDTO;
import com.atguigu.cloud.resp.ResultData;
import com.atguigu.cloud.resp.ReturnCodeEnum;
import com.atguigu.cloud.service.PayService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import jakarta.annotation.Resource;
import org.springframework.beans.BeanUtils;
import org.springframework.web.bind.annotation.*;@RestController
@Tag(name = "支付微服务模块",description = "支付CRUD")
public class PayController
{@ResourcePayService payService;@PostMapping(value = "/pay/add")@Operation(summary = "新增",description = "新增支付流水方法,json串做参数")public ResultData<String> addPay(@RequestBody Pay pay){System.out.println(pay.toString());int i = payService.add(pay);return ResultData.success("成功插入记录，返回值："+i);}@DeleteMapping(value = "/pay/del/{id}")@Operation(summary = "删除",description = "删除支付流水方法")public ResultData<Integer> deletePay(@PathVariable("id") Integer id) {int i = payService.delete(id);return ResultData.success(i);}@PutMapping(value = "/pay/update")@Operation(summary = "修改",description = "修改支付流水方法")public ResultData<String> updatePay(@RequestBody PayDTO payDTO){Pay pay = new Pay();BeanUtils.copyProperties(payDTO, pay);int i = payService.update(pay);return ResultData.success("成功修改记录，返回值："+i);}@GetMapping(value = "/pay/get/{id}")@Operation(summary = "按照ID查流水",description = "查询支付流水方法")public ResultData<Pay> getById(@PathVariable("id") Integer id){if(id == -4) throw new RuntimeException("id不能为负数");Pay pay = payService.getById(id);return ResultData.success(pay);}//全部查询getall作为家庭作业@RequestMapping(value = "/pay/error",method = RequestMethod.GET)public ResultData<Integer> getPayError(){Integer i = Integer.valueOf(200);try{System.out.println("--------come here");int data = 10/0;}catch (Exception e){e.printStackTrace();return ResultData.fail(ReturnCodeEnum.RC500.getCode(),e.getMessage());}return ResultData.success(i);}
}

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.atguigu.cloud</groupId><artifactId>mscloudV5</artifactId><version>1.0-SNAPSHOT</version></parent><artifactId>cloud-consumer-order80</artifactId><properties><maven.compiler.source>17</maven.compiler.source><maven.compiler.target>17</maven.compiler.target><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding></properties><dependencies><!--web + actuator--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency><!--lombok--><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><!--hutool-all--><dependency><groupId>cn.hutool</groupId><artifactId>hutool-all</artifactId></dependency><!--fastjson2--><dependency><groupId>com.alibaba.fastjson2</groupId><artifactId>fastjson2</artifactId></dependency><!-- swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html --><dependency><groupId>org.springdoc</groupId><artifactId>springdoc-openapi-starter-webmvc-ui</artifactId></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build>
</project>

server:port: 80

package com.atguigu.cloud;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplication
public class Main80
{public static void main(String[] args){SpringApplication.run(Main80.class,args);}
}

package com.atguigu.cloud.entities;import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;import java.io.Serializable;
import java.math.BigDecimal;/*** 一般而言，调用者不应该获悉服务提供者的entity资源并知道表结构关系，所以服务提供方给出的* 接口文档都都应成为DTO*/
@Data
@AllArgsConstructor
@NoArgsConstructor
public class PayDTO implements Serializable
{private Integer id;//支付流水号private String payNo;//订单流水号private String orderNo;//用户账号IDprivate Integer userId;//交易金额private BigDecimal amount;
}
