Ubuntu系统下交叉编译Android的X264库

news 2025/8/31 5:27:45

        本次交叉编译是在Ubuntu20.4上进行的。

一、下载X264源码：

        1、进入官网：Git - VideoLAN Wiki

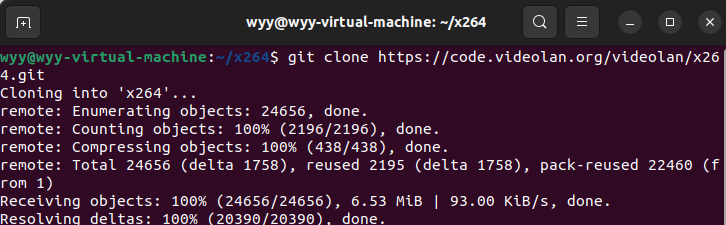

        在命令行中git clone下载源码：

    git clone https://code.videolan.org/videolan/x264.git

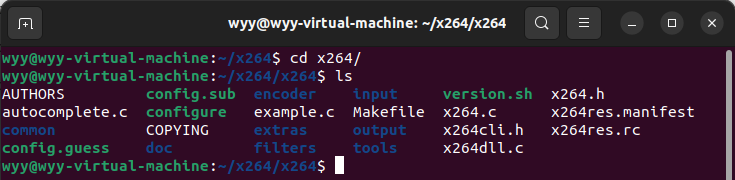

        2、进入x264源码目录：

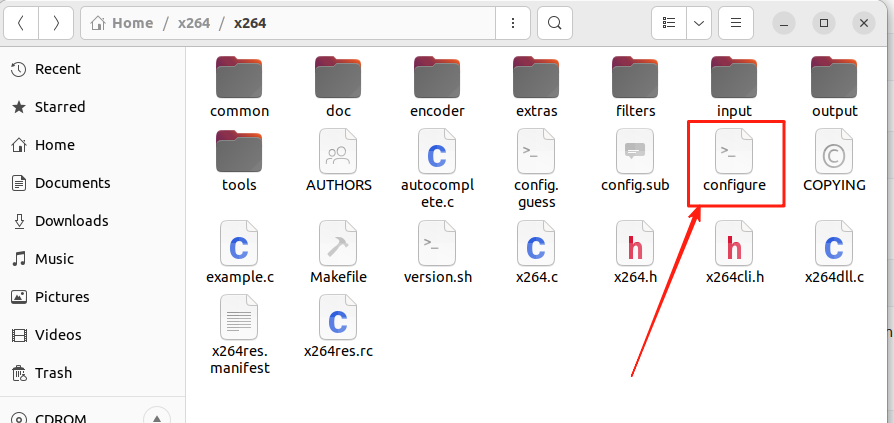

        3、查看x264目录下的configure：

        打开configure后查看帮助文档，在这会有编译相关的设置参数的解析：

        下面是configure参数设置的内容：

Usage: ./configure [options]Help:-h, --help               print this messageStandard options:--prefix=PREFIX          install architecture-independent files in PREFIX[/usr/local]--exec-prefix=EPREFIX    install architecture-dependent files in EPREFIX[PREFIX]--bindir=DIR             install binaries in DIR [EPREFIX/bin]--libdir=DIR             install libs in DIR [EPREFIX/lib]--includedir=DIR         install includes in DIR [PREFIX/include]--extra-asflags=EASFLAGS add EASFLAGS to ASFLAGS--extra-cflags=ECFLAGS   add ECFLAGS to CFLAGS--extra-ldflags=ELDFLAGS add ELDFLAGS to LDFLAGS--extra-rcflags=ERCFLAGS add ERCFLAGS to RCFLAGSConfiguration options:--disable-cli            disable cli--system-libx264         use system libx264 instead of internal--enable-shared          build shared library--enable-static          build static library--disable-bashcompletion disable installation of bash-completion script--enable-bashcompletion  force installation of bash-completion script--bashcompletionsdir=DIR install bash-completion script in DIR [auto]--disable-opencl         disable OpenCL features--disable-gpl            disable GPL-only features--disable-thread         disable multithreaded encoding--disable-win32thread    disable win32threads (windows only)--disable-interlaced     disable interlaced encoding support--bit-depth=BIT_DEPTH    set output bit depth (8, 10, all) [all]--chroma-format=FORMAT   output chroma format (400, 420, 422, 444, all) [all]Advanced options:--disable-asm            disable platform-specific assembly optimizations--enable-lto             enable link-time optimization--enable-debug           add -g--enable-gprof           add -pg--enable-strip           add -s--enable-pic             build position-independent codeCross-compilation:--host=HOST              build programs to run on HOST--cross-prefix=PREFIX    use PREFIX for compilation tools--sysroot=SYSROOT        root of cross-build treeExternal library support:--disable-avs            disable avisynth support--disable-swscale        disable swscale support--disable-lavf           disable libavformat support--disable-ffms           disable ffmpegsource support--disable-gpac           disable gpac support--disable-lsmash         disable lsmash support

二、下载及安装NDK：

        在NDK 下载 NDK 下载  |  Android NDK  |  Android Developers下载Liunx平台的NDK。

         本次交叉编译下载的是android-ndk-r27c-linux.zip版本的。

        下载解压后安装，具体的过程在前面的文章已经做介绍，需要的可详细查看文章：

                Ubuntu系统下交叉编译Android的X265库



三、创建脚本x264_build.sh进行编译：

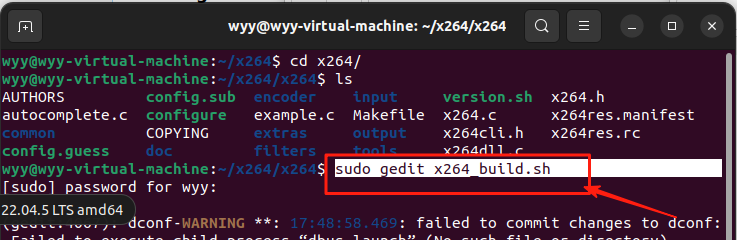

        1、创建x264_build.sh并编辑：

    sudo gedit x264_build.sh



        2、在x264_build.sh加入如下代码：

#!/bin/bash
# 用于android平台NDK为android-ndk-r27c交叉编译X264的脚本# NDK所在目录
export NDK=/home/wyy/Android/android-ndk-r27c
export TOOLCHAIN=$NDK/toolchains/llvm/prebuilt/linux-x86_64
export SYSROOT=$NDK/toolchains/llvm/prebuilt/linux-x86_64/sysrootexport ANDROID_API=24
export AR=$TOOLCHAIN/bin/llvm-arexport LD=$TOOLCHAIN/bin/ld
export RANLIB=$TOOLCHAIN/bin/llvm-ranlib
export STRIP=$TOOLCHAIN/bin/llvm-strip
export NM=$TOOLCHAIN/bin/llvm-nm
#export STRINGS=$TOOLCHAIN/llvm-stringsbuild_armv7(){echo "-------- > Start install build_armv7"export CC=$TOOLCHAIN/bin/armv7a-linux-androideabi$ANDROID_API-clangexport CXX=$TOOLCHAIN/bin/armv7a-linux-androideabi$ANDROID_API-clang++#编译选项EXTRA_CFLAGS="-march=armv7-a -D__ANDROID__"PREFIX=`pwd`/android/arm-v7a# 配置和编译./configure \--host=armv7a-linux-androideabi \--sysroot=${SYSROOT} \--prefix=${PREFIX} \--enable-shared \--enable-static \--disable-asm \--chroma-format=all \--enable-pic \--enable-strip \--disable-cli \--disable-win32thread \--disable-avs \--disable-swscale \--disable-lavf \--disable-ffms \--disable-gpac \--disable-lsmash \--extra-cflags="-Os -fpic ${EXTRA_CFLAGS}" \--extra-ldflags="" \make cleanmake -j4make install}build_armv8(){echo "-------- > Start install build_armv8"export CC=$TOOLCHAIN/bin/aarch64-linux-android$ANDROID_API-clangexport CXX=$TOOLCHAIN/bin/aarch64-linux-android$ANDROID_API-clang++#编译选项
EXTRA_CFLAGS="-march=armv8-a -D__ANDROID__"PREFIX=`pwd`/android/arm64-v8a# 配置和编译./configure \--host=aarch64-linux-android \--sysroot=${SYSROOT} \--prefix=${PREFIX} \--enable-shared \--enable-static \--disable-asm \--chroma-format=all \--enable-pic \--enable-strip \--disable-cli \--disable-win32thread \--disable-avs \--disable-swscale \--disable-lavf \--disable-ffms \--disable-gpac \--disable-lsmash \--extra-cflags="-Os -fpic ${EXTRA_CFLAGS}" \--extra-ldflags="" \make cleanmake -j4make install}build_x86(){echo "-------- > Start install build_x86"export CC=$TOOLCHAIN/bin/i686-linux-android$ANDROID_API-clangexport CXX=$TOOLCHAIN/bin/i686-linux-android$ANDROID_API-clang++#编译选项EXTRA_CFLAGS="-D__ANDROID__"PREFIX=`pwd`/android/x86# 配置和编译./configure \--host=i686-linux-android \--sysroot=${SYSROOT} \--prefix=${PREFIX} \--enable-shared \--enable-static \--chroma-format=all \--disable-asm \--enable-pic \--enable-strip \--disable-cli \--disable-win32thread \--disable-avs \--disable-swscale \--disable-lavf \--disable-ffms \--disable-gpac \--disable-lsmash \--extra-cflags="-Os -fpic ${EXTRA_CFLAGS}" \--extra-ldflags="" \make cleanmake -j4make install}build_x86_64(){echo "-------- > Start install build_x86_64"export CC=$TOOLCHAIN/bin/x86_64-linux-android$ANDROID_API-clangexport CXX=$TOOLCHAIN/bin/x86_64-linux-android$ANDROID_API-clang++#编译选项EXTRA_CFLAGS="-D__ANDROID__"PREFIX=`pwd`/android/x86_64# 配置和编译./configure \--host=x86_64-linux-android \--sysroot=${SYSROOT} \--prefix=${PREFIX} \--enable-shared \--enable-static \--disable-asm \--chroma-format=all \--enable-pic \--enable-strip \--disable-cli \--disable-win32thread \--disable-avs \--disable-swscale \--disable-lavf \--disable-ffms \--disable-gpac \--disable-lsmash \--extra-cflags="-Os -fpic ${EXTRA_CFLAGS}" \--extra-ldflags="" \make cleanmake -j4make install}build_armv7
build_armv8
build_x86
build_x86_64

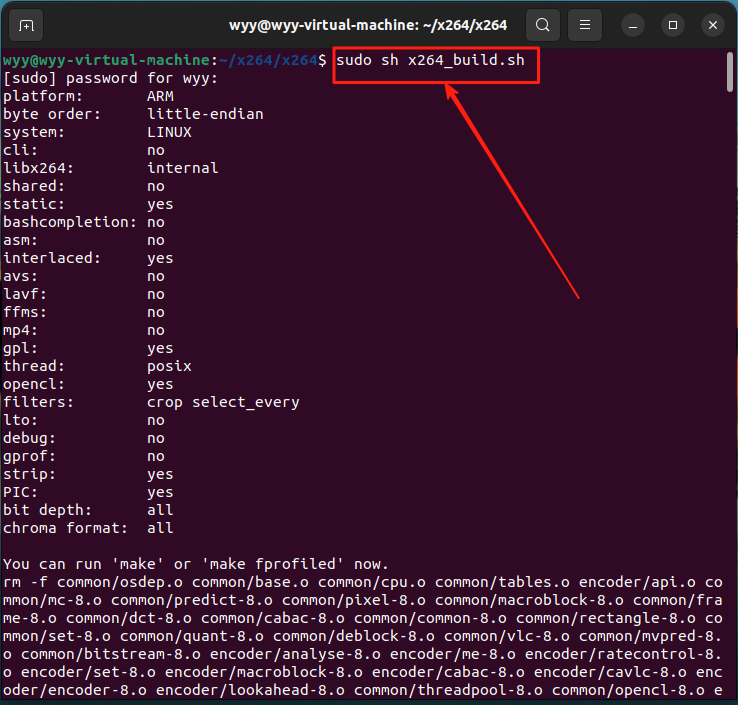

        3、在X264的源码目录下，开启x264_build.sh的编译：

    sudo sh x264_build.sh

四、NDK交叉编译X264的结果：

        交叉编译的资源地址在：https://download.csdn.net/download/wangyongyao1989/91731308

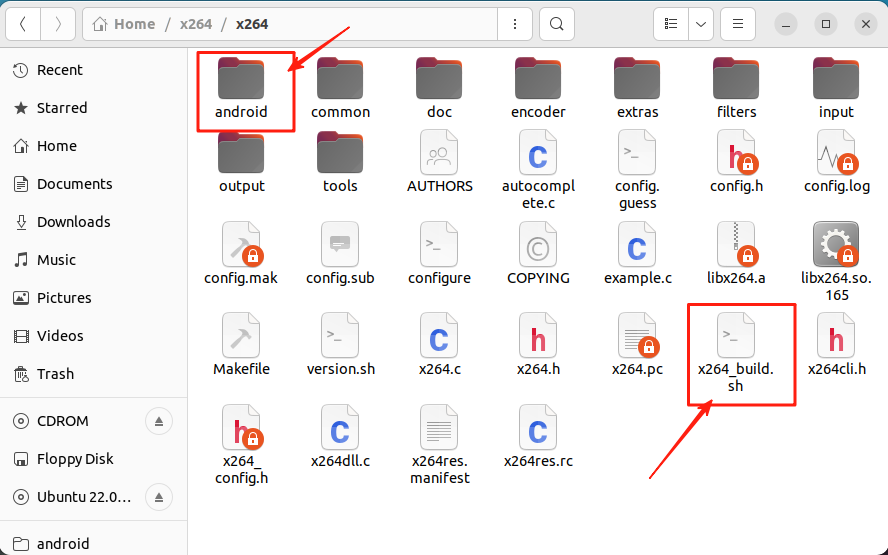

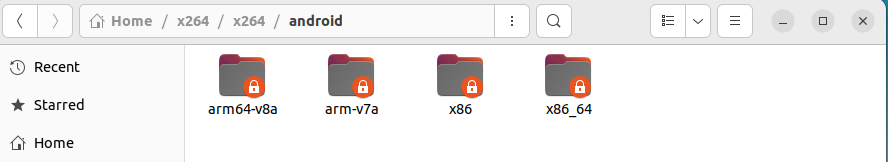

        1、在输入“PREFIX=`pwd`/android/”的目录下生成如下的结果：

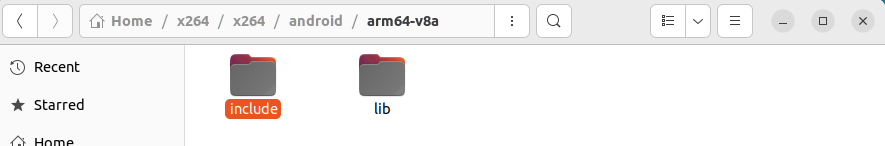

        2、在每个CPU架构的文件夹下，又有“include”和“lib”：

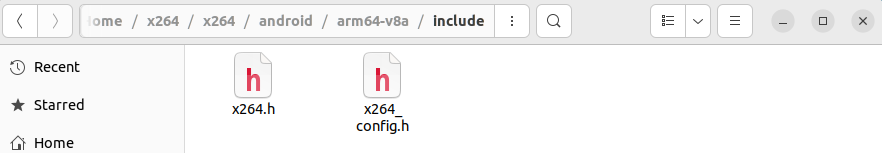

        3、“include”文件夹下存放了两个头文件：

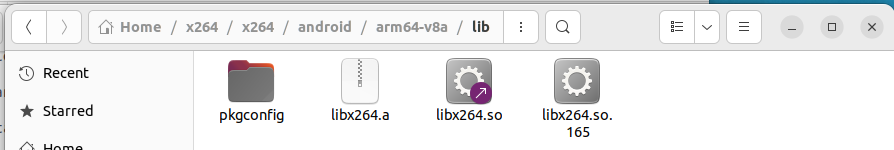

        4、“lib”文件夹下存放了编译出来的lib库：

        5、“pkgconfig”

        pkg-config 文件是一个元数据文件，它的核心用途是告诉编译器和链接器如何正确地编译和链接依赖于 x264库的程序。它解决了在编译软件时指定头文件路径和库文件路径的麻烦。

        pkgconfig工具自动完成的工作：

  • 查找文件：它会根据系统环境，自动找到名为x264.pc的文件。

  • 解析信息：从x264.pc文件中提取出必要的编译和链接信息。

  • 输出参数：

               --cflags 选项会输出类似于 -I/usr/local/include 这样的参数。

               --libs 选项会输出类似于 -L/usr/local/lib -lx264 这样的参数。

        6、坑：

        虽然编译出了上述的编译结果，但后面把libx264加入ffmpeg交叉编译时。会有一个巨坑，就是libx264动态库的链接是链接到“libx264.so.165”而不是链接到“libx264.so”。

在android的动态库的链接时会报错“dlopen failed: library "libx264.so.165" not found”

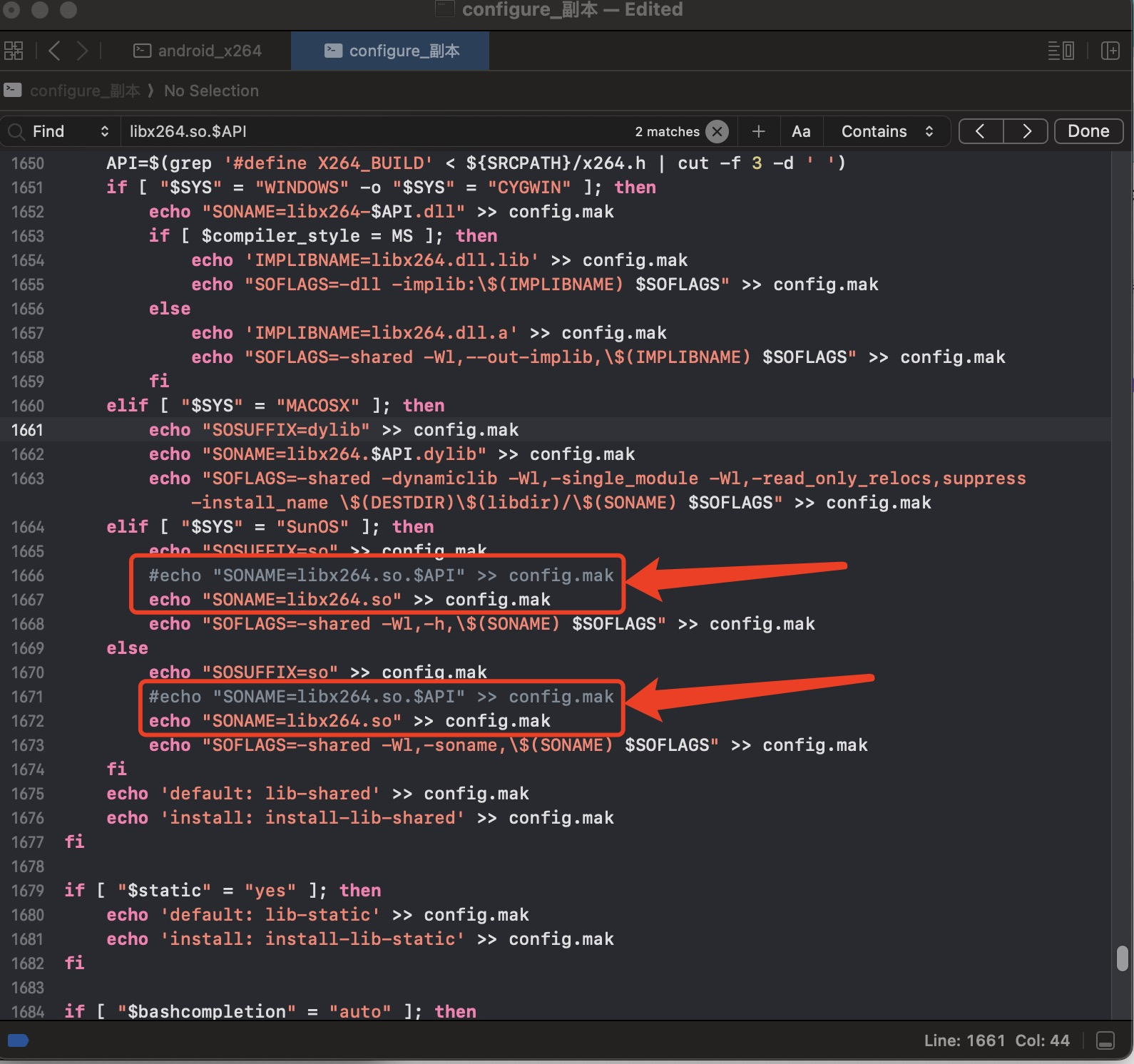

        替换后在重新编译，完成的结果就不包含“libx264.so.165”。

五、在编译FFmpeg过程中加入第三方X264库编译：

        此次编译是基于文章：Android Liunx ffmpeg交叉编译_交叉编译ffmpeg-CSDN博客 的android_build1.sh基础上进行改造编译的，感兴趣的可以翻回去回顾一下具体内容。

        1、准备好FFmpeg的源码：

        在文章Android Liunx ffmpeg交叉编译_交叉编译ffmpeg-CSDN博客中已经详细的描述了，FFmpeg的下载及配置的全部过程。

        2、准备编译好的x264库：

        前面内容也介绍了，x264下载编译的过程。需要的是NDK交叉编译X264库的结果。

        3、编写编译脚本：

        启动x264编码器的设置：

        在FFmpeg的configure设置打开“--enable-libx264”及“--enable-encoder=libx264”启动x264编码器的设置。

#libx264CONFIGURATION="$CONFIGURATION --enable-libx264"CONFIGURATION="$CONFIGURATION --enable-encoder=libx264"

        指定X264的pkgconfig的路径：

        这里指定路径时，根据不同平台设置对应的路径，如是arm64-v8a则是例如下：

    export PKG_CONFIG_PATH=/home/wyy/x264/x264/android/arm64-v8a/lib/pkgconfig

        同时也要在configure的设置“--pkg-config”设定库的类型，如下：

    ./configure --pkg-config="pkg-config --static"

        指定X264的include和lib路径：

        找到include和lib路径，用于第三方库的设定，如：

    #编译x264 arm64-v8a结果的目录地址X264_INCLUDE="/home/wyy/x264/x264/android/arm64-v8a/include"X264_LIB="/home/wyy/x264/x264/android/arm64-v8a/lib"EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDE"EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIB"./configure --extra-cflags="$EXTRA_CFLAGS" --extra-ldflags="$EXTRA_LDFLAGS"

        android_x264_build.sh编译脚本：

        下面是脚本的全部代码：



#!/bin/bash
# 用于编译android平台的脚本# NDK所在目录
NDK_PATH=/home/wyy/Android/android-ndk-r27c
# 主机平台
HOST_PLATFORM=linux-x86_64
# minSdkVersion
API=24  # 提高到 API 24 以避免 fseeko64/ftello64 问题TOOLCHAINS="$NDK_PATH/toolchains/llvm/prebuilt/$HOST_PLATFORM"
SYSROOT="$NDK_PATH/toolchains/llvm/prebuilt/$HOST_PLATFORM/sysroot"
# 生成 -fpic 与位置无关的代码
CFLAG="-D__ANDROID_API__=$API -Os -fPIC -DANDROID -D_FILE_OFFSET_BITS=64"
LDFLAG="-lc -lm -ldl -llog "# 输出目录
PREFIX=$(pwd)/android
# 日志输出目录
CONFIG_LOG_PATH=${PREFIX}/log
# 公共配置
COMMON_OPTIONS=
# 交叉配置
CONFIGURATION=# 创建必要的目录
mkdir -p ${PREFIX} ${CONFIG_LOG_PATH}build() {APP_ABI=$1echo "======== > Start build $APP_ABI"# 重置变量EXTRA_CFLAGS="$CFLAG"EXTRA_LDFLAGS="$LDFLAG"EXTRA_OPTIONS=""PKG_CONFIG_AVAILABLE=falsecase ${APP_ABI} inarmeabi-v7a)ARCH="arm"CPU="armv7-a"MARCH="armv7-a"TARGET=armv7a-linux-androideabiCC="$TOOLCHAINS/bin/$TARGET$API-clang"CXX="$TOOLCHAINS/bin/$TARGET$API-clang++"LD="$TOOLCHAINS/bin/$TARGET$API-clang"# 交叉编译工具前缀CROSS_PREFIX="$TOOLCHAINS/bin/arm-linux-androideabi-"# 设置pkg-config路径export PKG_CONFIG_PATH="/home/wyy/x264/x264/android/arm-v7a/lib/pkgconfig"echo "-------- > PKG_CONFIG_PATH=$PKG_CONFIG_PATH"# 指定X264的库X264_INCLUDE="/home/wyy/x264/x264/android/arm-v7a/include"X264_LIB="/home/wyy/x264/x264/android/arm-v7a/lib"echo "-------- > X264_INCLUDE=$X264_INCLUDE"echo "-------- > X264_LIB=$X264_LIB"# 检查x264库是否存在if [ ! -f "$X264_LIB/libx264.so" ]; thenecho "错误: 找不到x264共享库文件在 $X264_LIB"echo "请先编译x264库或检查路径是否正确"exit 1fi# 检查x264.pc文件是否存在local x264_pc_file="$X264_LIB/pkgconfig/x264.pc"if [ -f "$x264_pc_file" ]; thenecho "-------- > x264.pc found"# 尝试使用pkg-config获取正确的编译标志if pkg-config --exists x264; thenX264_CFLAGS=$(pkg-config --cflags x264)X264_LIBS=$(pkg-config --libs x264)echo "-------- > pkg-config found x264 successfully"echo "-------- > x264 CFLAGS: $X264_CFLAGS"echo "-------- > x264 LIBS: $X264_LIBS"EXTRA_CFLAGS="$EXTRA_CFLAGS $X264_CFLAGS"EXTRA_LDFLAGS="$EXTRA_LDFLAGS $X264_LIBS"PKG_CONFIG_AVAILABLE=trueelseecho "-------- > WARNING: pkg-config cannot find x264, using manual flags"EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDE"EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIB -lx264"fielseecho "-------- > WARNING: x264.pc not found, using manual flags"EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDE"EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIB -lx264"fi# 添加架构特定标志EXTRA_CFLAGS="$EXTRA_CFLAGS -mfloat-abi=softfp -mfpu=neon -marm -march=$MARCH"EXTRA_OPTIONS="--enable-neon --cpu=$CPU";;arm64-v8a)ARCH="aarch64"CPU="armv8-a"TARGET=aarch64-linux-androidCC="$TOOLCHAINS/bin/$TARGET$API-clang"CXX="$TOOLCHAINS/bin/$TARGET$API-clang++"LD="$TOOLCHAINS/bin/$TARGET$API-clang"CROSS_PREFIX="$TOOLCHAINS/bin/aarch64-linux-android-"# 设置pkg-config路径export PKG_CONFIG_PATH="/home/wyy/x264/x264/android/arm64-v8a/lib/pkgconfig"# 指定X264的库X264_INCLUDE="/home/wyy/x264/x264/android/arm64-v8a/include"X264_LIB="/home/wyy/x264/x264/android/arm64-v8a/lib"# 检查x264库是否存在if [ ! -f "$X264_LIB/libx264.so" ]; thenecho "错误: 找不到x264共享库文件在 $X264_LIB"exit 1fi# 手动添加x264标志EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDE"EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIB -lx264";;x86)ARCH="x86"CPU="i686"TARGET=i686-linux-androidCC="$TOOLCHAINS/bin/$TARGET$API-clang"CXX="$TOOLCHAINS/bin/$TARGET$API-clang++"LD="$TOOLCHAINS/bin/$TARGET$API-clang"CROSS_PREFIX="$TOOLCHAINS/bin/i686-linux-android-"# 禁用不支持的选项EXTRA_OPTIONS="--disable-neon --disable-asm";;x86_64)ARCH="x86_64"CPU="x86_64"TARGET=x86_64-linux-androidCC="$TOOLCHAINS/bin/$TARGET$API-clang"CXX="$TOOLCHAINS/bin/$TARGET$API-clang++"LD="$TOOLCHAINS/bin/$TARGET$API-clang"CROSS_PREFIX="$TOOLCHAINS/bin/x86_64-linux-android-"# 禁用不支持的选项EXTRA_OPTIONS="--disable-neon";;esacecho "-------- > Start clean workspace"make clean > /dev/null 2>&1echo "-------- > Start build configuration"CONFIGURATION="$COMMON_OPTIONS"CONFIGURATION="$CONFIGURATION --logfile=$CONFIG_LOG_PATH/config_$APP_ABI.log"CONFIGURATION="$CONFIGURATION --prefix=$PREFIX"CONFIGURATION="$CONFIGURATION --libdir=$PREFIX/libs/$APP_ABI"CONFIGURATION="$CONFIGURATION --incdir=$PREFIX/includes/$APP_ABI"CONFIGURATION="$CONFIGURATION --pkgconfigdir=$PREFIX/pkgconfig/$APP_ABI"CONFIGURATION="$CONFIGURATION --cross-prefix=$CROSS_PREFIX"CONFIGURATION="$CONFIGURATION --arch=$ARCH"CONFIGURATION="$CONFIGURATION --sysroot=$SYSROOT"CONFIGURATION="$CONFIGURATION --cc=$CC"CONFIGURATION="$CONFIGURATION --cxx=$CXX"CONFIGURATION="$CONFIGURATION --ld=$LD"#libx264CONFIGURATION="$CONFIGURATION --enable-libx264"CONFIGURATION="$CONFIGURATION --enable-encoder=libx264"# nm 和 stripCONFIGURATION="$CONFIGURATION --nm=$TOOLCHAINS/bin/llvm-nm"CONFIGURATION="$CONFIGURATION --strip=$TOOLCHAINS/bin/llvm-strip"CONFIGURATION="$CONFIGURATION $EXTRA_OPTIONS"echo "-------- > Start config makefile with $CONFIGURATION"echo "-------- > Extra CFLAGS: $EXTRA_CFLAGS"echo "-------- > Extra LDFLAGS: $EXTRA_LDFLAGS"./configure ${CONFIGURATION} \--extra-cflags="$EXTRA_CFLAGS" \--extra-ldflags="$EXTRA_LDFLAGS" \--pkg-config=$(which pkg-config) 2>&1 | tee $CONFIG_LOG_PATH/configure_$APP_ABI.logecho "-------- > Start make $APP_ABI with -j4"make -j4echo "-------- > Start install $APP_ABI"make installecho "++++++++ > make and install $APP_ABI complete."return 0
}build_all() {#配置开源协议声明COMMON_OPTIONS="$COMMON_OPTIONS --enable-gpl"#目标android平台COMMON_OPTIONS="$COMMON_OPTIONS --target-os=android"#取消默认的静态库COMMON_OPTIONS="$COMMON_OPTIONS --disable-static"COMMON_OPTIONS="$COMMON_OPTIONS --enable-shared"COMMON_OPTIONS="$COMMON_OPTIONS --enable-protocols"#开启交叉编译COMMON_OPTIONS="$COMMON_OPTIONS --enable-cross-compile"COMMON_OPTIONS="$COMMON_OPTIONS --enable-optimizations"COMMON_OPTIONS="$COMMON_OPTIONS --disable-debug"#尽可能小COMMON_OPTIONS="$COMMON_OPTIONS --enable-small"COMMON_OPTIONS="$COMMON_OPTIONS --disable-doc"#不要命令（执行文件）COMMON_OPTIONS="$COMMON_OPTIONS --disable-programs"  # do not build command line programsCOMMON_OPTIONS="$COMMON_OPTIONS --disable-ffmpeg"    # disable ffmpeg buildCOMMON_OPTIONS="$COMMON_OPTIONS --disable-ffplay"    # disable ffplay buildCOMMON_OPTIONS="$COMMON_OPTIONS --disable-ffprobe"   # disable ffprobe buildCOMMON_OPTIONS="$COMMON_OPTIONS --disable-symver"COMMON_OPTIONS="$COMMON_OPTIONS --disable-network"COMMON_OPTIONS="$COMMON_OPTIONS --disable-x86asm"COMMON_OPTIONS="$COMMON_OPTIONS --disable-vulkan"# 有条件地禁用asm，某些架构可能不支持COMMON_OPTIONS="$COMMON_OPTIONS --disable-asm"#启用COMMON_OPTIONS="$COMMON_OPTIONS --enable-pthreads"COMMON_OPTIONS="$COMMON_OPTIONS --enable-mediacodec"COMMON_OPTIONS="$COMMON_OPTIONS --enable-jni"COMMON_OPTIONS="$COMMON_OPTIONS --enable-zlib"COMMON_OPTIONS="$COMMON_OPTIONS --enable-pic"COMMON_OPTIONS="$COMMON_OPTIONS --enable-muxer=flv"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=h264"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=mpeg4"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=mjpeg"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=png"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=vorbis"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=opus"COMMON_OPTIONS="$COMMON_OPTIONS --enable-decoder=flac"#启用编码器COMMON_OPTIONS="$COMMON_OPTIONS --enable-encoder=h264"#libx264COMMON_OPTIONS="$COMMON_OPTIONS --enable-libx264"COMMON_OPTIONS="$COMMON_OPTIONS --enable-encoder=libx264"echo "COMMON_OPTIONS=$COMMON_OPTIONS"echo "PREFIX=$PREFIX"echo "CONFIG_LOG_PATH=$CONFIG_LOG_PATH"# 构建所有支持的架构build "armeabi-v7a" || echo "Failed to build armeabi-v7a"build "arm64-v8a" || echo "Failed to build arm64-v8a"# build "x86" || echo "Failed to build x86"# build "x86_64" || echo "Failed to build x86_64"
}echo "-------- Start --------"
build_all
echo "-------- End --------"



   4、编译结果及验证：

       编译后的结果放在：https://download.csdn.net/download/wangyongyao1989/91765163资源中。

        在本人github：GitHub - wangyongyao1989/FFmpegPractices at dev8项目中的

        练习十四：使用libx264编码器“对视频流重新编码（使用libx264的编码器）”得到验证。

        对应的代码如下：

 //使用libx264的编码器AVCodec *video_codec = (AVCodec *) avcodec_find_encoder_by_name("libx264");

完成的c++代码如下：

//
// Created by wangyao on 2025/8/17.
//#include "includes/RecodecVideo.h"RecodecVideo::RecodecVideo() {}RecodecVideo::~RecodecVideo() {if (in_fmt_ctx) {in_fmt_ctx = nullptr;}if (video_encode_ctx) {video_encode_ctx = nullptr;}video_index = -1;audio_index = -1;if (src_video) {src_video = nullptr;}if (src_audio) {src_audio = nullptr;}if (dest_video) {dest_video = nullptr;}if (out_fmt_ctx) {out_fmt_ctx = nullptr;}if (video_encode_ctx) {video_encode_ctx = nullptr;}
}string RecodecVideo::recodecVideo(const char *srcPath, const char *destPath) {if (open_input_file(srcPath) < 0) { // 打开输入文件return recodecInfo;}if (open_output_file(srcPath) < 0) { // 打开输出文件return recodecInfo;}int ret = -1;AVPacket *packet = av_packet_alloc(); // 分配一个数据包AVFrame *frame = av_frame_alloc(); // 分配一个数据帧while (av_read_frame(in_fmt_ctx, packet) >= 0) { // 轮询数据包if (packet->stream_index == video_index) { // 视频包需要重新编码packet->stream_index = 0;recode_video(packet, frame); // 对视频帧重新编码} else { // 音频包暂不重新编码，直接写入目标文件packet->stream_index = 1;ret = av_write_frame(out_fmt_ctx, packet); // 往文件写入一个数据包if (ret < 0) {LOGE("write frame occur error %d.\n", ret);recodecInfo = recodecInfo + "\n write frame occur error:" + to_string(ret);break;}}av_packet_unref(packet); // 清除数据包}packet->data = nullptr; // 传入一个空包，冲走解码缓存packet->size = 0;recode_video(packet, frame); // 对视频帧重新编码output_video(nullptr); // 传入一个空帧，冲走编码缓存av_write_trailer(out_fmt_ctx); // 写文件尾LOGI("Success recode file.\n");recodecInfo = recodecInfo + "\n Success recode file!!!!!!";av_frame_free(&frame); // 释放数据帧资源av_packet_free(&packet); // 释放数据包资源avio_close(out_fmt_ctx->pb); // 关闭输出流avcodec_close(video_decode_ctx); // 关闭视频解码器的实例avcodec_free_context(&video_decode_ctx); // 释放视频解码器的实例avcodec_close(video_encode_ctx); // 关闭视频编码器的实例avcodec_free_context(&video_encode_ctx); // 释放视频编码器的实例avformat_free_context(out_fmt_ctx); // 释放封装器的实例avformat_close_input(&in_fmt_ctx); // 关闭音视频文件return recodecInfo;
}// 打开输入文件
int RecodecVideo::open_input_file(const char *src_name) {// 打开音视频文件int ret = avformat_open_input(&in_fmt_ctx, src_name, nullptr, nullptr);if (ret < 0) {LOGE("Can't open file %s.\n", src_name);recodecInfo = recodecInfo + "\n Can't open file :" + string(src_name);return -1;}LOGI("Success open input_file %s.\n", src_name);recodecInfo = recodecInfo + "\n Success open input_file:" + string(src_name);// 查找音视频文件中的流信息ret = avformat_find_stream_info(in_fmt_ctx, nullptr);if (ret < 0) {LOGE("Can't find stream information.\n");recodecInfo = recodecInfo + "\n Can't find stream information. ";return -1;}// 找到视频流的索引video_index = av_find_best_stream(in_fmt_ctx, AVMEDIA_TYPE_VIDEO, -1, -1, nullptr, 0);if (video_index >= 0) {src_video = in_fmt_ctx->streams[video_index];enum AVCodecID video_codec_id = src_video->codecpar->codec_id;// 查找视频解码器AVCodec *video_codec = (AVCodec *) avcodec_find_decoder(video_codec_id);if (!video_codec) {LOGE("video_codec not found\n");recodecInfo = recodecInfo + "\n video_codec not found. ";return -1;}video_decode_ctx = avcodec_alloc_context3(video_codec); // 分配解码器的实例if (!video_decode_ctx) {LOGE("video_decode_ctx is nullptr\n");recodecInfo = recodecInfo + "\n video_decode_ctx is nullptr ";return -1;}// 把视频流中的编解码参数复制给解码器的实例avcodec_parameters_to_context(video_decode_ctx, src_video->codecpar);ret = avcodec_open2(video_decode_ctx, video_codec, nullptr); // 打开解码器的实例if (ret < 0) {LOGE("Can't open video_decode_ctx.\n");recodecInfo = recodecInfo + "\n Can't open video_decode_ctx";return -1;}} else {LOGE("Can't find video stream.\n");recodecInfo = recodecInfo + "\n Can't find video stream.";return -1;}// 找到音频流的索引audio_index = av_find_best_stream(in_fmt_ctx, AVMEDIA_TYPE_AUDIO, -1, -1, nullptr, 0);if (audio_index >= 0) {src_audio = in_fmt_ctx->streams[audio_index];}return 0;
}// 给视频帧编码，并写入压缩后的视频包
int RecodecVideo::output_video(AVFrame *frame) {// 把原始的数据帧发给编码器实例int ret = avcodec_send_frame(video_encode_ctx, frame);if (ret < 0) {LOGE("send frame occur error %d.\n", ret);recodecInfo = recodecInfo + "\n send frame occur error" + to_string(ret);return ret;}while (1) {AVPacket *packet = av_packet_alloc(); // 分配一个数据包// 从编码器实例获取压缩后的数据包ret = avcodec_receive_packet(video_encode_ctx, packet);if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF) {return (ret == AVERROR(EAGAIN)) ? 0 : 1;} else if (ret < 0) {LOGE("encode frame occur error %d.\n", ret);recodecInfo = recodecInfo + "\n encode frame occur error:" + to_string(ret);break;}// 把数据包的时间戳从一个时间基转换为另一个时间基av_packet_rescale_ts(packet, src_video->time_base, dest_video->time_base);
//        LOGI( "pts=%ld, dts=%ld.\n", packet->pts, packet->dts);packet->stream_index = 0;ret = av_write_frame(out_fmt_ctx, packet); // 往文件写入一个数据包if (ret < 0) {LOGE("write frame occur error %d.\n", ret);recodecInfo = recodecInfo + "\n write frame occur error:" + to_string(ret);break;}av_packet_unref(packet); // 清除数据包}return ret;
}// 对视频帧重新编码
int RecodecVideo::recode_video(AVPacket *packet, AVFrame *frame) {// 把未解压的数据包发给解码器实例int ret = avcodec_send_packet(video_decode_ctx, packet);if (ret < 0) {LOGE("send packet occur error %d.\n", ret);recodecInfo = recodecInfo + "\n send packet occur error:" + to_string(ret);return ret;}while (1) {// 从解码器实例获取还原后的数据帧ret = avcodec_receive_frame(video_decode_ctx, frame);if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF) {return (ret == AVERROR(EAGAIN)) ? 0 : 1;} else if (ret < 0) {LOGE("decode frame occur error %d.\n", ret);recodecInfo = recodecInfo + "\n decode frame occur error :" + to_string(ret);break;}if (frame->pts == AV_NOPTS_VALUE) { // 对H.264裸流做特殊处理double interval = 1.0 / av_q2d(src_video->r_frame_rate);frame->pts = count * interval / av_q2d(src_video->time_base);count++;}output_video(frame); // 给视频帧编码，并写入压缩后的视频包}return ret;
}int RecodecVideo::open_output_file(const char *dest_name) {// 分配音视频文件的封装实例int ret = avformat_alloc_output_context2(&out_fmt_ctx, nullptr, nullptr, dest_name);if (ret < 0) {LOGE("Can't alloc output_file %s.\n", dest_name);recodecInfo = recodecInfo + "\n Can't alloc output_file :" + string(dest_name);return -1;}// 打开输出流ret = avio_open(&out_fmt_ctx->pb, dest_name, AVIO_FLAG_READ_WRITE);if (ret < 0) {LOGE("Can't open output_file %s.\n", dest_name);recodecInfo = recodecInfo + "\n Can't open output_file:" + string(dest_name);return -1;}LOGI("Success open output_file %s.\n", dest_name);recodecInfo = recodecInfo + "\n Success open output_file :" + string(dest_name);if (video_index >= 0) { // 创建编码器实例和新的视频流enum AVCodecID video_codec_id = src_video->codecpar->codec_id;// 查找视频编码器
//        AVCodec *video_codec = (AVCodec *) avcodec_find_encoder(video_codec_id);//使用libx264的编码器AVCodec *video_codec = (AVCodec *) avcodec_find_encoder_by_name("libx264");if (!video_codec) {LOGE("video_codec not found\n");recodecInfo = recodecInfo + "\n video_codec not found .";return -1;}video_encode_ctx = avcodec_alloc_context3(video_codec); // 分配编码器的实例if (!video_encode_ctx) {LOGE("video_encode_ctx is null\n");recodecInfo = recodecInfo + "\n video_encode_ctx is null";return -1;}// 把源视频流中的编解码参数复制给编码器的实例avcodec_parameters_to_context(video_encode_ctx, src_video->codecpar);// 注意：帧率和时间基要单独赋值，因为avcodec_parameters_to_context没复制这两个参数video_encode_ctx->framerate = src_video->r_frame_rate;// framerate.num值过大，会导致视频头一秒变灰色if (video_encode_ctx->framerate.num > 60) {video_encode_ctx->framerate = (AVRational) {25, 1}; // 帧率}video_encode_ctx->time_base = src_video->time_base;video_encode_ctx->gop_size = 12; // 关键帧的间隔距离//video_encode_ctx->max_b_frames = 0; // 0表示不要B帧// AV_CODEC_FLAG_GLOBAL_HEADER标志允许操作系统显示该视频的缩略图if (out_fmt_ctx->oformat->flags & AVFMT_GLOBALHEADER) {video_encode_ctx->flags = AV_CODEC_FLAG_GLOBAL_HEADER;}ret = avcodec_open2(video_encode_ctx, video_codec, nullptr); // 打开编码器的实例if (ret < 0) {LOGE("Can't open video_encode_ctx.\n");av_strerror(ret, errbuf, sizeof(errbuf)); // 将错误码转换为字符串LOGE("avcodec_open2失败：%s\n", errbuf);recodecInfo = recodecInfo + "\n avcodec_open2失败：" + string(errbuf);return -1;}dest_video = avformat_new_stream(out_fmt_ctx, nullptr); // 创建数据流// 把编码器实例的参数复制给目标视频流avcodec_parameters_from_context(dest_video->codecpar, video_encode_ctx);// 如果后面有对视频帧转换时间基，这里就无需复制时间基//dest_video->time_base = src_video->time_base;dest_video->codecpar->codec_tag = 0;}if (audio_index >= 0) { // 源文件有音频流，就给目标文件创建音频流AVStream *dest_audio = avformat_new_stream(out_fmt_ctx, nullptr); // 创建数据流// 把源文件的音频参数原样复制过来avcodec_parameters_copy(dest_audio->codecpar, src_audio->codecpar);dest_audio->codecpar->codec_tag = 0;}ret = avformat_write_header(out_fmt_ctx, nullptr); // 写文件头if (ret < 0) {LOGE("write file_header occur error %d.\n", ret);recodecInfo = recodecInfo + "\n write file_header occur error :" + to_string(ret);av_strerror(ret, errbuf, sizeof(errbuf)); // 将错误码转换为字符串recodecInfo = recodecInfo + "\n avformat_write_header 失败：" + string(errbuf);return -1;}LOGI("Success write file_header.\n");recodecInfo = recodecInfo + "\n Success write file_header.";return 0;
}
