第J3-1周：DenseNet算法 实现乳腺癌识别

标题

🍨 本文为🔗365天深度学习训练营中的学习记录博客
🍖 原作者：K同学啊

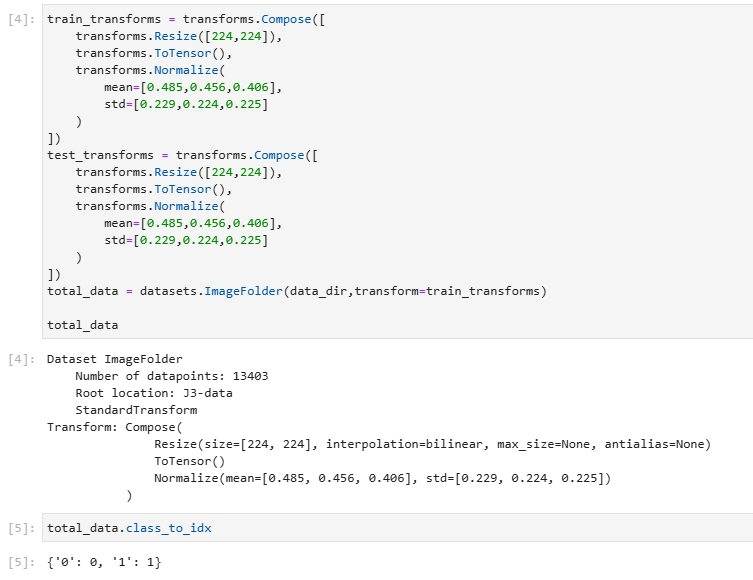

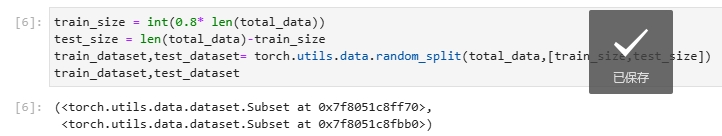

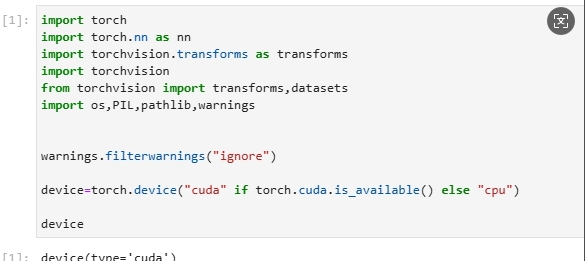

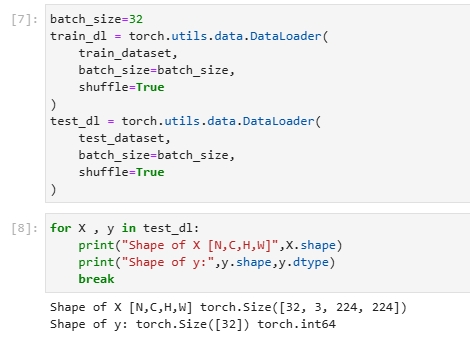

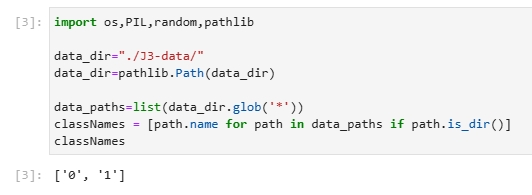

一、导入数据

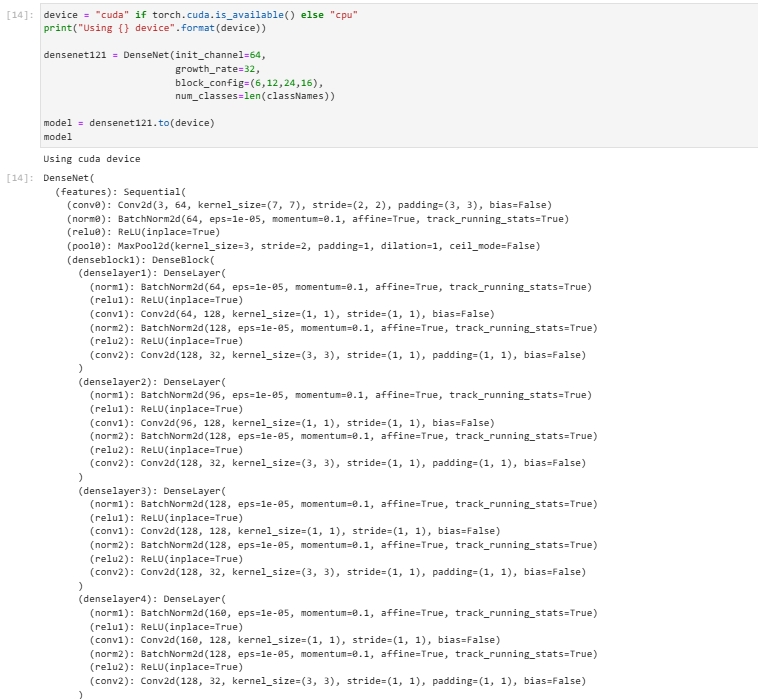

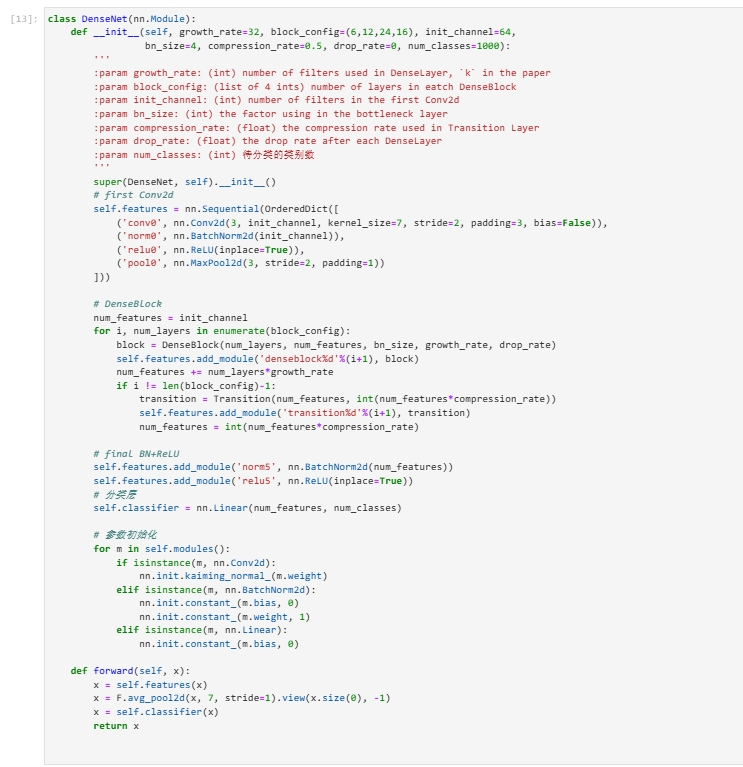

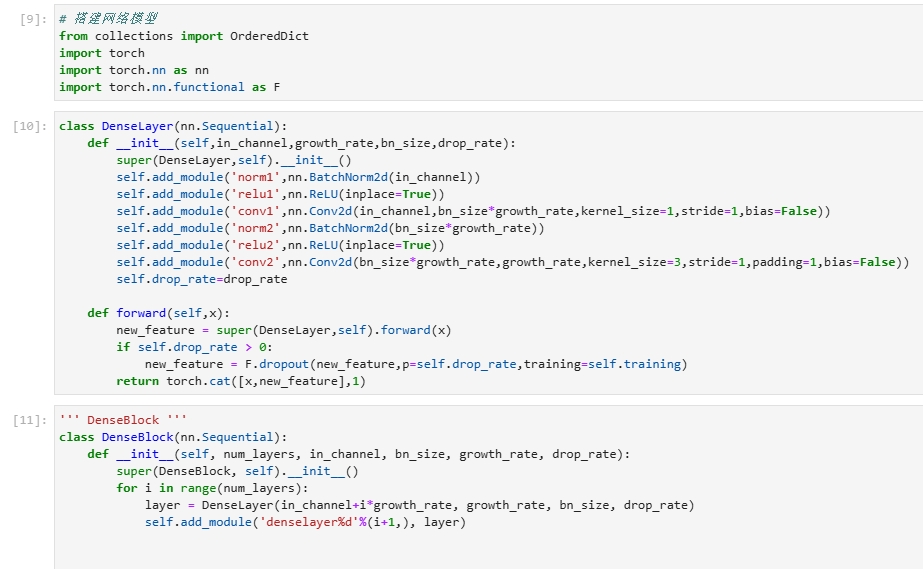

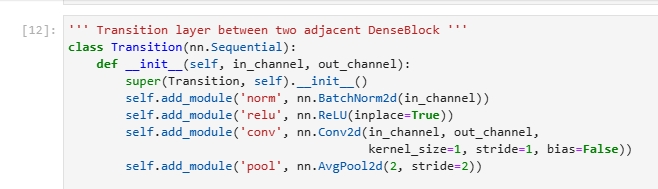

二、构建模型

Using cuda device
DenseNet((features): Sequential((conv0): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)(norm0): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu0): ReLU(inplace=True)(pool0): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)(denseblock1): DenseBlock((denselayer1): DenseLayer((norm1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(64, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer2): DenseLayer((norm1): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(96, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer3): DenseLayer((norm1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer4): DenseLayer((norm1): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer5): DenseLayer((norm1): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer6): DenseLayer((norm1): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)))(transition1): Transition((norm): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu): ReLU(inplace=True)(conv): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(pool): AvgPool2d(kernel_size=2, stride=2, padding=0))(denseblock2): DenseBlock((denselayer1): DenseLayer((norm1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer2): DenseLayer((norm1): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer3): DenseLayer((norm1): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer4): DenseLayer((norm1): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer5): DenseLayer((norm1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer6): DenseLayer((norm1): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer7): DenseLayer((norm1): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer8): DenseLayer((norm1): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer9): DenseLayer((norm1): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer10): DenseLayer((norm1): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer11): DenseLayer((norm1): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer12): DenseLayer((norm1): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)))(transition2): Transition((norm): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu): ReLU(inplace=True)(conv): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)(pool): AvgPool2d(kernel_size=2, stride=2, padding=0))(denseblock3): DenseBlock((denselayer1): DenseLayer((norm1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer2): DenseLayer((norm1): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer3): DenseLayer((norm1): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer4): DenseLayer((norm1): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer5): DenseLayer((norm1): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer6): DenseLayer((norm1): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer7): DenseLayer((norm1): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer8): DenseLayer((norm1): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer9): DenseLayer((norm1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer10): DenseLayer((norm1): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer11): DenseLayer((norm1): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer12): DenseLayer((norm1): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer13): DenseLayer((norm1): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer14): DenseLayer((norm1): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer15): DenseLayer((norm1): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer16): DenseLayer((norm1): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer17): DenseLayer((norm1): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer18): DenseLayer((norm1): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer19): DenseLayer((norm1): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer20): DenseLayer((norm1): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer21): DenseLayer((norm1): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer22): DenseLayer((norm1): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer23): DenseLayer((norm1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer24): DenseLayer((norm1): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)))(transition3): Transition((norm): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu): ReLU(inplace=True)(conv): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)(pool): AvgPool2d(kernel_size=2, stride=2, padding=0))(denseblock4): DenseBlock((denselayer1): DenseLayer((norm1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer2): DenseLayer((norm1): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer3): DenseLayer((norm1): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer4): DenseLayer((norm1): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer5): DenseLayer((norm1): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer6): DenseLayer((norm1): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer7): DenseLayer((norm1): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer8): DenseLayer((norm1): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer9): DenseLayer((norm1): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer10): DenseLayer((norm1): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer11): DenseLayer((norm1): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer12): DenseLayer((norm1): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer13): DenseLayer((norm1): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer14): DenseLayer((norm1): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer15): DenseLayer((norm1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False))(denselayer16): DenseLayer((norm1): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu1): ReLU(inplace=True)(conv1): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu2): ReLU(inplace=True)(conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)))(norm5): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(relu5): ReLU(inplace=True))(classifier): Linear(in_features=1024, out_features=2, bias=True)
)

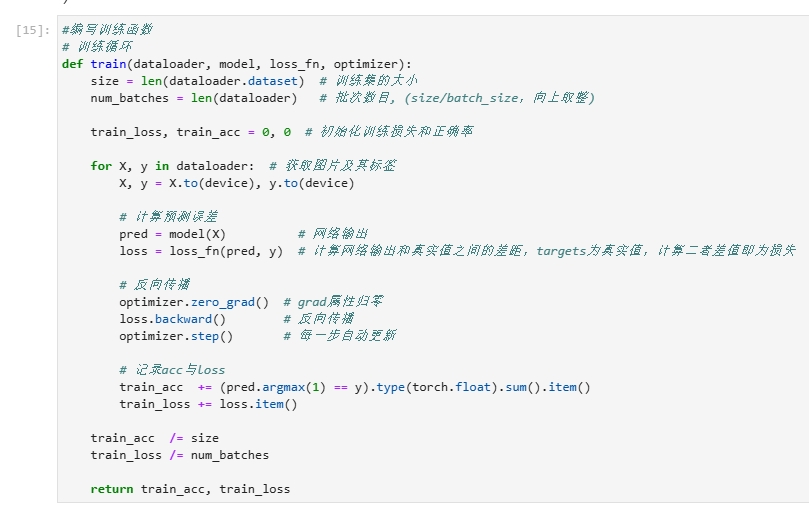

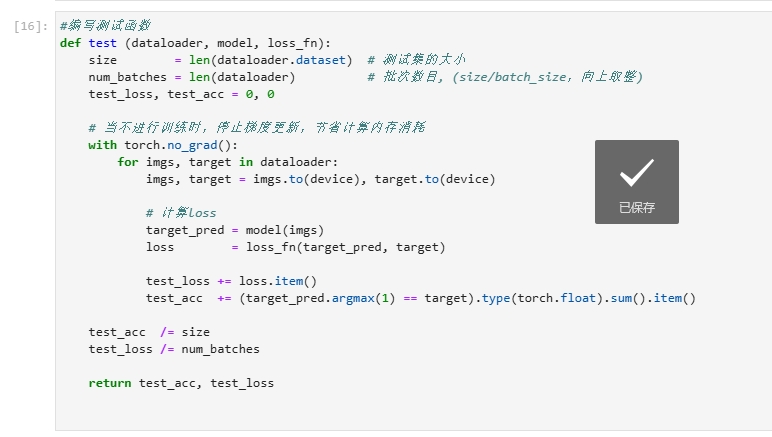

三、编写训练函数和测试函数

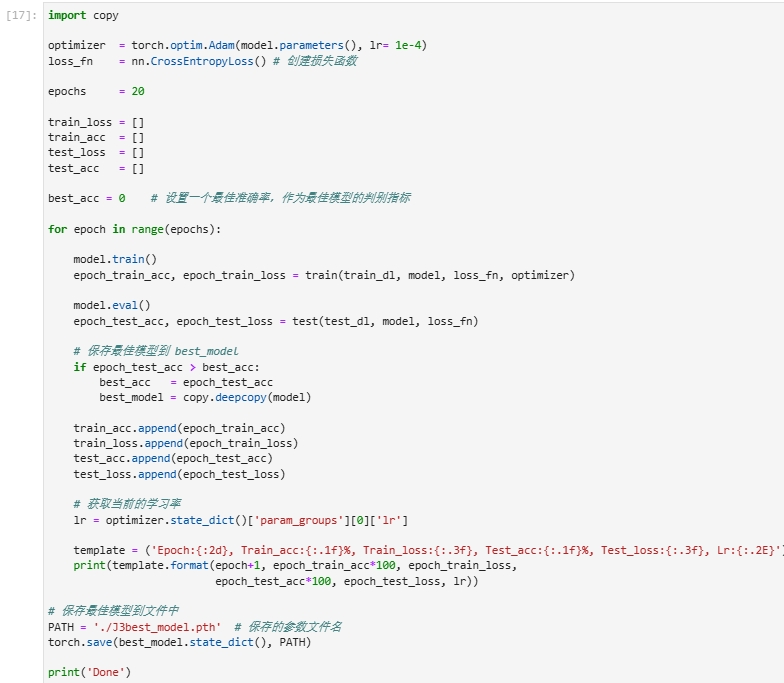

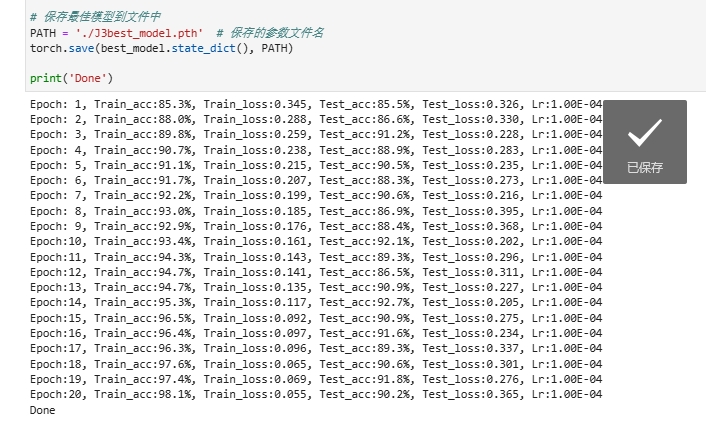

四、训练

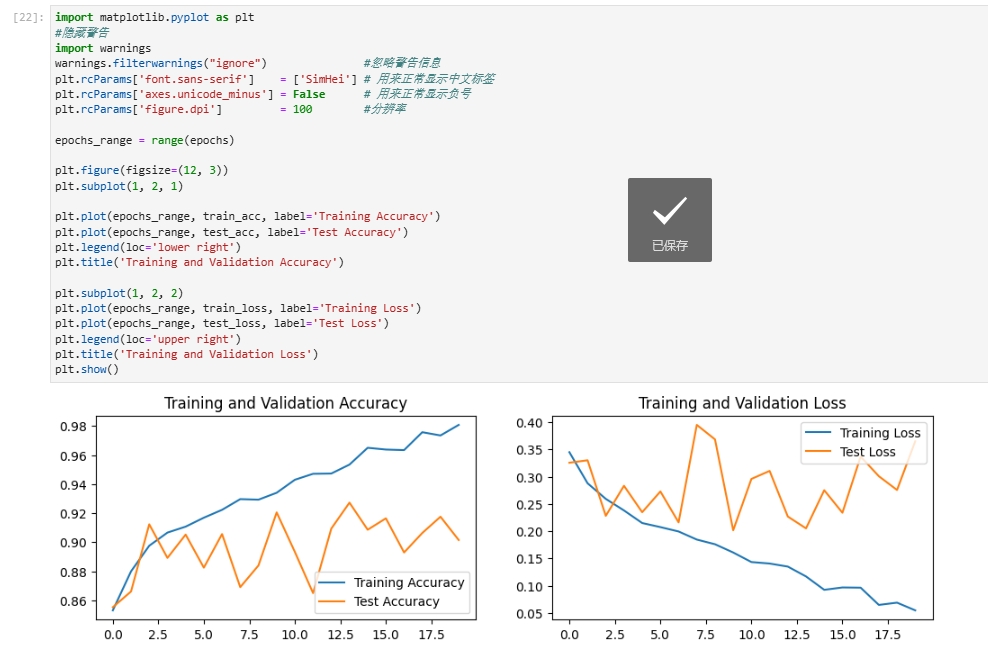

五、可视化

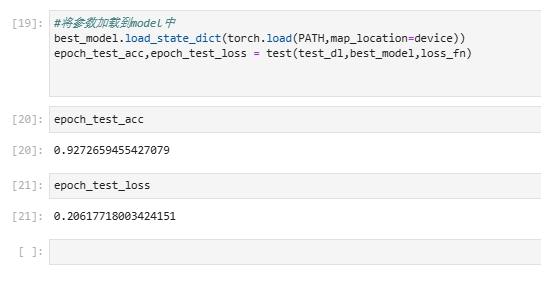

六、预测

七、总结

​​特征重用​​：每一层都接收前面所有层的特征图作为输入，因此可以充分利用前面层的特征，促进特征重用，提高特征传播效率。
​​参数高效​​：因为每一层都可以直接使用前面层的特征，所以不需要学习冗余的特征图，网络可以设计得更窄（即卷积核数量减少），从而减少参数数量。
​​改善特征提取​​：通过特征图的拼接，网络能够学习到更加多样化的特征组合，提升模型的表现能力。
​​性能优异​​：在多个图像识别任务（如CIFAR-10, CIFAR-100, SVHN, ImageNet）上，DenseNet取得了当时最好的效果，同时参数量更少。
缺点：
​​高内存占用​​：由于需要保存所有前面层的特征图用于连接，训练过程中内存消耗较高。尤其是当网络很深时，内存需求可能会成为瓶颈。
​​计算开销​​：在实现密集连接时，需要大量的特征图拼接操作，这会导致计算开销增加。虽然参数减少了，但计算量可能并不小（特别是在GPU上，拼接操作需要大量显存带宽）。
​​难以迁移​​：一些硬件加速器（如TPU）对密集连接结构的支持可能不如常规的卷积层高效，因此在实际部署中可能会遇到性能问题。
​​训练时间长​​：虽然每个epoch可能更快（因为网络更窄），但是训练收敛所需的epoch数可能更多，总训练时间可能较长。
