yggjs_rlayout使用教程 v0.1.0
创建项目
首先，确保您的系统已安装Node.js。然后使用npm全局安装pnpm和yggjs_react：
npm install -g pnpm
npm install -g yggjs_react
创建项目：
ggr create hello
启动服务：
cd hello
pnpm install --registry=https://registry.npmmirror.com
pnpm dev
整合rlayout
安装依赖：
pnpm add react-router-dom
pnpm add yggjs_rlayout
效果预览

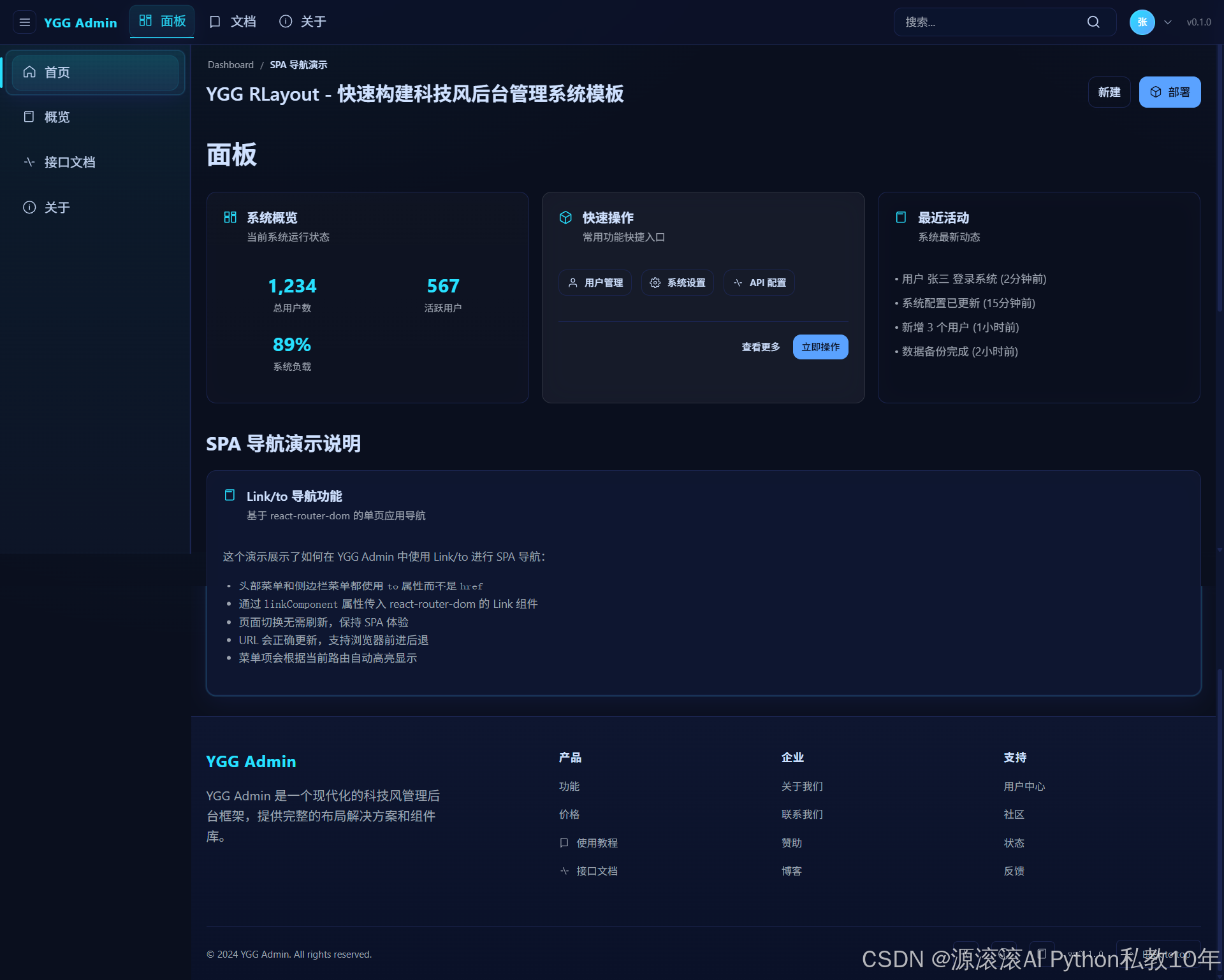

首页

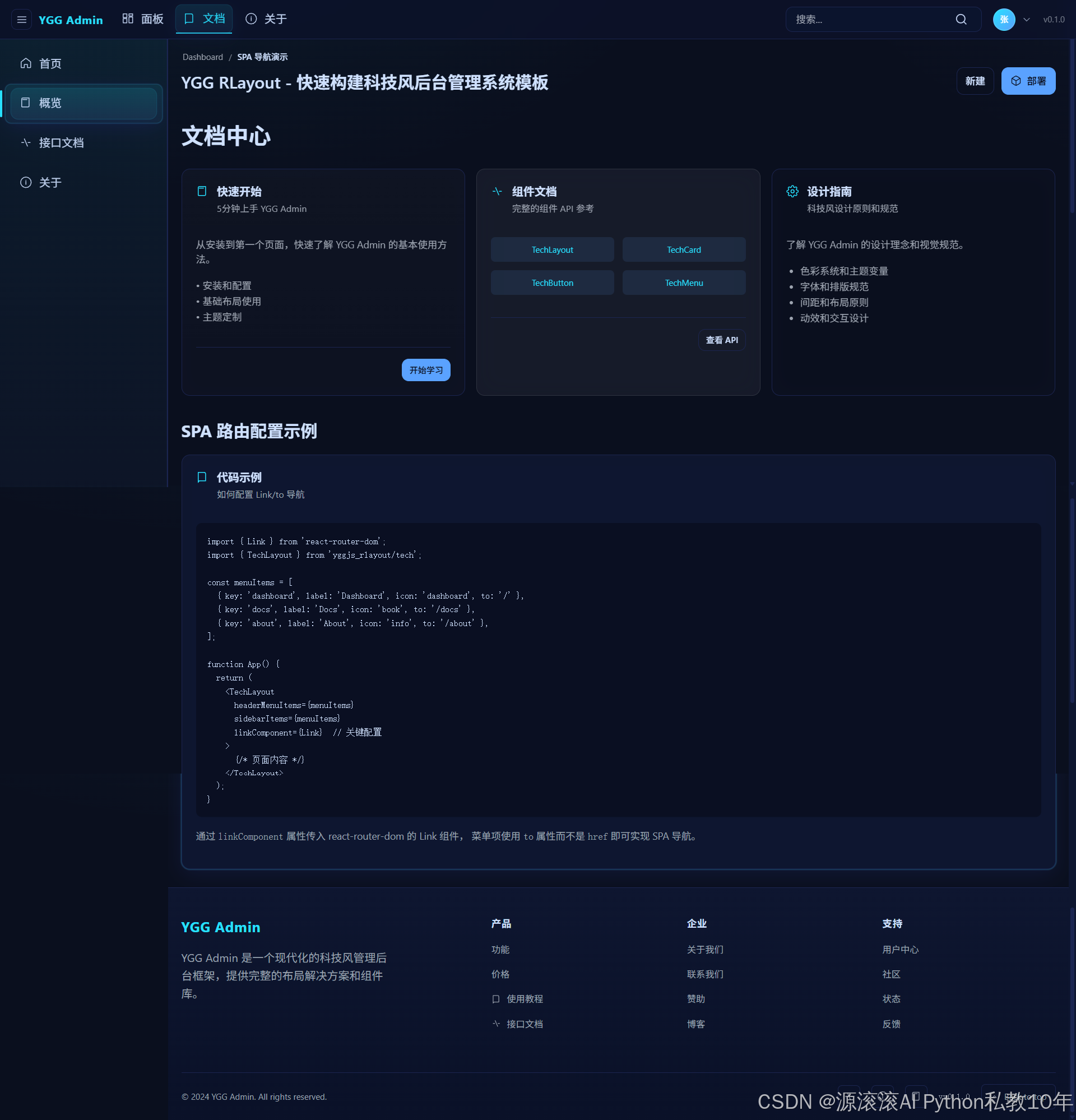

文档页面

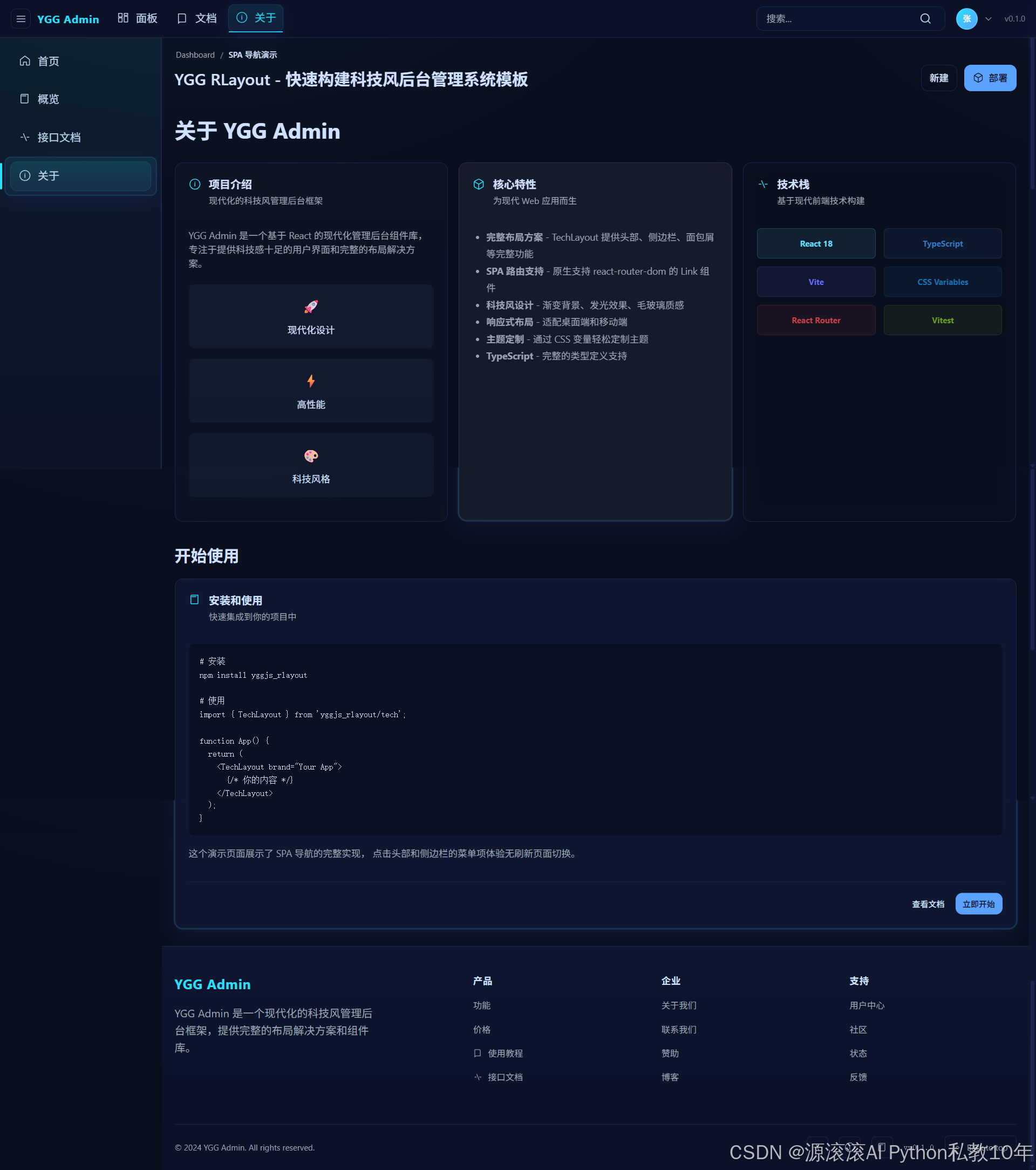

关于页面
完整代码
package.json
{"name": "hello","private": true,"version": "0.0.0","type": "module","packageManager": "pnpm@8.15.0","scripts": {"dev": "vite","build": "tsc && vite build","lint": "eslint . --ext ts,tsx --report-unused-disable-directives --max-warnings 0","preview": "vite preview"},"dependencies": {"react": "^18.3.1","react-dom": "^18.3.1","react-router-dom": "^6.30.1","yggjs_rlayout": "^0.1.1","zustand": "^5.0.1"},"devDependencies": {"@types/react": "^18.3.23","@types/react-dom": "^18.3.7","@typescript-eslint/eslint-plugin": "^6.21.0","@typescript-eslint/parser": "^6.21.0","@vitejs/plugin-react": "^4.3.4","eslint": "^8.57.1","eslint-plugin-react-hooks": "^4.6.2","eslint-plugin-react-refresh": "^0.4.14","typescript": "^5.9.2","vite": "^4.5.14"},"pnpm": {"registry": "https://registry.npmmirror.com"}
}
tsconfig.json
{"compilerOptions": {"target": "ES2020","useDefineForClassFields": true,"lib": ["ES2020","DOM","DOM.Iterable"],"module": "ESNext","skipLibCheck": true,"moduleResolution": "bundler","allowImportingTsExtensions": true,"resolveJsonModule": true,"isolatedModules": true,"noEmit": true,"jsx": "react-jsx","strict": true,"noUnusedLocals": true,"noUnusedParameters": true,"noFallthroughCasesInSwitch": true},"include": ["src"],"references": [{"path": "./tsconfig.node.json"}]
}
tsconfig.node.json
{"compilerOptions": {"composite": true,"skipLibCheck": true,"module": "ESNext","moduleResolution": "bundler","allowSyntheticDefaultImports": true},"include": ["vite.config.ts"]
}
vite.config.ts
import { defineConfig } from 'vite'
import react from '@vitejs/plugin-react'// https://vitejs.dev/config/
export default defineConfig({plugins: [react()],
})
index.html
<!doctype html>
<html lang="en"><head><meta charset="UTF-8" /><link rel="icon" type="image/svg+xml" href="/vite.svg" /><meta name="viewport" content="width=device-width, initial-scale=1.0" /><title>Vite + React + TS</title></head><body><div id="root"></div><script type="module" src="/src/main.tsx"></script></body>
</html>
.npmrc
# 使用国内镜像源加速包下载
registry=https://registry.npmmirror.com# React 相关包的镜像源
@types:registry=https://registry.npmmirror.com
@typescript-eslint:registry=https://registry.npmmirror.com
@vitejs:registry=https://registry.npmmirror.com# 禁用包锁定文件的自动更新
package-lock=false# 设置缓存目录
cache-dir=.pnpm-cache# 启用严格的 peer dependencies 检查
strict-peer-dependencies=false# 设置网络超时时间
network-timeout=60000# 启用进度条
progress=true# 禁用工作区模式，强制在当前目录安装依赖
ignore-workspace=true
src/main.tsx
import React from "react";
import { createRoot } from "react-dom/client";
import { BrowserRouter, Route, Routes } from "react-router-dom";
import Layout from "./pages/Layout";
import Dashboard from "./pages/Dashboard";
import Docs from "./pages/Docs";
import About from "./pages/About";
import "./styles.css";const root = createRoot(document.getElementById("root")!);
root.render(<React.StrictMode><BrowserRouterfuture={{ v7_startTransition: true, v7_relativeSplatPath: true }}><Routes><Route path="/" element={<Layout />}><Route index element={<Dashboard />} /><Route path="docs" element={<Docs />} /><Route path="docs/api" element={<Docs />} /><Route path="about" element={<About />} /></Route></Routes></BrowserRouter></React.StrictMode>
);
src/styles.css
:root {--bg: #0b1020;--panel: #121a36;--card: #111a2a;--text: #cfe4ff;--muted: #7aa2ff;--primary: #2fd7ff;--accent: #7c4dff;--grid: #0e1630;--box: #1d284b;
}
* {box-sizing: border-box;
}
html,
body,
#root {height: 100%;
}
body {margin: 0;font-family: Inter, system-ui, Segoe UI, Roboto, Helvetica, Arial, sans-serif;background: radial-gradient(70% 70% at 50% 0%, #0e1938 0%, #070b1a 100%);color: var(--text);
}.app {padding: 24px;
}
.hero {padding: 32px;border: 1px solid #223066;background: linear-gradient(135deg,rgba(47, 215, 255, 0.06),rgba(124, 77, 255, 0.06));border-radius: 16px;backdrop-filter: blur(6px);
}
.hero h1 {margin: 0 0 8px;color: var(--primary);
}
.hero p {margin: 0;color: var(--muted);
}.nav-grid {display: grid;grid-template-columns: repeat(4, 1fr);gap: 12px;margin: 24px 0;
}
.card {display: block;padding: 14px 16px;border-radius: 12px;background: var(--card);color: var(--text);text-decoration: none;border: 1px solid #1b2550;transition: all 0.2s;
}
.card:hover {transform: translateY(-2px);box-shadow: 0 6px 18px rgba(0, 0, 0, 0.25);border-color: #2b3c7a;
}.routes ul {padding-left: 18px;
}
.routes a {color: var(--primary);
}.page {padding: 24px;
}
.panel {margin: 16px 0;padding: 16px;border-radius: 12px;background: var(--panel);border: 1px solid #1b2550;
}.box {padding: 12px 14px;border-radius: 10px;background: var(--box);border: 1px solid #1b2550;
}.chip {padding: 6px 10px;border-radius: 999px;border: 1px solid #2a3a7a;background: #0e1630;color: var(--text);cursor: pointer;
}
.chip.active {background: linear-gradient(135deg,rgba(47, 215, 255, 0.18),rgba(124, 77, 255, 0.18));border-color: #3a54b6;
}
src/pages/Layout.tsx
import React from "react";
import { useLocation, Link, Outlet } from "react-router-dom";
import {TechLayout,TechButton,TechUserCenter,createBreadcrumb,type TechMenuItem,type TechUserCenterItem,
} from "yggjs_rlayout/tech";// 创建 Link 适配器组件，匹配 LinkLikeComponent 接口
const LinkAdapter: React.FC<{to: string;className?: string;children?: React.ReactNode;
}> = ({ to, className, children }) => {return (<Link to={to} className={className}>{children}</Link>);
};// 布局组件
export default function Layout() {const location = useLocation();// 头部菜单项 - 使用 to 属性进行 SPA 导航const headerMenuItems: TechMenuItem[] = [{ key: "dash", label: "面板", icon: "dashboard", to: "/" },{ key: "docs", label: "文档", icon: "book", to: "/docs" },{ key: "about", label: "关于", icon: "info", to: "/about" },];// 用户中心菜单项const userCenterItems: TechUserCenterItem[] = [{key: "profile",label: "个人资料",icon: "profile",onClick: () => alert("跳转到个人资料页面"),},{key: "settings",label: "账户设置",icon: "settings",onClick: () => alert("跳转到账户设置页面"),},{key: "help",label: "帮助中心",icon: "help",onClick: () => alert("跳转到帮助中心"),},{key: "logout",label: "退出登录",icon: "logout",danger: true,onClick: () => {if (confirm("确定要退出登录吗？")) {alert("已退出登录");}},},];// 侧边栏菜单项 - 使用 to 属性进行 SPA 导航const sidebarItems: TechMenuItem[] = [{ key: "home", label: "首页", icon: "home", to: "/" },{ key: "guide", label: "概览", icon: "guide", to: "/docs" },{ key: "api", label: "接口文档", icon: "api", to: "/docs/api" },{ key: "about", label: "关于", icon: "info", to: "/about" },];// 根据当前路径确定选中的菜单项const selectedHeaderKey = location.pathname.startsWith("/docs")? "docs": location.pathname.startsWith("/about")? "about": "dash";const selectedSidebarKey = location.pathname.startsWith("/docs/api")? "api": location.pathname.startsWith("/docs")? "guide": location.pathname.startsWith("/about")? "about": "home";// 处理搜索const handleSearch = (value: string) => {console.log("Search:", value);if (value.trim()) {alert(`正在搜索: "${value}"`);}};// 处理菜单选中事件const handleMenuSelect = (key: string) => {console.log("Header menu selected:", key);};// 处理侧边栏选中事件const handleSidebarSelect = (key: string) => {console.log("Sidebar menu selected:", key);};// Footer配置const footerSections = [{title: "产品",links: [{ label: "功能", href: "#features" },{ label: "价格", href: "#pricing" },{ label: "使用教程", href: "#docs", icon: "book" as const },{ label: "接口文档", href: "#api", icon: "api" as const },],},{title: "企业",links: [{ label: "关于我们", href: "#about" },{ label: "联系我们", href: "#contact" },{ label: "赞助", href: "#careers" },{ label: "博客", href: "#blog" },],},{title: "支持",links: [{ label: "用户中心", href: "#help" },{ label: "社区", href: "#community" },{ label: "状态", href: "#status" },{ label: "反馈", href: "#feedback" },],},];// 社交连接const socialLinks = [{ label: "GitHub", href: "#github", icon: "api" as const },{ label: "Twitter", href: "#twitter", icon: "info" as const },{ label: "Discord", href: "#discord", icon: "guide" as const },];// 创建面包屑导航（简约版不需要图标）const breadcrumbItems = createBreadcrumb().add("Dashboard", "/").add("SPA 导航演示").build();return (<TechLayout// Header配置brand="YGG Admin"headerMenuItems={headerMenuItems}selectedHeaderKey={selectedHeaderKey}onHeaderMenuSelect={handleMenuSelect}onSearch={handleSearch}headerExtra={<TechUserCenterusername="张三"userInfo="zhangsan@example.com"items={userCenterItems}showUsername={false}onAvatarClick={() => console.log("Avatar clicked")}/>}version="v0.1.0"// Sidebar配置sidebarItems={sidebarItems}selectedSidebarKey={selectedSidebarKey}onSidebarSelect={handleSidebarSelect}// SPA 导航配置 - 关键配置headerMenuLinkComponent={LinkAdapter}sidebarLinkComponent={LinkAdapter}// Footer配置footerProps={{description:"YGG Admin 是一个现代化的科技风管理后台框架，提供完整的布局解决方案和组件库。",sections: footerSections,socialLinks: socialLinks,copyright: "© 2024 YGG Admin. All rights reserved.",}}// 页面头部breadcrumb={breadcrumbItems}title="YGG RLayout - 快速构建科技风后台管理系统模板"pageActions={<><TechButton variant="secondary">新建</TechButton><TechButton variant="primary" icon="deploy">部署</TechButton></>}>{/* 渲染子路由内容 */}<Outlet /></TechLayout>);
}
src/pages/Dashboard.tsx
import { TechCard, TechButton } from "yggjs_rlayout/tech";export default function Dashboard() {return (<div><h1 style={{ color: "var(--tech-text)", marginBottom: "24px" }}>面板</h1><div className="tech-cards"><TechCardtitle="系统概览"subtitle="当前系统运行状态"icon="dashboard"variant="default"hoverable><div style={{ padding: "16px 0" }}><divstyle={{display: "grid",gridTemplateColumns: "repeat(auto-fit, minmax(120px, 1fr))",gap: "16px",}}><div style={{ textAlign: "center" }}><divstyle={{fontSize: "24px",fontWeight: "bold",color: "var(--tech-accent)",}}>1,234</div><divstyle={{ fontSize: "12px", color: "var(--tech-text-muted)" }}>总用户数</div></div><div style={{ textAlign: "center" }}><divstyle={{fontSize: "24px",fontWeight: "bold",color: "var(--tech-accent)",}}>567</div><divstyle={{ fontSize: "12px", color: "var(--tech-text-muted)" }}>活跃用户</div></div><div style={{ textAlign: "center" }}><divstyle={{fontSize: "24px",fontWeight: "bold",color: "var(--tech-accent)",}}>89%</div><divstyle={{ fontSize: "12px", color: "var(--tech-text-muted)" }}>系统负载</div></div></div></div></TechCard><TechCardtitle="快速操作"subtitle="常用功能快捷入口"icon="deploy"variant="glass"hoverableactions={<><TechButton variant="ghost" size="small">查看更多</TechButton><TechButton variant="primary" size="small">立即操作</TechButton></>}><divstyle={{display: "flex",gap: "12px",flexWrap: "wrap",padding: "16px 0",}}><TechButton variant="secondary" size="small" icon="user">用户管理</TechButton><TechButton variant="secondary" size="small" icon="settings">系统设置</TechButton><TechButton variant="secondary" size="small" icon="api">API 配置</TechButton></div></TechCard><TechCardtitle="最近活动"subtitle="系统最新动态"icon="guide"variant="outlined"hoverable><div style={{ padding: "16px 0" }}><divstyle={{fontSize: "14px",color: "var(--tech-text-muted)",lineHeight: 1.6,}}><div style={{ marginBottom: "8px" }}>• 用户 张三 登录系统 (2分钟前)</div><div style={{ marginBottom: "8px" }}>• 系统配置已更新 (15分钟前)</div><div style={{ marginBottom: "8px" }}>• 新增 3 个用户 (1小时前)</div><div>• 数据备份完成 (2小时前)</div></div></div></TechCard></div><div style={{ marginTop: "32px" }}><h2 style={{ color: "var(--tech-text)", marginBottom: "16px" }}>SPA 导航演示说明</h2><TechCardtitle="Link/to 导航功能"subtitle="基于 react-router-dom 的单页应用导航"icon="guide"variant="filled"hoverable><div style={{ padding: "16px 0" }}><pstyle={{color: "var(--tech-text-muted)",margin: "0 0 16px 0",fontSize: "14px",lineHeight: 1.5,}}>这个演示展示了如何在 YGG Admin 中使用 Link/to 进行 SPA 导航：</p><ulstyle={{color: "var(--tech-text-muted)",fontSize: "14px",margin: 0,paddingLeft: "20px",lineHeight: 1.6,}}><li>头部菜单和侧边栏菜单都使用 <code>to</code> 属性而不是{" "}<code>href</code></li><li>通过 <code>linkComponent</code> 属性传入 react-router-dom 的Link 组件</li><li>页面切换无需刷新，保持 SPA 体验</li><li>URL 会正确更新，支持浏览器前进后退</li><li>菜单项会根据当前路由自动高亮显示</li></ul></div></TechCard><br /></div></div>);
}
src/pages/About.tsx
import { TechCard, TechButton } from 'yggjs_rlayout/tech';export default function About() {return (<div><h1 style={{ color: 'var(--tech-text)', marginBottom: '24px' }}>关于 YGG Admin</h1><div className="tech-cards"><TechCardtitle="项目介绍"subtitle="现代化的科技风管理后台框架"icon="info"variant="default"hoverable><div style={{ padding: '16px 0' }}><p style={{ color: 'var(--tech-text-muted)', margin: '0 0 16px 0', fontSize: '14px', lineHeight: 1.5 }}>YGG Admin 是一个基于 React 的现代化管理后台组件库，专注于提供科技感十足的用户界面和完整的布局解决方案。</p><div style={{ display: 'grid', gridTemplateColumns: 'repeat(auto-fit, minmax(200px, 1fr))', gap: '16px', marginTop: '20px' }}><div style={{ textAlign: 'center', padding: '16px', background: 'rgba(90, 162, 255, 0.05)', borderRadius: '8px' }}><div style={{ fontSize: '20px', fontWeight: 'bold', color: 'var(--tech-accent)', marginBottom: '8px' }}>🚀</div><div style={{ fontSize: '14px', color: 'var(--tech-text)' }}>现代化设计</div></div><div style={{ textAlign: 'center', padding: '16px', background: 'rgba(90, 162, 255, 0.05)', borderRadius: '8px' }}><div style={{ fontSize: '20px', fontWeight: 'bold', color: 'var(--tech-accent)', marginBottom: '8px' }}>⚡</div><div style={{ fontSize: '14px', color: 'var(--tech-text)' }}>高性能</div></div><div style={{ textAlign: 'center', padding: '16px', background: 'rgba(90, 162, 255, 0.05)', borderRadius: '8px' }}><div style={{ fontSize: '20px', fontWeight: 'bold', color: 'var(--tech-accent)', marginBottom: '8px' }}>🎨</div><div style={{ fontSize: '14px', color: 'var(--tech-text)' }}>科技风格</div></div></div></div></TechCard><TechCardtitle="核心特性"subtitle="为现代 Web 应用而生"icon="deploy"variant="glass"hoverable><div style={{ padding: '16px 0' }}><ul style={{ color: 'var(--tech-text-muted)', fontSize: '14px', margin: 0, paddingLeft: '20px', lineHeight: 1.8 }}><li><strong>完整布局方案</strong> - TechLayout 提供头部、侧边栏、面包屑等完整功能</li><li><strong>SPA 路由支持</strong> - 原生支持 react-router-dom 的 Link 组件</li><li><strong>科技风设计</strong> - 渐变背景、发光效果、毛玻璃质感</li><li><strong>响应式布局</strong> - 适配桌面端和移动端</li><li><strong>主题定制</strong> - 通过 CSS 变量轻松定制主题</li><li><strong>TypeScript</strong> - 完整的类型定义支持</li></ul></div></TechCard><TechCardtitle="技术栈"subtitle="基于现代前端技术构建"icon="api"variant="outlined"hoverable><div style={{ padding: '16px 0' }}><div style={{ display: 'grid', gridTemplateColumns: 'repeat(auto-fit, minmax(120px, 1fr))', gap: '12px' }}>{[{ name: 'React 18', color: '#61DAFB' },{ name: 'TypeScript', color: '#3178C6' },{ name: 'Vite', color: '#646CFF' },{ name: 'CSS Variables', color: '#1572B6' },{ name: 'React Router', color: '#CA4245' },{ name: 'Vitest', color: '#6E9F18' }].map(tech => (<div key={tech.name} style={{padding: '12px 8px',background: `${tech.color}15`,border: `1px solid ${tech.color}30`,borderRadius: '6px',textAlign: 'center'}}><div style={{ fontSize: '12px', color: tech.color, fontWeight: 'bold' }}>{tech.name}</div></div>))}</div></div></TechCard></div><div style={{ marginTop: '32px' }}><h2 style={{ color: 'var(--tech-text)', marginBottom: '16px' }}>开始使用</h2><TechCardtitle="安装和使用"subtitle="快速集成到你的项目中"icon="guide"variant="filled"hoverableactions={<><TechButton variant="ghost" size="small">查看文档</TechButton><TechButton variant="primary" size="small">立即开始</TechButton></>}><div style={{ padding: '16px 0' }}><pre style={{background: 'rgba(0,0,0,0.3)',padding: '16px',borderRadius: '8px',color: 'var(--tech-text)',fontSize: '13px',lineHeight: 1.5,overflow: 'auto',margin: '0 0 16px 0'}}>
{`# 安装
npm install yggjs_rlayout# 使用
import { TechLayout } from 'yggjs_rlayout/tech';function App() {return (<TechLayout brand="Your App">{/* 你的内容 */}</TechLayout>);
}`}</pre><p style={{ color: 'var(--tech-text-muted)', margin: 0, fontSize: '14px', lineHeight: 1.5 }}>这个演示页面展示了 SPA 导航的完整实现，点击头部和侧边栏的菜单项体验无刷新页面切换。</p></div></TechCard><br /></div></div>);
}
