OpenLayers与Vue.js结合实现前端地图应用
OpenLayers与Vue.js结合实现前端地图应用
下面我将为您展示如何将OpenLayers与Vue.js结合创建一个功能丰富的前端地图应用。这个教程包含了基础地图展示、标记点、地图控件以及交互功能。

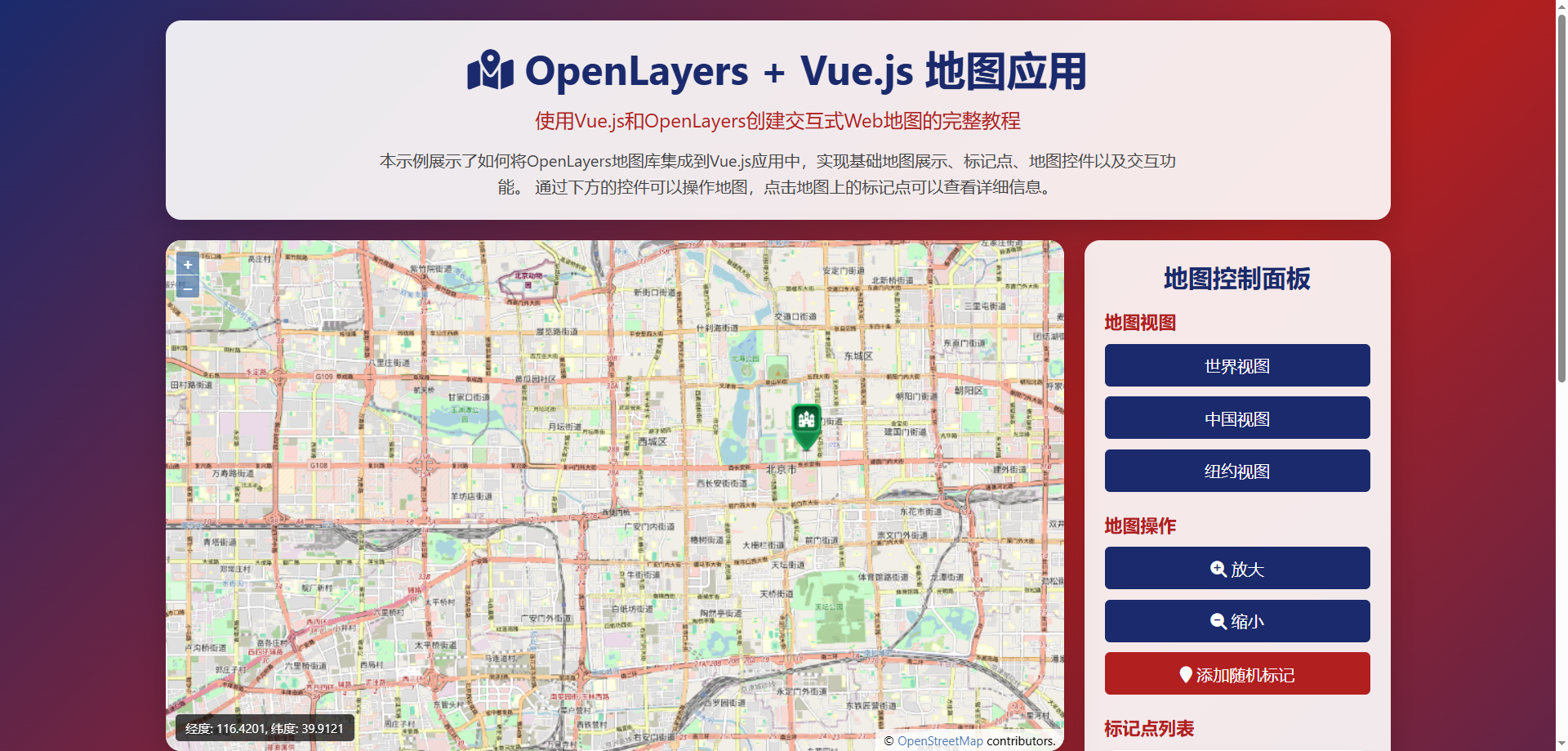

实现结果
实现思路
- 在Vue项目中集成OpenLayers库
- 创建基础地图视图和OSM图层
- 添加标记点和信息弹窗
- 实现地图控件（缩放、全屏、比例尺等）
- 添加地图交互功能（点击标记点显示信息）
完整代码实现
<!DOCTYPE html>
<html lang="zh-CN">
<head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><title>OpenLayers + Vue.js 地图应用</title><script src="https://cdn.jsdelivr.net/npm/vue@2.6.14/dist/vue.js"></script><link rel="stylesheet" href="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.15.1/css/ol.css"><script src="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.15.1/build/ol.js"></script><link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.4.0/css/all.min.css"><style>* {margin: 0;padding: 0;box-sizing: border-box;font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;}body {background: linear-gradient(135deg, #1a2a6c, #b21f1f, #1a2a6c);min-height: 100vh;padding: 20px;color: #333;}.container {max-width: 1200px;margin: 0 auto;display: flex;flex-direction: column;gap: 20px;}header {text-align: center;padding: 20px;background: rgba(255, 255, 255, 0.9);border-radius: 15px;box-shadow: 0 10px 30px rgba(0, 0, 0, 0.2);}h1 {color: #1a2a6c;margin-bottom: 10px;font-size: 2.5rem;}.subtitle {color: #b21f1f;font-size: 1.2rem;margin-bottom: 15px;}.description {max-width: 800px;margin: 0 auto;line-height: 1.6;color: #444;}.content {display: flex;gap: 20px;flex-wrap: wrap;}.map-container {flex: 1;min-width: 300px;height: 500px;background: white;border-radius: 15px;overflow: hidden;box-shadow: 0 10px 30px rgba(0, 0, 0, 0.2);position: relative;}#map {width: 100%;height: 100%;}.controls {background: rgba(255, 255, 255, 0.9);border-radius: 15px;padding: 20px;width: 300px;box-shadow: 0 10px 30px rgba(0, 0, 0, 0.2);}.controls h2 {color: #1a2a6c;margin-bottom: 15px;text-align: center;}.control-group {margin-bottom: 20px;}.control-group h3 {color: #b21f1f;margin-bottom: 10px;font-size: 1.1rem;}.info-box {background: white;padding: 15px;border-radius: 10px;margin-bottom: 15px;box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);}.marker-list {max-height: 200px;overflow-y: auto;}.marker-item {padding: 10px;border-bottom: 1px solid #eee;cursor: pointer;transition: background 0.3s;}.marker-item:hover {background: #f0f5ff;}.marker-item.active {background: #e3eeff;font-weight: bold;}.btn {display: block;width: 100%;padding: 10px;margin: 10px 0;background: #1a2a6c;color: white;border: none;border-radius: 5px;cursor: pointer;font-size: 1rem;transition: background 0.3s;}.btn:hover {background: #0d1a4a;}.btn.secondary {background: #b21f1f;}.btn.secondary:hover {background: #8a1818;}.coordinates {background: rgba(0, 0, 0, 0.7);color: white;padding: 5px 10px;border-radius: 4px;position: absolute;bottom: 10px;left: 10px;z-index: 1000;font-size: 12px;}.popup {position: absolute;background: white;border-radius: 8px;padding: 15px;box-shadow: 0 2px 10px rgba(0, 0, 0, 0.2);min-width: 200px;z-index: 1000;display: none;}.popup h3 {color: #1a2a6c;margin-bottom: 8px;}.popup p {margin-bottom: 5px;}.popup-close {position: absolute;top: 5px;right: 10px;cursor: pointer;color: #b21f1f;}.features {display: flex;flex-wrap: wrap;gap: 20px;margin-top: 20px;}.feature-card {background: rgba(255, 255, 255, 0.9);border-radius: 15px;padding: 20px;flex: 1;min-width: 250px;box-shadow: 0 10px 30px rgba(0, 0, 0, 0.1);}.feature-card h3 {color: #1a2a6c;margin-bottom: 15px;display: flex;align-items: center;gap: 10px;}.feature-card i {color: #b21f1f;font-size: 1.5rem;}.feature-card ul {padding-left: 20px;}.feature-card li {margin-bottom: 8px;line-height: 1.5;}footer {text-align: center;padding: 20px;color: white;margin-top: 20px;}@media (max-width: 768px) {.content {flex-direction: column;}.controls {width: 100%;}}</style>
</head>
<body><div id="app" class="container"><header><h1><i class="fas fa-map-marked-alt"></i> OpenLayers + Vue.js 地图应用</h1><p class="subtitle">使用Vue.js和OpenLayers创建交互式Web地图的完整教程</p><p class="description">本示例展示了如何将OpenLayers地图库集成到Vue.js应用中，实现基础地图展示、标记点、地图控件以及交互功能。通过下方的控件可以操作地图，点击地图上的标记点可以查看详细信息。</p></header><div class="content"><div class="map-container"><div id="map"></div><div class="coordinates">经度: {{ currentLon.toFixed(4) }}, 纬度: {{ currentLat.toFixed(4) }}</div><div class="popup" id="popup"><span class="popup-close" @click="closePopup">×</span><h3>{{ activeMarker.title }}</h3><p><i class="fas fa-info-circle"></i> {{ activeMarker.description }}</p><p><i class="fas fa-map-marker-alt"></i> 经度: {{ activeMarker.position[0].toFixed(4) }}</p><p><i class="fas fa-map-marker-alt"></i> 纬度: {{ activeMarker.position[1].toFixed(4) }}</p></div></div><div class="controls"><h2>地图控制面板</h2><div class="control-group"><h3>地图视图</h3><button class="btn" @click="setView([0, 0], 2)">世界视图</button><button class="btn" @click="setView([116.4, 39.9], 5)">中国视图</button><button class="btn" @click="setView([-74.006, 40.7128], 12)">纽约视图</button></div><div class="control-group"><h3>地图操作</h3><button class="btn" @click="zoomIn"><i class="fas fa-search-plus"></i> 放大</button><button class="btn" @click="zoomOut"><i class="fas fa-search-minus"></i> 缩小</button><button class="btn secondary" @click="addRandomMarker"><i class="fas fa-map-marker"></i> 添加随机标记</button></div><div class="control-group"><h3>标记点列表</h3><div class="info-box"><p>当前标记数: {{ markers.length }}</p></div><div class="marker-list"><div v-for="(marker, index) in markers" :key="index" class="marker-item":class="{ active: activeMarkerIndex === index }"@click="showMarkerInfo(index)">{{ marker.title }}</div></div></div></div></div><div class="features"><div class="feature-card"><h3><i class="fas fa-layer-group"></i> OpenLayers特性</h3><ul><li>支持多种地图源（OSM, Bing, Mapbox等）</li><li>高性能矢量图层渲染</li><li>丰富的地图控件（缩放、比例尺、全屏等）</li><li>强大的投影转换功能</li><li>支持GeoJSON、KML、GPX等地理数据格式</li></ul></div><div class="feature-card"><h3><i class="fab fa-vuejs"></i> Vue.js集成优势</h3><ul><li>组件化开发，易于维护</li><li>响应式数据绑定，实时更新UI</li><li>生命周期钩子管理地图初始化与销毁</li><li>丰富的Vue生态插件支持</li><li>与Vue状态管理工具(Vuex)无缝集成</li></ul></div><div class="feature-card"><h3><i class="fas fa-rocket"></i> 应用场景</h3><ul><li>位置服务与导航应用</li><li>地理信息系统(GIS)</li><li>实时位置追踪与监控</li><li>地理数据分析与可视化</li><li>基于位置的游戏与服务</li></ul></div></div><footer><p>© 2023 OpenLayers + Vue.js 地图教程 | 使用开源技术构建</p></footer></div><script>new Vue({el: '#app',data: {map: null,vectorLayer: null,markers: [{title: "北京天安门",description: "中国首都的象征性建筑",position: [116.3974, 39.9087]},{title: "上海东方明珠",description: "上海标志性文化景观之一",position: [121.4997, 31.2397]},{title: "广州塔",description: "世界第三高塔",position: [113.3246, 23.1064]},{title: "深圳世界之窗",description: "著名微缩景区",position: [113.9734, 22.5362]}],activeMarker: {title: "",description: "",position: [0, 0]},activeMarkerIndex: -1,currentLon: 0,currentLat: 0},mounted() {this.initMap();},methods: {initMap() {// 创建地图实例this.map = new ol.Map({target: 'map',layers: [new ol.layer.Tile({source: new ol.source.OSM()})],view: new ol.View({center: ol.proj.fromLonLat([116.4, 39.9]),zoom: 5})});// 创建矢量图层用于标记点this.vectorLayer = new ol.layer.Vector({source: new ol.source.Vector(),style: new ol.style.Style({image: new ol.style.Icon({anchor: [0.5, 1],src: 'https://openlayers.org/en/latest/examples/data/icon.png'})})});this.map.addLayer(this.vectorLayer);// 添加初始标记点this.markers.forEach(marker => {this.addMarker(marker.position, marker.title);});// 监听地图点击事件this.map.on('click', (event) => {this.map.forEachFeatureAtPixel(event.pixel, (feature) => {const index = this.markers.findIndex(m => m.position[0] === feature.get('lon') && m.position[1] === feature.get('lat'));if (index !== -1) {this.showMarkerInfo(index);}});});// 监听地图移动事件，更新坐标this.map.on('pointermove', (event) => {const coords = ol.proj.toLonLat(event.coordinate);this.currentLon = coords[0];this.currentLat = coords[1];});},addMarker(coords, title) {const feature = new ol.Feature({geometry: new ol.geom.Point(ol.proj.fromLonLat(coords))});feature.set('lon', coords[0]);feature.set('lat', coords[1]);feature.set('title', title);this.vectorLayer.getSource().addFeature(feature);},addRandomMarker() {const lon = this.currentLon + (Math.random() - 0.5) * 10;const lat = this.currentLat + (Math.random() - 0.5) * 10;const title = `随机点 ${this.markers.length + 1}`;this.markers.push({title: title,description: "这是一个随机添加的标记点",position: [lon, lat]});this.addMarker([lon, lat], title);},showMarkerInfo(index) {this.activeMarker = { ...this.markers[index] };this.activeMarkerIndex = index;const popup = document.getElementById('popup');popup.style.display = 'block';// 定位弹窗到标记位置const markerCoords = ol.proj.fromLonLat(this.activeMarker.position);const pixel = this.map.getPixelFromCoordinate(markerCoords);popup.style.left = (pixel[0] - popup.offsetWidth / 2) + 'px';popup.style.top = (pixel[1] - popup.offsetHeight - 40) + 'px';// 平移到标记点this.map.getView().animate({center: markerCoords,duration: 500});},closePopup() {document.getElementById('popup').style.display = 'none';this.activeMarkerIndex = -1;},setView(coords, zoom) {this.map.getView().animate({center: ol.proj.fromLonLat(coords),zoom: zoom,duration: 1000});},zoomIn() {const view = this.map.getView();view.animate({zoom: view.getZoom() + 1,duration: 300});},zoomOut() {const view = this.map.getView();view.animate({zoom: view.getZoom() - 1,duration: 300});}}});</script>
</body>
</html>
教程说明
1. 集成OpenLayers到Vue项目
首先在HTML中引入OpenLayers的CSS和JS文件：
<link rel="stylesheet" href="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.15.1/css/ol.css">
<script src="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.15.1/build/ol.js"></script>
2. 创建地图实例
在Vue的mounted生命周期钩子中初始化地图：
this.map = new ol.Map({target: 'map',layers: [new ol.layer.Tile({source: new ol.source.OSM() // 使用OpenStreetMap作为底图})],view: new ol.View({center: ol.proj.fromLonLat([116.4, 39.9]), // 初始中心点（北京）zoom: 5 // 初始缩放级别})
});
3. 添加标记点
创建矢量图层来显示标记点：
this.vectorLayer = new ol.layer.Vector({source: new ol.source.Vector(),style: new ol.style.Style({image: new ol.style.Icon({anchor: [0.5, 1], // 图标锚点src: 'https://openlayers.org/en/latest/examples/data/icon.png'})})
});
添加标记点的方法：
addMarker(coords, title) {const feature = new ol.Feature({geometry: new ol.geom.Point(ol.proj.fromLonLat(coords))});feature.set('lon', coords[0]);feature.set('lat', coords[1]);feature.set('title', title);this.vectorLayer.getSource().addFeature(feature);
}
4. 实现交互功能
显示标记点信息弹窗：
showMarkerInfo(index) {this.activeMarker = { ...this.markers[index] };const popup = document.getElementById('popup');// 定位弹窗到标记位置const markerCoords = ol.proj.fromLonLat(this.activeMarker.position);const pixel = this.map.getPixelFromCoordinate(markerCoords);popup.style.left = (pixel[0] - popup.offsetWidth / 2) + 'px';popup.style.top = (pixel[1] - popup.offsetHeight - 40) + 'px';popup.style.display = 'block';
}
地图视图控制：
setView(coords, zoom) {this.map.getView().animate({center: ol.proj.fromLonLat(coords),zoom: zoom,duration: 1000});
}
5. 响应式设计
使用CSS Flexbox和媒体查询确保应用在不同设备上都能良好显示：
@media (max-width: 768px) {.content {flex-direction: column;}.controls {width: 100%;}
}
总结
本教程展示了如何：
- 在Vue.js应用中集成OpenLayers地图库
- 创建基础地图和添加标记点
- 实现地图交互功能（点击标记点显示信息）
- 添加地图控件（视图切换、缩放等）
- 设计响应式界面适应不同设备
您可以根据需要进一步扩展功能，如添加不同类型的图层、实现路径规划、集成地理编码服务等。
