制作电子相册

news 2025/6/7 9:44:09

本案例介绍了如何实现一个简单的电子相册应用，主要功能包括：

  1. 实现首页顶部的轮播效果。
  2. 实现页面多种布局方式。
  3. 实现通过手势控制图片的放大、缩小、左右滑动查看细节等效果。

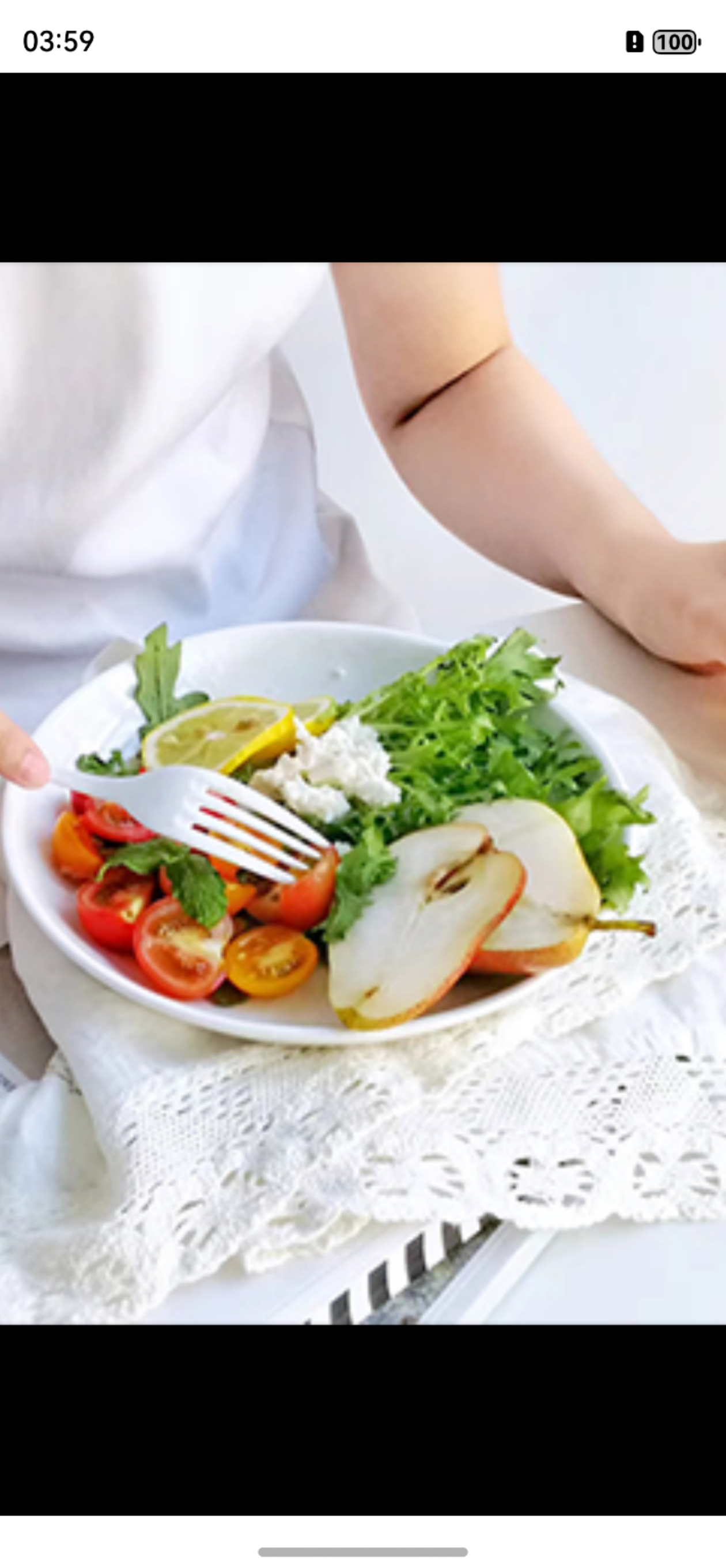

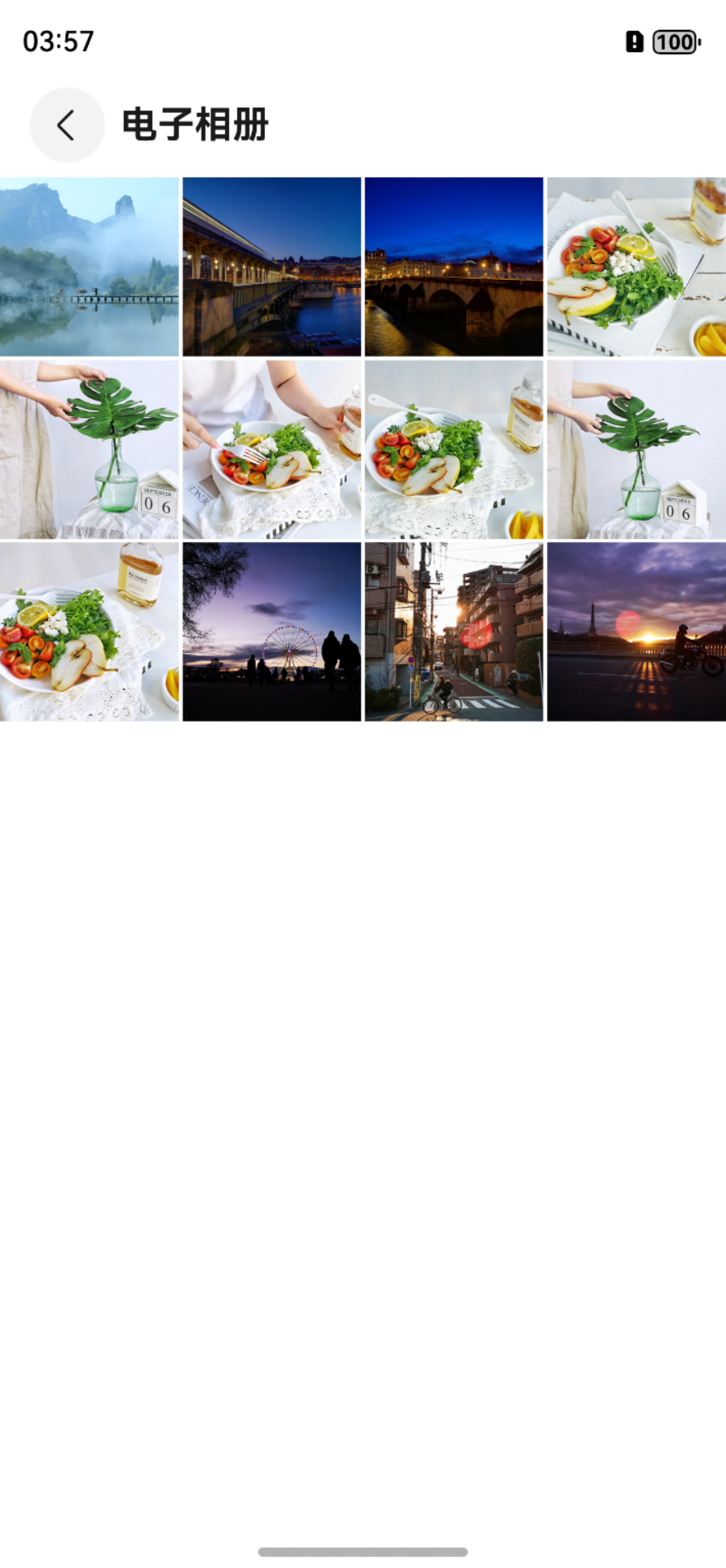

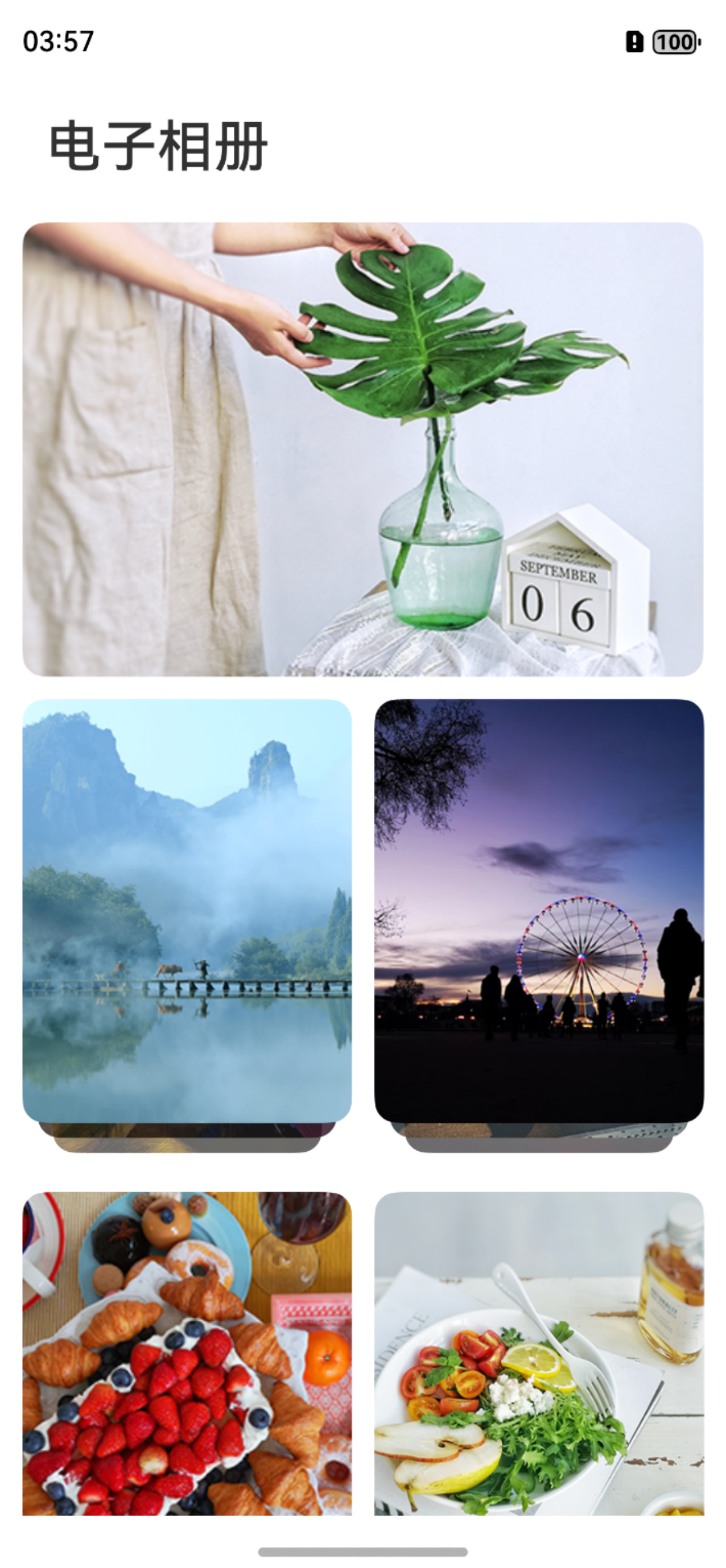

一、案例效果截图

二、案例运用到的知识点

  1. 核心知识点
  • 组合手势：手势识别组，多种手势组合为复合手势，支持连续识别、并行识别和互斥识别。
  • Swiper：滑块视图容器，提供子组件滑动轮播显示的能力。
  • Grid：网格容器，由“行”和“列”分割的单元格所组成，通过指定“项目”所在的单元格做出各种各样的布局。
  • Navigation：Navigation组件一般作为Page页面的根容器，通过属性设置来展示页面的标题、工具栏、菜单。
  • List：列表包含一系列相同宽度的列表项。适合连续、多行呈现同类数据，例如图片和文本。
  1. 其他知识点
  • ArkTS 语言基础
  • V2版状态管理：@ComponentV2/@Local/@Param/AppStorageV2
  • 渲染控制：ForEach
  • 自定义组件和组件生命周期
  • 自定义构建函数@Builder
  • @Extend：定义扩展样式
  • Navigation导航组件与router路由导航
  • 内置组件：Swiper/Stack/Column/Row/Image/Grid/List
  • 常量与资源分类的访问
  • MVVM模式

三、代码结构

├──entry/src/main/ets                // 代码区
│  ├──common
│  │  ├──constansts
│  │  │  └──Constants.ets            // 常量类
│  │  └──utils
│  │     └──Logger.ets               // Logger公共类
│  ├──entryability
│  │  └──EntryAbility.ets            // 程序入口类
│  ├──pages
│  │  ├──DetailListPage.ets          // 图片详情页面
│  │  ├──DetailPage.ets              // 查看大图页面
│  │  ├──IndexPage.ets               // 电子相册主页面
│  │  └──ListPage.ets                // 图片列表页面
│  └──view
│     └──PhotoItem.ets               // 首页相册Item组件
└──entry/src/main/resources          // 资源文件

四、公共文件与资源

本案例涉及到的常量类和工具类代码如下：

  1. 通用常量类
// entry/src/main/ets/common/constants/Constants.ets
export default class Constants {/*** banner list*/static readonly BANNER_IMG_LIST: Array<Resource> = [$r('app.media.ic_scene_1'),$r('app.media.ic_food_0'),$r('app.media.ic_life_0'),$r('app.media.ic_men_0')]/*** scene list*/static readonly SCENE_LIST: Array<Resource> = [$r('app.media.ic_scene_1'),$r('app.media.ic_scene_2'),$r('app.media.ic_scene_0')]/*** men list*/static readonly MEN_LIST: Array<Resource> = [$r('app.media.ic_men_0'),$r('app.media.ic_men_2'),$r('app.media.ic_men_3')]/*** food list*/static readonly FOOD_LIST: Array<Resource> = [$r('app.media.ic_food_1'),$r('app.media.ic_food_0'),]/*** life list*/static readonly LIFE_LIST: Array<Resource> = [$r('app.media.ic_life_1'),$r('app.media.ic_life_0'),$r('app.media.ic_life_2'),$r('app.media.ic_life_3'),$r('app.media.ic_life_4'),$r('app.media.ic_life_5')]/*** index page img arr*/static readonly IMG_ARR: Resource[][] = [new Array<Resource>().concat(Constants.SCENE_LIST, Constants.LIFE_LIST, Constants.MEN_LIST),new Array<Resource>().concat(Constants.MEN_LIST, Constants.LIFE_LIST, Constants.SCENE_LIST),new Array<Resource>().concat(Constants.FOOD_LIST, Constants.SCENE_LIST, Constants.SCENE_LIST),new Array<Resource>().concat(Constants.LIFE_LIST, Constants.FOOD_LIST, Constants.MEN_LIST)]/*** title font weight*/static readonly TITLE_FONT_WEIGHT: number = 500/*** aspect ratio*/static readonly BANNER_ASPECT_RATIO: number = 1.5/*** animate duration*/static readonly BANNER_ANIMATE_DURATION: number = 300/*** share delay*/static readonly SHARE_TRANSITION_DELAY: number = 100/*** aspect ratio*/static readonly STACK_IMG_RATIO: number = 0.7/*** item space*/static readonly LIST_ITEM_SPACE: number = 2/*** cache size*/static readonly CACHE_IMG_SIZE: number = 4/*** cache list*/static readonly CACHE_IMG_LIST: string[] = ['', '', '', '']/*** title*/static readonly PAGE_TITLE: string = '电子相册'/***  router param*/static readonly PARAM_PHOTO_ARR_KEY: string = 'photoArr'/***  selected index*/static readonly SELECTED_INDEX_KEY: string = 'selectedIndex'/*** grid column template*/static readonly GRID_COLUMNS_TEMPLATE: string = '1fr 1fr 1fr 1fr'/*** index page columns template*/static readonly INDEX_COLUMNS_TEMPLATE: string = '1fr 1fr'/***  percent*/static readonly FULL_PERCENT: string = '100%'/*** photo item percent*/static readonly PHOTO_ITEM_PERCENT: string = '90%'/*** show count*/static readonly SHOW_COUNT: number = 8/*** default width*/static readonly DEFAULT_WIDTH: number = 360/*** padding*/static readonly PHOTO_ITEM_PADDING: number = 8/*** offset*/static readonly PHOTO_ITEM_OFFSET: number = 16/*** item opacity offset*/static readonly ITEM_OPACITY_OFFSET: number = 0.2/*** double number*/static readonly DOUBLE_NUMBER: number = 2/*** list page url*/static readonly URL_LIST_PAGE: string = 'pages/ListPage'/*** detail list page url*/static readonly URL_DETAIL_LIST_PAGE: string = 'pages/ListDetailPage'/*** detail page url*/static readonly URL_DETAIL_PAGE: string = 'pages/DetailPage'/*** index page tag*/static readonly TAG_INDEX_PAGE: string = 'IndexPage push error '/*** list page tag*/static readonly TAG_LIST_PAGE: string = 'ListPage push error '/*** detail list page tag*/static readonly TAG_DETAIL_PAGE: string = 'DetailListPage push error '}
  1. 公共日志类
// entry/src/main/ets/common/utils/Logger.ets
import { hilog } from '@kit.PerformanceAnalysisKit'const LOGGER_PREFIX: string = 'Electronic Album'class Logger {private domain: numberprivate prefix: stringprivate format: string = '%{public}s, %{public}s'constructor(prefix: string = '', domain: number = 0xFF00) {this.prefix = prefixthis.domain = domain}debug(...args: string[]): void {hilog.debug(this.domain, this.prefix, this.format, args)}info(...args: string[]): void {hilog.info(this.domain, this.prefix, this.format, args)}warn(...args: string[]): void {hilog.warn(this.domain, this.prefix, this.format, args)}error(...args: string[]): void {hilog.error(this.domain, this.prefix, this.format, args)}
}export default new Logger(LOGGER_PREFIX)

本案例涉及到的资源文件如下：

  1. string.json
// entry/src/main/resources/base/element/string.json
{"string": [{"name": "module_desc","value": "模块描述"},{"name": "EntryAbility_desc","value": "description"},{"name": "EntryAbility_label","value": "电子相册"}]
}
  1. color.json
// entry/src/main/resources/base/element/color.json
{"color": [{"name": "start_window_background","value": "#FFFFFF"},{"name": "detail_background","value": "#000000"}]
}
  1. float.json
// entry/src/main/resources/base/element/float.json
{"float": [{"name": "detail_list_margin","value": "20vp"},{"name": "img_border_radius","value": "12vp"},{"name": "grid_padding","value": "12vp"},{"name": "title_padding","value": "24vp"},{"name": "title_font_size","value": "30fp"},{"name": "navi_bar_height","value": "56vp"}]
}

其他资源请到源码中获取。

五、应用首页

应用首页用Column组件来实现纵向布局，从上到下依次是标题组件Text、轮播图Swiper、相册列表Grid。标题和轮播图均设置固定高度，底部相册列表通过layoutWeight属性实现自适应布局占满剩余空间。

// entry/src/main/ets/pages/Index.ets
import { router } from '@kit.ArkUI'
import Constants from '../common/constants/Constants'
import PhotoItem from '../view/PhotoItem'@Entry
@ComponentV2
struct IndexPage {swiperController: SwiperController = new SwiperController()scroller: Scroller = new Scroller()@Local currentIndex: number = 0@Local angle: number = 0build() {Column() {Row() {Text($r('app.string.EntryAbility_label')).fontSize($r('app.float.title_font_size')).fontWeight(Constants.TITLE_FONT_WEIGHT)}.height($r('app.float.navi_bar_height')).alignItems(VerticalAlign.Center).justifyContent(FlexAlign.Start).margin({ top: $r('app.float.grid_padding') }).padding({ left: $r('app.float.title_padding') }).width(Constants.FULL_PERCENT)Swiper(this.swiperController) {ForEach(Constants.BANNER_IMG_LIST, (item: Resource) => {Row() {Image(item).width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT)}.width(Constants.FULL_PERCENT).aspectRatio(Constants.BANNER_ASPECT_RATIO)}, (item: Resource, index?: number) => JSON.stringify(item) + index)}.autoPlay(true).loop(true).margin($r('app.float.grid_padding')).borderRadius($r('app.float.img_border_radius')).clip(true).duration(Constants.BANNER_ANIMATE_DURATION).indicator(false)Grid() {ForEach(Constants.IMG_ARR, (photoArr: Array<Resource>) => {GridItem() {PhotoItem({ photoArr })}.width(Constants.FULL_PERCENT).aspectRatio(Constants.STACK_IMG_RATIO).onClick(() => {router.pushUrl({url: Constants.URL_LIST_PAGE,params: { photoArr: photoArr }})})}, (item: Resource, index?: number) => JSON.stringify(item) + index)}.scrollBar(BarState.Off).columnsTemplate(Constants.INDEX_COLUMNS_TEMPLATE).columnsGap($r('app.float.grid_padding')).rowsGap($r('app.float.grid_padding')).padding({ left: $r('app.float.grid_padding'), right: $r('app.float.grid_padding')}).width(Constants.FULL_PERCENT).layoutWeight(1)}.width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT)}
}

PhotoItem视图用来渲染相册图片：

// entry/src/main/ets/view/PhotoItem.ets
import Constants from '../common/constants/Constants'@ComponentV2
export default struct PhotoItem {@Param photoArr: Array<Resource> = []@Local currentIndex: number = 0private showCount: number = Constants.SHOW_COUNT / Constants.DOUBLE_NUMBER@Builder albumPicBuilder(img: Resource, index: number) {Column() {Image(img).width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT).borderRadius($r('app.float.img_border_radius')).opacity(1 - (this.showCount - index - 1) * Constants.ITEM_OPACITY_OFFSET)}.padding((this.showCount - index - 1) * Constants.PHOTO_ITEM_PADDING).offset({ y: (this.showCount - index - 1) * Constants.PHOTO_ITEM_OFFSET }).height(Constants.PHOTO_ITEM_PERCENT).width(Constants.FULL_PERCENT)}build() {Stack({ alignContent: Alignment.Top }) {ForEach(Constants.CACHE_IMG_LIST, (image: string, index?: number) => {if (index) {this.albumPicBuilder(this.photoArr[this.showCount - index - 1], index)}}, (item: string, index?: number) => JSON.stringify(item) + index)}.width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT)}
}

六、图片列表页

图片列表页是网格状展开的图片列表，主要使用Grid组件和GridItem组件，GridItem高度通过aspectRatio属性设置为跟宽度一致。


// entry/src/main/ets/pages/ListPage.ets
import { AppStorageV2, router } from '@kit.ArkUI'
import Constants from '../common/constants/Constants'
import { ListPageStorage } from '../model/ListPageModel'@Entry
@ComponentV2
struct ListPage {@Local storage: ListPageStorage = AppStorageV2.connect(ListPageStorage, 'storage', () => new ListPageStorage())!photoArr: Array<Resource> = (router.getParams() asRecord<string, Array<Resource>>)[`${Constants.PARAM_PHOTO_ARR_KEY}`]build() {Navigation() {Grid() {ForEach(this.photoArr, (img: Resource, index?: number) => {GridItem() {Image(img).height(Constants.FULL_PERCENT).width(Constants.FULL_PERCENT).objectFit(ImageFit.Cover).onClick(() => {if (!index) {index = 0}this.storage.selectedIndex = indexrouter.pushUrl({url: Constants.URL_DETAIL_LIST_PAGE,params: {photoArr: this.photoArr,}})})}.width(Constants.FULL_PERCENT).aspectRatio(1)}, (item: Resource) => JSON.stringify(item))}.scrollBar(BarState.Off).columnsTemplate(Constants.GRID_COLUMNS_TEMPLATE).rowsGap(Constants.LIST_ITEM_SPACE).columnsGap(Constants.LIST_ITEM_SPACE).layoutWeight(1)}.title(Constants.PAGE_TITLE).hideBackButton(false).titleMode(NavigationTitleMode.Mini)}
}

上述代码中storage需要构建一个AppStorageV2的数据：

// entry/src/main/ets/model/ListPageModel.ets
@ObservedV2
export class ListPageStorage {@Trace selectedIndex: number = 0
}

七、图片详情页

图片详情页由上下两个横向滚动的List组件完成整体布局，两个组件之间有联动的效果。上边展示的大图始终是底部List处于屏幕中间位置的图片。滚动或者点击底部的List，上边展示的大图会随着改变，同样左右滑动上边的图片时，底部List组件也会随之进行滚动。

界面跳转动画是通过共享元素实现的，通过给Image添加sharedTransition属性来实现共享元素转场动画。两个页面的组件配置为同一个shareId，当shareId被配置为空字符串时不会有共享元素转场效果。

// entry/src/main/ets/pages/ListDetailPage.ets
import { router,display, AppStorageV2 } from '@kit.ArkUI'
import Constants from '../common/constants/Constants'
import { ListPageStorage } from '../model/ListPageModel'enum scrollTypeEnum {STOP = 'onScrollStop',SCROLL = 'onScroll'
}@Entry
@ComponentV2
struct DetailListPage {private smallScroller: Scroller = new Scroller()private bigScroller: Scroller = new Scroller()@Local deviceWidth: number = Constants.DEFAULT_WIDTH@Local smallImgWidth: number = (this.deviceWidth - Constants.LIST_ITEM_SPACE * (Constants.SHOW_COUNT - 1)) / Constants.SHOW_COUNT@Local imageWidth: number = this.deviceWidth + this.smallImgWidthprivate photoArr: Array<Resource | string> = (router.getParams() as Record<string, Array<Resource | string>>)[`${Constants.PARAM_PHOTO_ARR_KEY}`]private smallPhotoArr: Array<Resource | string> = new Array<Resource | string>().concat(Constants.CACHE_IMG_LIST,(router.getParams() as Record<string, Array<Resource | string>>)[`${Constants.PARAM_PHOTO_ARR_KEY}`],Constants.CACHE_IMG_LIST)@Local storage: ListPageStorage = AppStorageV2.connect(ListPageStorage, 'storage', () => new ListPageStorage())!@Builder SmallImgItemBuilder(img: Resource, index?: number) {if (index && index > (Constants.CACHE_IMG_SIZE - 1) && index < (this.smallPhotoArr.length - Constants.CACHE_IMG_SIZE)) {Image(img).onClick(() => this.smallImgClickAction(index))}}aboutToAppear() {let displayClass: display.Display = display.getDefaultDisplaySync()let width = displayClass?.width / displayClass.densityPixels ?? Constants.DEFAULT_WIDTHthis.deviceWidth = widththis.smallImgWidth = (width - Constants.LIST_ITEM_SPACE * (Constants.SHOW_COUNT - 1)) / Constants.SHOW_COUNTthis.imageWidth = this.deviceWidth + this.smallImgWidth}onPageShow() {this.smallScroller.scrollToIndex(this.storage.selectedIndex)this.bigScroller.scrollToIndex(this.storage.selectedIndex)}goDetailPage(): void {router.pushUrl({url: Constants.URL_DETAIL_PAGE,params: { photoArr: this.photoArr }})}smallImgClickAction(index: number): void {this.storage.selectedIndex = index - Constants.CACHE_IMG_SIZEthis.smallScroller.scrollToIndex(this.storage.selectedIndex)this.bigScroller.scrollToIndex(this.storage.selectedIndex)}smallScrollAction(type: scrollTypeEnum): void {this.storage.selectedIndex = Math.round(((this.smallScroller.currentOffset().xOffset as number) + this.smallImgWidth / Constants.DOUBLE_NUMBER) / (this.smallImgWidth + Constants.LIST_ITEM_SPACE))if (type === scrollTypeEnum.SCROLL) {this.bigScroller.scrollTo({xOffset: this.storage.selectedIndex * this.imageWidth, yOffset: 0})} else {this.smallScroller.scrollTo({xOffset: this.storage.selectedIndex * this.smallImgWidth, yOffset: 0})}}bigScrollAction(type: scrollTypeEnum): void {let smallWidth = this.smallImgWidth + Constants.LIST_ITEM_SPACEthis.storage.selectedIndex = Math.round(((this.bigScroller.currentOffset().xOffset as number) +smallWidth / Constants.DOUBLE_NUMBER) / this.imageWidth)if (type === scrollTypeEnum.SCROLL) {this.smallScroller.scrollTo({xOffset: this.storage.selectedIndex * smallWidth, yOffset: 0 })} else {this.bigScroller.scrollTo({xOffset: this.storage.selectedIndex * this.imageWidth, yOffset: 0 })}}build() {Navigation() {Stack({ alignContent: Alignment.Bottom }) {List({scroller: this.bigScroller, initialIndex: this.storage.selectedIndex}) {ForEach(this.photoArr, (img: Resource) => {ListItem() {Image(img).height(Constants.FULL_PERCENT).width(Constants.FULL_PERCENT).objectFit(ImageFit.Contain).gesture(PinchGesture({ fingers: Constants.DOUBLE_NUMBER }).onActionStart(() => this.goDetailPage())).onClick(() => this.goDetailPage())}.padding({left: this.smallImgWidth / Constants.DOUBLE_NUMBER,right: this.smallImgWidth / Constants.DOUBLE_NUMBER}).width(this.imageWidth)}, (item: Resource) => JSON.stringify(item))}.onDidScroll((scrollOffset, scrollState) => {if (scrollState === ScrollState.Fling) {this.bigScrollAction(scrollTypeEnum.SCROLL)}}).scrollBar(BarState.Off).onScrollStop(() => this.bigScrollAction(scrollTypeEnum.STOP)).width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT).padding({ bottom: this.smallImgWidth * Constants.DOUBLE_NUMBER }).listDirection(Axis.Horizontal)List({scroller: this.smallScroller,space: Constants.LIST_ITEM_SPACE,initialIndex: this.storage.selectedIndex}) {ForEach(this.smallPhotoArr, (img: Resource, index?: number) => {ListItem() {this.SmallImgItemBuilder(img, index)}.width(this.smallImgWidth).aspectRatio(1)}, (item: Resource) => JSON.stringify(item))}.listDirection(Axis.Horizontal).onDidScroll((scrollOffset, scrollState) => {if (scrollState === ScrollState.Fling) {this.smallScrollAction(scrollTypeEnum.SCROLL)}}).scrollBar(BarState.Off).onScrollStop(() => this.smallScrollAction(scrollTypeEnum.STOP)).margin({top: $r('app.float.detail_list_margin'), bottom: $r('app.float.detail_list_margin')}).height(this.smallImgWidth).width(Constants.FULL_PERCENT)}.width(this.imageWidth).height(Constants.FULL_PERCENT)}.title(Constants.PAGE_TITLE).hideBackButton(false).titleMode(NavigationTitleMode.Mini)}
}

八、查看大图页

查看大图页面由一个横向滚动的List组件来实现图片左右滑动时切换图片的功能，和一个Row组件实现图片的缩放和拖动查看细节功能。对图片进行缩放时会从List组件切换成Row组件来实现对单张图片的操作，对单张图片进行滑动操作时，也会由Row组件转换为List组件来实现图片的切换功能。

界面跳转动画是通过共享元素实现的，通过给Image添加sharedTransition属性来实现共享元素转场动画。两个页面的组件配置为同一个shareId，当shareId被配置为空字符串时不会有共享元素转场效果。

大图浏览界面双指捏合时通过改变Image组件的scale来控制图片的缩放，单手拖动时通过改变Image的偏移量来控制图片的位置，手势操作调用组合手势GestureGroup实现。其中PinchGesture实现双指缩放手势，PanGesture实现单指拖动手势。

// entry/src/main/ets/pages/DetailPage.ets
import { router, display, AppStorageV2 } from '@kit.ArkUI'
import Constants from '../common/constants/Constants'
import { ListPageStorage } from '../model/ListPageModel'@Entry
@ComponentV2
struct DetailPage {scroller: Scroller = new Scroller()photoArr: Array<Resource> = (router.getParams() as Record<string, Array<Resource>>)[`${Constants.PARAM_PHOTO_ARR_KEY}`]preOffsetX: number = 0preOffsetY: number = 0currentScale: number = 1@Local deviceWidth: number = Constants.DEFAULT_WIDTH@Local smallImgWidth: number = (Constants.DEFAULT_WIDTH - Constants.LIST_ITEM_SPACE * (Constants.SHOW_COUNT - 1)) /Constants.SHOW_COUNT@Local imageWidth: number = this.deviceWidth + this.smallImgWidth@Local isScaling: boolean = true@Local imgScale: number = 1@Local imgOffSetX: number = 0@Local imgOffSetY: number = 0@Local bgOpacity: number = 0@Local storage: ListPageStorage = AppStorageV2.connect(ListPageStorage, 'storage', () => new ListPageStorage())!aboutToAppear() {let displayClass: display.Display = display.getDefaultDisplaySync()let width = displayClass?.width / displayClass.densityPixels ?? Constants.DEFAULT_WIDTHthis.deviceWidth = widththis.smallImgWidth = (width - Constants.LIST_ITEM_SPACE * (Constants.SHOW_COUNT - 1)) / Constants.SHOW_COUNTthis.imageWidth = this.deviceWidth + this.smallImgWidth}resetImg(): void {this.imgScale = 1this.currentScale = 1this.preOffsetX = 0this.preOffsetY = 0}handlePanEnd(): void {let initOffsetX = (this.imgScale - 1) * this.imageWidth + this.smallImgWidthif (Math.abs(this.imgOffSetX) > initOffsetX) {if (this.imgOffSetX > initOffsetX && this.storage.selectedIndex > 0) {this.storage.selectedIndex -= 1} else if (this.imgOffSetX < -initOffsetX && this.storage.selectedIndex < (this.photoArr.length - 1)) {this.storage.selectedIndex += 1}this.isScaling = falsethis.resetImg()this.scroller.scrollTo({ xOffset: this.storage.selectedIndex * this.imageWidth, yOffset: 0 })}}build() {Stack() {List({scroller: this.scroller, initialIndex: this.storage.selectedIndex}) {ForEach(this.photoArr, (img: Resource) => {ListItem() {Image(img).objectFit(ImageFit.Contain).onClick(() => router.back())}.gesture(GestureGroup(GestureMode.Exclusive,PinchGesture({ fingers: Constants.DOUBLE_NUMBER }).onActionStart(() => {this.resetImg()this.isScaling = truethis.imgOffSetX = 0this.imgOffSetY = 0}).onActionUpdate((event?: GestureEvent) => {if (event) {this.imgScale = this.currentScale * event.scale}}).onActionEnd(() => {if (this.imgScale < 1) {this.resetImg()this.imgOffSetX = 0this.imgOffSetY = 0} else {this.currentScale = this.imgScale}}), PanGesture().onActionStart(() => {this.resetImg()this.isScaling = true}).onActionUpdate((event?: GestureEvent) => {if (event) {this.imgOffSetX = this.preOffsetX + event.offsetXthis.imgOffSetY = this.preOffsetY + event.offsetY}}))).padding({left: this.smallImgWidth / Constants.DOUBLE_NUMBER,right: this.smallImgWidth / Constants.DOUBLE_NUMBER}).width(this.imageWidth)}, (item: Resource) => JSON.stringify(item))}.onScrollStop(() => {let currentIndex = Math.round(((this.scroller.currentOffset().xOffset as number) +(this.imageWidth / Constants.DOUBLE_NUMBER)) / this.imageWidth)this.storage.selectedIndex = currentIndexthis.scroller.scrollTo({ xOffset: currentIndex * this.imageWidth, yOffset: 0 })}).width(Constants.FULL_PERCENT).height(Constants.FULL_PERCENT).listDirection(Axis.Horizontal).visibility(this.isScaling ? Visibility.Hidden : Visibility.Visible)Row() {Image(this.photoArr[this.storage.selectedIndex]).position({ x: this.imgOffSetX, y: this.imgOffSetY }).scale({ x: this.imgScale, y: this.imgScale }).objectFit(ImageFit.Contain).onClick(() => router.back())}.gesture(GestureGroup(GestureMode.Exclusive,PinchGesture({ fingers: Constants.DOUBLE_NUMBER }).onActionUpdate((event?: GestureEvent) => {if (event) {this.imgScale = this.currentScale * event.scale}}).onActionEnd(() => {if (this.imgScale < 1) {this.resetImg()this.imgOffSetX = 0this.imgOffSetY = 0} else {this.currentScale = this.imgScale}}),PanGesture().onActionStart(() => {this.preOffsetX = this.imgOffSetXthis.preOffsetY = this.imgOffSetY}).onActionUpdate((event?: GestureEvent) => {if (event) {this.imgOffSetX = this.preOffsetX + event.offsetXthis.imgOffSetY = this.preOffsetY + event.offsetY}}).onActionEnd(() => this.handlePanEnd()))).padding({left: this.smallImgWidth / Constants.DOUBLE_NUMBER,right: this.smallImgWidth / Constants.DOUBLE_NUMBER}).width(this.imageWidth).height(Constants.FULL_PERCENT).visibility(this.isScaling ? Visibility.Visible : Visibility.Hidden)}.offset({ x: -(this.smallImgWidth / Constants.DOUBLE_NUMBER) }).width(this.imageWidth).height(Constants.FULL_PERCENT).backgroundColor($r('app.color.detail_background'))}
}

九、路由页面配置

页面间通过路由跳转时，需要配置每个页面的源路径。

{"src": ["pages/IndexPage","pages/DetailPage","pages/ListPage","pages/ListDetailPage"]
}
