关于EIDE中debug的使用问题

一.File not found "executable": "C:/Users/fade/Desktop/vscode_test/vscode.cfg/bin/executable.elf"故障说明。

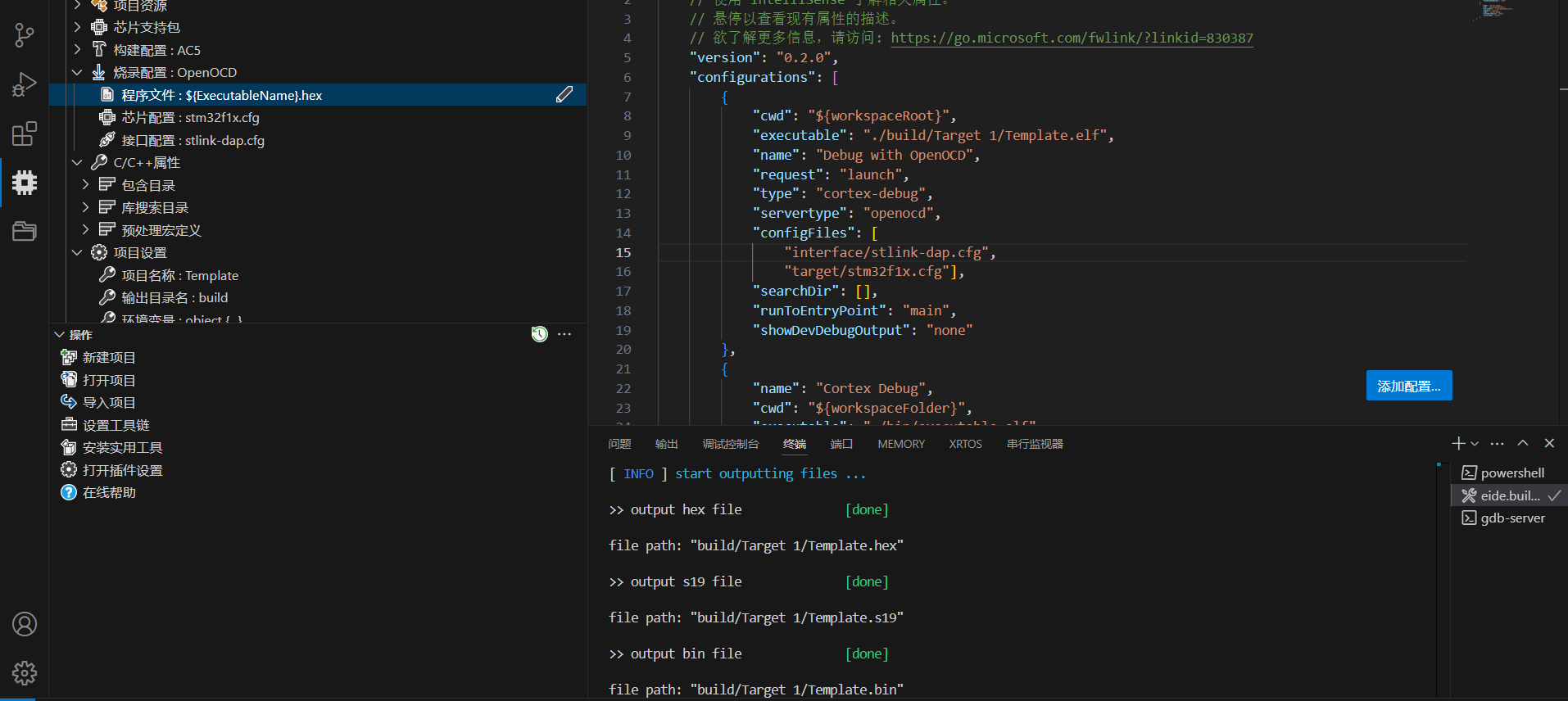

         你生成的可执行debug映像文件路输出路径不对，改成实际输出的，一般在编译完成后的输出文件中。如图所示：

二.{}lauch.json文件说明

{// 使用 IntelliSense 了解相关属性。 // 悬停以查看现有属性的描述。// 欲了解更多信息，请访问: https://go.microsoft.com/fwlink/?linkid=830387"version": "0.2.0","configurations": [{"cwd": "${workspaceRoot}","executable": "./build/Target 1/Template.elf",  //debug映像文件，一般和烧录文件一起"name": "Debug with OpenOCD","request": "launch","type": "cortex-debug", "servertype": "openocd",  //烧录方式"configFiles": [         //这个参数必须明确指出"interface/stlink-dap.cfg",  //调试接口，烧录配置中找"target/stm32f1x.cfg"],      //芯片型号，烧录配置中找"searchDir": [],"runToEntryPoint": "main",  "showDevDebugOutput": "none"},{"name": "Cortex Debug","cwd": "${workspaceFolder}","executable": "./bin/executable.elf","request": "launch","type": "cortex-debug","runToEntryPoint": "main","servertype": "jlink"}]
}
