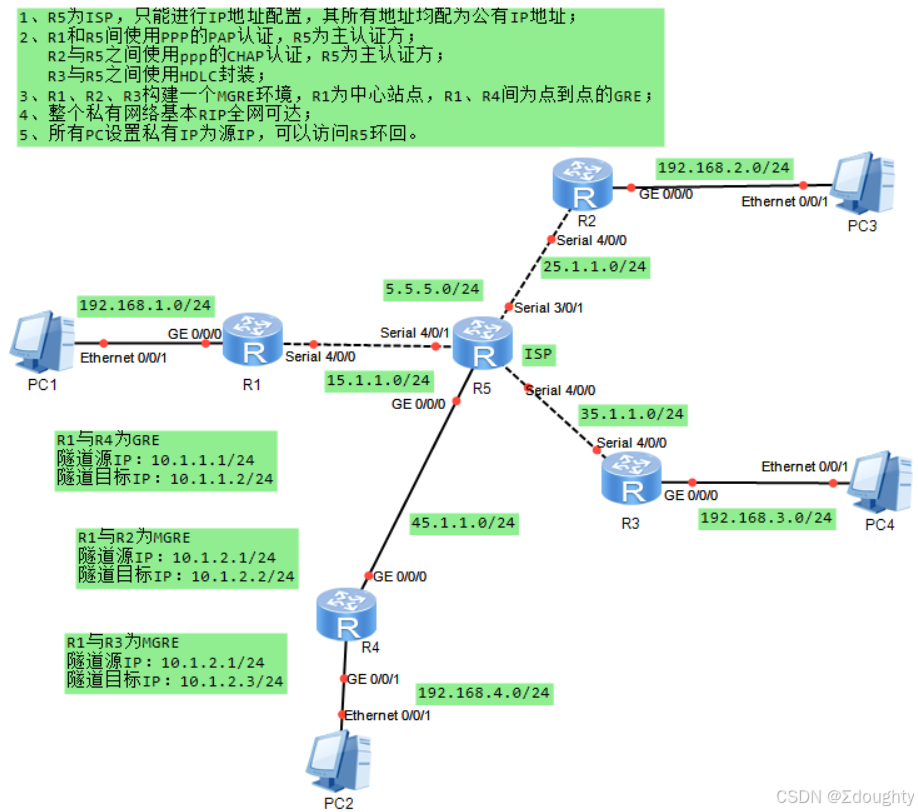

一、要求及拓扑

二、分析思路

IP 地址： 给所有路由器接口和 PC 分配 IP 地址，并规划隧道使用的 IP 地址段。
PPP/HDLC： 在指定的串行接口上配置相应的封装和认证（PAP/CHAP）。
GRE 隧道：
- 创建 R1-R4 的点对点 GRE 隧道，指定源/目的 IP 和隧道接口 IP。
- 创建 R1-R2 和 R1-R3 的 MGRE 隧道，R1 作为 Hub，为各端指定源/目的 IP 和隧道接口 IP。
RIP： 在所有路由器上启动 RIPv2，宣告所有连接的子网（包括物理接口和隧道接口）。

三、配置过程

1.IP地址


<Huawei>sy
[Huawei]sys R1
[R1]int g 0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[R1-GigabitEthernet0/0/0]int serial 4/0/0
[R1-Serial4/0/0]ip address 15.1.1.1 24


<Huawei>sys
[Huawei]sys R2
[R2]int g 0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.2 24
[R2-GigabitEthernet0/0/0]int serial 4/0/0
[R2-Serial4/0/0]ip address 25.1.1.2 24


<Huawei>sys
[Huawei]sys R3
[R3]int g 0/0/0
[R3-GigabitEthernet0/0/0]ip address 192.168.3.3 24
[R3-GigabitEthernet0/0/0]int serial 4/0/0
[R3-Serial4/0/0]ip address 35.1.1.3 24


<Huawei>sys
[Huawei]sys R4
[R4]int g 0/0/0
[R4-GigabitEthernet0/0/0]ip address 192.168.4.4 24
[R4-GigabitEthernet0/0/0]int g 0/0/1
[R4-GigabitEthernet0/0/1]ip address 45.1.1.4 24


<Huawei>sys
[Huawei]sys R5
[R5]int serial 4/0/1
[R5-Serial4/0/1]ip address 15.1.1.5 24
[R5-Serial4/0/1]int serial 4/0/0
[R5-Serial4/0/0]ip address 35.1.1.5 24
[R5-Serial4/0/0]int serial 3/0/1
[R5-Serial3/0/1]ip address 25.1.1.5 24
[R5]int g 0/0/0
[R5-GigabitEthernet0/0/0]ip address 45.1.1.5 24
[R5]int LoopBack 0
[R5-LoopBack0]ip address 5.5.5.5 24

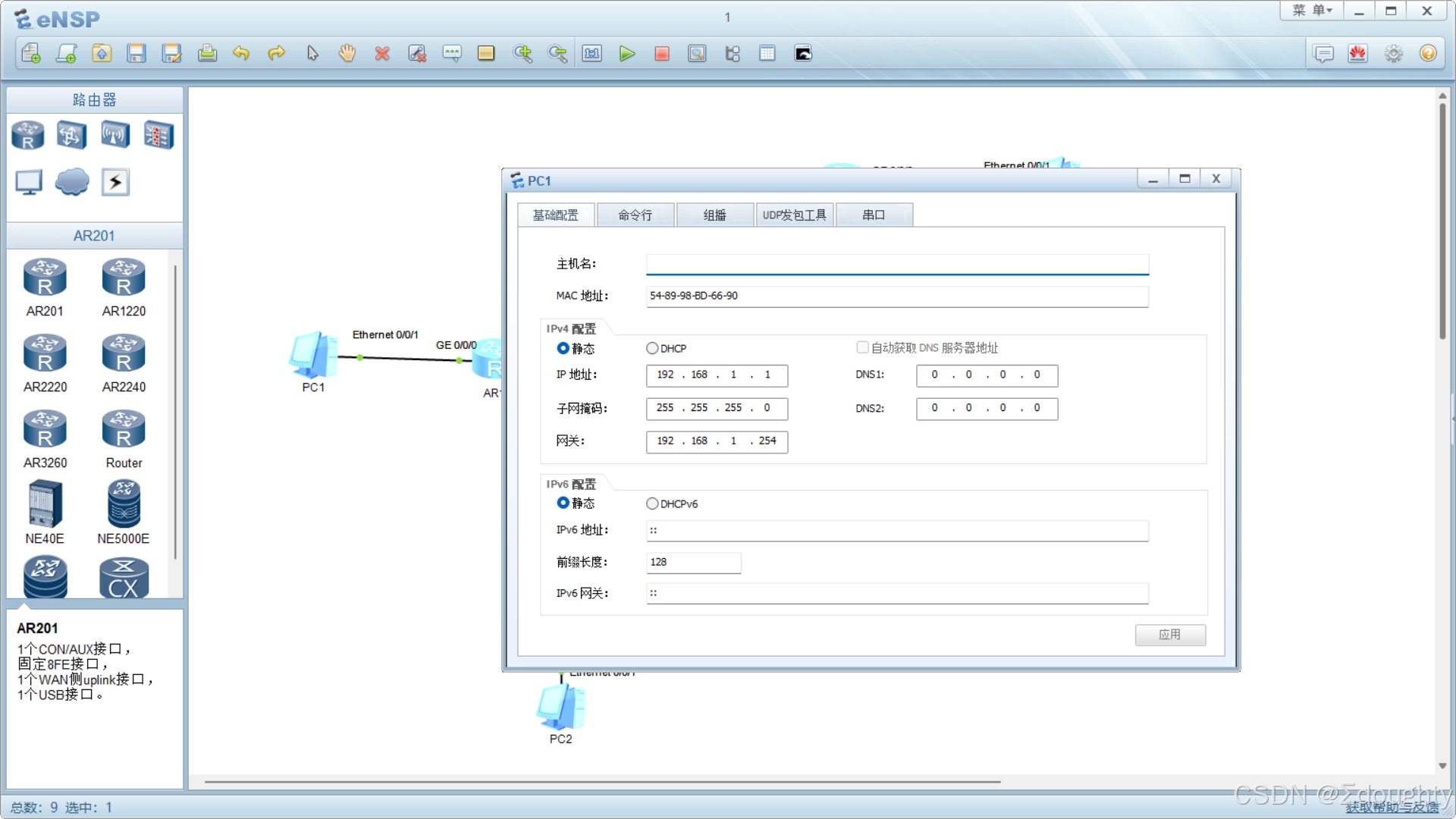

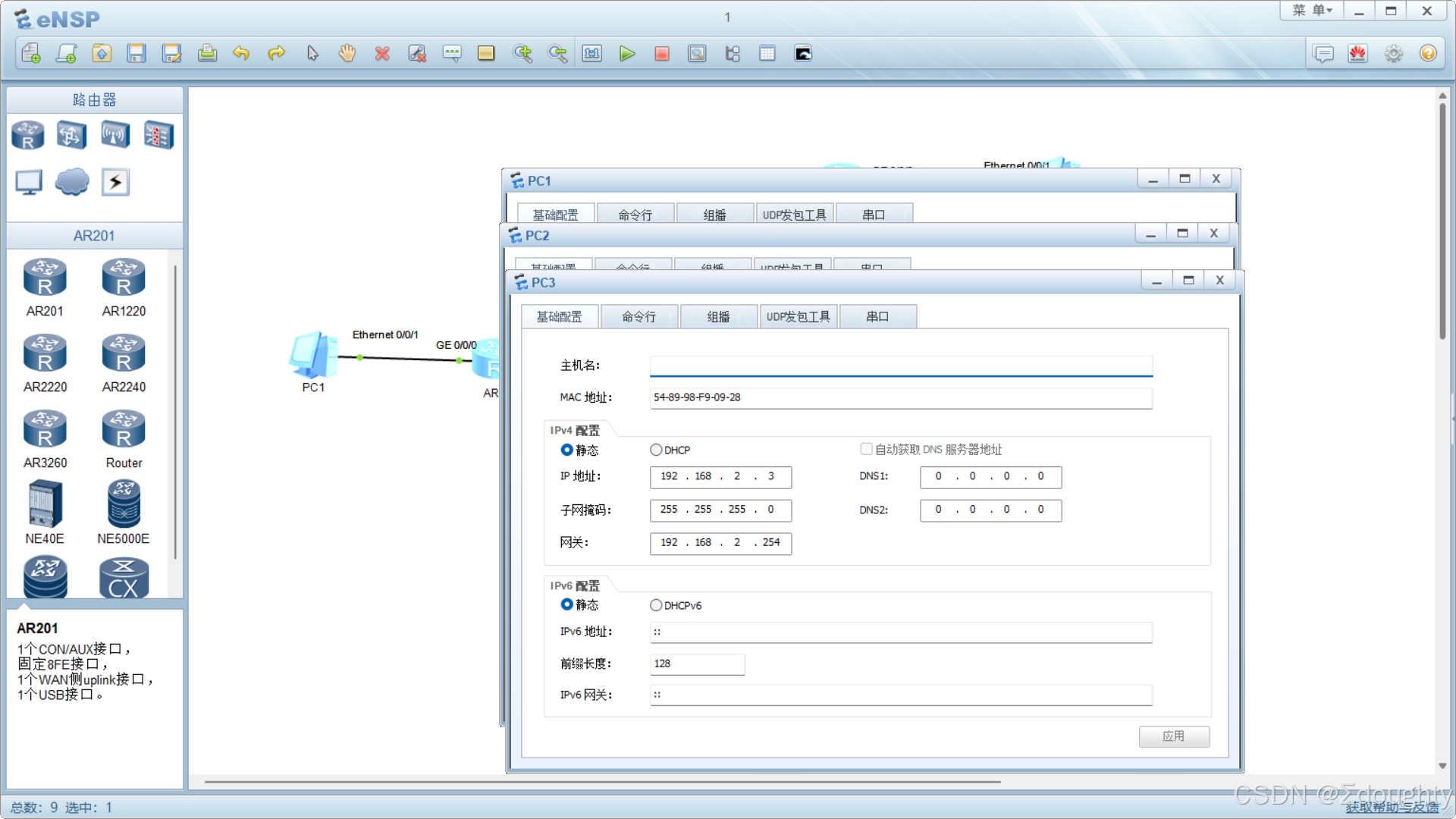

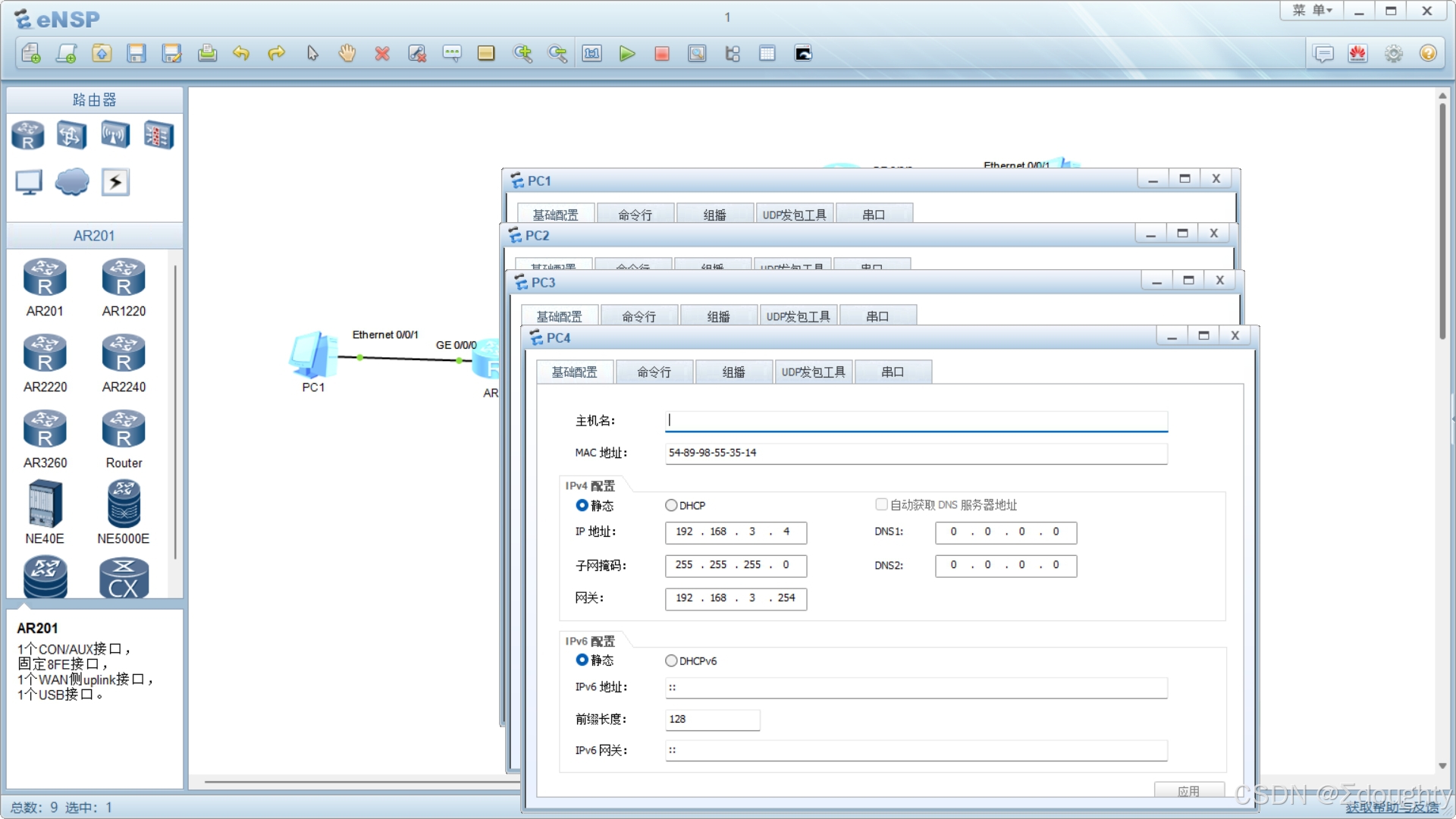

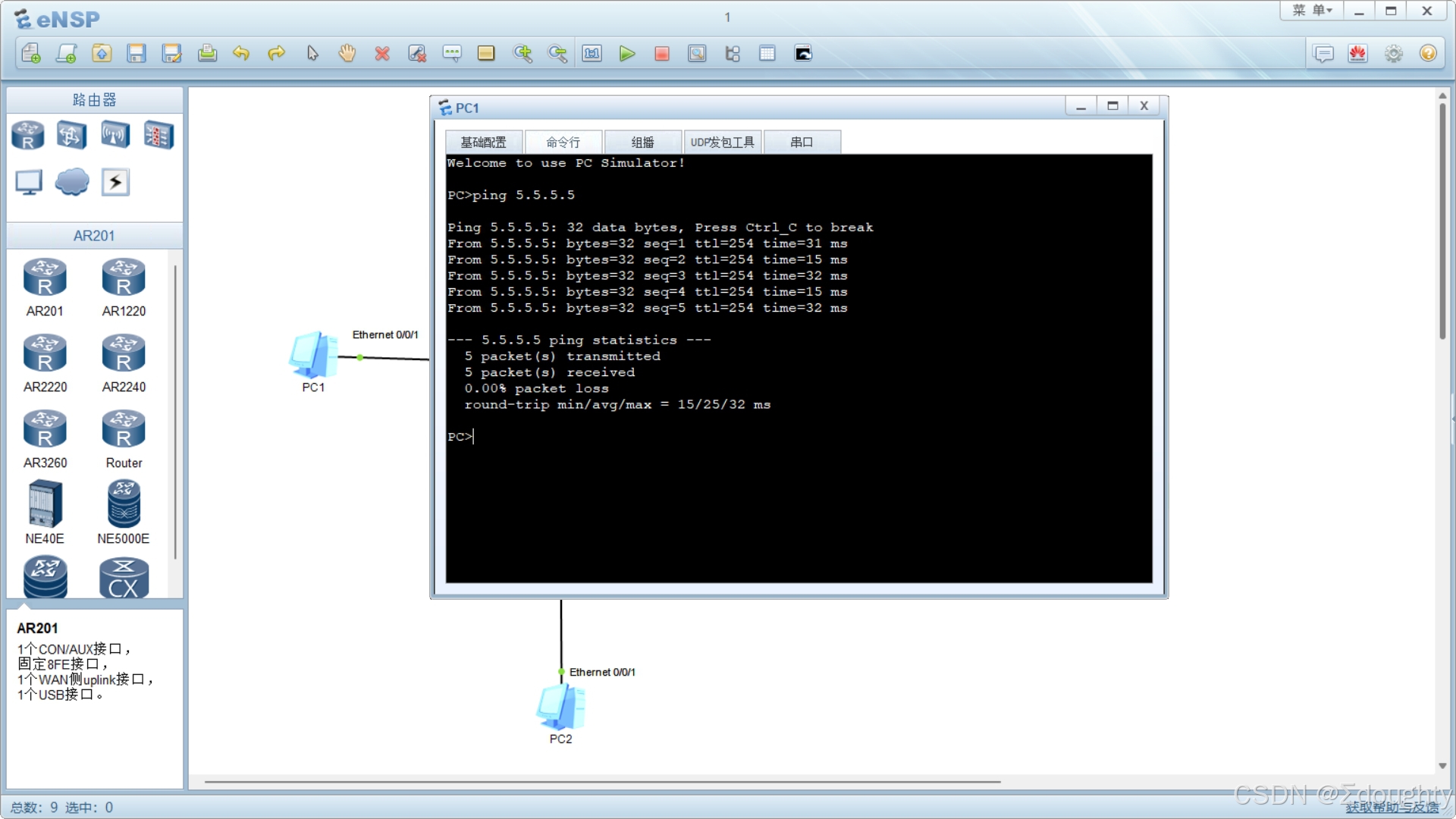

PC1

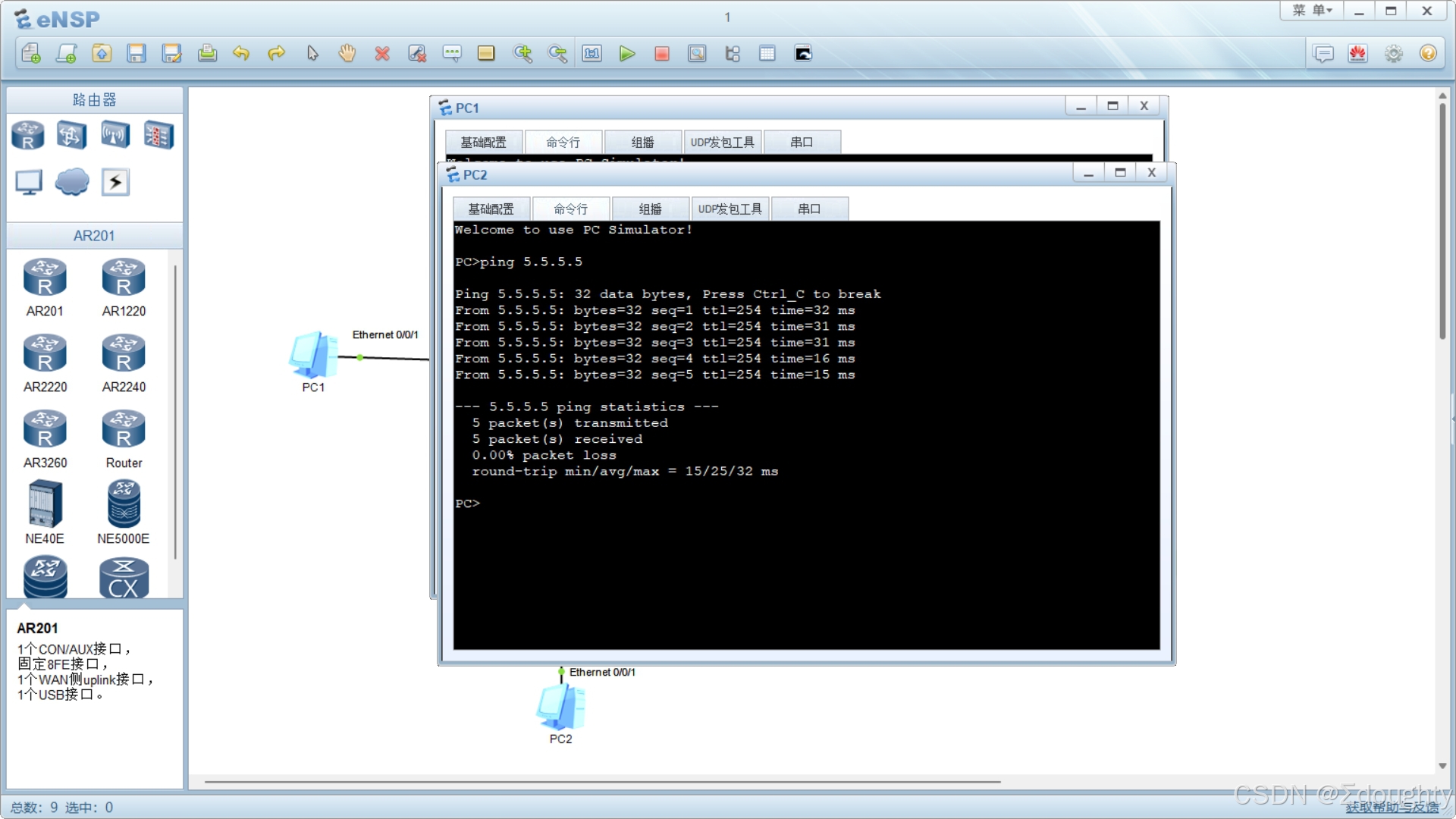

PC2

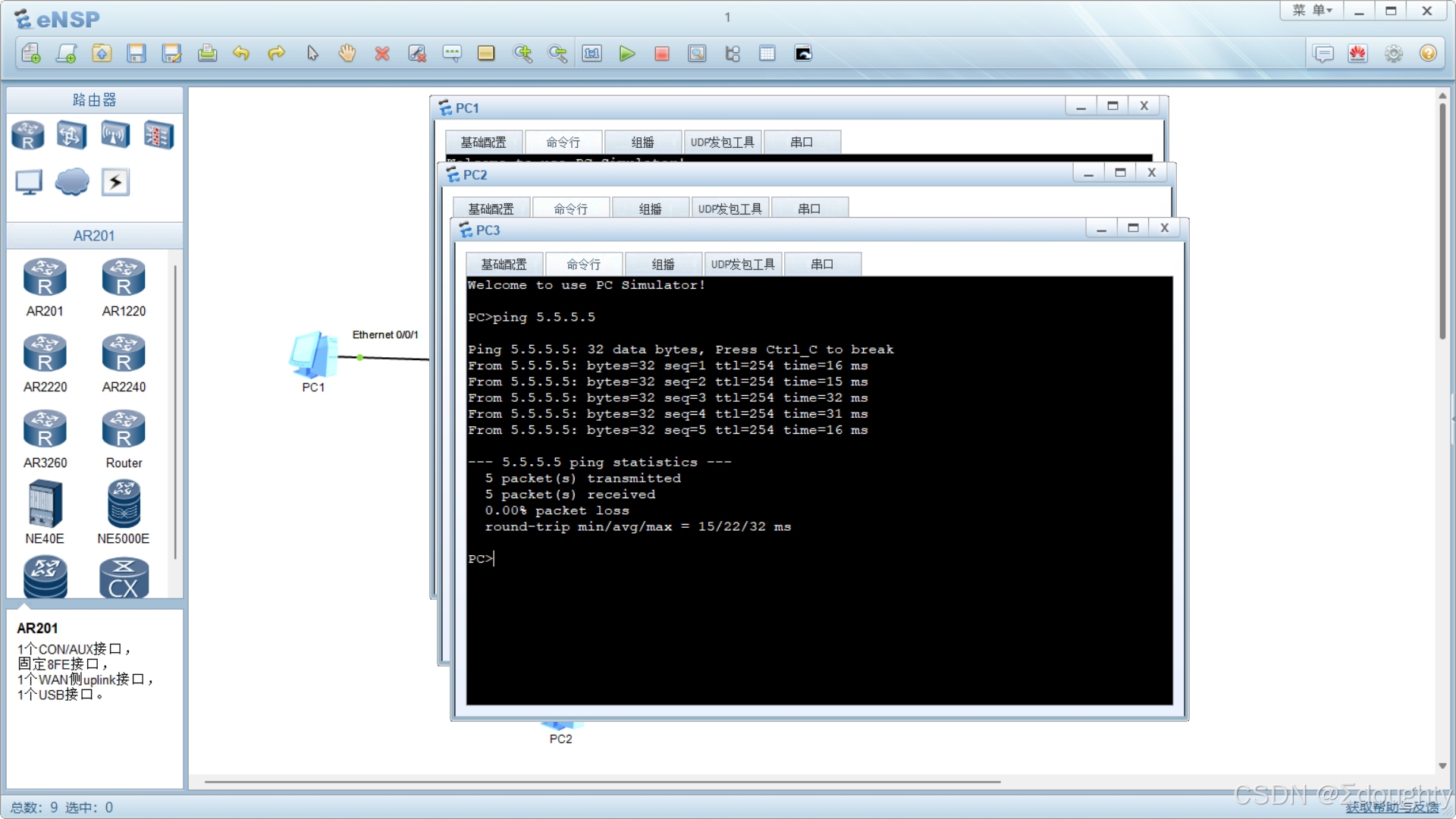

PC3

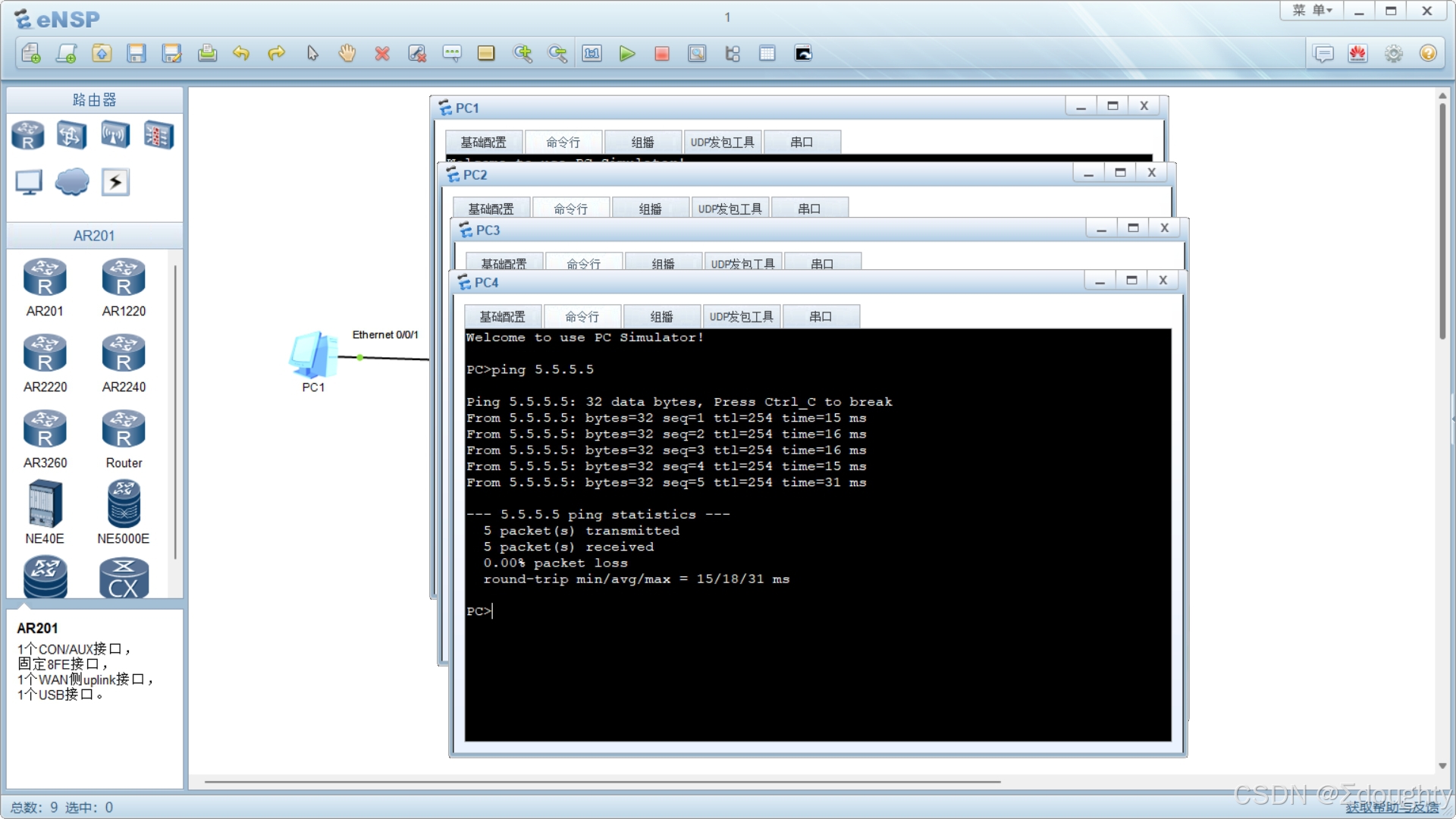

PC4

2.静态路由、PPP/HDLC

[R1]ip route-static 0.0.0.0 0 15.1.1.5
[R1]int serial 4/0/0
[R1-Serial4/0/0]ppp pap local-user wangdaye password cipher wdy123456

[R2]ip route-static 0.0.0.0 0 25.1.1.5
[R2]int serial 4/0/0
[R2-Serial4/0/0]ppp pap local-user zhangdaye password cipher zdy123456

[R3]ip route-static 0.0.0.0 0 35.1.1.5
[R3-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

[R4]ip route-static 0.0.0.0 0 45.1.1.5

[R5]aaa
[R5-aaa]local-user wangdaye password cipher wdy12345
Info: Add a new user.
[R5-aaa]local-user wangdaye service-type ppp
[R5-aaa]int serial 4/0/1
[R5-Serial4/0/1]ppp authentication-mode pap
[R5-Serial4/0/1]q
[R5]aaa
[R5-aaa]local-user zhangdaye password cipher zdy12345
Info: Add a new user.
[R5-aaa]local-user zhangdaye service-type ppp
[R5]int serial 3/0/1
[R5-Serial3/0/1]ppp authentication-mode chap
[R5-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

3.GRE隧道

[R1]int Tunnel 0/0/0
[R1-Tunnel0/0/0]ip add 10.1.2.1 24
[R1-Tunnel0/0/0]tunnel-protocol gre p2mp
[R1-Tunnel0/0/0]source 15.1.1.1
[R1-Tunnel0/0/0]nhrp network-id 100
[R1-Tunnel0/0/0]nhrp entry multicast dynamic
[R1-Tunnel0/0/0]undo rip split-horizon
[R1]int Tunnel 0/0/1
[R1-Tunnel0/0/1]ip add 10.1.1.1 24
[R1-Tunnel0/0/1]tunnel-protocol gre
[R1-Tunnel0/0/1]source 15.1.1.1
[R1-Tunnel0/0/1]destination 45.1.1.4


[R2]int Tunnel 0/0/0
[R2-Tunnel0/0/0]ip address 10.1.2.2 24
[R2-Tunnel0/0/0]tunnel-protocol gre p2mp
[R2-Tunnel0/0/0]source Serial 4/0/0
[R2-Tunnel0/0/0]nhrp network-id 100
[R2-Tunnel0/0/0]nhrp entry 10.1.2.1 15.1.1.1 register
[R2-Tunnel0/0/0]undo rip split-horizon


[R3]int Tunnel 0/0/0
[R3-Tunnel0/0/0]ip address 10.1.2.3 24
[R3-Tunnel0/0/0]tunnel-protocol gre p2mp
[R3-Tunnel0/0/0]source Serial 4/0/0
[R3-Tunnel0/0/0]nhrp network-id 100
[R3-Tunnel0/0/0]nhrp entry 10.1.2.1 15.1.1.1 register
[R3-Tunnel0/0/0]undo rip split-horizon


[R4]int Tunnel 0/0/1
[R4-Tunnel0/0/1]ip address 10.1.1.4 24
[R4-Tunnel0/0/1]tunnel-protocol gre
[R4-Tunnel0/0/1]source 45.1.1.4
[R4-Tunnel0/0/1]destination 15.1.1.1

4.RIP\NAT


[R1]rip 1
[R1-rip-1]version 2
[R1-rip-1]undo summary
[R1-rip-1]network 192.168.1.0
[R1-rip-1]network 10.0.0.0
[R1-rip-1]q
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[R1-acl-basic-2000]q
[R1]int Serial 4/0/0
[R1-Serial4/0/0]nat outbound 2000

[R2]rip 1
[R2-rip-1]version 2
[R2-rip-1]undo summary
[R2-rip-1]network 192.168.2.0
[R2-rip-1]network 10.0.0.0
[R2-rip-1]q
[R2]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[R2-acl-basic-2000]q
[R2]int Serial 4/0/0
[R2-Serial4/0/0]nat outbound 2000

[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]undo summary
[R3-rip-1]network 192.168.3.0
[R3-rip-1]network 10.0.0.0
[R3-rip-1]q
[R3]acl 2000
[R3-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255
[R3-acl-basic-2000]q
[R3]int Serial 4/0/0
[R3-Serial4/0/0]nat outbound 2000


[R4]rip 1
[R4-rip-1]version 2
[R4-rip-1]undo summary
[R4-rip-1]network 192.168.4.0
[R4-rip-1]network 10.0.0.0
[R4-rip-1]q
[R4]acl 2000
[R4-acl-basic-2000]rule permit source 192.168.4.0 0.0.0.255
[R4-acl-basic-2000]q
[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]nat outbound 2000
