钉钉机器人-自定义卡片推送快速入门

news 2025/6/15 8:02:45

首先来个简单的案例

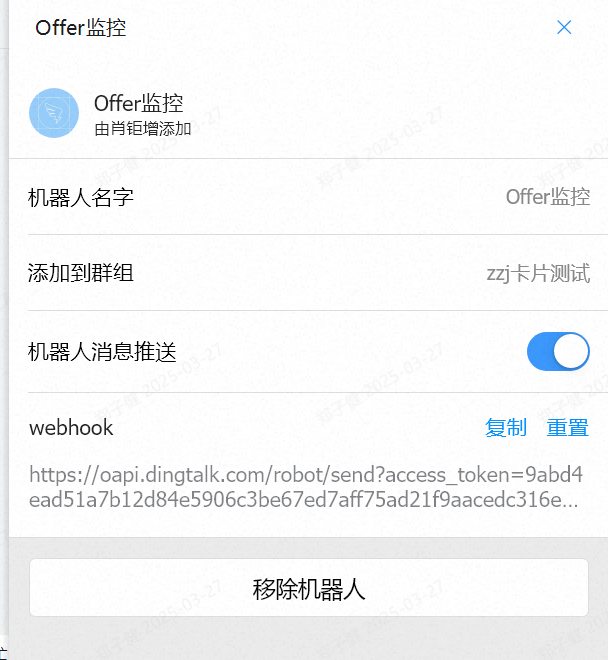

Webhook-钉钉机器人快速启动案例

url

package com.example.kiratest.Test;import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;
import com.alibaba.fastjson.JSONObject;public class DingTalkCardMessageSender {// 钉钉机器人Webhook URLprivate static final String WEBHOOK_URL = "https://oapi.dingtalk.com/robot/send?access_token=9abd4ead51a7b12d84e5906c3be67ed7aff75ad21f9aacedc316e9f0ff75616e";public static void main(String[] args) throws Exception {// 构建卡片消息JSONObject cardMessage = new JSONObject();cardMessage.put("msgtype", "markdown");JSONObject markdown = new JSONObject();markdown.put("title", "我的卡片消息标题");markdown.put("text", "```markdown\n我的基本测试\n```");cardMessage.put("markdown", markdown);// 发送HTTP POST请求try (CloseableHttpClient httpClient = HttpClients.createDefault()) {HttpPost httpPost = new HttpPost(WEBHOOK_URL);httpPost.setHeader("Content-Type", "application/json");StringEntity entity = new StringEntity(cardMessage.toJSONString(), "UTF-8");httpPost.setEntity(entity);try (CloseableHttpResponse response = httpClient.execute(httpPost)) {String responseBody = EntityUtils.toString(response.getEntity(), "UTF-8");System.out.println("Response: " + responseBody);}}}
}

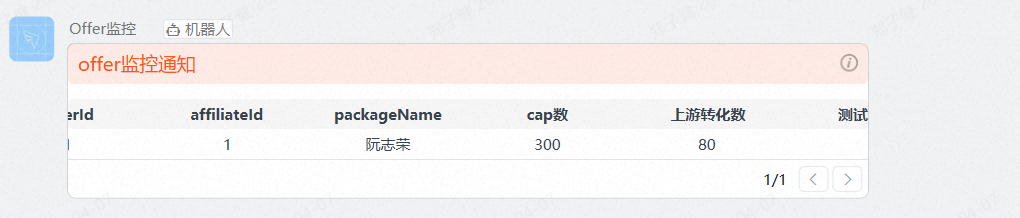

这个是发送我们定义好的模板卡片，不需要我们传数据

Notify方法类

Notify接口

package com.example.kiratest.Notify;public interface Notifier<T> {T notify(String message,Integer msgType);
}

DingTalkNotify实现类

我们的流程就是通过getToken（）来拿到tingtalk平台的token

然后用notify（）向https://api.dingtalk.com/v1.0/card/instances/createAndDeliver 链接来发起请求，把卡片模板推送到群

package com.example.kiratest.Notify;import com.alibaba.fastjson.JSON;
import com.example.kiratest.Notify.Util.SmartHttpUtil;
import lombok.Setter;
import lombok.extern.slf4j.Slf4j;
import org.apache.poi.ss.formula.functions.T;
import org.springframework.stereotype.Component;
import org.springframework.web.util.UriComponentsBuilder;import java.util.Map;@Slf4j
@Setter
@Component
/*** 获取Token然后发起请求*/
//我们首先通过getToken()来获取我们的Token，然后调用SmartHttpUtil里的postWithHeade()方法来发起请求
public class DingtalkNotifier implements Notifier {private String appkey="dingzrr5q24mlutd6knl";private String appsecret="C2vkXuTegyUNsmftSKRgO4zq0lRuLBbw2oxxB_A_vzc0T0LHcsR2FxH3atMLDrlT";private String dingTalkTokenUrl = "https://oapi.dingtalk.com/gettoken";private String dingTalkSendUrl = "https://api.dingtalk.com/v1.0/card/instances/createAndDeliver";@Overridepublic T notify(String message,Integer msgType) {try {Map<String, String> headers = Map.of("x-acs-dingtalk-access-token", getToken());log.info("开始发送请求");String s = SmartHttpUtil.postWithHeader(dingTalkSendUrl, message, headers);System.out.println(s);} catch (Exception e) {log.error("==== feishu notify ==== execute err:", e);}return null;}//根据appKey和appsecret来拿到我们的dingtalk平台的tokenprivate String getToken(){try {String jsonResponse = SmartHttpUtil.get(UriComponentsBuilder.fromHttpUrl(dingTalkTokenUrl).queryParam("appkey", appkey).queryParam("appsecret", appsecret).toUriString());String accessToken = JSON.parseObject(jsonResponse).getString("access_token");log.info("Token:{}",accessToken);return accessToken;} catch (Exception e) {log.error("==== feishu notify ==== execute err:", e);}return null;}}

如何拿到appKey和appsecret

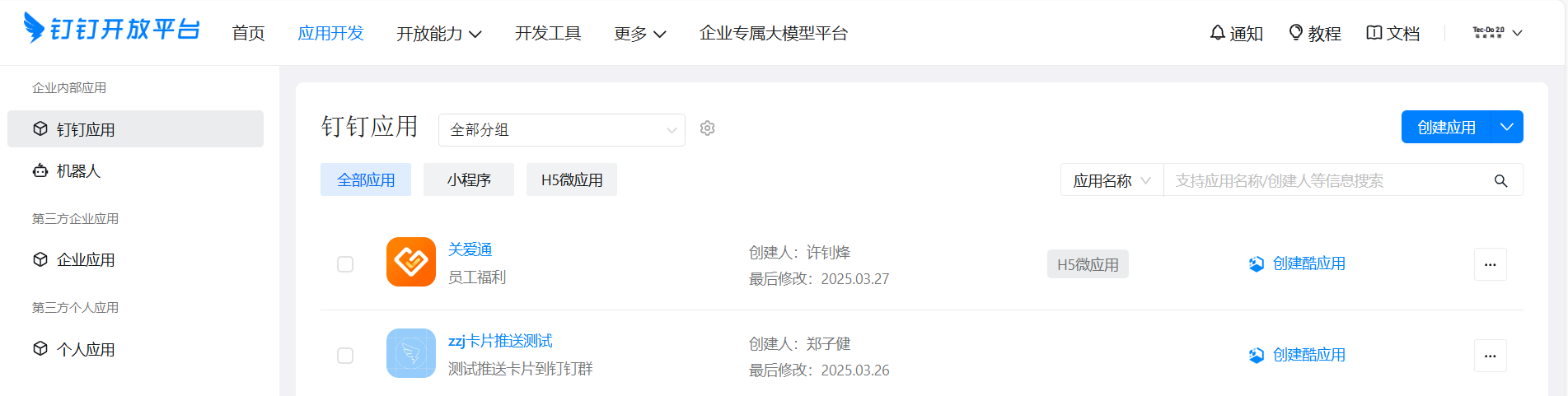

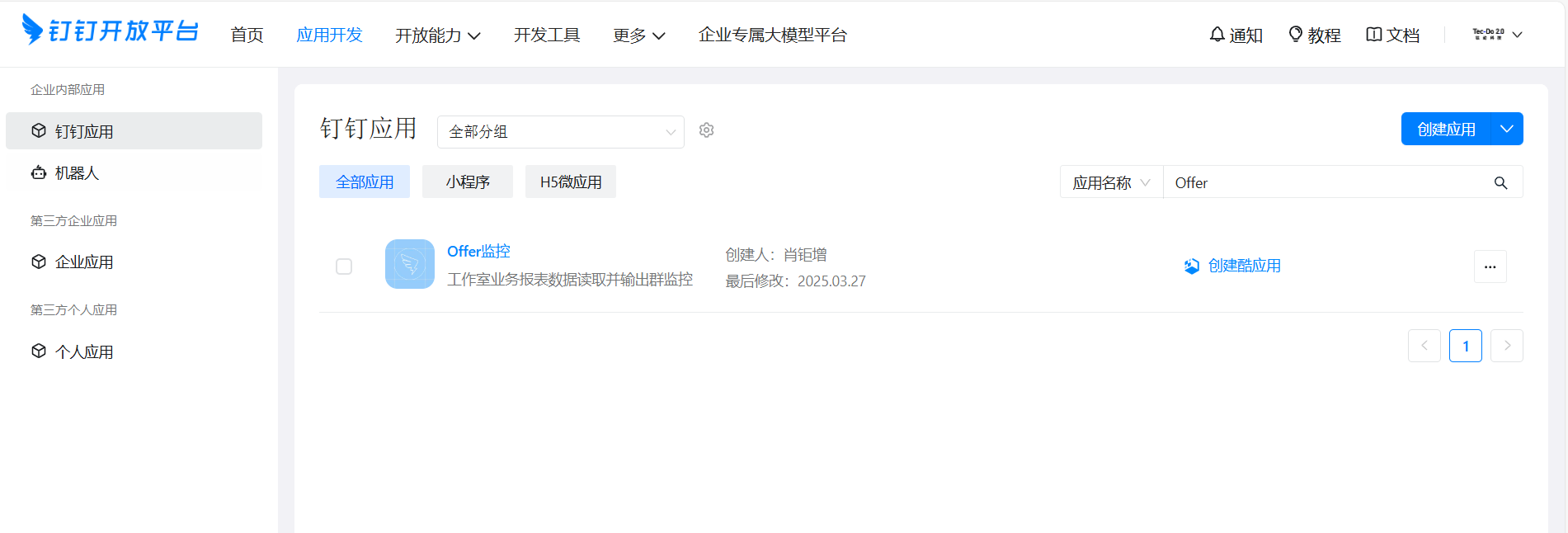

在钉钉开发者后台，找到对应的企业应用

开发者后台统一登录 - 钉钉统一身份认证

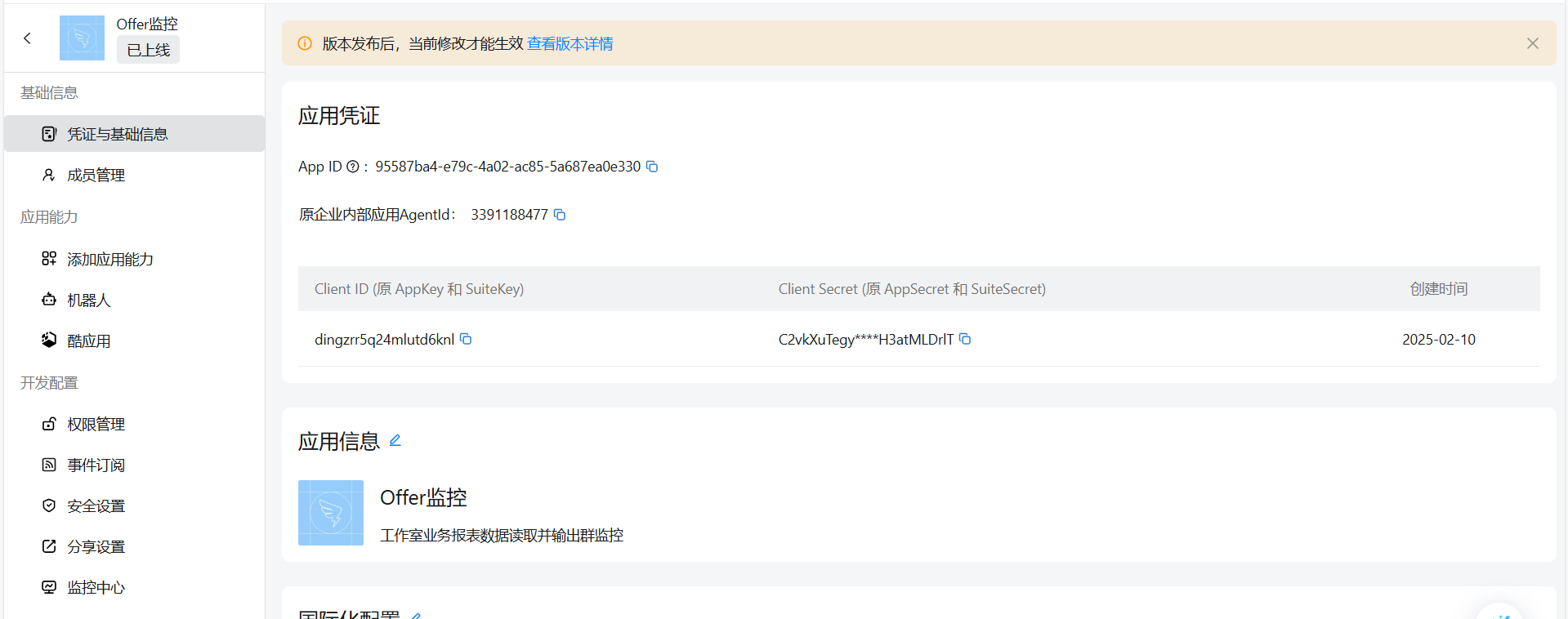

点击应用里的凭证信息，就可以找到我们的appKey和appsecret了

这样子我们就可以成功拿到Token

然后我们向特定群聊发起请求，但是我们要找到特定的群聊我们才可以发送我们的卡片啊

如何找到群聊Id-openConversationId

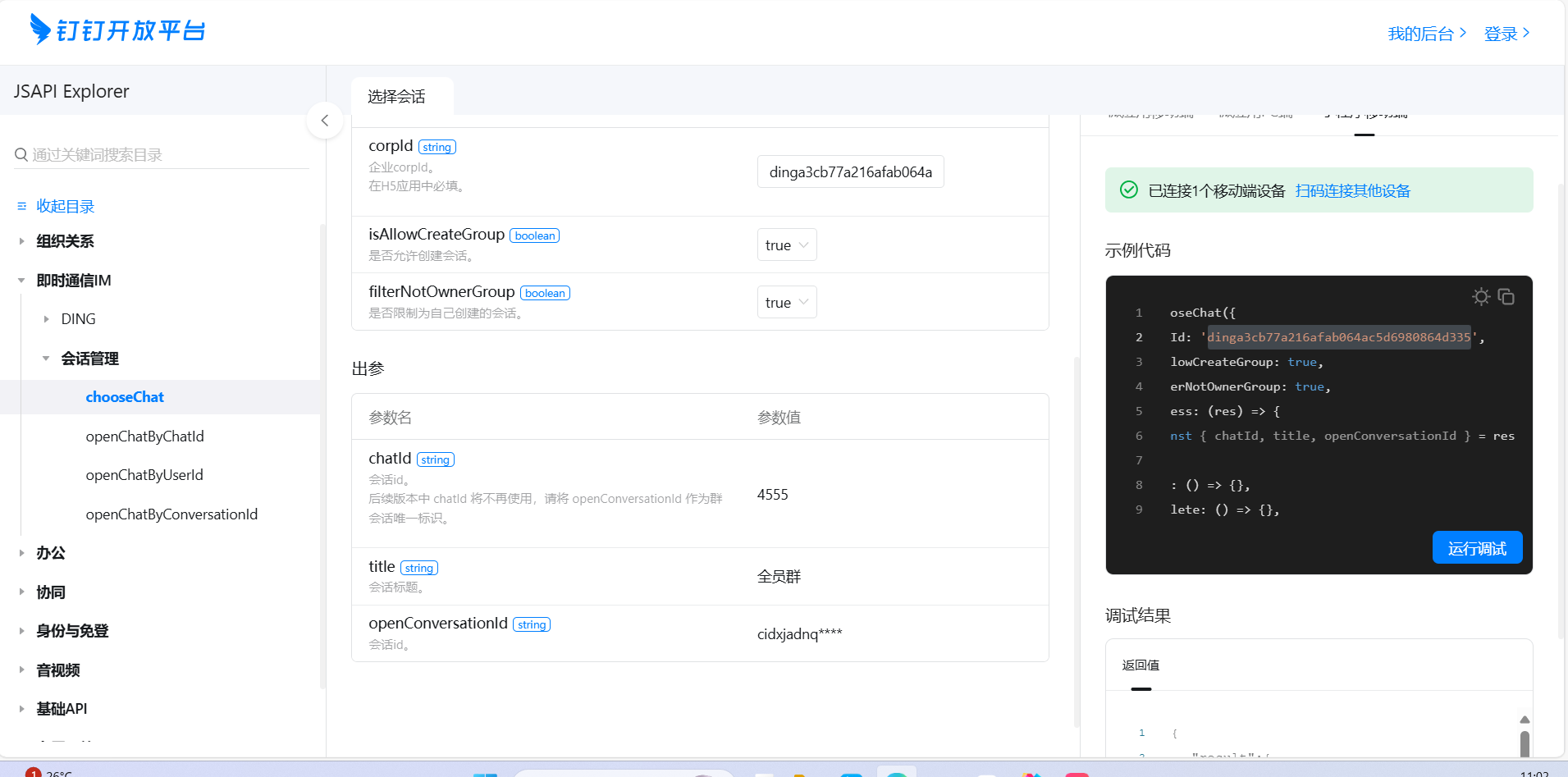

打开JSAPI Explorer

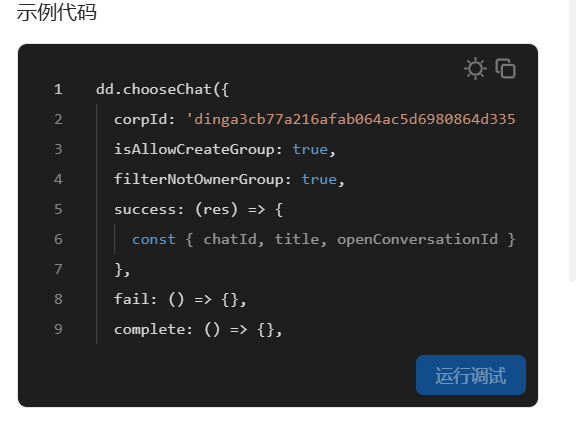

调用chooseChat

JSAPI Explorer

用手机设备扫码

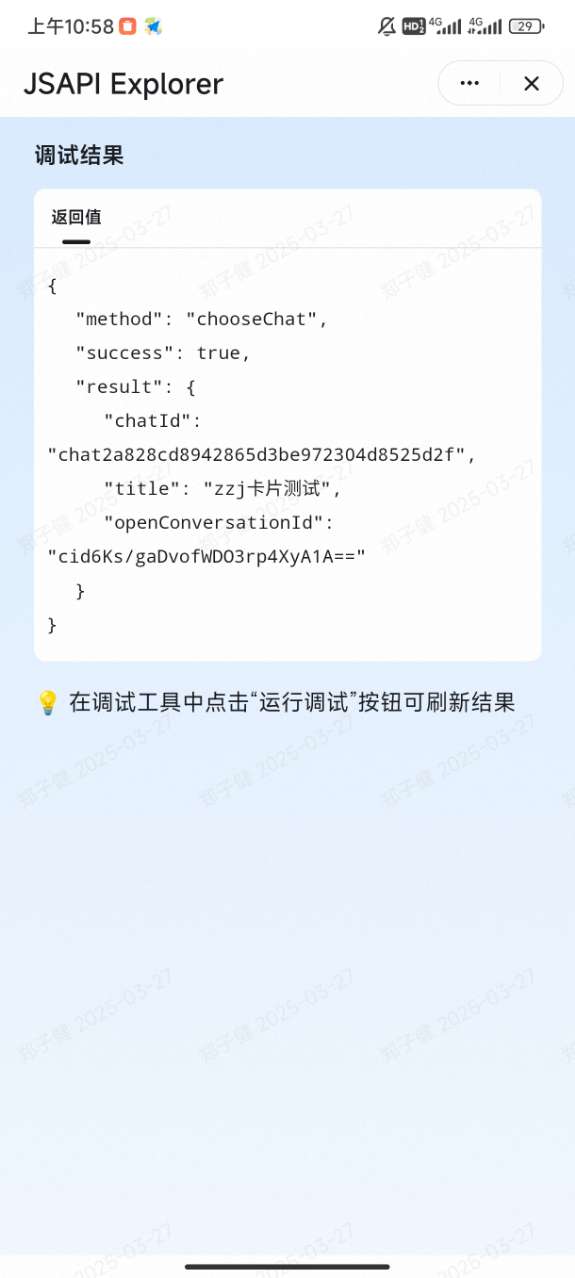

运行调试，手机选择群聊得到群聊信息

我们输入我们的cropId，然后运行调试

这样子我们就得到我们的chatId和OpenConversationId了

我们记住我们的群聊场域Id

创建消息卡片模板

开发者后台统一登录 - 钉钉统一身份认证

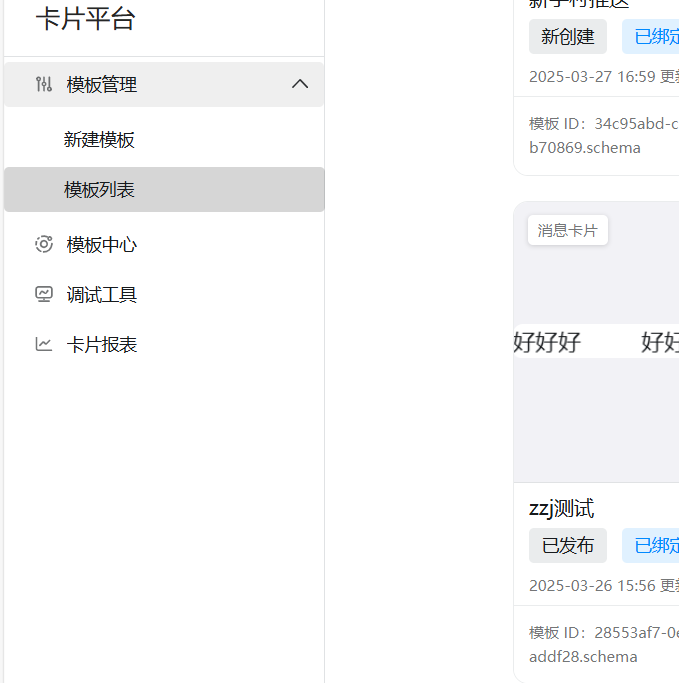

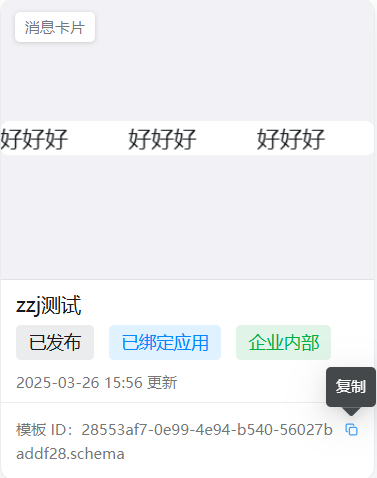

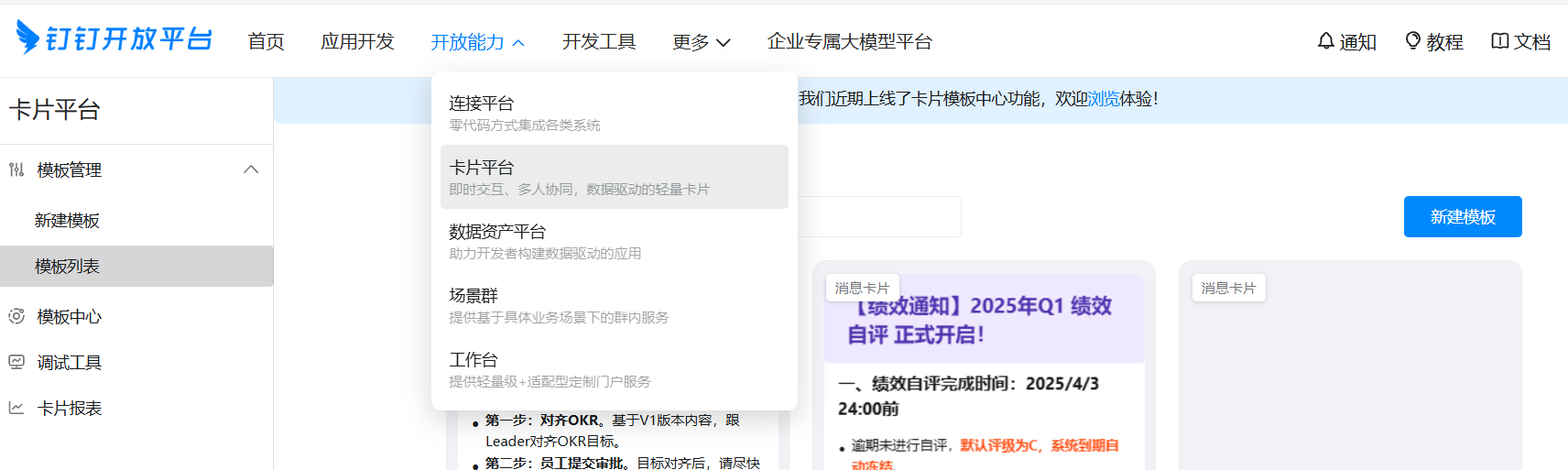

去到开发平台的卡片平台添加模板，然后复制得到我们的模板id

我们先记住这个id

28553af7-0e99-4e94-b540-56027baddf28.schema

枚举类放我们的群聊场域Id

package com.example.kiratest.Notify.Enum;import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONAware;
import com.alibaba.fastjson.JSONObject;
import com.google.common.base.CaseFormat;
import lombok.Data;import java.util.LinkedHashMap;
import java.util.Objects;/*** 枚举类接口** @Author 1024创新实验室: 胡克* @Date 2018-07-17 21:22:12* @Wechat zhuoda1024* @Email lab1024@163.com* @Copyright  <a href="https://1024lab.net">1024创新实验室</a>*/
public interface BaseEnum {/*** 获取枚举类的值** @return*/Object getValue();/*** 获取枚举类的说明** @return String*/String getDesc();/*** 比较参数是否与枚举类的value相同** @param value* @return boolean*/default boolean equalsValue(Object value) {return Objects.equals(getValue(), value);}/*** 比较枚举类是否相同** @param baseEnum* @return boolean*/default boolean equals(BaseEnum baseEnum) {return Objects.equals(getValue(), baseEnum.getValue()) && Objects.equals(getDesc(), baseEnum.getDesc());}/*** 返回枚举类的说明** @param clazz 枚举类类对象* @return*/static String getInfo(Class<? extends BaseEnum> clazz) {BaseEnum[] enums = clazz.getEnumConstants();LinkedHashMap<String, JSONObject> json = new LinkedHashMap<>(enums.length);for (BaseEnum e : enums) {JSONObject jsonObject = new JSONObject();jsonObject.put("value", new DeletedQuotationAware(e.getValue()));jsonObject.put("desc", new DeletedQuotationAware(e.getDesc()));json.put(e.toString(), jsonObject);}String enumJson = JSON.toJSONString(json, true);enumJson = enumJson.replaceAll("\"", "");enumJson = enumJson.replaceAll("\t", "&nbsp;&nbsp;");enumJson = enumJson.replaceAll("\n", "<br>");String prefix = "  <br>  export const " + CaseFormat.UPPER_CAMEL.to(CaseFormat.UPPER_UNDERSCORE, clazz.getSimpleName() + " = <br> ");return prefix + enumJson + " <br>";}@Dataclass DeletedQuotationAware implements JSONAware {private String value;public DeletedQuotationAware(Object value) {if (value instanceof String) {this.value = "'" + value + "'";} else {this.value = value.toString();}}@Overridepublic String toJSONString() {return value;}}
}

package com.example.kiratest.Notify.Enum;public enum MsgTypeEnum implements BaseEnum {NOTIFY2(1, "通知类消息","dtv1.card//IM_GROUP.cid6Ks/gaDvofWDO3rp4XyA1A==");private Integer value;private String desc;private String openSpaceId;MsgTypeEnum(Integer value, String desc, String openSpaceId) {this.value = value;this.desc = desc;this.openSpaceId = openSpaceId;}@Overridepublic Integer getValue() {return value;}@Overridepublic String getDesc() {return desc;}public String getOpenSpaceId() {return openSpaceId;}
}

写一个Main函数发起请求

逻辑解析

我们要用我们封装好的CardRequest类来发起请求

如果我们的卡片是要传变量的，我们就往CardRequest对象里面来放我们的信息

但我们这个Demo只是发送普通的设计好的卡片

pbNotifierMsg.getCardData().getCardParamMap().getTableBean().setData(XXX);

我们放CardRequest对象里面放我们的信息

1.枚举类里我们的群聊的场域Id

2.我们的卡片模板Id

3.这个是我们的请求的唯一Id，方便我们的以后排查定位，我们直接用UUID生成就好了

        //这个是我的群聊Id//详细看枚举类，我的枚举类是这样的      NOTIFY2(1, "通知类消息","dtv1.card//IM_GROUP.cid6Ks/gaDvofWDO3rp4XyA1A==")pbNotifierMsg.setOpenSpaceId(MsgTypeEnum.NOTIFY2.getOpenSpaceId());//这个是我的模板IdpbNotifierMsg.setCardTemplateId("28553af7-0e99-4e94-b540-56027baddf28.schema");pbNotifierMsg.setOutTrackId(UUID.randomUUID().toString());

然后我们把CardRequest对象转成Json字符串，然后通过Notify类来发送请求

Main函数代码

ps：这个是给我们发送的消息起名字的

    public static CardRequest pbNotifierMsg() {return new CardRequest("offer监控通知", null);}

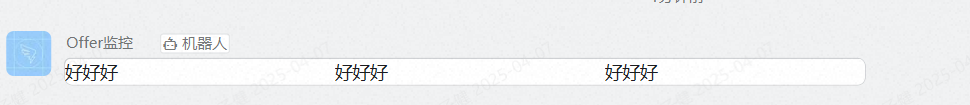

Offer监控是我们的机器人名字，Offer监控通知是我们的这次通知的名字

完整Main函数代码如下：

package com.example.kiratest.Notify;import com.alibaba.fastjson.JSON;
import com.example.kiratest.Notify.Enum.MsgTypeEnum;
import com.example.kiratest.Notify.POJO.CardRequest;
import com.example.kiratest.Notify.POJO.DingtalkTableItem;import java.util.UUID;public class KiraMain {public static void main(String[] args) {//卡片请求对象CardRequest pbNotifierMsg = pbNotifierMsg();//如果是特定的卡片我们可以按照特定的格式往里面发放数据
//        pbNotifierMsg.getCardData().getCardParamMap().getTableBean().setData(XXX);DingtalkTableItem tableBean = pbNotifierMsg.getCardData().getCardParamMap().getTableBean();pbNotifierMsg.getCardData().getCardParamMap().setTable(JSON.toJSONString(tableBean));//这个是我的群聊Id//详细看枚举类，我的枚举类是这样的      NOTIFY2(1, "通知类消息","dtv1.card//IM_GROUP.cid6Ks/gaDvofWDO3rp4XyA1A==")pbNotifierMsg.setOpenSpaceId(MsgTypeEnum.NOTIFY2.getOpenSpaceId());//这个是我的模板IdpbNotifierMsg.setCardTemplateId("28553af7-0e99-4e94-b540-56027baddf28.schema");pbNotifierMsg.setOutTrackId(UUID.randomUUID().toString());//将卡片对象转成StringString jsonString = JSON.toJSONString(pbNotifierMsg);DingtalkNotifier dingtalkNotifier = new DingtalkNotifier();//发起请求dingtalkNotifier.notify(jsonString, null);}public static CardRequest pbNotifierMsg() {return new CardRequest("offer监控通知", null);}}

封装API用到的实体类

package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class CardData {@JSONField(name = "cardParamMap")private CardParamMap cardParamMap = new CardParamMap();// Getters and Setters
}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class CardParamMap {private String title;private String table;private String config = "{\"autoLayout\": true}";@JSONField(serialize = false)private DingtalkTableItem tableBean = new DingtalkTableItem();// Getters and Setters
}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;import java.util.List;@Data
@Accessors(chain = true)
public class CardRequest {@JSONField(name = "cardTemplateId")private String cardTemplateId;@JSONField(name = "outTrackId")private String outTrackId ;@JSONField(name = "cardData")private CardData cardData = new CardData();@JSONField(name = "imGroupOpenSpaceModel")private ImGroupOpenSpaceModel imGroupOpenSpaceModel = new ImGroupOpenSpaceModel();@JSONField(name = "openSpaceId")private String openSpaceId;@JSONField(name = "imGroupOpenDeliverModel")private ImGroupOpenDeliverModel imGroupOpenDeliverModel = new ImGroupOpenDeliverModel();public CardRequest(String title, List<DingtalkColumnsItem> columns) {this.getCardData().getCardParamMap().setTitle(title);this.getCardData().getCardParamMap().getTableBean().setMeta(columns);this.getImGroupOpenSpaceModel().getLastMessageI18n().setZhCn(title);}}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;import java.io.Serializable;@Data
@Accessors(chain = true)
public class DingtalkColumnsItem implements Serializable {@JSONField(name="dataType")private String dataType;@JSONField(name="alias")private String alias;@JSONField(name="aliasName")private String aliasName;@JSONField(name="weight")private int weight;}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;import java.io.Serializable;@Data
@Accessors(chain = true)
public class DingtalkRowsItem implements Serializable {@JSONField(name="packageName")private String packageName;@JSONField(name="googlePlayVersionCode")private String googlePlayVersionCode;@JSONField(name="innerVersionCode")private String innerVersionCode;@JSONField(name="apkcomboVersionCode")private String apkcomboVersionCode;@JSONField(name = "apkmirrorVersionCode")private String apkmirrorVersionCode;@JSONField(name = "offerId")private String offerId;@JSONField(name = "affiliateId")private String affiliateId;@JSONField(name = "timezone")private Integer timezone;@JSONField(name = "cap")private Integer cap;@JSONField(name = "pbNumber")private Integer pbNumber;}
package com.example.kiratest.Notify.POJO;import lombok.Data;
import lombok.experimental.Accessors;import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;@Data
@Accessors(chain = true)
public class DingtalkTableItem implements Serializable {//@JSONField(name="columns")private List<DingtalkColumnsItem> meta;//@JSONField(name="rows")private List<DingtalkRowsItem> data = new ArrayList<>();}
package com.example.kiratest.Notify.POJO;import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class ImGroupOpenDeliverModel {private String robotCode = "dingzrr5q24mlutd6knl";// Getters and Setters
}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class ImGroupOpenSpaceModel {@JSONField(name = "supportForward")private boolean supportForward;@JSONField(name = "lastMessageI18n")private LastMessageI18n lastMessageI18n = new LastMessageI18n();// Getters and Setters
}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;@Data
@Accessors(chain = true)
public class LastMessageI18n {@JSONField(name = "ZH_CN")private String zhCn;// Getters and Setters
}
package com.example.kiratest.Notify.POJO;import com.alibaba.fastjson.annotation.JSONField;
import lombok.Data;
import lombok.experimental.Accessors;import java.io.Serializable;@Data
@Accessors(chain = true)
public class RowsItem implements Serializable {@JSONField(name="packageName")private String packageName;@JSONField(name="googlePlayVersionCode")private String googlePlayVersionCode;@JSONField(name="innerVersionCode")private String innerVersionCode;@JSONField(name="apkcomboVersionCode")private String apkcomboVersionCode;@JSONField(name = "apkmirrorVersionCode")private String apkmirrorVersionCode;@JSONField(name = "offerId")private String offerId;@JSONField(name = "affiliateId")private String affiliateId;@JSONField(name = "timezone")private Integer timezone;@JSONField(name = "cap")private Integer cap;@JSONField(name = "pbNumber")private Integer pbNumber;
}

用到的自定义工具类

package com.example.kiratest.Notify.Util;import jakarta.validation.ConstraintViolation;
import jakarta.validation.Validation;
import jakarta.validation.Validator;
import org.springframework.beans.BeanUtils;import java.util.Collections;
import java.util.List;
import java.util.Set;
import java.util.stream.Collectors;/*** bean相关工具类** @Author 1024创新实验室-主任: 卓大* @Date 2018-01-15 10:48:23* @Wechat zhuoda1024* @Email lab1024@163.com* @Copyright  <a href="https://1024lab.net">1024创新实验室</a>*/
public class SmartBeanUtil {/*** 验证器*/private static final Validator VALIDATOR = Validation.buildDefaultValidatorFactory().getValidator();/*** 复制bean的属性** @param source 源 要复制的对象* @param target 目标 复制到此对象*/public static void copyProperties(Object source, Object target) {BeanUtils.copyProperties(source, target);}/*** 复制对象** @param source 源 要复制的对象* @param target 目标 复制到此对象* @param <T>* @return*/public static <T> T copy(Object source, Class<T> target) {if (source == null || target == null) {return null;}try {T newInstance = target.newInstance();BeanUtils.copyProperties(source, newInstance);return newInstance;} catch (Exception e) {throw new RuntimeException(e);}}/*** 复制list** @param source* @param target* @param <T>* @param <K>* @return*/public static <T, K> List<K> copyList(List<T> source, Class<K> target) {if (null == source || source.isEmpty()) {return Collections.emptyList();}return source.stream().map(e -> copy(e, target)).collect(Collectors.toList());}/*** 手动验证对象 Model的属性* 需要配合 hibernate-validator 校验注解** @param t* @return String 返回null代表验证通过，否则返回错误的信息*/public static <T> String verify(T t) {// 获取验证结果Set<ConstraintViolation<T>> validate = VALIDATOR.validate(t);if (validate.isEmpty()) {// 验证通过return null;}// 返回错误信息List<String> messageList = validate.stream().map(ConstraintViolation::getMessage).collect(Collectors.toList());return messageList.toString();}
}

package com.example.kiratest.Notify.Util;import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.time.Duration;
import java.util.Map;public class SmartHttpUtil {private static final HttpClient client = HttpClient.newBuilder().version(HttpClient.Version.HTTP_2).connectTimeout(Duration.ofSeconds(10)).build();public static String get(String url) throws Exception {HttpRequest request = HttpRequest.newBuilder().uri(URI.create(url)).timeout(Duration.ofSeconds(10)).GET().build();HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());return handleResponse(response);}public static String postWithHeader(String url, String json, Map<String,String> header) throws Exception {HttpRequest.Builder requestBuilder  = HttpRequest.newBuilder().uri(URI.create(url)).timeout(Duration.ofSeconds(10)).header("Content-Type", "application/json").POST(HttpRequest.BodyPublishers.ofString(json));// 遍历 header Map，添加所有的 headerif (header != null) {for (Map.Entry<String, String> entry : header.entrySet()) {requestBuilder.header(entry.getKey(), entry.getValue());}}HttpResponse<String> response = client.send(requestBuilder.build(), HttpResponse.BodyHandlers.ofString());return handleResponse(response);}private static String handleResponse(HttpResponse<String> response) throws Exception {if (response.statusCode() != 200) {throw new Exception("HTTP error code: " + response.statusCode() + " - " + response.body());}return response.body();}}

用到的依赖

<dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!-- https://mvnrepository.com/artifact/org.apache.httpcomponents/httpclient --><dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId><version>4.5.14</version></dependency><dependency><groupId>org.apache.poi</groupId><artifactId>poi-ooxml</artifactId><version>5.2.3</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>2.0.52</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>com.aliyun</groupId><artifactId>dingtalk</artifactId><version>2.1.42</version></dependency><!-- https://mvnrepository.com/artifact/com.dingtalk.open/app-stream-client --><dependency><groupId>com.dingtalk.open</groupId><artifactId>app-stream-client</artifactId><version>1.3.7</version></dependency><!-- https://mvnrepository.com/artifact/com.google.guava/guava --><dependency><groupId>com.google.guava</groupId><artifactId>guava</artifactId><version>33.4.6-jre</version></dependency><!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-validation --><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-validation</artifactId><version>3.4.4</version></dependency>
<!--        &lt;!&ndash; https://mvnrepository.com/artifact/com.dingtalk.open/dingtalk-stream &ndash;&gt;-->
<!--        <dependency>-->
<!--            <groupId>com.dingtalk.open</groupId>-->
<!--            <artifactId>dingtalk-stream</artifactId>-->
<!--            <version>1.3.7</version>-->
<!--        </dependency>--><!-- https://mvnrepository.com/artifact/org.projectlombok/lombok --><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><version>1.18.36</version><scope>provided</scope></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter</artifactId><version>3.4.4</version><exclusions><exclusion><groupId>commons-logging</groupId><artifactId>commons-logging</artifactId></exclusion></exclusions></dependency></dependencies>

思路总结

我们通过开发者平台点击具体的钉钉应用

来拿到我们钉钉应用的appKey和appSecret，向dingtalk平台发起请求拿到我们的Token

这样子我们就可以使用我们的Token在代码中访问使用我们的应用了

然后我们去卡片平台拿到我们的卡片模板Id

和在JSAPI Explorer拿到我们的群聊场域Id，放到我们的枚举类里面

这样子我们就可以根据拿到的Token定位到具体的机器人

根据OpenConversationId群聊场域Id定位到我们的群聊

根据CardTemplate卡片模板Id来找到我们要推送的特定卡片

然后把这些信息放到CardRequest类对象里，再把对象转为Json，通过Notify实现类的notify（）方法就可以发起调用了

这样子我们就可以实现，在特定的群聊根据特定的机器人来推送特定的卡片了

Notify类按照格式传输数据

这个是发送我们构造好的数据，在卡片模板的基础上来传我们的变量

main方法跑CradRequest请求

package com.example.kiratest.Notify;import com.alibaba.fastjson.JSON;
import com.example.kiratest.Notify.Enum.MsgTypeEnum;
import com.example.kiratest.Notify.POJO.CardRequest;
import com.example.kiratest.Notify.POJO.DingtalkColumnsItem;
import com.example.kiratest.Notify.POJO.DingtalkRowsItem;
import com.example.kiratest.Notify.POJO.DingtalkTableItem;
import lombok.extern.slf4j.Slf4j;import java.util.ArrayList;
import java.util.List;
import java.util.UUID;@Slf4j
public class Main {public static void main(String[] args) {DingtalkRowsItem dingtalkRowsItem= new DingtalkRowsItem().setOfferId("1").setAffiliateId("1").setPackageName("阮志荣").setCap(300).setPbNumber(80).setTimezone(3000);//CardRequestCardRequest pbNotifierMsg = pbNotifierMsg();//转换成发起请求的对象List<DingtalkRowsItem> dingTalkRowsItems = new ArrayList<>();dingTalkRowsItems.add(dingtalkRowsItem);//构建CardRequestpbNotifierMsg.getCardData().getCardParamMap().getTableBean().setData(dingTalkRowsItems);DingtalkTableItem tableBean = pbNotifierMsg.getCardData().getCardParamMap().getTableBean();pbNotifierMsg.getCardData().getCardParamMap().setTable(JSON.toJSONString(tableBean));pbNotifierMsg.setOpenSpaceId(MsgTypeEnum.NOTIFY2.getOpenSpaceId());//群聊场域IdpbNotifierMsg.setCardTemplateId("fac74867-f2a3-4805-a841-093306a616d9.schema");//卡片模板IdpbNotifierMsg.setOutTrackId(UUID.randomUUID().toString());//请求唯一Id//将CradRequest对象变成Json字符串String jsonString = JSON.toJSONString(pbNotifierMsg);DingtalkNotifier dingtalkNotifier = new DingtalkNotifier();dingtalkNotifier.notify(jsonString, null);}//我们主要有5个参数 offerId,affilicateId,packageName,cap,pbNumberpublic static CardRequest pbNotifierMsg() {List<DingtalkColumnsItem> columnsItems = new ArrayList<>();columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("offerId").setAliasName("offerId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("affiliateId").setAliasName("affiliateId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("packageName").setAliasName("packageName").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("cap").setAliasName("cap数").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("pbNumber").setAliasName("上游转化数").setWeight(20));return new CardRequest("offer监控通知", columnsItems);}
}

pbNotifierMsg（）方法放入参数类型

 //我们主要有5个参数 offerId,affilicateId,packageName,cap,pbNumberpublic static CardRequest pbNotifierMsg() {List<DingtalkColumnsItem> columnsItems = new ArrayList<>();columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("offerId").setAliasName("offerId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("affiliateId").setAliasName("affiliateId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("packageName").setAliasName("packageName").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("cap").setAliasName("cap数").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("pbNumber").setAliasName("上游转化数").setWeight(20));return new CardRequest("offer监控通知", columnsItems);}

我们的变量是offerId，affliatedId，packageName，cap，上游转化数

pbNotifierMsg（）方法构造图片显示参数

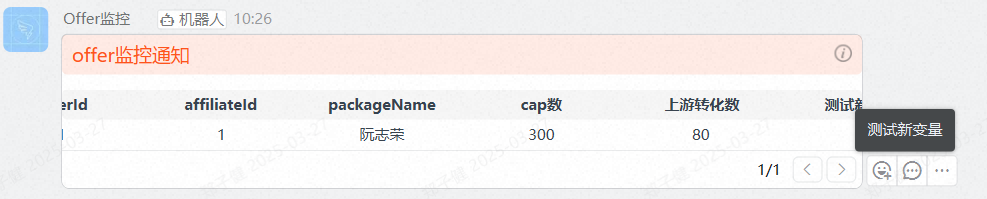

我们加多了一个新变量，然后发现，我们的卡片也多出来一个新变量

    //我们主要有5个参数 offerId,affilicateId,packageName,cap,pbNumberpublic static CardRequest pbNotifierMsg() {List<DingtalkColumnsItem> columnsItems = new ArrayList<>();columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("offerId").setAliasName("offerId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("affiliateId").setAliasName("affiliateId").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("packageName").setAliasName("packageName").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("cap").setAliasName("cap数").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("pbNumber").setAliasName("上游转化数").setWeight(20));columnsItems.add(new DingtalkColumnsItem().setDataType("STRING").setAlias("number").setAliasName("测试新变量").setWeight(20));return new CardRequest("offer监控通知", columnsItems);}

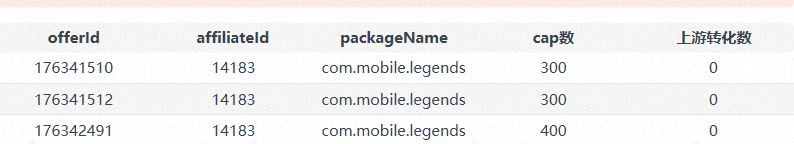

卡片模板设置（表格）

因为我们是表格格式，所以我们可以用pbNotifierMsg那种方式来传参数

我们直接自己弄一个卡片模板，里面弄一个表格格式就好了
