部署开源项目管理工具focalboard

前言

focalboard是一款开源项目管理工具，类似Jira、Trello。官网地址

组件	版本	说明
Debian	12.1	操作系统
docker	20.10.7	容器运行时
docker-compose	1.29.2	docker编排工具
Nginx	1.21.5	反向代理focalboard
Postgres	15.3	数据库
Focalboard	7.11.3	focalboard服务

安装nginx和postgres

nginx和postgres通过docker安装，免得编译。docker-compose.yaml文件内容如下，根据实际需求进行修改。

version: "3"
services:postgres:image: postgres:latestcontainer_name: postgresnetworks:- appsports:- 5432:5432volumes:- ./postgres/data:/var/lib/postgresql/data- /etc/localtime:/etc/localtime:roenvironment:- "POSTGRES_PASSWORD=123456"nginx:image: nginx:latestcontainer_name: nginxnetworks:- appsvolumes:- ./nginx/conf/nginx.conf:/etc/nginx/nginx.conf- ./nginx/conf/conf.d:/etc/nginx/conf.d- ./nginx/logs:/var/log/nginx- /etc/localtime:/etc/localtime:roports:- 80:80
networks:apps:name: apps

使用docker-compose创建容器并启动：

docker-compose up -d

查看是否启动成功：

docker-compose ps

配置postgres

# 创建数据库
CREATE DATABASE focalboards;
# 创建用户, 指定密码
CREATE USER boardsuser WITH PASSWORD 'qwerty';
# 授权
GRANT ALL PRIVILEGES ON DATABASE focalboards to boardsuser;

配置nginx

upstream中指定了focalboard后端的ip，根据实际进行修改。

upstream svc.focalboard {server 192.168.0.41:8000;keepalive 32;
}
server {listen       80;server_name  localhost;#access_log  /var/log/nginx/host.access.log  main;location ~ /ws/* {proxy_set_header Upgrade $http_upgrade;proxy_set_header Connection "upgrade";client_max_body_size 50M;proxy_set_header Host $http_host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_set_header X-Forwarded-Proto $scheme;proxy_set_header X-Frame-Options SAMEORIGIN;proxy_buffers 256 16k;proxy_buffer_size 16k;client_body_timeout 60;send_timeout 300;lingering_timeout 5;proxy_connect_timeout 1d;proxy_send_timeout 1d;proxy_read_timeout 1d;proxy_pass http://svc.focalboard;}location / {client_max_body_size 50M;proxy_set_header Connection "";proxy_set_header Host $http_host;proxy_set_header X-Real-IP $remote_addr;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_set_header X-Forwarded-Proto $scheme;proxy_set_header X-Frame-Options SAMEORIGIN;proxy_buffers 256 16k;proxy_buffer_size 16k;proxy_read_timeout 600s;proxy_cache_revalidate on;proxy_cache_min_uses 2;proxy_cache_use_stale timeout;proxy_cache_lock on;proxy_http_version 1.1;proxy_pass http://svc.focalboard;}error_page   500 502 503 504  /50x.html;location = /50x.html {root   /usr/share/nginx/html;}
}

检查配置与配置热加载

docker exec nginx nginx -t
docker exec nginx nginx -s reload

安装与配置focalboard

1. 官网GitHub仓库下载。https://github.com/mattermost/focalboard
2. 解压
3. 编辑config.json。注意修改postgres数据库的连接信息。

{"serverRoot": "http://localhost:8000","port": 8000,"dbtype": "postgres","dbconfig": "postgres://boardsuser:qwerty@127.0.0.1:5432/focalboards?sslmode=disable&connect_timeout=10","postgres_dbconfig": "dbname=focalboard sslmode=disable","useSSL": false,"webpath": "./pack","filespath": "./files","telemetry": true,"prometheusaddress": ":9092","session_expire_time": 2592000,"session_refresh_time": 18000,"localOnly": false,"enableLocalMode": true,"localModeSocketLocation": "./tmp/focalboard_local.socket"
}

启动

nohup ./bin/focalboard-server > ./nohup.log 2>&1 &

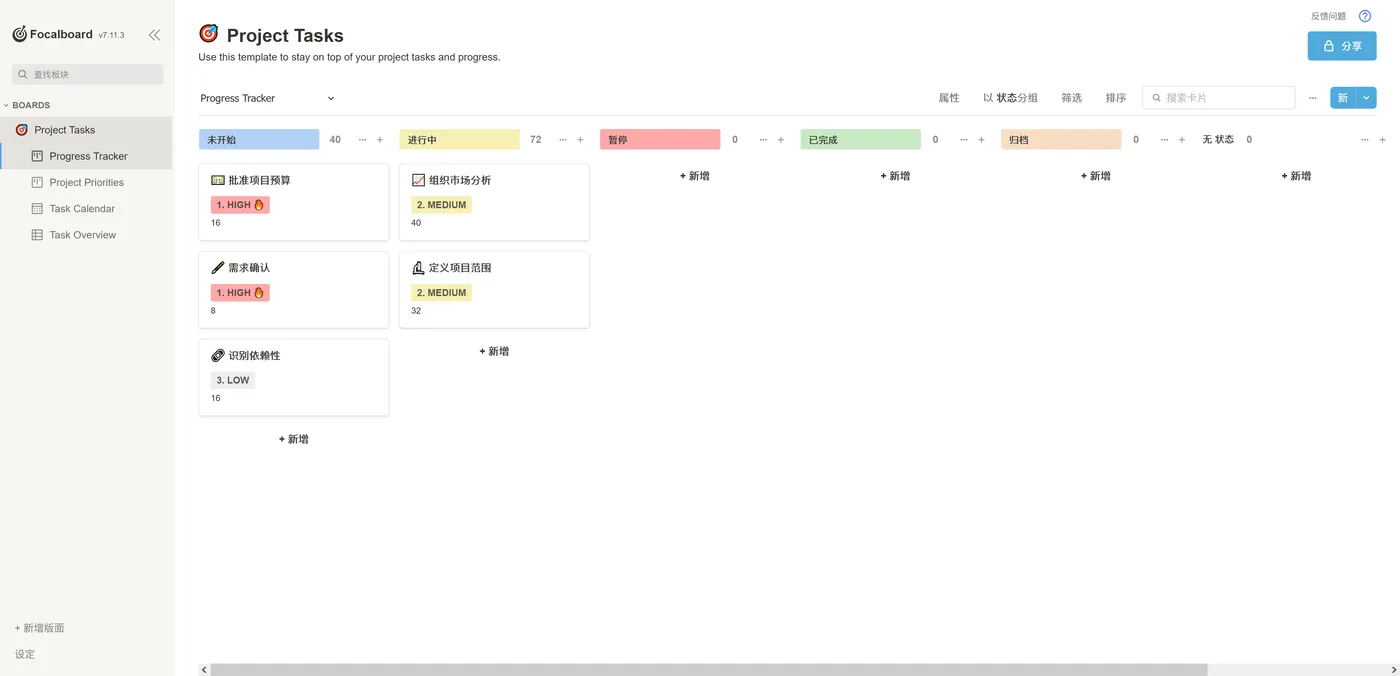

浏览器访问

补充

• focalboard编译用的GLIBC版本较高，centos 7无法正常运行。（报错：/lib64/libc.so.6: version 'GLIBC_2.28' not found）。如果要在centos 7上部署focalboard，可以试试自封装的docker镜像。

version: "3"
services:focalboard:image: registry.cn-hangzhou.aliyuncs.com/rainux/focalboard:7.11.3container_name: focalboardnetworks:- appsvolumes:- ./focalboard/config.json:/app/config.json- /etc/localtime:/etc/localtime:roprivileged: true
networks:apps:name: apps
