eNSP防火墙实现GRE over IPSec

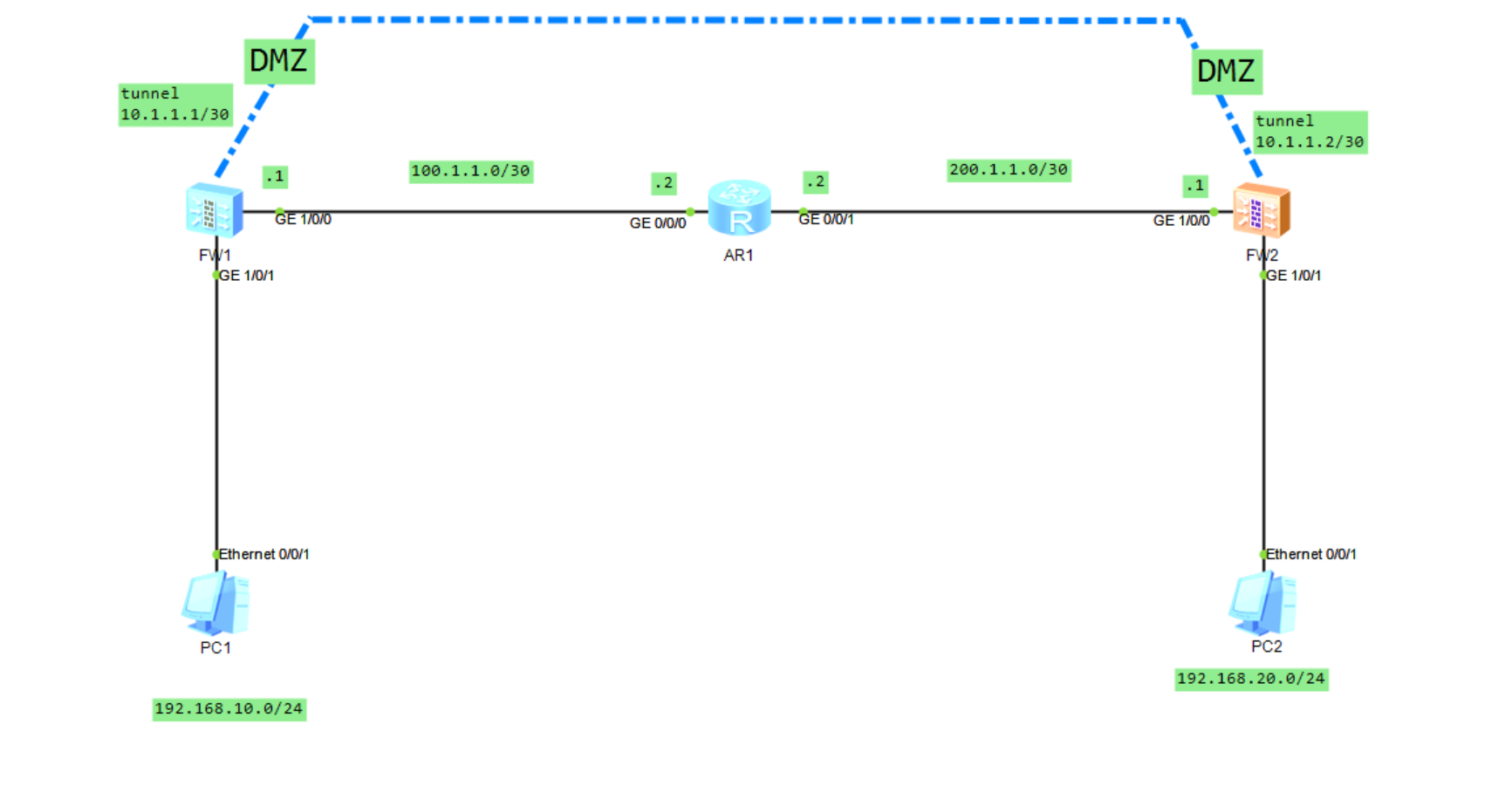

1.实验拓扑

2.GRE配置（安全策略）

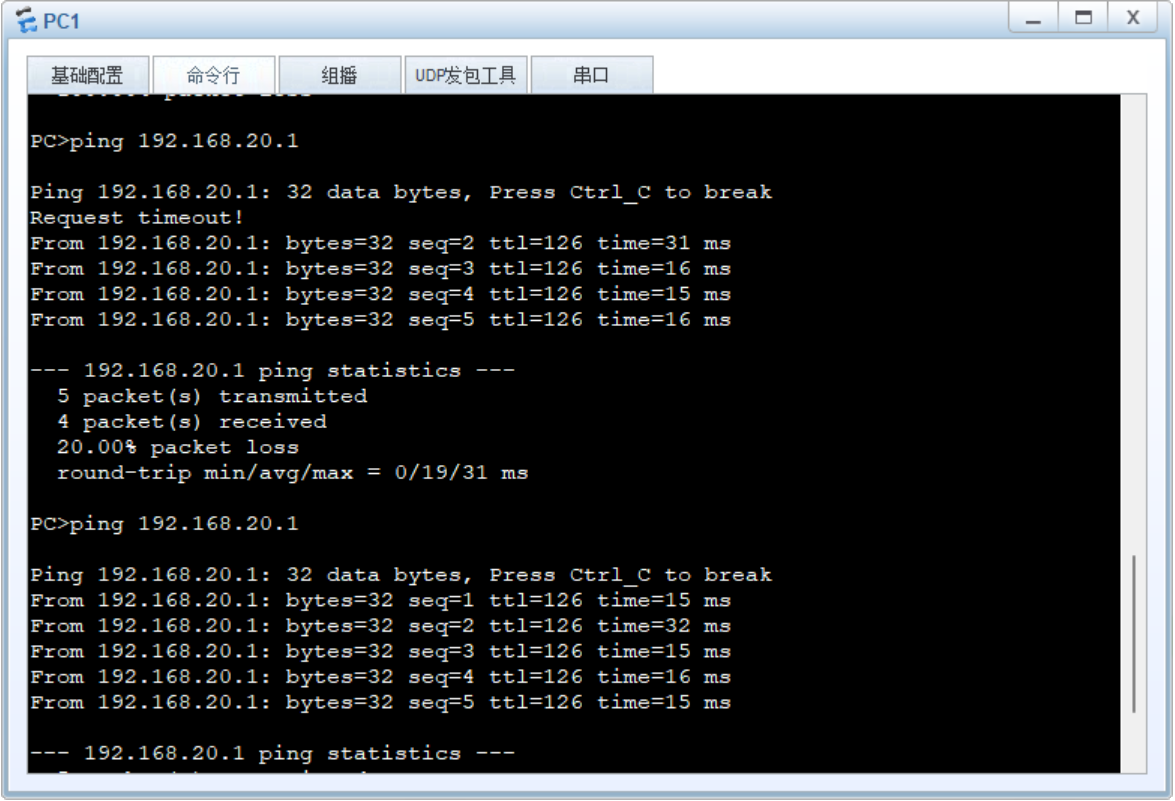

2.1 PC1访问PC2配置

[FW1-policy-security]di th
2025-05-22 10:53:20.930
#
security-policy
 rule name trust->dmz
  source-zone trust
  destination-zone dmz
  source-address 192.168.10.0 mask 255.255.255.0
  action permit
 rule name local->untrust
  source-zone local
  destination-zone untrust
  action permit
 rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  action permit
#

[FW2-policy-security]di th
2025-05-22 10:53:35.090
#
security-policy
 rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  action permit
 rule name dmz->trust
  source-zone dmz
  destination-zone trust
  action permit

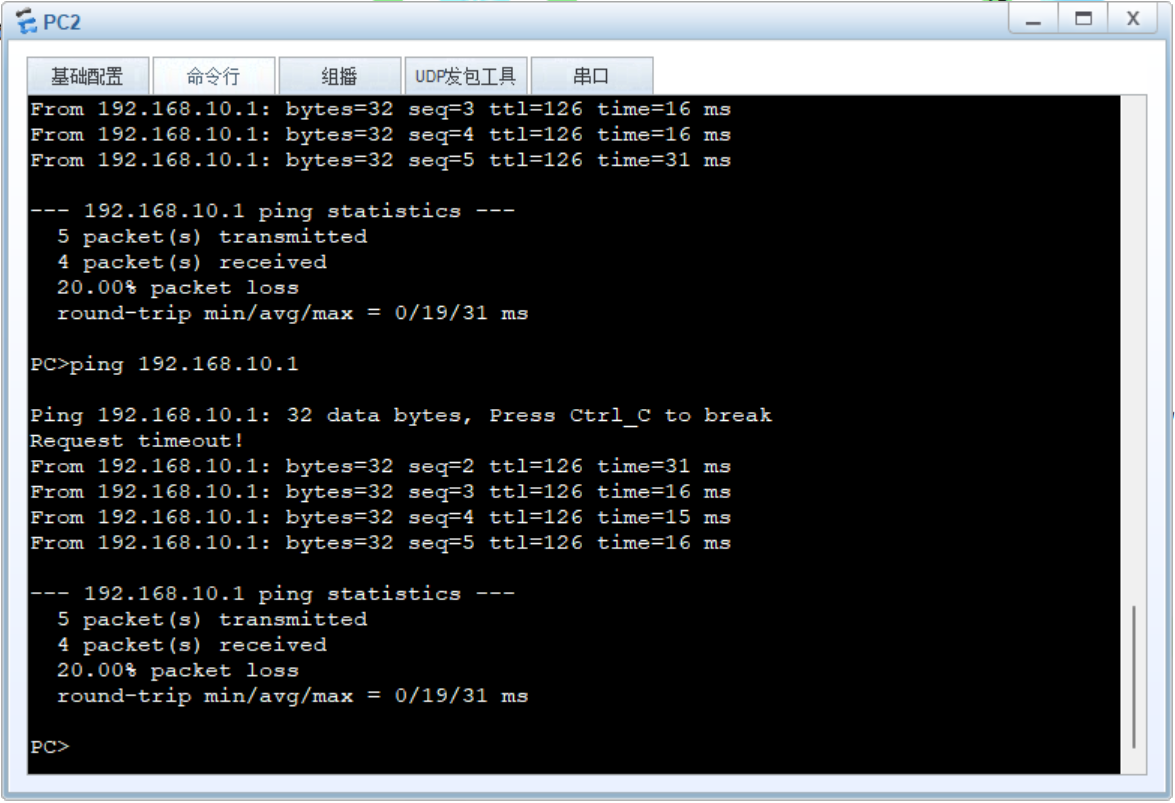

2.2PC2访问PC1

[FW1-policy-security]di th
2025-05-22 11:00:28.520
#
security-policy
 rule name trust->dmz
  source-zone trust
  destination-zone dmz
  source-address 192.168.10.0 mask 255.255.255.0
  action permit
 rule name local->untrust
  source-zone local
  destination-zone untrust
  action permit
 rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  action permit
 rule name dmz->trust
  source-zone dmz
  destination-zone trust
  destination-address 192.168.10.0 mask 255.255.255.0
  action permit

[FW2-policy-security]di th
2025-05-22 11:02:45.960
#
security-policy
 rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  action permit
 rule name dmz->trust
  source-zone dmz
  destination-zone trust
  action permit
 rule name trust->dmz
  source-zone trust
  destination-zone dmz
  source-address 192.168.20.0 mask 255.255.255.0
  action permit
 rule name local->untrust
  source-zone local
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.252
  action permit
#

但是该报文未加密

3.IPSec 配置

3.1配置感兴趣流

[FW1-acl-adv-3000]di th
2025-05-22 11:06:40.120
#
acl number 3000
 rule 5 permit ip source 100.1.1.1 0 destination 200.1.1.1 0
#

[FW2-acl-adv-3000]di th
2025-05-22 11:07:15.920
#
acl number 3000
 rule 5 permit ip source 200.1.1.1 0 destination 100.1.1.1 0
#

3.2配置IKE提议

[FW1]ike proposal  1

[FW1-ike-proposal-1]authentication-method  pre-share

[FW1-ike-proposal-1]encryption-algorithm 3des

[FW1-ike-proposal-1]authentication-algorithm  sha2-256

[FW1-ike-proposal-1]dh  group14

FW2同上

[FW2-ike-proposal-1]di th
2025-05-22 12:22:18.030
#
ike proposal 1
 encryption-algorithm 3des
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#

3.3配置IKE对等体

[FW1]ike peer  huawei

[FW1-ike-peer-huawei]remote-address 200.1.1.1

[FW1-ike-peer-huawei]pre-shared-key  huawei@123

[FW1-ike-peer-huawei]ike-proposal 1

FW2同上

[FW2-ike-peer-huawei]di th
2025-05-22 11:13:49.870
#
ike peer huawei
 pre-shared-key %^%#y9T]7O]t=%J9^_%^Y%V:@K1S)}'Q,9oLrx'R5g],%^%#
 ike-proposal 1
 remote-address 100.1.1.1

3.4配置IPSec 提议

[FW1]ipsec  proposal huawei

[FW1-ipsec-proposal-huawei]transform ah-esp

[FW1-ipsec-proposal-huawei]ah  authentication-algorithm  sha2-256

[FW1-ipsec-proposal-huawei]esp  authentication-algorithm  sha2-256

[FW1-ipsec-proposal-huawei]esp encryption-algorithm  3des

FW2同上

[FW2-ipsec-proposal-huawei]di th
2025-05-22 12:27:03.280
#
ipsec proposal huawei
 transform ah-esp
 ah authentication-algorithm sha2-256
 esp authentication-algorithm sha2-256
 esp encryption-algorithm 3des
#

3.5配置IPSec策略

[FW1]ipsec  policy huawei 1 isakmp

[FW1-ipsec-policy-isakmp-huawei-1]security  acl  3000

[FW1-ipsec-policy-isakmp-huawei-1]ike-peer  huawei

[FW1-ipsec-policy-isakmp-huawei-1]proposal huawei

[FW2-ipsec-policy-isakmp-huawei-1]di th
2025-05-22 11:20:57.870
#
ipsec policy huawei 1 isakmp
 security acl 3000
 ike-peer huawei
 proposal huawei

3.6出接口调用IPSec策略

[FW1]int g1/0/0

[FW1-GigabitEthernet1/0/0]ipsec  policy  huawei

[FW2]int g1/0/0
[FW2-GigabitEthernet1/0/0]ipsec  policy  huawei

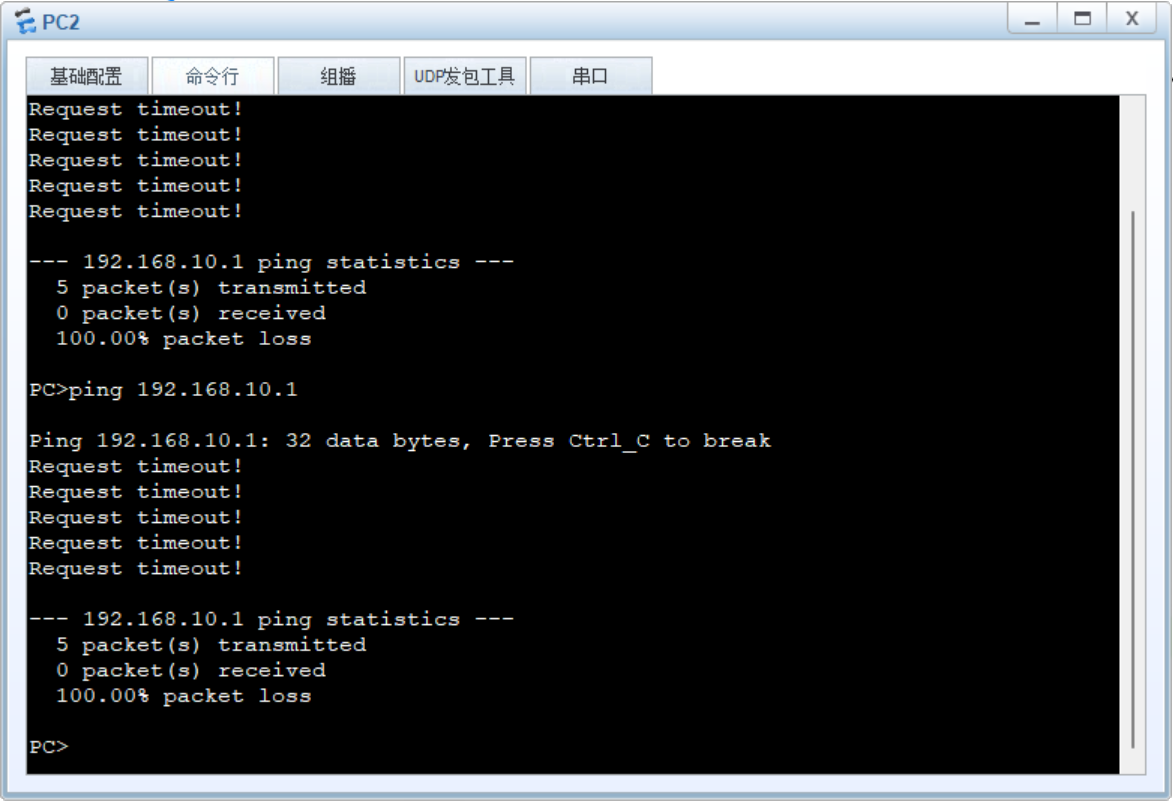

4.IPSec配置（安全策略）

[FW1-policy-security]di th

rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  service ospf
  service protocol 50
  service protocol 51
  service protocol udp destination-port 500
  action permit

[FW2-policy-security]di th

security-policy
 rule name untrust->local
  source-zone untrust
  destination-zone local
  service gre
  service ospf
  service protocol 50
  service protocol 51
  service protocol udp destination-port 500
  action permit

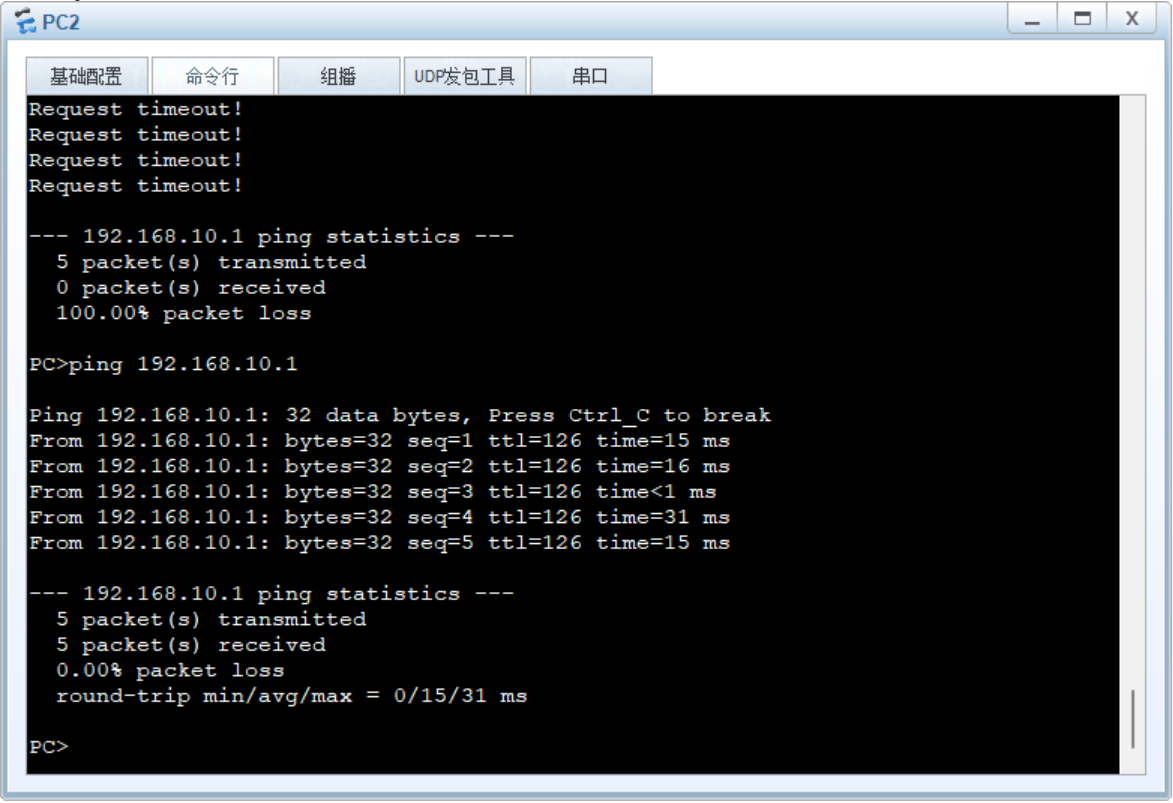

5.实验验证

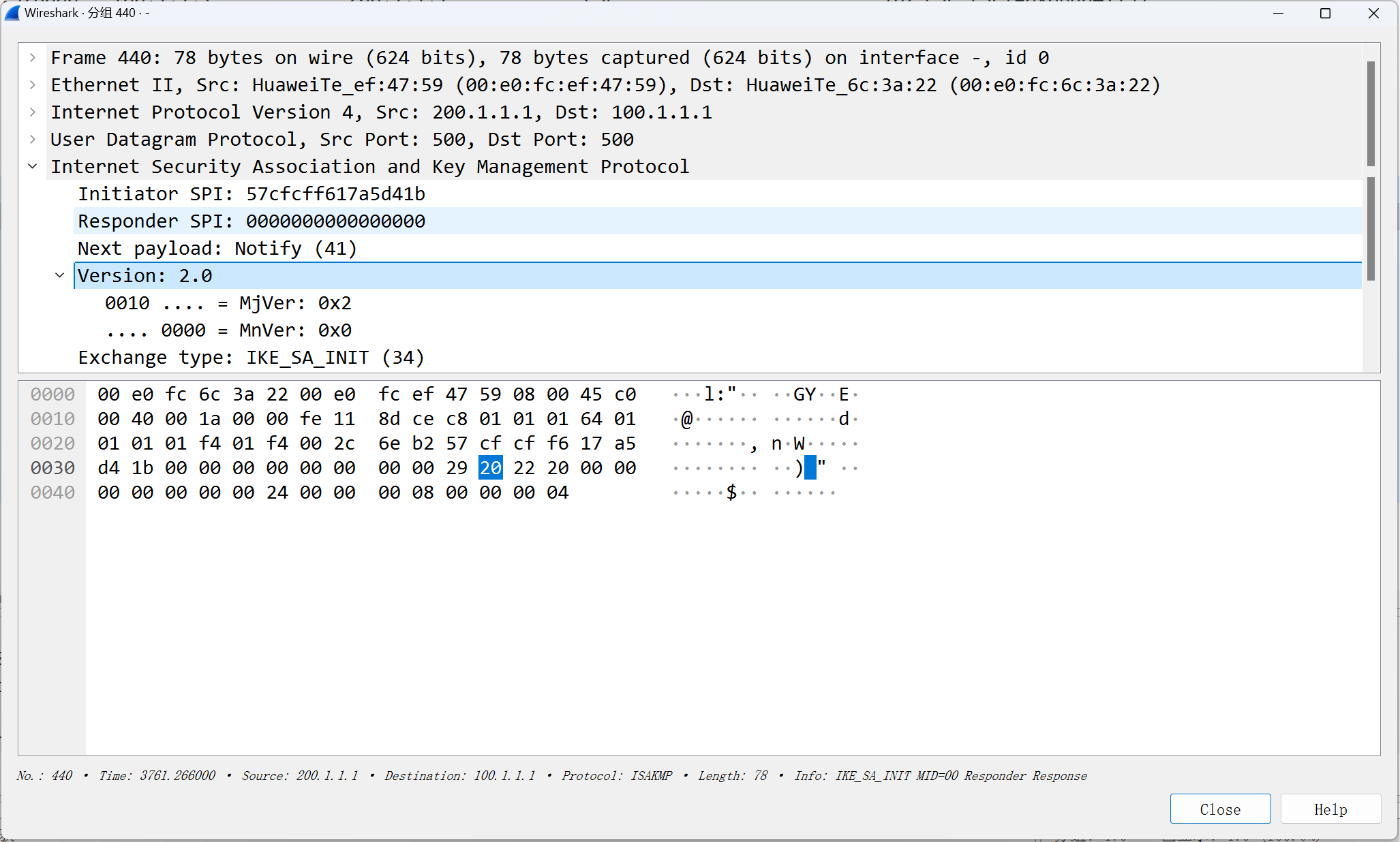

华为设备默认使用IKEv2
