H3C华三配置AC自动上线AP

news 2025/5/17 9:09:01

文章目录

- 一、网络拓扑
- 二、AC配置
- 三、配置自动AP
- 四、S1配置，做地址池和网关
- 五、S3配置，主要放通各类vlan
- 六、接入层交换机：放通各类vlan和为ap端打上管理vlan。

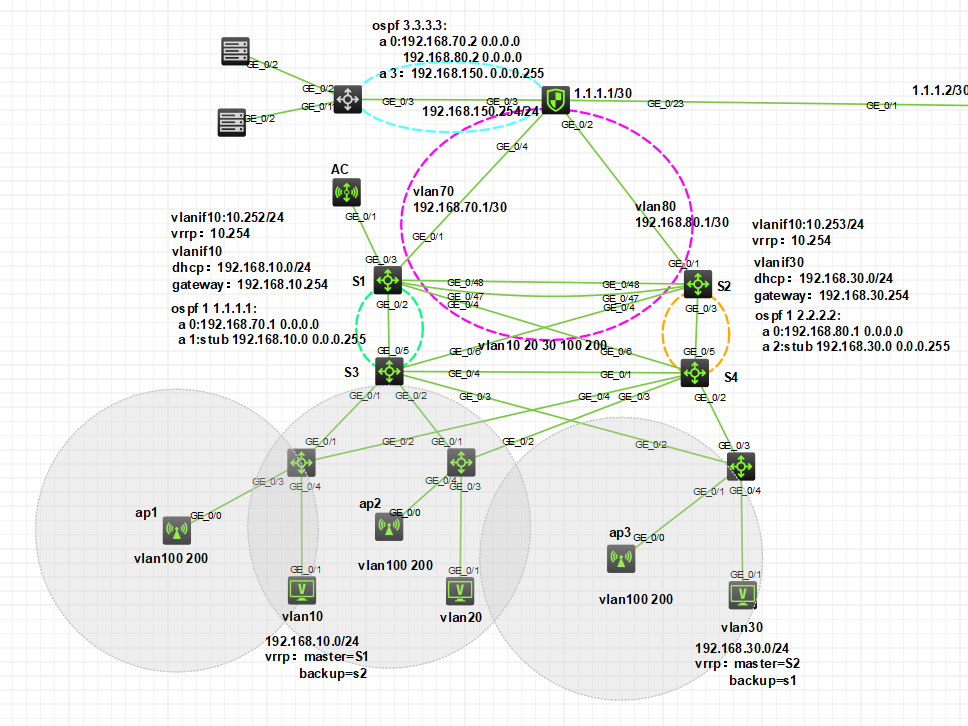

一、网络拓扑

在这里插入图片描述

管理vlan100流量路径：ap1——接入交换机——s3——s1——ac
业务vlan200流量路径：ap1——接入交换机——s3——s1——防火墙
（可做vrrp虚拟网关，s1和s2出）

二、AC配置

[AC]dis cur
#version 7.1.064, Alpha 7165
#sysname AC
#dhcp enable
#
vlan 1
#
vlan 100
#
vlan 200
#
dhcp server ip-pool vlan100	#dhcp不一定放ac可以放S1交换机或其他gateway-list 192.168.100.254network 192.168.100.0 mask 255.255.255.0option 43 ip-address 192.168.100.1	#指向ac的IP地址，重要。
#
dhcp server ip-pool vlan200gateway-list 192.168.200.254network 192.168.200.0 mask 255.255.255.0
#
wlan service-template 1	#没配置wifi认证方式，不需要输密码。ssid guli	#ap信号名称vlan 200	#获取vlan200的地址池，200.0网段ipservice-template enable
#
interface Vlan-interface100ip address 192.168.100.1 255.255.255.0
#
interface Vlan-interface200ip address 192.168.200.1 255.255.255.0
#
interface GigabitEthernet1/0/1port link-mode bridgeport link-type trunkport trunk permit vlan 1 100 200combo enable fiber
#ip route-static 0.0.0.0 0 192.168.100.254ip route-static 0.0.0.0 0 192.168.200.254
#wlan auto-ap enable	#自动ap上线，全部上线后应关闭wlan auto-persistent enable	#自动ap固化
#
wlan ap-group group1	#建立ap组，组名为group1，统一管理apvlan 1ap ap1ap ap2ap ap3ap-model WA6320-HCLradio 1	#2.4gradio enableservice-template 1	#使用模版1radio 2	#5Gradio enableservice-template 1gigabitethernet 1
#以下为自动上线及固化的ap不需要配置
wlan ap ap1 model WA6320-HCLserial-id H3C_90-E5-C3-55-18-00vlan 1radio 1radio 2gigabitethernet 1
#
wlan ap ap2 model WA6320-HCLserial-id H3C_90-88-83-B5-13-00vlan 1radio 1radio 2gigabitethernet 1
#
wlan ap ap3 model WA6320-HCLserial-id H3C_90-E5-CF-78-1D-00vlan 1radio 1radio 2gigabitethernet 1

三、配置自动AP

wlan auto-ap enable
wlan auto-persistent enable

功能简介
当无线网络中部署的AP数量较多时，开启自动AP功能可以简化配置，即AC上可以不创建手工AP。AP发现没有AC存在手工AP的情况下，会从开启自动AP功能的AC中选择最优AC进行CAPWAP隧道连接。
配置限制和指导
建议在需要部署的AP全都接入后关闭自动AP功能，以防止非法AP接入。因此需要将已接入的所有AP固化为手工AP，才能保证AC重启或AP与AC的连接断开并恢复后，AP能够再次接入AC。
只有将自动AP固化为手工AP后，才能对自动AP进行单独配置，否则只能通过AP组进行配置。

搭配使用命令

dis wlan ap all 查看所有ap
wlan rename-ap <原名> <需修改名称> 	修改ap名称

查看ap上线情况

[AC]dis wlan ap all
Total number of APs: 3
Total number of connected APs: 3
Total number of connected manual APs: 3
Total number of connected auto APs: 0
Total number of connected common APs: 3
Total number of connected WTUs: 0
Total number of inside APs: 0
Maximum supported APs: 60000
Remaining APs: 59997
Total AP licenses: 60000
Local AP licenses: 60000
Server AP licenses: 0
Remaining local AP licenses: 59997
Sync AP licenses: 0AP informationState : I = Idle,      J  = Join,       JA = JoinAck,    IL = ImageLoadC = Config,    DC = DataCheck,  R  = Run,   M = Master,  B = BackupAP name                        APID  State Model           Serial ID
ap1                            1     R/M   WA6320-HCL      H3C_90-E5-C3-55-18-00
ap2                            3     R/M   WA6320-HCL      H3C_90-88-83-B5-13-00
ap3                            2     R/M   WA6320-HCL      H3C_90-E5-CF-78-1D-00

四、S1配置，做地址池和网关

ospf 1 router-id 1.1.1.1area 0.0.0.0network 192.168.70.1 0.0.0.0area 0.0.0.1network 192.168.10.0 0.0.0.255network 192.168.20.0 0.0.0.255network 192.168.100.0 0.0.0.255network 192.168.200.0 0.0.0.255stub
#dhcp enable
#
vlan 1
#
vlan 10
#
vlan 20
#
vlan 30
#
vlan 70
#
vlan 100
#
vlan 200
#
stp region-configuration	#mstpregion-name h3crevision-level 1instance 1 vlan 10 20instance 2 vlan 30active region-configuration
#stp instance 1 root primarystp instance 2 root secondarystp global enable#dhcp vlan100和vlan200地址池，AC和这里二选一就可以。
dhcp server ip-pool vlan100gateway-list 192.168.100.254network 192.168.100.0 mask 255.255.255.0option 43 ip-address 192.168.100.1	#指向ac的地址，管理vlna100
#
dhcp server ip-pool vlan200	#业务vlan200，网段200.0gateway-list 192.168.200.254network 192.168.200.0 mask 255.255.255.0
#interface Vlan-interface100ip address 192.168.100.254 255.255.255.0
#
interface Vlan-interface200ip address 192.168.200.254 255.255.255.0
#
interface GigabitEthernet1/0/1port link-mode bridgeport access vlan 70combo enable fiber
#
interface GigabitEthernet1/0/2port link-mode bridgeport link-type trunkport trunk permit vlan allcombo enable fiber
#
interface GigabitEthernet1/0/3port link-mode bridgeport link-type trunkport trunk permit vlan 1 100 200combo enable fiber
#
interface GigabitEthernet1/0/4port link-mode bridgeport link-type trunkport trunk permit vlan allcombo enable fiber

五、S3配置，主要放通各类vlan

#
vlan 1
#
vlan 10
#
vlan 20
#
vlan 30
#
vlan 100
#
vlan 200
#
stp region-configuration	#mstpregion-name h3crevision-level 1instance 1 vlan 10 20instance 2 vlan 30active region-configuration
#stp global enableinterface GigabitEthernet1/0/1port link-mode bridgeport link-type trunkundo port trunk permit vlan 1port trunk permit vlan 10 100 200combo enable fiber
#
interface GigabitEthernet1/0/2port link-mode bridgeport link-type trunkundo port trunk permit vlan 1port trunk permit vlan 20 100 200combo enable fiber
#
interface GigabitEthernet1/0/3port link-mode bridgeport link-type trunkport trunk permit vlan 1 30 100 200combo enable fiber
#
interface GigabitEthernet1/0/4port link-mode bridgeport link-type trunkport trunk permit vlan 1 10 20 30 100 200combo enable fiber
#
interface GigabitEthernet1/0/5port link-mode bridgeport link-type trunkport trunk permit vlan 1 10 20 30 100 200combo enable fiber
#
interface GigabitEthernet1/0/6port link-mode bridgeport link-type trunkport trunk permit vlan 1 10 20 30 100 200combo enable fiber

六、接入层交换机：放通各类vlan和为ap端打上管理vlan。

vlan1
#
vlan10
#
vlan 100
#
vlan 200
#
stp region-configuration	#mstpregion-name h3crevision-level 1instance 1 vlan 10 20instance 2 vlan 30active region-configuration
#stp global enable
#
interface GigabitEthernet1/0/1port link-mode bridgeport link-type trunkport trunk permit vlan 1 10 100 200combo enable fiber
#
interface GigabitEthernet1/0/2port link-mode bridgeport link-type trunkport trunk permit vlan 1 10 100 200combo enable fiber
#
interface GigabitEthernet1/0/3port link-mode bridgeport link-type trunkport trunk permit vlan 1 100 200port trunk pvid vlan 100	#ap打上vlan100标签获取100.0网段ipcombo enable fiber
