cmake：test project

news 2025/5/12 12:20:20

        本文主要探讨cmake在测试和项目中的应用。

add_test
add_test(NAME <name> COMMAND <command> [<arg>...]
[CONFIGURATIONS <config>...] [WORKING_DIRECTORY <dir>]
[COMMAND_EXPAND_LISTS])  add_test(NAME test_uni COMMAND $<TARGET_FILE:${PROJECT_NAME}> 1)
添加测试
main函数返回值0成功
set_tests_properties(test PROPERTIES PASS_REGULAR_EXPRESSION "0" )
set_tests_properties(test PROPERTIES FAIL_REGULAR_EXPRESSION "-1")
PASS_REGULAR_EXPRESSION
成功输出
FAIL_REGULAR_EXPRESSION
失败输出
设置成功/失败输出匹配
set_tests_properties(test PROPERTIES TIMEOUT 2)
设置超时
enable_testing()
使能测试
execute_process(COMMAND shell)
执行shell
ctest -V  --output-junit results.xml
详细输出结果为xml文件

FetchContent
cmake版本大于3.14
include(FetchContent)
导入FetchContent
FetchContent_Declare(
  <项目名称>  # 自定义名称
  GIT_REPOSITORY <仓库URL>  # 仓库的URL
  GIT_TAG <标签或分支>  # 使用的标签或分支
)
下载模块
FetchContent_MakeAvailable(<项目名称>)
使用项目

add_dependencies

add_dependencies(target-name depend-target1 [depend-target2 ...])

设置目标（如可执行文件、库或自定义目标）之间的依赖关系

demo1：

        add_test & gtest

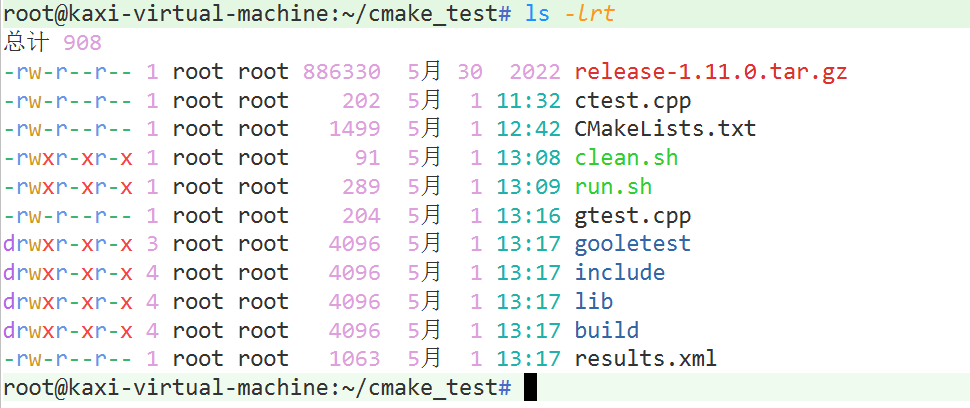

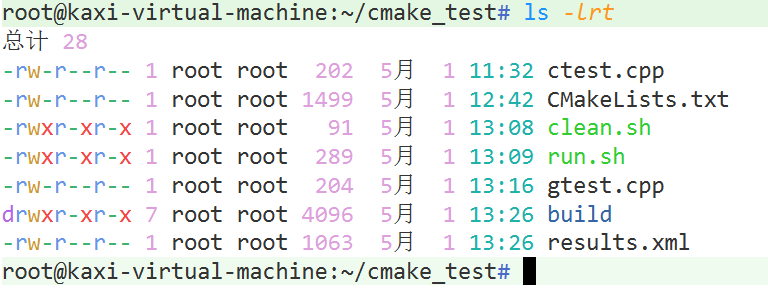

文件目录

代码示例

run.sh

#!/bin/bash
#
# sh  run.sh 1   ==> compile install gooletest
#
# sh  run.sh 0   ==> FetchCotent install  gooletest
#cmake -S . -B build -D COMP_INSTALL=${1} cmake --build buildecho -e "==================================\n"cd build && ctest -V  --output-junit ../results.xmlcd ..

clean.sh

#!/bin/bashrm -rf  build lib include gooletest release-1.11.0.tar.gz Testing results.xml

CMakeLists.txt

cmake_minimum_required(VERSION 3.0)project(test)#ctestadd_executable(ctests ctest.cpp)add_test(NAME ctest_test_sucess COMMAND ctests sucess)add_test(NAME ctest_test_fail COMMAND ctests)set_tests_properties(ctest_test_sucess PROPERTIES PASS_REGULAR_EXPRESSION "sucess" )#gooletestif(COMP_INSTALL)message("compile install gooletest")if(NOT EXISTS release-1.11.0.tar.gz)execute_process(COMMAND wget http://cdn.tarsyun.com/src/release-1.11.0.tar.gz)endif()if(NOT EXISTS gooletest)execute_process(COMMAND mkdir gooletest)endif()set(UNTAR_FILE ${CMAKE_SOURCE_DIR}/gooletest)set(COM_PUT ${CMAKE_SOURCE_DIR}/gooletest/googletest-release-1.11.0/build)execute_process(COMMAND tar -zxf release-1.11.0.tar.gz -C ${UNTAR_FILE})execute_process(COMMAND ${CMAKE_COMMAND} -S  ${UNTAR_FILE}/googletest-release-1.11.0 -B ${COM_PUT})execute_process(COMMAND ${CMAKE_COMMAND} --build ${COM_PUT})execute_process(COMMAND ${CMAKE_COMMAND} --install ${COM_PUT} --prefix=${CMAKE_SOURCE_DIR})set(CMAKE_PREFIX_PATH ${CMAKE_SOURCE_DIR}/lib/cmake/)find_package(GTest)else()#gtest(FetchContent)message("FetchContent install gooletest")include(FetchContent)FetchContent_Declare(googletestURL  http://cdn.tarsyun.com/src/release-1.11.0.tar.gz)FetchContent_MakeAvailable(googletest)endif()add_executable(gtests gtest.cpp)target_link_libraries(gtests GTest::gtest_main)include(GoogleTest)gtest_discover_tests(gtests)enable_testing()

gtest.cpp

#include <gtest/gtest.h>TEST(Test,TestDownload)
{EXPECT_EQ(2*7,14);
}int main(int argc,char *argv[])
{//初始化gtesttesting::InitGoogleTest(&argc,argv);return RUN_ALL_TESTS();
}

ctest.cpp

#include <iostream>int main(int argc, char *argv[])
{if(argc <= 1){std::cout << "ex: ctests param" << std::endl;return -1;}std::cout << "param : " << argv[1] << std::endl;return 0;
}

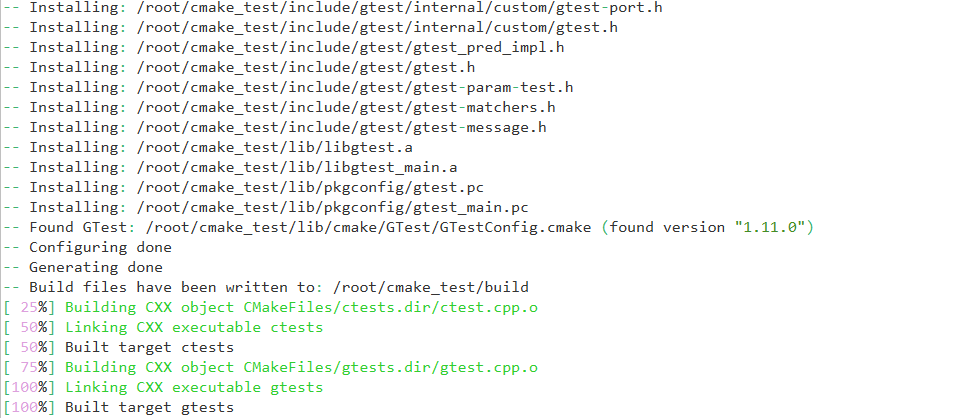

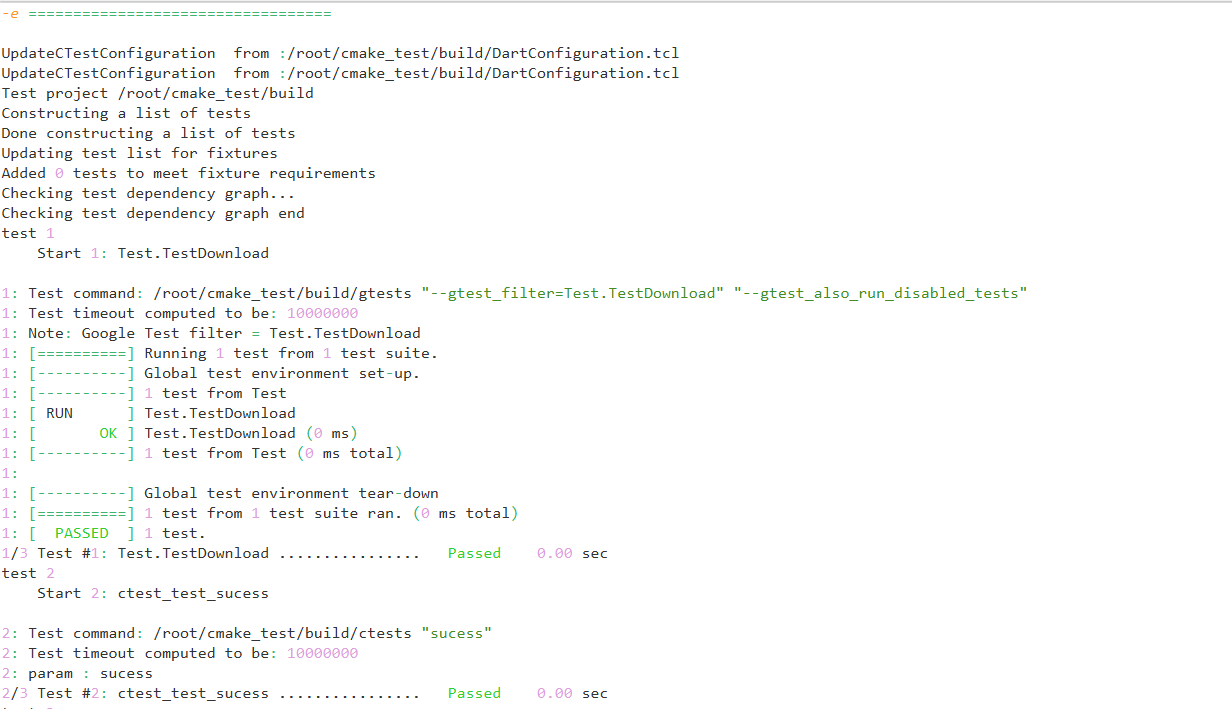

结果示例

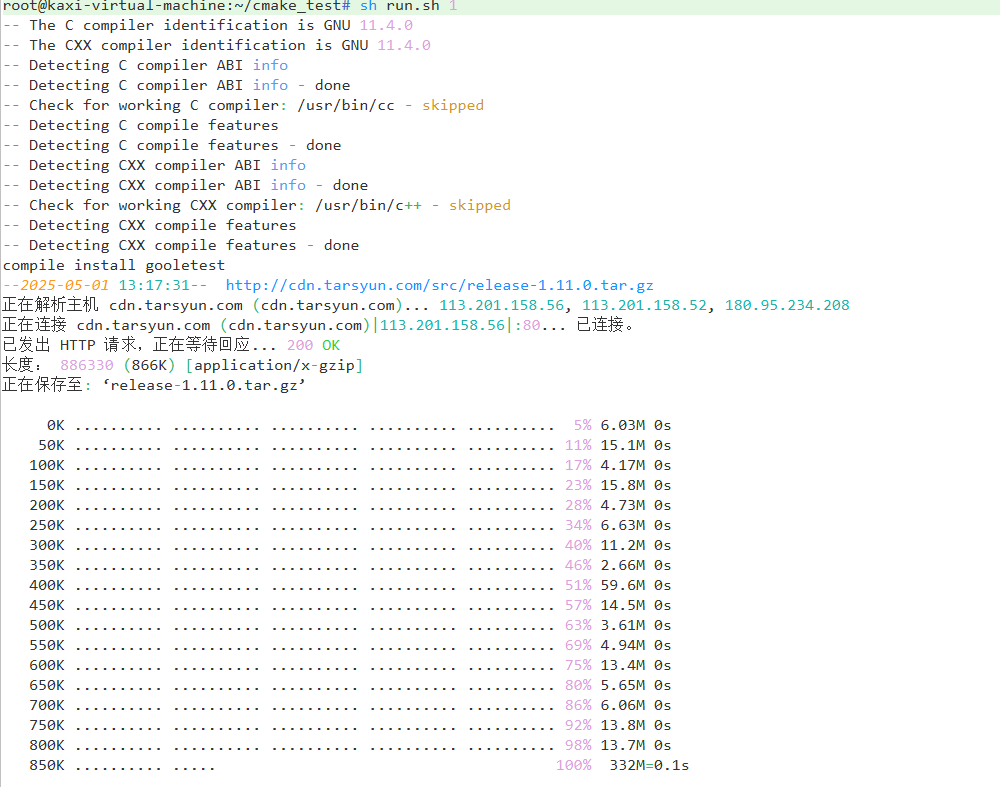

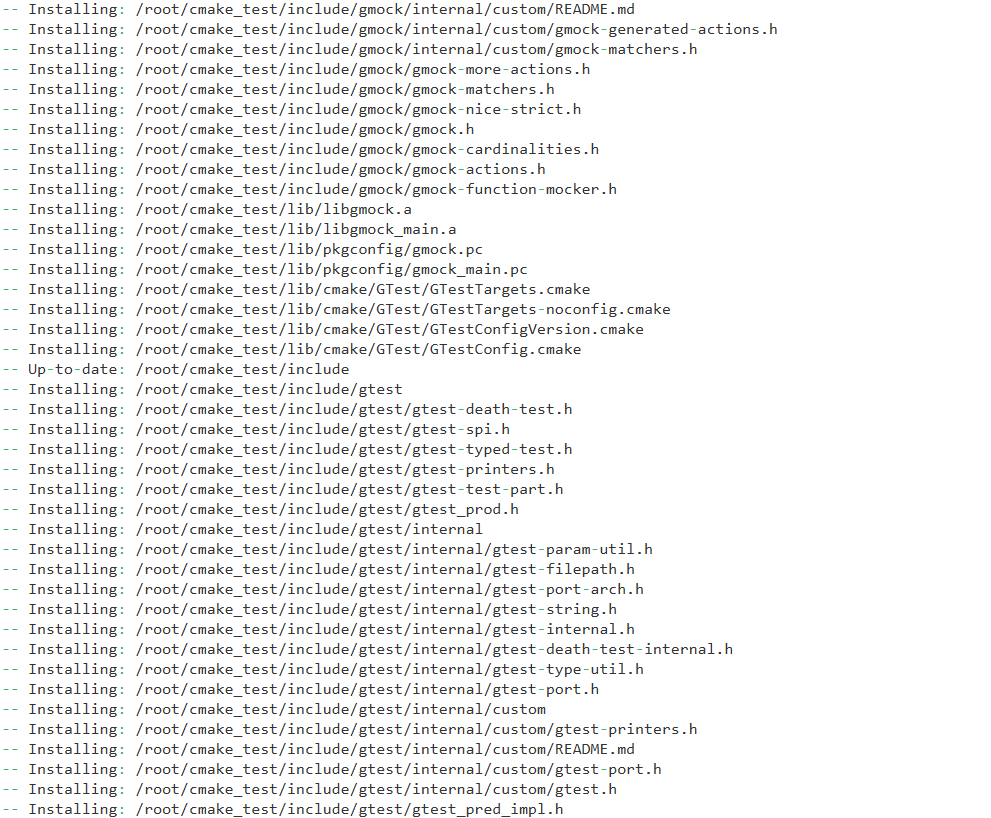

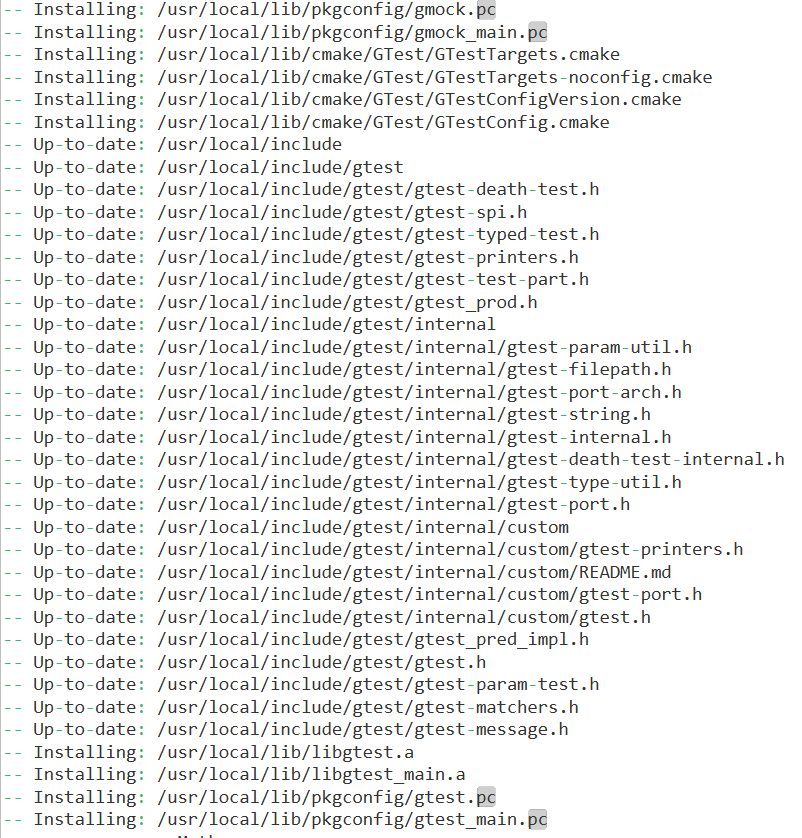

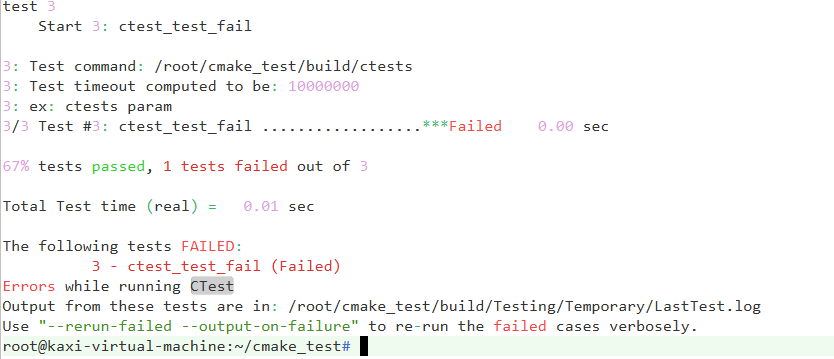

        sh run.sh 1

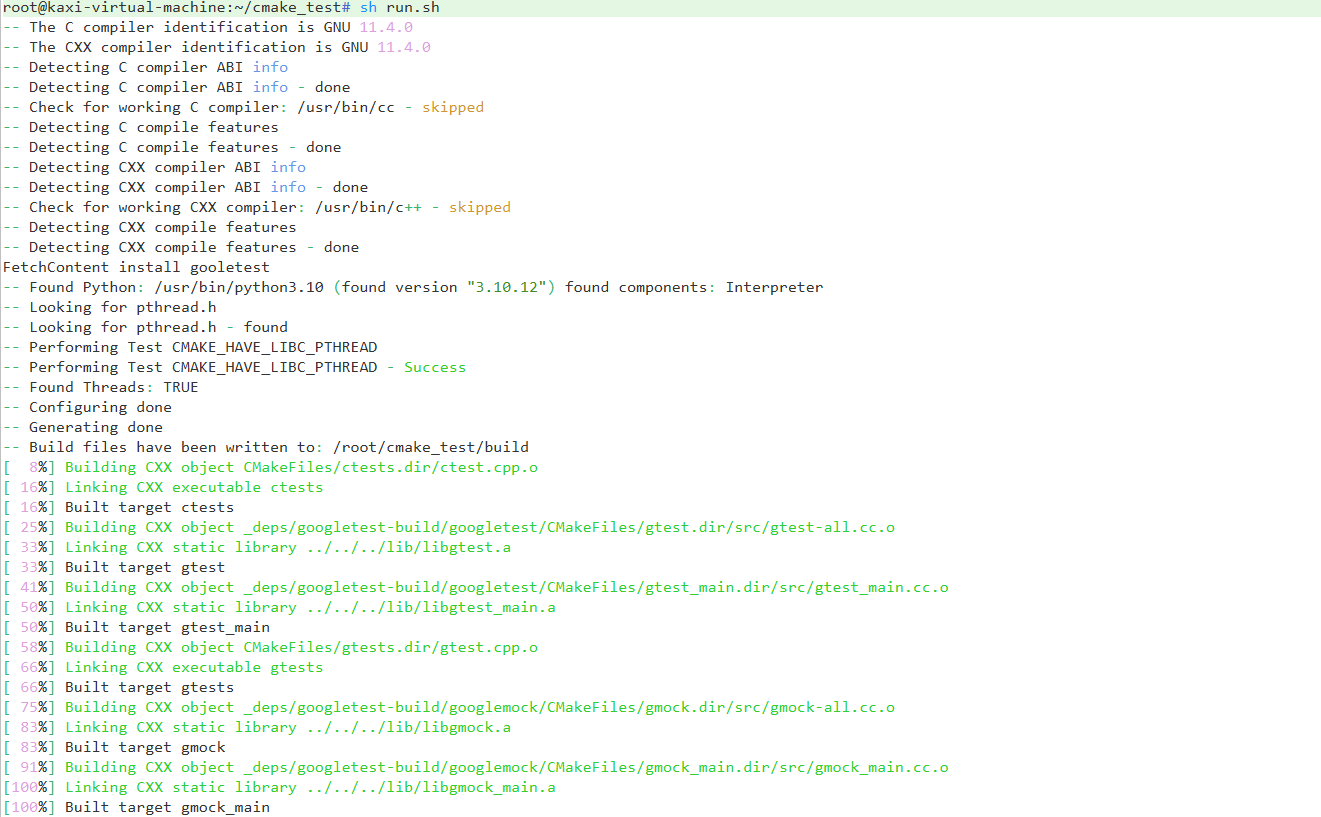

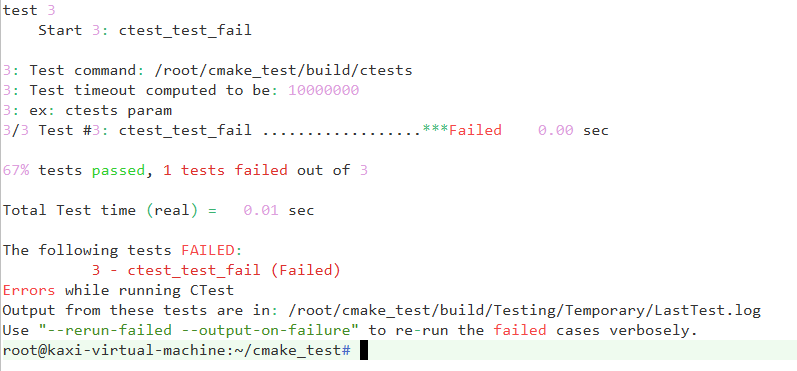

         sh run.sh

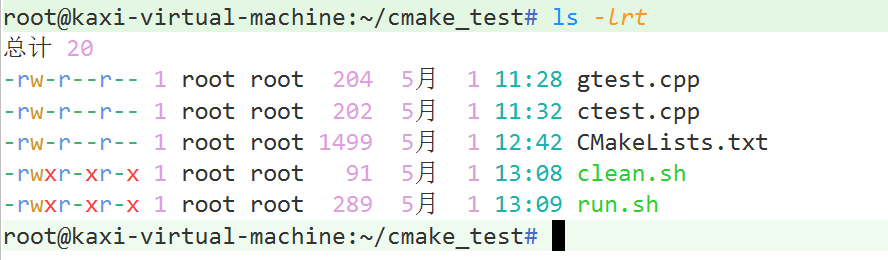

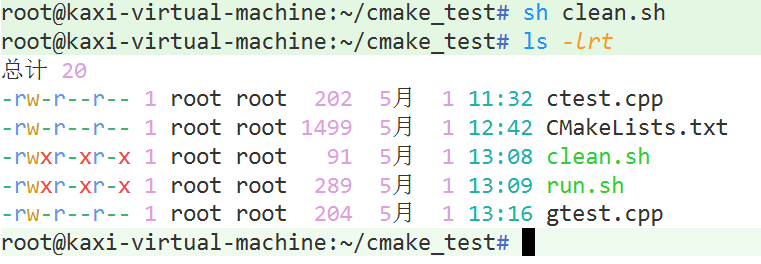

     sh clean.sh

demo2:

        test project

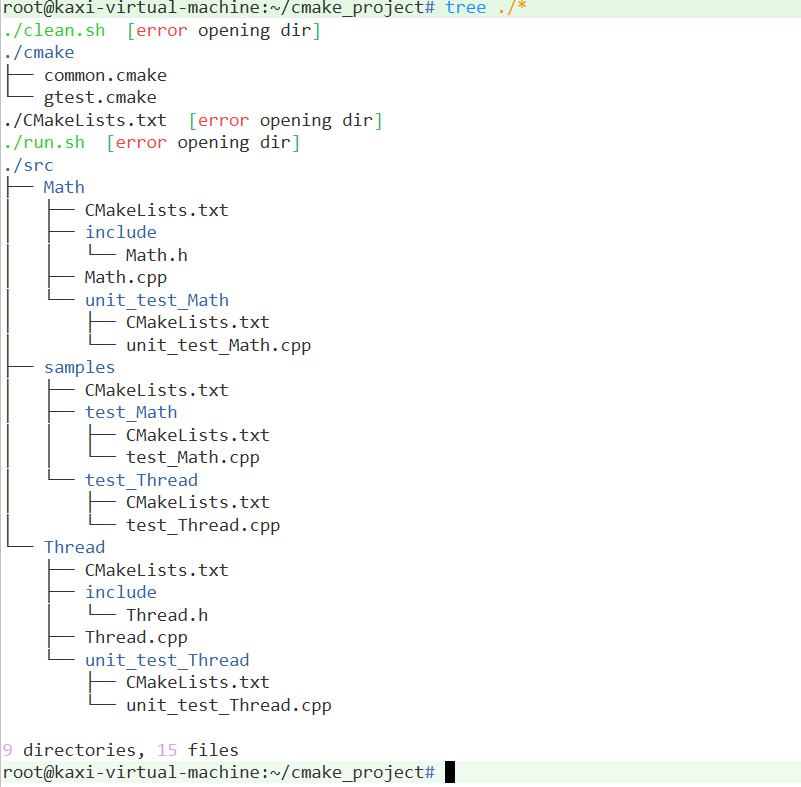

文件目录

run.sh

#!/bin/bashout=${1}cmake -S . -B ${out}cmake --build ${out}cd ${out} && make install && cd ..echo "=================Math=============="$(pwd)/bin/Math_testecho "=================Thread==========="$(pwd)/bin/Thread_testecho "=================unit Thread test ==========="$(pwd)/${out}/src/Math/unit_test_Math/Math_unit_testecho "=================unit Math test ==========="$(pwd)/${out}/src/Thread/unit_test_Thread/Thread_unit_test

clean.sh

#!/bin/bashout=${1}rm -rf ${out} bin lib include

CMakeLists.txt

###############
#
# cmake_project
#
##############cmake_minimum_required(VERSION 3.0)project(cmake_project)option(BUILD_MATH "" ON)option(BUILD_THREAD "" ON)option(BUILD_SAMPLES "" ON)option(BUILD_UNIT_TEST "" ON)if(BUILD_MATH)add_subdirectory(src/Math)
endif()if(BUILD_THREAD)add_subdirectory(src/Thread)
endif()if(BUILD_SAMPLES)add_subdirectory(src/samples)#添加依赖add_dependencies(Thread_test Thread)add_dependencies(Math_test Math)
endif()if(BUILD_UNIT_TEST)enable_testing()add_subdirectory(src/Math/unit_test_Math)add_subdirectory(src/Thread/unit_test_Thread)
endif()
root@kaxi-virtual-machine:~/cmake_project#
root@kaxi-virtual-machine:~/cmake_project#
root@kaxi-virtual-machine:~/cmake_project# cat CMakeLists.txt
###############
#
# cmake_project
#
##############cmake_minimum_required(VERSION 3.0)project(cmake_project)option(BUILD_MATH "" ON)option(BUILD_THREAD "" ON)option(BUILD_SAMPLES "" ON)option(BUILD_UNIT_TEST "" ON)if(BUILD_MATH)add_subdirectory(src/Math)
endif()if(BUILD_THREAD)add_subdirectory(src/Thread)
endif()if(BUILD_SAMPLES)add_subdirectory(src/samples)#添加依赖add_dependencies(Thread_test Thread)add_dependencies(Math_test Math)
endif()if(BUILD_UNIT_TEST)enable_testing()add_subdirectory(src/Math/unit_test_Math)add_subdirectory(src/Thread/unit_test_Thread)
endif()

 common.cmake

###########
#
# common.cmake
#
###########设置bin,lib路径
set(RUNTIME_DIR ${CMAKE_CURRENT_LIST_DIR}/../bin)
set(LIBRARY_DIR ${CMAKE_CURRENT_LIST_DIR}/../lib)#项目顶层目录
set(TOP_DIR "/root/cmake_project")#获取源码和头文件
macro(get_src_include)#获取源码aux_source_directory(${CMAKE_CURRENT_LIST_DIR} SRC)#获取头文件FILE(GLOB H_FILE ${CMAKE_CURRENT_LIST_DIR}/include/*.h ${CMAKE_CURRENT_LIST_DIR}/include/../*.h)
endmacro()#配置编译参数
macro(set_config param)#设置头文件查找路径target_include_directories(${name} PRIVATE ${CMAKE_CURRENT_LIST_DIR}/include ${CMAKE_CURRENT_LIST_DIR}/../include)#配置参数target_compile_features(${name} PRIVATE cxx_std_11)#debug/release配置if(CMAKE_BUILD_TYPE STREQUAL "")set(CMAKE_BUILD_TYPE DEBUG)endif()#设置输出路径set_target_properties(${name} PROPERTIESRUNTIME_OUTPUT_DIRECTORY ${RUNTIME_DIR}  #exeLIBRARY_OUTPUT_DIRECTORY ${LIBRARY_DIR}  #.so ARCHIVE_OUTPUT_DIRECTORY ${LIBRARY_DIR}  #.a
)#设置debug标识set_target_properties(${name} PROPERTIES BEBUG_POSTFIX "d")#添加库路径target_link_directories(${name} PRIVATE ${LIBRARY_DIR})
endmacro()#单元测试
include(${CMAKE_CURRENT_LIST_DIR}/gtest.cmake)
function(moudle_test name)#构建gtestsetup_gtest()#获取模块单元测试源码get_src_include()# 获取模块源码aux_source_directory(${CMAKE_CURRENT_LIST_DIR} TEST_SRC)list(APPEND SRC ${TEST_SRC})#生成可执行程序add_executable(${name} ${SRC} ${H_FILE})#设置头文件查找路径target_include_directories(${name} PRIVATE ${CMAKE_CURRENT_LIST_DIR}/../include)#连接gtest库target_link_libraries(${name} GTest::gtest_main)#链库math(EXPR size "${ARGC} - 1")if(size GREATER 0)foreach(i RANGE 1 ${size})target_link_libraries(${name} ${ARGV${i}})endforeach()endif()#联合ctest和gtestinclude(GoogleTest)gtest_discover_tests(${name})#使能ctestenable_testing()
endfunction()#编译可执行程序
function(compile_exe name)#获取源码和头文件get_src_include()#编译生成可执行程序add_executable(${name} ${SRC} ${H_FILE})#设置编译配置set_config(${name})#链库math(EXPR size "${ARGC} - 1")if(size GREATER 0)foreach(i RANGE 1 ${size})target_link_libraries(${name} ${ARGV${i}})endforeach()endif()
endfunction()#库配置
function(project_lib name)#静态/动态库配置string(TOUPPER ${name} NAME)option(${NAME}_SHARED "OFF is static lib" ON)if(${NAME}_SHARED)set(TYPE SHARED)else()set(TYPE STATIC)endif()#获取源码和头文件get_src_include()#生成库add_library(${name} ${TYPE} ${SRC} ${H_FILE})#设置编译配置set_config(${name})#安装lib/include/binset(version 1.0)set_target_properties(${name} PROPERTIES PUBLIC_HEADER ${H_FILE})install(TARGETS ${name} EXPORT ${name}RUNTIME DESTINATION ${TOP_DIR}/binLIBRARY DESTINATION ${TOP_DIR}/libPUBLIC_HEADER DESTINATION ${TOP_DIR}/include)#安装pakage的配置文件install(EXPORT ${name} FILE ${name}Config.cmake DESTINATION ${TOP_DIR}/lib/config/${name}-${version})#版本文件set(CONF_VER_FILE ${TOP_DIR}/../../lib/conf/${name}-${version}/${name}ConfigVersion.cmake)include(CMakePackageConfigHelpers)write_basic_package_version_file(${CONF_VER_FILE}        VERSION ${version}COMPATIBILITY SameMajorVersion  # 主版本兼容)#安装版本配置文件install(FILES ${CONF_VER_FILE}DESTINATION ${TOP_DIR}/lib/config/${name}-${version})
endfunction()

gtest.cmake

###########
#
# gtest
#
##########macro(setup_gtest)#gtest(FetchContent)message("FetchContent install gooletest")include(FetchContent)FetchContent_Declare(googletestURL  http://cdn.tarsyun.com/src/release-1.11.0.tar.gz)FetchContent_MakeAvailable(googletest)
endmacro()

Thread/CMakeLists.txt

##############
#
#       Thread
#
#############cmake_minimum_required(VERSION 3.0)project(Thread)include(${CMAKE_CURRENT_LIST_DIR}/../../cmake/common.cmake)project_lib(${PROJECT_NAME})

Thread.h

#ifndef __THREAD__H__
#define __THREAD__H__ #include <thread>class Thread
{public:virtual void start_pthread();virtual void wait_pthread();virtual void pthread_task() = 0;private:std::thread th;
};#endif

Thread.cpp

#include <iostream>
#include "Thread.h"void Thread::start_pthread()
{std::cout << " start pthread" << std::endl;th = std::thread(&Thread::pthread_task,this);
}void Thread::wait_pthread()
{th.join();
}

unit_test_Thread/CMakeLists.txt

#####################
#
# Thread unit test
#
####################cmake_minimum_required(VERSION 3.0)project(Thread_unit_test)include(${CMAKE_CURRENT_LIST_DIR}/../../../cmake/common.cmake)moudle_test(${PROJECT_NAME} Thread)enable_testing()

unit_test_Thread.cpp

#include <iostream>
#include <chrono>
#include <thread>
#include "Thread.h"
#include "gtest/gtest.h"class Task: public Thread
{public:Task(int num):num(num){};void pthread_task(){std::cout << "num : " << num << std::endl;}private:unsigned int num;
};TEST(Test_Thread,test_Thread)
{Task t(1);t.start_pthread();t.wait_pthread();
}int main()
{std::cout << "=================unit test thread start=================";testing::InitGoogleTest();return RUN_ALL_TESTS();std::cout << "=================unit test thread end=================";
}

Math/CMakeLists.txt

############
#
# Math
#
###########cmake_minimum_required(VERSION 3.0)project(Math)include(${PROJECT_SOURCE_DIR}/../../cmake/common.cmake)project_lib(${PROJECT_NAME})

Math.h

#ifndef __MATH_H__
#define __MATH_H__
class Math
{public:Math(){};Math(int num_1, int num_2):num_1(num_1),num_2(num_2){};void get_num();void set_num(int num_1, int num_2);int add_num();int dec_num();private:int num_1;int num_2;
};#endif

Math.cpp

#include <iostream>
#include "Math.h"int Math::add_num()
{return num_1 + num_2;
}int Math::dec_num()
{return num_1 - num_2;
}void Math::get_num()
{std::cout << "num_1:" << num_1 << std::endl;std::cout << "num_2:" << num_2 << std::endl;
}void Math::set_num(int num_1, int num_2)
{this->num_1 = num_1;this->num_2 = num_2;
}

unit_test_Math/CMakeLists.txt

#################
#
# Math unit test
#
################cmake_minimum_required(VERSION 3.0)project(Math_unit_test)include(${CMAKE_CURRENT_LIST_DIR}/../../../cmake/common.cmake)moudle_test(${PROJECT_NAME} Math)enable_testing()

unit_test_Math.cpp

#include <iostream>
#include "Math.h"
#include "gtest/gtest.h"TEST(Math_test, Init_Math)
{Math m;m.set_num(1,2);m.get_num();
}TEST(Math_test_add, Math_Add)
{Math m;m.set_num(1,2);ASSERT_EQ(m.add_num(),3);
}TEST(Math_test_, Math_Add)
{Math m;m.set_num(1,2); ASSERT_EQ(m.dec_num(),-1);
}int main()
{std::cout << "=================unit test math start=================";testing::InitGoogleTest();return RUN_ALL_TESTS();std::cout << "=================unit test math end=================";
}

samples/CMakeLists.txt

#####################
#
# samples
#
####################cmake_minimum_required(VERSION 3.0)project(samples)file(GLOB dirs LIST_DIRECTORIES true ${CMAKE_CURRENT_LIST_DIR}/*)set(samp)foreach(dir IN LISTS dirs)if(EXISTS ${dir}/CMakeLists.txt)list(APPEND samp ${dir})endif()
endforeach()foreach(s IN LISTS samp)add_subdirectory(${s})
endforeach()

test_Math/CMakeLists.txt

########################
#
# Math test
#
#######################cmake_minimum_required(VERSION 3.0)project(Math_test)include(${CMAKE_CURRENT_LIST_DIR}/../../../cmake/common.cmake)compile_exe(${PROJECT_NAME} Math)target_include_directories(${PROJECT_NAME} PRIVATE "../../Math/include")

 test_Math.cpp

#include <iostream>
#include "Math.h"int main()
{std::cout << "===============test Math start=============";Math m(1,2);m.get_num();std::cout << "1 + 2 = " << m.add_num() << std::endl;std::cout << "1 - 2 = " << m.dec_num() << std::endl;m.set_num(2,1);m.get_num();                                                                                     std::cout << "2 + 1 = " << m.add_num() << std::endl;                                             std::cout << "2 - 1 = " << m.dec_num() << std::endl; std::cout << "===============test Math end=============";return 0;
}

test_Thread/CMakeLists.txt

########################
#
# Thread test
#
#######################cmake_minimum_required(VERSION 3.0)project(Thread_test)include(${CMAKE_CURRENT_LIST_DIR}/../../../cmake/common.cmake)compile_exe(${PROJECT_NAME} Thread)target_include_directories(${PROJECT_NAME} PRIVATE "../../Thread/include")

test_Thread.cpp

#include <iostream>
#include <chrono>
#include <thread>
#include "Thread.h"class Task: public Thread
{public:Task(int num):num(num){};void pthread_task(){std::cout << "num :" << num << std::endl;}private:unsigned int num;
};int main()
{Task t(1);t.start_pthread();t.wait_pthread();return 0;
}

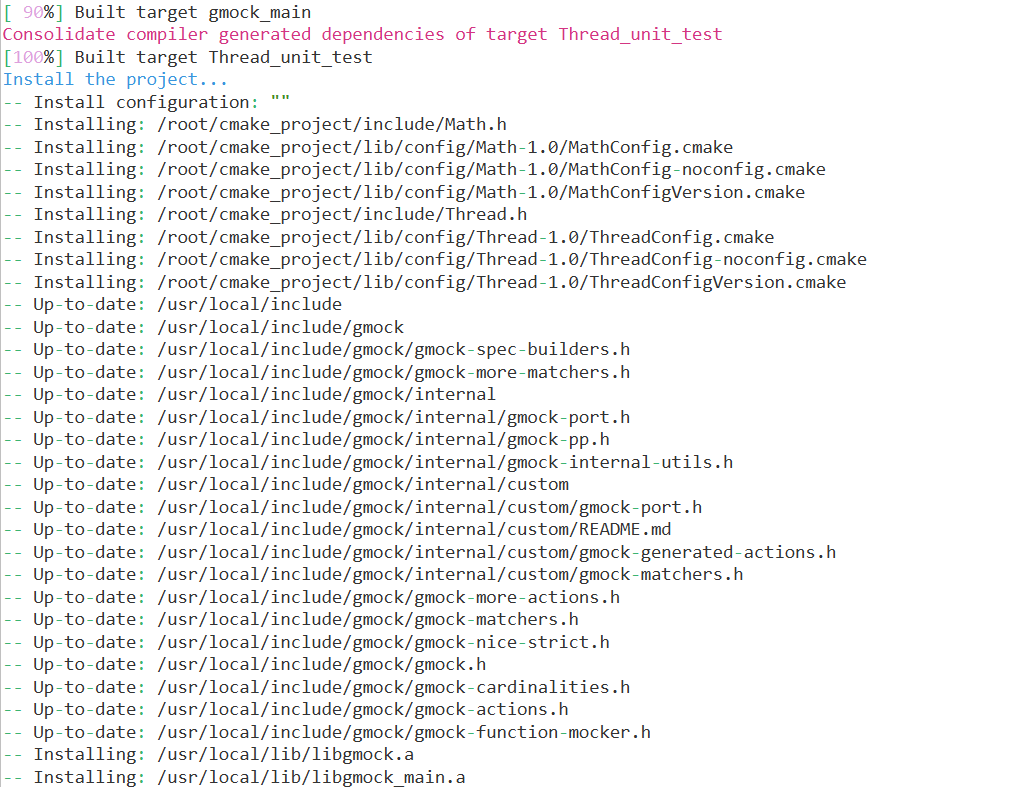

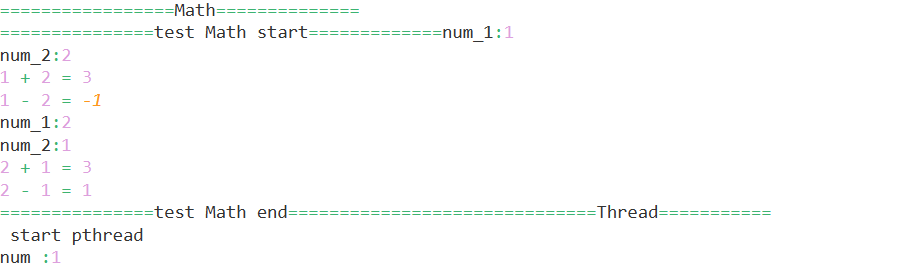

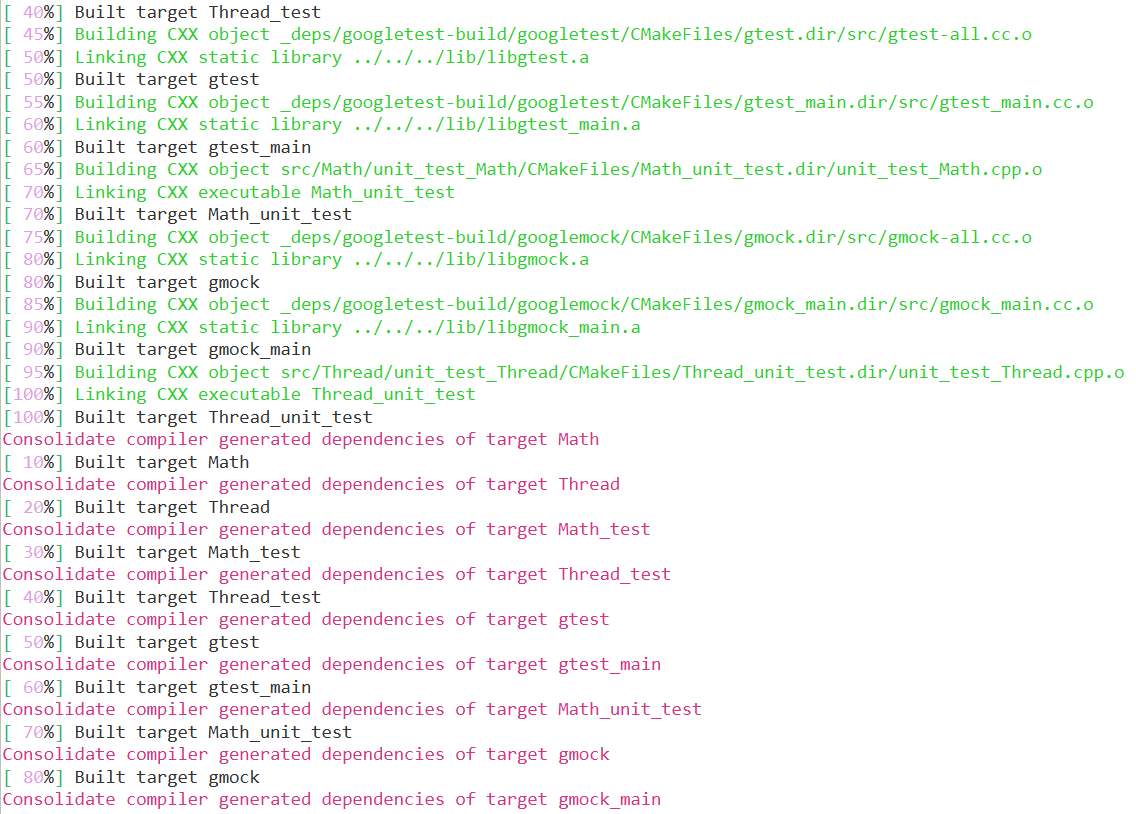

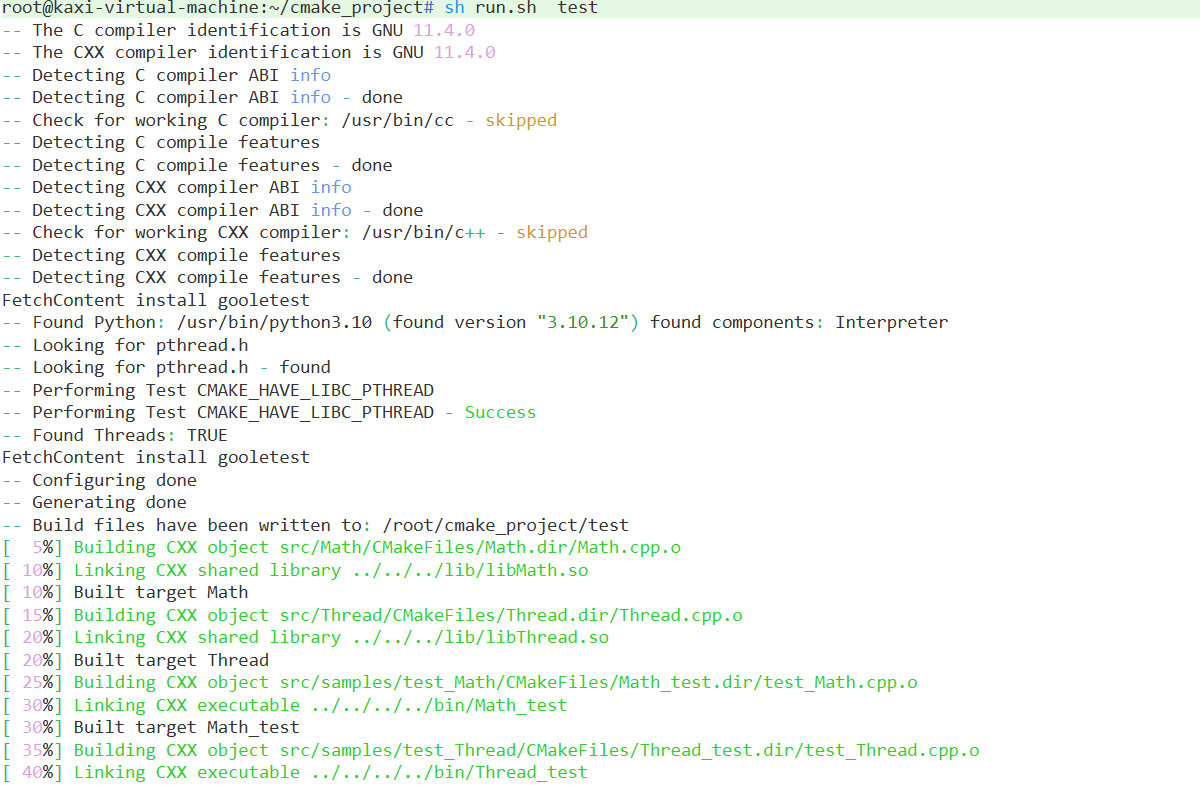

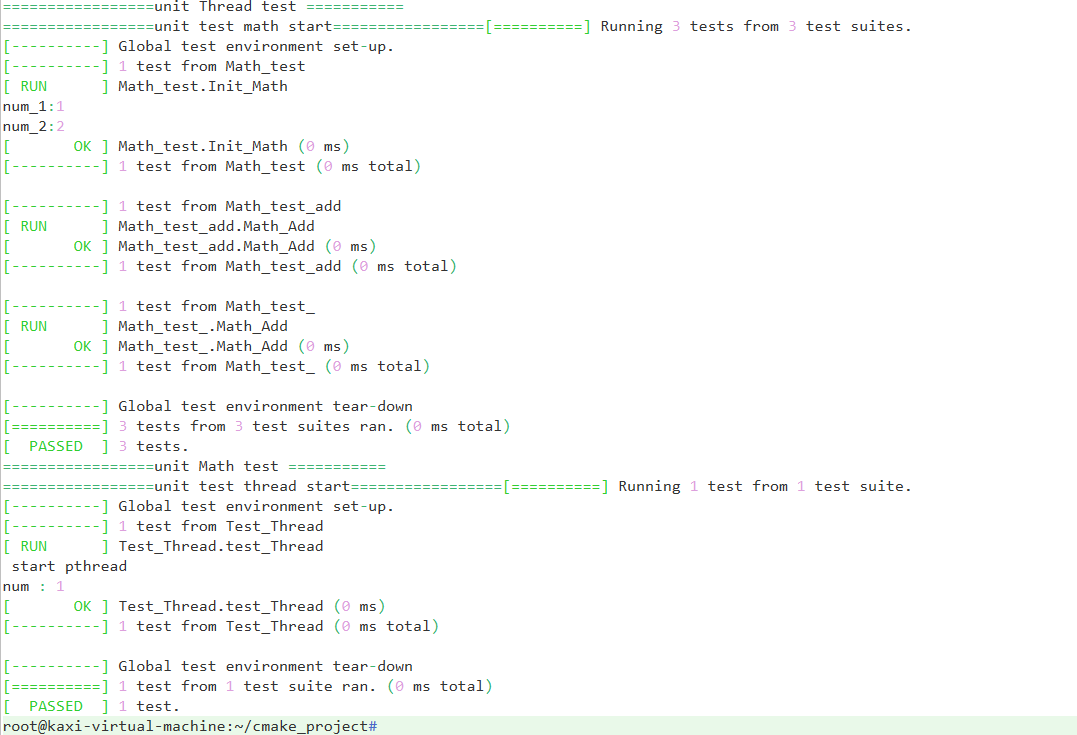

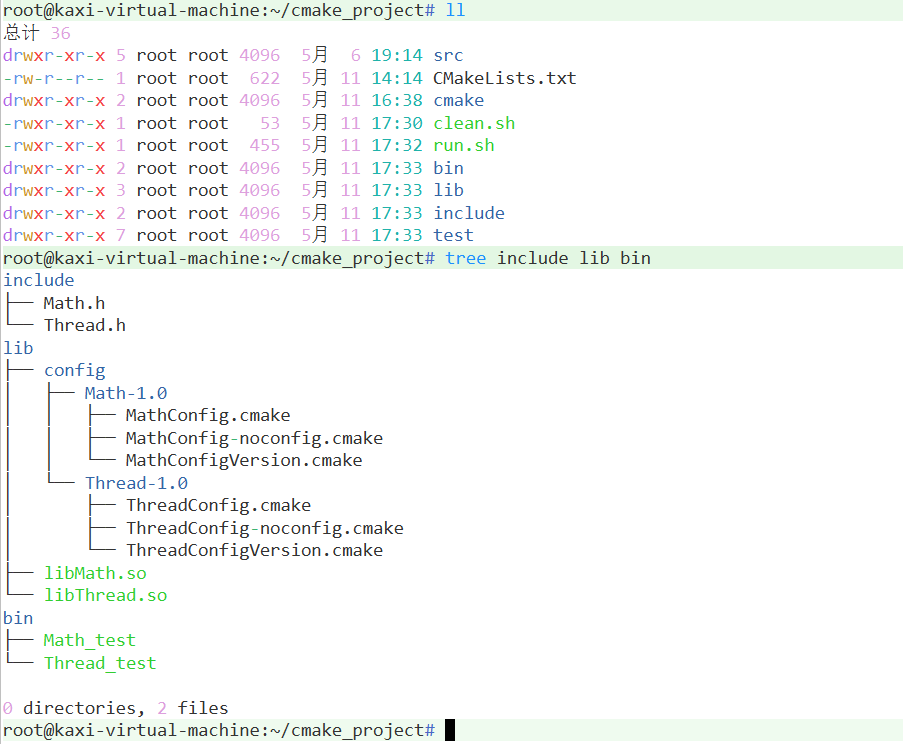

编译运行结果

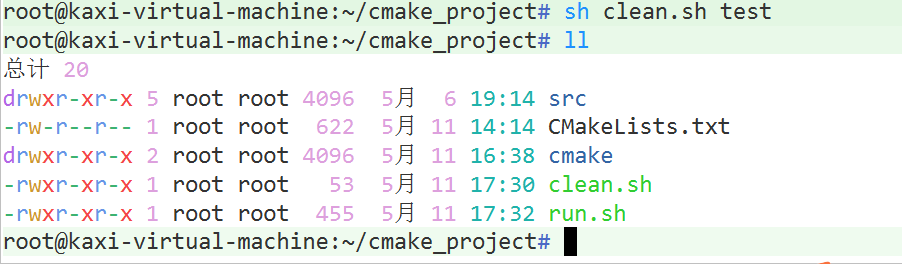

编译清理结果
