英伟达Jetson Orin NX-YOLOv8s目标检测模型耗时分析

1 基础信息

测试模型：YOLOv8s
测试环境：Jetson Orin NX 16GB+Python+TensorRT
不同测试功率：25W、MAX功率
图像输入分辨率：1920×1080
不同模型输入分辨率：640×640、1280×1280
不同模型参数类型：FP16、INT8
测试方法：热启动后，推理100次求平均。

基础库版本：jetpack=5.1.3, torch-gpu=2.1.0, torchvision=0.16.0, ultralytics=8.3.146

2 TensorRT转换命令

2.1 方式1：trtexec转换

FP16：

# 静态
trtexec --onnx=det.onnx --saveEngine=det.trt --fp16
# 动态
trtexec --onnx=det.onnx --minShapes=images:1x3x640x640 --optShapes=images:2x3x1280x1280 --maxShapes=images:4x3x3840x3840 --saveEngine=det.trt --fp16 --device=0

Int8：【需要校准集】
略

2.2 方式2：YOLO代码导出

FP16：

from ultralytics import YOLO
# trt
model = YOLO('yolov8s.pt')
# FP16
out = model.export(format="engine", imgsz=1280, dynamic=True, verbose=False, batch=1, workspace=2, half=True)

Int8：【需要校准集】

from ultralytics import YOLO
# trt
model = YOLO('yolov8s.pt')
# INT8--需要加载校准集，对应coco.yaml中的val
out = model.export(format="engine", imgsz=1280, dynamic=True, verbose=False, batch=1, workspace=2, int8=True, data="coco.yaml")

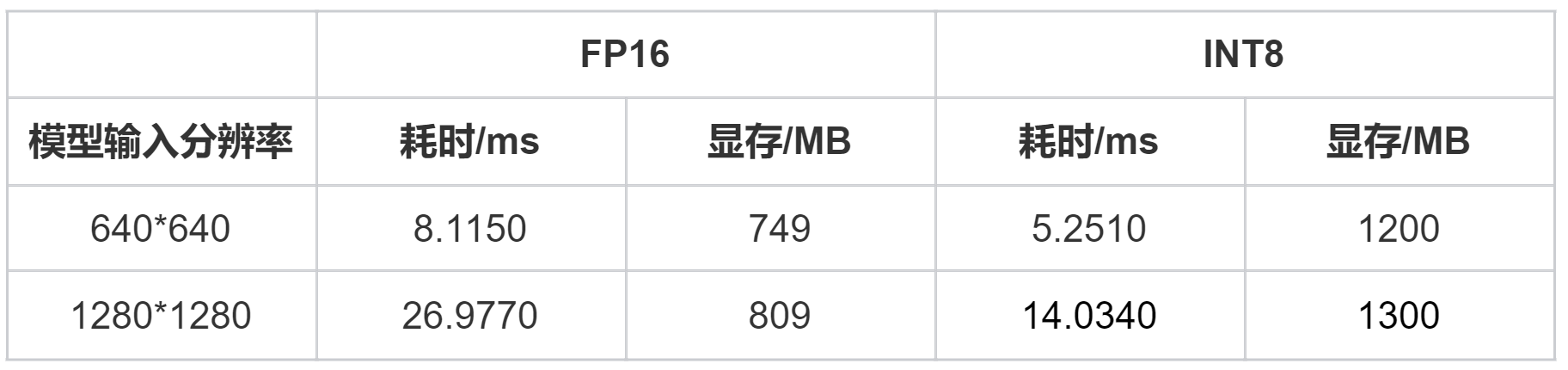

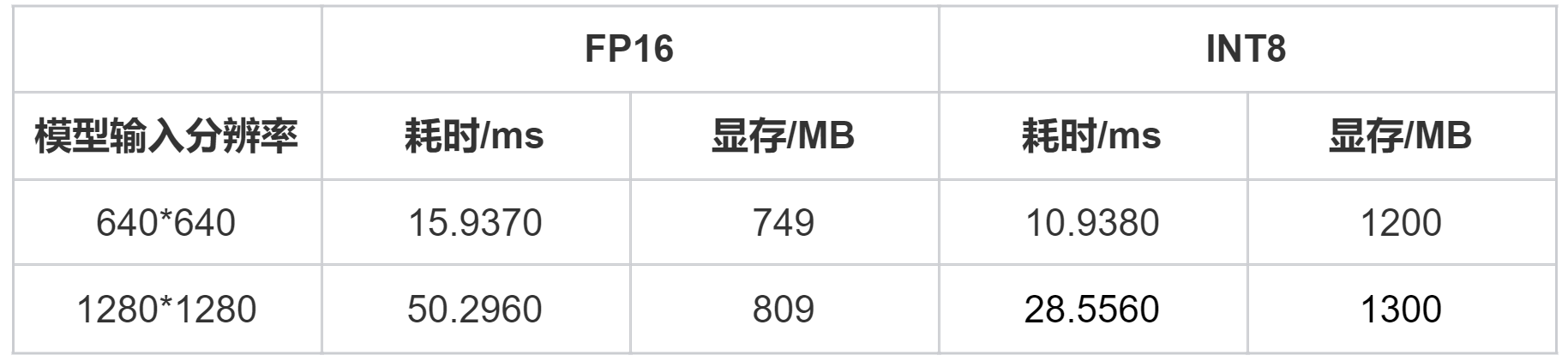

3 模型推理具体耗时与分析

# 查询目前的板子功耗模式
sudo nvpmodel -q
# 设置MAXN功率模式
sudo nvpmodel -m 0
# 设置25W功率模式
sudo nvpmodel -m 3# 开启性能模式
sudo jetson_clocks

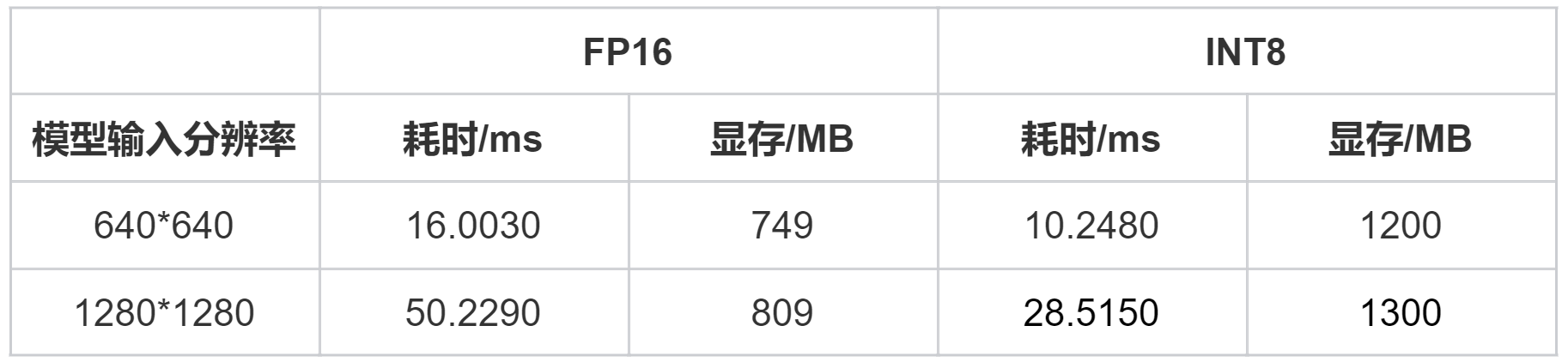

3.1 功率：MAX

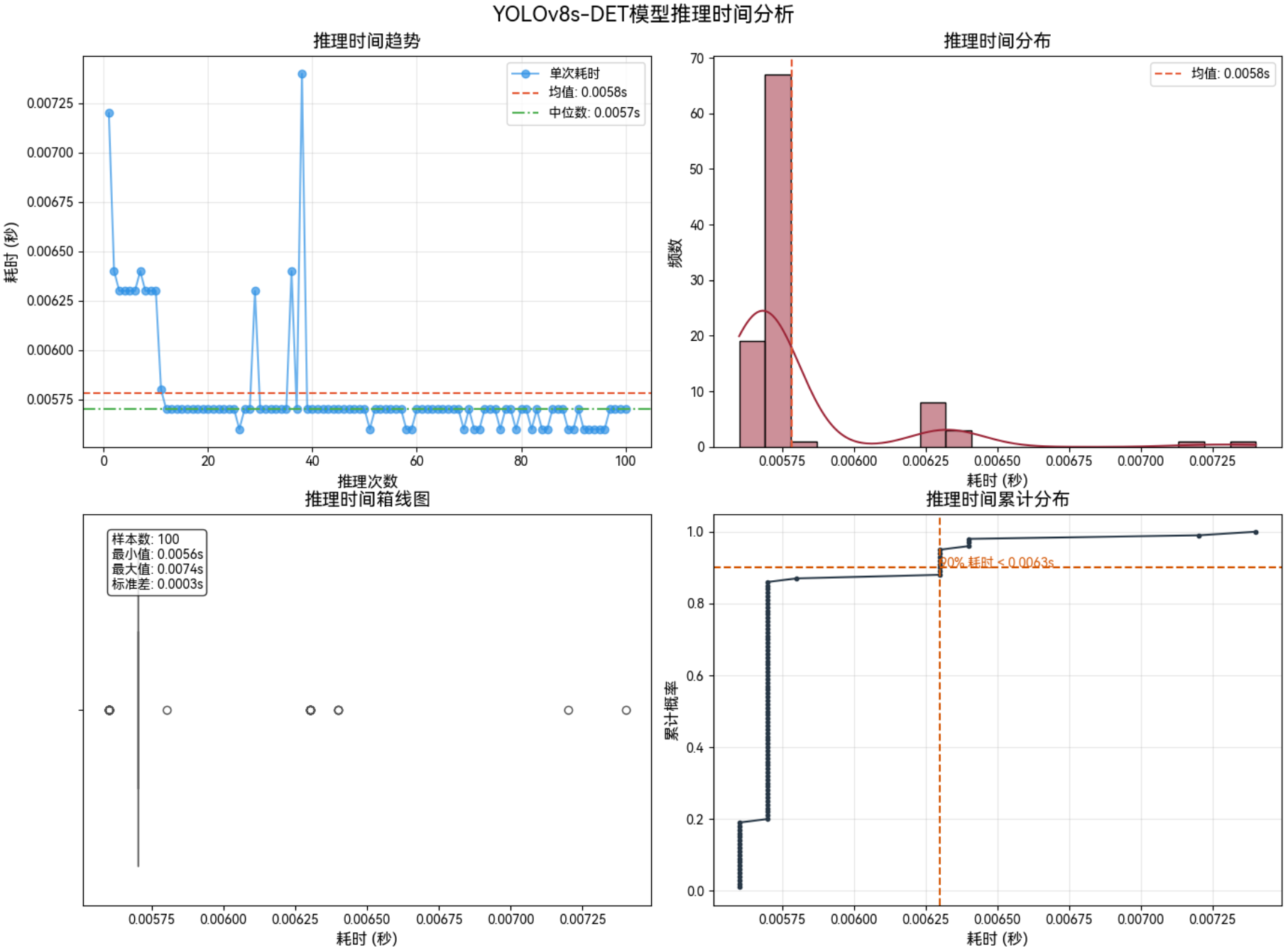

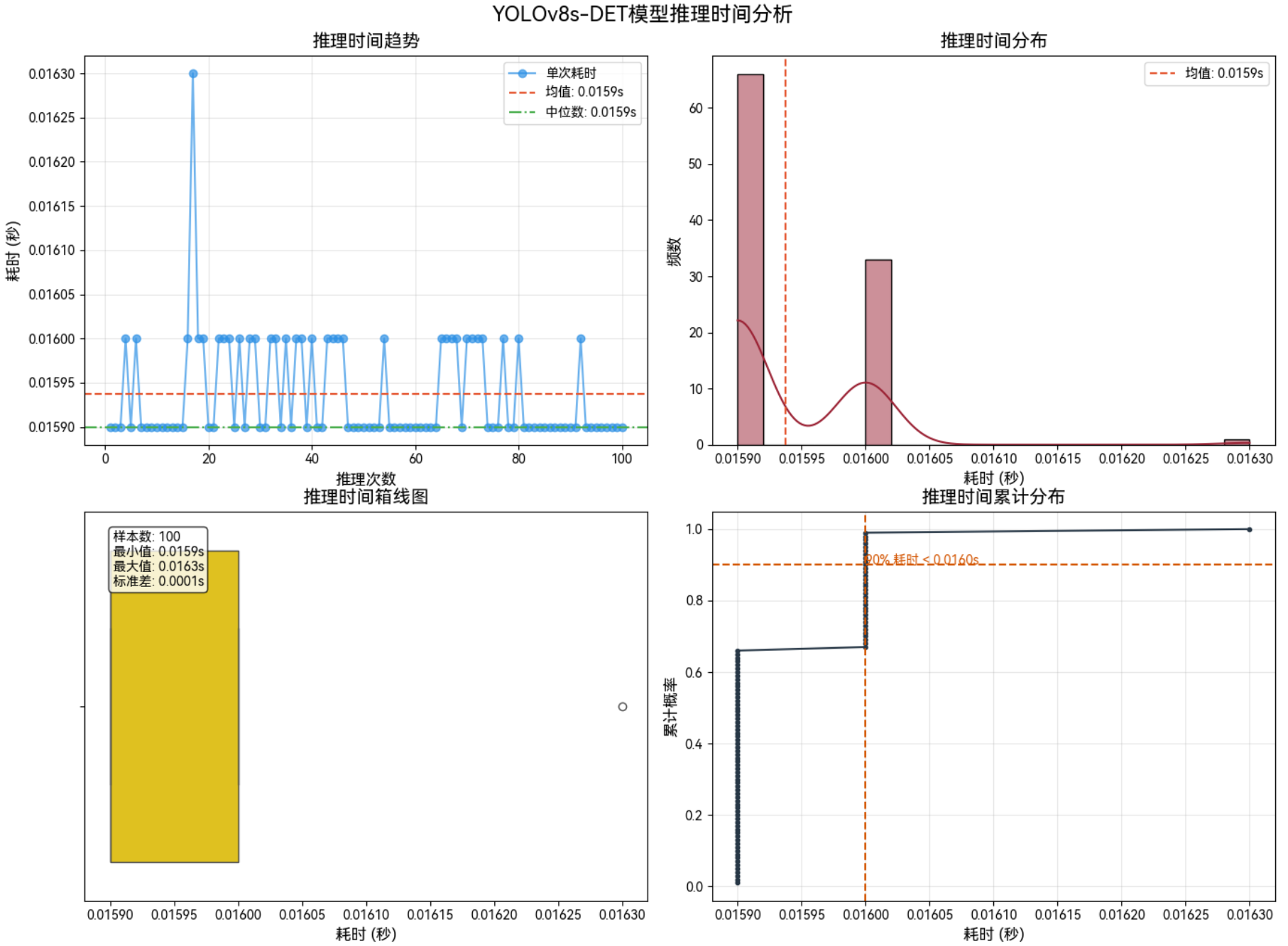

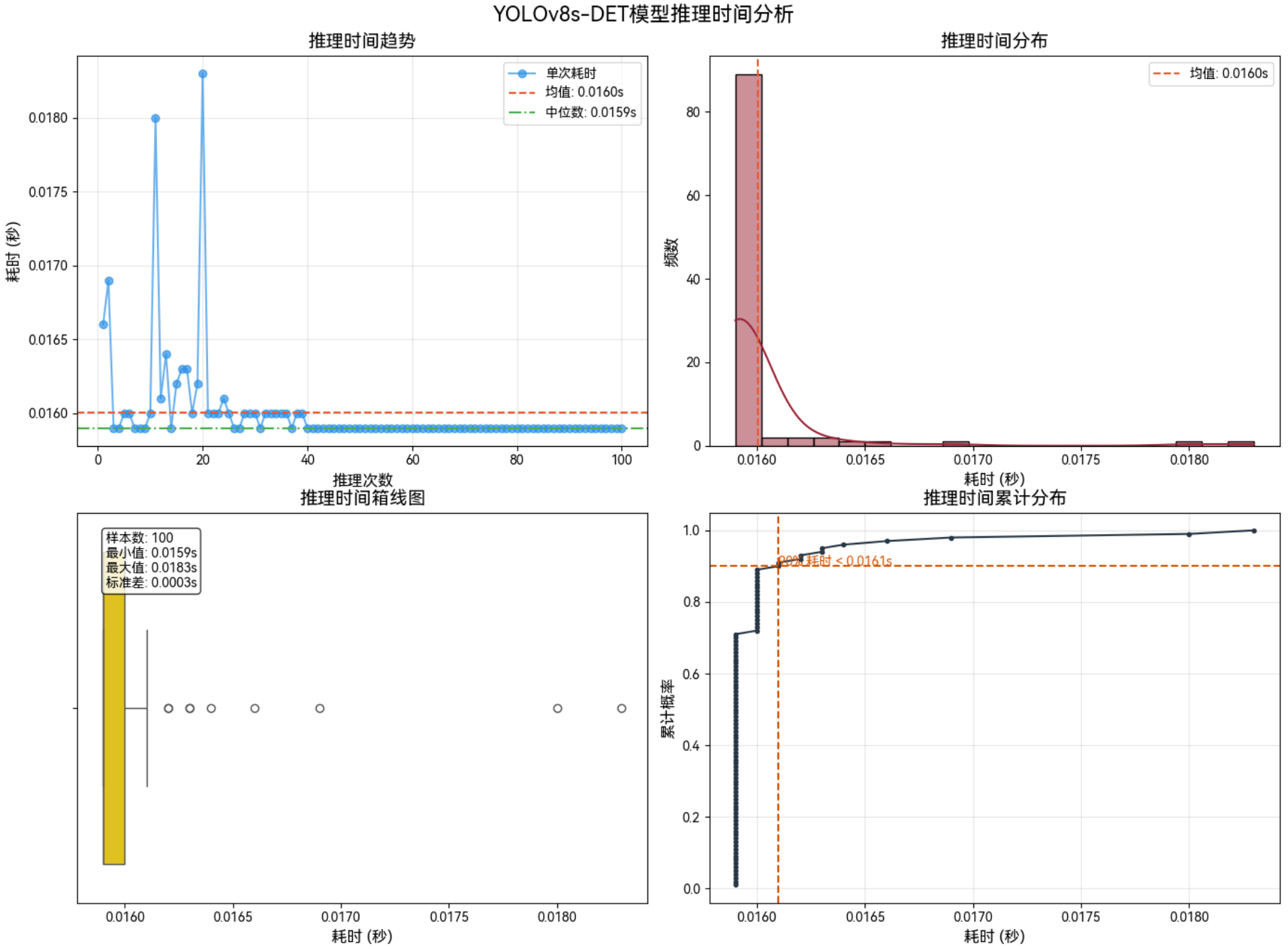

3.1.1 640*640–FP16

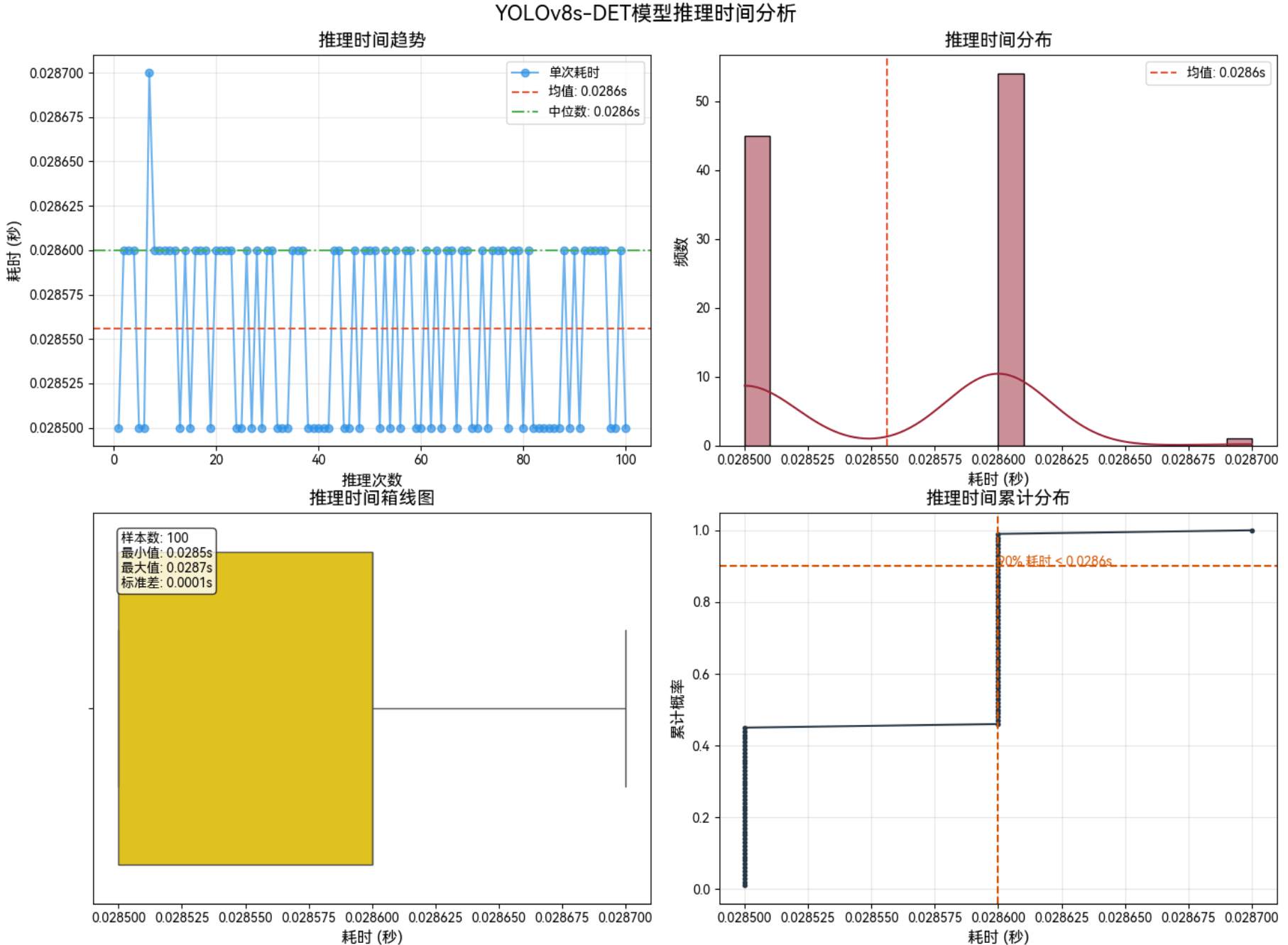

3.1.2 640*640–Int8

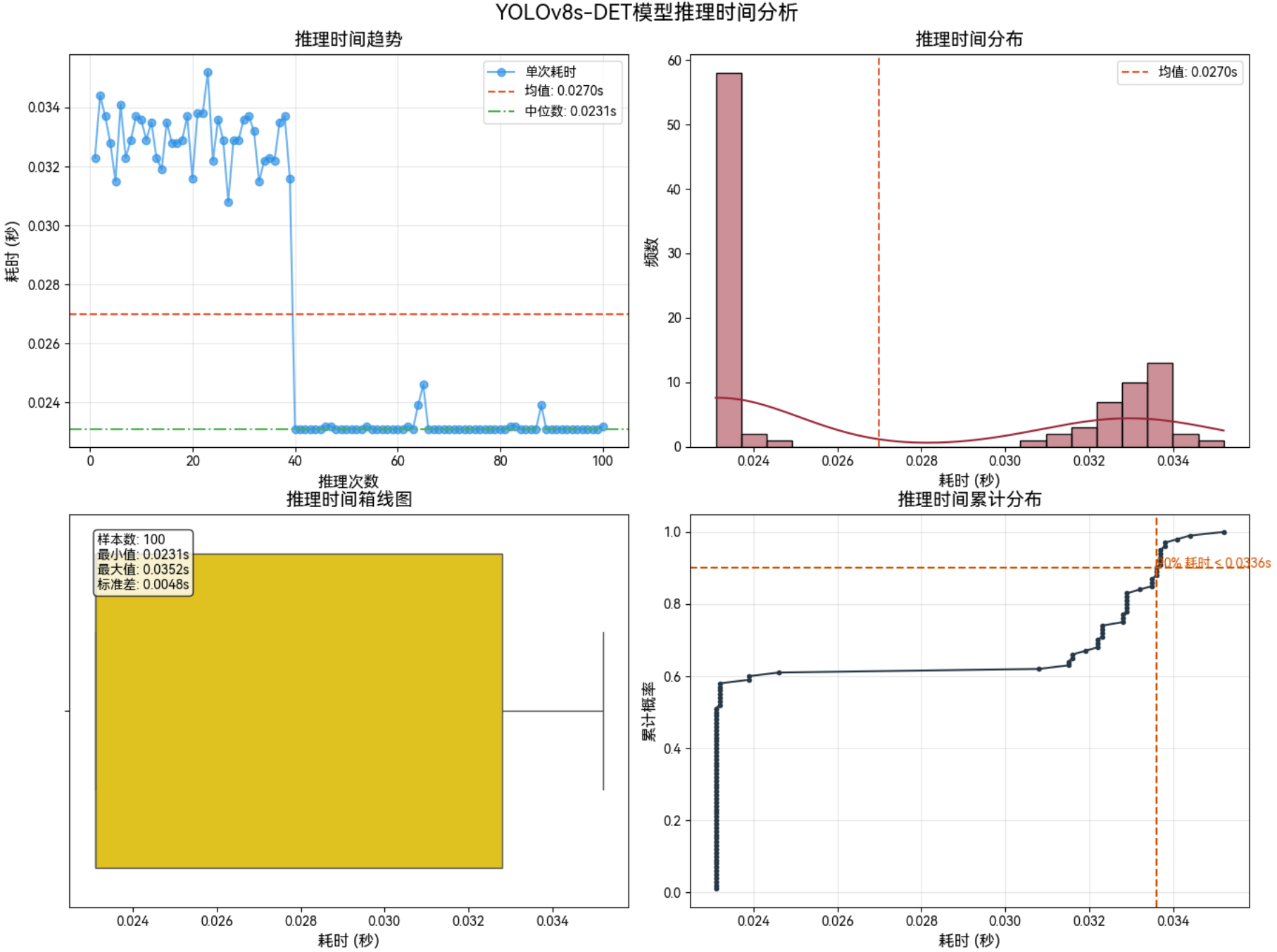

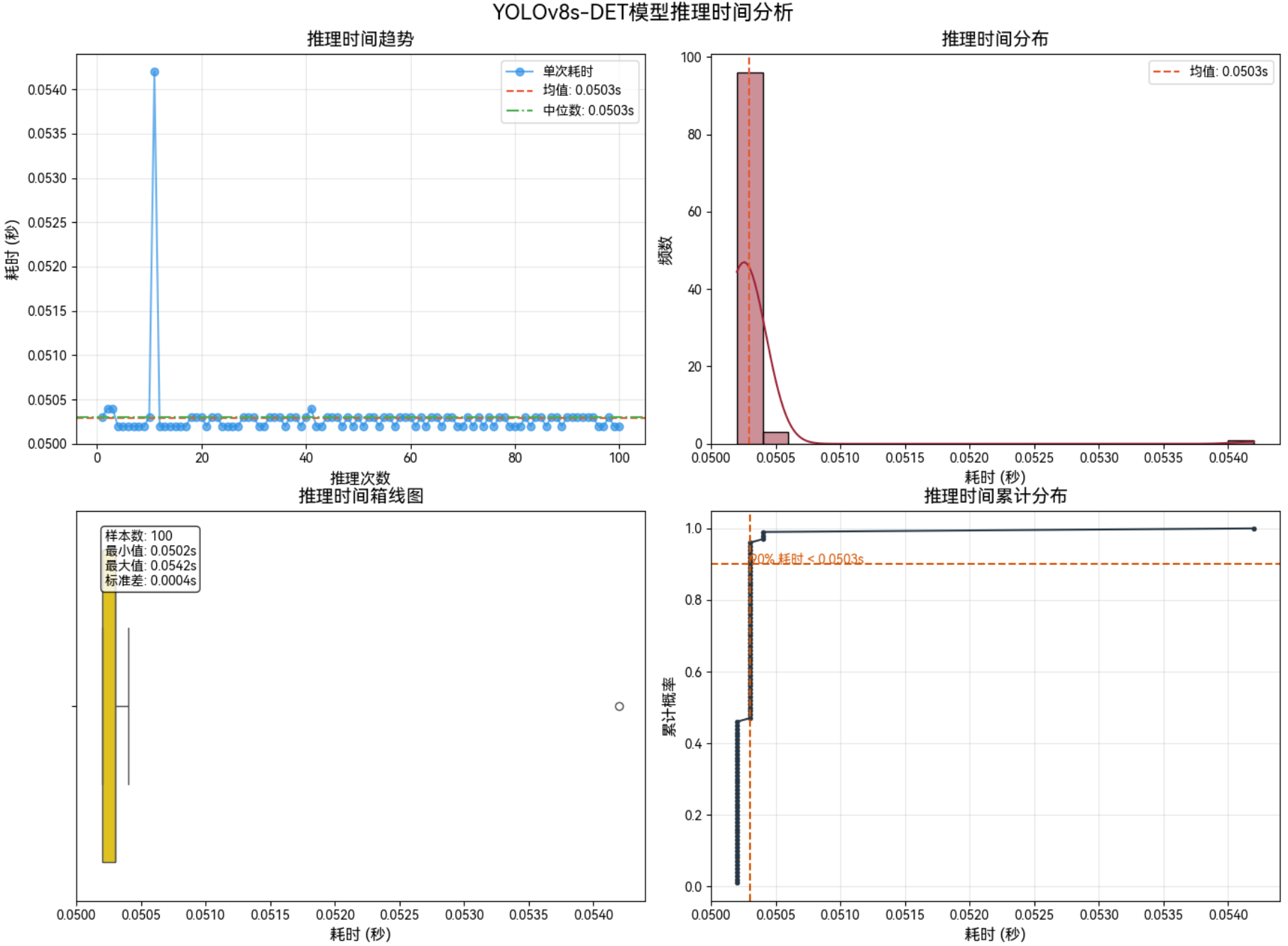

3.1.3 1280*1280–FP16

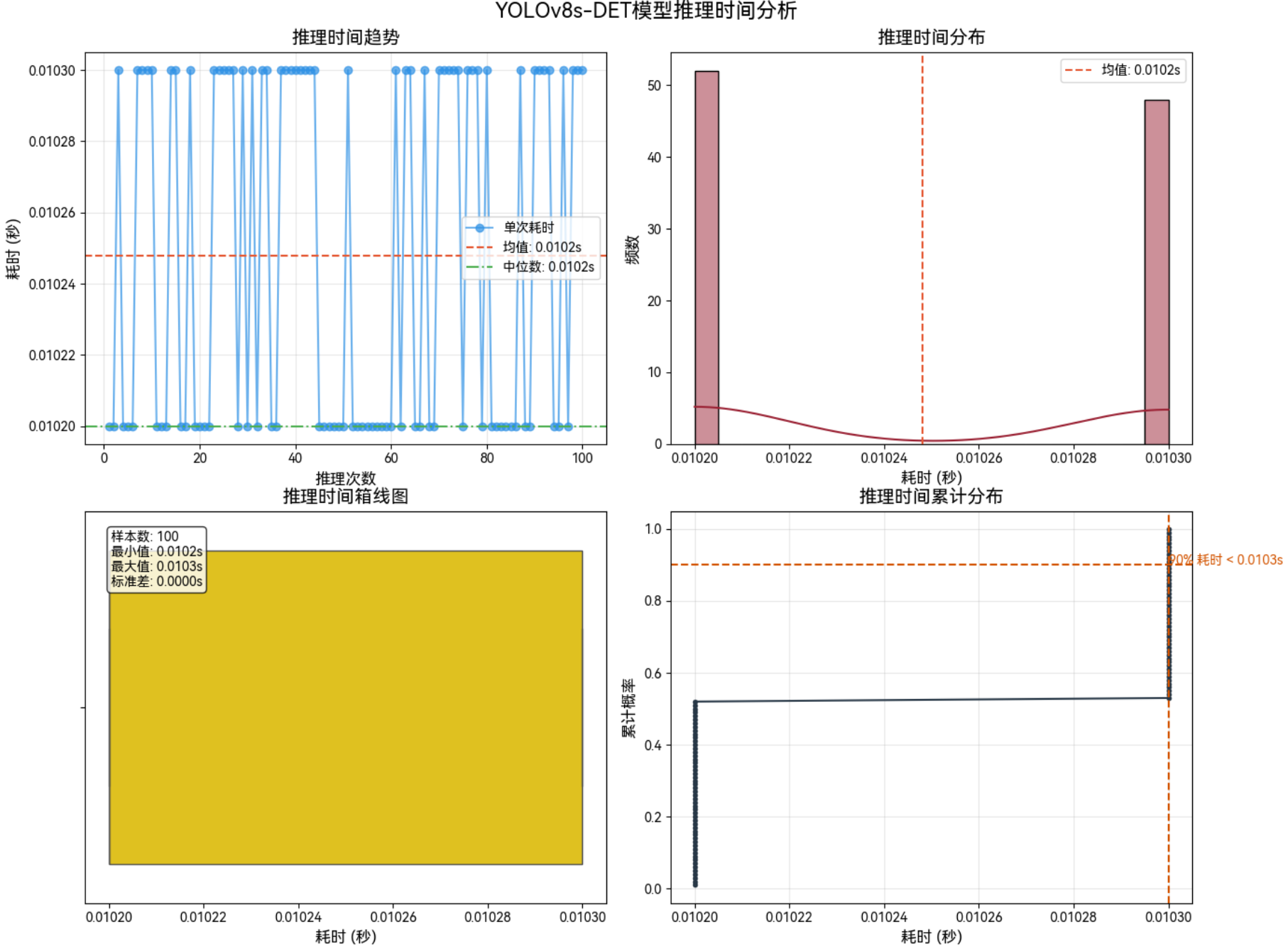

3.1.4 1280*1280–Int8

3.2 功率：MAX+性能模式

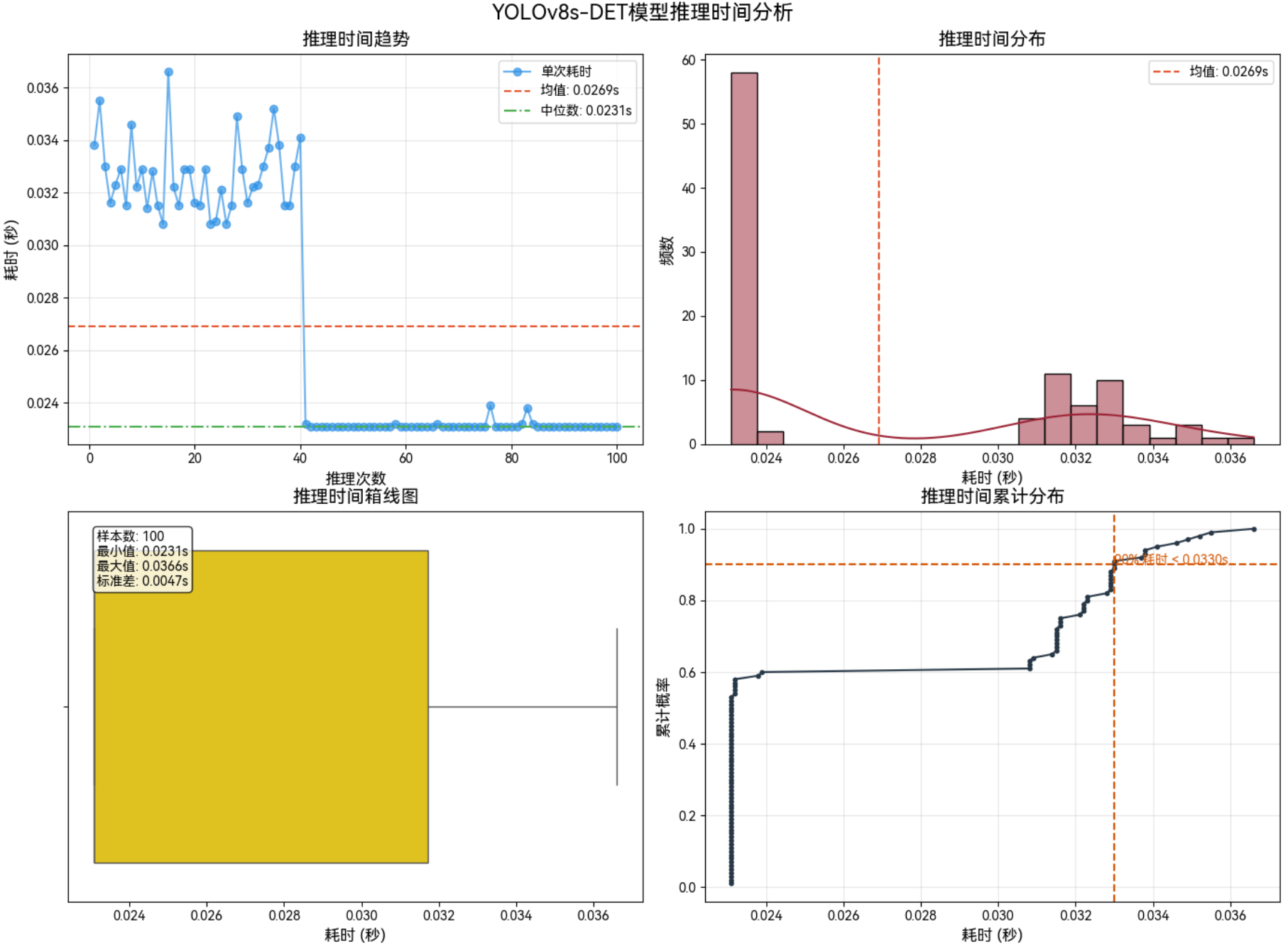

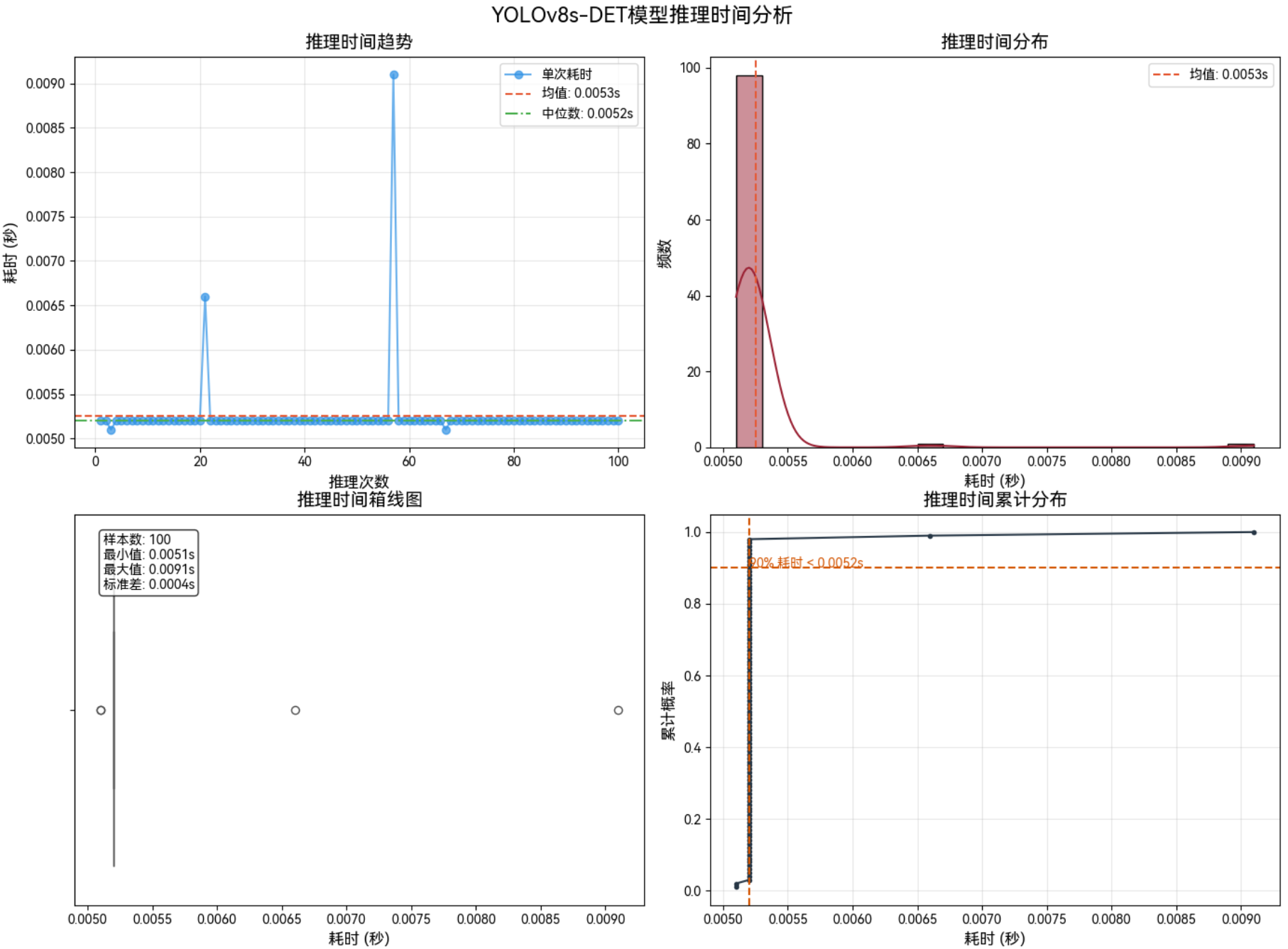

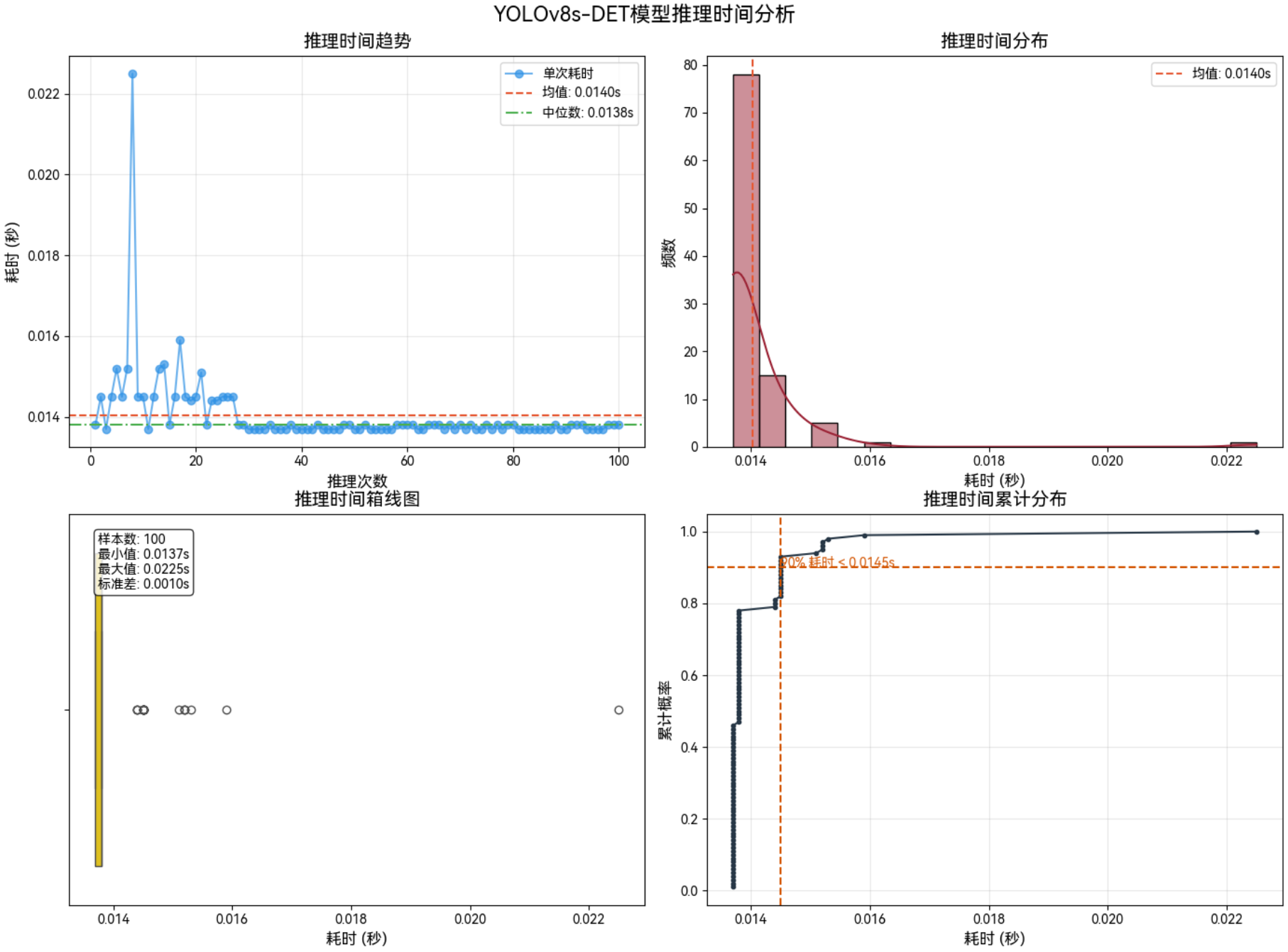

3.2.1 640*640–FP16

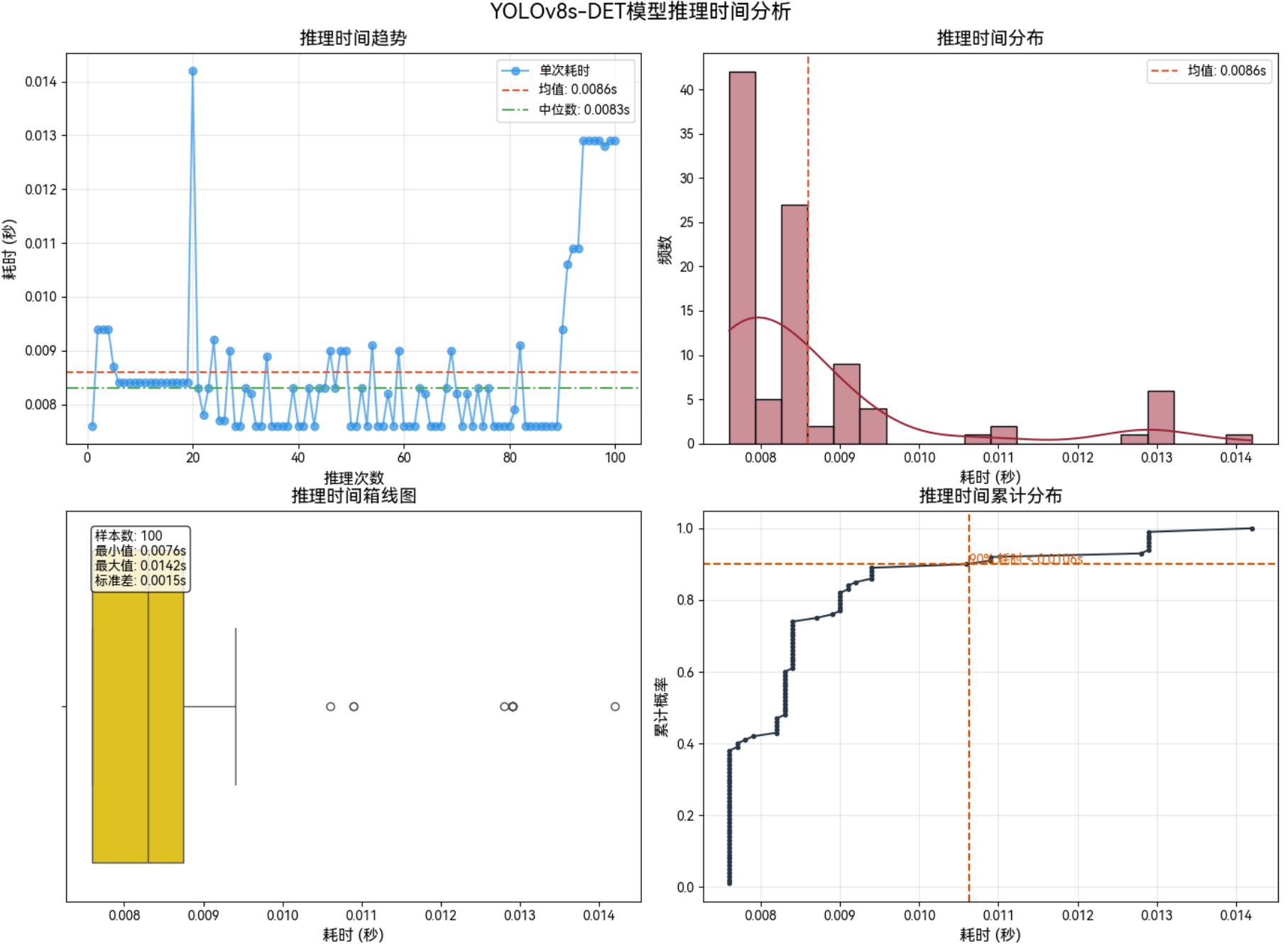

3.2.2 640*640–Int8

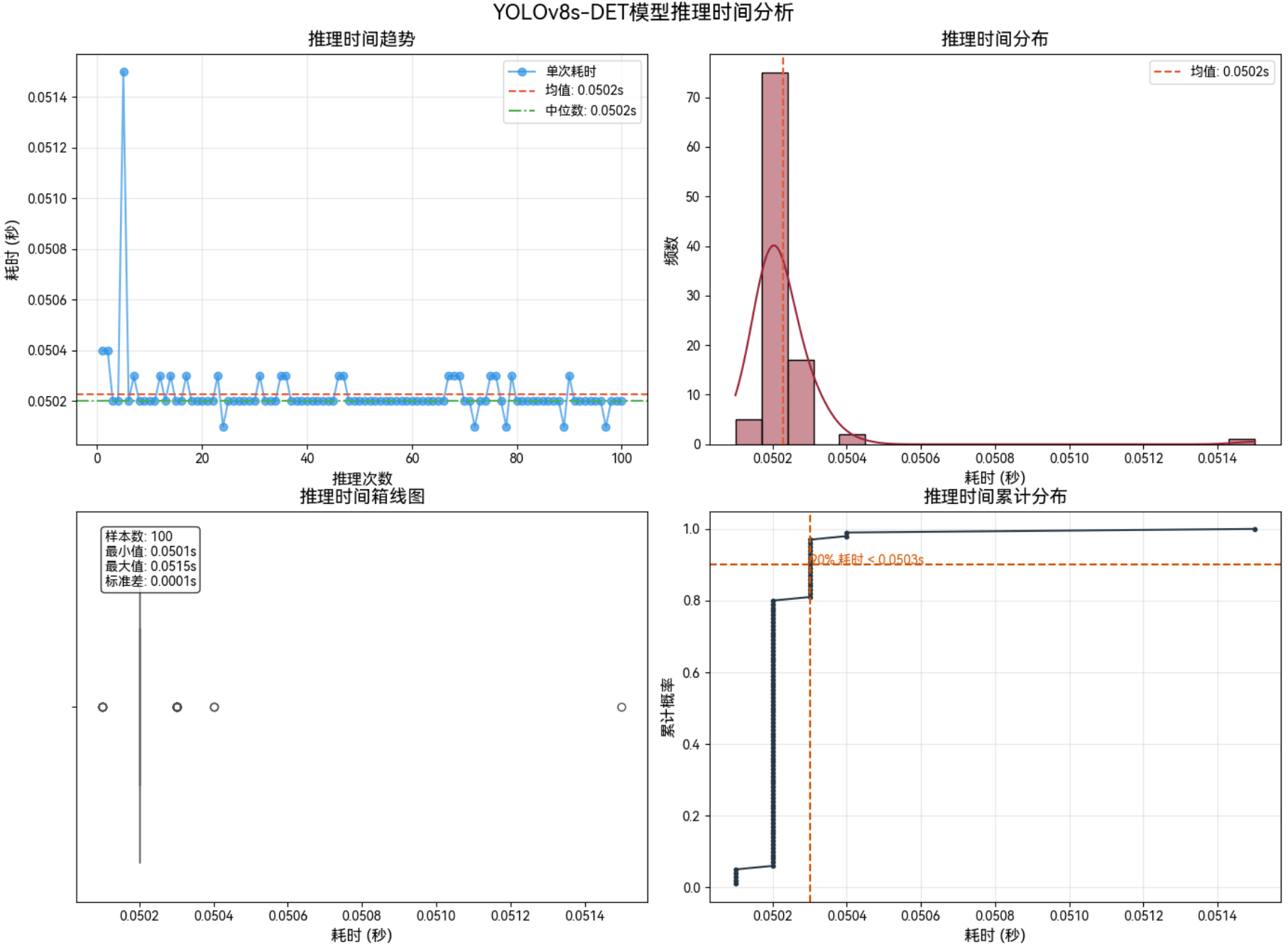

3.2.3 1280*1280–FP16

3.2.4 1280*1280–Int8

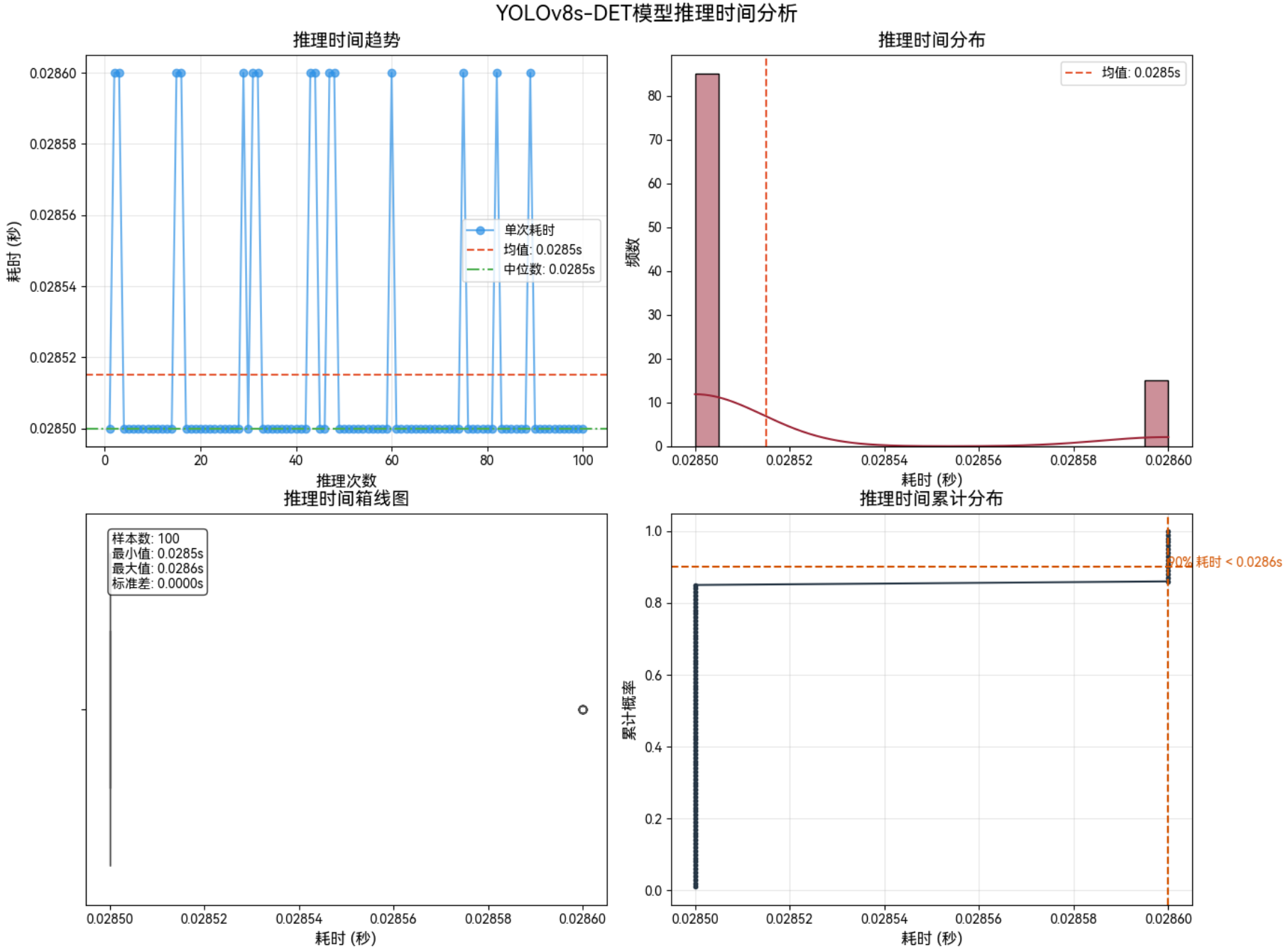

3.3 功率：25W

3.3.1 640*640–FP16

3.3.2 640*640–Int8

3.3.3 1280*1280–FP16

3.3.4 1280*1280–Int8

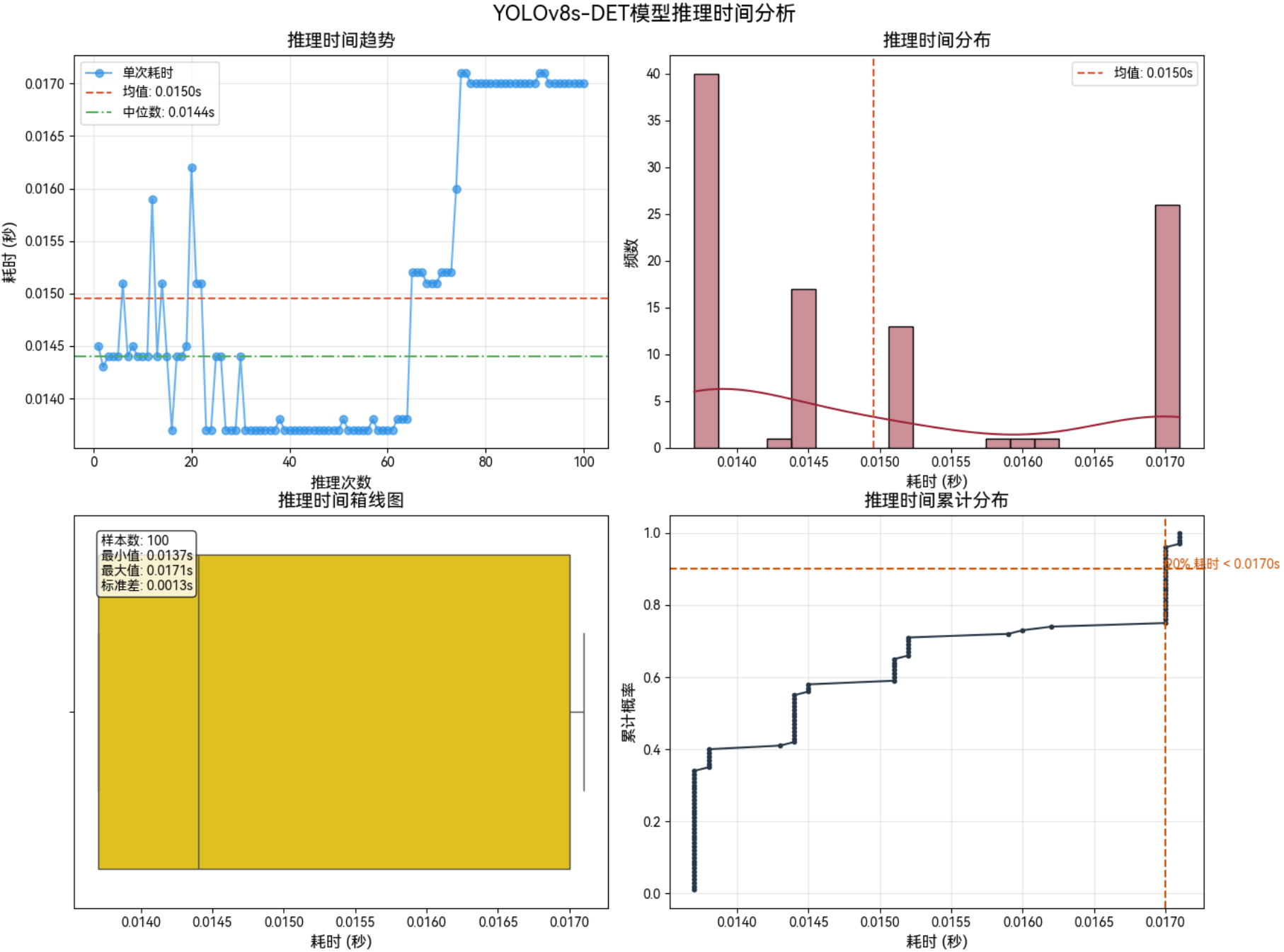

3.4 功率：25W+性能模式

3.4.1 640*640–FP16

3.4.2 640*640–Int8

3.4.3 1280*1280–FP16

3.4.4 1280*1280–Int8

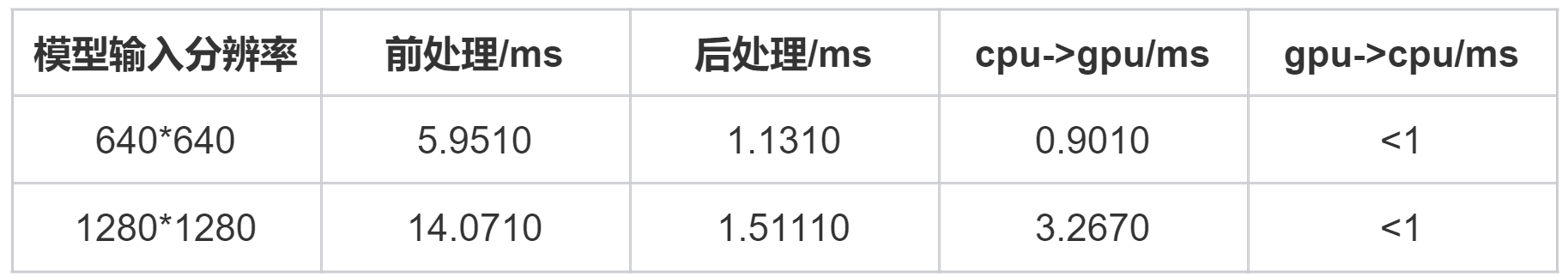

4 模型前后处理耗时分析

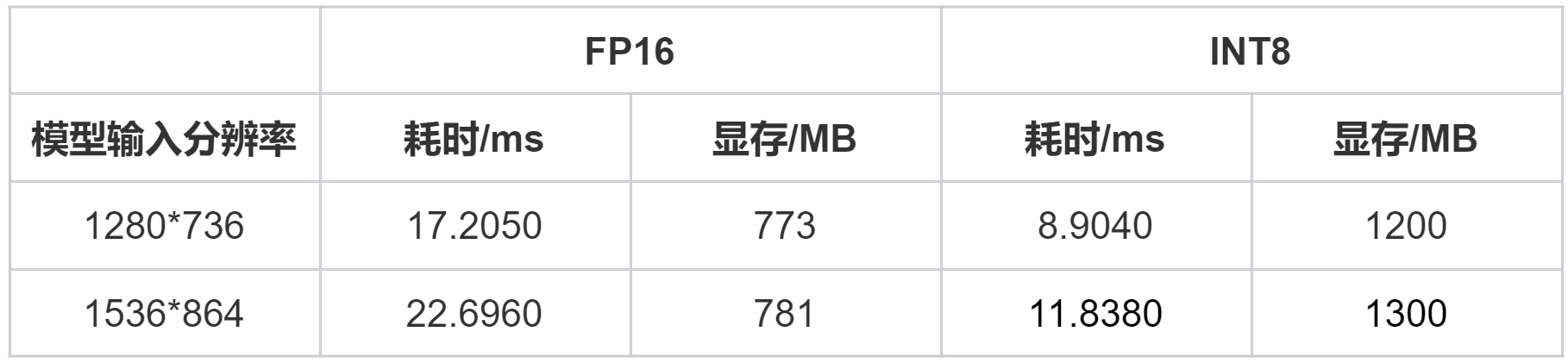

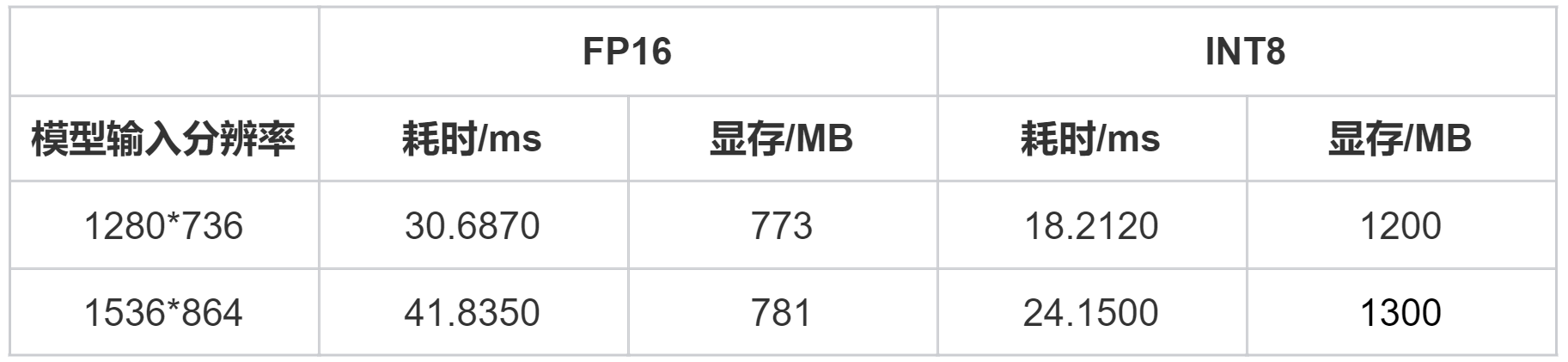

5 其它特殊分辨率

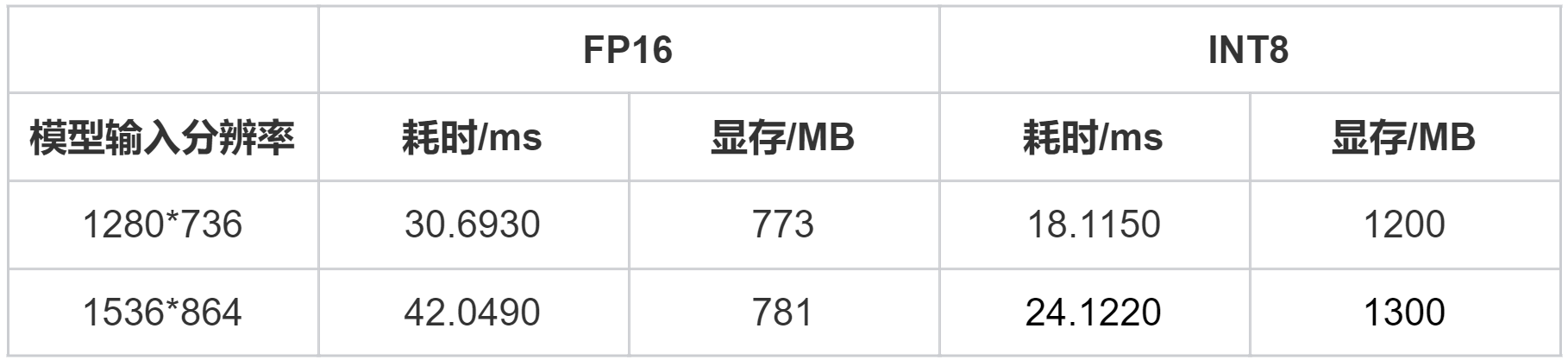

5.1 25W

5.2 25W+性能模式

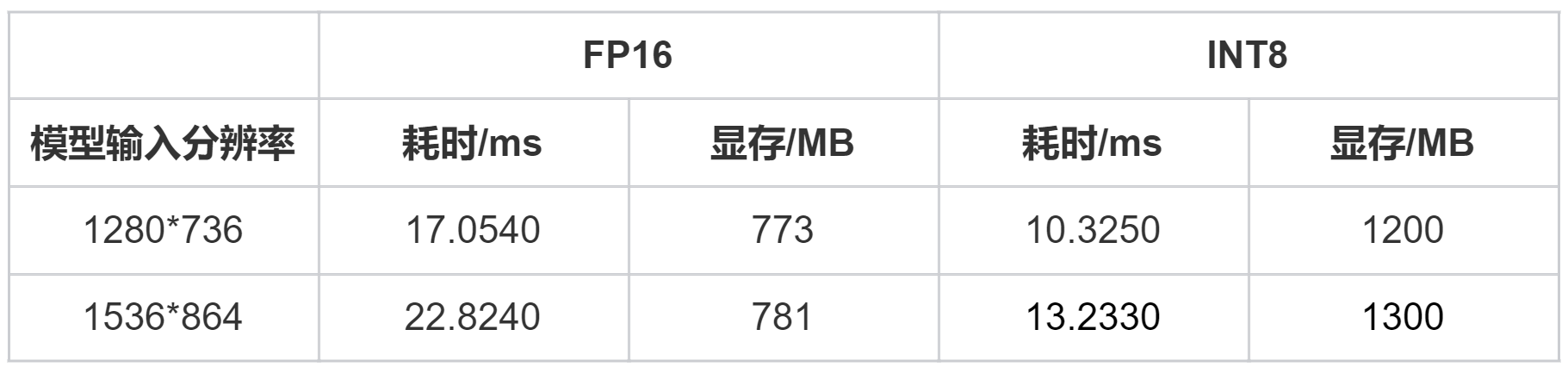

5.3 MAX

5.4 MAX+性能模式

6 运行代码

import warnings
warnings.filterwarnings("ignore", category=DeprecationWarning)import torch
import torch.nn as nn
import numpy as np
import tensorrt as trt
from collections import OrderedDict, namedtuple
import jsonimport cv2
import timeimport matplotlib.pyplot as plt
import seaborn as sns
from matplotlib.font_manager import FontProperties
import osdef load_harmonyos_font(font_path="HarmonyOS_Sans_SC_Regular.ttf"):"""加载HarmonyOS字体"""if not os.path.exists(font_path):print(f"警告: 未找到字体文件 {font_path}，将使用默认字体")return Nonetry:font = FontProperties(fname=font_path)# 测试字体是否可用plt.text(0.5, 0.5, "测试", fontproperties=font)plt.close()print("HarmonyOS字体加载成功")return fontexcept Exception as e:print(f"字体加载失败: {e}，将使用默认字体")return Nonedef visualize_inference_times(time_list, title="STDC推理时间可视化分析", font_path="HarmonyOS_Sans_SC_Regular.ttf"):"""可视化推理时间列表，支持加载HarmonyOS字体参数:time_list: 包含每次推理时间的列表（单位：秒）title: 图表标题font_path: HarmonyOS字体文件路径"""# 加载字体harmony_font = load_harmonyos_font(font_path)# 计算统计指标times = np.array(time_list)mean_time = np.mean(times)median_time = np.median(times)min_time = np.min(times)max_time = np.max(times)std_time = np.std(times)num_samples = len(times)# 创建画布（2行2列布局）fig, axes = plt.subplots(2, 2, figsize=(14, 12))fig.suptitle(title, fontproperties=harmony_font, fontsize=16, y=0.99)# 设置字体的辅助函数def set_font(ax, title, xlabel, ylabel):ax.set_title(title, fontproperties=harmony_font, fontsize=14)ax.set_xlabel(xlabel, fontproperties=harmony_font, fontsize=12)ax.set_ylabel(ylabel, fontproperties=harmony_font, fontsize=12)for label in ax.get_xticklabels() + ax.get_yticklabels():label.set_fontproperties(harmony_font)# 1. 推理时间趋势图（折线图）ax1 = axes[0, 0]ax1.plot(range(1, num_samples+1), times, marker='o', color='#2E91E5', alpha=0.7, label='单次耗时')ax1.axhline(mean_time, color='#E55934', linestyle='--', label=f'均值: {mean_time:.4f}s')ax1.axhline(median_time, color='#4CAF50', linestyle='-.', label=f'中位数: {median_time:.4f}s')set_font(ax1, '推理时间趋势', '推理次数', '耗时 (秒)')ax1.legend(prop=harmony_font)ax1.grid(alpha=0.3)# 2. 推理时间分布直方图ax2 = axes[0, 1]sns.histplot(times, kde=True, ax=ax2, color='#9B2335', bins=min(20, num_samples//2))ax2.axvline(mean_time, color='#E55934', linestyle='--', label=f'均值: {mean_time:.4f}s')set_font(ax2, '推理时间分布', '耗时 (秒)', '频数')ax2.legend(prop=harmony_font)# 3. 箱线图（展示分布特征）ax3 = axes[1, 0]sns.boxplot(x=times, ax=ax3, color='#FFD700')set_font(ax3, '推理时间箱线图', '耗时 (秒)', '')# 添加统计信息文本stats_text = (f'样本数: {num_samples}\n'f'最小值: {min_time:.4f}s\n'f'最大值: {max_time:.4f}s\n'f'标准差: {std_time:.4f}s')ax3.text(0.05, 0.95, stats_text, transform=ax3.transAxes, verticalalignment='top', bbox=dict(boxstyle='round', facecolor='white', alpha=0.8),fontproperties=harmony_font)# 4. 累计分布函数(CDF)ax4 = axes[1, 1]sorted_times = np.sort(times)cdf = np.arange(1, len(sorted_times)+1) / len(sorted_times)ax4.plot(sorted_times, cdf, color='#273746', marker='.')set_font(ax4, '推理时间累计分布', '耗时 (秒)', '累计概率')# 标注90%的推理耗时p90 = np.percentile(times, 90)ax4.axvline(p90, color='#D35400', linestyle='--')ax4.axhline(0.9, color='#D35400', linestyle='--')ax4.text(p90, 0.9, f'90% 耗时 < {p90:.4f}s', color='#D35400',fontproperties=harmony_font)ax4.grid(alpha=0.3)plt.tight_layout()plt.show()# Binding 命名元组
