ESP32C3 系列实战(1) --点亮小灯

准备工作

参考文档

1. 乐鑫官网文档参考 https://docs.espressif.com/projects/esp-dev-kits/zh_CN/latest/esp32c3/resources.html

2. 合宙ESP32C3开发板文档参考 https://wiki.luatos.com/chips/esp32c3/board.html

3. ESP-IDF 官网文档 https://docs.espressif.com/projects/esp-idf/zh_CN/stable/esp32c3/get-started/index.html

工具

1. CH343的驱动 https://www.wch.cn/downloads/CH343SER_EXE.html

2. IDE 开发工具：vscode + esp-idf 插件 + c/c++ 插件 + cmake 插件

安装 ESP-IDF

esp-idf 安装教程参考 ESP-IDF 官网文档 https://docs.espressif.com/projects/esp-idf/zh_CN/stable/esp32c3/get-started/index.html，稍微有点小麻烦，网上已有很多教程，例如： https://naiva.blog.csdn.net/article/details/142030279， 此处就不再赘述。

ESP32-C3 开发板

我买的是合宙ESP32-C3 开发板，文档在 ESP-IDF 官网文档，

准备好了上述的工作，就开始进入激动人心的编程了，点亮一个 LED 灯！

项目结构

主要用到的文件如下：

.
├── CMakeLists.txt
├── main
│   ├── CMakeLists.txt
│   ├── Kconfig.projbuild
│   └── blink.c
└── sdkconfig.defaults

./CMakeLists.txt

声明环境

# The following five lines of boilerplate have to be in your project's
# CMakeLists in this exact order for cmake to work correctly
cmake_minimum_required(VERSION 3.5)include($ENV{IDF_PATH}/tools/cmake/project.cmake)
project(blink)

./sdkconfig.defaults

空文件，保持默认，编译的时候会生成 sdkconfig 文件，用的就是默认的参数

#

./main/Kconfig.projbuild

project configuration menu ，idf.py menuconfig 用到， 比如这里设置端口为GPIO12, 会根据此配置生成 sdkconfig 文件，里面就有 #define CONFIG_BLINK_GPIO 12

menu "Example Configuration"config BLINK_GPIOint "Blink GPIO number"range 0 21default 12helpGPIO number (IOxx) to blink on and off.Some GPIOs are used for other purposes (flash connections, etc.) and cannot be used to blink.endmenu

./main/CMakeLists.txt

定义 src 目录 与 include 目录

# 定义 src 目录 与 include 目录
set(srcs "blink.c")
set(include_dirs ".")
idf_component_register(SRCS "${srcs}" INCLUDE_DIRS "${include_dirs}")

./main/blink.c

点亮小灯主程序

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_log.h"
#include "driver/gpio.h"
#include "sdkconfig.h"/* Can use project configuration menu (idf.py menuconfig) to choose the GPIO to blink,or you can edit the following line and set a number here.
*/
#define BLINK_GPIO CONFIG_BLINK_GPIOstatic const char *TAG = "blink";void app_main(void)
{int i = 0;ESP_LOGE(TAG, "app_main");/* Configure the IOMUX register for pad BLINK_GPIO (some pads aremuxed to GPIO on reset already, but some default to otherfunctions and need to be switched to GPIO. Consult theTechnical Reference for a list of pads and their defaultfunctions.)*/gpio_reset_pin(BLINK_GPIO);/* Set the GPIO as a push/pull output */gpio_set_direction(BLINK_GPIO, GPIO_MODE_OUTPUT);while(1) {ESP_LOGI(TAG, "[%02d] Hello world!", i++);/* Blink off (output low) */printf("Turning off the LED\n");gpio_set_level(BLINK_GPIO, 0);vTaskDelay(1000 / portTICK_PERIOD_MS);ESP_LOGI(TAG, "[%02d] Hello world!", i++);/* Blink on (output high) */printf("Turning on the LED\n");gpio_set_level(BLINK_GPIO, 1);vTaskDelay(1000 / portTICK_PERIOD_MS);}
}

程序刚开始有很多报错，因为引用的是 ESP-IDF sdk 中的文件，因此要将其加入进path

消除波浪线引用报错

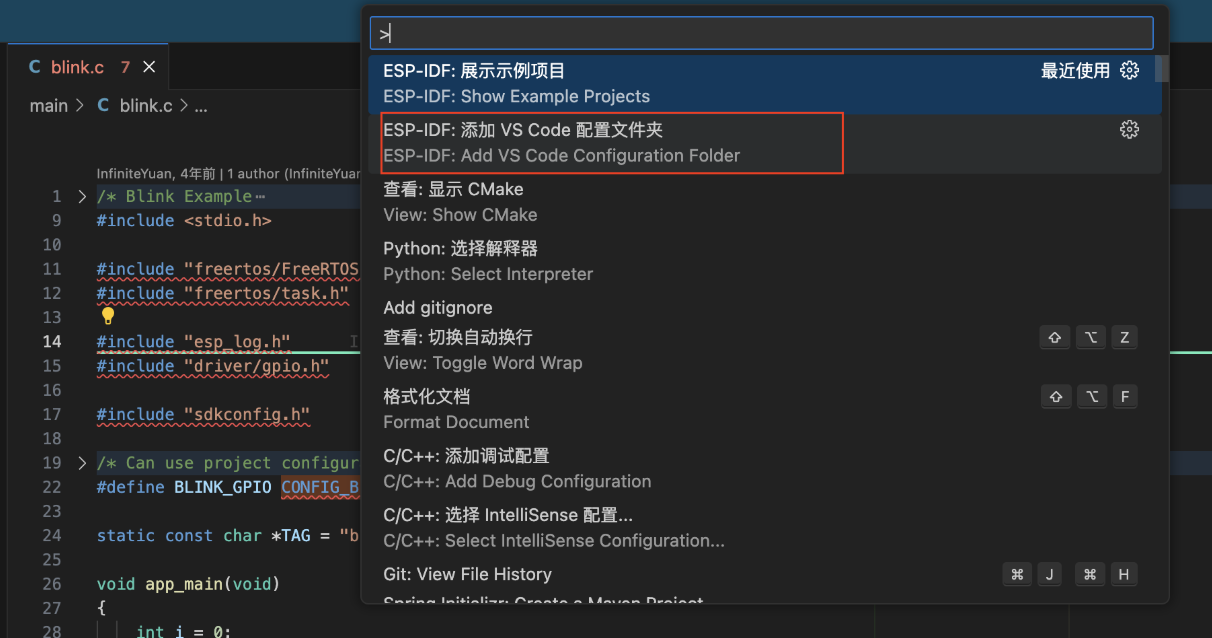

先删除.vscode 文件夹，用ESP-IDF 插件添加 vscode 配置文件夹，会增加几个文件，会把 esp-idf 的路径给添加进去

.vscode
├── c_cpp_properties.json
├── launch.json
└── settings.json

c_cpp_properties.json:

{"configurations": [{"name": "ESP-IDF","compilerPath": "${config:idf.toolsPath}/tools/riscv32-esp-elf/esp-14.2.0_20241119/riscv32-esp-elf/bin/riscv32-esp-elf-gcc","compileCommands": "${config:idf.buildPath}/compile_commands.json","includePath": ["${config:idf.espIdfPath}/components/**","${config:idf.espIdfPathWin}/components/**","${workspaceFolder}/**"],"browse": {"path": ["${config:idf.espIdfPath}/components","${config:idf.espIdfPathWin}/components","${workspaceFolder}"],"limitSymbolsToIncludedHeaders": true}}],"version": 4
}

{"version": "0.2.0","configurations": [{"type": "gdbtarget","request": "attach","name": "Eclipse CDT GDB Adapter"},{"type": "espidf","name": "Launch","request": "launch"}]
}

settings.json
其中 idf.port 会把设备连接的端口记录进去，为后面的烧录准备

{"C_Cpp.intelliSenseEngine": "default","idf.port": "/dev/tty.wchusbserial59090649341","files.associations": {".env*": "dotenv","freertos.h": "c","task.h": "c"},"idf.openOcdConfigs": ["board/esp32c3-builtin.cfg"],"idf.customExtraVars": {"IDF_TARGET": "esp32c3"}
}

编译烧录

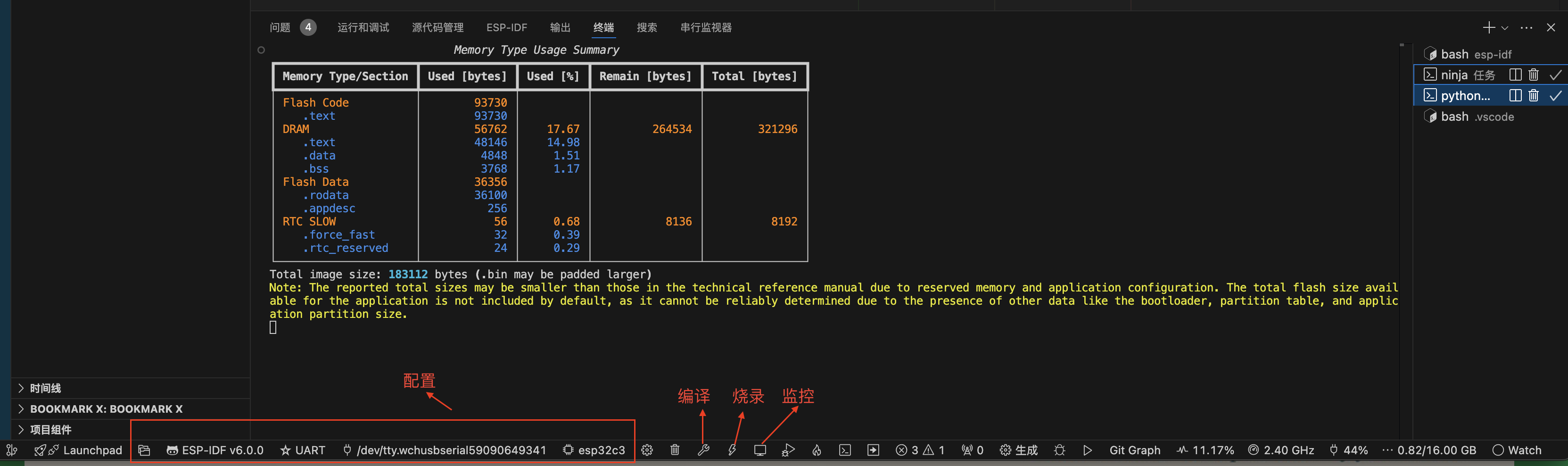

把配置分别按实际情况配置上，点编译，会生成 build 目录， 然后再点烧录，程序就烧录进开发板中了。

程序运行结果

这里就成功点亮 LED 小灯了
