第0记 cutlass 介绍及入门编程使用

news 2025/8/30 14:19:02

0. 环境搭建

0.1.  实验部分的系统信息

ubuntu 22.04

cuda sdk toolkit 12.8

RTX 5080

cutlass main branch (cutlass 4.1 +, commit a49a78ffefc86a87160dfe0ccc3a3a2d1622c91 )

0.2.  编译cutlas

下载源码：

git clone https://github.com/NVIDIA/cutlass.git

配置编译：

mkdir build/
cmake .. -DCUTLASS_NVCC_ARCHS="120" -DCMAKE_BUILD_TYPE="Debug"
make -j18

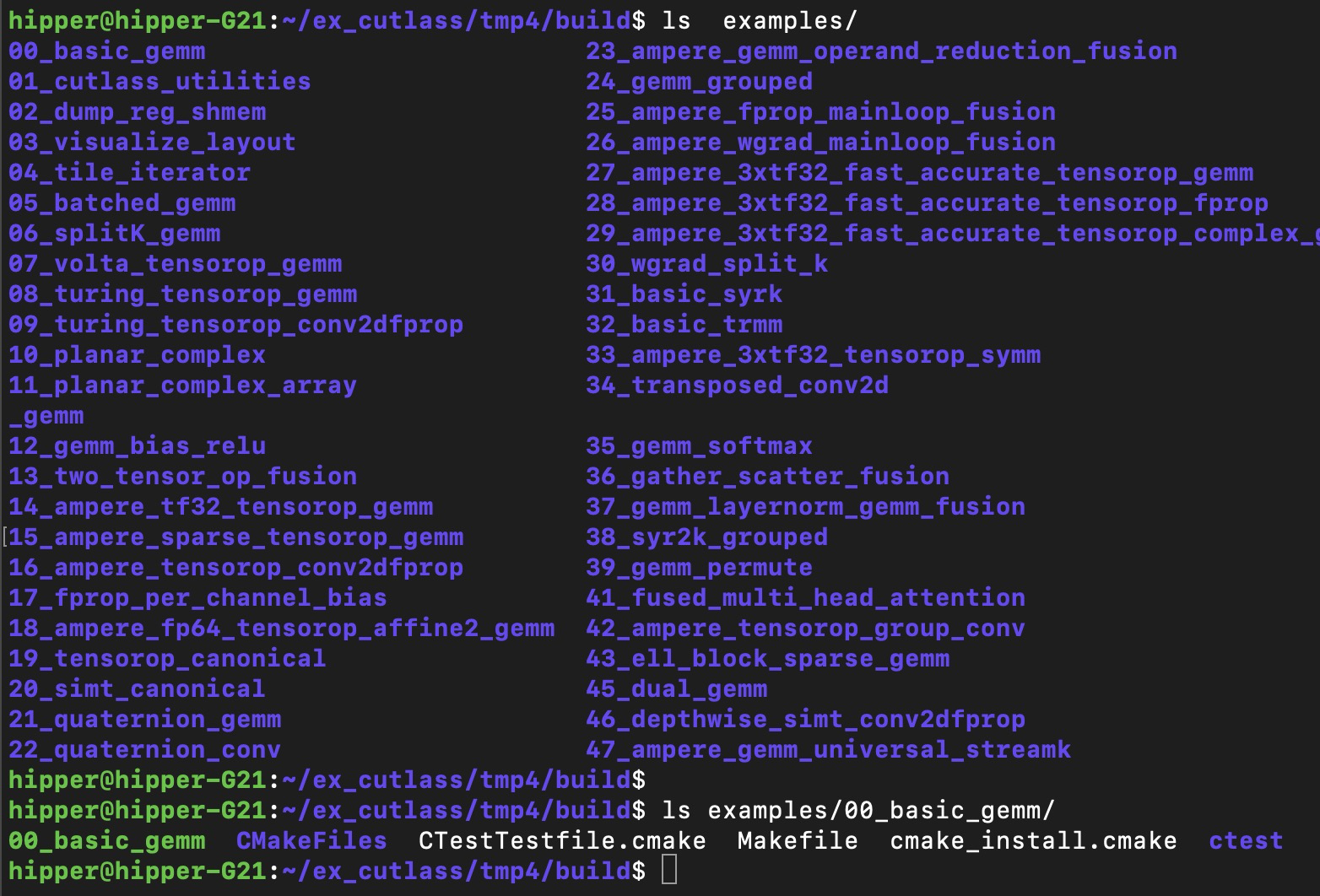

示例代码的编译成果在 build/examples/ 中

修改源码后，重新回到 build/ 中执行 make -j18

接下来先介绍一下 cutlass 的一些常用理念。

1.  CUTLASS 简介

        CUTLASS 是 NVIDIA 开发的一个开源 CUDA C++ 模板头文件库，用于在 NVIDIA GPU 上实现高性能矩阵乘法（GEMM）和相关计算。它的设计目标是模块化和可扩展性，让研究人员和开发者能够轻松地构建、组合和优化自己的 GEMM 内核，而无需从零开始编写复杂的 CUDA 代码。

核心设计理念：

       分层与组合  将复杂的 GEMM 操作分解为多个层次化的、可重用的组件（如线程块、Warp、线程级别的计算）。

       模板元编程   使用 C++ 模板在编译时确定算法、数据类型和硬件特性，以实现最大性能。

       接近硬件的性能   通过精细控制内存层次（全局内存、共享内存、寄存器）的数据移动和计算流水线，其性能可以媲美高度调优的 cuBLAS 库。

2. CUTLASS 的核心概念与 API 功能

       CUTLASS 的 API 主要由一系列模板类和宏构成，它们定义了计算的各个层次。

2.1. 关键层次结构 (Hierarchy)

       一个典型的 CUTLASS GEMM 内核由下至上包含以下几个层次：

1. 线程块切片 (Threadblock-level Tile)

        功能：定义一个线程块（Thread Block）负责处理的大块数据（Tile）。

        API：cutlass::gemm::ThreadblockTileShape<M, N, K>；它决定了从全局内存到共享内存的数据加载量。

2. Warp 切片 (Warp-level Tile)

        功能：定义一个 Warp（32个线程）负责处理的子数据块。

        API：cutlass::gemm::WarpTileShape<M, N, K>它决定了共享内存到寄存器（Warp级）的数据移动。

3. 指令切片 (Instruction-level Tile)

        功能：定义由 Tensor Core 或 CUDA Core 单条指令处理的最小数据块。

        API：cutlass::gemm::GemmShape<M, N, K> 用于 Tensor Core 指令，例如 cutlass::arch::Mma<>。这是性能调优最精细的级别。

4. 全局迭代器 (Global Memory Iterator)

        功能：负责将数据从全局内存高效地加载到共享内存。

        API：例如 cutlass::transform::threadblock::PredicatedTileIterator

5. 共享内存迭代器 (Shared Memory Iterator)

        功能：负责将数据从共享内存高效地加载到寄存器。

        API：例如 cutlass::transform::warp::RegularTileIterator

6. 主循环流水线 (Mainloop Pipeline)

        功能：组织整个计算过程，通过双缓冲（Double Buffering）等技术重叠数据加载和计算，隐藏内存延迟。

        API：cutlass::pipeline 相关类。

7.GEMM 内核入口 (Gemm Kernel Entry Point)

        功能：将上述所有组件组合成一个完整的、可启动的 CUDA 内核。

        API：cutlass::gemm::kernel::Gemm 或 cutlass::gemm::device::Gemm

2.2. 重要宏 (Macros)

CUTLASS 使用宏来简化基于模板的代码生成，尤其是在处理不同数据类型和架构时。

  CUTLASS_ARCH_MMA_SM80_ENABLED, CUTLASS_ARCH_MMA_SM75_ENABLED 等

        功能：条件编译宏，用于检查当前编译目标架构（如 SM80 for Ampere）是否支持特定的 Tensor Core 指令集。确保代码在兼容的 GPU 上编译和运行。

  CUTLASS_NAMESPACE_OPEN / CUTLASS_NAMESPACE_CLOSE

        功能：用于控制 CUTLASS 符号的命名空间，通常在自定义扩展时使用。

3. 使用示例

        以下是三个由浅入深的使用示例。

3.1. 示例 1：使用高级 device::Gemm API（最简单）

        这是使用 CUTLASS 最直接的方式，类似于使用 cuBLAS。你只需要指定数据类型、布局和架构，CUTLASS 会自动选择预定义的高效内核。

00_basic_gemm/basic_gemm.cu

// Standard Library includes
#include <iostream>
#include <sstream>
#include <vector>// Helper methods to check for errors
#include "helper.h"//
// CUTLASS includes needed for single-precision GEMM kernel
//// Defines cutlass::gemm::device::Gemm, the generic Gemm computation template class.
#include "cutlass/gemm/device/gemm.h"///////////////////////////////////////////////////////////////////////////////////////////////////
//
// This function defines a CUTLASS GEMM kernel instantiation, constructs its parameters object,
// and launches it on the CUDA device.
//
////////////////////////////////////////////////////////////////////////////////////////////////////// Define a CUTLASS GEMM template and launch a GEMM kernel.
cudaError_t CutlassSgemmNN(int M,int N,int K,float alpha,float const *A,int lda,float const *B,int ldb,float beta,float *C,int ldc) {// Define type definition for single-precision CUTLASS GEMM with column-major// input matrices and 128x128x8 threadblock tile size (chosen by default).//// To keep the interface manageable, several helpers are defined for plausible compositions// including the following example for single-precision GEMM. Typical values are used as// default template arguments. See `cutlass/gemm/device/default_gemm_configuration.h` for more details.//// To view the full gemm device API interface, see `cutlass/gemm/device/gemm.h`using ColumnMajor = cutlass::layout::ColumnMajor;using CutlassGemm = cutlass::gemm::device::Gemm<float,        // Data-type of A matrixColumnMajor,  // Layout of A matrixfloat,        // Data-type of B matrixColumnMajor,  // Layout of B matrixfloat,        // Data-type of C matrixColumnMajor>; // Layout of C matrix// Define a CUTLASS GEMM typeCutlassGemm gemm_operator;// Construct the CUTLASS GEMM arguments object.//// One of CUTLASS's design patterns is to define gemm argument objects that are constructible// in host code and passed to kernels by value. These may include pointers, strides, scalars,// and other arguments needed by Gemm and its components.//// The benefits of this pattern are (1.) a structured, composable strategy for passing host-constructible// arguments to kernels and (2.) minimized initialization overhead on kernel entry.//CutlassGemm::Arguments args({M , N, K},  // Gemm Problem dimensions{A, lda},    // Tensor-ref for source matrix A{B, ldb},    // Tensor-ref for source matrix B{C, ldc},    // Tensor-ref for source matrix C{C, ldc},    // Tensor-ref for destination matrix D (may be different memory than source C matrix){alpha, beta}); // Scalars used in the Epilogue//// Launch the CUTLASS GEMM kernel.//cutlass::Status status = gemm_operator(args);//// Return a cudaError_t if the CUTLASS GEMM operator returned an error code.//if (status != cutlass::Status::kSuccess) {return cudaErrorUnknown;}// Return success, if no errors were encountered.return cudaSuccess;
}///////////////////////////////////////////////////////////////////////////////////////////////////
//
// The source code after this point in the file is generic CUDA using the CUDA Runtime API
// and simple CUDA kernels to initialize matrices and compute the general matrix product.
//
////////////////////////////////////////////////////////////////////////////////////////////////////// Kernel to initialize a matrix with small integers.
__global__ void InitializeMatrix_kernel(float *matrix,int rows,int columns,int seed = 0) {int i = threadIdx.x + blockIdx.x * blockDim.x;int j = threadIdx.y + blockIdx.y * blockDim.y;if (i < rows && j < columns) {int offset = i + j * rows;// Generate arbitrary elements.int const k = 16807;int const m = 16;float value = float(((offset + seed) * k % m) - m / 2);matrix[offset] = value;}
}/// Simple function to initialize a matrix to arbitrary small integers.
cudaError_t InitializeMatrix(float *matrix, int rows, int columns, int seed = 0) {dim3 block(16, 16);dim3 grid((rows + block.x - 1) / block.x,(columns + block.y - 1) / block.y);InitializeMatrix_kernel<<< grid, block >>>(matrix, rows, columns, seed);return cudaGetLastError();
}////////////////////////////////////////////////////////////////////////////////////////////////////// Allocates device memory for a matrix then fills with arbitrary small integers.
cudaError_t AllocateMatrix(float **matrix, int rows, int columns, int seed = 0) {cudaError_t result;size_t sizeof_matrix = sizeof(float) * rows * columns;// Allocate device memory.result = cudaMalloc(reinterpret_cast<void **>(matrix), sizeof_matrix);if (result != cudaSuccess) {std::cerr << "Failed to allocate matrix: "<< cudaGetErrorString(result) << std::endl;return result;}// Clear the allocation.result = cudaMemset(*matrix, 0, sizeof_matrix);if (result != cudaSuccess) {std::cerr << "Failed to clear matrix device memory: "<< cudaGetErrorString(result) << std::endl;return result;}// Initialize matrix elements to arbitrary small integers.result = InitializeMatrix(*matrix, rows, columns, seed);if (result != cudaSuccess) {std::cerr << "Failed to initialize matrix: "<< cudaGetErrorString(result) << std::endl;return result;}return result;
}////////////////////////////////////////////////////////////////////////////////////////////////////// Naive reference GEMM computation.
__global__ void ReferenceGemm_kernel(int M,int N,int K,float alpha,float const *A,int lda,float const *B,int ldb,float beta,float *C,int ldc) {int i = threadIdx.x + blockIdx.x * blockDim.x;int j = threadIdx.y + blockIdx.y * blockDim.y;if (i < M && j < N) {float accumulator = 0;for (int k = 0; k < K; ++k) {accumulator += A[i + k * lda] * B[k + j * ldb];}C[i + j * ldc] = alpha * accumulator + beta * C[i + j * ldc];}
}/// Reference GEMM computation.
cudaError_t ReferenceGemm(int M,int N,int K,float alpha,float const *A,int lda,float const *B,int ldb,float beta,float *C,int ldc) {dim3 block(16, 16);dim3 grid((M + block.x - 1) / block.x,(N + block.y - 1) / block.y);ReferenceGemm_kernel<<< grid, block >>>(M, N, K, alpha, A, lda, B, ldb, beta, C, ldc);return cudaGetLastError();
}////////////////////////////////////////////////////////////////////////////////////////////////////// Allocate several matrices in GPU device memory and call a single-precision
/// CUTLASS GEMM kernel.
cudaError_t TestCutlassGemm(int M, int N, int K, float alpha, float beta) {cudaError_t result;//// Define several matrices to be used as operands to GEMM kernels.//// Compute leading dimensions for each matrix.int lda = M;int ldb = K;int ldc = M;// Compute size in bytes of the C matrix.size_t sizeof_C = sizeof(float) * ldc * N;// Define pointers to matrices in GPU device memory.float *A;float *B;float *C_cutlass;float *C_reference;//// Allocate matrices in GPU device memory with arbitrary seeds.//result = AllocateMatrix(&A, M, K, 0);if (result !=  cudaSuccess) {return result;}result = AllocateMatrix(&B, K, N, 17);if (result !=  cudaSuccess) {cudaFree(A);return result;}result = AllocateMatrix(&C_cutlass, M, N, 101);if (result != cudaSuccess) {cudaFree(A);cudaFree(B);return result;}result = AllocateMatrix(&C_reference, M, N, 101);if (result != cudaSuccess) {cudaFree(A);cudaFree(B);cudaFree(C_cutlass);return result;}result = cudaMemcpy(C_reference, C_cutlass, sizeof_C, cudaMemcpyDeviceToDevice);if (result != cudaSuccess) {std::cerr << "Failed to copy C_cutlass matrix to C_reference: "<< cudaGetErrorString(result) << std::endl;cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);return result;}//// Launch CUTLASS GEMM.//result = CutlassSgemmNN(M, N, K, alpha, A, lda, B, ldb, beta, C_cutlass, ldc);if (result != cudaSuccess) {std::cerr << "CUTLASS GEMM kernel failed: "<< cudaGetErrorString(result) << std::endl;cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);return result;}//// Verify.//// Launch reference GEMMresult = ReferenceGemm(M, N, K, alpha, A, lda, B, ldb, beta, C_reference, ldc);if (result != cudaSuccess) {std::cerr << "Reference GEMM kernel failed: "<< cudaGetErrorString(result) << std::endl;cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);return result;}// Copy to host and verify equivalence.std::vector<float> host_cutlass(ldc * N, 0);std::vector<float> host_reference(ldc * N, 0);result = cudaMemcpy(host_cutlass.data(), C_cutlass, sizeof_C, cudaMemcpyDeviceToHost);if (result != cudaSuccess) {std::cerr << "Failed to copy CUTLASS GEMM results: "<< cudaGetErrorString(result) << std::endl;cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);return result;}result = cudaMemcpy(host_reference.data(), C_reference, sizeof_C, cudaMemcpyDeviceToHost);if (result != cudaSuccess) {std::cerr << "Failed to copy Reference GEMM results: "<< cudaGetErrorString(result) << std::endl;cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);return result;}//// Free device memory allocations.//cudaFree(C_reference);cudaFree(C_cutlass);cudaFree(B);cudaFree(A);//// Test for bit equivalence of results.//if (host_cutlass != host_reference) {std::cerr << "CUTLASS results incorrect." << std::endl;return cudaErrorUnknown;}return cudaSuccess;
}////////////////////////////////////////////////////////////////////////////////////////////////////// Entry point to basic_gemm example.
//
// usage:
//
//   00_basic_gemm <M> <N> <K> <alpha> <beta>
//
int main(int argc, const char *arg[]) {//// Parse the command line to obtain GEMM dimensions and scalar values.//// GEMM problem dimensions.int problem[3] = { 128, 128, 128 };for (int i = 1; i < argc && i < 4; ++i) {std::stringstream ss(arg[i]);ss >> problem[i - 1];}// Scalars used for linear scaling the result of the matrix product.float scalars[2] = { 1, 0 };for (int i = 4; i < argc && i < 6; ++i) {std::stringstream ss(arg[i]);ss >> scalars[i - 4];}//// Run the CUTLASS GEMM test.//cudaError_t result = TestCutlassGemm(problem[0],     // GEMM M dimensionproblem[1],     // GEMM N dimensionproblem[2],     // GEMM K dimensionscalars[0],     // alphascalars[1]      // beta);if (result == cudaSuccess) {std::cout << "Passed." << std::endl;}// Exit.return result == cudaSuccess ? 0 : -1;
}///////////////////////////////////////////////////////////////////////////////////////////////////

从 main() 到 cutlass::Kernel<GemmKernel><<<grid, block, smem_size, stream>>>(params_);

其中：using GemmKernel = typename UnderlyingOperator::GemmKernel;

启动 cutlass::Kernel()

include/cutlass/device_kernel.h

/// Generic CUTLASS kernel template.
template <typename Operator>
CUTLASS_GLOBAL
void Kernel(typename Operator::Params params) {// Dynamic shared memory base pointerextern __shared__ int SharedStorageBase[];// Declare pointer to dynamic shared memory.typename Operator::SharedStorage *shared_storage =reinterpret_cast<typename Operator::SharedStorage *>(SharedStorageBase);Operator op;op(params, *shared_storage);cutlass::arch::synclog_print();
}

其中的 GemmKernel 就是这里的 template <typename Operator> 中的 Operator，

可以通过 ptype 来查看去具体名称和实现：

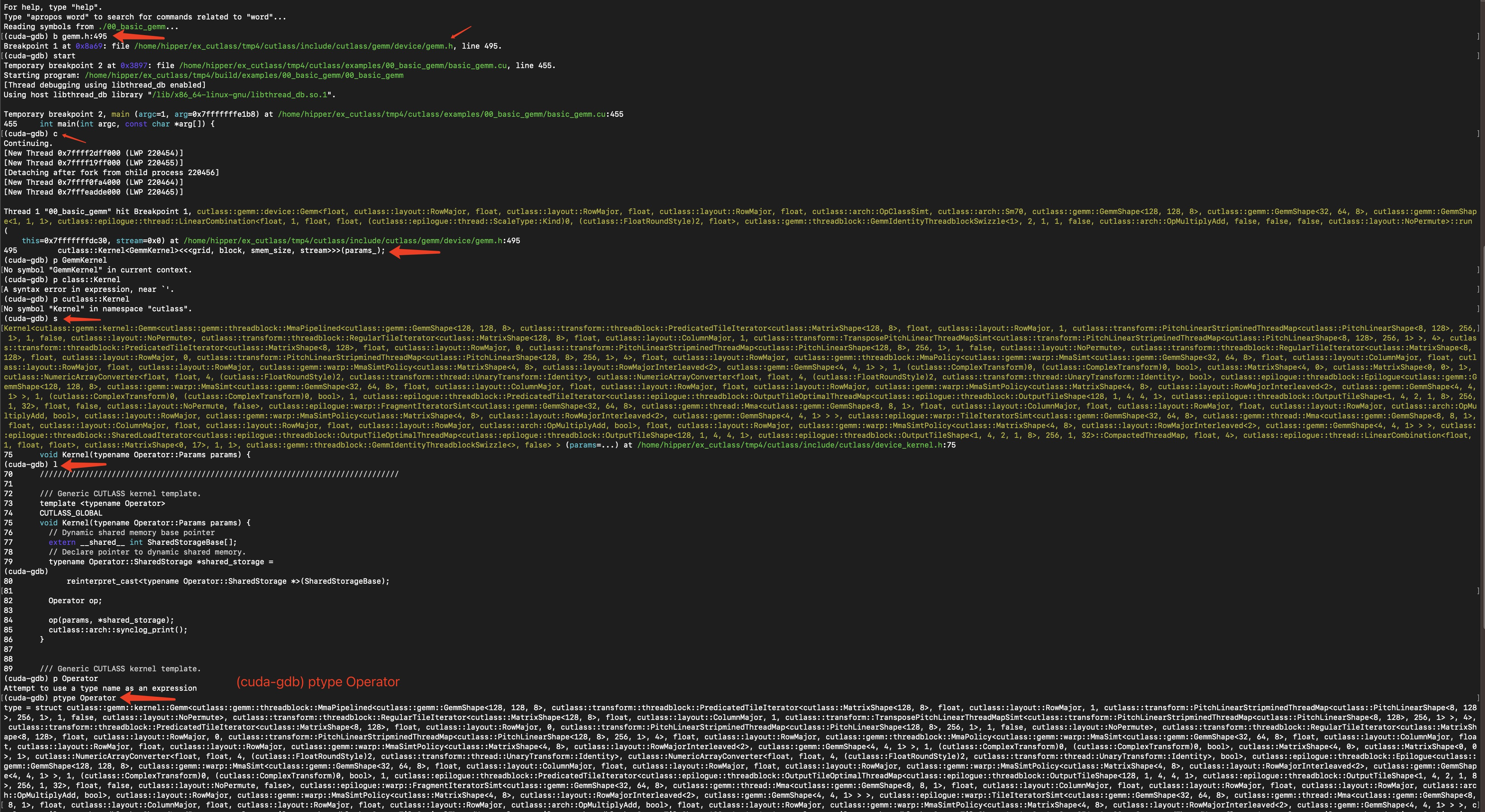

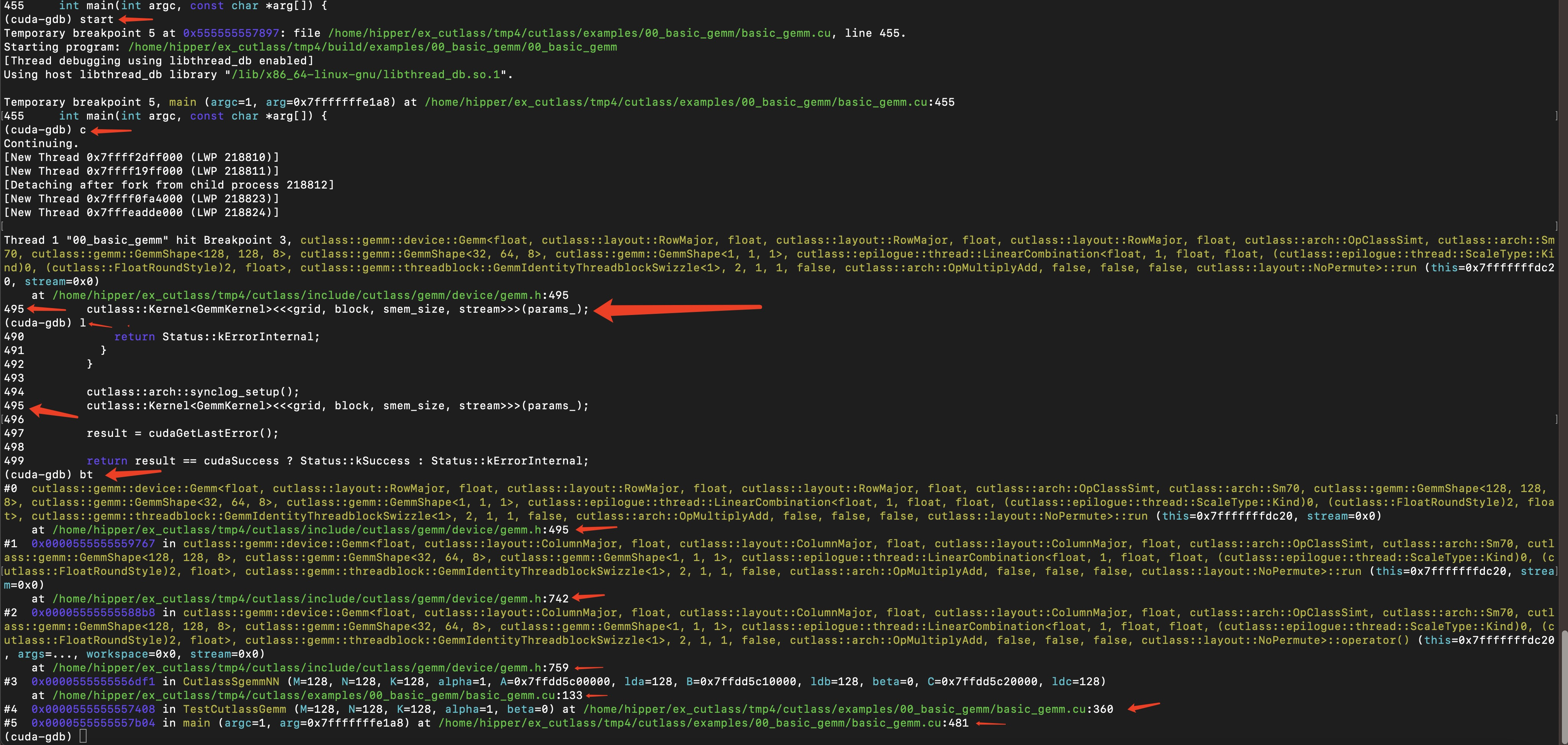

调试过程：

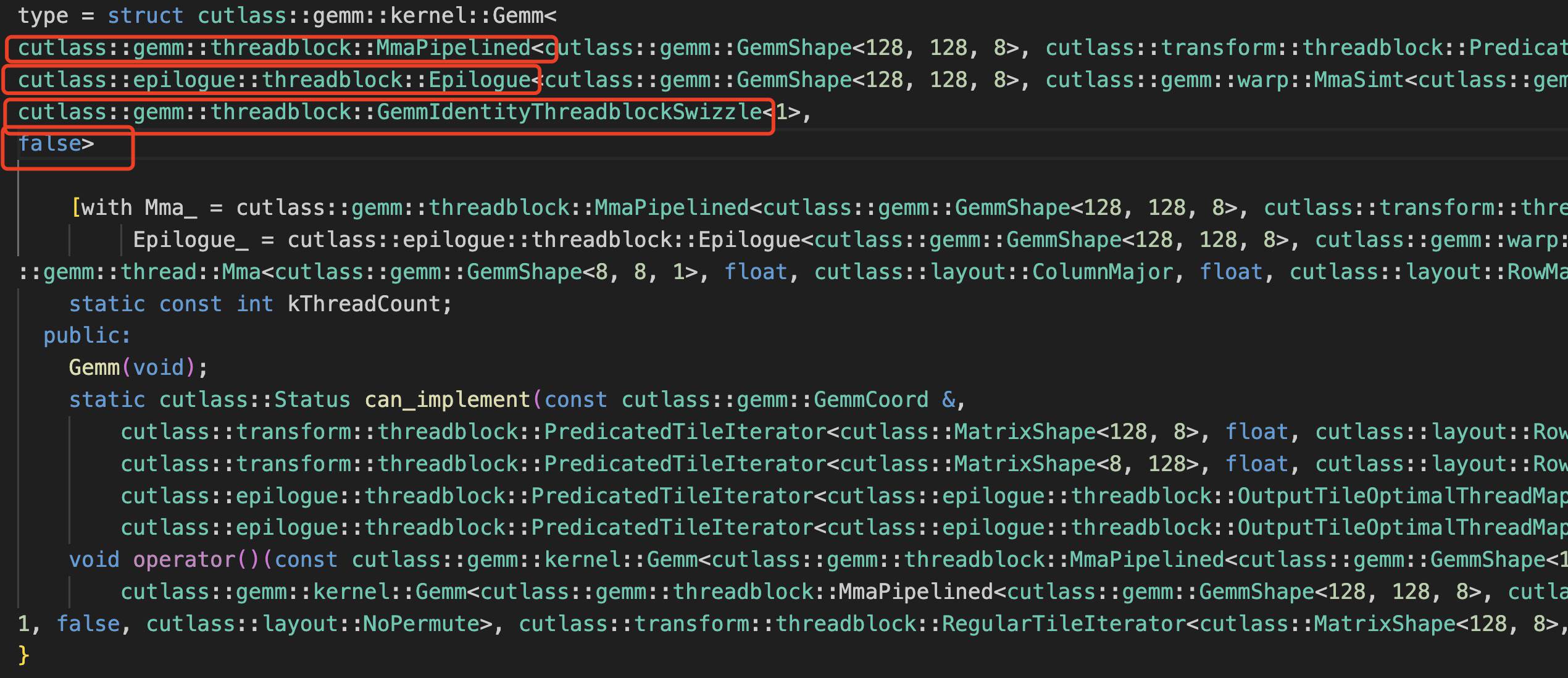

输出信息比较长，总体上，这个 Operator 是一个 模版函数 cuda kernel，包含四个模版参数，前两个参数非常长，这里用空行隔开了，图中红框是四个模版参数：

struct cutlass::gemm::kernel::Gemm

< cutlass::gemm::threadblock::MmaPipelined< ... >,

cutlass::epilogue::threadblock::Epilogue< ... >,

cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle< 1 >,

false >

ptype 完整的输出内容放在这里待考：

type = struct cutlass::gemm::kernel::Gemm
<
cutlass::gemm::threadblock::MmaPipelined<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::RowMajor, 1, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::ColumnMajor, 1, cutlass::transform::TransposePitchLinearThreadMapSimt<cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1> >, 4>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 4>, float, cutlass::layout::RowMajor, cutlass::gemm::threadblock::MmaPolicy<cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, cutlass::MatrixShape<4, 0>, cutlass::MatrixShape<0, 0>, 1>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, bool>, cutlass::epilogue::threadblock::Epilogue<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, 1, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>, cutlass::epilogue::warp::FragmentIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::warp::TileIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::threadblock::SharedLoadIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>::CompactedThreadMap, float, 4>, cutlass::epilogue::thread::LinearCombination<float, 1, float, float, (cutlass::epilogue::thread::ScaleType::Kind)0, (cutlass::FloatRoundStyle)2, float>, cutlass::MatrixShape<0, 17>, 1, 1>, cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle<1>, false
> [with Mma_ = cutlass::gemm::threadblock::MmaPipelined<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::RowMajor, 1, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::ColumnMajor, 1, cutlass::transform::TransposePitchLinearThreadMapSimt<cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1> >, 4>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 4>, float, cutlass::layout::RowMajor, cutlass::gemm::threadblock::MmaPolicy<cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, cutlass::MatrixShape<4, 0>, cutlass::MatrixShape<0, 0>, 1>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, bool>, Epilogue_ = cutlass::epilogue::threadblock::Epilogue<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, 1, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>, cutlass::epilogue::warp::FragmentIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::warp::TileIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass--Type <RET> for more, q to quit, c to continue without paging--
::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::threadblock::SharedLoadIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>::CompactedThreadMap, float, 4>, cutlass::epilogue::thread::LinearCombination<float, 1, float, float, (cutlass::epilogue::thread::ScaleType::Kind)0, (cutlass::FloatRoundStyle)2, float>, cutlass::MatrixShape<0, 17>, 1, 1>, ThreadblockSwizzle_ = cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle<1>] {static const int kThreadCount;public:Gemm(void);static cutlass::Status can_implement(const cutlass::gemm::GemmCoord &, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::RowMajor, 1, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1>, 1, false, cutlass::layout::NoPermute>::TensorRef, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 1, false, cutlass::layout::NoPermute>::TensorRef, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>::TensorRef, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>::TensorRef);void operator()(const cutlass::gemm::kernel::Gemm<cutlass::gemm::threadblock::MmaPipelined<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::RowMajor, 1, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::ColumnMajor, 1, cutlass::transform::TransposePitchLinearThreadMapSimt<cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1> >, 4>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 4>, float, cutlass::layout::RowMajor, cutlass::gemm::threadblock::MmaPolicy<cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, cutlass::MatrixShape<4, 0>, cutlass::MatrixShape<0, 0>, 1>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, bool>, cutlass::epilogue::threadblock::Epilogue<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, 1, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>, cutlass::epilogue::warp::FragmentIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::warp::TileIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::threadblock::SharedLoadIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>::CompactedThreadMap, float, 4>, cutlass::epilogue::thread::LinearCombination<float, 1, float, float, (cutlass::epilogue::thread::ScaleType::Kind)0, (cutlass::FloatRoundStyle)2, float>, cutlass::MatrixShape<0, 17>, 1, 1>, cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle<1>, false>::Params &, cutlass::gemm::kernel::Gemm<cutlass::gemm::threadblock::MmaPipelined<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::RowMajor, 1, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1>, --Type <RET> for more, q to quit, c to continue without paging--
1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<128, 8>, float, cutlass::layout::ColumnMajor, 1, cutlass::transform::TransposePitchLinearThreadMapSimt<cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<8, 128>, 256, 1> >, 4>, cutlass::transform::threadblock::PredicatedTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 1, false, cutlass::layout::NoPermute>, cutlass::transform::threadblock::RegularTileIterator<cutlass::MatrixShape<8, 128>, float, cutlass::layout::RowMajor, 0, cutlass::transform::PitchLinearStripminedThreadMap<cutlass::PitchLinearShape<128, 8>, 256, 1>, 4>, float, cutlass::layout::RowMajor, cutlass::gemm::threadblock::MmaPolicy<cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, cutlass::MatrixShape<4, 0>, cutlass::MatrixShape<0, 0>, 1>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, cutlass::NumericArrayConverter<float, float, 4, (cutlass::FloatRoundStyle)2, cutlass::transform::thread::UnaryTransform::Identity>, bool>, cutlass::epilogue::threadblock::Epilogue<cutlass::gemm::GemmShape<128, 128, 8>, cutlass::gemm::warp::MmaSimt<cutlass::gemm::GemmShape<32, 64, 8>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> >, 1, (cutlass::ComplexTransform)0, (cutlass::ComplexTransform)0, bool>, 1, cutlass::epilogue::threadblock::PredicatedTileIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>, float, false, cutlass::layout::NoPermute, false>, cutlass::epilogue::warp::FragmentIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::warp::TileIteratorSimt<cutlass::gemm::GemmShape<32, 64, 8>, cutlass::gemm::thread::Mma<cutlass::gemm::GemmShape<8, 8, 1>, float, cutlass::layout::ColumnMajor, float, cutlass::layout::RowMajor, float, cutlass::layout::RowMajor, cutlass::arch::OpMultiplyAdd, bool>, float, cutlass::layout::RowMajor, cutlass::gemm::warp::MmaSimtPolicy<cutlass::MatrixShape<4, 8>, cutlass::layout::RowMajorInterleaved<2>, cutlass::gemm::GemmShape<4, 4, 1> > >, cutlass::epilogue::threadblock::SharedLoadIterator<cutlass::epilogue::threadblock::OutputTileOptimalThreadMap<cutlass::epilogue::threadblock::OutputTileShape<128, 1, 4, 4, 1>, cutlass::epilogue::threadblock::OutputTileShape<1, 4, 2, 1, 8>, 256, 1, 32>::CompactedThreadMap, float, 4>, cutlass::epilogue::thread::LinearCombination<float, 1, float, float, (cutlass::epilogue::thread::ScaleType::Kind)0, (cutlass::FloatRoundStyle)2, float>, cutlass::MatrixShape<0, 17>, 1, 1>, cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle<1>, false>::SharedStorage &);
}

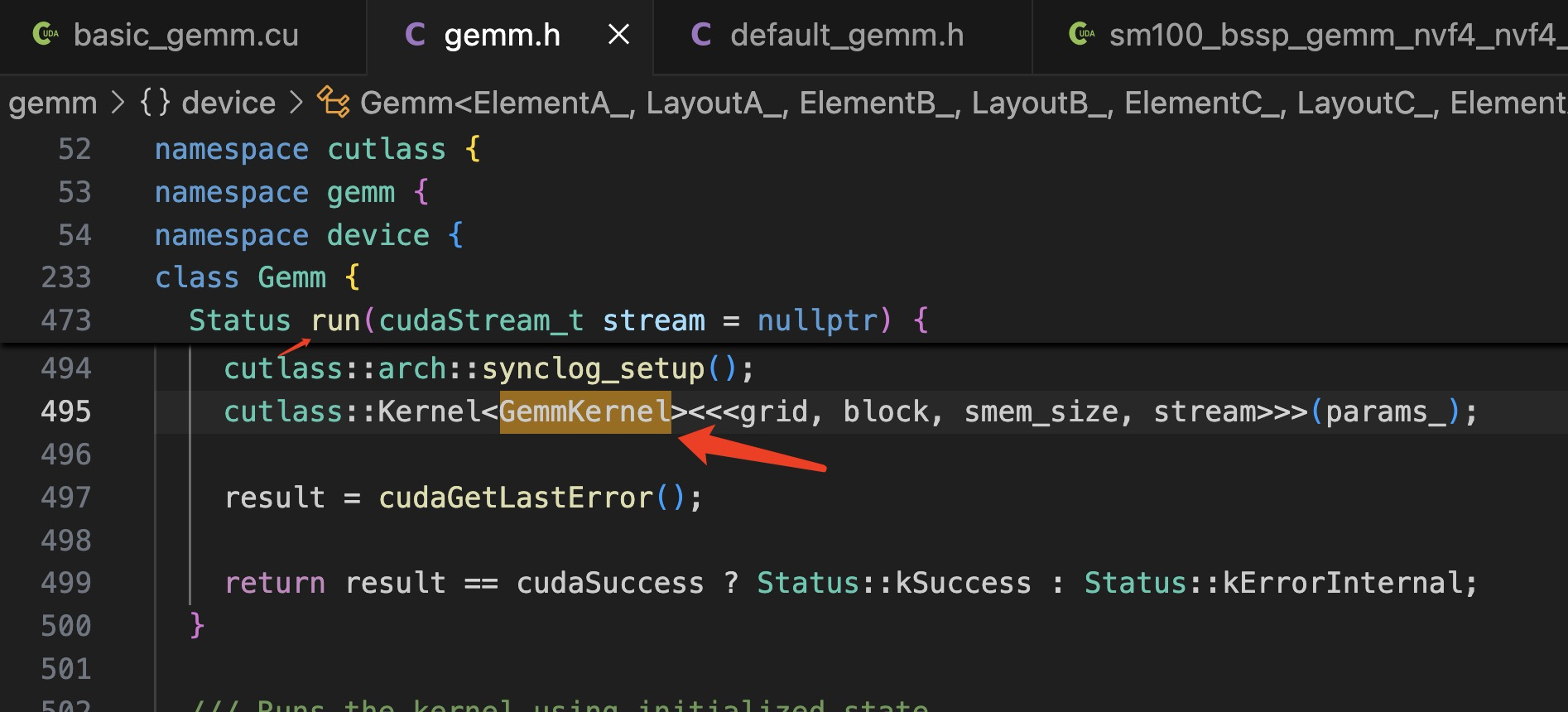

cuda kernel 启动的地方：

cutlass::Kernel<GemmKernel><<<grid, block, smem_size, stream>>>(params_);

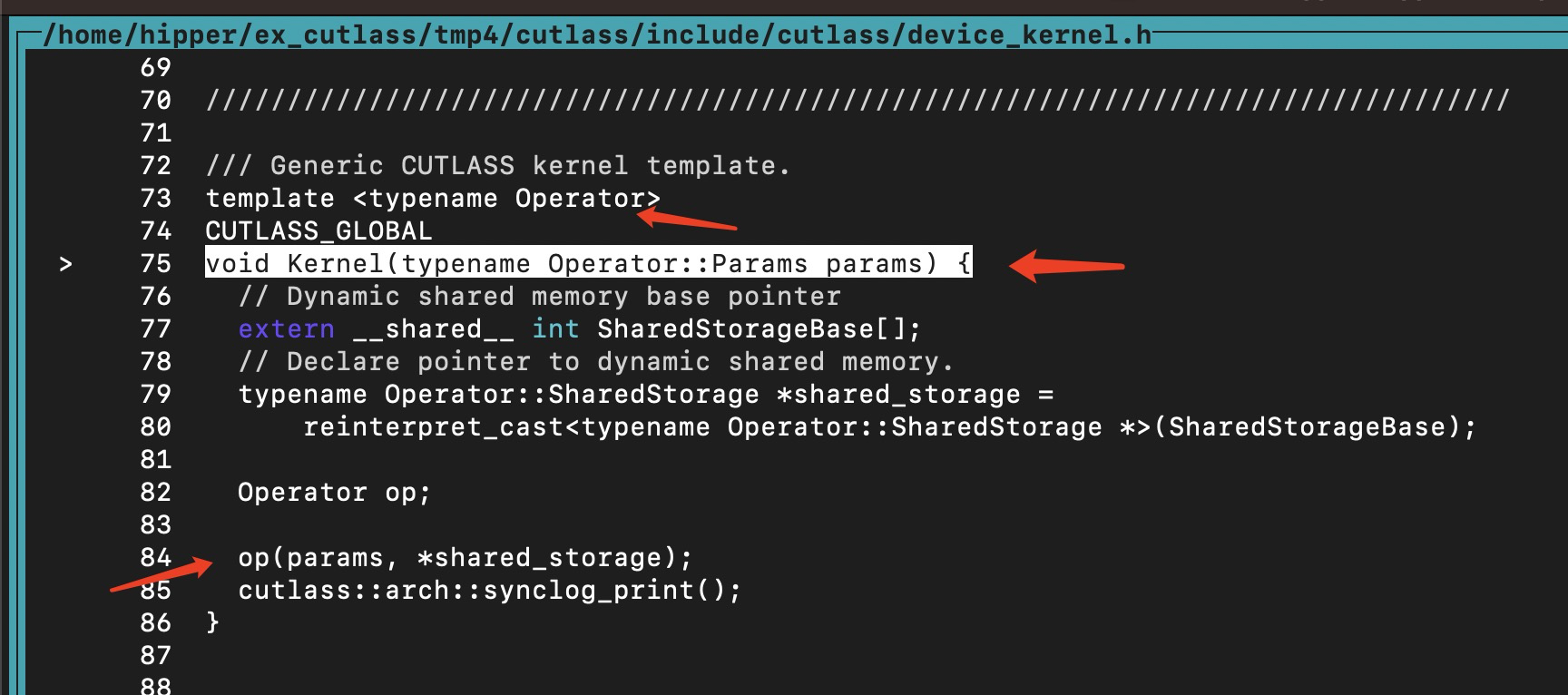

具体代码出现如下图：

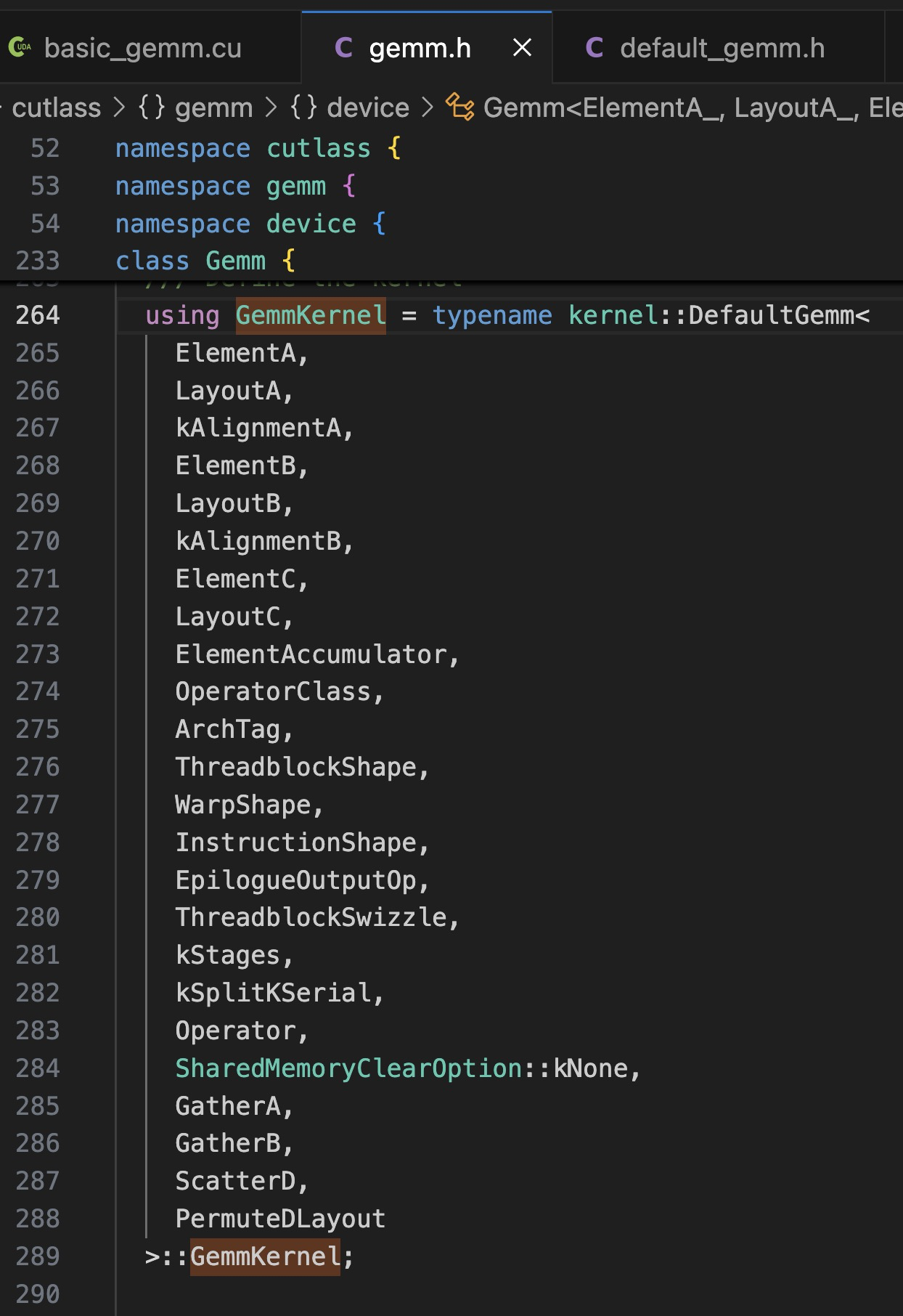

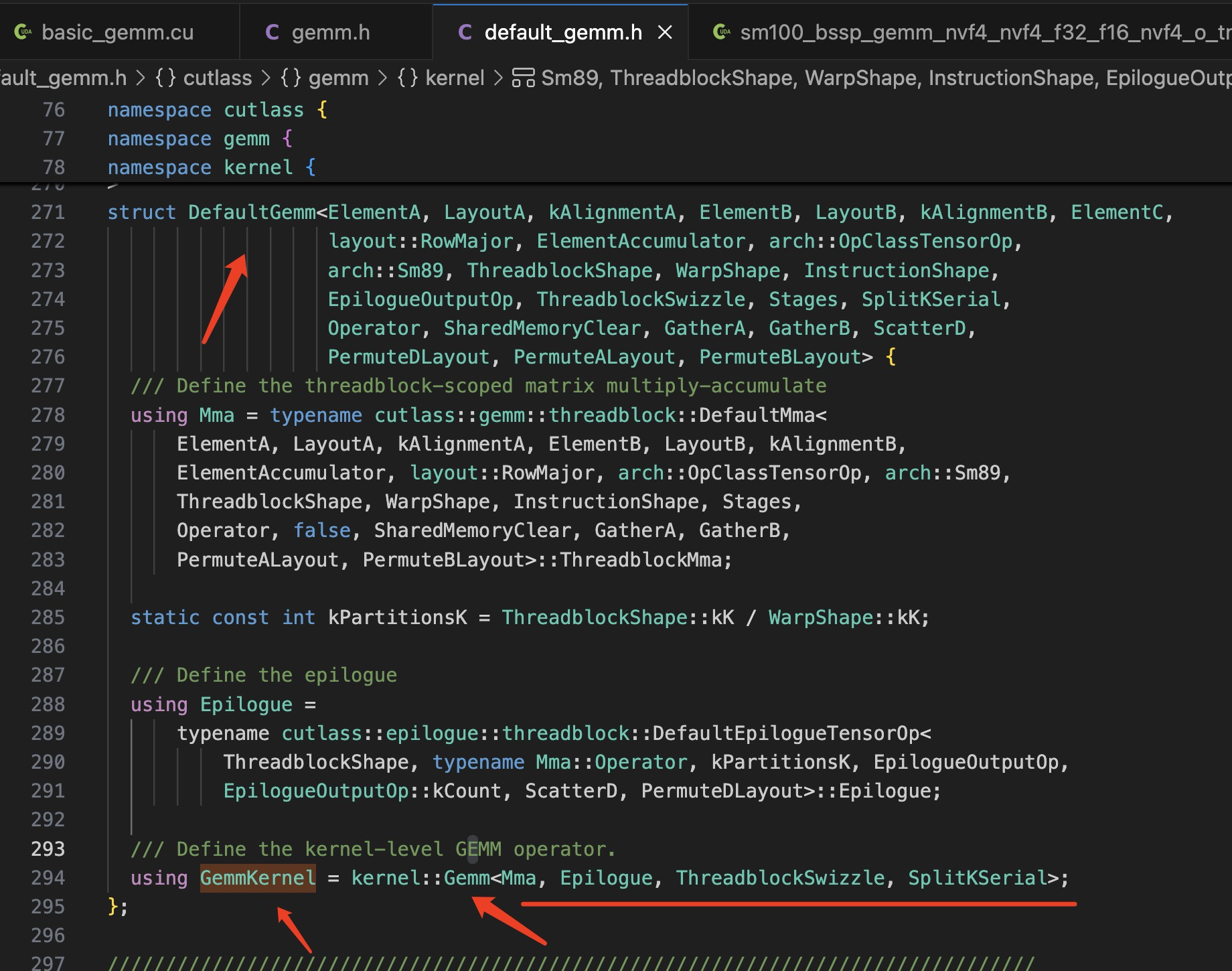

而模版参数 GemmKernel 的定义出现在：

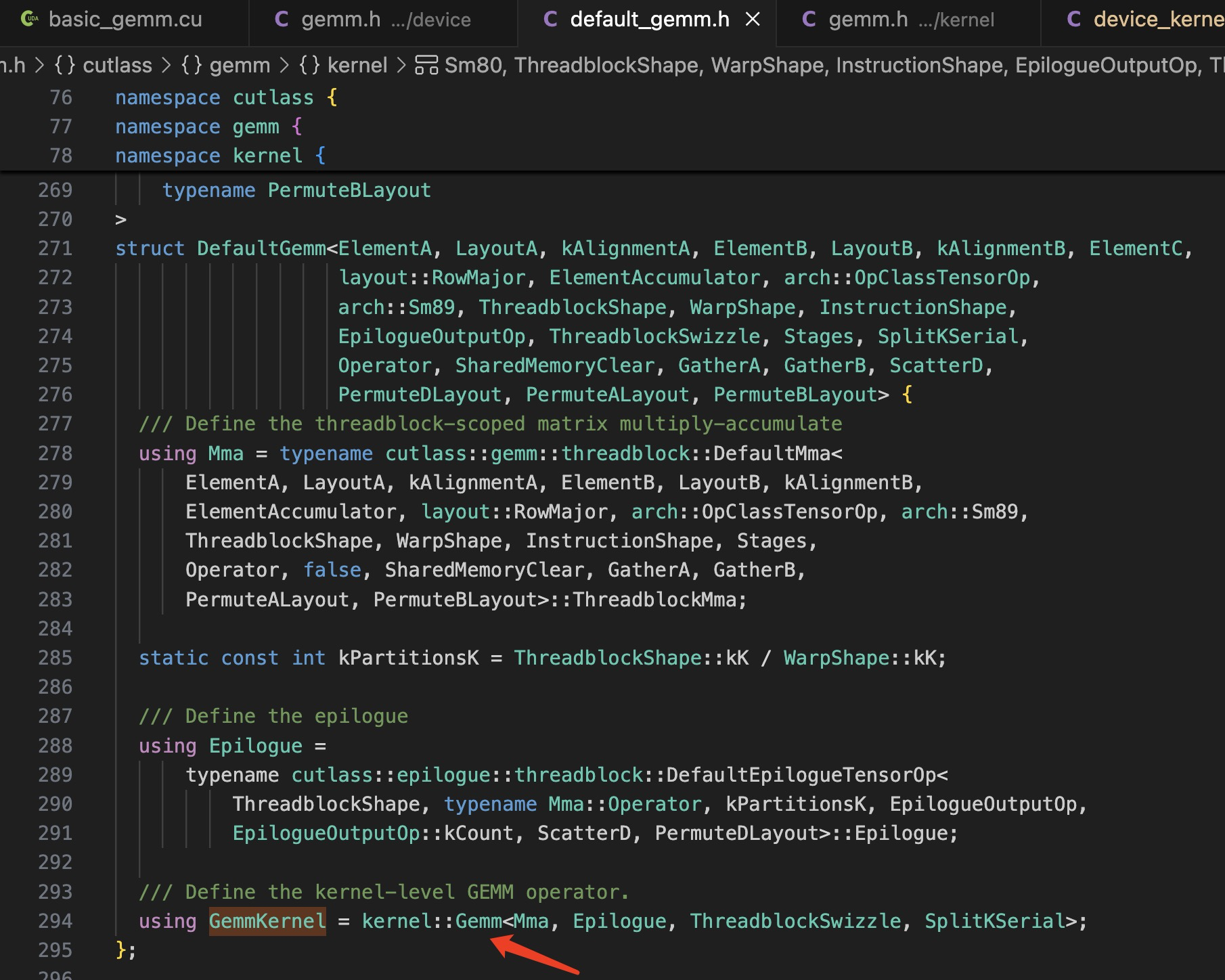

于是，定义走到了 kernel::DefaultGemm< ... >

关键信息：

using GemmKernel = kernel::Gemm<Mma, Epilogue, ThreadblockSwizzle, SplitKSerial>;

这里了的四个模版参数，对应之前 ptype 的输出信息：

struct cutlass::gemm::kernel::Gemm

< cutlass::gemm::threadblock::MmaPipelined< ... >,

cutlass::epilogue::threadblock::Epilogue< ... >,

cutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle< 1 >,

false >

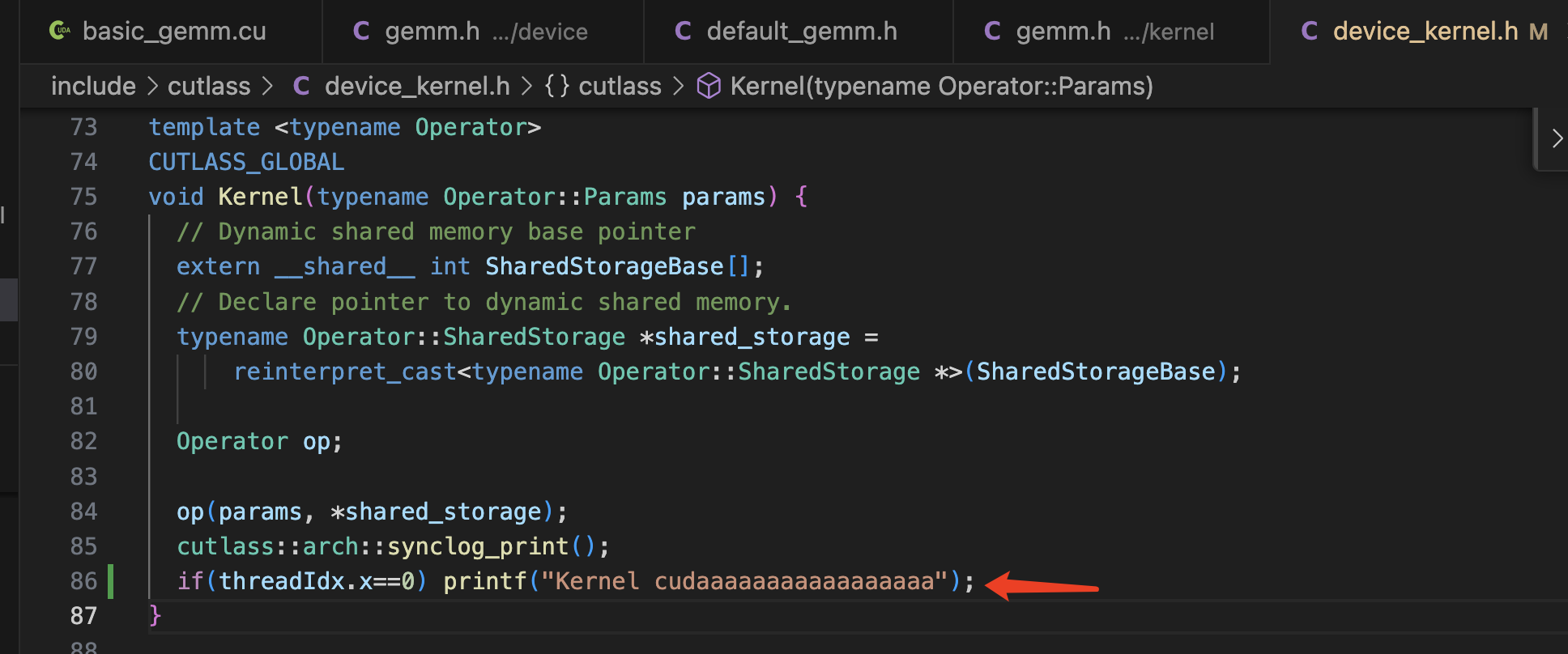

初步验证一下，加入一行打印：

在 build/ 文件夹下重新 make -j18

然后重新执行 ./

$ ./00_basic_gemm

可以看到 printf 从gpu 中执行输出：

真正执行 Gemm 的 cuda kernel 是哪一个呢？

跟踪 Gemm in using GemmKernel = kernel::Gemm<Mma, Epilogue, ThreadblockSwizzle, SplitKSerial>;

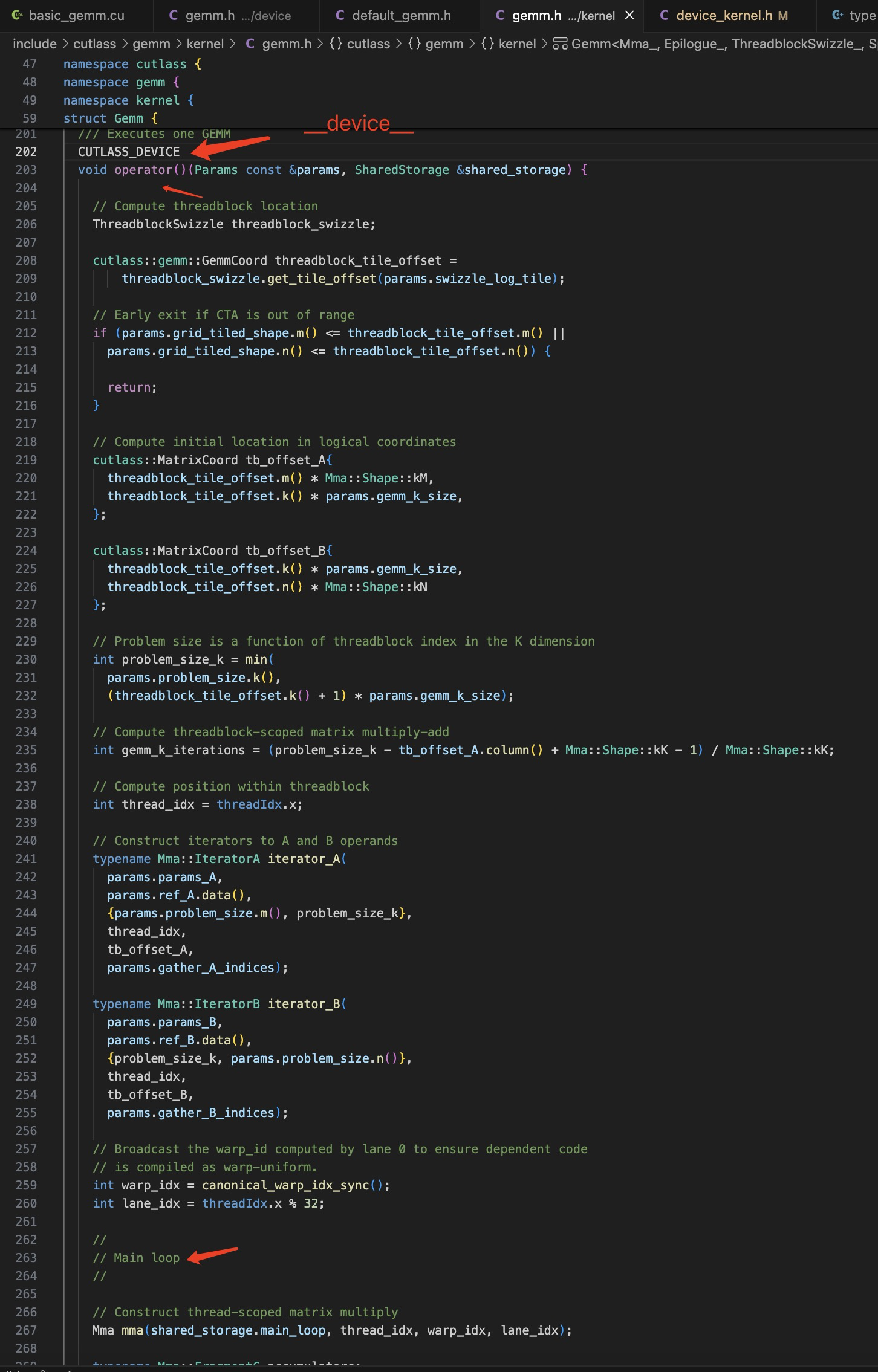

可以找到 gemm.h 文件中的 struct Gemm:: Operator() 的定义，这个定义便是 gemm cuda kernel 的主体：

        gemm kernel 写的多了，自然就知道哪些部分是主体框架，哪些部分是个性化的可以修改的代码区，于是就可以做成 template。

3.2. 示例 2：自定义内核配置（中级）

        如果你想改变默认的平铺大小（Tile Size）或使用不同的数据流，你需要自定义内核配置。

#include <cutlass/gemm/device/gemm_universal.h>
#include <cutlass/gemm/threadblock/threadblock_swizzle.h>// 自定义配置
using ElementA = cutlass::half_t;
using LayoutA = cutlass::layout::RowMajor;
using ElementB = cutlass::half_t;
using LayoutB = cutlass::layout::ColumnMajor; // 尝试不同的布局
using ElementC = float; // 累加器使用更高的精度
using LayoutC = cutlass::layout::RowMajor;// 1. 定义线程块和Warp的平铺形状
using ThreadblockShape = cutlass::gemm::GemmShape<128, 128, 32>; // Threadblock tile M, N, K
using WarpShape = cutlass::gemm::GemmShape<64, 64, 32>;          // Warp tile M, N, K// 2. 定义指令形状 (对于 Tensor Core)
using InstructionShape = cutlass::gemm::GemmShape<16, 8, 8>;     // MMA instruction shape// 3. 使用自定义配置定义Gemm内核
using GemmKernel = typename cutlass::gemm::kernel::DefaultGemmUniversal<ElementA, LayoutA, cutlass::ComplexTransform::kNone, 8, // AlignmentElementB, LayoutB, cutlass::ComplexTransform::kNone, 8,ElementC, LayoutC,ElementC, // ElementAccumulatorcutlass::arch::OpClassTensorOp, // 使用 Tensor Corecutlass::arch::Sm80,            // 目标架构 Ampere (SM80)ThreadblockShape, WarpShape, InstructionShape,cutlass::epilogue::thread::LinearCombination<ElementC, 1, ElementC, ElementC>, // Epiloguecutlass::gemm::threadblock::GemmIdentityThreadblockSwizzle<>, // Swizzling 函数3 // Stages (用于共享内存双缓冲)
>::GemmKernel;// 4. 定义设备级的 Gemm 操作
using GemmOp = cutlass::gemm::device::GemmUniversalAdapter<GemmKernel>;int main() {// ... (内存分配和初始化与示例1类似) ...GemmOp gemm_op;typename GemmOp::Arguments args({M, N, K},  // Problem size{d_A, K},   // Tensor A{d_B, K},   // Tensor B (列优先，ldb=K){d_C, N},   // Tensor C{d_D, N},   // Tensor D{alpha, beta} // Epilogue parameters);// 初始化 Gemm 操作 (分配共享内存等工作空间)cutlass::Status status = gemm_op.initialize(args);if (status != cutlass::Status::kSuccess) {// ... error handling ...}// 启动内核status = gemm_op.run();if (status != cutlass::Status::kSuccess) {// ... error handling ...}// ... (后续步骤与示例1相同) ...
}

3.3. 示例 3：实现融合操作（高级）

        CUTLASS 的强大之处在于其 Epilogue 可以自定义。你可以在 GEMM 计算结束后，在将数据写回全局内存之前，执行额外的逐元素操作（如激活函数、偏差相加等）。

#include <cutlass/gemm/device/gemm.h>
#include <cutlass/epilogue/thread/linear_combination_relu.h> // 带 ReLU 的 Epilogueusing ElementCompute = float;
using ElementOutput = cutlass::half_t;// 定义一个使用 ReLU 作为激活函数的 Epilogue
using EpilogueOp = cutlass::epilogue::thread::LinearCombinationRelu<ElementOutput,        // Output data type128 / cutlass::sizeof_bits<ElementOutput>::value, // AlignmentElementCompute,       // Accumulator data typeElementCompute        // Epilogue computation data type
>;// 将自定义的 Epilogue 应用到 Gemm 定义中
using Gemm = cutlass::gemm::device::Gemm<cutlass::half_t, cutlass::layout::RowMajor,cutlass::half_t, cutlass::layout::RowMajor,ElementOutput, cutlass::layout::RowMajor,ElementCompute,cutlass::arch::OpClassTensorOp,cutlass::arch::Sm80,cutlass::gemm::GemmShape<256, 128, 32>,cutlass::gemm::GemmShape<64, 64, 32>,cutlass::gemm::GemmShape<16, 8, 8>,EpilogueOp // 使用自定义的 Epilogue 替代默认的
>;int main() {// ... (内存分配和初始化) ...// 注意：EpilogueOp 需要 alpha 和 beta 参数float alpha = 1.0f;float beta = 0.0f;Gemm gemm_op;// 执行 GEMM + ReLU: D = ReLU(alpha * A * B + beta * C)auto status = gemm_op({{M, N, K},{d_A, K},{d_B, N},{d_C, N},{d_D, N},{alpha, beta} // 这些参数会被传递给 EpilogueOp});// ... (后续步骤) ...
}

        在这个例子中，GEMM 的核心计算完成后，结果不会直接写回，而是会先经过一个 LinearCombinationRelu 操作（即 result = max(0, alpha * accumulator + beta * source)），然后再存放到 D 中。这个过程完全在芯片上的寄存器中进行，避免了额外的内核启动和全局内存读写，极大地提升了性能。

总结

特性/示例示例 1 (基础)示例 2 (中级)示例 3 (高级)
核心APIdevice::Gemmkernel::DefaultGemmUniversalepilogue::thread::LinearCombinationRelu
自定义程度低（使用默认配置）中（自定义平铺大小、数据流）高（自定义计算后的操作）
优点简单易用，类似 cuBLAS可针对特定问题尺寸优化实现算子融合，极致性能
适用场景快速原型、标准 GEMM需要特定性能调优实现自定义激活函数的混合层

        CUTLASS 是一个极其强大的工具，但它也有较高的学习曲线。对于大多数应用，从高级 API（示例1）开始是明智的选择。当你需要极致性能或特殊功能时，再逐步深入其底层配置（示例2和3）。官方文档和代码库（GitHub - NVIDIA/cutlass）提供了大量丰富的示例，是学习的最佳资源。
