苍穹外卖DAY11

Echarts本质

不管是哪种形式的图形，最本质的东西实际上是数据，它其实是对数据的一种可视化展示。使用Echarts，重点在于研究当前图表所需的数据格式。通常是需要后端提供符合格式要求的动态数据，然后响应给前端来展示图表。

具体返回数据一般由前端来决定，前端展示图表，具体折现图对应数据是什么格式，是有固定的要求的。 所以说，后端需要去适应前端，它需要什么格式的数据，我们就给它返回什么格式的数据。

营业额统计

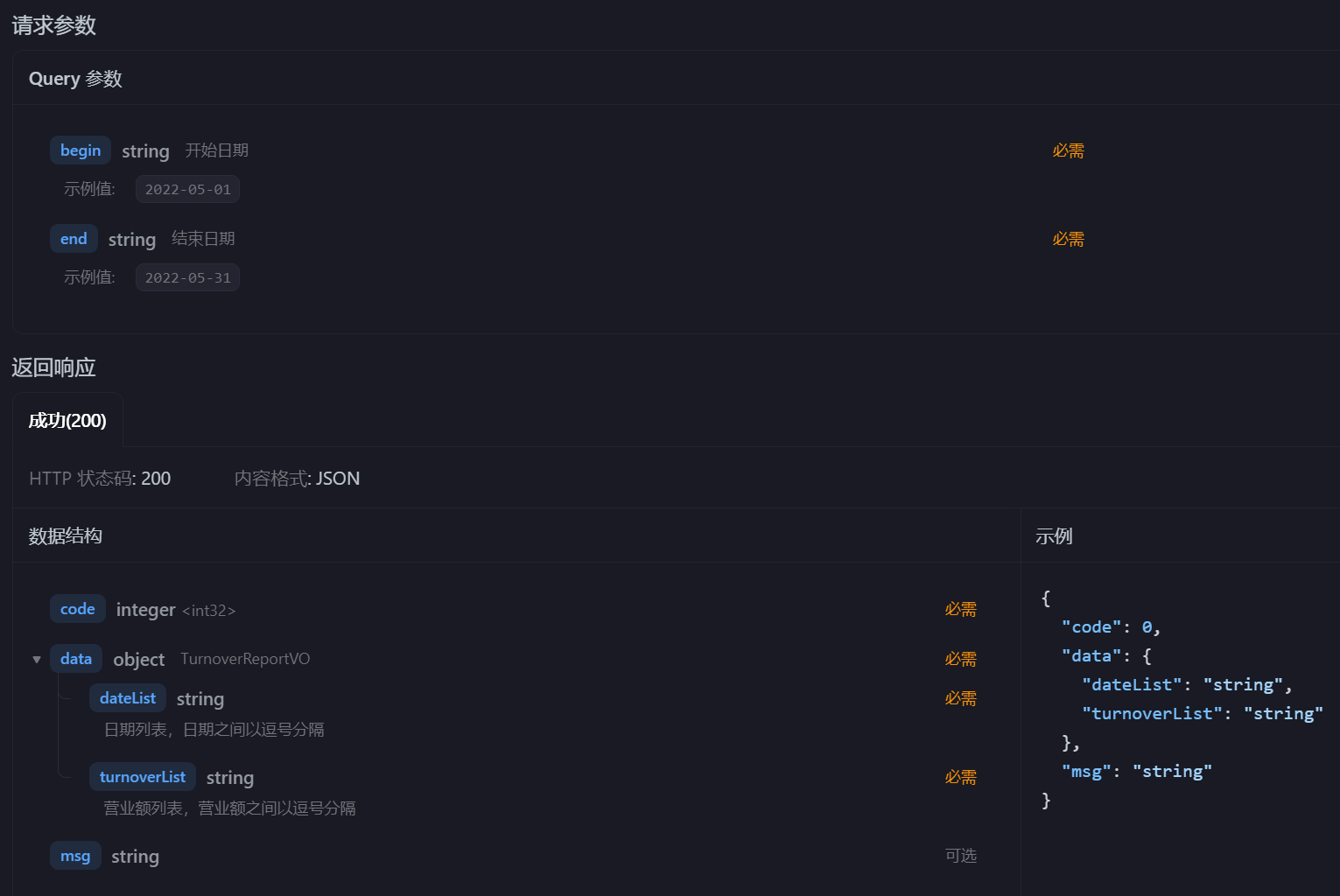

根据接口设计VO，VO略。

// controller@GetMapping("/turnoverStatistics")@ApiOperation("营业额销售统计")public Result<TurnoverReportVO> turnoverStatistics(@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate begin,@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate end) {return Result.success(reportService.getTurnover(begin, end));}// service
TurnoverReportVO getTurnover(LocalDate beginTime, LocalDate endTime);// impl
public TurnoverReportVO getTurnover(LocalDate begin, LocalDate end) {// 当前集合用于存放从begin到end范围内的每天的日期List<LocalDate> dateList = new ArrayList<>();dateList.add(begin);while (!begin.equals(end)) {// 日期计算，获得指定日期后1天的日期begin = begin.plusDays(1);dateList.add(begin);}// 存放每天的营业额List<Double> turnoverList = new ArrayList<>();// 将集合中每个元素取出for (LocalDate date : dateList) {// 获取具体时刻（LocalDate 与 LocalDateTime 表示不同）LocalDateTime beginTime = LocalDateTime.of(date, LocalTime.MIN);LocalDateTime endTime = LocalDateTime.of(date, LocalTime.MAX);Map map = new HashMap();map.put("status", Orders.COMPLETED); // 状态：已完成map.put("begin", beginTime);map.put("end", endTime);Double turnover = orderMapper.sumByMap(map);turnover = turnover == null ? 0.0 :turnover; // turnover 如果为空就显示 0.0 不为空就显示自己turnoverList.add(turnover);}// 将集合元素取出进行数据封装return TurnoverReportVO.builder().dateList(StringUtils.join(dateList,",")) // 注意这里需要使用的是 Apache Commons Lang 的 StringUtils.join.turnoverList(StringUtils.join(turnoverList,",")).build();}// mapper
Double sumByMap(Map map);// xml
<select id="sumByMap" resultType="java.lang.Double">select sum(amount) from orders<where><if test = "status != null">and status = #{status}</if><if test = "begin != null">and order_time &gt;= #{begin} <!-- 大于符号的转义字符 --></if><if test = "end != null">and order_time &lt;= #{end} <!-- 小于符号的转义字符 --></if></where></select>

用户统计

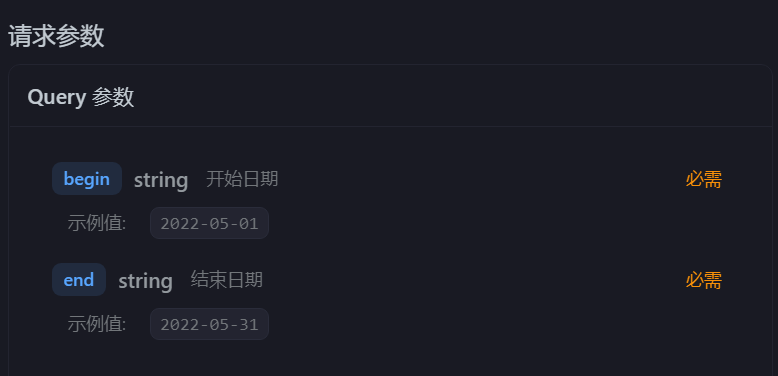

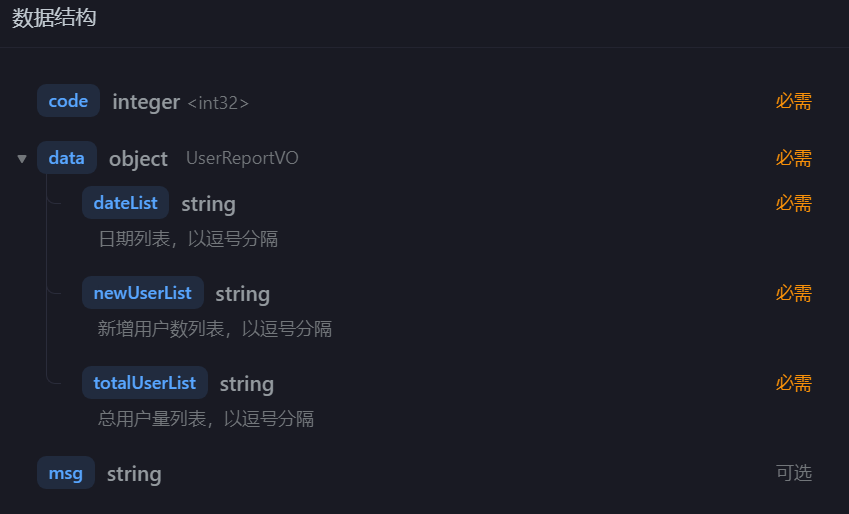

根据接口设计VO，VO略。

// controller@GetMapping("/userStatistics")@ApiOperation("用户数据统计")public Result<UserReportVO> userStatistics(@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate begin,@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate end) {return Result.success(reportService.getUserStatistics(begin, end));}// service
UserReportVO getUserStatistics(LocalDate begin, LocalDate end);// impl
/*** 根据时间区间统计用户数量* @param begin* @param end* @return*/@Overridepublic UserReportVO getUserStatistics(LocalDate begin, LocalDate end) {List<LocalDate> dateList = new ArrayList<>();dateList.add(begin);while (!begin.equals(end)) {begin = begin.plusDays(1);dateList.add(begin);}List<Integer> newUserList = new ArrayList<>(); // 新增用户数List<Integer> totalUserList = new ArrayList<>(); // 总用户数for (LocalDate date : dateList) {LocalDateTime beginTime = LocalDateTime.of(date, LocalTime.MIN);LocalDateTime endTime = LocalDateTime.of(date, LocalTime.MAX);// 新增用户数量 select count(id) from user where create_time > ? and create_time < ?Integer newUser = getUserCount(beginTime, endTime);// 总用户数量 select count(id) from user where create_time < ?Integer totalUser = getUserCount(null, endTime);newUserList.add(newUser);totalUserList.add(totalUser);}return UserReportVO.builder().dateList(StringUtils.join(dateList, ",")).newUserList(StringUtils.join(newUserList, ",")).totalUserList(StringUtils.join(totalUserList, ",")).build();}/*** 根据时间区间统计用户数量* @param beginTime* @param endTime* @return*/private Integer getUserCount(LocalDateTime beginTime, LocalDateTime endTime) {Map map = new HashMap();map.put("begin", beginTime);map.put("end", endTime);return userMapper.countByMap(map);}// mapper
Integer countByMap(Map map);// xml<select id="countByMap" resultType="java.lang.Integer">select count(id) from user<where><if test="begin != null">and create_time &gt;= #{begin}</if><if test="end != null">and create_time &lt;= #{end}</if></where></select>

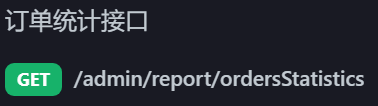

订单统计

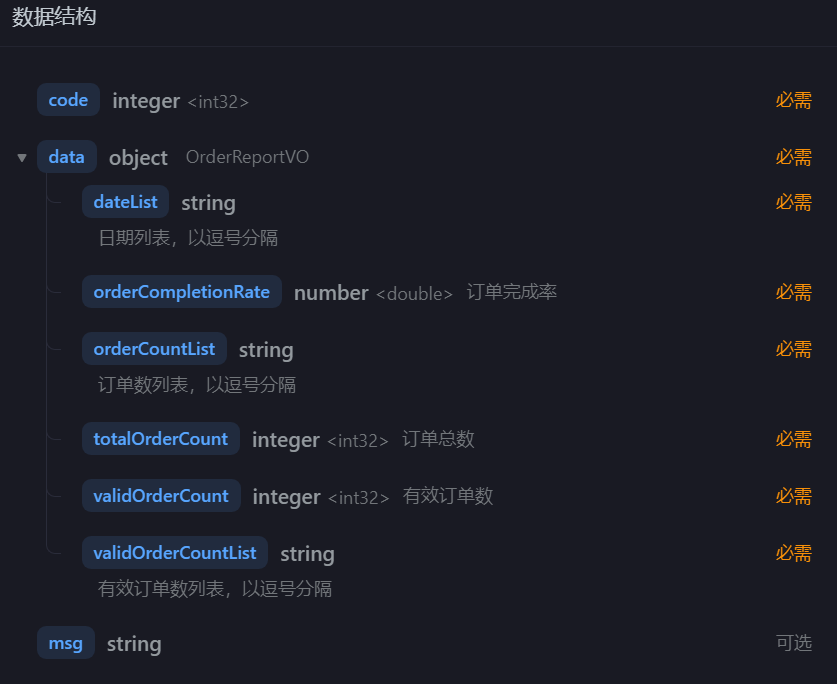

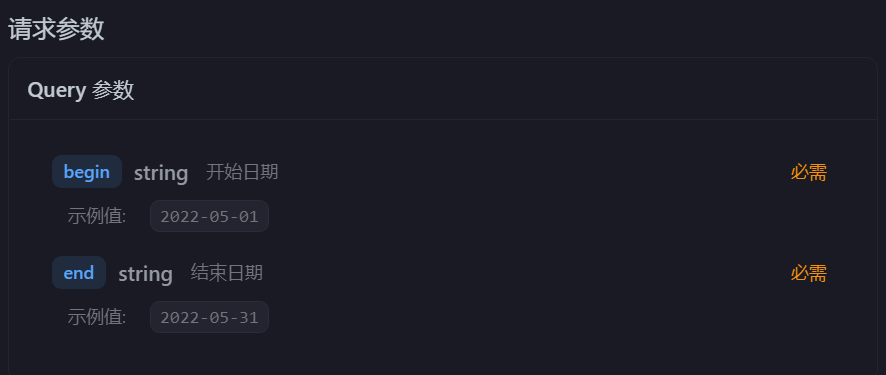

根据接口设计VO，VO略。

    // controller@GetMapping("/ordersStatistics")@ApiOperation("订单数据统计")public Result<OrderReportVO> orderStatistics(@DateTimeFormat(pattern = "yyyy-MM-dd")LocalDate begin,@DateTimeFormat(pattern = "yyyy-MM-dd")LocalDate end){return Result.success(reportService.getOrderStatistics(begin,end));}// service
OrderReportVO getOrderStatistics(LocalDate begin, LocalDate end);// impl
public OrderReportVO getOrderStatistics(LocalDate begin, LocalDate end) {List<LocalDate> dateList = new ArrayList<>();dateList.add(begin);while(!begin.equals(end)) {begin = begin.plusDays(1);dateList.add(begin);}// 每天订单总数集合List<Integer> orderCountList = new ArrayList<>();// 每天有效订单数集合List<Integer> validOrderCountList = new ArrayList<>();for (LocalDate date : dateList) {LocalDateTime beginTime = LocalDateTime.of(date, LocalTime.MIN);LocalDateTime endTime = LocalDateTime.of(date, LocalTime.MAX);// 查询每天的总订单数 select count(id) from orders where order_time > ? and order_time < ?Integer orderCount = getOrderCount(beginTime, endTime, null);// 查询每天的有效订单数 select count(id) from orders where order_time > ? and order_time < ? and status = ?Integer validOrderCount = getOrderCount(beginTime, endTime, Orders.COMPLETED);orderCountList.add(orderCount);validOrderCountList.add(validOrderCount);}// 时间区间内的总订单数Integer totalOrderCount = orderCountList.stream().reduce(Integer::sum).get(); // 使用stream流，然后将集合里的元素遍历求和// 时间区间内的总有效订单数Integer validOrderCount = validOrderCountList.stream().reduce(Integer::sum).get();// 订单完成率Double orderCompletionRate = 0.0;if(totalOrderCount != 0) {orderCompletionRate = validOrderCount.doubleValue() / totalOrderCount;}return OrderReportVO.builder().dateList(StringUtils.join(orderCountList,",")).orderCountList(StringUtils.join(orderCountList,",")).validOrderCountList(StringUtils.join(validOrderCountList, ",")).totalOrderCount(totalOrderCount).validOrderCount(validOrderCount).orderCompletionRate(orderCompletionRate).build();}/*** 根据时间区间统计指定状态的订单数量*/private Integer getOrderCount(LocalDateTime beginTime, LocalDateTime endTime, Integer status) {Map map = new HashMap();map.put("status", status);map.put("begin",beginTime);map.put("end", endTime);return orderMapper.countByMap(map);}// mapper
Integer countByMap(Map map);// xml
<select id="countByMap" resultType="java.lang.Integer">select count(id) from orders<where><if test="status != null">and status = #{status}</if><if test="begin != null">and order_time &gt;= #{begin}</if><if test="end != null">and order_time &lt;= #{end}</if></where></select>

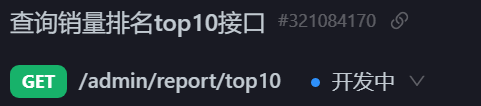

销量排名Top10

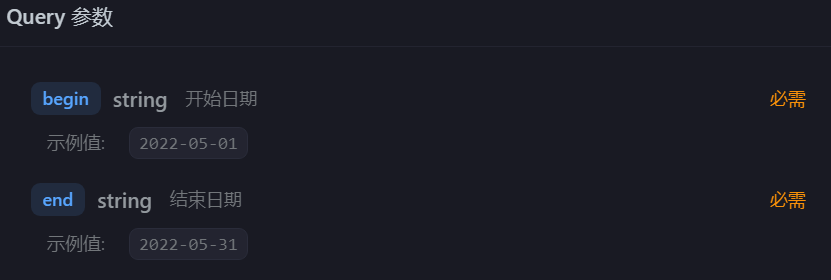

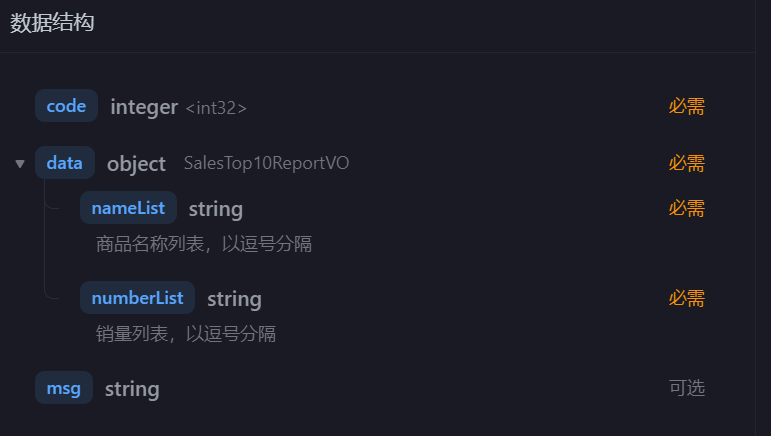

根据接口设计VO，VO略。

// controller
@GetMapping("/top10")@ApiOperation("销量排名统计")public Result<SalesTop10ReportVO> top10(@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate begin,@DateTimeFormat(pattern = "yyyy-MM-dd") LocalDate end){return Result.success(reportService.getSalesTop10(begin,end));}// service
SalesTop10ReportVO getSalesTop10(LocalDate begin, LocalDate end);// implpublic SalesTop10ReportVO getSalesTop10(LocalDate begin, LocalDate end) {LocalDateTime beginTime = LocalDateTime.of(begin, LocalTime.MIN);LocalDateTime endTime = LocalDateTime.of(end, LocalTime.MAX);List<GoodsSalesDTO> goodsSalesDTOList = orderMapper.getSalesTop10(beginTime, endTime);// 商品名称列表，以逗号分隔String nameList = StringUtils.join(goodsSalesDTOList.stream().map(GoodsSalesDTO::getName).collect(Collectors.toList()),",");// 销量列表，以逗号分隔String numberList = StringUtils.join(goodsSalesDTOList.stream().map(GoodsSalesDTO::getNumber).collect(Collectors.toList()),",");return SalesTop10ReportVO.builder().nameList(nameList).numberList(numberList).build();}// mapper
List<GoodsSalesDTO> getSalesTop10(LocalDateTime beginTime, LocalDateTime endTime);// xml
<!--SELECT od.name AS name, SUM(od.number) AS numberFROM order_detail odJOIN orders o ON od.order_id = o.idWHERE o.status = 5AND o.order_time >= '2024-07-01'AND o.order_time <= '2025-07-01'GROUP BY od.nameORDER BY number DESCLIMIT 0, 10;--><select id="getSalesTop10" resultType="com.sky.dto.GoodsSalesDTO">select od.name name,sum(od.number) number from order_detail od ,orders owhere od.order_id = o.idand o.status = 5<if test="begin != null">and order_time &gt;= #{begin}</if><if test="end != null">and order_time &lt;= #{end}</if>group by nameorder by number desclimit 0, 10</select>
