Haproxy代理服务（小白的“升级打怪”成长之路）
目录
一、实现Haproxy代理真实服务器
1、Haproxy服务器配置
2、编写配置网页内容
3、检验结果
二、实现Haproxy + Keepalived的两层架构（代理+双机热备）
1、Haproxy服务器配置
2、Keepalived 服务配置
3、检验结果
一、实现Haproxy代理真实服务器
通过 192.168.100.100的HAProxy (192.168.100.100) 代理访问 192.168.100.1(192.168.100.2的服务
1、Haproxy服务器配置
####192.168.100.100 ##下载haproxy [root@lvs1 ~]# yum install -y haproxy [root@lvs1 ~]# cd /etc/haproxy/ [root@lvs1 haproxy]# ls conf.d haproxy.cfg ##编写配置文件 [root@lvs1 haproxy]# vim haproxy.cfg global #全局配置log 127.0.0.1 local2chroot /var/lib/haproxypidfile /var/run/haproxy.piduser haproxygroup haproxydaemonmaxconn 4000 defaults #默认配置mode httplog globaloption httplogoption dontlognullretries 3timeout http-request 5stimeout queue 1mtimeout connect 5stimeout client 1mtimeout server 1mtimeout http-keep-alive 5stimeout check 5smaxconn 3000 frontend main #前端（虚拟server）bind *:80default_backend http_back backend http_back （后端真实server）balance roundrobin #轮询server node1 192.168.100.1:80 check #真实服务端server node2 192.168.100.2:80 check listen stats #定义监控页面 mode httpoption httplogbind *:1080 #绑定端口1080 stats refresh 30s #每30秒更新监控数据 stats uri /stats #访问监控页面的uri stats realm HAProxy\ Stats #监控页面的认证提示 stats auth admin:admin #监控页面的用户名和密码 [root@lvs1 haproxy]# systemctl start haproxy.service [root@lvs1 haproxy]# netstat -anptu | grep 80 tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 541243/haproxy tcp 0 0 0.0.0.0:1080 0.0.0.0:* LISTEN 541243/haproxy
2、编写配置网页内容
####192.168.100.1 ##安装nginx [root@web1 ~]# yum install -y nginx [root@web1 ~]# systemctl start nginx [root@web1 ~]# echo web1 > /usr/share/nginx/html/index.html
####192.168.100.2 [root@web2 ~]# yum install -y nginx [root@web2 ~]# systemctl start nginx [root@web2 ~]# echo web2 > /usr/share/nginx/html/index.html
3、检验结果

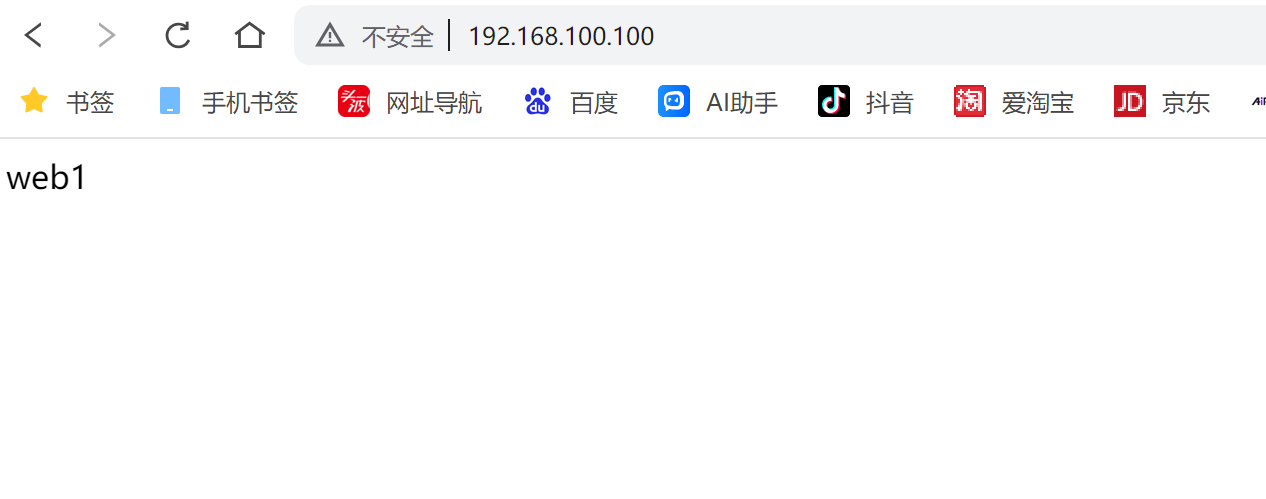

网站访问192.168.100.100，实现轮询

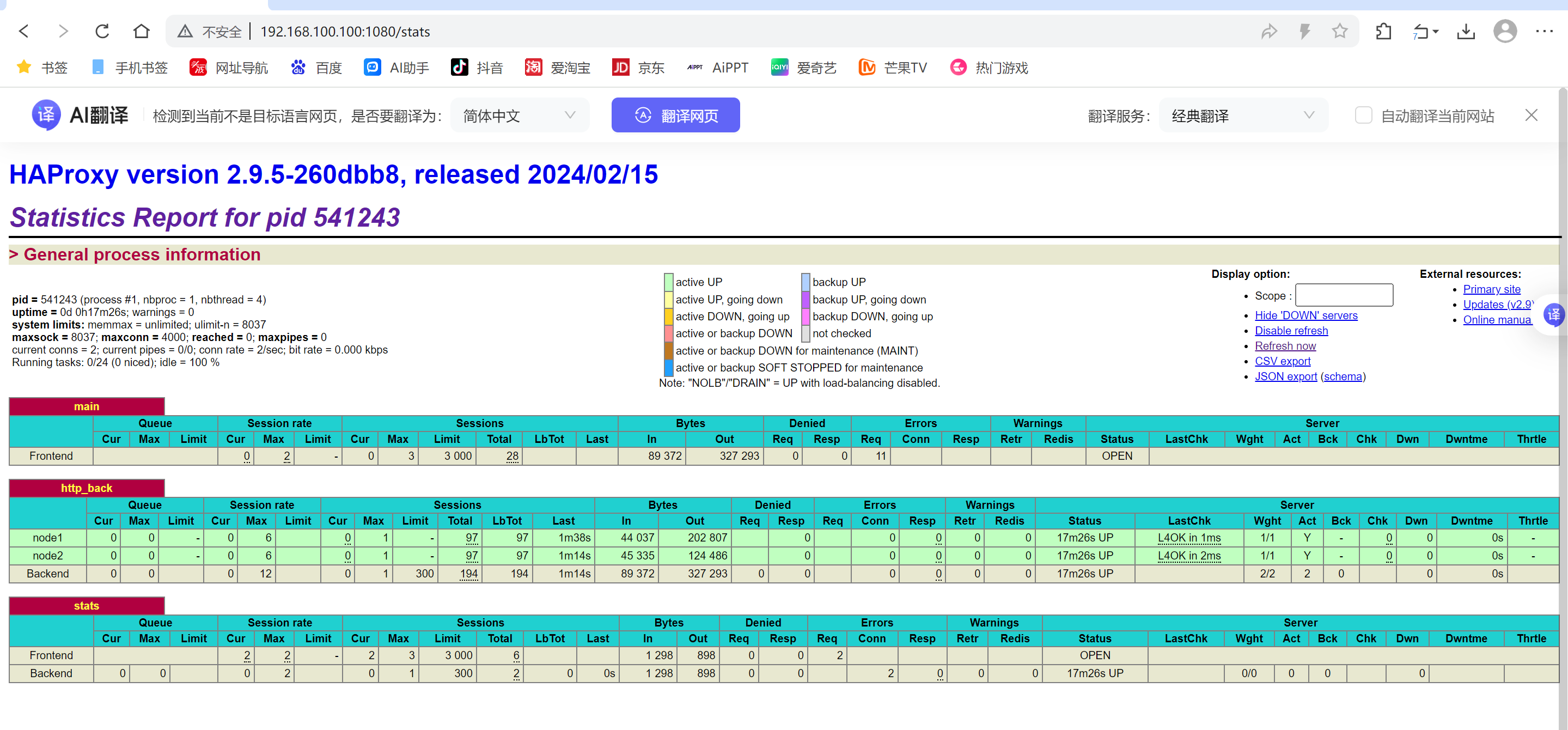

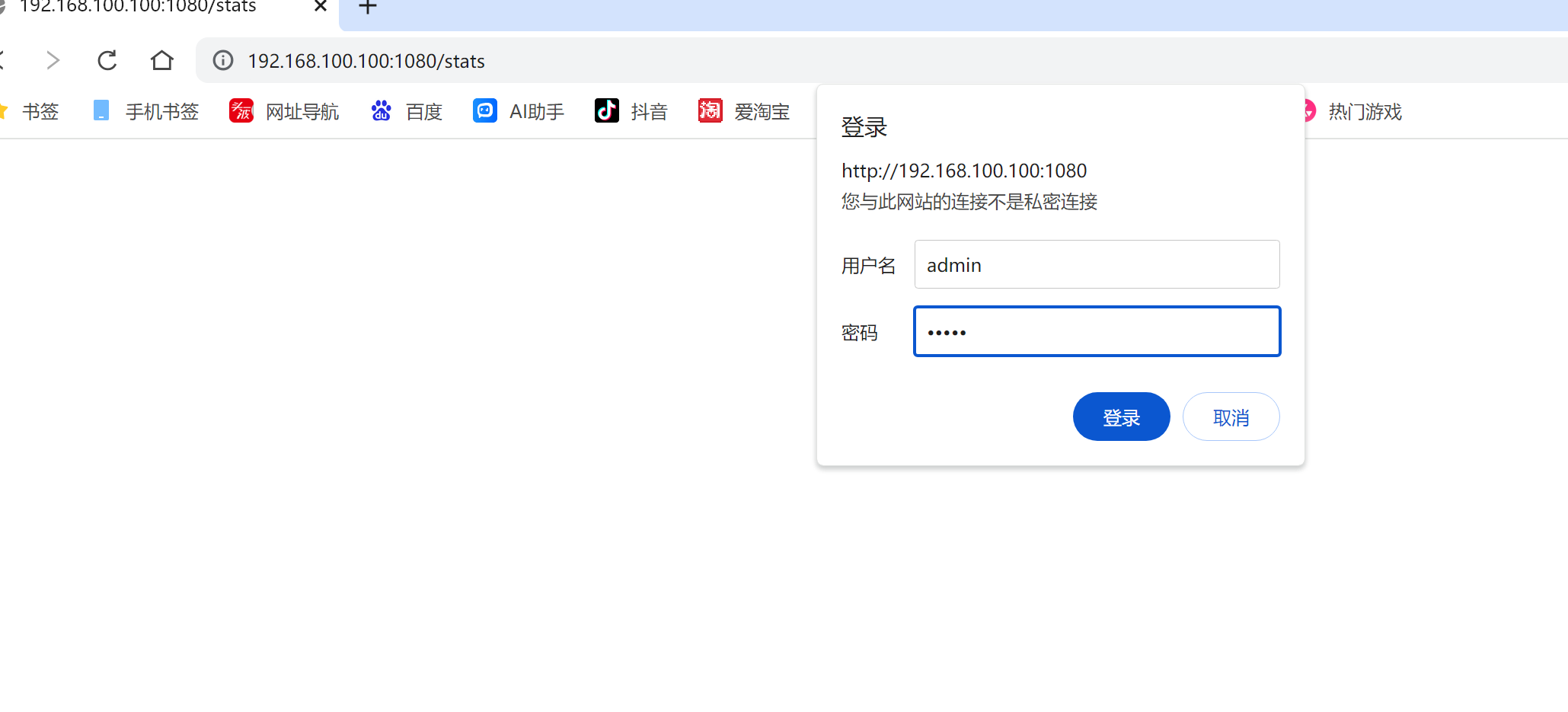

网站访问192.168.100.100;1080/stats，输入配置文件写入的账号密码，可以看到统计状态
二、实现Haproxy + Keepalived的两层架构（代理+双机热备）
设计思路：
通过 192.168.100.100的HAProxy (192.168.100.100) 代理到 192.168.100.1(192.168.100.2)的Keepalived VIP (192.168.100.103)，再由 Keepalived 访问到真实服务器192.168.100.1 (192.168.100.2)，最终实现两层架构
1、Haproxy服务器配置
实现代理功能
####192.168.100.100 ##下载haproxy ##编写配置文件 [root@lvs1 haproxy]# vim haproxy.cfg global #全局配置log 127.0.0.1 local2chroot /var/lib/haproxypidfile /var/run/haproxy.piduser haproxygroup haproxydaemonmaxconn 4000 defaults #默认配置mode httplog globaloption httplogoption dontlognullretries 3timeout http-request 5stimeout queue 1mtimeout connect 5stimeout client 1mtimeout server 1mtimeout http-keep-alive 5stimeout check 5smaxconn 3000 frontend main #前端（虚拟server）bind 192.168.100.100:80default_backend http_back backend http_back （后端真实server）balance roundrobinserver node1 192.168.100.103:80 check #真实服务端 listen stats #定义监控页面 mode httpoption httplogbind 192.168.100.100:1080 #绑定端口1080 stats refresh 30s #每30秒更新监控数据 stats uri /stats #访问监控页面的uri stats realm HAProxy\ Stats #监控页面的认证提示 stats auth admin:admin #监控页面的用户名和密码 [root@lvs1 ~]# systemctl restart haproxy.service
2、Keepalived 服务配置
Keepalived服务器配置双机热备，当一台服务器故障，另外一台提供服务
####192.168.100.1
##安装keepalived服务，并编写配置文件
[root@web1 ~]# yum install -y keepalived
[root@web1 ~]# cd /etc/keepalived/
[root@web1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {router_id web1
}
vrrp_script check_nginx {script /etc/keepalived/check_nginx.sh #检测脚本interval 2 #执行间隔时间
}
vrrp_instance VI_1 {state MASTERinterface ens160virtual_router_id 51priority 100advert_int 3authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.103}
track_script { #在实例中引用脚本 check_nginx}
}
##加入检测脚本是为了保障nginx无故障时可以提供服务，一旦无法故障，同时关掉该服务器的keepalived服务
[root@web1 ~]# systemctl start keepalived.service
[root@web1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host proto kernel_lo valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000link/ether 00:0c:29:66:09:cd brd ff:ff:ff:ff:ff:ffinet 192.168.100.1/24 brd 192.168.100.255 scope global noprefixroute ens160valid_lft forever preferred_lft foreverinet 192.168.100.103/32 scope global ens160valid_lft forever preferred_lft foreverinet6 fe80::20c:29ff:fe66:9cd/64 scope link noprefixroute valid_lft forever preferred_lft forever
7: ens224: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000link/ether 00:0c:29:66:09:d7 brd ff:ff:ff:ff:ff:ffinet 192.168.58.182/24 brd 192.168.58.255 scope global noprefixroute ens224valid_lft forever preferred_lft foreverinet6 fe80::20c:29ff:fe66:9d7/64 scope link noprefixroute
[root@web1 ~]# cd /etc/keepalived/
[root@web1 keepalived]# vim check_nginx.sh
Count1=`netstat -antp |grep -v grep |grep nginx |wc -l`
if [ $Count1 -eq 0 ]; then systemctl restart nginxsleep 2 Count2=`netstat -antp |grep -v grep |grep nginx |wc -l`if [ $Count2 -eq 0 ]; then service keepalived stop else exit 0 fi
else exit 0
fi
[root@web1 keepalived]# chmod +x check_nginx.sh
[root@web1 keepalived]# systemctl restart keepalived.service
####192.168.100.2
[root@web2 ~]# yum install -y keepalived
[root@web2 ~]# cd /etc/keepalived/
[root@web2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {router_id web2
}
vrrp_script check_nginx {script /etc/keepalived/check_nginx.sh #检测脚本interval 2 #执行间隔时间
}
vrrp_instance VI_1 {state BACKUPinterface ens160virtual_router_id 51priority 90advert_int 3authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.103}
track_script { #在实例中引用脚本 check_nginx}
}
[root@web2 ~]# systemctl start keepalived.service
[root@web2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host proto kernel_lo valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000link/ether 00:0c:29:80:88:5d brd ff:ff:ff:ff:ff:ffinet 192.168.100.2/24 brd 192.168.100.255 scope global noprefixroute ens160valid_lft forever preferred_lft foreverinet6 fe80::20c:29ff:fe80:885d/64 scope link noprefixroute valid_lft forever preferred_lft forever
5: ens224: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000link/ether 00:0c:29:80:88:67 brd ff:ff:ff:ff:ff:ffinet 192.168.58.181/24 brd 192.168.58.255 scope global noprefixroute ens224valid_lft forever preferred_lft foreverinet6 fe80::20c:29ff:fe80:8867/64 scope link noprefixroute valid_lft forever preferred_lft forever
[root@web2 ~]# cd /etc/keepalived/
[root@web2 keepalived]# vim check_nginx.sh
Count1=`netstat -antp |grep -v grep |grep nginx |wc -l`
if [ $Count1 -eq 0 ]; then systemctl restart nginxsleep 2 Count2=`netstat -antp |grep -v grep |grep nginx |wc -l`if [ $Count2 -eq 0 ]; then service keepalived stop else exit 0 fi
else exit 0
fi
[root@web2 keepalived]# chmod +x check_nginx.sh
[root@web2 keepalived]# systemctl restart keepalived.service
3、检验结果

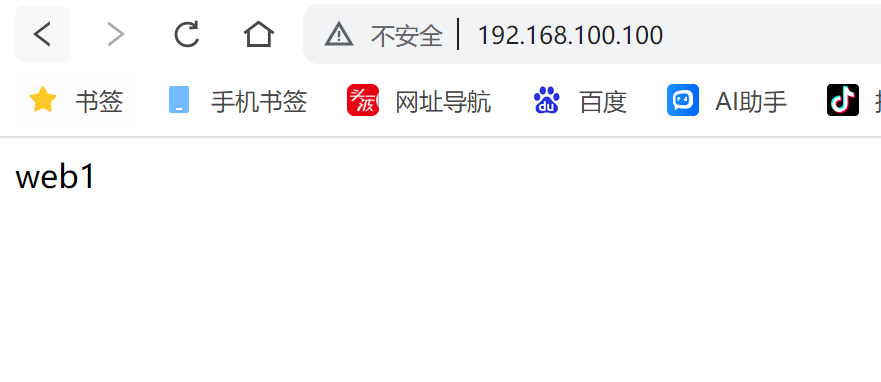

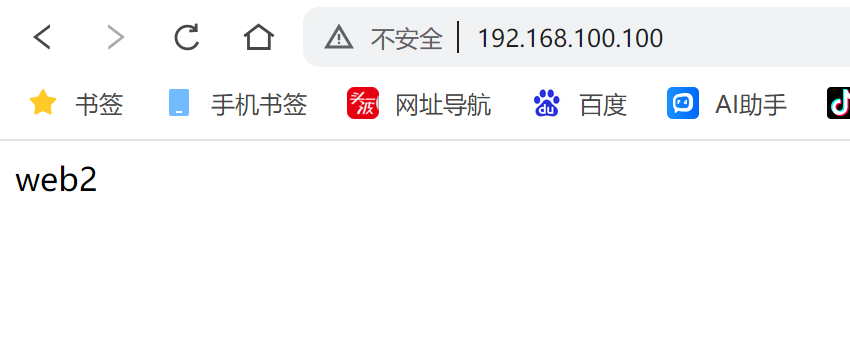

网站访问192.168.100.100和192.168.100.100:1080/stats

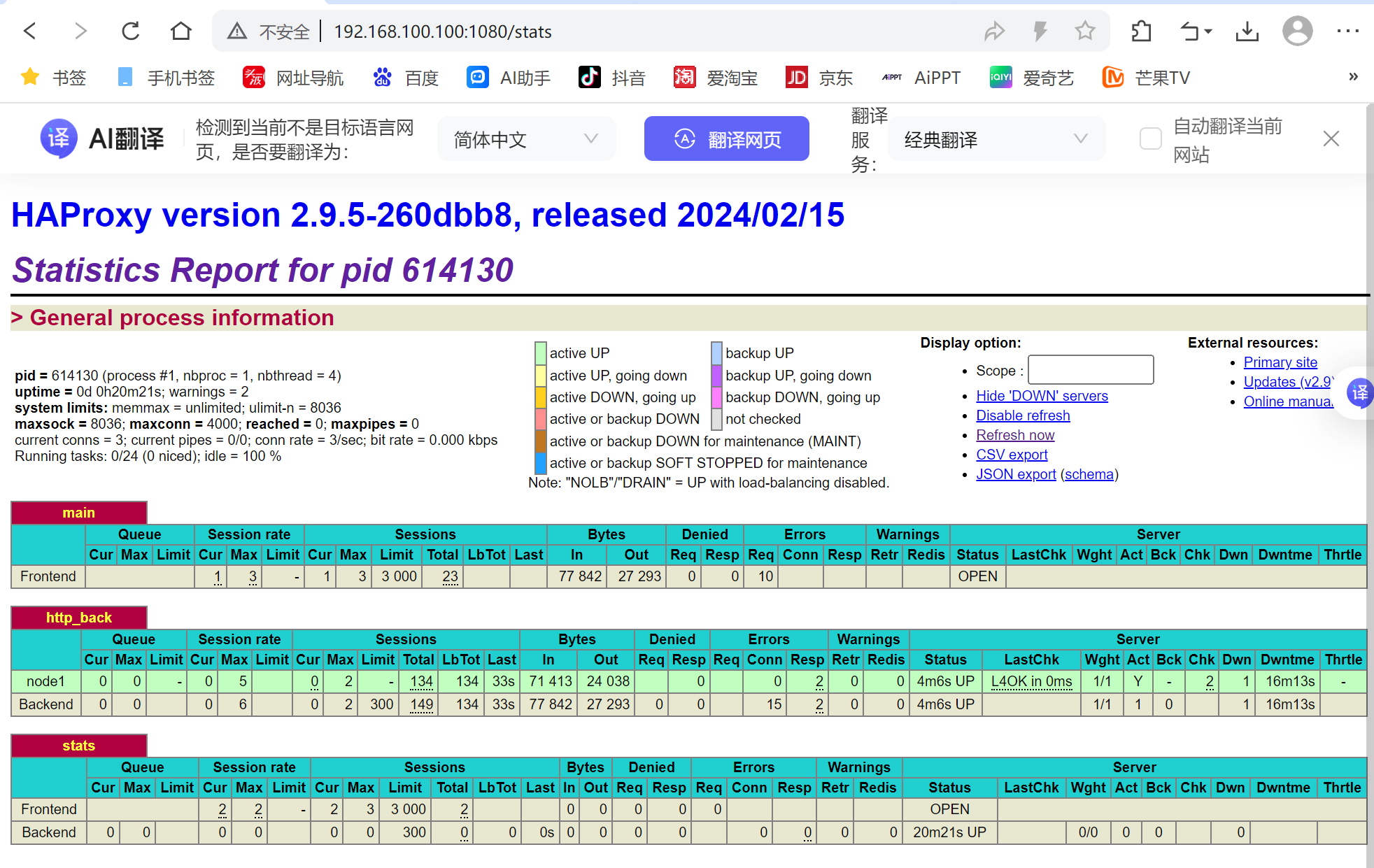

当192.168.100.1故障时
####192.168.100.1 [root@web1 ~]# systemctl start keepalived.service

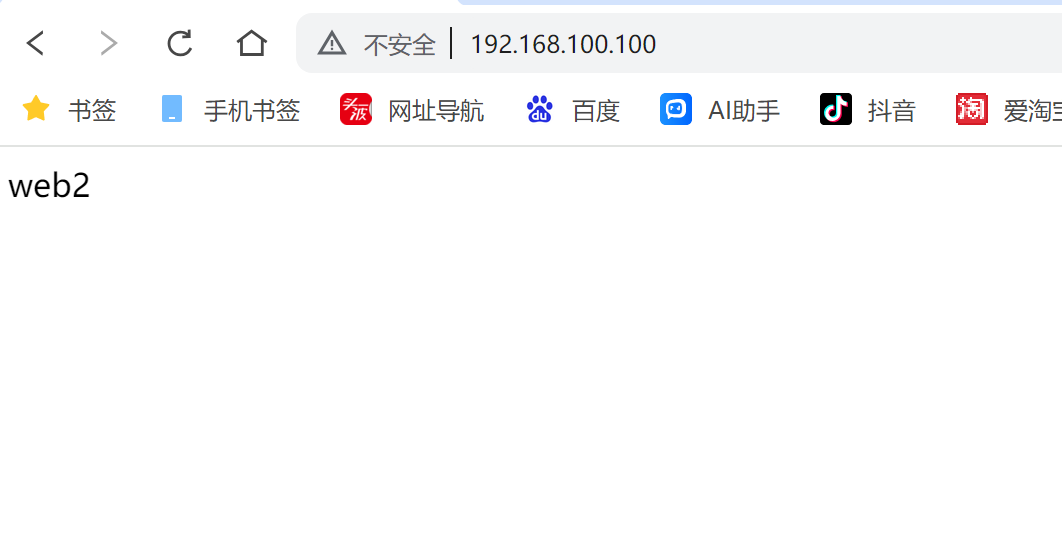

网站访问192.168.100.100
