原文概要

1. 训练

本文是对DnLUT技术的代码解读，原文解读请看DnLUT。

原文概要

DnLUT通过PCM模块和L型卷积，有效提升以往基于LUT方法降低色噪声的能力，用最小的存储量得到了同样的感受野范围，主要是2个创新点：

提出了一个PCM模块（Pairwise Channel Mixer），使得其转换后LUT既不会维度太大，又可以满足通道和空间的交互性。
提出了L型卷积（Rotation Non-overlapping Kernel），减小了旋转中卷积核的overlapping，从而在相同的感受野条件下，降低了LUT尺寸。

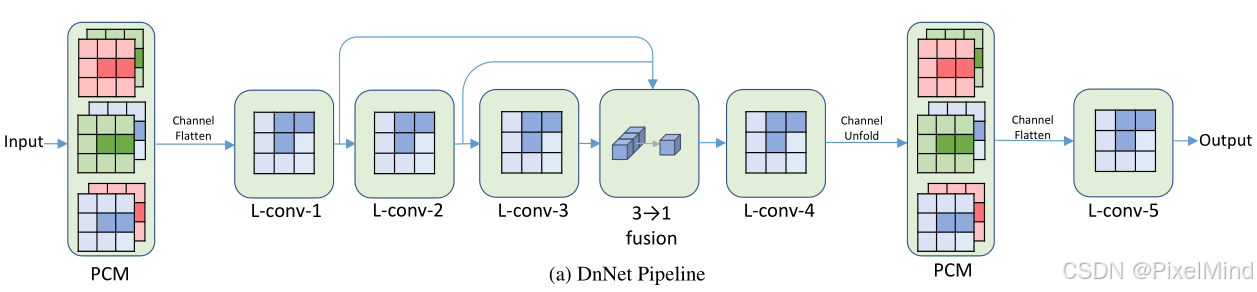

其网络结构图如下：

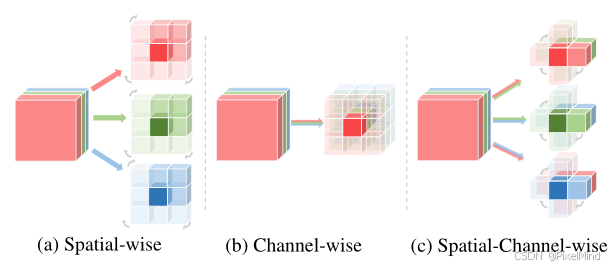

Pairwise Channel Mixer，如下图（c）所示，是空间和通道的交互，有3个4DLUT：

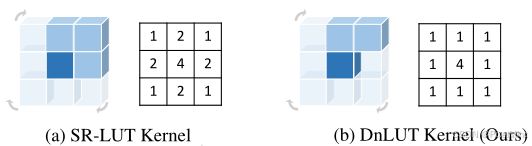

L型卷积（Rotation Non-overlapping Kernel），如下图（b）所示，L型卷积在旋转后达到跟S型卷积一样的感受野，但减小了除中心位置的overlap，减小了LUT的存储压力：

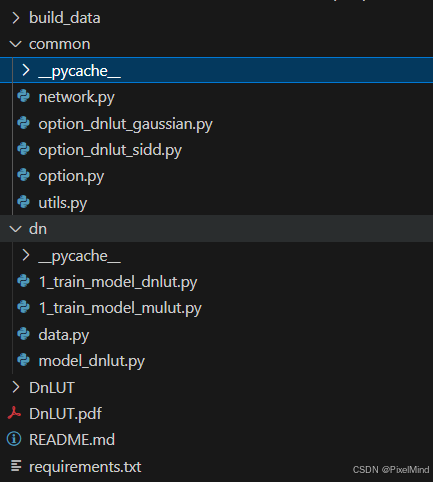

首先我们通过专栏前面文章的讲解，可以预判流程实现需要分为：训练、转表、微调以及推理，这里DnLUT作者只开源了训练的部分，但其他的部分其实跟MuLUT等论文大差不差。代码整体结构如下：

跟模型实现重点的部分在dn文件夹中，关于某个层的实现在common文件夹的network.py中。

1. 训练

首先我们观察common/option_dnlut_sidd.py，可以看到DnLUT调用的模型是SRNets。

class BaseOptions():def __init__(self, debug=False):self.initialized = Falseself.debug = debugdef initialize(self, parser):# experiment specificsparser.add_argument('--model', type=str, default='SRNets')parser.add_argument('--task', '-t', type=str, default='sr')parser.add_argument('--scale', '-r', type=int, default=1, help="up scale factor")parser.add_argument('--sigma', '-s', type=int, default=50, help="noise level")parser.add_argument('--qf', '-q', type=int, default=20, help="deblocking quality factor")parser.add_argument('--nf', type=int, default=64, help="number of filters of convolutional layers")parser.add_argument('--stages', type=int, default=1, help="stages of MuLUT")parser.add_argument('--modes', type=str, default='sdy', help="sampling modes to use in every stage")parser.add_argument('--interval', type=int, default=4, help='N bit uniform sampling')parser.add_argument('--modelRoot', type=str, default='../models')parser.add_argument('--expDir', '-e', type=str, default='/home/styan/DNLUT/exp/mulut_gaussian_50', help="experiment folder")parser.add_argument('--load_from_opt_file', action='store_true', default=False)parser.add_argument('--debug', default=False, action='store_true')self.initialized = Truereturn parser

SRNets模型代码实现位于dn/model_dnlut.py中：

class SRNets(nn.Module):""" A LUT-convertable SR network with configurable stages and patterns. """def __init__(self, nf=64, scale=4, modes=['s', 'd', 'y'], stages=4, channel_mix=True):super(SRNets, self).__init__()if channel_mix:self.add_module("s1_m", SRNet("Mx1", nf=nf, upscale=None))self.add_module("s2_m", SRNet("Mx1", nf=nf, upscale=None))self.add_module("s1_q", SRNet("Qx1", nf=nf, upscale=None)) self.add_module("s2_q", SRNet("Qx1", nf=nf, upscale=None)) self.add_module("s3_q", SRNet("Qx1", nf=nf, upscale=None))for s in range(stages):  # 2-stagefor mode in modes:self.add_module("s{}_{}".format(str(s + 1), mode),SRNet("{}x1".format(mode.upper()), nf=nf))print_network(self)def forward(self, x, stage, mode):key = "s{}_{}".format(str(stage), mode)# print(key)module = getattr(self, key)return module(x)

这样可以看到，每个层使用的是SRNet结构，其实现在common/network.py中。

############### Image Super-Resolution ###############
class SRNet(nn.Module):""" Wrapper of a generalized (spatial-wise) MuLUT block. By specifying the unfolding patch size and pixel indices,arbitrary sampling pattern can be implemented."""def __init__(self, mode, nf=64, upscale=None, dense=True):super(SRNet, self).__init__()self.mode = modeprint(mode)if 'x1' in mode:assert upscale is Noneif mode == 'Sx1':self.model = MuLUTUnit('2x2', nf, upscale=1, dense=dense)self.K = 2self.S = 1elif mode == 'SxN':self.model = MuLUTUnit('2x2', nf, upscale=1, dense=dense)self.K = 2self.S = upscaleelif mode == 'Cx1':self.model = MuLUTcUnit('1x1', nf)self.K = 2self.S = 1elif mode == 'Px1':self.model = PoolNear()self.K = 2self.S = 1elif mode == 'Qx1':self.model = MuLUTcUnit('1x1q', nf)self.K = 2self.S = 1elif mode == 'Mx1':self.model_rg = MuLUTmixUnit('2x2', nf)self.model_gb = MuLUTmixUnit('2x2', nf)self.model_rb = MuLUTmixUnit('2x2', nf)self.K = 2self.S = 1elif mode == 'MxN':self.model_rg = MuLUTmixUnit('2x2', nf)self.model_gb = MuLUTmixUnit('2x2', nf)self.model_rb = MuLUTmixUnit('2x2', nf)self.K = 2self.S = 1elif mode == 'Vx1':self.model = MuLUTUnit('1x3', nf, upscale=1, dense=dense)self.K = 2self.S = 1elif mode == 'VxN':self.model = MuLUTUnit('1x3', nf, upscale=1, dense=dense)self.K = 2self.S = 1elif mode == 'TMx1':self.model = MuLUTcUnit('1x1', nf)self.K = 1self.S = 1elif mode == 'Dx1':self.model = MuLUTUnit('2x2d', nf, upscale=1, dense=dense)self.K = 3self.S = 1elif mode == 'DxN':self.model = MuLUTUnit('2x2d', nf, upscale=upscale, dense=dense)self.K = 3self.S = upscaleelif mode == 'Yx1':self.model = MuLUTUnit('1x4', nf, upscale=1, dense=dense)self.K = 3self.S = 1elif mode == 'YxN':self.model = MuLUTUnit('1x4', nf, upscale=upscale, dense=dense)self.K = 3self.S = upscaleelif mode == 'Ex1':self.model = MuLUTUnit('2x2d3', nf, upscale=1, dense=dense)self.K = 4self.S = 1elif mode == 'ExN':self.model = MuLUTUnit('2x2d3', nf, upscale=upscale, dense=dense)self.K = 4self.S = upscaleelif mode in ['Ox1', 'Hx1']:self.model = MuLUTUnit('1x4', nf, upscale=1, dense=dense)self.K = 4self.S = 1elif mode == ['OxN', 'HxN']:self.model = MuLUTUnit('1x4', nf, upscale=upscale, dense=dense)self.K = 4self.S = upscaleelse:raise AttributeErrorself.P = self.K - 1def forward(self, x):if 'TM' in self.mode:B, C, H, W = x.shapex = self.model(x)# print('down')return xelif 'C' in self.mode:B, C, H, W = x.shapex = self.model(x)# print('down')return xelif 'Q' in self.mode:B, C, H, W = x.shapex = self.model(x)# print('down')return xelif 'P' in self.mode:B, C, H, W = x.shapex = self.model(x)# print('down')return xelif 'M' in self.mode:B, C, H, W = x.shapex_rg = x[:, :2, :, :]x_gb = x[:, 1:, :, :]# x_rb = torch.stack((x[:, 0:1, :, :], x[:, 2:, :, :]),dim=1).squeeze(2)x_rb = torch.stack((x[:, 2:, :, :], x[:, 0:1, :, :]),dim=1).squeeze(2)processed_tensors = []for x, im in zip([x_rg, x_gb, x_rb], ['rg', 'gb', 'rb']):if 'rg' in im:x = self.model_rg(x)   # B*C*L,K,Kx_rg_ = xelif 'gb' in im:x = self.model_gb(x)   # B*C*L,K,Kx_gb_ = xelse:x = self.model_rb(x)   # B*C*L,K,Kx_rb_ = xprocessed_tensors.append(x)if x.is_cuda:device = x.deviceelse:device = torch.device('cpu')combined_x = torch.cat(processed_tensors, dim=1).to(device)# print('down')return combined_x#, x_rg_, x_gb_, x_rb_else:B, C, H, W = x.shapex = F.unfold(x, self.K)  # B,C*K*K,Lx = x.view(B, C, self.K * self.K, (H - self.P) * (W - self.P))  # B,C,K*K,Lx = x.permute((0, 1, 3, 2))  # B,C,L,K*Kx = x.reshape(B * C * (H - self.P) * (W - self.P),self.K, self.K)  # B*C*L,K,Kx = x.unsqueeze(1)  # B*C*L,l,K,Kif 'Y' in self.mode:x = torch.cat([x[:, :, 0, 0], x[:, :, 1, 1],x[:, :, 1, 2], x[:, :, 2, 1]], dim=1)x = x.unsqueeze(1).unsqueeze(1)elif 'V' in self.mode:# print(x.shape)x = torch.cat([x[:, :, 0, 0], x[:, :, 0, 1],x[:, :, 1, 1]], dim=1)# print(x.shape)x = x.unsqueeze(1).unsqueeze(1)elif 'H' in self.mode:x = torch.cat([x[:, :, 0, 0], x[:, :, 2, 2],x[:, :, 2, 3], x[:, :, 3, 2]], dim=1)x = x.unsqueeze(1).unsqueeze(1)elif 'O' in self.mode:x = torch.cat([x[:, :, 0, 0], x[:, :, 2, 2],x[:, :, 1, 3], x[:, :, 3, 1]], dim=1)x = x.unsqueeze(1).unsqueeze(1)x = self.model(x)   # B*C*L,K,Kx = x.squeeze(1)x = x.reshape(B, C, (H - self.P) * (W - self.P), -1)  # B,C,K*K,Lx = x.permute((0, 1, 3, 2))  # B,C,K*K,Lx = x.reshape(B, -1, (H - self.P) * (W - self.P))  # B,C*K*K,Lx = F.fold(x, ((H - self.P) * self.S, (W - self.P) * self.S),self.S, stride=self.S)return x

需要注意的有2个实现，一个是跟PCM相关的，一个是跟L型卷积相关的，分别对应的mode是Mx1以及Vx1，我们在上面关于SRNet的各种类型中定位到这具体的实现就是如下的：

        elif mode == 'Mx1':self.model_rg = MuLUTmixUnit('2x2', nf)self.model_gb = MuLUTmixUnit('2x2', nf)self.model_rb = MuLUTmixUnit('2x2', nf)self.K = 2self.S = 1elif mode == 'MxN':self.model_rg = MuLUTmixUnit('2x2', nf)self.model_gb = MuLUTmixUnit('2x2', nf)self.model_rb = MuLUTmixUnit('2x2', nf)self.K = 2self.S = 1elif mode == 'Vx1':self.model = MuLUTUnit('1x3', nf, upscale=1, dense=dense)self.K = 2self.S = 1

然后我们再观察MuLUTmixUnit和MuLUTUnit的实现，就可以基本清楚DnLUT的各个组件了，两者实现均在common/network.py中。

class MuLUTmixUnit(nn.Module):""" Channel-wise MuLUT block [RGB(3D) to RGB(3D)]. """def __init__(self, mode, nf):super(MuLUTmixUnit, self).__init__()self.act = nn.ReLU()if mode == '2x2':self.conv1 = Conv(2, nf, [1,2])else:raise AttributeErrorself.conv2 = DenseConv(nf, nf)self.conv3 = DenseConv(nf + nf * 1, nf)self.conv4 = DenseConv(nf + nf * 2, nf)self.conv5 = DenseConv(nf + nf * 3, nf)self.conv6 = Conv(nf * 5, 1, 1)def forward(self, x):x = self.act(self.conv1(x))x = self.conv2(x)x = self.conv3(x)x = self.conv4(x)x = self.conv5(x)x = torch.tanh(self.conv6(x))return x############### MuLUT Blocks ###############
class MuLUTUnit(nn.Module):""" Generalized (spatial-wise)  MuLUT block. """def __init__(self, mode, nf, upscale=1, out_c=1, dense=True):super(MuLUTUnit, self).__init__()self.act = nn.ReLU()self.upscale = upscaleif mode == '2x2':self.conv1 = Conv(1, nf, 2)elif mode == '2x2d':self.conv1 = Conv(1, nf, 2, dilation=2)elif mode == '2x2d3':self.conv1 = Conv(1, nf, 2, dilation=3)elif mode == '1x4':self.conv1 = Conv(1, nf, (1, 4))elif mode == '1x3':self.conv1 = Conv(1, nf, (1, 3))elif mode == '1x1':self.conv1 = Conv(3, nf, (1, 1))else:raise AttributeErrorif dense:self.conv2 = DenseConv(nf, nf)self.conv3 = DenseConv(nf + nf * 1, nf)self.conv4 = DenseConv(nf + nf * 2, nf)self.conv5 = DenseConv(nf + nf * 3, nf)if mode == '1x1':self.conv6 = Conv(nf * 5, 3, 1)else:self.conv6 = Conv(nf * 5, 1 * upscale * upscale, 1)else:self.conv2 = ActConv(nf, nf, 1)self.conv3 = ActConv(nf, nf, 1)self.conv4 = ActConv(nf, nf, 1)self.conv5 = ActConv(nf, nf, 1)if mode == '1x1':self.conv6 = Conv(nf, 3 * upscale * upscale, 3)else:self.conv6 = Conv(nf, upscale * upscale, 1)if self.upscale > 1:self.pixel_shuffle = nn.PixelShuffle(upscale)def forward(self, x):x = self.act(self.conv1(x))x = self.conv2(x)x = self.conv3(x)x = self.conv4(x)x = self.conv5(x)x = torch.tanh(self.conv6(x))if self.upscale > 1:x = self.pixel_shuffle(x)return x

可以看到，其实PCM就是3个1x2，输入通道有2个的卷积，而L型卷积是kernel_size变成了一个1x3，以前是一个2x2，当然需要配合合适的input形状。

最后就是一个整体的forward过程，实现在dn/1_train_model_dnlut.py中。

mode_pad_dict = {"s": 1, "d": 2, "y": 2, "e": 3, "h": 3, "o": 3, 'm': 1, 'v': 1}def mulut_predict(model_G, x, phase="train", opt=None):modes, stages = opt.modes, opt.stagespred = 0## Pair-wise Mixer stage 1for r in [0, 1, 2, 3]:tmp = round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, 1, 0, 0), mode='replicate'), stage=1, mode='m'), (4 - r) % 4, [2, 3]) * 127)pred += tmpavg_factor, bias, norm = 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / norm# L-conv Stage 1pred = 0for mode in modes:pad = mode_pad_dict[mode]for r in [0, 1, 2, 3]:pred += round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, pad, 0, pad), mode='replicate'), stage=1, mode=mode), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = len(modes) * 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / normx1 = x# L-conv Stage 2pred = 0for mode in modes:pad = mode_pad_dict[mode]for r in [0, 1, 2, 3]:pred += round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, pad, 0, pad), mode='replicate'), stage=2, mode=mode), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = len(modes) * 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / normx2 = x# L-conv Stage 3pred = 0for mode in modes:pad = mode_pad_dict[mode]for r in [0, 1, 2, 3]:pred += round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, pad, 0, pad), mode='replicate'), stage=3, mode=mode), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = len(modes) * 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / normx3 = x# concatx_r = torch.cat([x1[:, 0:1], x2[:, 0:1], x3[:, 0:1]], dim=1).to('cuda')x_g = torch.cat([x1[:, 1:2], x2[:, 1:2], x3[:, 1:2]], dim=1).to('cuda')x_b = torch.cat([x1[:, 2:], x2[:, 2:], x3[:, 2:]], dim=1).to('cuda')# R: 3 -> 1r = 0pred = round_func(torch.rot90(model_G(F.pad(torch.rot90(x_r, r, [2, 3]), (0, 0, 0, 0), mode='replicate'), stage=1, mode='q'), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = 1, 127, 255.0x_r = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / norm# G: 3 -> 1r = 0pred = round_func(torch.rot90(model_G(F.pad(torch.rot90(x_g, r, [2, 3]), (0, 0, 0, 0), mode='replicate'), stage=1, mode='q'), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = 1, 127, 255.0x_g = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / norm# B: 3 -> 1r = 0pred = round_func(torch.rot90(model_G(F.pad(torch.rot90(x_b, r, [2, 3]), (0, 0, 0, 0), mode='replicate'), stage=1, mode='q'), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = 1, 127, 255.0x_b = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / normx = torch.cat([x_r, x_g, x_b], dim=1).to('cuda')# L-conv Stage 4pred = 0for mode in modes:pad = mode_pad_dict[mode]for r in [0, 1, 2, 3]:pred += round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, pad, 0, pad), mode='replicate'), stage=4, mode=mode), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = len(modes) * 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / norm# Pair-wise Mixer stage 2pred = 0for r in [0, 1, 2, 3]:tmp = round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, 1, 0, 0), mode='replicate'), stage=2, mode='m'), (4 - r) % 4, [2, 3]) * 127)# print(tmp.shape, r)pred += tmpavg_factor, bias, norm = 4, 127, 255.0x = round_func(torch.clamp((pred / avg_factor) + bias, 0, 255)) / norm# L-conv Stage 5pred = 0for mode in modes:pad = mode_pad_dict[mode]for r in [0, 1, 2, 3]:pred += round_func(torch.rot90(model_G(F.pad(torch.rot90(x, r, [2, 3]), (0, pad, 0, pad), mode='replicate'), stage=5, mode=mode), (4 - r) % 4, [2, 3]) * 127)avg_factor, bias, norm = len(modes), 0, 1x = round_func((pred / avg_factor) + bias)if phase == "train":x = x / 255.0return x

这里的计算过程跟我们前面讲解的论文过程是一致的，每个计算的过程是通过调用我们前面讲到的SRNets的forward实现的，通过输入不同的stage和不同的mode（比如说mode='m'调用的是PCM即MuLUTmixUnit层，L型卷积通过查看options发现其调用就是V型卷积实现，即MuLUTUnit搭配mode=1x3）得到不同层的输出，中间当然需要搭配旋转和量化clip，最后完成输出。

以上针对于DnLUT的训练代码实现的部分讲解完毕，如果有不清楚的问题欢迎大家提出，关于转表和微调测试的部分大家可以自己尝试实现，原理逻辑是跟前面的文章一致的。
