trame实现双视图（返场版）

话不多说直接上代码，库直接自己装，主播懒死了，记得替换成自己的shape文件

实现shp文件并排比对，也可以是更多的视图自己调整，拖动一个视图，另一个视图同步移动有待实现

"""
Shapefile多视图可视化
使用GeoPandas读取数据，VTK进行三角化处理，Trame实现多视图交互

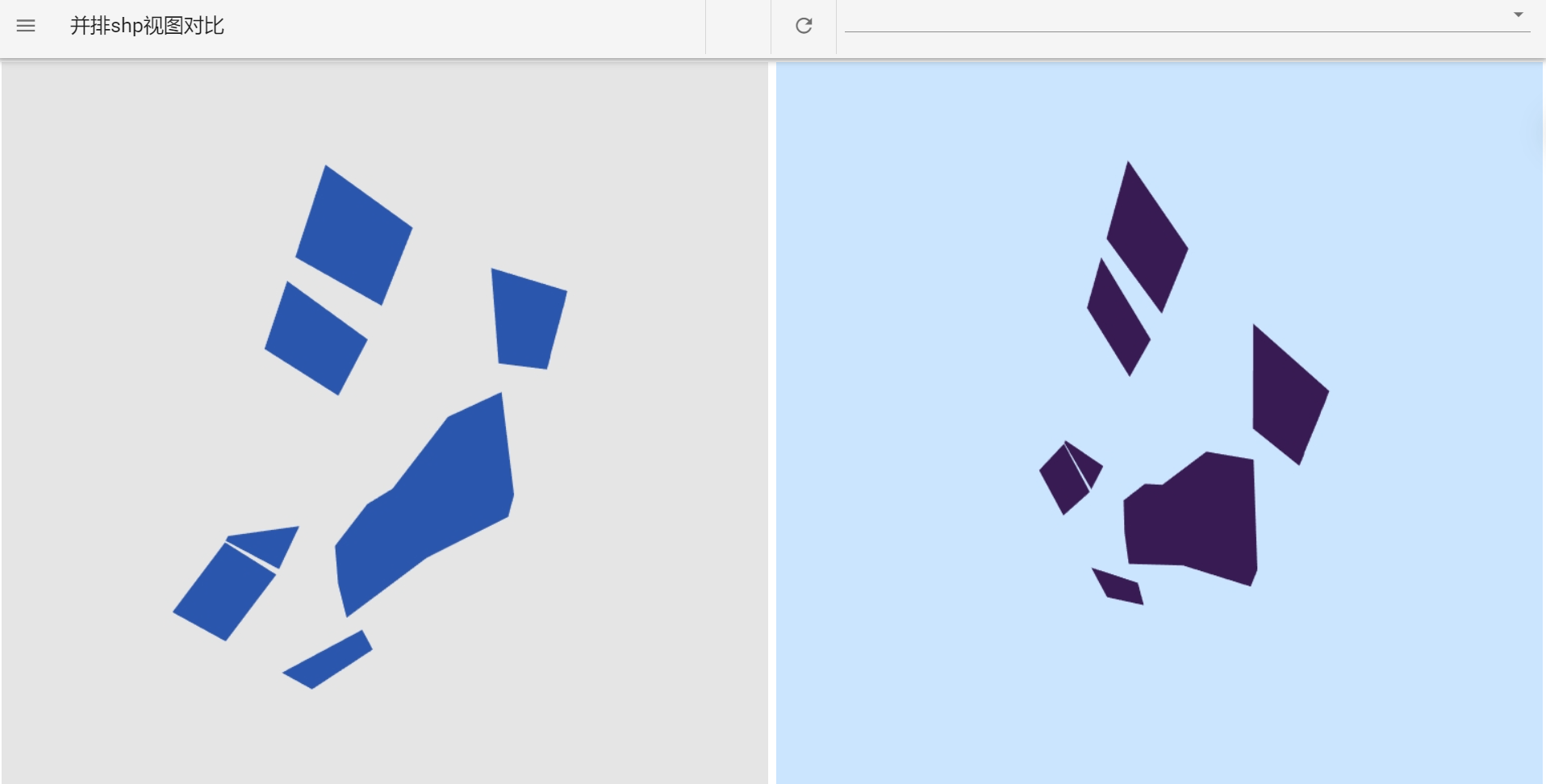

两个视图分别展示不同的shp文件
"""from trame.app import get_server
from trame.widgets import vuetify, vtk as vtk_widgets
from trame.ui.vuetify import SinglePageLayoutimport geopandas as gpd  # 读取shp文件
import numpy as np
from vtkmodules.vtkCommonCore import vtkPoints
from vtkmodules.vtkCommonDataModel import vtkPolyData, vtkCellArray
from vtkmodules.vtkFiltersCore import vtkTriangleFilter  # 三角化后用这个读取器读取
from vtkmodules.vtkRenderingCore import (vtkRenderer,vtkRenderWindow,vtkRenderWindowInteractor,vtkPolyDataMapper,vtkActor,
)# VTK初始化
from vtkmodules.vtkInteractionStyle import vtkInteractorStyleSwitch  # noqa
import vtkmodules.vtkRenderingOpenGL2  # noqa# -----------------------------------------------------------------------------
# Trame初始化
# -----------------------------------------------------------------------------server = get_server(client_type="vue2")
state, ctrl = server.state, server.controllerstate.trame__title = "双vtp视图对比"
state.layout_mode = "horizontal"  # 默认水平布局# -----------------------------------------------------------------------------
# 数据处理函数
# -----------------------------------------------------------------------------def shp_to_vtk_polygon(gdf):"""将GeoDataFrame转换为VTK多边形数据"""points = vtkPoints()polys = vtkCellArray()for geom in gdf.geometry:if geom.geom_type == 'Polygon':coords = np.array(geom.exterior.coords)elif geom.geom_type == 'MultiPolygon':coords = np.concatenate([np.array(p.exterior.coords) for p in geom.geoms])else:continuepoint_ids = []for coord in coords:point_ids.append(points.InsertNextPoint(coord[0], coord[1], 0))polys.InsertNextCell(len(point_ids), point_ids)poly_data = vtkPolyData()poly_data.SetPoints(points)poly_data.SetPolys(polys)return poly_datadef load_and_process_shapefile(file_path, z_scale=1.0):"""使用GeoPandas加载并处理Shapefile"""gdf = gpd.read_file(file_path)poly_data = shp_to_vtk_polygon(gdf)# 如果有Z坐标，可以在这里进行缩放points = poly_data.GetPoints()for i in range(points.GetNumberOfPoints()):x, y, z = points.GetPoint(i)points.SetPoint(i, x, y, z * z_scale)triangle_filter = vtkTriangleFilter()triangle_filter.SetInputData(poly_data)triangle_filter.PassLinesOn()triangle_filter.PassVertsOn()triangle_filter.Update()return triangle_filter.GetOutput()# -----------------------------------------------------------------------------
# 主程序
# -----------------------------------------------------------------------------# 读取和处理两个不同的Shapefile
SHAPEFILE_PATHS = [r"D:\Data\1\1.shp",  # 替换为第一个文件的实际路径r"D:\Data\1\1.shp",  # 替换为第二个文件的实际路径
]# 为每个文件创建不同的视图配置
VIEW_CONFIGS = [{"name": "Shapefile 1","background": (0.9, 0.9, 0.9),"color": (0.2, 0.4, 0.8),"file_path": SHAPEFILE_PATHS[0],"z_scale": 1.0},{"name": "Shapefile 2","background": (0.8, 0.9, 1.0),"color": (0.4, 0.2, 0.6),"file_path": SHAPEFILE_PATHS[1],"z_scale": 1.0},
]render_windows = []
html_views = []for config in VIEW_CONFIGS:# 处理数据processed_data = load_and_process_shapefile(config["file_path"], config["z_scale"])# 创建Mappermapper = vtkPolyDataMapper()mapper.SetInputData(processed_data)# 创建Actoractor = vtkActor()actor.SetMapper(mapper)actor.GetProperty().SetColor(config["color"])actor.GetProperty().SetLineWidth(1.5)# 创建渲染器和窗口renderer = vtkRenderer()renderer.SetBackground(config["background"])render_window = vtkRenderWindow()render_window.AddRenderer(renderer)render_window.SetWindowName(config["name"])# 设置交互方式render_window_interactor = vtkRenderWindowInteractor()render_window_interactor.SetRenderWindow(render_window)render_window_interactor.GetInteractorStyle().SetCurrentStyleToTrackballCamera()# 添加Actor并初始化视图renderer.AddActor(actor)renderer.ResetCamera()render_windows.append(render_window)# -----------------------------------------------------------------------------
# Trame用户界面
# -----------------------------------------------------------------------------with SinglePageLayout(server) as layout:layout.icon.click = ctrl.reset_cameralayout.title.set_text("并排shp视图对比")with layout.toolbar:vuetify.VSpacer()vuetify.VDivider(vertical=True, classes="mx-2")with vuetify.VBtn(icon=True, click=ctrl.reset_all_views):vuetify.VIcon("mdi-camera-reset")vuetify.VDivider(vertical=True, classes="mx-2")with vuetify.VBtn(icon=True, click=ctrl.update_all_views):vuetify.VIcon("mdi-refresh")vuetify.VDivider(vertical=True, classes="mx-2")vuetify.VSelect(label="视图布局",items=[{"text": "水平布局", "value": "horizontal"},{"text": "垂直布局", "value": "vertical"},],v_model=("layout_mode",),dense=True,hide_details=True,style="max-width: 120px;",)with layout.content:# 使用条件渲染实现布局切换with vuetify.VContainer(fluid=True, classes="pa-0 fill-height"):# 水平布局with vuetify.VRow(v_if="layout_mode === 'horizontal'", classes="pa-0 ma-0 fill-height"):with vuetify.VCol(classes="pa-1 ma-0 fill-height"):view1 = vtk_widgets.VtkRemoteView(render_windows[0],ref="view1",interactive_ratio=1,style="height: 100%;",)html_views.append(view1)with vuetify.VCol(classes="pa-1 ma-0 fill-height"):view2 = vtk_widgets.VtkRemoteView(render_windows[1],ref="view2",interactive_ratio=1,style="height: 100%;",)html_views.append(view2)# 垂直布局with vuetify.VCol(v_if="layout_mode === 'vertical'", classes="pa-0 ma-0 fill-height"):with vuetify.VRow(classes="pa-1 ma-0", style="height: 50%;"):view1 = vtk_widgets.VtkRemoteView(render_windows[0],ref="view1",interactive_ratio=1,style="height: 100%;",)html_views.append(view1)with vuetify.VRow(classes="pa-1 ma-0", style="height: 50%;"):view2 = vtk_widgets.VtkRemoteView(render_windows[1],ref="view2",interactive_ratio=1,style="height: 100%;",)html_views.append(view2)# 定义控制函数def reset_all_views():for view in html_views:view.reset_camera()def update_all_views():for view in html_views:view.update()ctrl.reset_all_views = reset_all_viewsctrl.update_all_views = update_all_views# -----------------------------------------------------------------------------
# 启动应用
# -----------------------------------------------------------------------------if __name__ == "__main__":server.start(port=1234)
