RocketMQ源码详解(NameServer启动流程)

一、NameServer简介

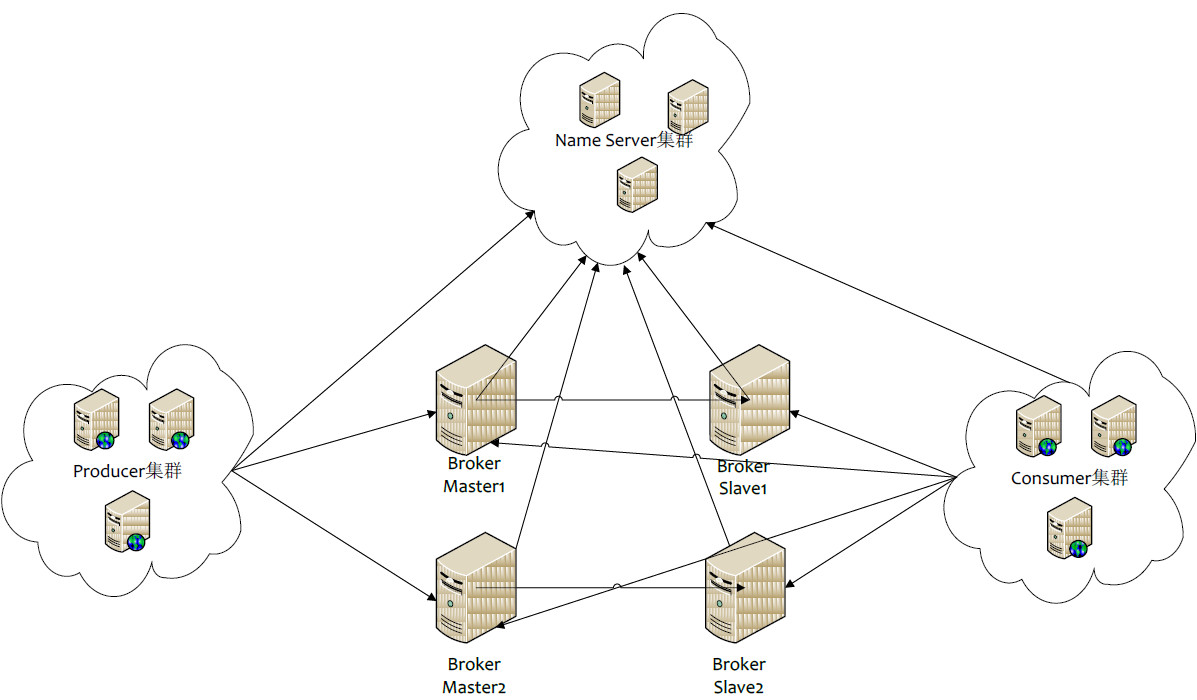

消息中间件的设计思路一般是基于主题订阅发布的机制，消息生产者(Producer)发送某一个主题到消息服务器，消息服务器负责将消息持久化存储，消息消费者(Consumer)订阅该兴趣的主题，消息服务器根据订阅信息(路由信息)将消息推送到消费者(Push模式)或者消费者主动向消息服务器拉去(Pull模式)，从而实现消息生产者与消息消费者解耦。 为了避免消息服务器的单点故障导致的整个系统瘫痪，通常会部署多台消息服务器共同承担消息的存储。那消息生产者如何知道消息要发送到哪台消息服务器呢？如果某一台消息服务器宕机了，那么消息生产者如何在不重启服务情况下感知呢？NameServer就是为了解决以上问题设计的，下面这张图片展示了 NameServer和Broker和Producer(生产者)和Consumer(消费者)之间关系。

• Broker消息服务器在启动的时向所有NameServer注册。
• 消息生产者(Producer)在发送消息时之前先从NameServer获取Broker服务器地址列表，然后根据负载均衡算法从列表中选择一台服务器进行发送。
• NameServer与每台Broker保持长连接，并间隔30S检测Broker是否存活，如果检测到Broker宕机，则从路由注册表中删除。但是路由变化不会马上通知消息生产者。这样设计的目的是为了降低NameServer实现的复杂度，在消息发送端提供容错机制保证消息发送的可用性。
• 本篇源码基于RocketMQ 4.9.8版本。

二、创建NamesrvController过程

Namesrv启动的入口地址在org.apache.rocketmq.namesrv.NamesrvStartup的main方法中，该方法源码如下:

public static void main(String[] args) {main0(args);
}

又调用了main0方法,该方法源码如下:

public static NamesrvController main0(String[] args) {try {NamesrvController controller = createNamesrvController(args);start(controller);String tip = "The Name Server boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();log.info(tip);System.out.printf("%s%n", tip);return controller;} catch (Throwable e) {e.printStackTrace();System.exit(-1);}return null;
}

又调用了createNamesrvController方法，该方法源码如下:

public static NamesrvController createNamesrvController(String[] args) throws IOException, JoranException {//解析命令行参数// ... (省略具体的解析代码)final NamesrvConfig namesrvConfig = new NamesrvConfig();final NettyServerConfig nettyServerConfig = new NettyServerConfig();nettyServerConfig.setListenPort(9876);if (commandLine.hasOption('c')) {// ... (省略加载properties文件和属性映射的代码)}// 配置日志框架// ... (省略Logback配置代码)final NamesrvController controller = new NamesrvController(namesrvConfig, nettyServerConfig);// remember all configs to prevent discardcontroller.getConfiguration().registerConfig(properties);return controller;}

首先创建NamesrvConfig对象,RocketMQ的NamesrvConfig 类是用于配置 NameServer 的相关参数，它是 RocketMQ 中非常核心的组件之一，负责管理和调度消息的元数据。NamesrvConfig 配置了 NameServer 的一些基本行为，确保消息能够正确地路由、调度，并提供集群中各节点的元数据。

创建Netty服务端对象NettyServerConfig并设置端口号是9876,下面有commandLine.hasOption代码是从命令行中读取参数并且设置到NamesrvConfig,NettyServerConfig。

创建NamesrvController对象并且传入构造函数NamesrvConfig、NettyServerConfig对象，它的构造函数如下:

public NamesrvController(NamesrvConfig namesrvConfig, NettyServerConfig nettyServerConfig) {this.namesrvConfig = namesrvConfig;this.nettyServerConfig = nettyServerConfig;this.kvConfigManager = new KVConfigManager(this);this.routeInfoManager = new RouteInfoManager();this.brokerHousekeepingService = new BrokerHousekeepingService(this);this.configuration = new Configuration(log,this.namesrvConfig, this.nettyServerConfig);this.configuration.setStorePathFromConfig(this.namesrvConfig, "configStorePath");
}

• 初始化成员变量RouteInfoManager，它主要负责维护 Broker、Topic 的路由注册、变更、查询等信息。
• 初始化成员变量BrokerHousekeepingService,它主要负责监控与 Broker 的连接状态，处理断连等异常情况。

创建完NamesrvController对象返回到main0方法，调用start(controller),该方法源码如下:

public static NamesrvController start(final NamesrvController controller) throws Exception {if (null == controller) {throw new IllegalArgumentException("NamesrvController is null");}boolean initResult = controller.initialize();if (!initResult) {controller.shutdown();System.exit(-3);}Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, (Callable<Void>) () -> {controller.shutdown();return null;}));controller.start();return controller;
}

先调用controller的initialize方法，该方法源码如下:

public boolean initialize() {this.kvConfigManager.load();this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);this.remotingExecutor =Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));this.registerProcessor();this.scheduledExecutorService.scheduleAtFixedRate(NamesrvController.this.routeInfoManager::scanNotActiveBroker, 5, 10, TimeUnit.SECONDS);this.scheduledExecutorService.scheduleAtFixedRate(NamesrvController.this.kvConfigManager::printAllPeriodically, 1, 10, TimeUnit.MINUTES);if (TlsSystemConfig.tlsMode != TlsMode.DISABLED) {// Register a listener to reload SslContexttry {fileWatchService = new FileWatchService(new String[] {TlsSystemConfig.tlsServerCertPath,TlsSystemConfig.tlsServerKeyPath,TlsSystemConfig.tlsServerTrustCertPath},new FileWatchService.Listener() {boolean certChanged, keyChanged = false;@Overridepublic void onChanged(String path) {if (path.equals(TlsSystemConfig.tlsServerTrustCertPath)) {log.info("The trust certificate changed, reload the ssl context");reloadServerSslContext();}if (path.equals(TlsSystemConfig.tlsServerCertPath)) {certChanged = true;}if (path.equals(TlsSystemConfig.tlsServerKeyPath)) {keyChanged = true;}if (certChanged && keyChanged) {log.info("The certificate and private key changed, reload the ssl context");certChanged = keyChanged = false;reloadServerSslContext();}}private void reloadServerSslContext() {((NettyRemotingServer) remotingServer).loadSslContext();}});} catch (Exception e) {log.warn("FileWatchService created error, can't load the certificate dynamically");}}return true;}

创建一个NettyRemotingServer对象，它主要是与Netty网络服务有关的对象，它的构造函数如下：

public NettyRemotingServer(final NettyServerConfig nettyServerConfig,final ChannelEventListener channelEventListener) {super(nettyServerConfig.getServerOnewaySemaphoreValue(), nettyServerConfig.getServerAsyncSemaphoreValue());this.serverBootstrap = new ServerBootstrap();this.nettyServerConfig = nettyServerConfig;this.channelEventListener = channelEventListener;int publicThreadNums = nettyServerConfig.getServerCallbackExecutorThreads();if (publicThreadNums <= 0) {publicThreadNums = 4;}this.publicExecutor = Executors.newFixedThreadPool(publicThreadNums, new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);@Overridepublic Thread newThread(Runnable r) {return new Thread(r, "NettyServerPublicExecutor_" + this.threadIndex.incrementAndGet());}});if (useEpoll()) {this.eventLoopGroupBoss = new EpollEventLoopGroup(1, new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);@Overridepublic Thread newThread(Runnable r) {return new Thread(r, String.format("NettyEPOLLBoss_%d", this.threadIndex.incrementAndGet()));}});this.eventLoopGroupSelector = new EpollEventLoopGroup(nettyServerConfig.getServerSelectorThreads(), new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);private int threadTotal = nettyServerConfig.getServerSelectorThreads();@Overridepublic Thread newThread(Runnable r) {return new Thread(r, String.format("NettyServerEPOLLSelector_%d_%d", threadTotal, this.threadIndex.incrementAndGet()));}});} else {this.eventLoopGroupBoss = new NioEventLoopGroup(1, new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);@Overridepublic Thread newThread(Runnable r) {return new Thread(r, String.format("NettyNIOBoss_%d", this.threadIndex.incrementAndGet()));}});this.eventLoopGroupSelector = new NioEventLoopGroup(nettyServerConfig.getServerSelectorThreads(), new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);private int threadTotal = nettyServerConfig.getServerSelectorThreads();@Overridepublic Thread newThread(Runnable r) {return new Thread(r, String.format("NettyServerNIOSelector_%d_%d", threadTotal, this.threadIndex.incrementAndGet()));}});}loadSslContext();}

创建一个固定线程池对象ExecutorService publicExecutor，它的线程池线程对象是4。判断当前操作系统的情况:

• 如果是Linux系统,创建一个EpollEventLoopGroup的boss线程池，线程池线程数量是1，线程工厂是自定义工厂,创建一个EpollEventLoopGroup的 worker线程池，线程池线程数量是nettyServerConfig.getServerSelectorThreads()(默认配置是3),线程工厂同样是是自定义工厂。

• 如果不是Linux系统，创建一个NioEventLoopGroup的boss线程池，线程池线程数量是1，线程工厂是自定义工厂,创建一个NioEventLoopGroup的 worker线程池，线程池线程数量是nettyServerConfig.getServerSelectorThreads()(默认配置是3),线程工厂同样是是自定义工厂。

这段代码Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));

创建一个固定的线程池，线程池数量是取得nettyServerConfig.getServerWorkerThreads()的数量，默认是8，它的主要作用业务处理。

调用方法this.registerProcessor();注册处理器，将具体的 请求处理器 注册到 remotingServer 上，比如处理注册 Broker 的请求、处理客户端路由查询请求,不同的请求 code 会对应不同的 NettyRequestProcessor 实现类。

this.scheduledExecutorService.scheduleAtFixedRate(NamesrvController.this.routeInfoManager::scanNotActiveBroker, 5, 10, TimeUnit.SECONDS);

这段代码主要定时处理扫描不活跃的Broker,每隔 10 秒执行一次，首次延迟 5 秒。检查 Broker 是否还活着（最后心跳时间超过 120 秒则判定失联）,将失联的 Broker 从路由表中移除，保持数据一致性。下面以一个表格说明一下这些参数得作用：

接着调用NamesrvController的start方法，该方法源码如下:

 public void start() throws Exception {this.remotingServer.start();if (this.fileWatchService != null) {this.fileWatchService.start();}
}

可以看出调用remotingServer的start方法为了启动Netty服务器端,该方法源码如下:

 public void start() {this.defaultEventExecutorGroup = new DefaultEventExecutorGroup(nettyServerConfig.getServerWorkerThreads(),new ThreadFactory() {private AtomicInteger threadIndex = new AtomicInteger(0);@Overridepublic Thread newThread(Runnable r) {return new Thread(r, "NettyServerCodecThread_" + this.threadIndex.incrementAndGet());}});prepareSharableHandlers();ServerBootstrap childHandler =this.serverBootstrap.group(this.eventLoopGroupBoss, this.eventLoopGroupSelector).channel(useEpoll() ? EpollServerSocketChannel.class : NioServerSocketChannel.class).option(ChannelOption.SO_BACKLOG, nettyServerConfig.getServerSocketBacklog()).option(ChannelOption.SO_REUSEADDR, true).option(ChannelOption.SO_KEEPALIVE, false).childOption(ChannelOption.TCP_NODELAY, true).localAddress(new InetSocketAddress(this.nettyServerConfig.getListenPort())).childHandler(new ChannelInitializer<SocketChannel>() {@Overridepublic void initChannel(SocketChannel ch) throws Exception {ch.pipeline().addLast(defaultEventExecutorGroup, HANDSHAKE_HANDLER_NAME, handshakeHandler).addLast(defaultEventExecutorGroup,encoder,new NettyDecoder(),new IdleStateHandler(0, 0, nettyServerConfig.getServerChannelMaxIdleTimeSeconds()),connectionManageHandler,serverHandler);}});if (nettyServerConfig.getServerSocketSndBufSize() > 0) {log.info("server set SO_SNDBUF to {}", nettyServerConfig.getServerSocketSndBufSize());childHandler.childOption(ChannelOption.SO_SNDBUF, nettyServerConfig.getServerSocketSndBufSize());}if (nettyServerConfig.getServerSocketRcvBufSize() > 0) {log.info("server set SO_RCVBUF to {}", nettyServerConfig.getServerSocketRcvBufSize());childHandler.childOption(ChannelOption.SO_RCVBUF, nettyServerConfig.getServerSocketRcvBufSize());}if (nettyServerConfig.getWriteBufferLowWaterMark() > 0 && nettyServerConfig.getWriteBufferHighWaterMark() > 0) {log.info("server set netty WRITE_BUFFER_WATER_MARK to {},{}",nettyServerConfig.getWriteBufferLowWaterMark(), nettyServerConfig.getWriteBufferHighWaterMark());childHandler.childOption(ChannelOption.WRITE_BUFFER_WATER_MARK, new WriteBufferWaterMark(nettyServerConfig.getWriteBufferLowWaterMark(), nettyServerConfig.getWriteBufferHighWaterMark()));}if (nettyServerConfig.isServerPooledByteBufAllocatorEnable()) {childHandler.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);}try {ChannelFuture sync = this.serverBootstrap.bind().sync();InetSocketAddress addr = (InetSocketAddress) sync.channel().localAddress();this.port = addr.getPort();} catch (InterruptedException e1) {throw new RuntimeException("this.serverBootstrap.bind().sync() InterruptedException", e1);}if (this.channelEventListener != null) {this.nettyEventExecutor.start();}this.timer.scheduleAtFixedRate(new TimerTask() {@Overridepublic void run() {try {NettyRemotingServer.this.scanResponseTable();} catch (Throwable e) {log.error("scanResponseTable exception", e);}}}, 1000 * 3, 1000);
}

创建DefaultEventExecutorGroup对象,调用prepareSharableHandlers方法，该方法源码如下：

private void prepareSharableHandlers() {handshakeHandler = new HandshakeHandler(TlsSystemConfig.tlsMode);encoder = new NettyEncoder();connectionManageHandler = new NettyConnectManageHandler();serverHandler = new NettyServerHandler();
}

分别初始化HandshakeHandler handshakeHandler、NettyEncoder encoder(Netty编码器对象)、NettyConnectManageHandler connectionManageHandler、NettyServerHandler serverHandler(用来处理入站数据),接下来就是 调用serverBootstrap的group方法把上面组件注册上，然后调用bind方法启动Netty服务。

三、总结

NameServer 作为 RocketMQ 的元数据中枢和轻量级路由发现服务，其启动流程充分体现了简洁高效、职责清晰的设计哲学。整个过程并非简单地启动一个网络服务，而是有条不紊地完成了三件核心大事：

• 解析与装配：读取命令行与环境配置，初始化核心参数，为后续组件提供运行依据。

• 初始化核心组件: 构建 RouteInfoManager（路由表）、KVConfigManager（配置管理）、BrokerHousekeepingService（连接监护）等核心管理组件，各司其职。
• 启动服务与定时任务：初始化 Netty 服务器以接收网络请求，并启动两个关键的后台线程：
  • 心跳检测：定期扫描并清理失效的 Broker 节点，确保路由信息的实时性与准确性。
  • 配置持久化：定期将运行时配置落盘，保证数据的可恢复性。
