MPR多平面重建的初步实现

一、功能概述

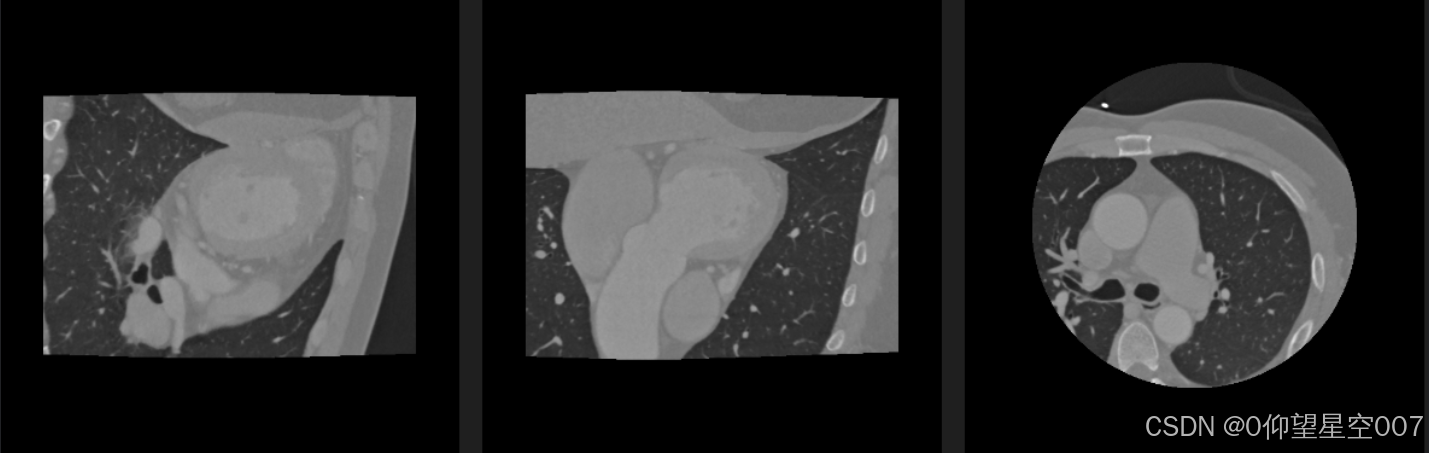

用三个窗口分别显示冠状位、矢状位、横断位的切面图像;
左键按住调节窗宽；
右键按住缩放；
中键按住平移；
滚轮滚动时翻页；

二、代码实现

class mprVtkInteractorStyleImage : public vtkInteractorStyleImage
{
public:static mprVtkInteractorStyleImage* New();vtkTypeMacro(mprVtkInteractorStyleImage, vtkInteractorStyleImage);protected:vtkImageViewer2* _imageViewer;int _slice;int _minSlice;int _maxSlice;public:void SetImageViewer(vtkImageViewer2* imageViewer){_imageViewer = imageViewer;_minSlice = imageViewer->GetSliceMin();_maxSlice = imageViewer->GetSliceMax();_slice = imageViewer->GetSlice();}void MoveSliceForward(){if(_slice < _maxSlice){_slice += 1;_imageViewer->SetSlice(_slice);_imageViewer->Render();}}void MoveSliceBackward(){if(_slice > _minSlice){_slice -= 1;_imageViewer->SetSlice(_slice);_imageViewer->Render();}}virtual void OnKeyDown() override{string key = this->GetInteractor()->GetKeySym();if(key.compare("Up") == 0){MoveSliceForward();}else if(key.compare("Down") == 0){MoveSliceBackward();}//vtkInteractorStyleImage::OnKeyDown();//删除默认父类调用}virtual void OnMouseWheelForward() override{MoveSliceForward();}virtual void OnMouseWheelBackward() override{if(_slice > _minSlice){MoveSliceBackward();}}
};vtkStandardNewMacro(mprVtkInteractorStyleImage);
//一定要是全局变量，不能是局部变量；
//局部变量在函数结束后销毁，在mprVtkInteractorStyleImage访问时会报错；
