第27节：3D数据可视化与大规模地形渲染

web 2025/9/7 8:09:19

第27节：3D数据可视化与大规模地形渲染

概述

大规模3D数据可视化是现代Web应用的核心挑战，涉及海量数据处理、实时渲染优化和高效内存管理。本节将深入探讨亿级数据点可视化、动态地形渲染、以及实时数据流处理的技术方案。

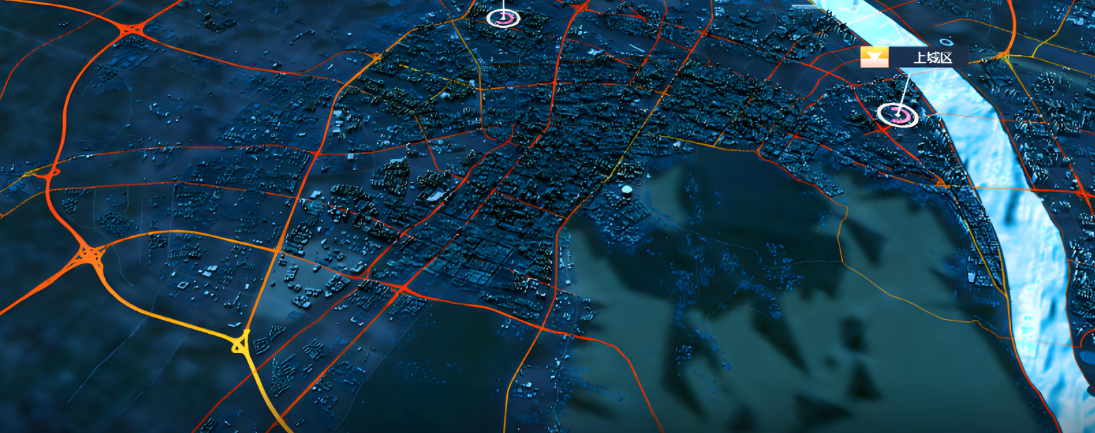

在这里插入图片描述

大规模地形渲染系统架构：

核心原理深度解析

大规模数据处理策略

面对海量3D数据，需要采用分层处理策略：

处理层级	技术方案	数据规模	性能目标
L0 内存数据	TypedArray + 内存映射	< 1GB	纳秒级访问
L1 显存数据	GPU Buffer + 压缩	1-4GB	微秒级访问
L2 外部数据	流式加载 + 数据库	> 4GB	毫秒级加载

LOD系统原理

细节层次（Level of Detail）系统根据观察距离动态调整渲染精度：

距离分段
- 近距（0-50m）：完整细节，三角形密度100%
- 中距（50-200m）：中等细节，三角形密度30%
- 远距（200m+）：低细节，三角形密度10%
平滑过渡
- 几何变形过渡（Geomorphing）
- alpha混合过渡
- 屏幕空间误差控制

完整代码实现

大规模地形渲染系统

<template><div class="visualization-container"><!-- 主渲染画布 --><canvas ref="renderCanvas" class="render-canvas"></canvas><!-- 控制面板 --><div class="control-panel"><div class="panel-section"><h3>地形渲染控制</h3><div class="stats-display"><div class="stat-item"><span class="stat-label">渲染点数:</span><span class="stat-value">{{ formatNumber(visiblePoints) }}</span></div><div class="stat-item"><span class="stat-label">帧率:</span><span class="stat-value">{{ currentFPS }} FPS</span></div><div class="stat-item"><span class="stat-label>内存使用:</span><span class="stat-value">{{ formatMemory(memoryUsage) }}</span></div></div></div><div class="panel-section"><h4>渲染设置</h4><div class="setting-group"><label>细节层次: {{ lodLevel }}</label><input type="range" v-model="lodLevel" min="0" max="3" step="1"></div><div class="setting-group"><label>视距: {{ viewDistance }}m</label><input type="range" v-model="viewDistance" min="100" max="10000" step="100"></div><div class="setting-group"><label>点大小: {{ pointSize }}px</label><input type="range" v-model="pointSize" min="1" max="10" step="0.5"></div></div><div class="panel-section"><h4>数据管理</h4><div class="data-controls"><button @click="loadTerrainData" class="control-button">📁 加载地形数据</button><button @click="generateProcedural" class="control-button">🌀 生成程序地形</button><button @click="clearData" class="control-button">🧹 清空数据</button></div></div><div class="panel-section"><h4>可视化模式</h4><div class="visualization-modes"><label><input type="radio" v-model="visualizationMode" value="elevation">高程着色</label><label><input type="radio" v-model="visualizationMode" value="slope">坡度分析</label><label><input type="radio" v-model="visualizationMode" value="heatmap">热力图</label></div></div></div><!-- 加载进度 --><div v-if="isLoading" class="loading-overlay"><div class="progress-container"><div class="progress-bar"><div class="progress-fill" :style="progressStyle"></div></div><div class="progress-text">加载中: {{ loadProgress }}% - {{ loadStatus }}</div></div></div></div>
</template><script>
import { onMounted, onUnmounted, ref, reactive, watch } from 'vue';
import * as THREE from 'three';
import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
import { GPUComputationRenderer } from 'three/addons/misc/GPUComputationRenderer.js';
import { PLYLoader } from 'three/addons/loaders/PLYLoader.js';// 地形分块管理器
class TerrainTileManager {constructor(renderer, camera) {this.renderer = renderer;this.camera = camera;this.tiles = new Map();this.visibleTiles = new Set();this.loadQueue = [];this.unloadQueue = [];this.tileSize = 256;this.maxZoomLevel = 16;this.loadDistance = 1000;}// 更新可见瓦片updateVisibleTiles() {const cameraPosition = this.camera.position;const frustum = new THREE.Frustum();frustum.setFromProjectionMatrix(new THREE.Matrix4().multiplyMatrices(this.camera.projectionMatrix,this.camera.matrixWorldInverse));this.visibleTiles.clear();// 计算当前视野范围内的瓦片for (const [tileKey, tile] of this.tiles) {if (this.isTileInFrustum(tile, frustum) &&this.isTileInRange(tile, cameraPosition)) {this.visibleTiles.add(tileKey);tile.setVisible(true);} else {tile.setVisible(false);}}this.scheduleTileLoading();}// 调度瓦片加载async scheduleTileLoading() {const tilesToLoad = this.calculateTilesToLoad();for (const tileInfo of tilesToLoad) {if (!this.tiles.has(tileInfo.key)) {this.loadQueue.push(tileInfo);}}await this.processLoadQueue();this.processUnloadQueue();}// 处理加载队列async processLoadQueue() {const MAX_CONCURRENT_LOADS = 3;const currentLoads = [];while (this.loadQueue.length > 0 && currentLoads.length < MAX_CONCURRENT_LOADS) {const tileInfo = this.loadQueue.shift();const loadPromise = this.loadTile(tileInfo).finally(() => {const index = currentLoads.indexOf(loadPromise);if (index > -1) currentLoads.splice(index, 1);});currentLoads.push(loadPromise);}await Promise.all(currentLoads);}// 加载单个瓦片async loadTile(tileInfo) {const { x, y, z } = tileInfo;const tileKey = `${x}-${y}-${z}`;try {const tileData = await this.fetchTileData(x, y, z);const tileMesh = this.createTileMesh(tileData);this.tiles.set(tileKey, {mesh: tileMesh,position: new THREE.Vector3(x * this.tileSize, 0, y * this.tileSize),zoomLevel: z,visible: false});} catch (error) {console.error(`Failed to load tile ${tileKey}:`, error);}}// 创建瓦片网格createTileMesh(tileData) {const geometry = new THREE.BufferGeometry();const vertices = new Float32Array(tileData.heightMap.length * 3);// 处理高程数据for (let i = 0; i < tileData.heightMap.length; i++) {const x = i % this.tileSize;const z = Math.floor(i / this.tileSize);vertices[i * 3] = x;vertices[i * 3 + 1] = tileData.heightMap[i];vertices[i * 3 + 2] = z;}geometry.setAttribute('position', new THREE.BufferAttribute(vertices, 3));geometry.computeVertexNormals();const material = new THREE.MeshStandardMaterial({vertexColors: true,wireframe: false});return new THREE.Mesh(geometry, material);}
}// 点云渲染系统
class PointCloudSystem {constructor(renderer, maxPoints = 1000000) {this.renderer = renderer;this.maxPoints = maxPoints;this.pointClouds = new Map();this.gpuCompute = null;this.initComputeRenderer();}initComputeRenderer() {this.gpuCompute = new GPUComputationRenderer(this.maxPoints,1,this.renderer);}// 创建点云实例createPointCloud(pointsData, options = {}) {const pointCloud = new THREE.Points(this.createPointGeometry(pointsData),this.createPointMaterial(options));this.pointClouds.set(pointCloud.uuid, pointCloud);return pointCloud;}// 创建点几何体createPointGeometry(pointsData) {const geometry = new THREE.BufferGeometry();// 位置数据geometry.setAttribute('position',new THREE.BufferAttribute(pointsData.positions, 3));// 颜色数据if (pointsData.colors) {geometry.setAttribute('color',new THREE.BufferAttribute(pointsData.colors, 3));}// 大小数据if (pointsData.sizes) {geometry.setAttribute('size',new THREE.BufferAttribute(pointsData.sizes, 1));}return geometry;}// 创建点材质createPointMaterial(options) {return new THREE.PointsMaterial({size: options.size || 2,sizeAttenuation: true,vertexColors: true,transparent: true,opacity: 0.8});}// GPU加速点云更新async updatePointsGPU(pointCloud, newData) {const positionVariable = this.gpuCompute.addVariable('texturePosition',this.positionShader,new Float32Array(newData.positions));this.gpuCompute.setVariableDependencies(positionVariable, [positionVariable]);this.gpuCompute.init();// 执行计算this.gpuCompute.compute();// 更新几何体const positionTexture = this.gpuCompute.getCurrentRenderTarget(positionVariable).texture;this.updateGeometryFromTexture(pointCloud.geometry, positionTexture);}// 从纹理更新几何体updateGeometryFromTexture(geometry, texture) {const readBuffer = new Float32Array(this.maxPoints * 4);this.renderer.readRenderTargetPixels(texture,0,0,this.maxPoints,1,readBuffer);geometry.attributes.position.array = readBuffer;geometry.attributes.position.needsUpdate = true;}
}export default {name: 'LargeScaleVisualization',setup() {const renderCanvas = ref(null);const isLoading = ref(false);const loadProgress = ref(0);const loadStatus = ref('');const currentFPS = ref(0);const visiblePoints = ref(0);const memoryUsage = ref(0);const lodLevel = ref(1);const viewDistance = ref(1000);const pointSize = ref(2);const visualizationMode = ref('elevation');let scene, camera, renderer, controls;let terrainManager, pointCloudSystem;let stats, clock;let frameCount = 0;let lastFpsUpdate = 0;// 初始化Three.js场景const initScene = async () => {// 创建场景scene = new THREE.Scene();scene.background = new THREE.Color(0x0a0a0a);// 创建相机camera = new THREE.PerspectiveCamera(75,window.innerWidth / window.innerHeight,0.1,10000);camera.position.set(0, 500, 1000);// 创建渲染器renderer = new THREE.WebGLRenderer({canvas: renderCanvas.value,antialias: true,powerPreference: "high-performance"});renderer.setSize(window.innerWidth, window.innerHeight);renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));// 添加控制器controls = new OrbitControls(camera, renderer.domElement);controls.enableDamping = true;controls.dampingFactor = 0.05;controls.minDistance = 100;controls.maxDistance = 5000;// 初始化管理器terrainManager = new TerrainTileManager(renderer, camera);pointCloudSystem = new PointCloudSystem(renderer);// 添加灯光setupLighting();// 启动渲染循环clock = new THREE.Clock();animate();};// 设置灯光const setupLighting = () => {const ambientLight = new THREE.AmbientLight(0x404040, 0.6);scene.add(ambientLight);const directionalLight = new THREE.DirectionalLight(0xffffff, 0.8);directionalLight.position.set(1000, 2000, 500);directionalLight.castShadow = true;directionalLight.shadow.mapSize.set(2048, 2048);scene.add(directionalLight);const hemisphereLight = new THREE.HemisphereLight(0x4477ff, 0x224433, 0.4);scene.add(hemisphereLight);};// 加载地形数据const loadTerrainData = async () => {isLoading.value = true;loadStatus.value = '正在加载地形数据...';try {// 模拟大规模地形数据加载const terrainData = await generateMockTerrainData(1024, 1024);const terrainMesh = createTerrainMesh(terrainData);scene.add(terrainMesh);loadProgress.value = 100;} catch (error) {console.error('地形数据加载失败:', error);} finally {isLoading.value = false;}};// 生成程序地形const generateProcedural = async () => {isLoading.value = true;loadStatus.value = '生成程序地形...';// 使用噪声函数生成地形const size = 512;const heightData = new Float32Array(size * size);for (let i = 0; i < size * size; i++) {const x = i % size;const z = Math.floor(i / size);heightData[i] = generateHeight(x, z, size);}const geometry = createTerrainGeometry(heightData, size);const material = new THREE.MeshStandardMaterial({vertexColors: true,wireframe: false});const terrain = new THREE.Mesh(geometry, material);scene.add(terrain);isLoading.value = false;};// 生成高度数据const generateHeight = (x, z, size) => {// 使用多频噪声生成自然地形let height = 0;let frequency = 0.01;let amplitude = 50;for (let i = 0; i < 4; i++) {height += noise.simplex2(x * frequency, z * frequency) * amplitude;frequency *= 2;amplitude *= 0.5;}return height;};// 创建地形几何体const createTerrainGeometry = (heightData, size) => {const geometry = new THREE.PlaneGeometry(size, size, size - 1, size - 1);const vertices = geometry.attributes.position.array;// 应用高度数据for (let i = 0, j = 0; i < vertices.length; i += 3, j++) {vertices[i + 1] = heightData[j];}geometry.computeVertexNormals();return geometry;};// 清空数据const clearData = () => {scene.traverse(object => {if (object.isMesh || object.isPoints) {scene.remove(object);disposeObject(object);}});visiblePoints.value = 0;memoryUsage.value = 0;};// 释放对象资源const disposeObject = (object) => {if (object.geometry) {object.geometry.dispose();}if (object.material) {if (Array.isArray(object.material)) {object.material.forEach(m => m.dispose());} else {object.material.dispose();}}};// 动画循环const animate = () => {requestAnimationFrame(animate);const deltaTime = clock.getDelta();// 更新控制器controls.update();// 更新地形管理器if (terrainManager) {terrainManager.updateVisibleTiles();}// 更新性能统计updatePerformanceStats(deltaTime);// 渲染场景renderer.render(scene, camera);};// 更新性能统计const updatePerformanceStats = (deltaTime) => {frameCount++;lastFpsUpdate += deltaTime;if (lastFpsUpdate >= 1.0) {currentFPS.value = Math.round(frameCount / lastFpsUpdate);// 计算可见点数visiblePoints.value = calculateVisiblePoints();// 估算内存使用memoryUsage.value = estimateMemoryUsage();frameCount = 0;lastFpsUpdate = 0;}};// 计算可见点数const calculateVisiblePoints = () => {let count = 0;scene.traverse(object => {if (object.isPoints) {count += object.geometry.attributes.position.count;}});return count;};// 估算内存使用const estimateMemoryUsage = () => {let total = 0;scene.traverse(object => {if (object.isMesh || object.isPoints) {if (object.geometry) {total += object.geometry.attributes.position.array.byteLength;if (object.geometry.attributes.color) {total += object.geometry.attributes.color.array.byteLength;}}}});return total;};// 格式化数字const formatNumber = (num) => {if (num >= 1000000) {return (num / 1000000).toFixed(1) + 'M';} else if (num >= 1000) {return (num / 1000).toFixed(1) + 'K';}return num.toString();};// 格式化内存大小const formatMemory = (bytes) => {if (bytes >= 1024 * 1024) {return (bytes / (1024 * 1024)).toFixed(1) + ' MB';} else if (bytes >= 1024) {return (bytes / 1024).toFixed(1) + ' KB';}return bytes + ' B';};// 进度条样式const progressStyle = computed(() => ({width: `${loadProgress.value}%`}));// 响应式设置watch(viewDistance, (newDistance) => {camera.far = newDistance;camera.updateProjectionMatrix();});watch(lodLevel, (newLevel) => {// 更新LOD级别if (terrainManager) {terrainManager.setLODLevel(newLevel);}});onMounted(() => {initScene();window.addEventListener('resize', handleResize);});onUnmounted(() => {if (renderer) {renderer.dispose();}window.removeEventListener('resize', handleResize);});const handleResize = () => {if (!camera || !renderer) return;camera.aspect = window.innerWidth / window.innerHeight;camera.updateProjectionMatrix();renderer.setSize(window.innerWidth, window.innerHeight);};return {renderCanvas,isLoading,loadProgress,loadStatus,currentFPS,visiblePoints,memoryUsage,lodLevel,viewDistance,pointSize,visualizationMode,progressStyle,loadTerrainData,generateProcedural,clearData,formatNumber,formatMemory};}
};
</script><style scoped>
.visualization-container {width: 100%;height: 100vh;position: relative;background: #000;
}.render-canvas {width: 100%;height: 100%;display: block;
}.control-panel {position: absolute;top: 20px;right: 20px;width: 300px;background: rgba(0, 0, 0, 0.8);padding: 20px;border-radius: 10px;color: white;backdrop-filter: blur(10px);border: 1px solid rgba(255, 255, 255, 0.1);
}.panel-section {margin-bottom: 20px;padding-bottom: 15px;border-bottom: 1px solid rgba(255, 255, 255, 0.1);
}.panel-section:last-child {border-bottom: none;
}.panel-section h3 {color: #00ffff;margin-bottom: 15px;font-size: 16px;
}.panel-section h4 {color: #00ff88;margin-bottom: 12px;font-size: 14px;
}.stats-display {display: flex;flex-direction: column;gap: 8px;
}.stat-item {display: flex;justify-content: space-between;align-items: center;padding: 6px 0;
}.stat-label {color: #ccc;font-size: 12px;
}.stat-value {color: #00ffff;font-weight: bold;font-size: 12px;
}.setting-group {margin-bottom: 12px;
}.setting-group label {display: block;margin-bottom: 5px;color: #ccc;font-size: 12px;
}.setting-group input[type="range"] {width: 100%;height: 4px;background: #444;border-radius: 2px;outline: none;
}.data-controls {display: flex;flex-direction: column;gap: 8px;
}.control-button {padding: 10px;border: none;border-radius: 5px;background: linear-gradient(45deg, #667eea, #764ba2);color: white;cursor: pointer;font-size: 12px;transition: transform 0.2s;
}.control-button:hover {transform: translateY(-1px);
}.visualization-modes {display: flex;flex-direction: column;gap: 8px;
}.visualization-modes label {display: flex;align-items: center;gap: 8px;font-size: 12px;color: #ccc;cursor: pointer;
}.visualization-modes input[type="radio"] {margin: 0;
}.loading-overlay {position: absolute;top: 0;left: 0;width: 100%;height: 100%;background: rgba(0, 0, 0, 0.7);display: flex;justify-content: center;align-items: center;z-index: 1000;
}.progress-container {width: 300px;text-align: center;
}.progress-bar {width: 100%;height: 6px;background: rgba(255, 255, 255, 0.1);border-radius: 3px;overflow: hidden;margin-bottom: 10px;
}.progress-fill {height: 100%;background: linear-gradient(90deg, #00ffff, #0088ff);transition: width 0.3s ease;border-radius: 3px;
}.progress-text {color: #00ffff;font-size: 14px;
}
</style>

高级可视化特性

实时地形变形系统

class TerrainDeformationSystem {constructor(renderer, terrainMesh) {this.renderer = renderer;this.terrainMesh = terrainMesh;this.deformationData = null;this.gpuCompute = null;this.initDeformationSystem();}initDeformationSystem() {// 初始化GPU计算this.gpuCompute = new GPUComputationRenderer(this.terrainMesh.geometry.attributes.position.count,1,this.renderer);// 创建高度场纹理this.createHeightfieldTexture();}// 应用实时变形applyDeformation(position, radius, intensity) {const deformationShader = `uniform vec3 deformationCenter;uniform float deformationRadius;uniform float deformationIntensity;void main() {vec2 uv = gl_FragCoord.xy / resolution.xy;vec4 heightData = texture2D(heightTexture, uv);float distance = length(position - deformationCenter);if (distance < deformationRadius) {float factor = 1.0 - smoothstep(0.0, deformationRadius, distance);heightData.y += deformationIntensity * factor;}gl_FragColor = heightData;}`;// 执行GPU变形计算this.executeDeformationShader(deformationShader, {deformationCenter: position,deformationRadius: radius,deformationIntensity: intensity});}// 执行变形着色器executeDeformationShader(shaderCode, uniforms) {const variable = this.gpuCompute.addVariable('heightTexture',shaderCode,this.terrainMesh.geometry.attributes.position.array);// 设置uniformsfor (const [name, value] of Object.entries(uniforms)) {variable.material.uniforms[name] = { value };}this.gpuCompute.compute();this.updateTerrainGeometry();}
}

流式数据加载器

class StreamDataLoader {constructor(maxCacheSize = 5000000) {this.maxCacheSize = maxCacheSize;this.dataCache = new Map();this.loadQueue = [];this.currentSize = 0;}async loadDataChunk(url, priority = 0) {// 检查缓存if (this.dataCache.has(url)) {return this.dataCache.get(url);}// 加入加载队列const loadTask = {url,priority,promise: this.fetchChunkData(url)};this.loadQueue.push(loadTask);this.loadQueue.sort((a, b) => b.priority - a.priority);return this.processLoadQueue();}async processLoadQueue() {const MAX_CONCURRENT_LOADS = 2;const currentLoads = [];while (this.loadQueue.length > 0 && currentLoads.length < MAX_CONCURRENT_LOADS) {const task = this.loadQueue.shift();const loadPromise = task.promise.then(data => {this.cacheData(task.url, data);return data;});currentLoads.push(loadPromise);}return Promise.all(currentLoads);}cacheData(url, data) {const dataSize = this.calculateDataSize(data);// 检查缓存空间if (this.currentSize + dataSize > this.maxCacheSize) {this.evictCache();}this.dataCache.set(url, data);this.currentSize += dataSize;}evictCache() {// LRU缓存淘汰策略const entries = Array.from(this.dataCache.entries());entries.sort((a, b) => a[1].lastAccessed - b[1].lastAccessed);let freedSize = 0;while (freedSize < this.maxCacheSize * 0.2 && entries.length > 0) {const [url, data] = entries.shift();const dataSize = this.calculateDataSize(data);this.dataCache.delete(url);this.currentSize -= dataSize;freedSize += dataSize;}}
}
