【Android】 BindService源码流程

BindService源码流程

• 调用bindService绑定服务。其源码实现在ContextWrapper.java中。

@Override
public boolean bindService(Intent service, ServiceConnection conn,int flags) {return mBase.bindService(service, conn, flags);
}

• 调用ContextImp.java的bindService

@Override
public boolean bindService(Intent service, ServiceConnection conn, int flags) {        warnIfCallingFromSystemProcess();return bindServiceCommon(service, conn, flags, null, mMainThread.getHandler(), null,getUser());
}private boolean bindServiceCommon(Intent service, ServiceConnection conn, int flags,            String instanceName, Handler handler, Executor executor, UserHandle user) {// Keep this in sync with DevicePolicyManager.bindDeviceAdminServiceAsUser.IServiceConnection sd;if (conn == null) {throw new IllegalArgumentException("connection is null");}if (handler != null && executor != null) {throw new IllegalArgumentException("Handler and Executor both supplied");}if (mPackageInfo != null) {if (executor != null) {sd = mPackageInfo.getServiceDispatcher(conn, getOuterContext(), executor, flags);} else {sd = mPackageInfo.getServiceDispatcher(conn, getOuterContext(), handler, flags);}} else {throw new RuntimeException("Not supported in system context");}validateServiceIntent(service);try {IBinder token = getActivityToken();if (token == null && (flags&BIND_AUTO_CREATE) == 0 && mPackageInfo != null&& mPackageInfo.getApplicationInfo().targetSdkVersion< android.os.Build.VERSION_CODES.ICE_CREAM_SANDWICH) {flags |= BIND_WAIVE_PRIORITY;}service.prepareToLeaveProcess(this);int res = ActivityManager.getService().bindIsolatedService(mMainThread.getApplicationThread(), getActivityToken(), service,service.resolveTypeIfNeeded(getContentResolver()),sd, flags, instanceName, getOpPackageName(), user.getIdentifier());if (res < 0) {throw new SecurityException("Not allowed to bind to service " + service);}return res != 0;} catch (RemoteException e) {throw e.rethrowFromSystemServer();}
}

• 调用AMS的bindIsolatedService

public int bindIsolatedService(IApplicationThread caller, IBinder token, Intent service,String resolvedType, IServiceConnection connection, int flags, String instanceName,String callingPackage, int userId) throws TransactionTooLargeException {enforceNotIsolatedCaller("bindService");// Refuse possible leaked file descriptorsif (service != null && service.hasFileDescriptors() == true) {throw new IllegalArgumentException("File descriptors passed in Intent");}if (callingPackage == null) {throw new IllegalArgumentException("callingPackage cannot be null");}// Ensure that instanceName, which is caller provided, does not contain// unusual characters.if (instanceName != null) {for (int i = 0; i < instanceName.length(); ++i) {char c = instanceName.charAt(i);if (!((c >= 'a' && c <= 'z') || (c >= 'A' && c <= 'Z')|| (c >= '0' && c <= '9') || c == '_' || c == '.')) {throw new IllegalArgumentException("Illegal instanceName");}}}synchronized(this) {return mServices.bindServiceLocked(caller, token, service,resolvedType, connection, flags, instanceName, callingPackage, userId);}
}

• 调用ActiveService的bindServiceLocked以及bringUpServiceLocked，然后调用realStartServiceLocked

int bindServiceLocked(IApplicationThread caller, IBinder token, Intent service,if (s.app != null && b.intent.received) {// Service is already running, so we can immediately// publish the connection.try {c.conn.connected(s.name, b.intent.binder, false);} catch (Exception e) {Slog.w(TAG, "Failure sending service " + s.shortInstanceName+ " to connection " + c.conn.asBinder()+ " (in " + c.binding.client.processName + ")", e);}// If this is the first app connected back to this binding,// and the service had previously asked to be told when// rebound, then do so.if (b.intent.apps.size() == 1 && b.intent.doRebind) {requestServiceBindingLocked(s, b.intent, callerFg, true);}} else if (!b.intent.requested) {requestServiceBindingLocked(s, b.intent, callerFg, false);}
}
private final boolean requestServiceBindingLocked(ServiceRecord r, IntentBindRecord i,boolean execInFg, boolean rebind) throws TransactionTooLargeException {if ((!i.requested || rebind) && i.apps.size() > 0) {try {bumpServiceExecutingLocked(r, execInFg, "bind");r.app.forceProcessStateUpTo(ActivityManager.PROCESS_STATE_SERVICE);r.app.thread.scheduleBindService(r, i.intent.getIntent(), rebind,r.app.getReportedProcState());if (!rebind) {i.requested = true;}i.hasBound = true;i.doRebind = false;} catch (TransactionTooLargeException e) {} catch (RemoteException e) {}}return true;
}

• 调用ActiveThread的scheduleBindService，转到Handle中处理。然后通知服务端onBind后，调用publishService回调客户端。

public final void scheduleBindService(IBinder token, Intent intent,                boolean rebind, int processState) {updateProcessState(processState, false);BindServiceData s = new BindServiceData();s.token = token;s.intent = intent;s.rebind = rebind;if (DEBUG_SERVICE)Slog.v(TAG, "scheduleBindService token=" + token + " intent=" + intent + " uid="+ Binder.getCallingUid() + " pid=" + Binder.getCallingPid());sendMessage(H.BIND_SERVICE, s);}public void handleMessage(Message msg) {if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));switch (msg.what) {case BIND_SERVICE:Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "serviceBind");handleBindService((BindServiceData)msg.obj);Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);break;}private void handleBindService(BindServiceData data) {        Service s = mServices.get(data.token);if (DEBUG_SERVICE)Slog.v(TAG, "handleBindService s=" + s + " rebind=" + data.rebind);if (s != null) {try {data.intent.setExtrasClassLoader(s.getClassLoader());data.intent.prepareToEnterProcess();try {if (!data.rebind) {IBinder binder = s.onBind(data.intent);ActivityManager.getService().publishService(data.token, data.intent, binder);} else {s.onRebind(data.intent);ActivityManager.getService().serviceDoneExecuting(data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);}} catch (RemoteException ex) {throw ex.rethrowFromSystemServer();}} catch (Exception e) {if (!mInstrumentation.onException(s, e)) {throw new RuntimeException("Unable to bind to service " + s+ " with " + data.intent + ": " + e.toString(), e);}}}
}

• ActivityManagerService.java的publishService

   public void publishService(IBinder token, Intent intent, IBinder service) {        // Refuse possible leaked file descriptorsif (intent != null && intent.hasFileDescriptors() == true) {throw new IllegalArgumentException("File descriptors passed in Intent");}synchronized(this) {if (!(token instanceof ServiceRecord)) {throw new IllegalArgumentException("Invalid service token");}mServices.publishServiceLocked((ServiceRecord)token, intent, service);}}

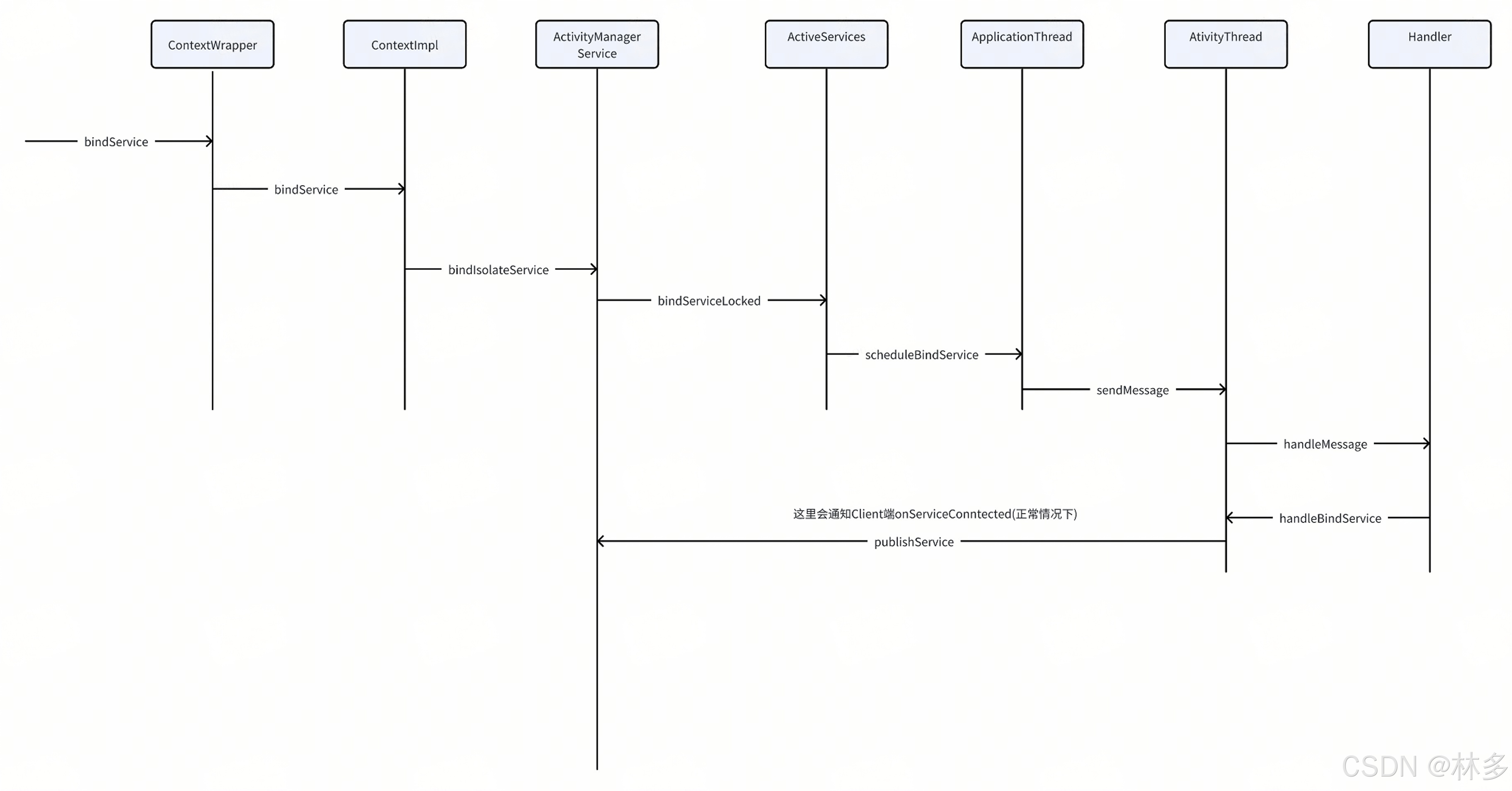

• 流程图

• ActiveServices.java的publishServiceLocked方法中，通知client端BindService的结果。

void publishServiceLocked(ServiceRecord r, Intent intent, IBinder service) {
final long origId = Binder.clearCallingIdentity();try {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "PUBLISHING " + r+ " " + intent + ": " + service);if (r != null) {Intent.FilterComparison filter= new Intent.FilterComparison(intent);IntentBindRecord b = r.bindings.get(filter);if (b != null && !b.received) {b.binder = service;b.requested = true;b.received = true;ArrayMap<IBinder, ArrayList<ConnectionRecord>> connections = r.getConnections();for (int conni = connections.size() - 1; conni >= 0; conni--) {ArrayList<ConnectionRecord> clist = connections.valueAt(conni);for (int i=0; i<clist.size(); i++) {ConnectionRecord c = clist.get(i);if (!filter.equals(c.binding.intent.intent)) {if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Not publishing to: " + c);if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Bound intent: " + c.binding.intent.intent);if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Published intent: " + intent);continue;}if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Publishing to: " + c);try {c.conn.connected(r.name, service, false);} catch (Exception e) {Slog.w(TAG, "Failure sending service " + r.shortInstanceName+ " to connection " + c.conn.asBinder()+ " (in " + c.binding.client.processName + ")", e);}}}}serviceDoneExecutingLocked(r, mDestroyingServices.contains(r), false);}} finally {Binder.restoreCallingIdentity(origId);}
}

• LoadedApk.java的中实现了IServiceConnection.Stub，最终通过onServiceConnected通知Client端。

private static class InnerConnection extends IServiceConnection.Stub {@UnsupportedAppUsagefinal WeakReference<LoadedApk.ServiceDispatcher> mDispatcher;InnerConnection(LoadedApk.ServiceDispatcher sd) {                mDispatcher = new WeakReference<LoadedApk.ServiceDispatcher>(sd);}public void connected(ComponentName name, IBinder service, boolean dead)throws RemoteException {LoadedApk.ServiceDispatcher sd = mDispatcher.get();if (sd != null) {sd.connected(name, service, dead);}}
}public void connected(ComponentName name, IBinder service, boolean dead) {if (mActivityExecutor != null) {mActivityExecutor.execute(new RunConnection(name, service, 0, dead));} else if (mActivityThread != null) {mActivityThread.post(new RunConnection(name, service, 0, dead));} else {doConnected(name, service, dead);}
}private final class RunConnection implements Runnable {RunConnection(ComponentName name, IBinder service, int command, boolean dead) {mName = name;mService = service;mCommand = command;mDead = dead;}public void run() {if (mCommand == 0) {doConnected(mName, mService, mDead);} else if (mCommand == 1) {doDeath(mName, mService);}}final ComponentName mName;final IBinder mService;final int mCommand;final boolean mDead;
}public void doConnected(ComponentName name, IBinder service, boolean dead) {synchronized (this) {// If there is a new viable service, it is now connected.if (service != null) {mConnection.onServiceConnected(name, service);} else {// The binding machinery worked, but the remote returned null from onBind().mConnection.onNullBinding(name);}
}
