【VS2022 配置 ACADOS环境】

web 2025/6/18 4:30:47

【VS2022 配置 ACADOS求解 NLP问题】

  • 1. 前言
    • 1.1 来回扁椭圆
    • 1.2 椭圆轨迹
    • 1.3 月牙形轨迹
  • 2. Cmake配置
  • 3. 下载acados的源码
  • 4. 组合编译Acados
  • 5. 测试ACADOS
    • 5.1 配置getting_started.c
    • 5.2 启动getting_started.c
    • 5.3 附加依赖项
  • 6 总结

1. 前言

最近在研究 船舶NMPC 控制时，主要是非线性约束的凸二次优化问题属于NLP问题，找到了 casadi 这个求解库，后面读了许多论文，发现Acados求解速度比Casadi还要快许多，所以就来试试呗！但是团队现在软件是基于Visual Studio From架构设计的测试软件，之后再系统的移植过去。
在这里插入图片描述

https://github.com/acados/acados
https://docs.acados.org/
在这里插入图片描述

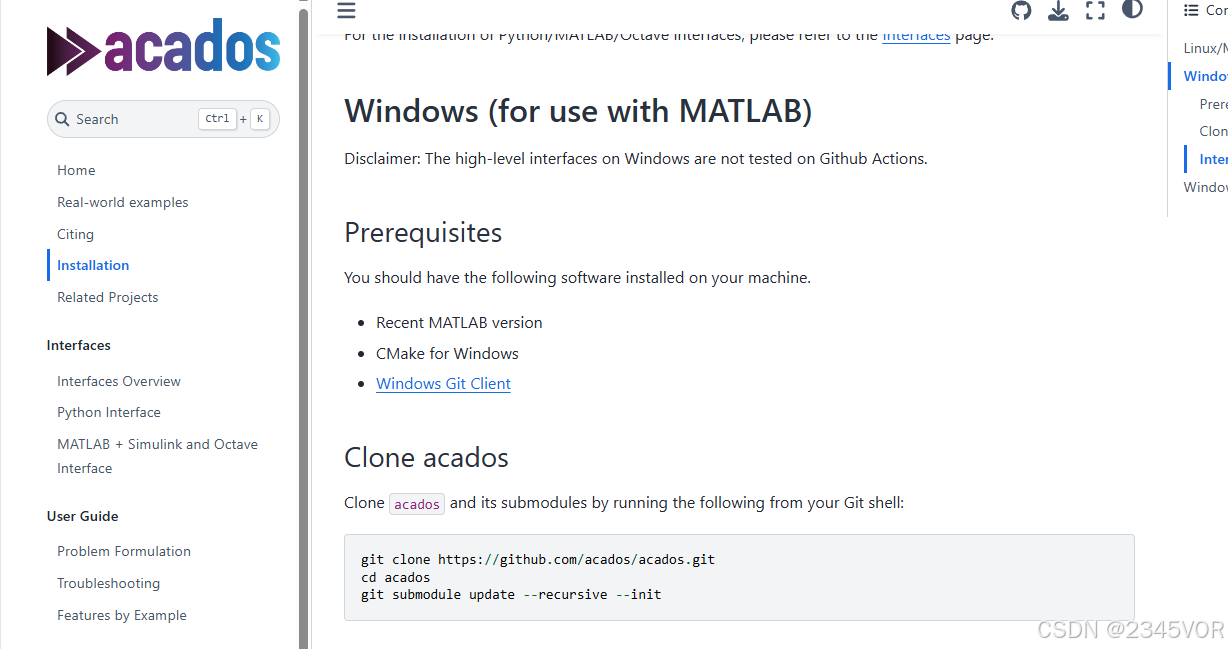

仔细阅读安装教程发现支持msvc，只是需要安装Cmake配置环境

  • 开发工具：Visual Studio 2022（.NET Framework 4.7.2+）环境搭建参考博客：【VS2019安装+QT配置】
  • 配置工具：Cmake 4.0.2

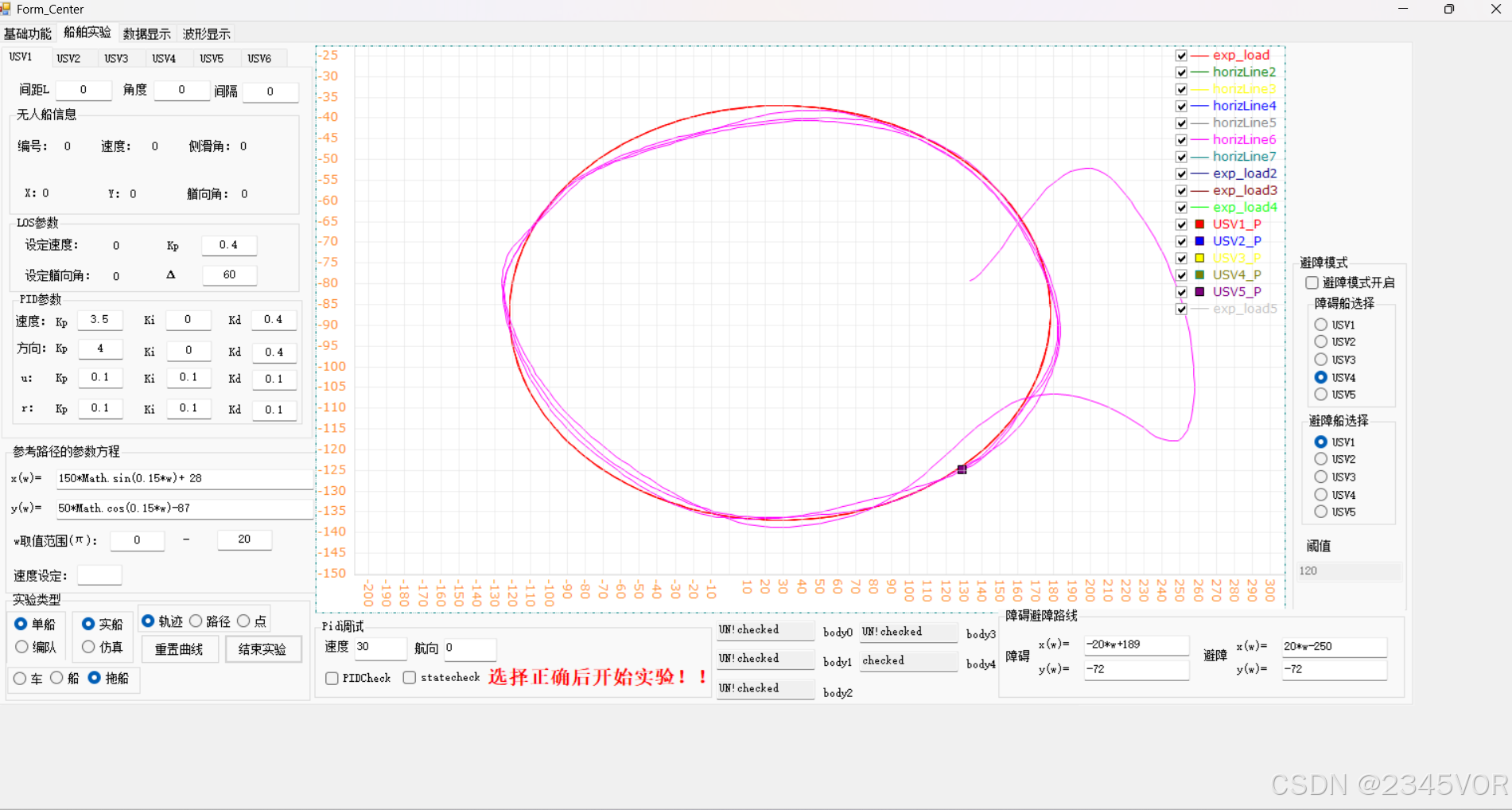

    给大家看看PID控制小船跑的几种常见轨迹，后续会更新其他控制效果：
    源码地址：

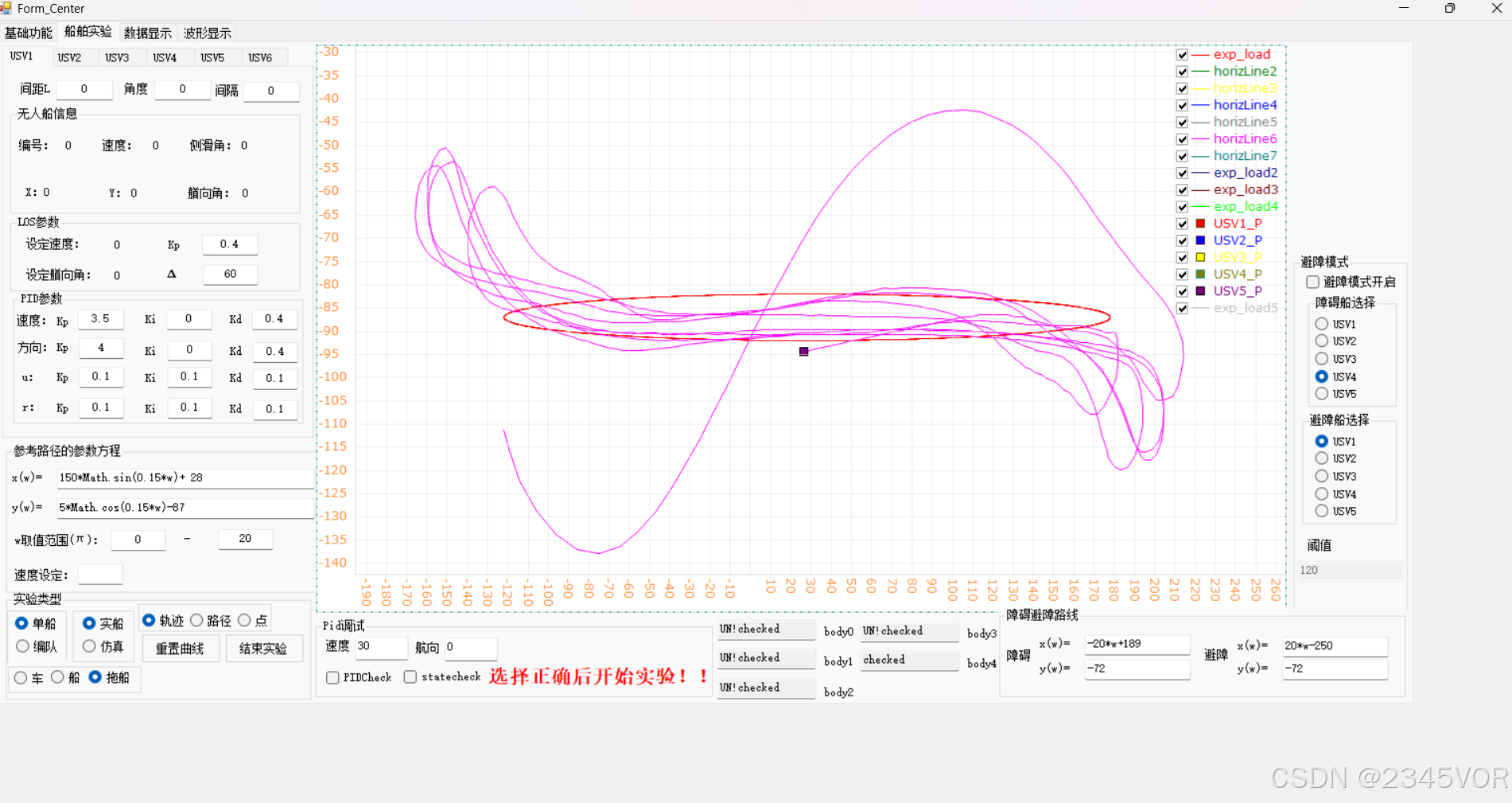

1.1 来回扁椭圆

在这里插入图片描述

1.2 椭圆轨迹

在这里插入图片描述

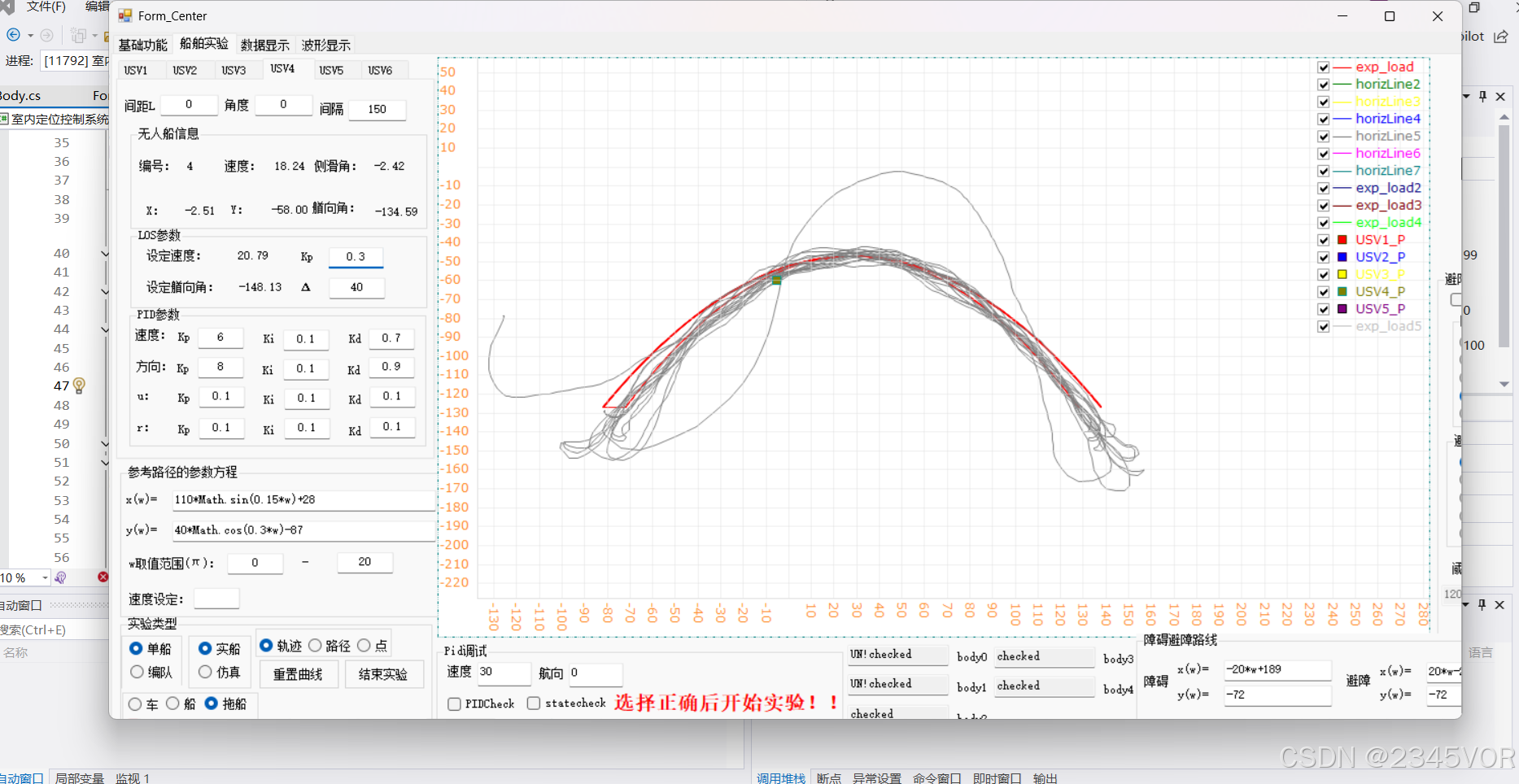

1.3 月牙形轨迹

在这里插入图片描述

2. Cmake配置

只是需要安装Cmake配置环境

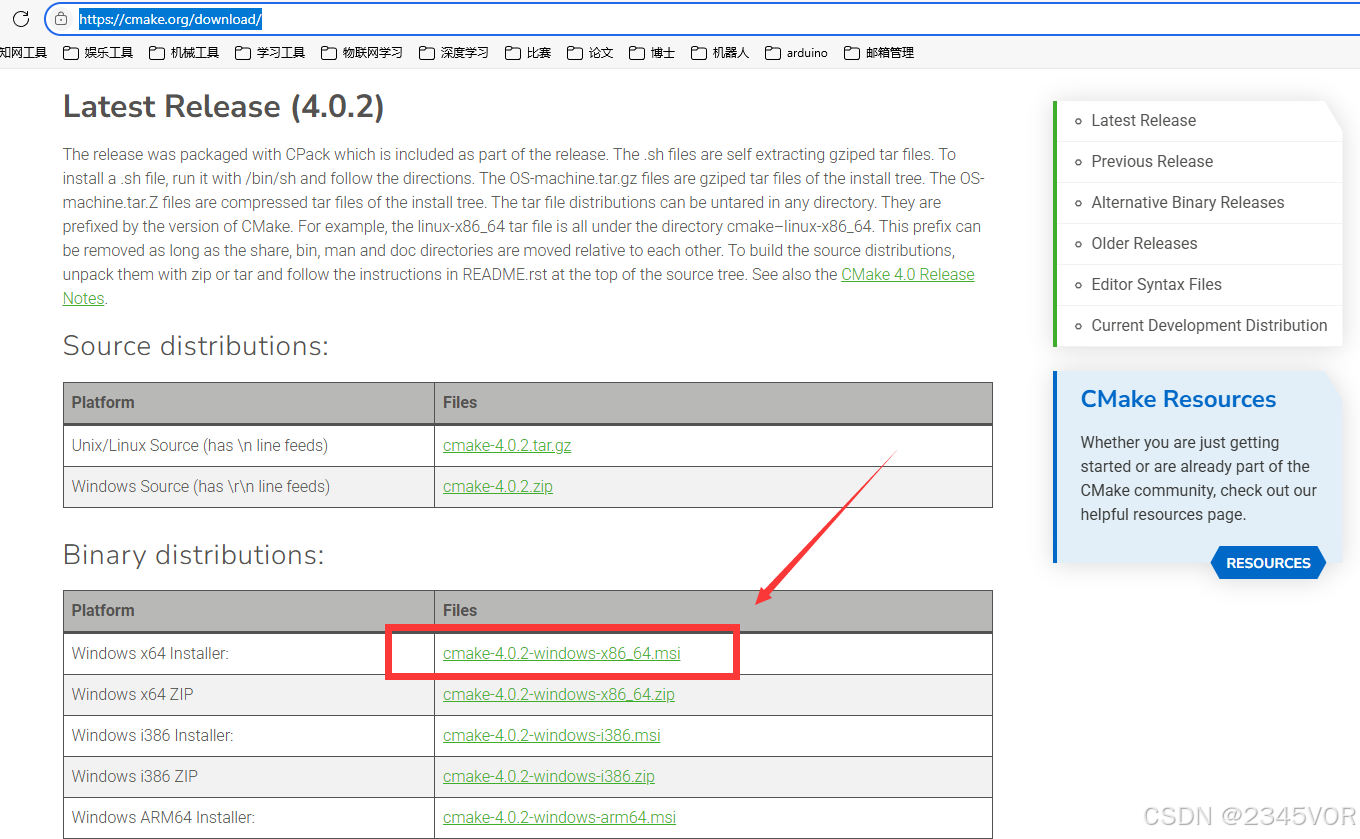

https://cmake.org/download/

在这里插入图片描述
一路直接安装注意需要勾选自动配置环境变量

3. 下载acados的源码

在 acados的 github 官方仓库中找到适合的版本，下载对应的 Source Code 压缩包即可
或者git

git clone https://github.com/acados/acados.git
cd acados
git submodule update --recursive --init

在这里插入图片描述

4. 组合编译Acados

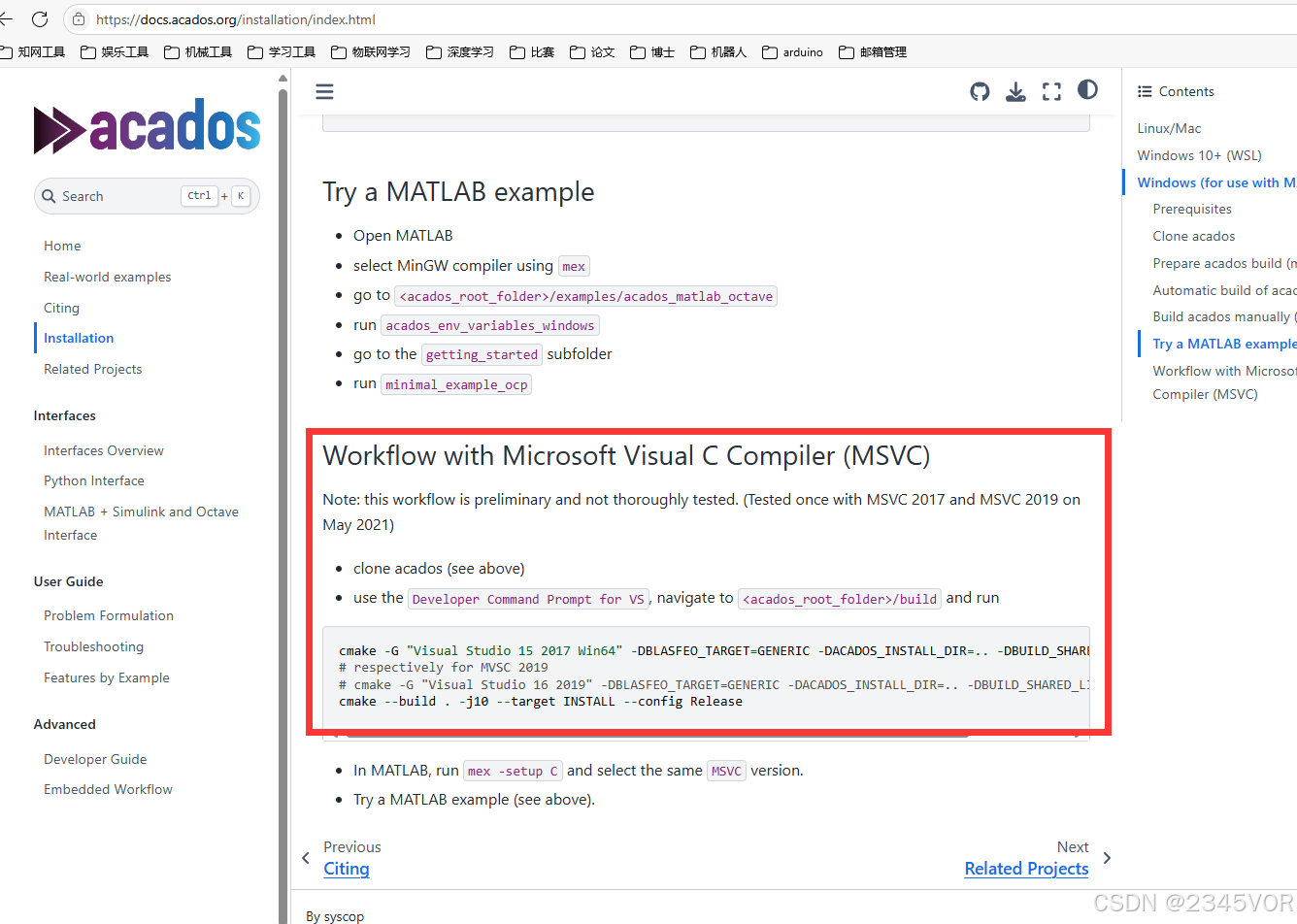

使用 Microsoft Visual C 编译器 （MSVC） 的工作流
注意：此工作流程是初步的，未经全面测试。 （于 2025 年 6 月使用 MSVC 2022 测试一次）

在这里插入图片描述

然后在 Acados 的目录下新建一个 build下，使用 、导航到<acados_root_folder>/build并运行Developer Command Prompt for VS

cmake -G "Visual Studio 17 2022 " -DBLASFEO_TARGET=GENERIC -DACADOS_INSTALL_DIR=.. -DBUILD_SHARED_LIBS=OFF ..
# respectively for MVSC 2019
# cmake -G "Visual Studio 16 2019" -DBLASFEO_TARGET=GENERIC -DACADOS_INSTALL_DIR=.. -DBUILD_SHARED_LIBS=OFF ..

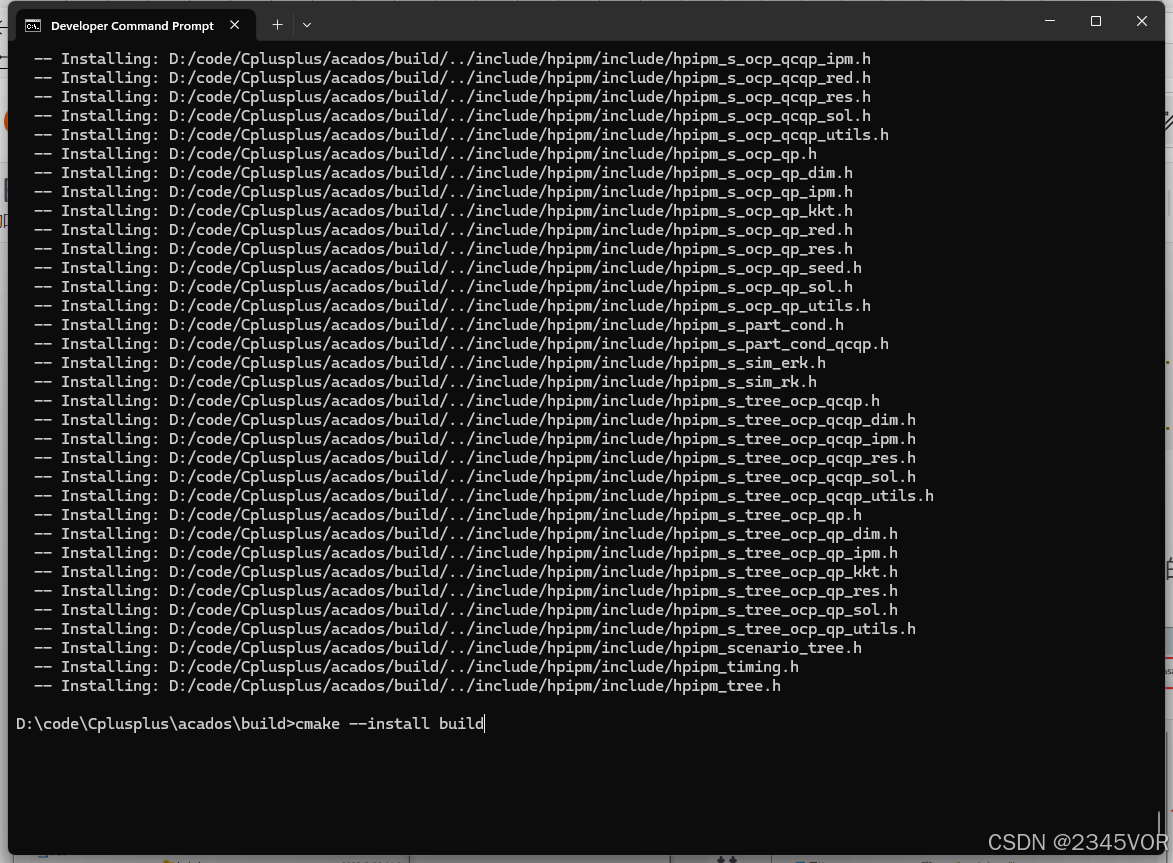

cmake --build . -j10 --target INSTALL --config Release
cmake --install build

后面demo只支持Release x64版本，进行二次封装可以解除版本限制就可以支持Debug x64版本

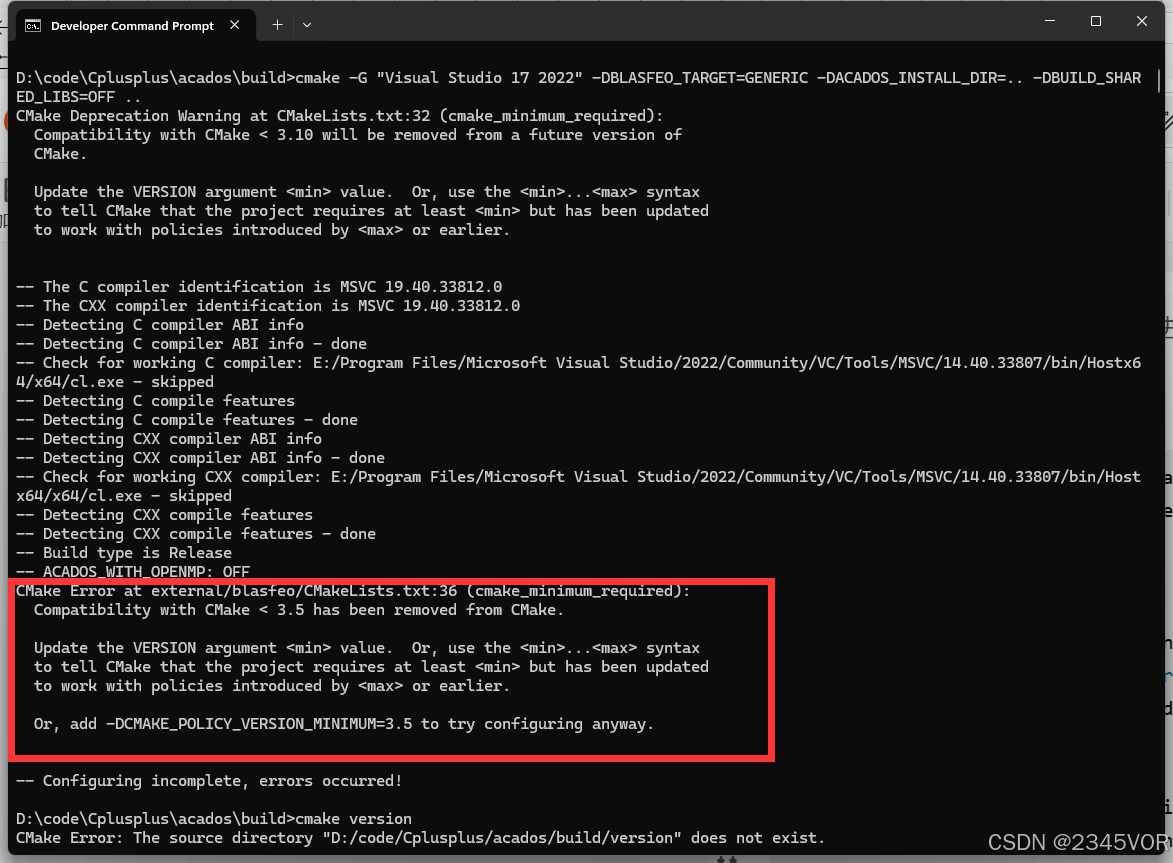

如果编译报错
在这里插入图片描述

D:\code\Cplusplus\acados\build>cmake -G "Visual Studio 17 2022" -DBLASFEO_TARGET=GENERIC -DACADOS_INSTALL_DIR=.. -DBUILD_SHARED_LIBS=OFF ..
CMake Deprecation Warning at CMakeLists.txt:32 (cmake_minimum_required):Compatibility with CMake < 3.10 will be removed from a future version ofCMake.Update the VERSION argument <min> value.  Or, use the <min>...<max> syntaxto tell CMake that the project requires at least <min> but has been updatedto work with policies introduced by <max> or earlier.-- The C compiler identification is MSVC 19.40.33812.0
-- The CXX compiler identification is MSVC 19.40.33812.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: E:/Program Files/Microsoft Visual Studio/2022/Community/VC/Tools/MSVC/14.40.33807/bin/Hostx64/x64/cl.exe - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: E:/Program Files/Microsoft Visual Studio/2022/Community/VC/Tools/MSVC/14.40.33807/bin/Hostx64/x64/cl.exe - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Build type is Release
-- ACADOS_WITH_OPENMP: OFF
CMake Error at external/blasfeo/CMakeLists.txt:36 (cmake_minimum_required):Compatibility with CMake < 3.5 has been removed from CMake.Update the VERSION argument <min> value.  Or, use the <min>...<max> syntaxto tell CMake that the project requires at least <min> but has been updatedto work with policies introduced by <max> or earlier.Or, add -DCMAKE_POLICY_VERSION_MINIMUM=3.5 to try configuring anyway.-- Configuring incomplete, errors occurred!

解决方法：

根据cmake的提示 CMakeLists.txt 中 cmake_minimum_required (VERSION 2.8.12)的版本要求太低了，可能无法兼容，将最小版本要求更新或者添加一个区间即可。

修改报错文件中的版本声明后解决：

//修改前
cmake_minimum_required (VERSION 2.8.12)//查看系统cmake版本,  cmake --version
cmake version 4.0.2//修改后
cmake_minimum_required (VERSION 3.8.0)
或者
cmake_minimum_required (VERSION 2.8.12...4.0.2)

之后双击运行，等待其编译结束，中间会出现许多警告

在这里插入图片描述

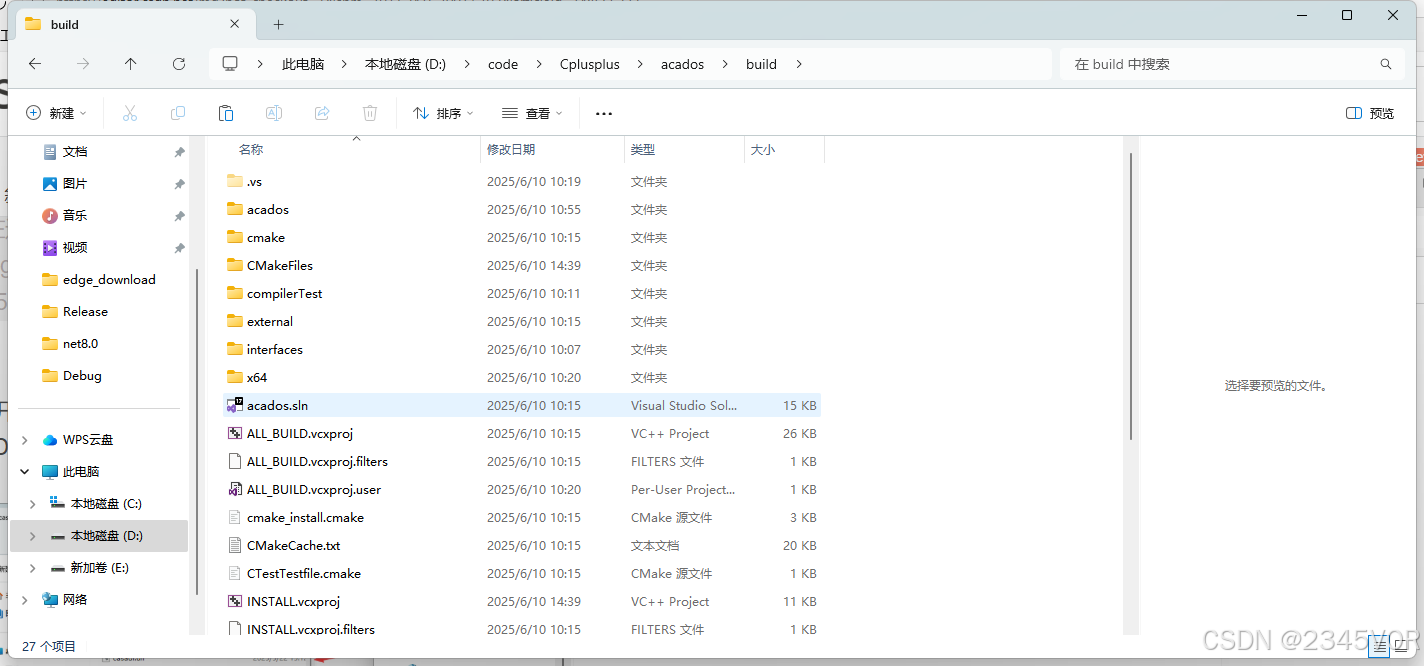

编译成功后会生成Visual studio的项目文件
在这里插入图片描述

5. 测试ACADOS

打开上面编译好的项目文件acados.sln

在这里插入图片描述
这里面有许多测试demo，大家有兴趣自行测试

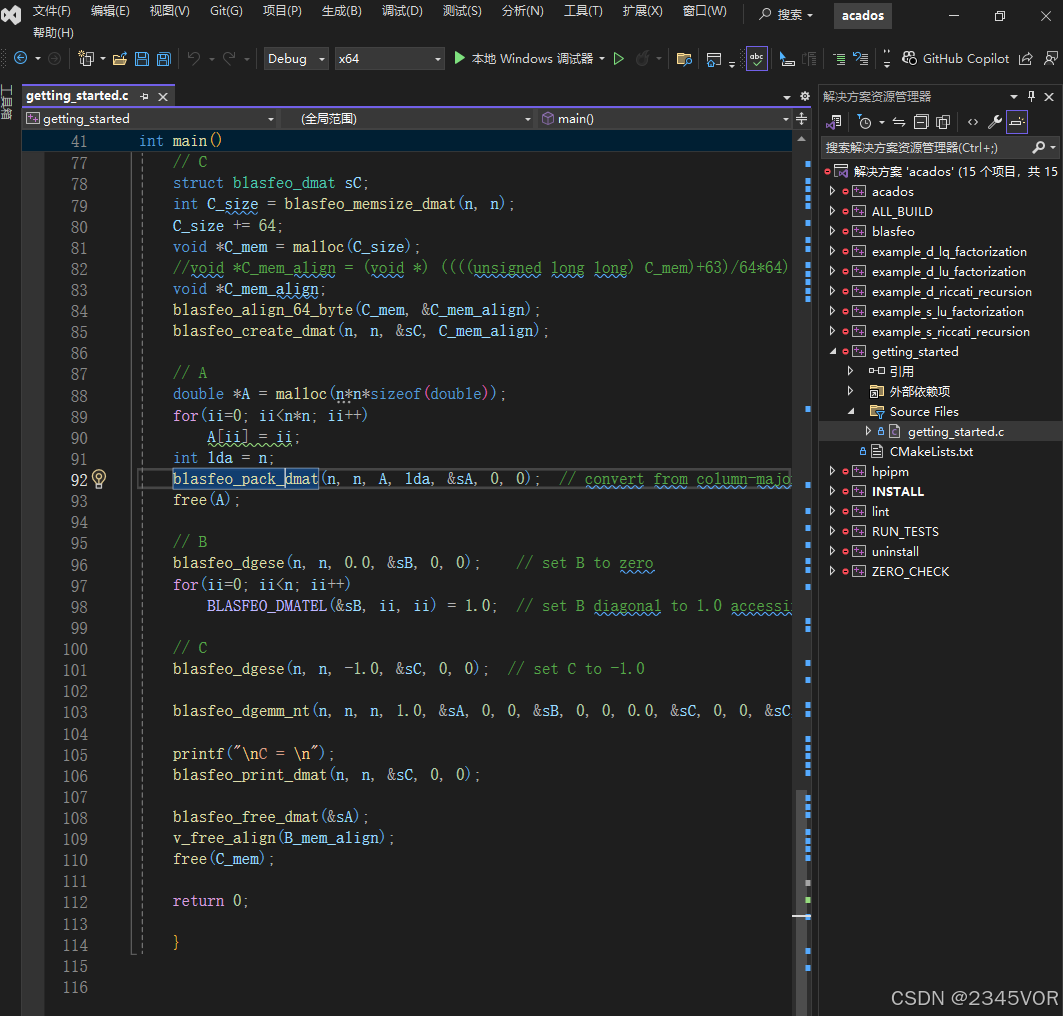

5.1 配置getting_started.c

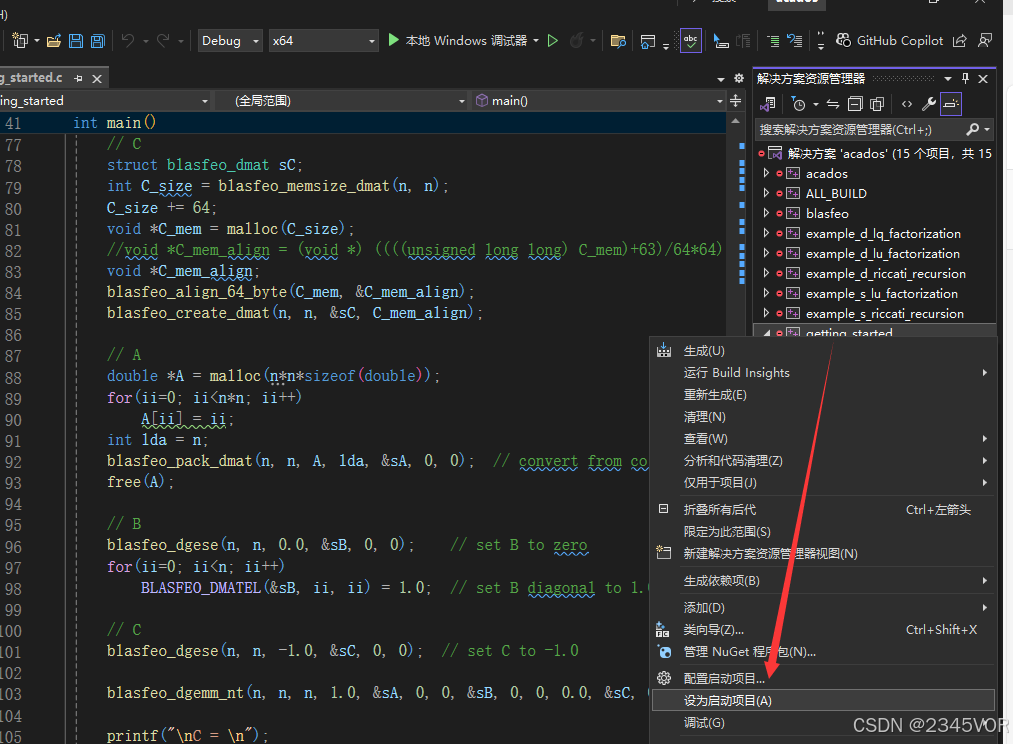

我们将getting_started项目右键设置为启动项目
在这里插入图片描述

/**************************************************************************************************
*                                                                                                 *
* This file is part of BLASFEO.                                                                   *
*                                                                                                 *
* BLASFEO -- BLAS For Embedded Optimization.                                                      *
* Copyright (C) 2019 by Gianluca Frison.                                                          *
* Developed at IMTEK (University of Freiburg) under the supervision of Moritz Diehl.              *
* All rights reserved.                                                                            *
*                                                                                                 *
* The 2-Clause BSD License                                                                        *
*                                                                                                 *
* Redistribution and use in source and binary forms, with or without                              *
* modification, are permitted provided that the following conditions are met:                     *
*                                                                                                 *
* 1. Redistributions of source code must retain the above copyright notice, this                  *
*    list of conditions and the following disclaimer.                                             *
* 2. Redistributions in binary form must reproduce the above copyright notice,                    *
*    this list of conditions and the following disclaimer in the documentation                    *
*    and/or other materials provided with the distribution.                                       *
*                                                                                                 *
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND                 *
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED                   *
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE                          *
* DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR                 *
* ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES                  *
* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;                    *
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND                     *
* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT                      *
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS                   *
* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.                                    *
*                                                                                                 *
* Author: Gianluca Frison, gianluca.frison (at) imtek.uni-freiburg.de                             *
*                                                                                                 *
**************************************************************************************************/#include <stdlib.h>
#include <stdio.h>#include <blasfeo.h>int main(){printf( "Testing processor\n" );char supportString[50];blasfeo_processor_library_string( supportString );printf( "Library requires processor features:%s\n", supportString );int features = 0;int procCheckSucceed = blasfeo_processor_cpu_features( &features );blasfeo_processor_feature_string( features, supportString );printf( "Processor supports features:%s\n", supportString );if( !procCheckSucceed ){printf("Current processor does not support the current compiled BLASFEO library.\n");printf("Please get a BLASFEO library compatible with this processor.\n");exit(3);}int ii;  // loop indexint n = 12;  // matrix size// Astruct blasfeo_dmat sA;            // matrix structureblasfeo_allocate_dmat(n, n, &sA);  // allocate and assign memory needed by A// Bstruct blasfeo_dmat sB;                       // matrix structureint B_size = blasfeo_memsize_dmat(n, n);      // size of memory needed by Bvoid *B_mem_align;v_zeros_align(&B_mem_align, B_size);          // allocate memory needed by Bblasfeo_create_dmat(n, n, &sB, B_mem_align);  // assign aligned memory to struct// Cstruct blasfeo_dmat sC;                                                  // matrix structureint C_size = blasfeo_memsize_dmat(n, n);                                 // size of memory needed by CC_size += 64;                                                            // 64-bytes alignmentvoid *C_mem = malloc(C_size);//void *C_mem_align = (void *) ((((unsigned long long) C_mem)+63)/64*64);  // align memory pointervoid *C_mem_align;blasfeo_align_64_byte(C_mem, &C_mem_align);                              // align memory pointerblasfeo_create_dmat(n, n, &sC, C_mem_align);                             // assign aligned memory to struct// Adouble *A = malloc(n*n*sizeof(double));for(ii=0; ii<n*n; ii++)A[ii] = ii;int lda = n;blasfeo_pack_dmat(n, n, A, lda, &sA, 0, 0);  // convert from column-major to BLASFEO dmatfree(A);// Bblasfeo_dgese(n, n, 0.0, &sB, 0, 0);    // set B to zerofor(ii=0; ii<n; ii++)BLASFEO_DMATEL(&sB, ii, ii) = 1.0;  // set B diagonal to 1.0 accessing dmat elements// Cblasfeo_dgese(n, n, -1.0, &sC, 0, 0);  // set C to -1.0blasfeo_dgemm_nt(n, n, n, 1.0, &sA, 0, 0, &sB, 0, 0, 0.0, &sC, 0, 0, &sC, 0, 0);printf("\nC = \n");blasfeo_print_dmat(n, n, &sC, 0, 0);blasfeo_free_dmat(&sA);v_free_align(B_mem_align);free(C_mem);return 0;}

5.2 启动getting_started.c

在这里插入图片描述

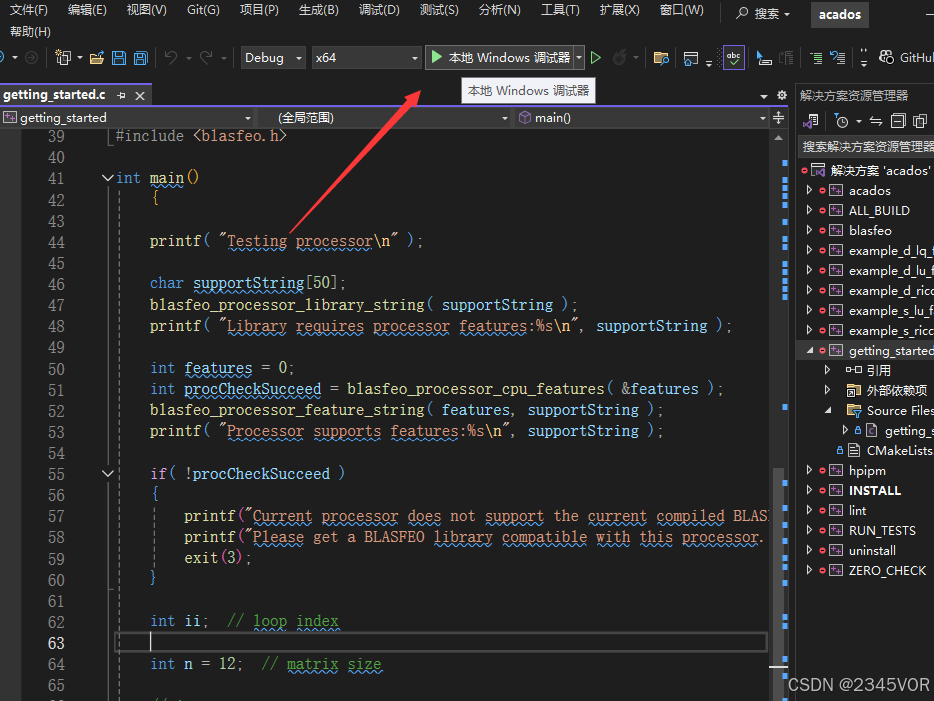

点击调试运行getting_started.cdemo

会输出如下内容

Testing processor
Library requires processor features:
Processor supports features:C =0.00000  12.00000  24.00000  36.00000  48.00000  60.00000  72.00000  84.00000  96.00000 108.00000 120.00000 132.000001.00000  13.00000  25.00000  37.00000  49.00000  61.00000  73.00000  85.00000  97.00000 109.00000 121.00000 133.000002.00000  14.00000  26.00000  38.00000  50.00000  62.00000  74.00000  86.00000  98.00000 110.00000 122.00000 134.000003.00000  15.00000  27.00000  39.00000  51.00000  63.00000  75.00000  87.00000  99.00000 111.00000 123.00000 135.000004.00000  16.00000  28.00000  40.00000  52.00000  64.00000  76.00000  88.00000 100.00000 112.00000 124.00000 136.000005.00000  17.00000  29.00000  41.00000  53.00000  65.00000  77.00000  89.00000 101.00000 113.00000 125.00000 137.000006.00000  18.00000  30.00000  42.00000  54.00000  66.00000  78.00000  90.00000 102.00000 114.00000 126.00000 138.000007.00000  19.00000  31.00000  43.00000  55.00000  67.00000  79.00000  91.00000 103.00000 115.00000 127.00000 139.000008.00000  20.00000  32.00000  44.00000  56.00000  68.00000  80.00000  92.00000 104.00000 116.00000 128.00000 140.000009.00000  21.00000  33.00000  45.00000  57.00000  69.00000  81.00000  93.00000 105.00000 117.00000 129.00000 141.0000010.00000  22.00000  34.00000  46.00000  58.00000  70.00000  82.00000  94.00000 106.00000 118.00000 130.00000 142.0000011.00000  23.00000  35.00000  47.00000  59.00000  71.00000  83.00000  95.00000 107.00000 119.00000 131.00000 143.00000D:\code\Cplusplus\acados\build\external\blasfeo\examples\Debug\getting_started.exe (进程 20572)已退出，代码为 0。
要在调试停止时自动关闭控制台，请启用“工具”->“选项”->“调试”->“调试停止时自动关闭控制台”。
按任意键关闭此窗口. . .

在这里插入图片描述
到此为止我们就完成VS2022 配置 ACADOS环境了

5.3 附加依赖项

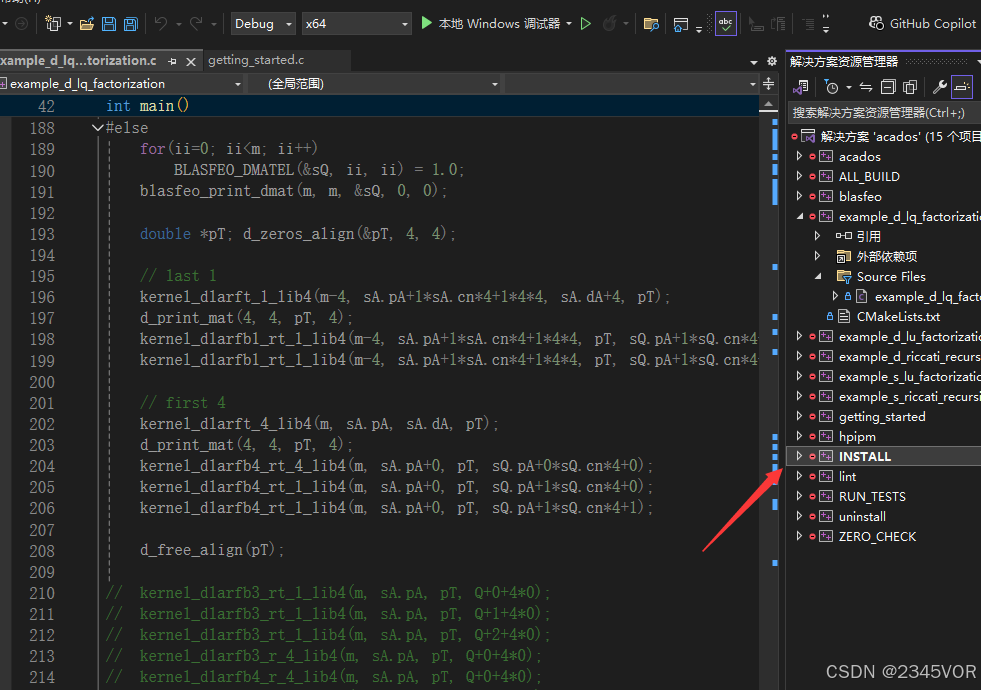

如果你想生成静态库进行二次调用，需要将INSTALL设置为启动项目
在这里插入图片描述

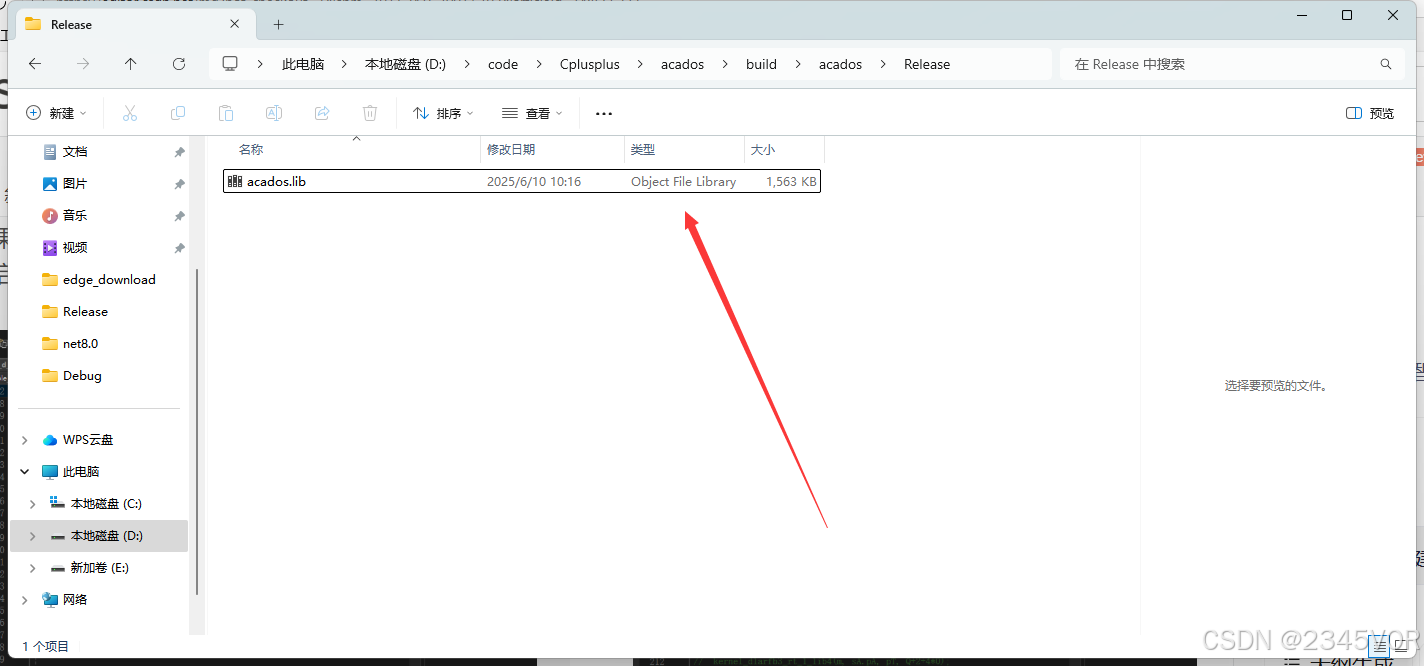

系统就会生成acados静态库方便你二次调用
在这里插入图片描述

6 总结

恭喜你，学习了VS2022 配置 ACADOS环境，从而实现对外部世界进行感知，充分认识这个有机与无机的环境，科学地合理地进行创作和发挥效益，然后为人类社会发展贡献一点微薄之力。🤣🤣🤣

  1. 我会持续更新对应专栏博客，非常期待你的三连！！！🎉🎉🎉
  2. 如果鹏鹏有哪里说的不妥，还请大佬多多评论指教！！！👍👍👍
  3. 下面有我的🐧🐧🐧群推广，欢迎志同道合的朋友们加入，期待与你的思维碰撞😘😘😘

参考文献：VS2022 配置 ACADOS环境

http://www.xdnf.cn/news/14100.html
