VisionPro_T恤缺陷检测_机器视觉案例

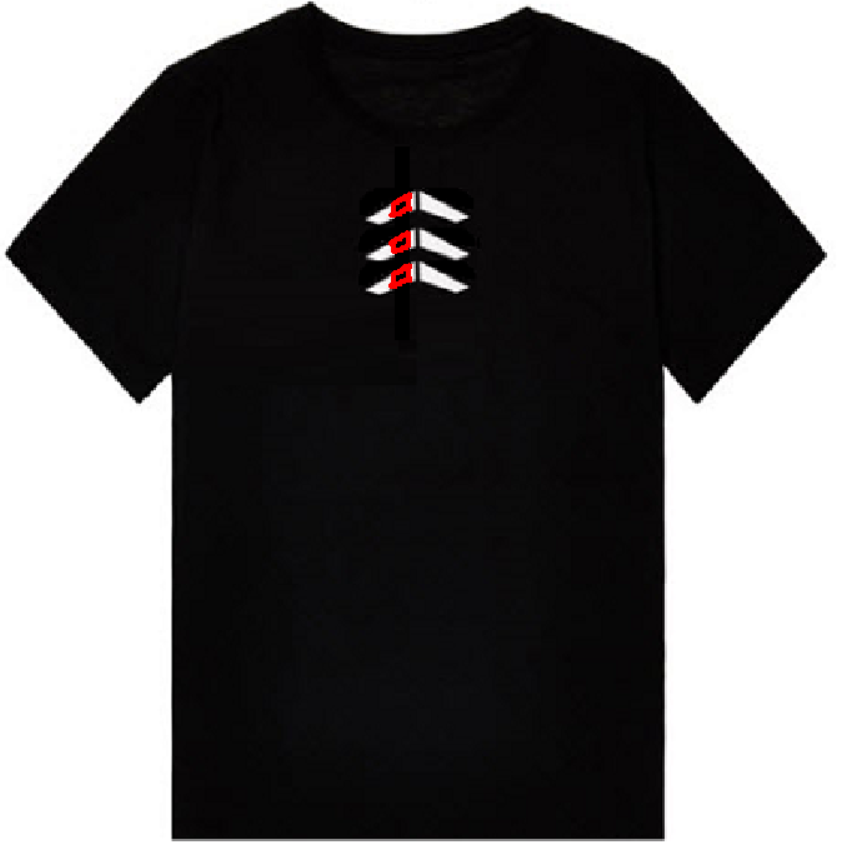

找到T恤缺陷并标记:效果

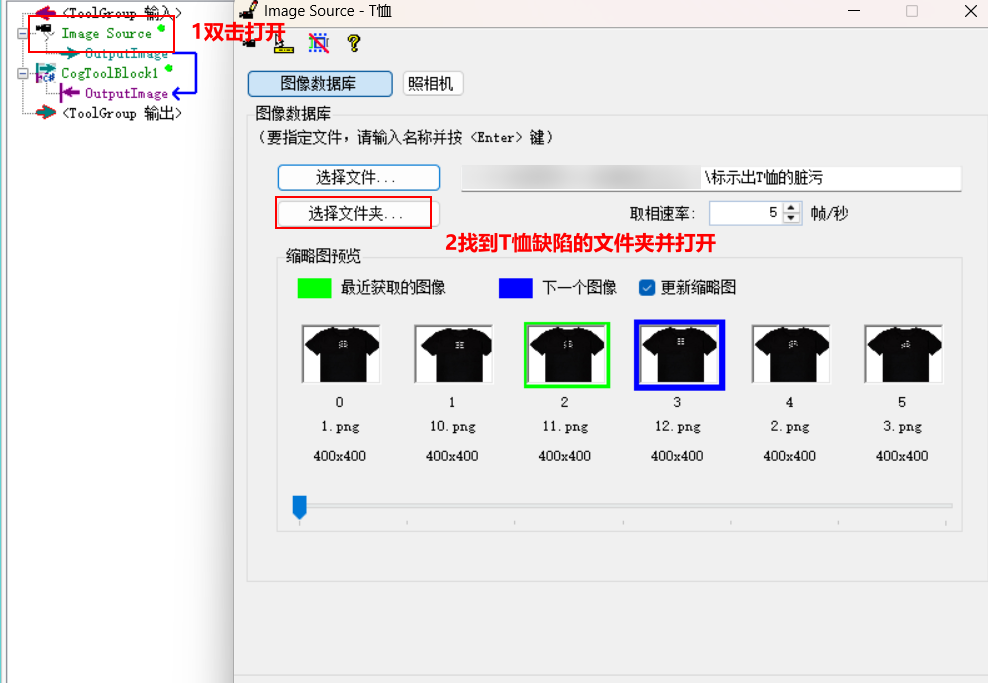

1.添加T恤图片

2.添加CogToolBlock,方便后续添加代码

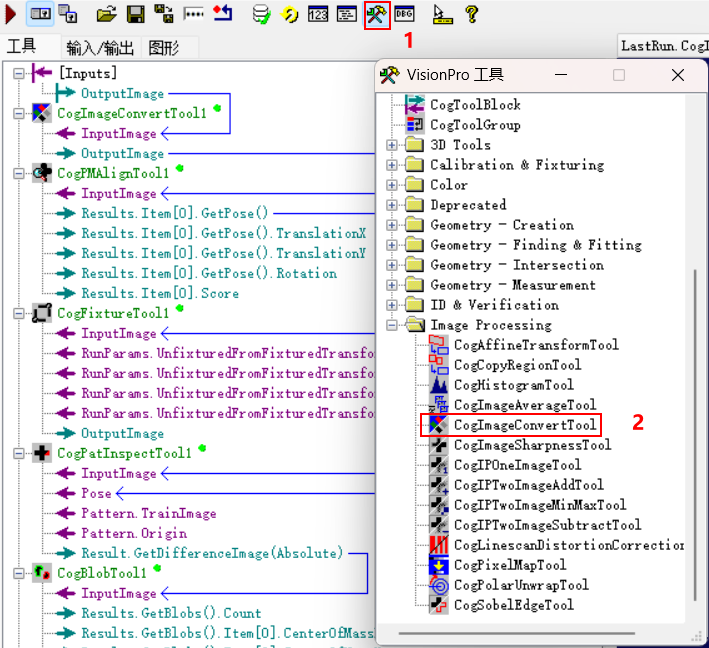

3.进入CogToolBlock,先使用CogImageConvertTool将图片转为灰度图在进行后续操作

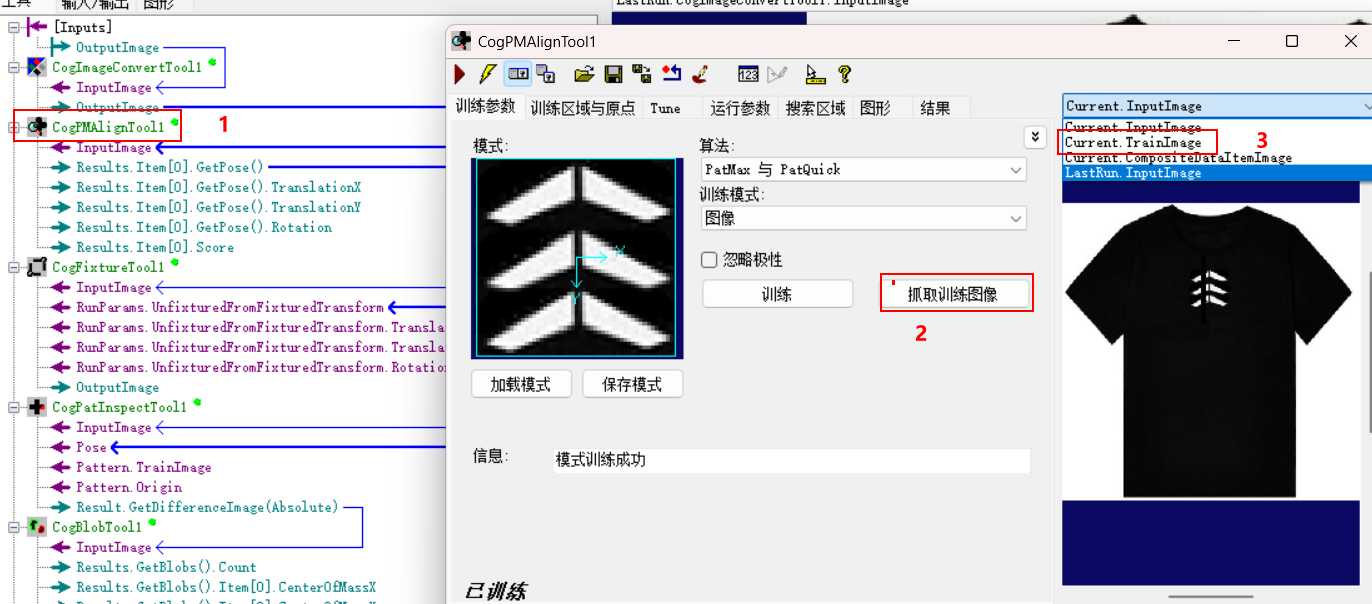

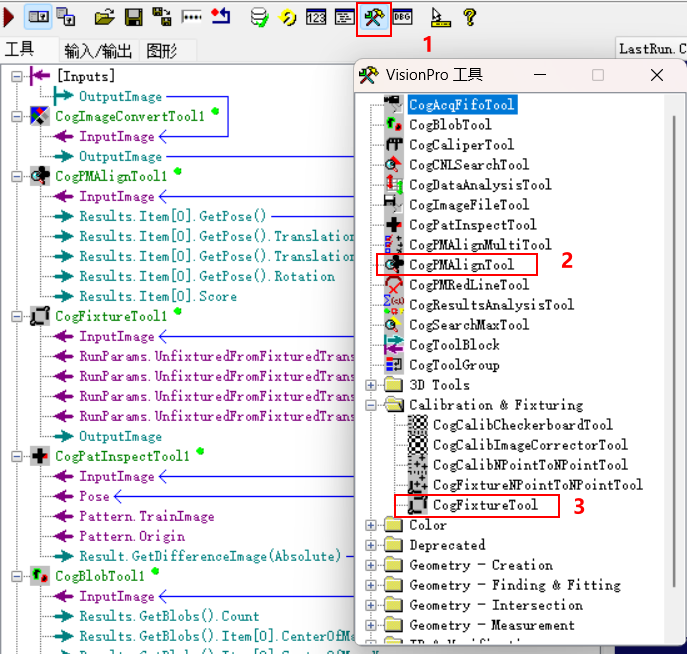

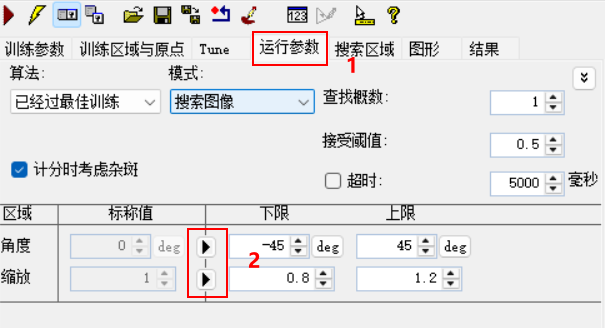

4.对T恤logo进行模板匹配和定位

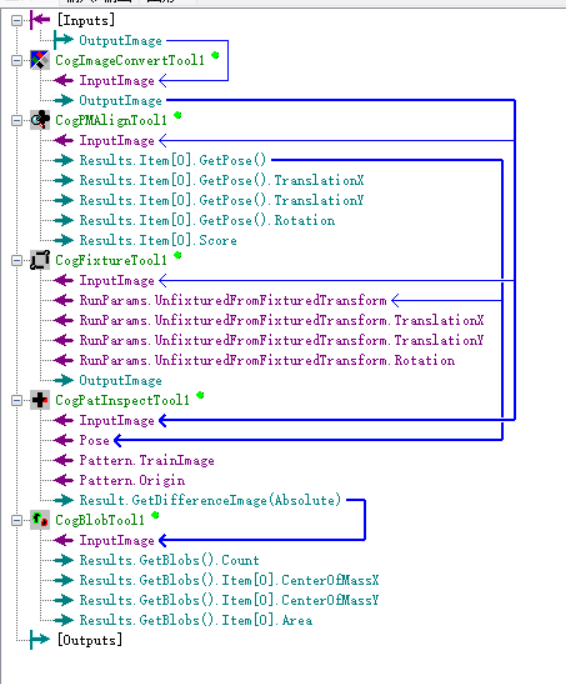

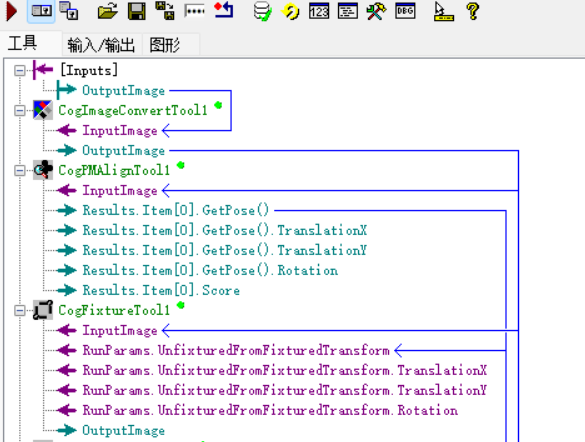

附加连线图

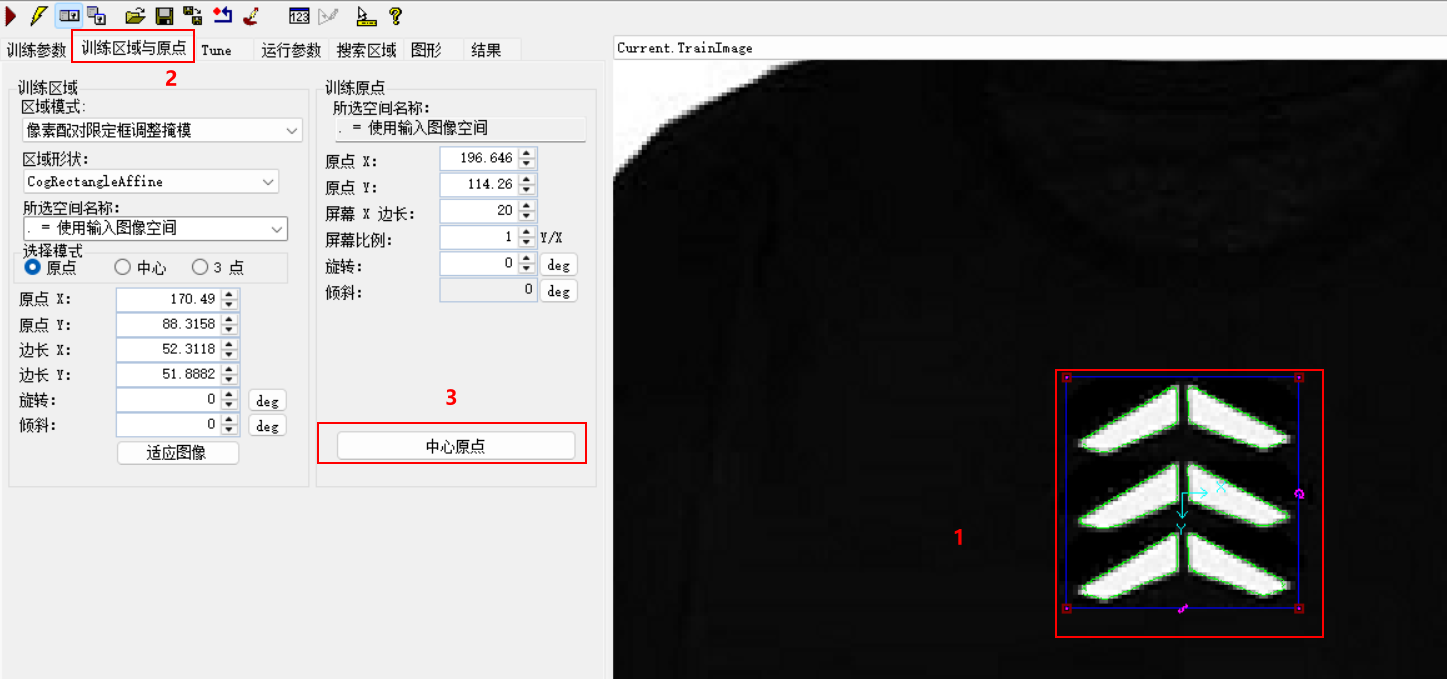

将logo框选

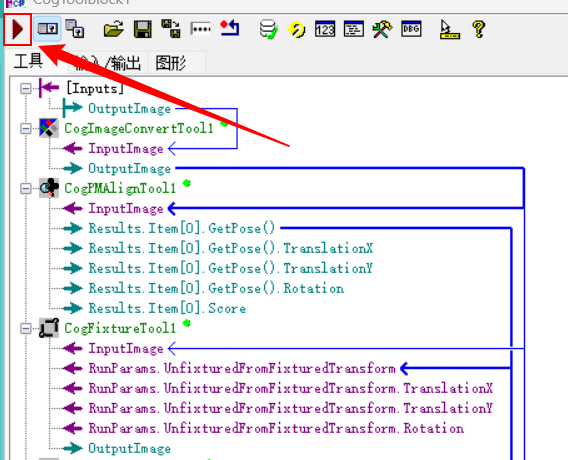

定位按照下图链接并运行

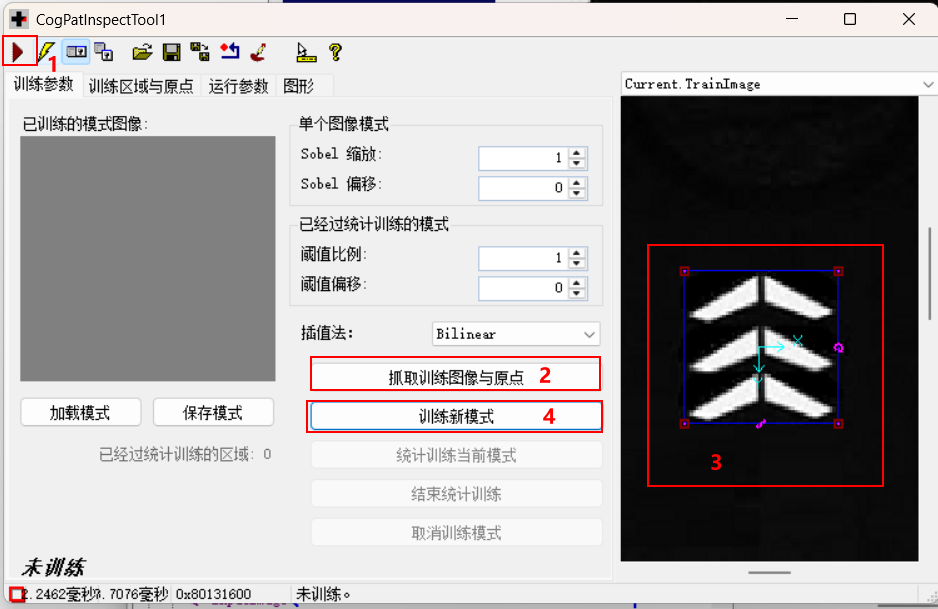

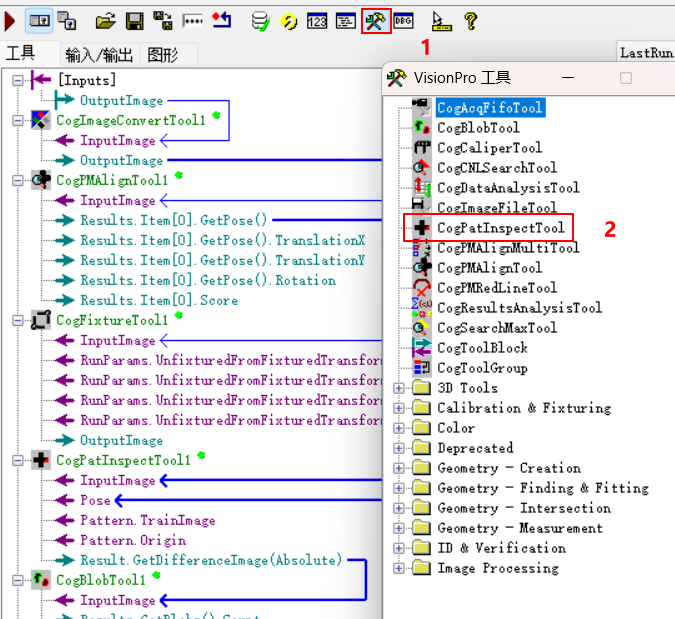

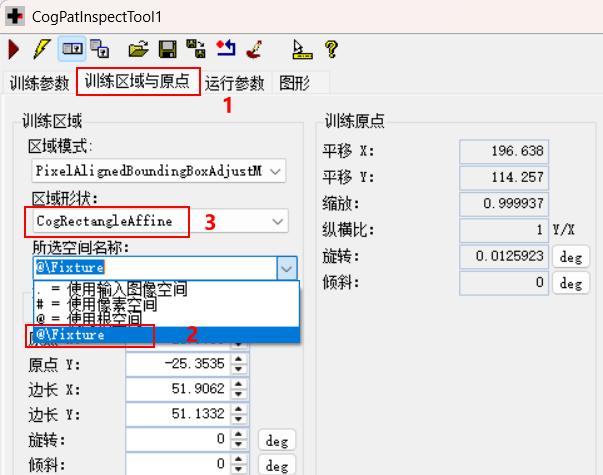

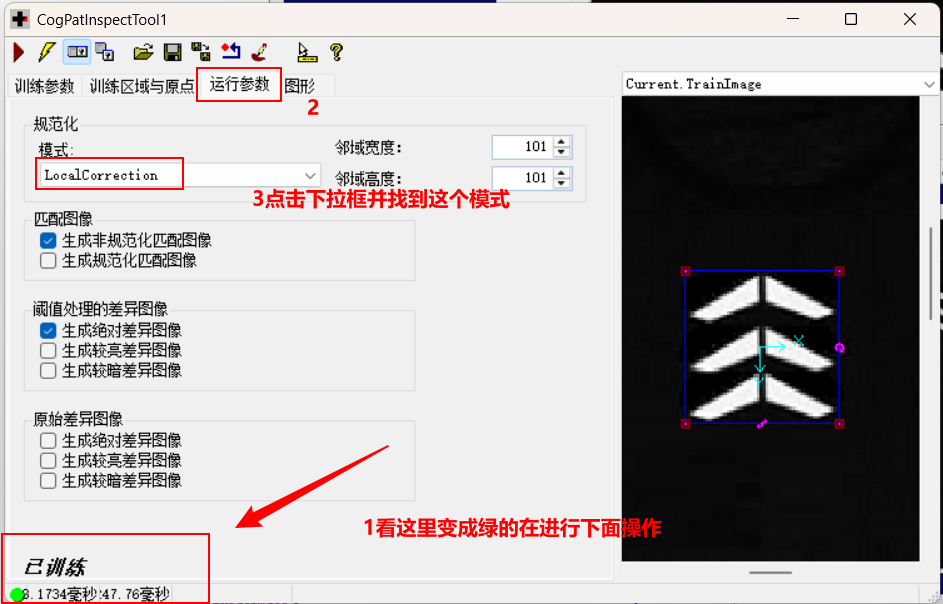

5.使用CogPatInspectTool进行图像训练和比较

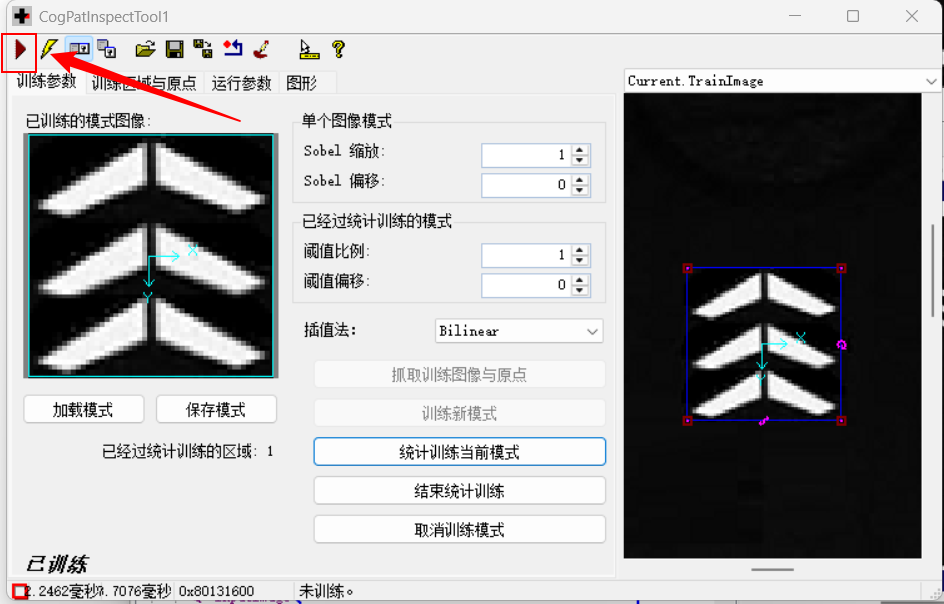

******找到logo好的图片进行训练(重要)

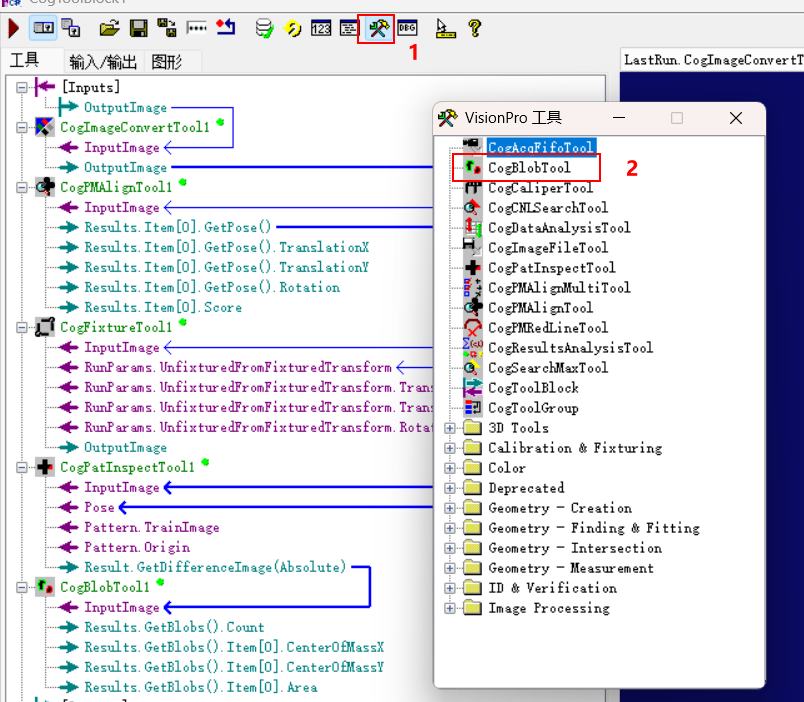

6.添加CogBlobTool工具找到缺陷的地方

所有线链接好

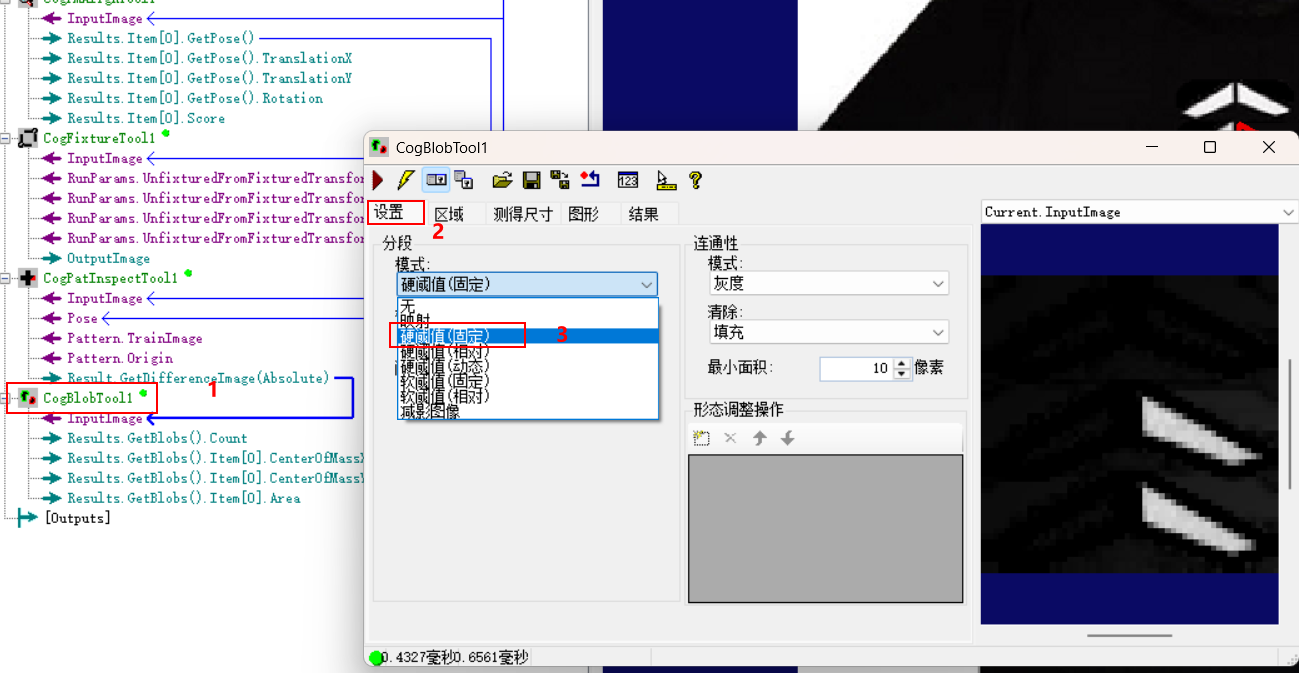

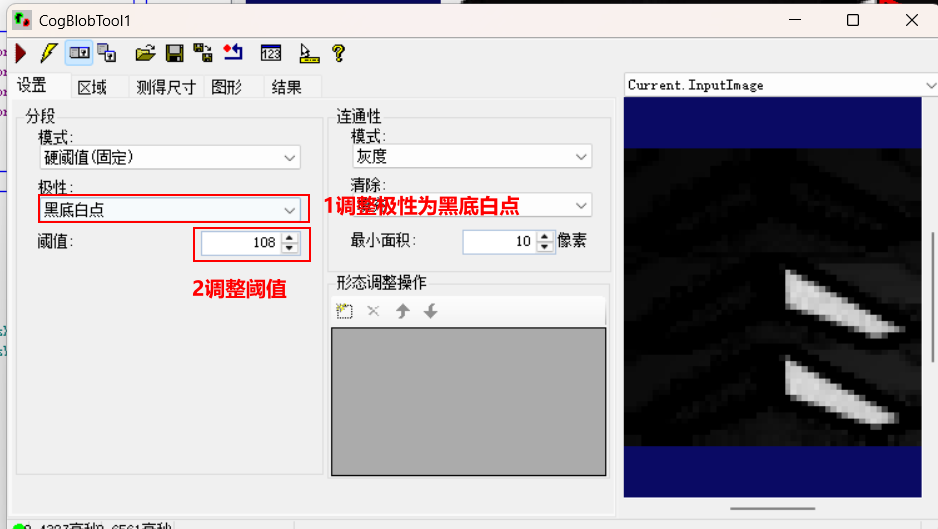

打开CogBlobTool

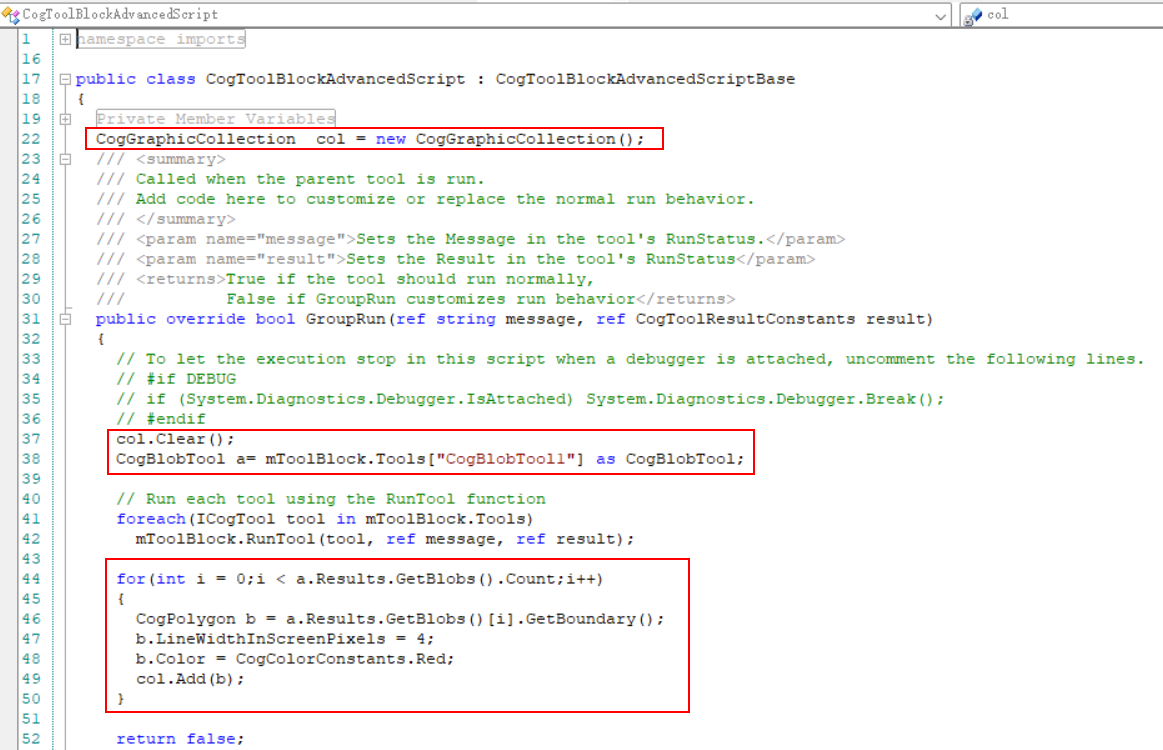

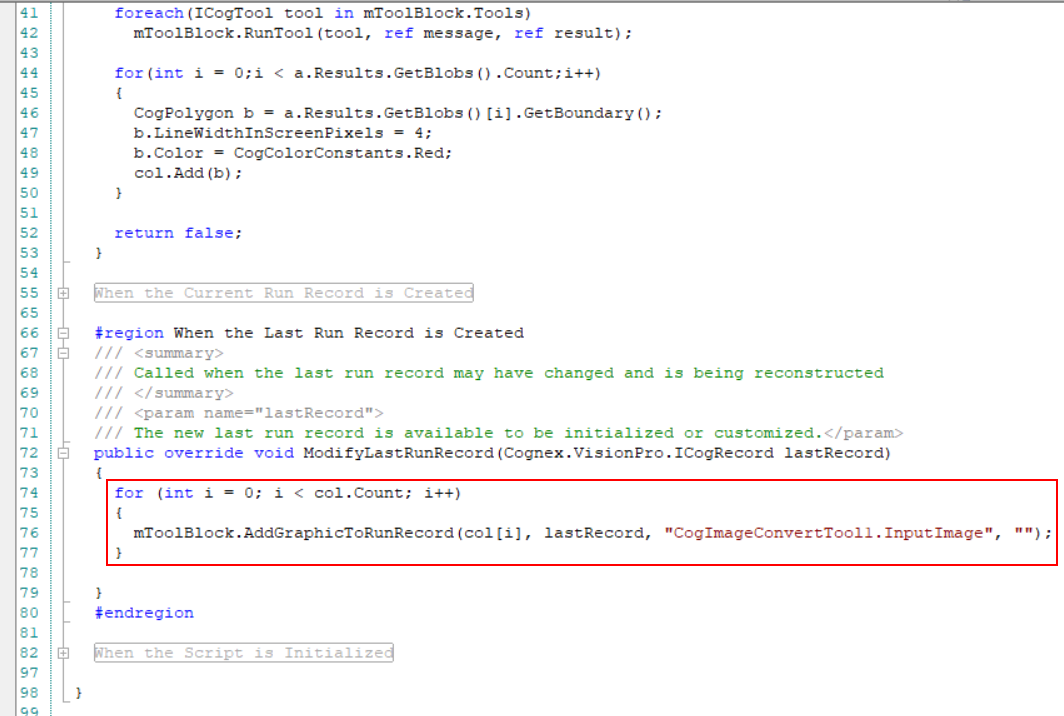

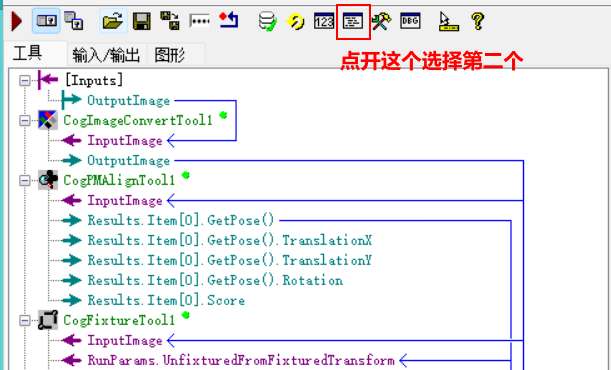

7.工具使用完成,以下为代码部分:(图片红框部分为添加的代码)下面有完整代码

#region namespace imports
using System;
using System.Collections;
using System.Drawing;
using System.IO;
using System.Windows.Forms;
using Cognex.VisionPro;
using Cognex.VisionPro.ToolBlock;
using Cognex.VisionPro3D;
using Cognex.VisionPro.ImageProcessing;
using Cognex.VisionPro.PMAlign;
using Cognex.VisionPro.CalibFix;
using Cognex.VisionPro.PatInspect;
using Cognex.VisionPro.Blob;
#endregionpublic class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
{#region Private Member Variablesprivate Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;#endregionCogGraphicCollection  col = new CogGraphicCollection();/// <summary>/// Called when the parent tool is run./// Add code here to customize or replace the normal run behavior./// </summary>/// <param name="message">Sets the Message in the tool's RunStatus.</param>/// <param name="result">Sets the Result in the tool's RunStatus</param>/// <returns>True if the tool should run normally,///          False if GroupRun customizes run behavior</returns>public override bool GroupRun(ref string message, ref CogToolResultConstants result){// To let the execution stop in this script when a debugger is attached, uncomment the following lines.// #if DEBUG// if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();// #endifcol.Clear();CogBlobTool a= mToolBlock.Tools["CogBlobTool1"] as CogBlobTool;// Run each tool using the RunTool functionforeach(ICogTool tool in mToolBlock.Tools)mToolBlock.RunTool(tool, ref message, ref result);for(int i = 0;i < a.Results.GetBlobs().Count;i++){CogPolygon b = a.Results.GetBlobs()[i].GetBoundary(); b.LineWidthInScreenPixels = 4;b.Color = CogColorConstants.Red;col.Add(b);}return false;}#region When the Current Run Record is Created/// <summary>/// Called when the current record may have changed and is being reconstructed/// </summary>/// <param name="currentRecord">/// The new currentRecord is available to be initialized or customized.</param>public override void ModifyCurrentRunRecord(Cognex.VisionPro.ICogRecord currentRecord){}#endregion#region When the Last Run Record is Created/// <summary>/// Called when the last run record may have changed and is being reconstructed/// </summary>/// <param name="lastRecord">/// The new last run record is available to be initialized or customized.</param>public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord){for (int i = 0; i < col.Count; i++){mToolBlock.AddGraphicToRunRecord(col[i], lastRecord, "CogImageConvertTool1.InputImage", "");}}#endregion#region When the Script is Initialized/// <summary>/// Perform any initialization required by your script here/// </summary>/// <param name="host">The host tool</param>public override void Initialize(Cognex.VisionPro.ToolGroup.CogToolGroup host){// DO NOT REMOVE - Call the base class implementation first - DO NOT REMOVEbase.Initialize(host);// Store a local copy of the script hostthis.mToolBlock = ((Cognex.VisionPro.ToolBlock.CogToolBlock)(host));}#endregion}
