简单的鱼群算法实现

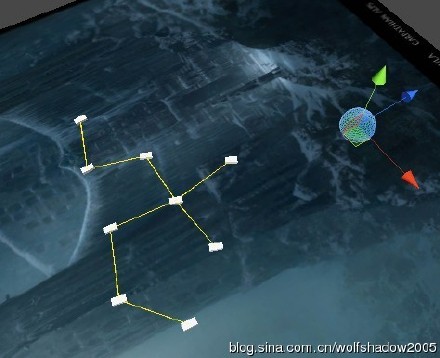

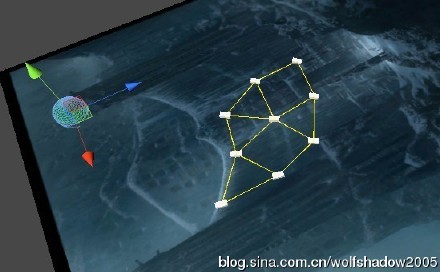

我使用了其中1,2 条规则简单实现了下坦克分队移动的模拟

逻辑如下

1 监测自己与目标的距离和方向

2 监测周围单位的距离和移动方向

3 两个方向相加获得相量方向进行移动

工程下载（unity3d package）

http://pan.baidu.com/s/1F17yQ

代码如下

组：





public class TankGroup : MonoBehaviour {

         private static List tankGroups;//所有组



         public LayerMask mask;//成员层

         public int groupID=0;//组id

         public float keepDistance=10, keepWeight=1;//成员保持距离和保持距离权重

         public float targetCloseDistance=20,targetWeight=1.25f, moveWeight=0.8f;//距离目标距离，距离目标权重和成员移动权重

}

坦克成员





public class TankBehaviour : MonoBehaviour {

         private const float minMoveCheck=0.2f;



         public int groupId=0;//组 id

         public float moveSpeed=5, rotateSpeed=20;//移动旋转速度



         public Vector3 position{

                   get{return transform.position;}

         }



         public Vector3 movement{

                   get{returnmyMovement;}

         }



         private Vector3 myMovement=Vector3.zero;

         private TankGroup myGroup;

         private float tgtSpeed=0, speed=0, currentSpeed;



         public void SetGroup(int index){

                   myGroup=TankGroup.GetTankGroup(index);

         }



         // Use this for initialization

         void Start () {

                   SetGroup(groupId);

         }



         // Update is called once per frame

         void Update () {

                   Vector3 displacement=myGroup.targetPosition-position;//获取目标距离

                   Vector3 direction=displacement.normalized*myGroup.targetWeight;//方向*权重



                   if(displacement.magnitude//重新计算目的地距离权重

                           direction*=displacement.magnitude/myGroup.targetCloseDistance;



                   direction+=GetGroupMovement();//获取周围组的移动



                   if((myGroup.targetPosition-position).magnitude//计算移动速度

                            tgtSpeed=0;

                   else

                            tgtSpeed=moveSpeed;



                   speed=Mathf.Lerp(speed,tgtSpeed,2*Time.deltaTime);



                   Drive(direction, speed);//移动

         }



         private Vector3 GetGroupMovement(){

                   Collider[] c=Physics.OverlapSphere(position,myGroup.keepDistance,myGroup.mask);//获取周围成员

                   Vector3 dis,v1=Vector3.zero, v2=Vector3.zero;

                   for(int i=0; i

                            TankBehaviour otherTank=c[i].GetComponent();

                            dis=position-otherTank.position;//距离

                            v1+=dis.normalized*(1-dis.magnitude/myGroup.keepDistance);//查看与周围单位的距离

                            v2+=otherTank.movement;//查看周围单位移动方向



                            Debug.DrawLine(position, otherTank.position, Color.yellow);

                   }



                   return v1.normalized*myGroup.keepWeight+v2.normalized*myGroup.moveWeight;//添加权重因素

         }



         private void Drive(Vector3 direction, float spd){

                   Vector3 finialDirection=direction.normalized;

                  float finialSpeed=spd, finialRotate=0;

                   floatrotateDir=Vector3.Dot(finialDirection,transform.right);

                   floatforwardDir=Vector3.Dot(finialDirection,transform.forward);



                   if(forwardDir<<span style="color:#00DBE6">0)

                            rotateDir=Mathf.Sign(rotateDir);



                   if(forwardDir<<span style="color:#00DBE6">-0.2f)

                            finialSpeed=Mathf.Lerp(currentSpeed,-spd*8,4*Time.deltaTime);



                   if(forwardDir<<span style="color:#00DBE6">0.98f)//防抖

                            finialRotate=Mathf.Clamp(rotateDir*180,-rotateSpeed, rotateSpeed);



                   finialSpeed*=Mathf.Clamp01(direction.magnitude);

                   finialSpeed*=Mathf.Clamp01(1-Mathf.Abs(rotateDir)*0.8f);



                   transform.Translate(Vector3.forward*finialSpeed*Time.deltaTime);

                   transform.Rotate(Vector3.up*finialRotate*Time.deltaTime);



                   currentSpeed=finialSpeed;

                   myMovement=direction*finialSpeed;

         }



}
