Arbitrum Stylus 合约实战 ：Rust 实现 ERC721

在上一篇中，我们学习了如何在 stylus 使用 rust 编写 ERC20合约，并且部署到了Arbitrum Sepolia ，今天我们继续学习，如何在 stylus 中使用 rust 实现 ERC721 合约，OK, 直接开干！

关于环境准备，请参考上一章节《Arbitrum Stylus 合约实战 ：Rust 实现 ERC20》

1.  ERC721 标准

下面是 eip erc-721 协议 官方规定必须实现的接口，erc721 我还会出一期 solidity 的教程，会讲到代码以及如何去定义元数据，如何存储到 ipfs上面，以及eip 协议系列博客，这里我们就不展开讲了：

pragma solidity ^0.4.20;/// @title ERC-721 Non-Fungible Token Standard
/// @dev See https://eips.ethereum.org/EIPS/eip-721
///  Note: the ERC-165 identifier for this interface is 0x80ac58cd.
interface ERC721 /* is ERC165 */ {/// @dev This emits when ownership of any NFT changes by any mechanism.///  This event emits when NFTs are created (`from` == 0) and destroyed///  (`to` == 0). Exception: during contract creation, any number of NFTs///  may be created and assigned without emitting Transfer. At the time of///  any transfer, the approved address for that NFT (if any) is reset to none.event Transfer(address indexed _from, address indexed _to, uint256 indexed _tokenId);/// @dev This emits when the approved address for an NFT is changed or///  reaffirmed. The zero address indicates there is no approved address.///  When a Transfer event emits, this also indicates that the approved///  address for that NFT (if any) is reset to none.event Approval(address indexed _owner, address indexed _approved, uint256 indexed _tokenId);/// @dev This emits when an operator is enabled or disabled for an owner.///  The operator can manage all NFTs of the owner.event ApprovalForAll(address indexed _owner, address indexed _operator, bool _approved);/// @notice Count all NFTs assigned to an owner/// @dev NFTs assigned to the zero address are considered invalid, and this///  function throws for queries about the zero address./// @param _owner An address for whom to query the balance/// @return The number of NFTs owned by `_owner`, possibly zerofunction balanceOf(address _owner) external view returns (uint256);/// @notice Find the owner of an NFT/// @dev NFTs assigned to zero address are considered invalid, and queries///  about them do throw./// @param _tokenId The identifier for an NFT/// @return The address of the owner of the NFTfunction ownerOf(uint256 _tokenId) external view returns (address);/// @notice Transfers the ownership of an NFT from one address to another address/// @dev Throws unless `msg.sender` is the current owner, an authorized///  operator, or the approved address for this NFT. Throws if `_from` is///  not the current owner. Throws if `_to` is the zero address. Throws if///  `_tokenId` is not a valid NFT. When transfer is complete, this function///  checks if `_to` is a smart contract (code size > 0). If so, it calls///  `onERC721Received` on `_to` and throws if the return value is not///  `bytes4(keccak256("onERC721Received(address,address,uint256,bytes)"))`./// @param _from The current owner of the NFT/// @param _to The new owner/// @param _tokenId The NFT to transfer/// @param data Additional data with no specified format, sent in call to `_to`function safeTransferFrom(address _from, address _to, uint256 _tokenId, bytes data) external payable;/// @notice Transfers the ownership of an NFT from one address to another address/// @dev This works identically to the other function with an extra data parameter,///  except this function just sets data to ""./// @param _from The current owner of the NFT/// @param _to The new owner/// @param _tokenId The NFT to transferfunction safeTransferFrom(address _from, address _to, uint256 _tokenId) external payable;/// @notice Transfer ownership of an NFT -- THE CALLER IS RESPONSIBLE///  TO CONFIRM THAT `_to` IS CAPABLE OF RECEIVING NFTS OR ELSE///  THEY MAY BE PERMANENTLY LOST/// @dev Throws unless `msg.sender` is the current owner, an authorized///  operator, or the approved address for this NFT. Throws if `_from` is///  not the current owner. Throws if `_to` is the zero address. Throws if///  `_tokenId` is not a valid NFT./// @param _from The current owner of the NFT/// @param _to The new owner/// @param _tokenId The NFT to transferfunction transferFrom(address _from, address _to, uint256 _tokenId) external payable;/// @notice Change or reaffirm the approved address for an NFT/// @dev The zero address indicates there is no approved address.///  Throws unless `msg.sender` is the current NFT owner, or an authorized///  operator of the current owner./// @param _approved The new approved NFT controller/// @param _tokenId The NFT to approvefunction approve(address _approved, uint256 _tokenId) external payable;/// @notice Enable or disable approval for a third party ("operator") to manage///  all of `msg.sender`'s assets/// @dev Emits the ApprovalForAll event. The contract MUST allow///  multiple operators per owner./// @param _operator Address to add to the set of authorized operators/// @param _approved True if the operator is approved, false to revoke approvalfunction setApprovalForAll(address _operator, bool _approved) external;/// @notice Get the approved address for a single NFT/// @dev Throws if `_tokenId` is not a valid NFT./// @param _tokenId The NFT to find the approved address for/// @return The approved address for this NFT, or the zero address if there is nonefunction getApproved(uint256 _tokenId) external view returns (address);/// @notice Query if an address is an authorized operator for another address/// @param _owner The address that owns the NFTs/// @param _operator The address that acts on behalf of the owner/// @return True if `_operator` is an approved operator for `_owner`, false otherwisefunction isApprovedForAll(address _owner, address _operator) external view returns (bool);
}interface ERC165 {/// @notice Query if a contract implements an interface/// @param interfaceID The interface identifier, as specified in ERC-165/// @dev Interface identification is specified in ERC-165. This function///  uses less than 30,000 gas./// @return `true` if the contract implements `interfaceID` and///  `interfaceID` is not 0xffffffff, `false` otherwisefunction supportsInterface(bytes4 interfaceID) external view returns (bool);
}

2.  创建 stylus 项目

1. 在项目目录下，执行：

cargo stylus new stylus_nft

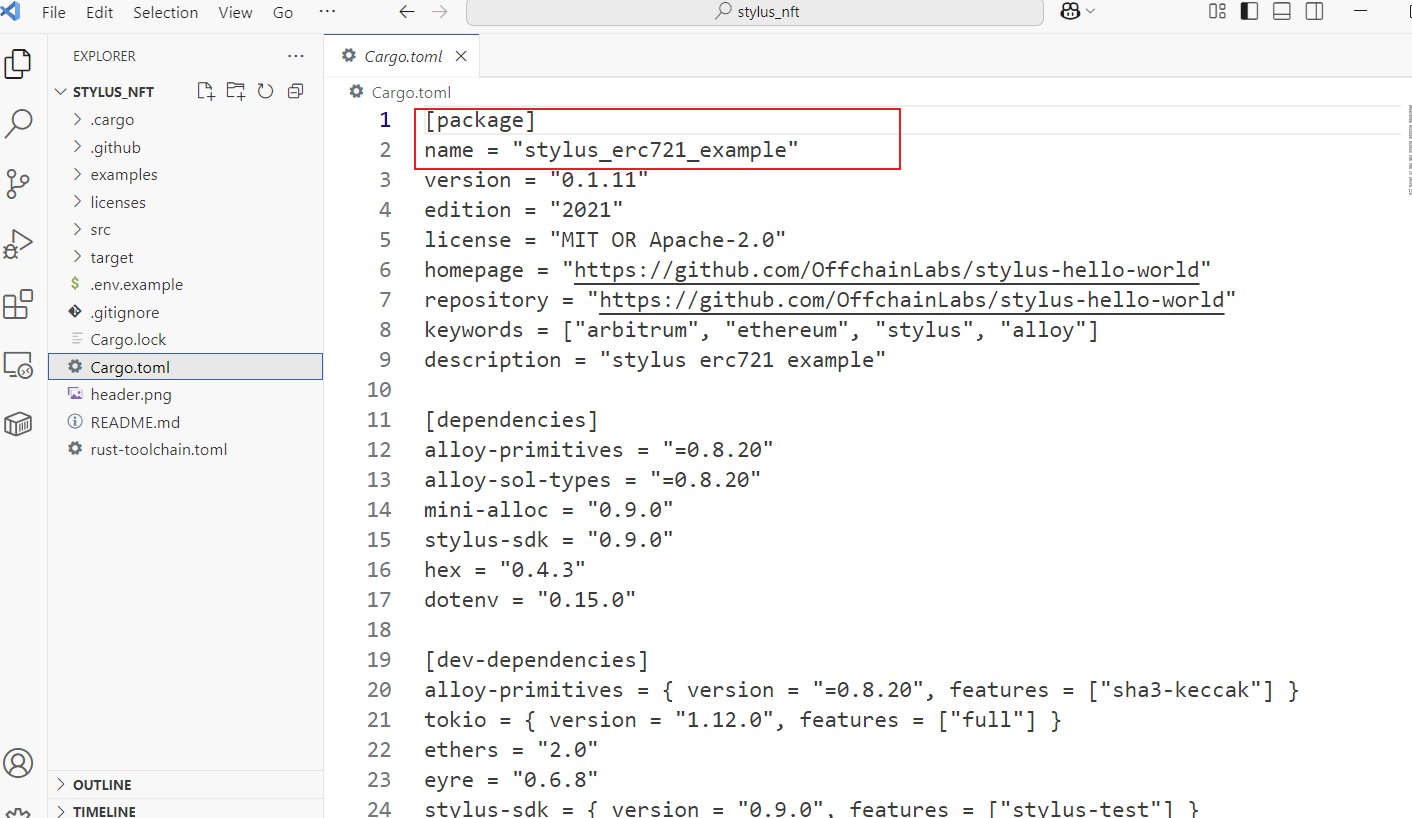

2.  修改 rust-toolchain.toml 中的版本为 1.81.0，见上图， 修改 Cargo.toml 中的name 为你自定义的name，或者是你的项目名，因为创建项目的时候是拉取的官方的模板，然后main.rs 中的也跟着更改，见下图

3. 在src 目录下新建erc721.rs 文件，并且输入下面内容，重要的行我基本都加上了注释：

use alloc::{string::String, vec, vec::Vec};
use alloy_primitives::{Address, FixedBytes, U256};
use alloy_sol_types::sol;
use core::{borrow::BorrowMut, marker::PhantomData};
use stylus_sdk::{abi::Bytes, evm, msg, prelude::*};// 定义 ERC-721 所需的参数 trait
pub trait Erc721Params {// NFT 的名称，常量const NAME: &'static str;// NFT 的符号，常量const SYMBOL: &'static str;// 获取指定 token_id 的 URIfn token_uri(token_id: U256) -> String;
}// 定义 ERC-721 合约的存储结构
sol_storage! {pub struct Erc721<T: Erc721Params> {// token_id 到拥有者地址的映射mapping(uint256 => address) owners;// 地址到余额的映射mapping(address => uint256) balances;// token_id 到授权用户地址的映射mapping(uint256 => address) token_approvals;// 拥有者地址到操作者地址的授权映射mapping(address => mapping(address => bool)) operator_approvals;// 总供应量uint256 total_supply;// 用于支持 Erc721Params 的 PhantomDataPhantomData<T> phantom;}
}// 定义事件和 Solidity 错误类型
sol! {// 转账事件event Transfer(address indexed from, address indexed to, uint256 indexed token_id);// 授权事件event Approval(address indexed owner, address indexed approved, uint256 indexed token_id);// 批量授权事件event ApprovalForAll(address indexed owner, address indexed operator, bool approved);// token_id 未被铸造或已被销毁error InvalidTokenId(uint256 token_id);// 指定地址不是 token_id 的拥有者error NotOwner(address from, uint256 token_id, address real_owner);// 指定地址无权操作 token_iderror NotApproved(address owner, address spender, uint256 token_id);// 尝试向零地址转账error TransferToZero(uint256 token_id);// 接收者拒绝接收 token_iderror ReceiverRefused(address receiver, uint256 token_id, bytes4 returned);
}// 定义 ERC-721 错误枚举
#[derive(SolidityError)]
pub enum Erc721Error {InvalidTokenId(InvalidTokenId),NotOwner(NotOwner),NotApproved(NotApproved),TransferToZero(TransferToZero),ReceiverRefused(ReceiverRefused),
}// 定义 IERC721TokenReceiver 接口
sol_interface! {// 用于调用实现 IERC721TokenReceiver 的合约的 onERC721Received 方法interface IERC721TokenReceiver {function onERC721Received(address operator, address from, uint256 token_id, bytes data) external returns(bytes4);}
}// 定义 onERC721Received 方法的选择器常量
const ERC721_TOKEN_RECEIVER_ID: u32 = 0x150b7a02;// 实现 ERC-721 内部方法
impl<T: Erc721Params> Erc721<T> {// 检查 msg::sender 是否有权操作指定 tokenfn require_authorized_to_spend(&self,from: Address,token_id: U256,) -> Result<(), Erc721Error> {// 获取 token_id 的拥有者let owner = self.owner_of(token_id)?;// 验证 from 是否为拥有者if from != owner {return Err(Erc721Error::NotOwner(NotOwner {from,token_id,real_owner: owner,}));}// 如果调用者是拥有者，直接返回if msg::sender() == owner {return Ok(());}// 检查调用者是否为拥有者的操作者if self.operator_approvals.getter(owner).get(msg::sender()) {return Ok(());}// 检查调用者是否被授权操作此 tokenif msg::sender() == self.token_approvals.get(token_id) {return Ok(());}// 如果无授权，返回错误Err(Erc721Error::NotApproved(NotApproved {owner,spender: msg::sender(),token_id,}))}// 执行 token 转账操作pub fn transfer(&mut self,token_id: U256,from: Address,to: Address,) -> Result<(), Erc721Error> {// 获取 token_id 的拥有者let mut owner = self.owners.setter(token_id);let previous_owner = owner.get();// 验证 from 是否为拥有者if previous_owner != from {return Err(Erc721Error::NotOwner(NotOwner {from,token_id,real_owner: previous_owner,}));}// 更新 token 的拥有者owner.set(to);// 减少 from 的余额let mut from_balance = self.balances.setter(from);let balance = from_balance.get() - U256::from(1);from_balance.set(balance);// 增加 to 的余额let mut to_balance = self.balances.setter(to);let balance = to_balance.get() + U256::from(1);to_balance.set(balance);// 清除 token 的授权记录self.token_approvals.delete(token_id);// 记录转账事件evm::log(Transfer { from, to, token_id });Ok(())}// 如果接收者是合约，调用 onERC721Received 方法fn call_receiver<S: TopLevelStorage>(storage: &mut S,token_id: U256,from: Address,to: Address,data: Vec<u8>,) -> Result<(), Erc721Error> {// 检查接收者是否为合约if to.has_code() {// 创建接收者接口实例let receiver = IERC721TokenReceiver::new(to);// 调用 onERC721Received 方法let received = receiver.on_erc_721_received(&mut *storage, msg::sender(), from, token_id, data.into()).map_err(|_e| {Erc721Error::ReceiverRefused(ReceiverRefused {receiver: receiver.address,token_id,returned: alloy_primitives::FixedBytes(0_u32.to_be_bytes()),})})?.0;// 验证返回的选择器是否正确if u32::from_be_bytes(received) != ERC721_TOKEN_RECEIVER_ID {return Err(Erc721Error::ReceiverRefused(ReceiverRefused {receiver: receiver.address,token_id,returned: alloy_primitives::FixedBytes(received),}));}}Ok(())}// 执行安全转账并调用 onERC721Receivedpub fn safe_transfer<S: TopLevelStorage + BorrowMut<Self>>(storage: &mut S,token_id: U256,from: Address,to: Address,data: Vec<u8>,) -> Result<(), Erc721Error> {// 执行转账storage.borrow_mut().transfer(token_id, from, to)?;// 调用接收者检查Self::call_receiver(storage, token_id, from, to, data)}// 铸造新 token 并转账给 topub fn mint(&mut self, to: Address) -> Result<(), Erc721Error> {// 获取当前总供应量作为新 token_idlet new_token_id = self.total_supply.get();// 增加总供应量self.total_supply.set(new_token_id + U256::from(1u8));// 执行转账，从零地址到接收者self.transfer(new_token_id, Address::default(), to)?;Ok(())}// 销毁指定 tokenpub fn burn(&mut self, from: Address, token_id: U256) -> Result<(), Erc721Error> {// 执行转账到零地址self.transfer(token_id, from, Address::default())?;Ok(())}
}// 实现 ERC-721 外部方法
#[public]
impl<T: Erc721Params> Erc721<T> {// 获取 NFT 名称pub fn name() -> Result<String, Erc721Error> {Ok(T::NAME.into())}// 获取 NFT 符号pub fn symbol() -> Result<String, Erc721Error> {Ok(T::SYMBOL.into())}// 获取指定 token 的 URI#[selector(name = "tokenURI")]pub fn token_uri(&self, token_id: U256) -> Result<String, Erc721Error> {// 确保 token 存在self.owner_of(token_id)?;Ok(T::token_uri(token_id))}// 获取指定地址的 NFT 余额pub fn balance_of(&self, owner: Address) -> Result<U256, Erc721Error> {Ok(self.balances.get(owner))}// 获取指定 token 的拥有者pub fn owner_of(&self, token_id: U256) -> Result<Address, Erc721Error> {// 获取 token 的拥有者let owner = self.owners.get(token_id);// 如果拥有者是零地址，token 无效if owner.is_zero() {return Err(Erc721Error::InvalidTokenId(InvalidTokenId { token_id }));}Ok(owner)}// 执行带数据的安全转账#[selector(name = "safeTransferFrom")]pub fn safe_transfer_from_with_data<S: TopLevelStorage + BorrowMut<Self>>(storage: &mut S,from: Address,to: Address,token_id: U256,data: Bytes,) -> Result<(), Erc721Error> {// 禁止转账到零地址if to.is_zero() {return Err(Erc721Error::TransferToZero(TransferToZero { token_id }));}// 检查调用者是否有权限storage.borrow_mut().require_authorized_to_spend(from, token_id)?;// 执行安全转账Self::safe_transfer(storage, token_id, from, to, data.0)}// 执行不带数据的安全转账#[selector(name = "safeTransferFrom")]pub fn safe_transfer_from<S: TopLevelStorage + BorrowMut<Self>>(storage: &mut S,from: Address,to: Address,token_id: U256,) -> Result<(), Erc721Error> {// 调用带数据的安全转账，数据为空Self::safe_transfer_from_with_data(storage, from, to, token_id, Bytes(vec![]))}// 执行普通转账pub fn transfer_from(&mut self,from: Address,to: Address,token_id: U256,) -> Result<(), Erc721Error> {// 禁止转账到零地址if to.is_zero() {return Err(Erc721Error::TransferToZero(TransferToZero { token_id }));}// 检查调用者是否有权限self.require_authorized_to_spend(from, token_id)?;// 执行转账self.transfer(token_id, from, to)?;Ok(())}// 为指定 token 设置授权pub fn approve(&mut self, approved: Address, token_id: U256) -> Result<(), Erc721Error> {// 获取 token 的拥有者let owner = self.owner_of(token_id)?;// 验证调用者是否有权限if msg::sender() != owner && !self.operator_approvals.getter(owner).get(msg::sender()) {return Err(Erc721Error::NotApproved(NotApproved {owner,spender: msg::sender(),token_id,}));}// 设置授权self.token_approvals.insert(token_id, approved);// 记录授权事件evm::log(Approval {approved,owner,token_id,});Ok(())}// 设置批量授权pub fn set_approval_for_all(&mut self,operator: Address,approved: bool,) -> Result<(), Erc721Error> {// 获取调用者地址let owner = msg::sender();// 设置操作者授权self.operator_approvals.setter(owner).insert(operator, approved);// 记录批量授权事件evm::log(ApprovalForAll {owner,operator,approved,});Ok(())}// 获取指定 token 的授权地址pub fn get_approved(&mut self, token_id: U256) -> Result<Address, Erc721Error> {Ok(self.token_approvals.get(token_id))}// 检查是否为所有者设置了操作者授权pub fn is_approved_for_all(&mut self,owner: Address,operator: Address,) -> Result<bool, Erc721Error> {Ok(self.operator_approvals.getter(owner).get(operator))}// 检查是否支持指定接口pub fn supports_interface(interface: FixedBytes<4>) -> Result<bool, Erc721Error> {// 将接口 ID 转换为字节数组let interface_slice_array: [u8; 4] = interface.as_slice().try_into().unwrap();// 特殊处理 ERC165 标准中的 0xffffffffif u32::from_be_bytes(interface_slice_array) == 0xffffffff {return Ok(false);}// 定义支持的接口 IDconst IERC165: u32 = 0x01ffc9a7;const IERC721: u32 = 0x80ac58cd;const IERC721_METADATA: u32 = 0x5b5e139f;// 检查是否支持指定接口Ok(matches!(u32::from_be_bytes(interface_slice_array),IERC165 | IERC721 | IERC721_METADATA))}
}

3. 在src 目录下的 lib.rs 文件中输入下面内容，注意，token_uri ，需要自己去 ipfs 上面存储 json 元数据，然后复制链接复制给token_uri：

// 如果未启用 export-abi 特性，仅作为 WASM 运行
#![cfg_attr(not(any(feature = "export-abi", test)), no_main)]
extern crate alloc;// 引入模块和依赖
mod erc721;use crate::erc721::{Erc721, Erc721Error, Erc721Params};
use alloy_primitives::{Address, U256};
// 引入 Stylus SDK 和 alloy 基本类型
use stylus_sdk::{msg, prelude::*};// 定义 NFT 参数结构体
struct StylusNFTParams;
// 实现 Erc721Params trait
impl Erc721Params for StylusNFTParams {// 定义 NFT 名称常量const NAME: &'static str = "DOG";// 定义 NFT 符号常量const SYMBOL: &'static str = "DOG";// 生成指定 token_id 的 URIfn token_uri(token_id: U256) -> String {format!("{}{}{}", "https://external-magenta-alpaca.myfilebase.com/ipfs/QmY47C6mUFEGPGF5muGTEcSD3MPspCSpT2EGJV8QvQGUnV", token_id, ".json")}
}// 定义合约入口点和存储结构
sol_storage! {#[entrypoint]struct StylusNFT {// 允许 erc721 访问 StylusNFT 的存储并调用方法#[borrow]Erc721<StylusNFTParams> erc721;}
}// 实现 StylusNFT 的外部方法
#[public]
#[inherit(Erc721<StylusNFTParams>)]
impl StylusNFT {// 铸造 NFT 给调用者pub fn mint(&mut self) -> Result<(), Erc721Error> {// 获取调用者地址let minter = msg::sender();// 调用 erc721 的 mint 方法self.erc721.mint(minter)?;Ok(())}// 铸造 NFT 给指定地址pub fn mint_to(&mut self, to: Address) -> Result<(), Erc721Error> {// 调用 erc721 的 mint 方法self.erc721.mint(to)?;Ok(())}// 销毁指定 NFTpub fn burn(&mut self, token_id: U256) -> Result<(), Erc721Error> {// 调用 erc721 的 burn 方法，验证调用者是否拥有 tokenself.erc721.burn(msg::sender(), token_id)?;Ok(())}// 获取总供应量pub fn total_supply(&mut self) -> Result<U256, Erc721Error> {// 获取 erc721 的总供应量Ok(self.erc721.total_supply.get())}
}

4. 后续如果有什么编译报错，请参考我的配置文件，因为可能你创建项目的时候，版本更新了：

[package]
name = "stylus_erc721_example"
version = "0.1.11"
edition = "2021"
license = "MIT OR Apache-2.0"
homepage = "https://github.com/OffchainLabs/stylus-hello-world"
repository = "https://github.com/OffchainLabs/stylus-hello-world"
keywords = ["arbitrum", "ethereum", "stylus", "alloy"]
description = "stylus erc721 example"[dependencies]
alloy-primitives = "=0.8.20"
alloy-sol-types = "=0.8.20"
mini-alloc = "0.9.0"
stylus-sdk = "0.9.0"
hex = "0.4.3"
dotenv = "0.15.0"[dev-dependencies]
alloy-primitives = { version = "=0.8.20", features = ["sha3-keccak"] }
tokio = { version = "1.12.0", features = ["full"] }
ethers = "2.0"
eyre = "0.6.8"
stylus-sdk = { version = "0.9.0", features = ["stylus-test"] }[features]
export-abi = ["stylus-sdk/export-abi"]
debug = ["stylus-sdk/debug"][[bin]]
name = "stylus_erc721_example"
path = "src/main.rs"[lib]
crate-type = ["lib", "cdylib"][profile.release]
codegen-units = 1
strip = true
lto = true
panic = "abort"# If you need to reduce the binary size, it is advisable to try other
# optimization levels, such as "s" and "z"
opt-level = 3

3.  编译与链上验证

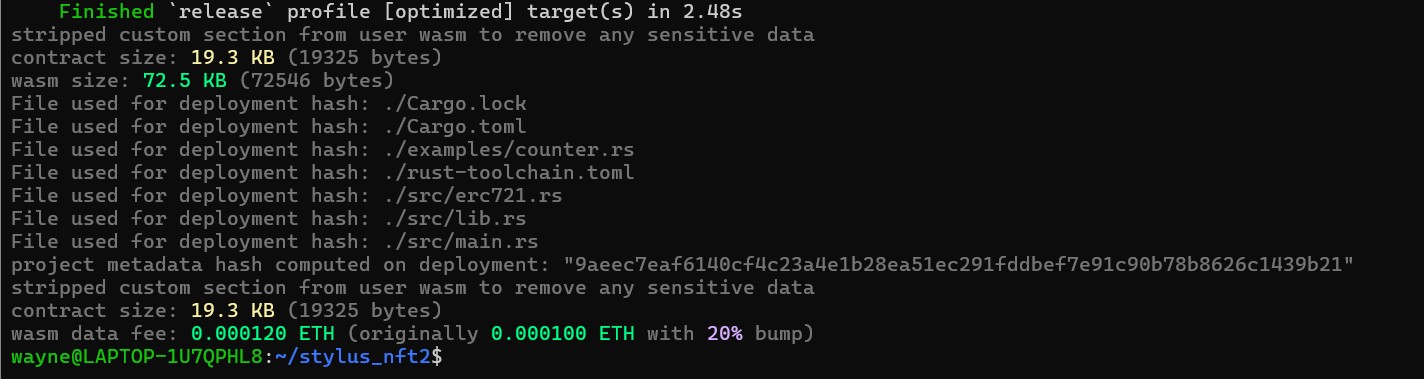

 1.  编译与链上验证，执行 ：

cargo stylus check -e https://sepolia-rollup.arbitrum.io/rpc

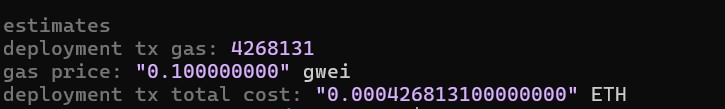

2. 估算部署合约所需的 gas，依次执行：

export ARB_RPC_URL=https://sepolia-rollup.arbitrum.io/rpc
export PRIVATE_KEY=你的私钥
cargo stylus deploy --endpoint=$ARB_RPC_URL --private-key=$PRIVATE_KEY --estimate-gas

3.  链上部署

  执行部署命令：

cargo stylus deploy --endpoint=$ARB_RPC_URL --private-key=$PRIVATE_KEY

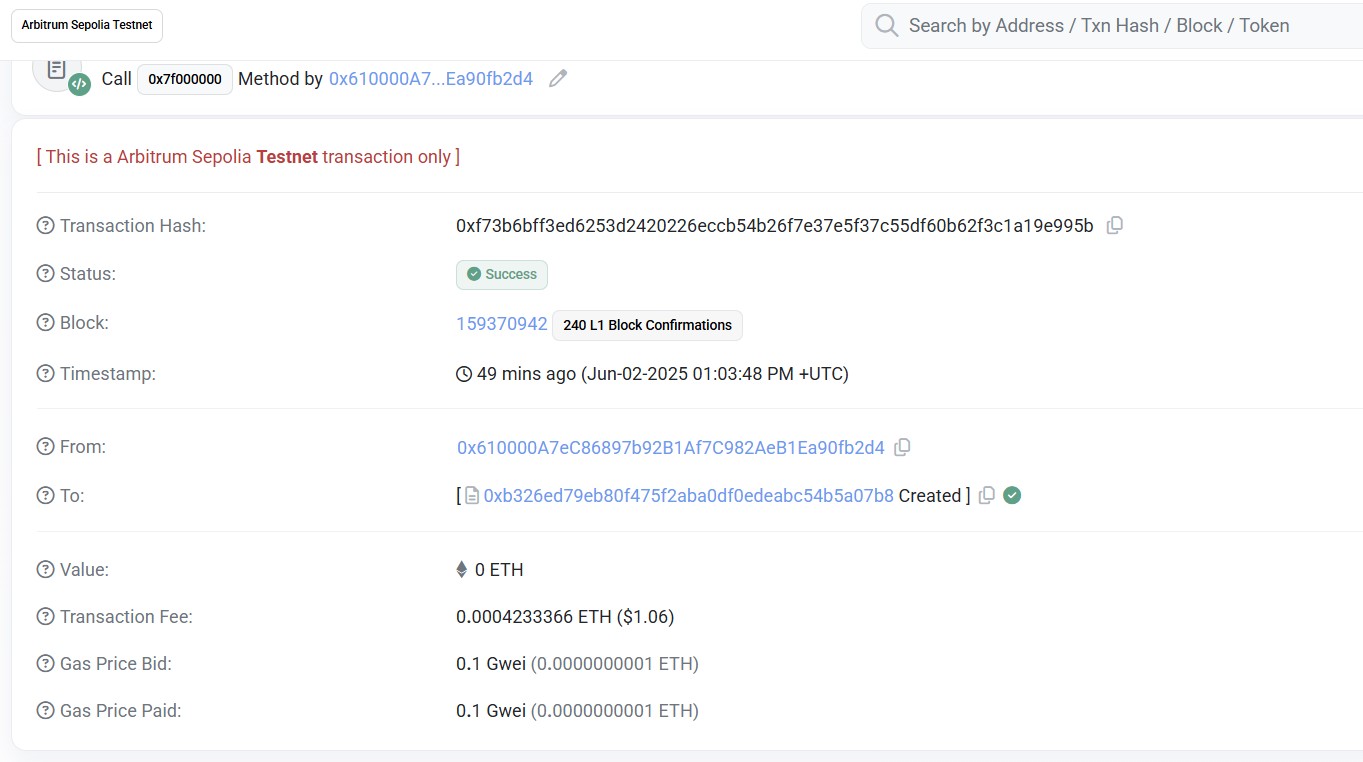

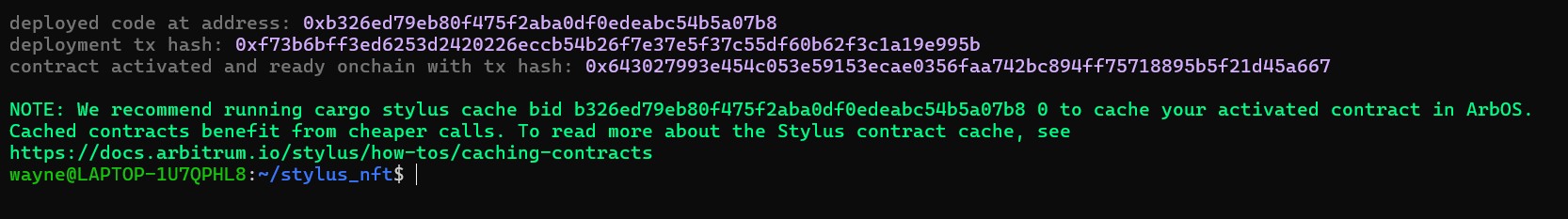

可以看到这里我们部署成功，合约地址与 hash：

deployed code at address: 0xb326ed79eb80f475f2aba0df0edeabc54b5a07b8
deployment tx hash: 0xf73b6bff3ed6253d2420226eccb54b26f7e37e5f37c55df60b62f3c1a19e995b

4.  执行交互

我们使用 foundry  cast 来进行交互，先把所需的环境变量导出，这样方便操作：

export NFT=你部署的NFT合约地址
export USER=你的钱包地址

1. 检查 NFT 合约的账户余额和所有者

cast call --rpc-url $ARB_RPC_URL $NFT "balanceOf(address) (uint256)" $USER

这个时候刚部署合约，没有余额，所以结果是0

2. 检查对应 NFT 的所有者，我们这里查看 token_id = 0 的所有者

cast call --rpc-url $ARB_RPC_URL $NFT "ownerOf(uint256) (address)" 0

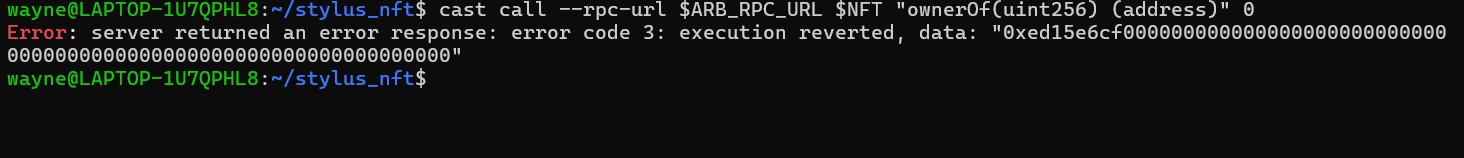

可以看到这里报错了，因为我们还没有mint 任何的NFT， 在代码里面有判断，如果找不到对应的所有者，将返回一个错误

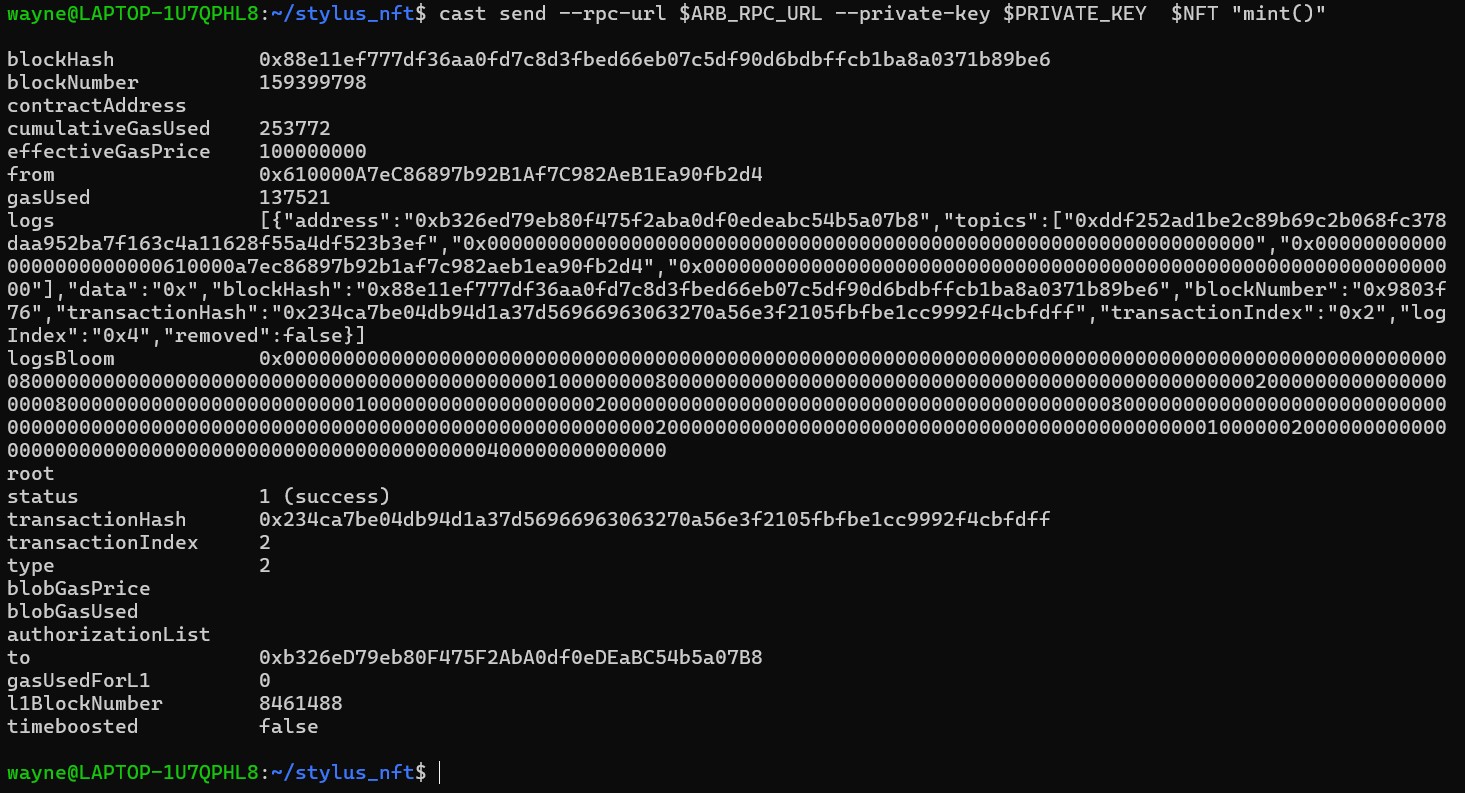

3. 我们来给自己 mint  一个NFT

 OK mint  一个 NFT 成功！

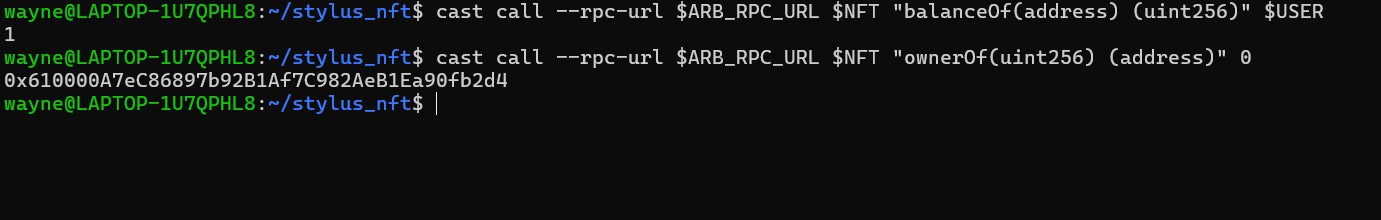

4.  我们再来验证一下前面的步骤：

可以看到，余额已经变成了1，并且   token_id = 0 的所有者也输出了，在浏览器也能看到地址已经成功mint了一个NFT。 到这里就完成了一个完整的erc721的合约，从代码到部署，再到验证，如果你也跟我一样走到了最后，那么恭喜你，给自己一点鼓励吧，你是最棒的！

5. 总结

代码仓库：stylus_nft

今天我们学习了如何在 stylus 中编写erc721合约，也学会了如何去部署已经验证，希望大家多练习，多思考，重复巩固知识，思考推动进步，好了，今天就到这里啦，我是红烧6，关注我（主页有v），带你遨游web3
