RabbitMQ工作模式

java 2025/7/30 14:46:08

RabbitMQ提供了7中工作模式，来进行消息的传递。

官⽅⽂档：RabbitMQ Tutorials | RabbitMQ

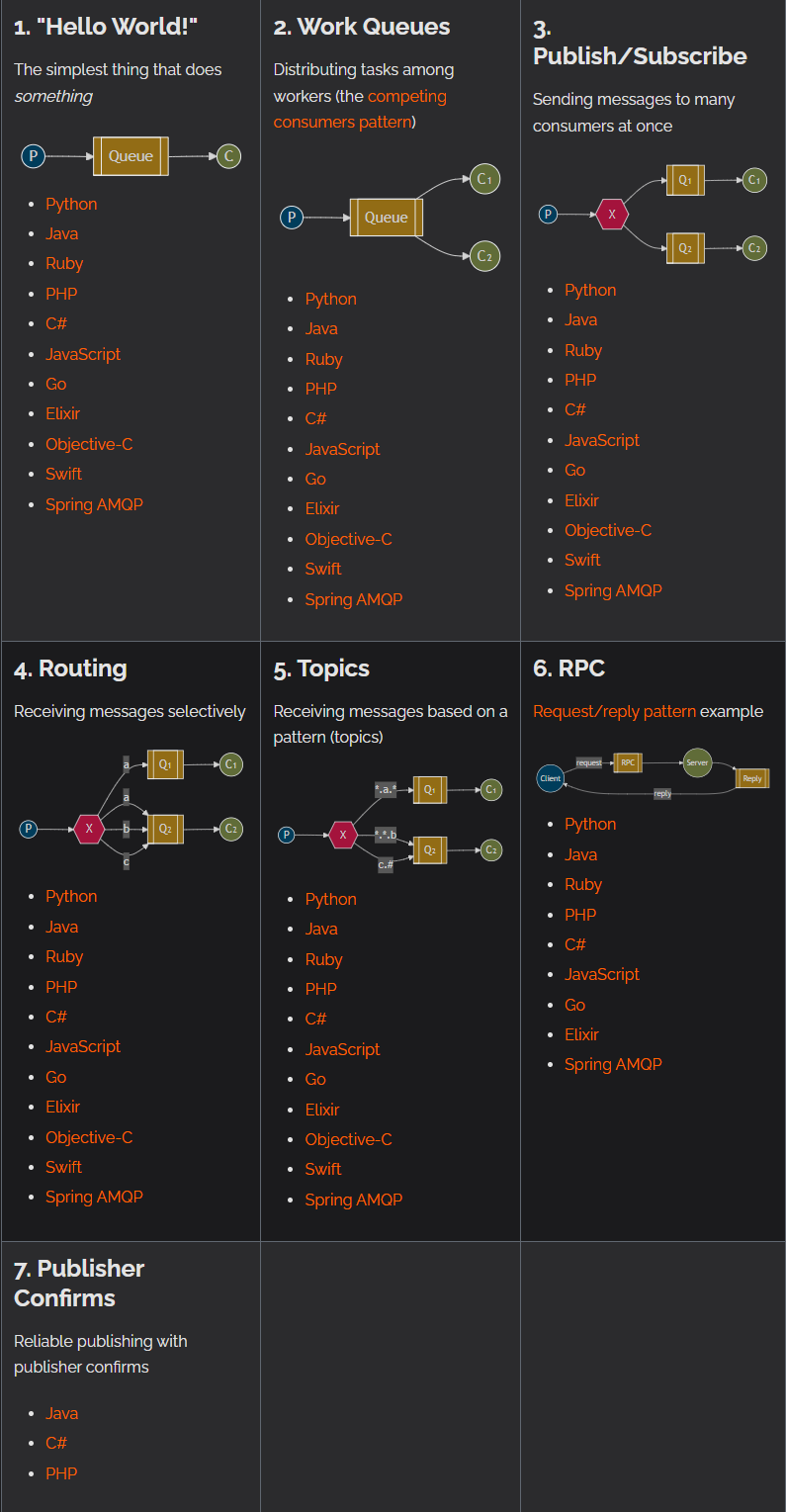

7种工作模式

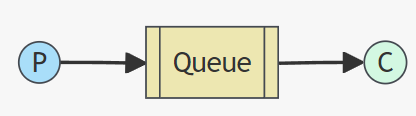

Simple（简单模式）

P: ⽣产者, 也就是要发送消息的程序

C: 消费者,消息的接收者

Queue: 消息队列, 可以缓存消息; ⽣产者向其中投递消息, 消费者从其中取出消息.

特点: ⼀个⽣产者P，⼀个消费者C, 消息只能被消费⼀次. 也称为点对点(Point-to-Point)模式.

适⽤场景: 消息只能被单个消费者处理

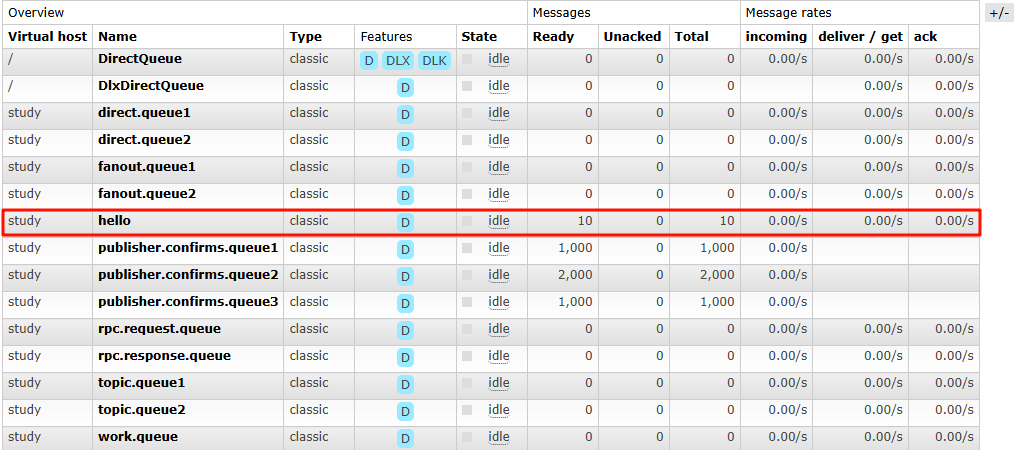

代码模拟：

生产者：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(ip地址);connectionFactory.setPort(5672); //需提前开放端口号connectionFactory.setUsername("admin");//账号connectionFactory.setPassword("admin");//密码connectionFactory.setVirtualHost("study");//虚拟主机Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明交换机 使用内置的交换机//4.声明队列/*** Queue.DeclareOk queueDeclare(String queue, boolean durable, boolean exclusive, boolean autoDelete,*                                  Map<String, Object> arguments) throws IOException;** 参数说明：*  queue：队列名称*  durable：可持久化*  exclusive：是否独占*  autoDelete：是否自动删除*  arguments：额外参数*/channel.queueDeclare("hello",true,false,false,null);//5.发消息/*** void basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body) throws IOException;** 参数声明：*   exchange：交换机名称，不写代表使用内置交换机*   routingKey：路由名称, routingKey = 队列名称 （使用内置交换机，routingKey与队列名称保持一致）*   props：属性配置*   body：消息*/for (int i = 0; i < 10; i++) {String msg = "hello rabbitmq ~" + i;channel.basicPublish("","hello",null,msg.getBytes());}System.out.println("消息发送成功~");//6.资源释放channel.close();connection.close();}

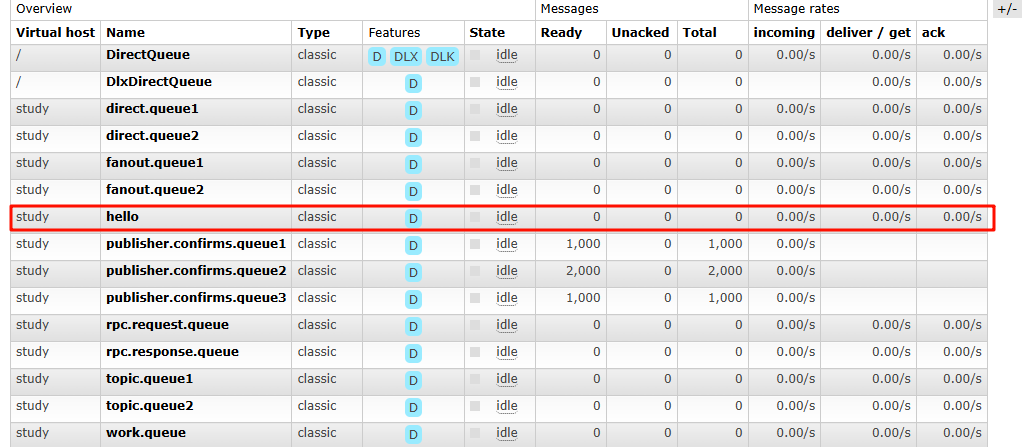

消费者：

public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {//1.建立链接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(ip地址);connectionFactory.setPort(5672);connectionFactory.setUsername("admin");connectionFactory.setPassword("admin");connectionFactory.setVirtualHost("study");Connection connection = connectionFactory.newConnection();//2.创建ChannelChannel channel = connection.createChannel();//3.声明队列（可以省略）channel.queueDeclare("hello",true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){//从队列中收到消息，就会执行的方法@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息： " + new String(body));}};/*** String basicConsume(String queue, boolean autoAck, Consumer callback) throws IOException;* 参数说明：*  queue：队列名称*  autoAck：是否自动确认*  callback：接收到消息后，执行的逻辑*/channel.basicConsume("hello",true,consumer);//等待程序完成Thread.sleep(5000);//5.释放资源channel.close();connection.close();}

接收到消息： hello rabbitmq ~0
接收到消息： hello rabbitmq ~1
接收到消息： hello rabbitmq ~2
接收到消息： hello rabbitmq ~3
接收到消息： hello rabbitmq ~4
接收到消息： hello rabbitmq ~5
接收到消息： hello rabbitmq ~6
接收到消息： hello rabbitmq ~7
接收到消息： hello rabbitmq ~8
接收到消息： hello rabbitmq ~9

Work Queue(⼯作队列)

⼀个⽣产者P，多个消费者C1,C2. 在多个消息的情况下, Work Queue 会将消息分派给不同的消费者,

每个消费者都会接收到不同的消息.

特点: 消息不会重复, 分配给不同的消费者.

适⽤场景: 集群环境中做异步处理

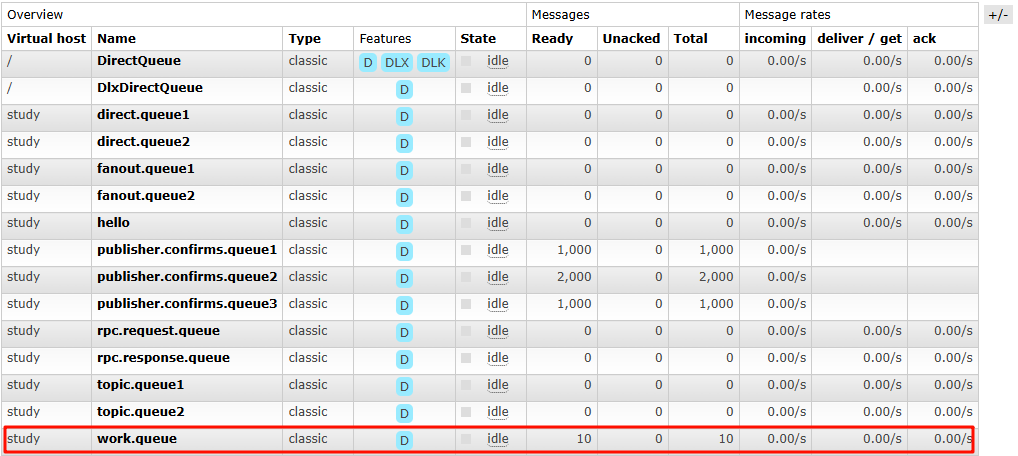

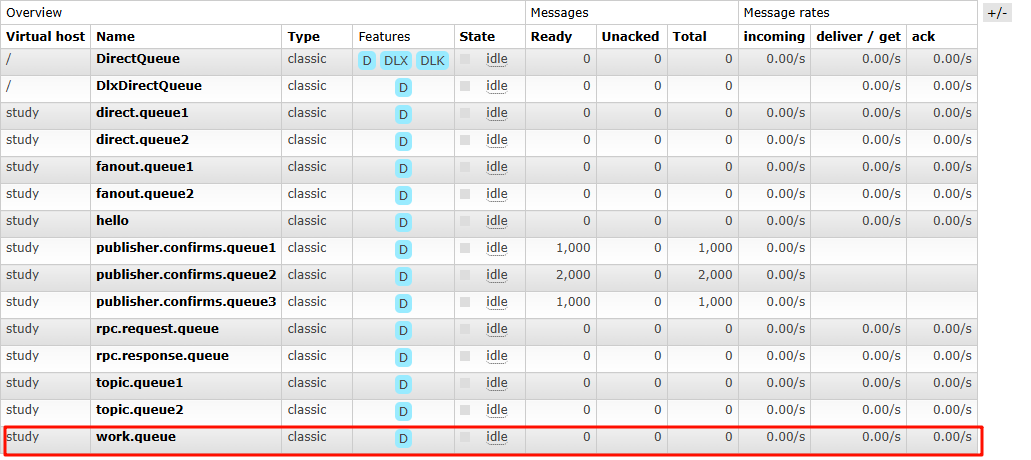

代码模拟：

生产者：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建channelChannel channel = connection.createChannel();//3.声明队列   使用内置交换机// 如果队列不存在 ，则创建，如果队列存在，则不创建channel.queueDeclare(Constants.WORK_QUEUE,true,false,false,null);//4.发送消息for (int i = 0; i < 10; i++) {String msg = "hello work queue ...." + i;channel.basicPublish("", Constants.WORK_QUEUE,null,msg.getBytes());}System.out.println("发送消息成功！");//6.释放资源channel.close();connection.close();}

消费者1：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建管道Channel channel = connection.createChannel();//3.声明队列 使用内置交换机//如果队列不存在，则创建channel.queueDeclare(Constants.WORK_QUEUE,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息：" + new String(body));}};channel.basicConsume(Constants.WORK_QUEUE,true,consumer);//6.释放资源
/*        channel.close();connection.close();*/}

接收到消息：hello work queue ....0
接收到消息：hello work queue ....2
接收到消息：hello work queue ....4
接收到消息：hello work queue ....6
接收到消息：hello work queue ....8

消费者2：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建管道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.WORK_QUEUE,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){//从队列中收到消息，就会执行的方法@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息：" + new String(body));}};channel.basicConsume(Constants.WORK_QUEUE,true,consumer);//6.释放资源
/*        channel.close();connection.close();*/}

接收到消息：hello work queue ....1
接收到消息：hello work queue ....3
接收到消息：hello work queue ....5
接收到消息：hello work queue ....7
接收到消息：hello work queue ....9

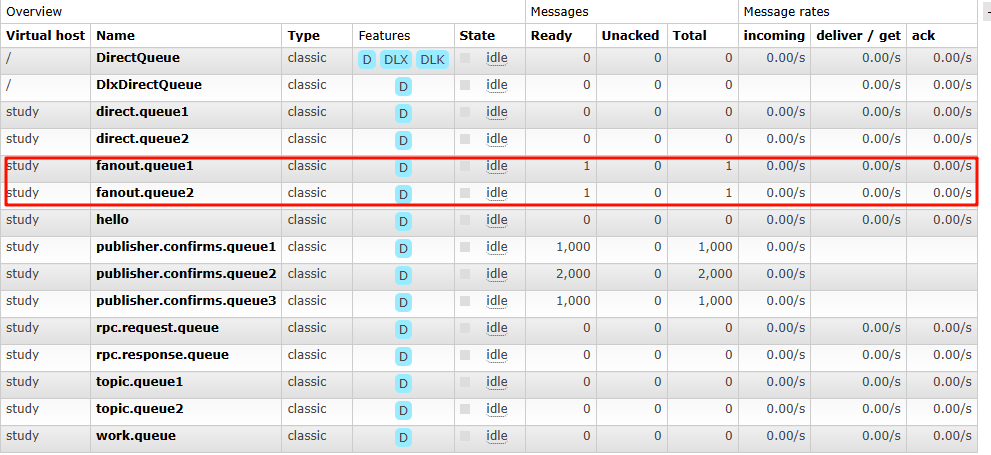

Publish/Subscribe(发布/订阅)

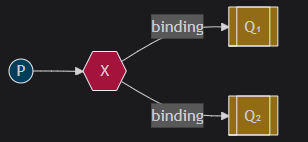

图中X表⽰交换机.

Exchange: 交换机 (X).只负责转发消息, 不具备存储消息的能⼒,

作⽤: ⽣产者将消息发送到Exchange, 由交换机将消息按⼀定规则路由到⼀个或多个队列中。

RabbitMQ交换机有四种类型: fanout,direct, topic, headers, 不同类型有着不同的路由策略.

1.Fanout:⼴播，将消息交给所有绑定到交换机的队列(Publish/Subscribe模式)

Direct:定向，把消息交给符合指定routing key的队列(Routing模式)

Topic:通配符，把消息交给符合routing pattern(路由模式)的队列(Topics模式)

headers类型的交换器不依赖于路由键的匹配规则来路由消息, ⽽是根据发送的消息内容中的headers属性进⾏匹配. headers类型的交换器性能会很差,⽽且也不实⽤,基本上不会看到它的存在

RoutingKey: 路由键.⽣产者将消息发给交换器时, 指定的⼀个字符串, ⽤来告诉交换机应该如何处理这

个消息.

**Binding Key:**绑定. RabbitMQ中通过Binding(绑定)将交换器与队列关联起来, 在绑定的时候⼀般会指

定⼀个Binding Key, 这样RabbitMQ就知道如何正确地将消息路由到队列了.

适合场景: 消息需要被多个消费者同时接收的场景. 如: 实时通知或者⼴播消息。

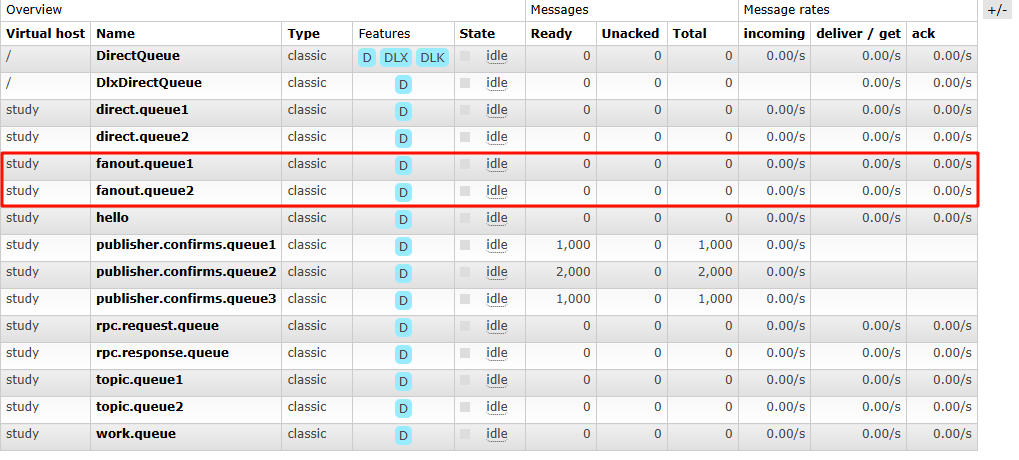

代码模拟：

生产者：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建信道Channel channel = connection.createChannel();//3.声明交换机channel.exchangeDeclare(Constants.FANOUT_EXCHANGE, BuiltinExchangeType.FANOUT,true);//4.声明队列channel.queueDeclare(Constants.FANOUT_QUEUE1,true,false,false,null);channel.queueDeclare(Constants.FANOUT_QUEUE2,true,false,false,null);//5.交换机和队列绑定channel.queueBind(Constants.FANOUT_QUEUE1,Constants.FANOUT_EXCHANGE,"");channel.queueBind(Constants.FANOUT_QUEUE2,Constants.FANOUT_EXCHANGE,"");//6.发布消息String msg = "hello fanout....";channel.basicPublish(Constants.FANOUT_EXCHANGE,"",null,msg.getBytes());System.out.println("消息发送成功");//7.释放资源channel.close();connection.close();}

消费者1：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.FANOUT_QUEUE1,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息：" + new String(body));}};channel.basicConsume(Constants.FANOUT_QUEUE1,true,consumer);}

接收到消息：hello fanout....

消费者2：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.FANOUT_QUEUE2,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息：" + new String(body));}};channel.basicConsume(Constants.FANOUT_QUEUE2,true,consumer);}

接收到消息：hello fanout....

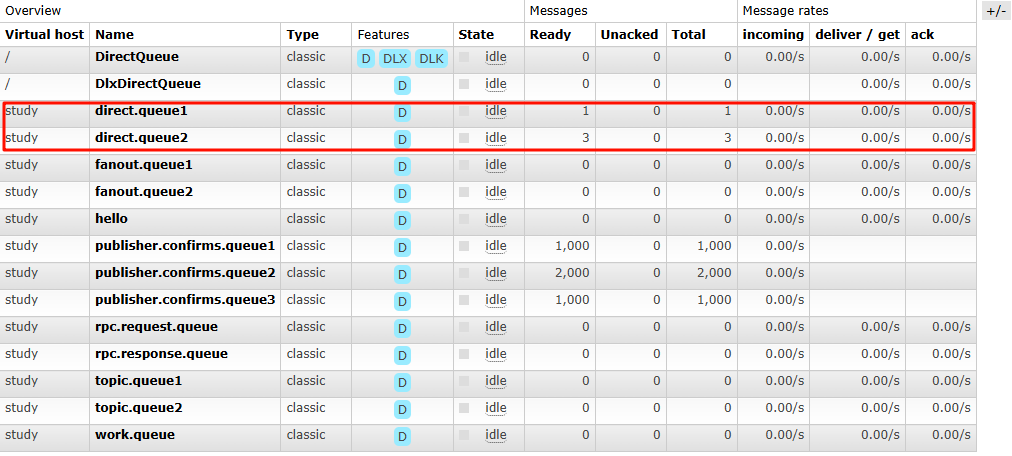

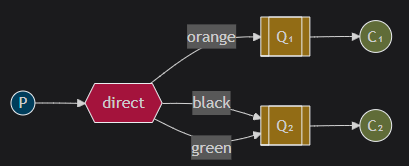

Routing(路由模式)

路由模式是发布订阅模式的变种, 在发布订阅基础上, 增加路由key

发布订阅模式是⽆条件的将所有消息分发给所有消费者, 路由模式是Exchange根据RoutingKey的规则,

将数据筛选后发给对应的消费者队列

适合场景: 需要根据特定规则分发消息的场景.

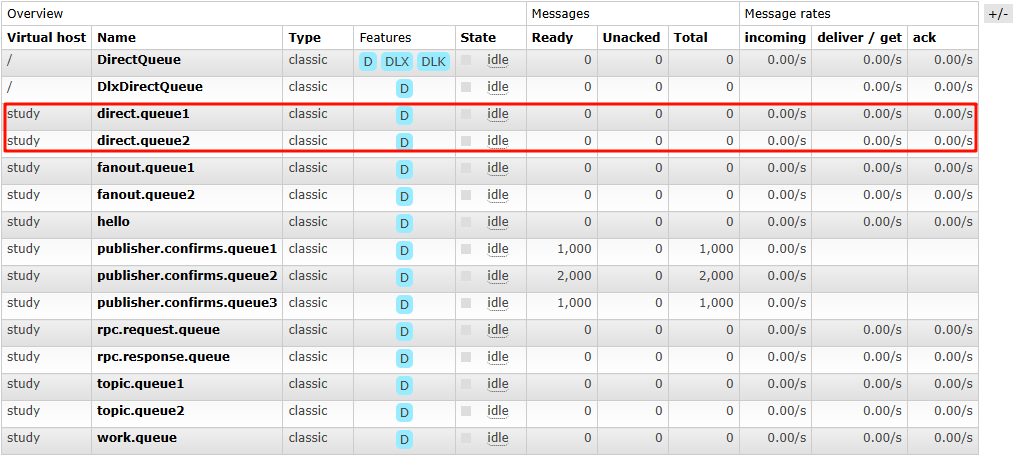

代码模拟：

生产者：

/**/public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.创建信道Channel channel = connection.createChannel();//3.声明交换机channel.exchangeDeclare(Constants.DIRECT_EXCHANGE, BuiltinExchangeType.DIRECT,true);//4.声明队列channel.queueDeclare(Constants.DIRECT_QUEUE1,true,false,false,null);channel.queueDeclare(Constants.DIRECT_QUEUE2,true,false,false,null);//5.绑定交换机和队列channel.queueBind(Constants.DIRECT_QUEUE1,Constants.DIRECT_EXCHANGE,"a");channel.queueBind(Constants.DIRECT_QUEUE2,Constants.DIRECT_EXCHANGE,"a");channel.queueBind(Constants.DIRECT_QUEUE2,Constants.DIRECT_EXCHANGE,"b");channel.queueBind(Constants.DIRECT_QUEUE2,Constants.DIRECT_EXCHANGE,"c");//6.发送消息String msg_a = "hello direct, my routingkey is a .... ";channel.basicPublish(Constants.DIRECT_EXCHANGE,"a",null,msg_a.getBytes());String msg_b = "hello direct, my routingkey is b .... ";channel.basicPublish(Constants.DIRECT_EXCHANGE,"b",null,msg_b.getBytes());String msg_c = "hello direct, my routingkey is c .... ";channel.basicPublish(Constants.DIRECT_EXCHANGE,"c",null,msg_c.getBytes());System.out.println("发送消息成功");//7.释放资源channel.close();connection.close();}

消费者1：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.DIRECT_QUEUE1,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息: " + new String(body));}};channel.basicConsume(Constants.DIRECT_QUEUE1,true,consumer);}

接收到消息: hello direct, my routingkey is a ....

消费者2：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.DIRECT_QUEUE2,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息: " + new String(body));}};channel.basicConsume(Constants.DIRECT_QUEUE2,true,consumer);}

接收到消息: hello direct, my routingkey is a ....
接收到消息: hello direct, my routingkey is b ....
接收到消息: hello direct, my routingkey is c ....

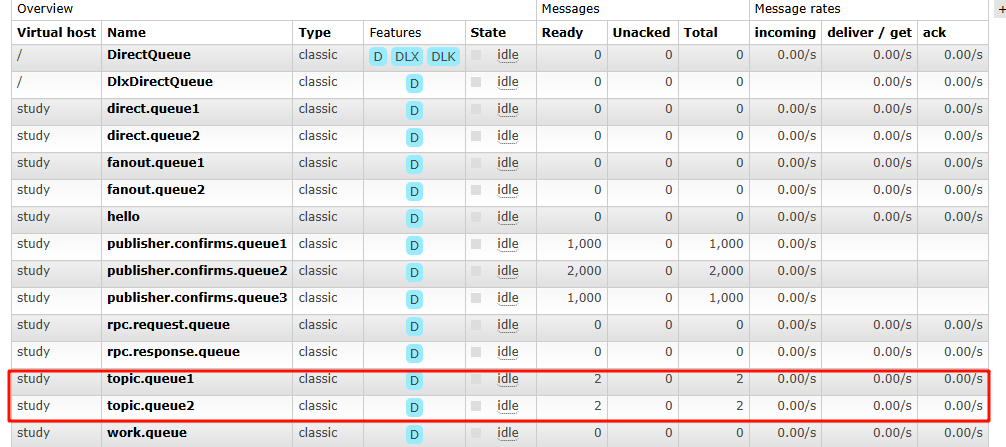

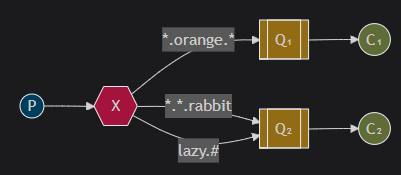

Topics(通配符模式)

路由模式的升级版, 在routingKey的基础上,增加了通配符的功能。

不同之处是：routingKey的匹配⽅式不同，Routing模式是相等匹配，topics模式是通配符匹配。

适合场景: 需要灵活匹配和过滤消息的场景。

代码模拟：

生产者：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明交换机channel.exchangeDeclare(Constants.TOPIC_EXCHANGE, BuiltinExchangeType.TOPIC,true);//4.声明队列channel.queueDeclare(Constants.TOPIC_QUEUE1,true,false,false,null);channel.queueDeclare(Constants.TOPIC_QUEUE2,true,false,false,null);//5.绑定交换机和队列channel.queueBind(Constants.TOPIC_QUEUE1,Constants.TOPIC_EXCHANGE,"*.a.*");channel.queueBind(Constants.TOPIC_QUEUE2,Constants.TOPIC_EXCHANGE,"*.*.b");channel.queueBind(Constants.TOPIC_QUEUE2,Constants.TOPIC_EXCHANGE,"c.#");//6.发送消息String msg = "hello topic , my routingkey is ae.a.f...";channel.basicPublish(Constants.TOPIC_EXCHANGE,"ae.a.f",null,msg.getBytes());String msg_b = "hello topic , my routingkey is ef.a.b...";channel.basicPublish(Constants.TOPIC_EXCHANGE,"ef.a.b",null,msg_b.getBytes());String msg_c = "hello topic , my routingkey is c.ef.d...";channel.basicPublish(Constants.TOPIC_EXCHANGE,"c.ef.d",null,msg_c.getBytes());System.out.println("发送消息成功");//7.释放资源channel.close();connection.close();}

消费者1：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.TOPIC_QUEUE1,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息： " + new String(body));}};channel.basicConsume(Constants.TOPIC_QUEUE1,true,consumer);}

接收到消息： hello topic , my routingkey is ae.a.f...
接收到消息： hello topic , my routingkey is ef.a.b...

消费者2：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.声明队列channel.queueDeclare(Constants.TOPIC_QUEUE2,true,false,false,null);//4.消费消息DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {System.out.println("接收到消息： " + new String(body));}};channel.basicConsume(Constants.TOPIC_QUEUE2,true,consumer);}

接收到消息： hello topic , my routingkey is ef.a.b...
接收到消息： hello topic , my routingkey is c.ef.d...

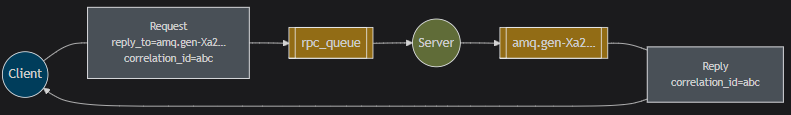

RPC(RPC通信)

在RPC通信的过程中, 没有⽣产者和消费者, ⽐较像咱们RPC远程调⽤, ⼤概就是通过两个队列实现了⼀

个可回调的过程.

具体过程：

客⼾端发送消息到⼀个指定的队列, 并在消息属性中设置replyTo字段, 这个字段指定了⼀个回调队列, ⽤于接收服务端的响应.
服务端接收到请求后, 处理请求并发送响应消息到replyTo指定的回调队列
客⼾端在回调队列上等待响应消息. ⼀旦收到响应，客⼾端会检查消息的correlationId属性，以确保它是所期望的响应

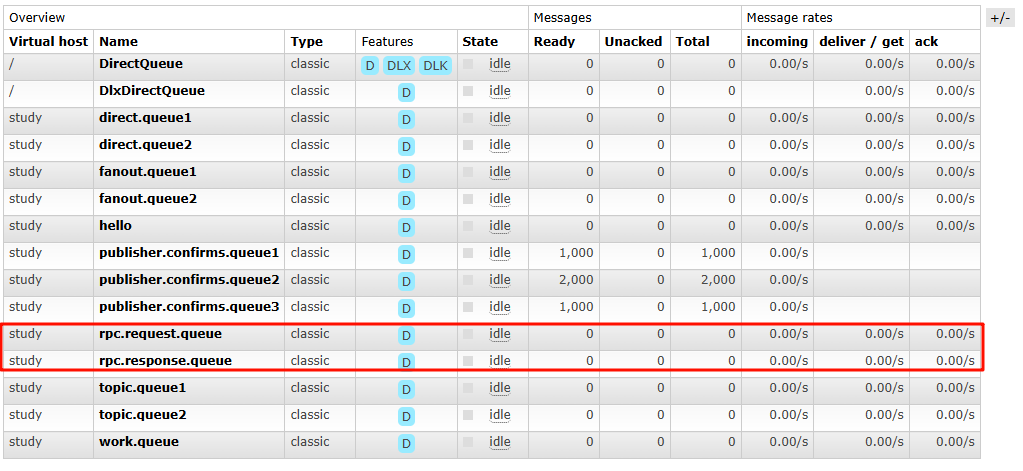

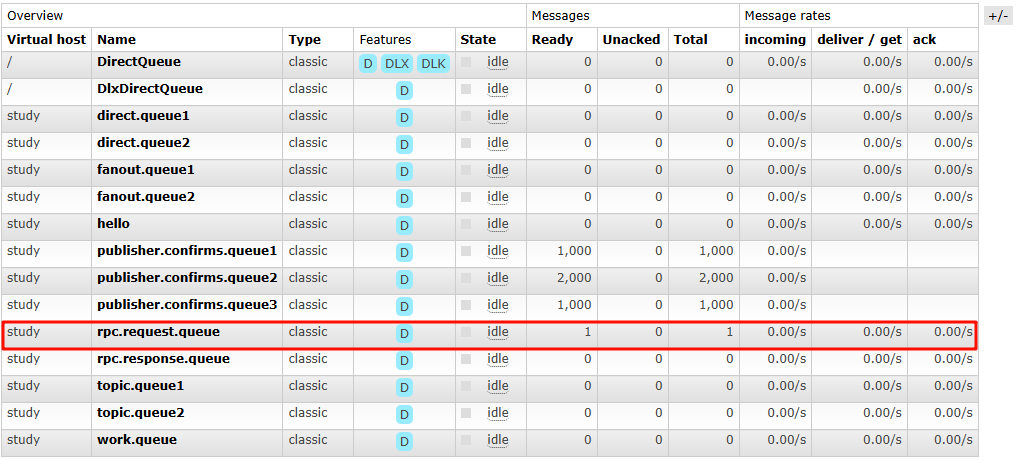

代码模拟：

客户端：

public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();channel.queueDeclare(Constants.RPC_REQUEST_QUEUE,true,false,false,null);channel.queueDeclare(Constants.RPC_RESPONSE_QUEUE,true,false,false,null);//3.发送请求String msg = "hello , rpc...";//设置请求的唯一标识String correlationID = UUID.randomUUID().toString();//设置请求的相关属性AMQP.BasicProperties properties = new AMQP.BasicProperties().builder().correlationId(correlationID).replyTo(Constants.RPC_RESPONSE_QUEUE).build();channel.basicPublish("",Constants.RPC_REQUEST_QUEUE,properties,msg.getBytes());//4.接收响应//使用阻塞队列，来储存响应信息final BlockingQueue<String> response = new ArrayBlockingQueue<>(1);DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {String respMsg = new String(body);System.out.println("j接收回调消息：" + respMsg);if (correlationID.equals(properties.getCorrelationId())){//如果correlationID 校验一致response.add(respMsg);}}};channel.basicConsume(Constants.RPC_RESPONSE_QUEUE,true,consumer);String result = response.take();System.out.println("[RPC CLIENT 响应结果]： " + result);}

服务器：

public static void main(String[] args) throws IOException, TimeoutException {//1.建立连接ConnectionFactory connectionFactory = new ConnectionFactory();connectionFactory.setHost(Constants.HOST);connectionFactory.setPort(Constants.PORT);connectionFactory.setUsername(Constants.USER_NAME);connectionFactory.setPassword(Constants.PASSWORD);connectionFactory.setVirtualHost(Constants.VIRTUAL_HOST);Connection connection = connectionFactory.newConnection();//2.开启信道Channel channel = connection.createChannel();//3.接收请求DefaultConsumer consumer = new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {String request = new String(body,"UTF-8");System.out.println("接收到请求" + request);String response = "针对request：" + request + ",相应成功";AMQP.BasicProperties basicProperties = new AMQP.BasicProperties().builder().correlationId(properties.getCorrelationId()).build();channel.basicPublish("",Constants.RPC_RESPONSE_QUEUE,basicProperties,response.getBytes());channel.basicAck(envelope.getDeliveryTag(), false);}};channel.basicConsume(Constants.RPC_REQUEST_QUEUE,true,consumer);}

接收到请求hello , rpc...

client:
j接收回调消息：针对request：hello , rpc...,相应成功
[RPC CLIENT 响应结果]： 针对request：hello , rpc...,相应成功

Publisher Confirms(发布确认)

Publisher Confirms模式是RabbitMQ提供的⼀种确保消息可靠发送到RabbitMQ服务器的机制。

⽣产者可以等待RabbitMQ服务器的确认，以确保消息已经被服务器接收并处理。

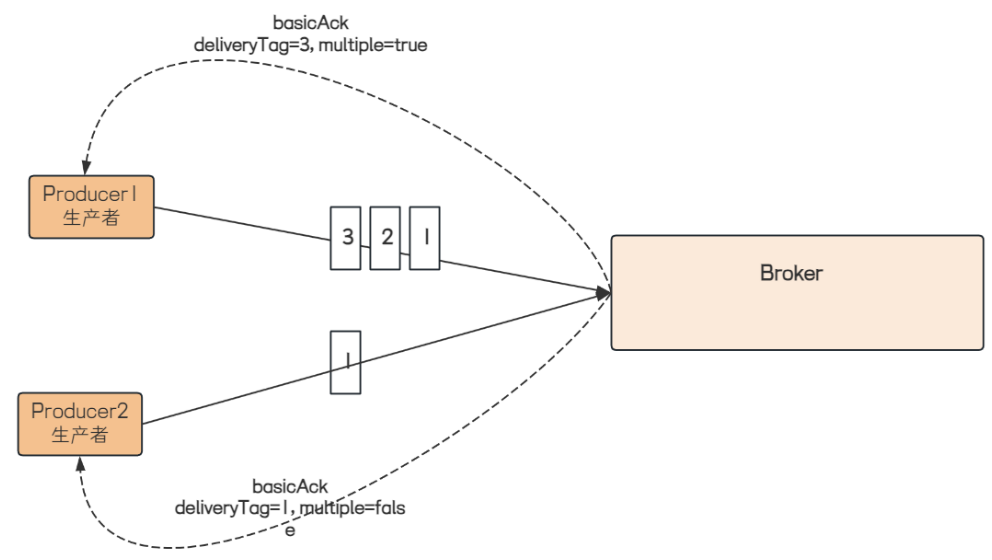

⽣产者将信道设置成confirm(确认)模式, ⼀旦信道进⼊confirm模式, 所有在该信道上⾯发布的消息都

会被指派⼀个唯⼀的ID(从1开始), ⼀旦消息被投递到所有匹配的队列之后, RabbitMQ就会发送⼀个

认给⽣产者(包含消息的唯⼀ID), 这就使得⽣产者知道消息已经正确到达⽬的队列了, 如果消息和队

是可持久化的, 那么确认消息会在将消息写⼊磁盘之后发出. broker回传给⽣产者的确认消息中。

deliveryTag 包含了确认消息的序号, 此外 broker 也可以设置channel.basicAck⽅法中的multiple参

数, 表⽰到这个序号之前的所有消息都已经得到了处理。

发送⽅确认机制最⼤的好处在于它是异步的, ⽣产者可以同时发布消息和等待信道返回确认消息.

当消息最终得到确认之后, ⽣产者可以通过回调⽅法来处理该确认消息.
如果RabbitMQ因为⾃⾝内部错误导致消息丢失, 就会发送⼀条nack(Basic.Nack)命令, ⽣产者同样可以在回调⽅法中处理该nack命令。
