Kubernetes 构建高可用、高性能 Redis 集群
本篇文章主要讲解如果使用k8s构建高可用，高性能的Redis集群，并且使用到redis-cluster-proxy进行集群代理。
环境准备
k8s集群：（均为红帽9）
| k8sMaster | 192.168.118.200 |
| k8sNode1 | 192.168.118.201 |
| k8sNode2 | 192.168.118.202 |
使用搭建nfs服务作为后端的存储，nfs持久化存储storageclass，nfs主机：192.168.118.100
私有harbor作为镜像仓库，对应的名称为：OpenLabTest，这个本篇不做讲解，只要能正常推送和拉取即可
使用statefulset控制器创建redis集群，deployment控制器创建redis-cluster-proxy，loadbalancer对代理暴露，headless提供redis-cluster-proxy的对redis集群的配置dns解析
搭建nfs服务器
nfs主机上
dnf install nfs-utils -y
systemctl enable --now nfs-server.service
vim /etc/exports
/nfsdata *(rw,sync,no_root_squash)
exportfs -rv[root@devops nfsdata]# showmount -e
Export list for devops:
/nfsdata *所有的k8s主机：
for i in {200..202};do ssh root@192.168.118.${i} dnf install nfs-utils -y; done
for i in {200..202};do ssh root@192.168.118.${i} showmount -e 192.168.118.100; done
创建存储类
对于存储类的provisioner需要集群权限和命名空间的权限，前者用来监控集群检测时候又pvc的创建调用了这个存储类，后者用来leader-election保证只有一个provisioner进行pv的创建。
权限：
vim provisionerPrivilege.yml
apiVersion: v1
kind: Namespace
metadata:name: nfs-provisioner
---
apiVersion: v1
kind: ServiceAccount
metadata:name: nfs-provisioner-svcnamespace: nfs-provisioner
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:name: nfs-clusterrolenamespace: nfs-provisioner
rules:
- apiGroups:- ""resources:- nodesverbs:- get- list- watch
- apiGroups:- ""resources:- persistentvolumesverbs:- get- list- watch- create- delete
- apiGroups:- ""resources:- persistentvolumeclaimsverbs:- get- list- watch- update
- apiGroups:- "storage.k8s.io"resources:- storageclassesverbs:- get- list- watch
- apiGroups:- ""resources:- eventsverbs:- create- update- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:name: nfs-clusterrolebinding
subjects:- kind: ServiceAccountname: nfs-provisioner-svcnamespace: nfs-provisioner
roleRef:kind: ClusterRolename: nfs-clusterroleapiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:name: leader-electornamespace: nfs-provisioner
rules:- apiGroups: [""]resources: ["endpoints"]verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:name: leader-electorbindingnamespace: nfs-provisioner
subjects:- kind: ServiceAccountname: nfs-provisioner-svcnamespace: nfs-provisioner
roleRef:kind: Rolename: leader-electorapiGroup: rbac.authorization.k8s.io创建provisioner ，vim nfs-provioner.yml
apiVersion: apps/v1
kind: Deployment
metadata:labels:app: nfs-provisionername: nfs-provisionernamespace: nfs-provisioner
spec:replicas: 2selector:matchLabels:app: nfs-provisionertemplate:metadata:labels:app: nfs-provisionerspec:serviceAccountName: nfs-provisioner-svccontainers:- image: OpenLabTest/nfsprovisioner/nfs-subdir-external-provisioner:v4.0.2name: nfs-subdir-external-provisionervolumeMounts:- name: nfs-rootmountPath: /persistentvolumesenv:- name: PROVISIONER_NAMEvalue: k8s-sigs.io/nfs-subdir-external-provisioner- name: NFS_SERVERvalue: 192.168.118.100- name: NFS_PATHvalue: /nfsdatavolumes:- name: nfs-rootnfs:server: 192.168.118.100path: /nfsdata创建存储类，vim storageclass.yml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:name: nfs-storageclass
provisioner: k8s-sigs.io/nfs-subdir-external-provisioner
parameters:archiveOnDelete: "false"创建redis集群(statefulset)
创建一个namespace提供集群环境
apiVersion: v1
kind: Namespace
metadata:name: redis-cluster先写一份redis的配置文件，然后生成一份configmap，为了将其挂载到集群的每一台pod上
vim redis.conf
protected-mode no
appendonly yes
dir /data
port 6379
cluster-enabled yes
cluster-config-file /data/nodes.conf
clueter-node-timeout 5000
masterauth openlab
requirepass openlab使用yaml的方式便于管理：
kubectl create configmap redis-config --from-file=redis.conf -n redis-cluster --dry-run=client -o yaml > sts-redis.yml然后写一份statefulset追加到sts-redis.conf这个文件中：
apiVersion: v1
data:redis.conf: |protected-mode noappendonly yesdir /dataport 6379cluster-enabled yescluster-config-file /data/nodes.confcluster-node-timeout 5000masterauth openlabrequirepass openlab
kind: ConfigMap
metadata:name: redis-confignamespace: redis-cluster
---
apiVersion: apps/v1
kind: StatefulSet
metadata:labels:app: redis-clustername: redis-clusternamespace: redis-cluster
spec:serviceName: headless-redisreplicas: 6selector:matchLabels:app.kubernetes.io/name: redis-clusterupdateStrategy:type: RollingUpdaterollingUpdate:partition: 1template:metadata:labels:app.kubernetes.io/name: redis-clusterspec:affinity:podAntiAffinity:preferredDuringSchedulingIgnoredDuringExecution:- weight: 100podAffinityTerm:labelSelector:matchLabels:app.kubernetes.io/name: redis-clustertopologyKey: kubernetes.io/hostnamecontainers:- image: OpenLabTest/redis/redis:7.2.6name: rediscommand:- "redis-server"args:- "/etc/redis/redis.conf"- "--protected-mode"- "no"- "--cluster-announce-ip"- "$(POD_IP)"env:- name: POD_IPvalueFrom:fieldRef:fieldPath: status.podIPports:- name: rediscontainerPort: 6379protocol: TCPvolumeMounts:- name: configmountPath: /etc/redis- name: redis-cluster-datamountPath: /dataresources:limits:cpu: '2'memory: 4Girequests:cpu: 50mmemory: 500Mivolumes:- name: configconfigMap:name: redis-configitems:- key: redis.confpath: redis.confvolumeClaimTemplates:- metadata:name: redis-cluster-dataspec:accessModes: ["ReadWriteOnce"]storageClassName: "nfs-storageclass"resources:requests:storage: 5Gi然后写一份无头服务用于暴露这些pod
vim sts-redis.conf
---
apiVersion: v1
kind: Service
metadata:labels:app: headless-redisname: headless-redisnamespace: redis-cluster
spec:clusterIP: Noneselector:app.kubernetes.io/name: redis-clustertype: ClusterIPports:- port: 6379targetPort: 6379部署集群
kubectl apply -f provisionerPrivilege.yml
kubectl apply -f nfs-provisioner.yml
kubectl apply -f storageclass.yml
[root@k8sMaster redis-lab]# kubectl apply -f sts-redis.yml
configmap/redis-config created
statefulset.apps/redis-cluster created
service/headless-redis created[root@k8sMaster redis-lab]# kubectl get pod -n redis-cluster
NAME READY STATUS RESTARTS AGE
redis-cluster-0 1/1 Running 0 24m
redis-cluster-1 1/1 Running 0 24m
redis-cluster-2 1/1 Running 0 24m
redis-cluster-3 1/1 Running 0 24m
redis-cluster-4 1/1 Running 0 24m
redis-cluster-5 1/1 Running 0 24m[root@k8sMaster redis-lab]# kubectl describe svc/headless-redis -n redis-cluster
Name: headless-redis
Namespace: redis-cluster
Labels: app=headless-redis
Annotations: <none>
Selector: app.kubernetes.io/name=redis-cluster
Type: ClusterIP
IP Family Policy: SingleStack
IP Families: IPv4
IP: None
IPs: None
Port: <unset> 6379/TCP
TargetPort: 6379/TCP
Endpoints: 10.244.185.194:6379,10.244.185.195:6379,10.244.185.196:6379 + 3 more...
Session Affinity: None
Events: <none>创建cluster：
[root@k8sMaster redis-lab]# kubectl exec -it pod/redis-cluster-0 -n redis-cluster -- redis-cli -a openlab --cluster create --cluster-replicas 1 $(kubectl get pod -n redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 {end}')
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 10.244.249.20:6379 to 10.244.249.18:6379
Adding replica 10.244.185.227:6379 to 10.244.185.225:6379
Adding replica 10.244.185.226:6379 to 10.244.249.19:6379
M: d5c88a398fdbd72c71b32d19cea06e6970266e73 10.244.249.18:6379slots:[0-5460] (5461 slots) master
M: 16310814a65a2056351f0b5f3ab50df0e769b6bd 10.244.185.225:6379slots:[5461-10922] (5462 slots) master
M: eaedc92e9d8e66bf511429084ca59af25af97aef 10.244.249.19:6379slots:[10923-16383] (5461 slots) master
S: d1f1c28af479d951fbf7d199b9b868b0672e0a37 10.244.185.226:6379replicates eaedc92e9d8e66bf511429084ca59af25af97aef
S: 8949e4cd9f1b515d4ef6c8677732435accd324a2 10.244.249.20:6379replicates d5c88a398fdbd72c71b32d19cea06e6970266e73
S: cae29a03bb6820051e808e9a04f03dda71e3087b 10.244.185.227:6379replicates 16310814a65a2056351f0b5f3ab50df0e769b6bd
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
.
>>> Performing Cluster Check (using node 10.244.249.18:6379)
M: d5c88a398fdbd72c71b32d19cea06e6970266e73 10.244.249.18:6379slots:[0-5460] (5461 slots) master1 additional replica(s)
S: d1f1c28af479d951fbf7d199b9b868b0672e0a37 10.244.185.226:6379slots: (0 slots) slavereplicates eaedc92e9d8e66bf511429084ca59af25af97aef
M: eaedc92e9d8e66bf511429084ca59af25af97aef 10.244.249.19:6379slots:[10923-16383] (5461 slots) master1 additional replica(s)
S: cae29a03bb6820051e808e9a04f03dda71e3087b 10.244.185.227:6379slots: (0 slots) slavereplicates 16310814a65a2056351f0b5f3ab50df0e769b6bd
S: 8949e4cd9f1b515d4ef6c8677732435accd324a2 10.244.249.20:6379slots: (0 slots) slavereplicates d5c88a398fdbd72c71b32d19cea06e6970266e73
M: 16310814a65a2056351f0b5f3ab50df0e769b6bd 10.244.185.225:6379slots:[5461-10922] (5462 slots) master1 additional replica(s)
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.集群信息：
[root@k8sMaster redis-lab]# kubectl exec -it pod/redis-cluster-0 -n redis-cluster -- redis-cli -p 6379 -a openlab cluster info
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
cluster_state:ok #这里得是ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:13
cluster_my_epoch:1
cluster_stats_messages_ping_sent:10433
cluster_stats_messages_pong_sent:10635
cluster_stats_messages_fail_sent:24
cluster_stats_messages_auth-ack_sent:3
cluster_stats_messages_sent:21095
cluster_stats_messages_ping_received:10630
cluster_stats_messages_pong_received:10410
cluster_stats_messages_meet_received:5
cluster_stats_messages_fail_received:9
cluster_stats_messages_auth-req_received:7
cluster_stats_messages_received:21061
total_cluster_links_buffer_limit_exceeded:0
构建redis-cluter-proxy
redis cluster是redis的官方集群方案，但是他要求客户端自己做重定向，所以连接单机redis和集群redis的客户端会有些不同，连接集群版redis的时候要客户端连接6个redis实例。
官方为了屏蔽这种差异，做了一个redis-cluster-proxy，经过这个proxy的代理后，连接redis集群就和连接单机redis一样了。目的是让任何只支持单机协议的客户端，也能无痛、透明地访问整个 Redis Cluster。
这里使用dockerfile进行对于redis-cluster-proxy的构建：redis-cluster-proxy: A proxy for Redis clusters.
mkdir foo
cd foo
[root@devops foo]# git config --global user.name 'jjdjr01'
[root@devops foo]# git config --global user.email '13303836+jjdjr01@user.noreply.gitee.com'
[root@devops redis-cluster-proxy]# git clone https://gitee.com/mirrors_RedisLabs/redis-cluster-proxy.git然后改几行代码：

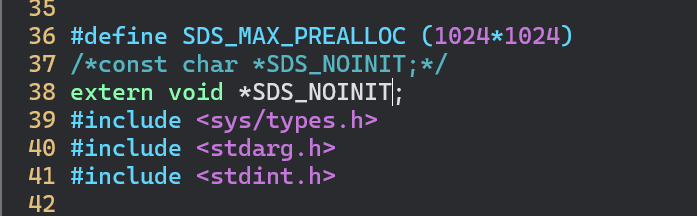

vim src/sds.h ----38行

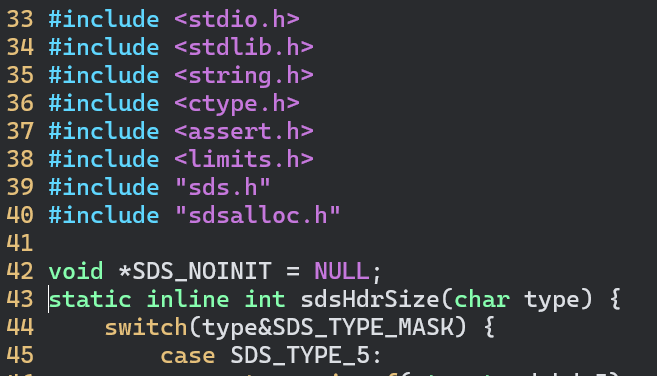

vim src/sds.c ----42
然后使用多阶构建：基础镜像为：centos:stream9
vim dockerfileFROM OpenLabTest/lib/centos:stream9 AS builder
ADD redis-cluster-proxy.tar.gz /mnt
WORKDIR /mnt/redis-cluster-proxyRUN yum clean all && yum makecache && \yum install -y gcc make git && \make PREFIX=/opt/proxy installFROM OpenLabTest/lib/centos:stream9
COPY --from=builder /opt/proxy/bin/redis-cluster-proxy /usr/local/bin/
EXPOSE 7777
ENTRYPOINT ["/usr/local/bin/redis-cluster-proxy", "-c", "/etc/proxy/proxy.conf"]我们将构建好的镜像打包上传到自己的私有harbor：
[root@devops redis-cluster-proxy]# docker build -t redis-cluster-proxy:v1.0 .
[root@devops redis-cluster-proxy]# docker tag redis-cluster-proxy:v1.0 OpenLabTest/lib/redis-cluster-proxy:v1.0
[root@devops redis-cluster-proxy]# docker push OpenLabTest/lib/redis-cluster-proxy:v1.0
The push refers to repository [OpenLabTest/lib/redis-cluster-proxy]
8318aa05ceb5: Pushed
5c81f697ce5f: Mounted from lib/centos
v1.0: digest: sha256:3d12ee0d608690bf8fd9593062e43a0e143b4a8098e17441c719d8cbaa492036 size: 739部署redis-cluster-proxy
写一份配置文件同理上：vim redis-cluster-proxy.yml
apiVersion: v1
data:proxy.conf: |cluster redis-cluster-0.headless-redis.redis-cluster.svc.cluster.local:6379cluster redis-cluster-1.headless-redis.redis-cluster.svc.cluster.local:6379cluster redis-cluster-2.headless-redis.redis-cluster.svc.cluster.local:6379cluster redis-cluster-3.headless-redis.redis-cluster.svc.cluster.local:6379cluster redis-cluster-4.headless-redis.redis-cluster.svc.cluster.local:6379cluster redis-cluster-5.headless-redis.redis-cluster.svc.cluster.local:6379bind 0.0.0.0port 7777threads 3daemonize noenable-cross-slot yesauth openlablog-level error
kind: ConfigMap
metadata:name: cluster-proxynamespace: redis-cluster这里cluster字段后面就是用到的无头服务，对集群的解析
deployment内容 vim redis-cluster-proxy.yml
---
apiVersion: apps/v1
kind: Deployment
metadata:name: redis-proxynamespace: redis-cluster
spec:replicas: 2selector:matchLabels:app: redis-proxytemplate:metadata:labels:app: redis-proxyspec:containers:- name: redis-proxyimage: OpenLabTest/lib/redis-cluster-proxy:v1.0imagePullPolicy: IfNotPresentcommand: ["/usr/local/bin/redis-cluster-proxy"]args:- -c- /etc/proxy/proxy.confports:- name: redis-7777containerPort: 7777protocol: TCPvolumeMounts:- name: cluster-proxy-vmountPath: /etc/proxyvolumes:- name: cluster-proxy-vconfigMap:name: cluster-proxyitems:- key: proxy.confpath: proxy.conf然后使用loadbalancer服务对其进行暴露，loadbalancer的部署这里不做说明，将yaml也是写在同一份yaml文件中，提供loadbalancer的metallb部署看这篇文章：K8S的Service的LoadBanlance之Metallb解决方案-阿里云开发者社区
这里直接使用loadbalancer
---
apiVersion: v1
kind: Service
metadata:labels:app: redis-cluster-proxyname: cluster-proxynamespace: redis-cluster
spec:ports:- port: 6379protocol: TCPtargetPort: 7777selector:app: redis-proxytype: LoadBalancer然后部署：
[root@k8sMaster redis-lab]# kubectl apply -f redis-cluster-proxy.yml
configmap/cluster-proxy created
deployment.apps/redis-proxy created
service/cluster-proxy created[root@k8sMaster redis-lab]# kubectl get pod -n redis-cluster
NAME READY STATUS RESTARTS AGE
redis-cluster-0 1/1 Running 0 57s
redis-cluster-1 1/1 Running 0 55s
redis-cluster-2 1/1 Running 0 52s
redis-cluster-3 1/1 Running 0 50s
redis-cluster-4 1/1 Running 0 47s
redis-cluster-5 1/1 Running 0 45s
redis-proxy-5ff7944bbb-nqq9z 1/1 Running 0 8s
redis-proxy-5ff7944bbb-r9psr 1/1 Running 0 8s查看暴露服务：
[root@k8sMaster redis-lab]# kubectl get svc -n redis-cluster
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cluster-proxy LoadBalancer 10.103.126.23 192.168.118.120 6379:32518/TCP 105m
headless-redis ClusterIP None <none> 6379/TCP 106m测试
随便找一台主机，跑一个redis镜像进行测试
[root@devops ~]# redis-cli -h 192.168.118.120 -p 6379 -a openlab ping
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
PONG
[root@devops nfsdata]# docker run -it --name test OpenLabTest/redis/redis:7.2.6 /bin/bash
root@b07107ef88e5:/data# redis-cli -h 192.168.118.120 -p 6379 -a openlab
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
192.168.118.120:6379> set foo bar
192.168.118.120:6379> get foo
"bar"root@b07107ef88e5:/data# redis-benchmark -h 192.168.118.120 -p 6379 -n 100 -c 20
WARNING: Could not fetch server CONFIG
====== PING_INLINE ======
100 requests completed in 0.01 seconds
20 parallel clients
3 bytes payload
keep alive: 1
multi-thread: noLatency by percentile distribution:
0.000% <= 0.151 milliseconds (cumulative count 1)
50.000% <= 0.607 milliseconds (cumulative count 52)
75.000% <= 0.935 milliseconds (cumulative count 75)
87.500% <= 3.255 milliseconds (cumulative count 88)
93.750% <= 4.159 milliseconds (cumulative count 94)
96.875% <= 6.415 milliseconds (cumulative count 97)
98.438% <= 7.207 milliseconds (cumulative count 99)
99.219% <= 7.895 milliseconds (cumulative count 100)
100.000% <= 7.895 milliseconds (cumulative count 100)Cumulative distribution of latencies:
0.000% <= 0.103 milliseconds (cumulative count 0)
3.000% <= 0.207 milliseconds (cumulative count 3)
12.000% <= 0.303 milliseconds (cumulative count 12)
27.000% <= 0.407 milliseconds (cumulative count 27)
41.000% <= 0.503 milliseconds (cumulative count 41)
52.000% <= 0.607 milliseconds (cumulative count 52)
60.000% <= 0.703 milliseconds (cumulative count 60)
68.000% <= 0.807 milliseconds (cumulative count 68)
73.000% <= 0.903 milliseconds (cumulative count 73)
75.000% <= 1.007 milliseconds (cumulative count 75)
76.000% <= 1.103 milliseconds (cumulative count 76)
77.000% <= 1.303 milliseconds (cumulative count 77)
78.000% <= 1.407 milliseconds (cumulative count 78)
80.000% <= 1.503 milliseconds (cumulative count 80)
84.000% <= 3.103 milliseconds (cumulative count 84)
93.000% <= 4.103 milliseconds (cumulative count 93)
95.000% <= 5.103 milliseconds (cumulative count 95)
98.000% <= 7.103 milliseconds (cumulative count 98)
100.000% <= 8.103 milliseconds (cumulative count 100)Summary:
throughput summary: 11111.11 requests per second
latency summary (msec):
avg min p50 p95 p99 max
1.318 0.144 0.607 5.063 7.207 7.895
====== PING_MBULK ======
100 requests completed in 0.01 seconds
20 parallel clients
3 bytes payload
keep alive: 1
multi-thread: no--------存储测试------------
root@3dbb343d2601:/data# redis-benchmark -h 192.168.118.120 -t set -n 1000 -r 100
WARNING: Could not fetch server CONFIG
====== SET ======
1000 requests completed in 0.06 seconds
50 parallel clients
3 bytes payload
keep alive: 1
multi-thread: noLatency by percentile distribution:
0.000% <= 0.191 milliseconds (cumulative count 1)
50.000% <= 2.119 milliseconds (cumulative count 501)
75.000% <= 2.999 milliseconds (cumulative count 752)
87.500% <= 4.015 milliseconds (cumulative count 875)
93.750% <= 5.327 milliseconds (cumulative count 938)
96.875% <= 8.135 milliseconds (cumulative count 969)
98.438% <= 9.143 milliseconds (cumulative count 985)
99.219% <= 9.271 milliseconds (cumulative count 993)
99.609% <= 9.415 milliseconds (cumulative count 997)
99.805% <= 9.527 milliseconds (cumulative count 999)
99.902% <= 9.575 milliseconds (cumulative count 1000)
100.000% <= 9.575 milliseconds (cumulative count 1000)Cumulative distribution of latencies:
0.000% <= 0.103 milliseconds (cumulative count 0)
0.100% <= 0.207 milliseconds (cumulative count 1)
0.400% <= 0.407 milliseconds (cumulative count 4)
1.200% <= 0.503 milliseconds (cumulative count 12)
2.400% <= 0.607 milliseconds (cumulative count 24)
3.100% <= 0.703 milliseconds (cumulative count 31)
6.200% <= 0.807 milliseconds (cumulative count 62)
9.500% <= 0.903 milliseconds (cumulative count 95)
11.800% <= 1.007 milliseconds (cumulative count 118)
14.900% <= 1.103 milliseconds (cumulative count 149)
19.200% <= 1.207 milliseconds (cumulative count 192)
22.900% <= 1.303 milliseconds (cumulative count 229)
27.500% <= 1.407 milliseconds (cumulative count 275)
30.800% <= 1.503 milliseconds (cumulative count 308)
34.200% <= 1.607 milliseconds (cumulative count 342)
36.500% <= 1.703 milliseconds (cumulative count 365)
40.300% <= 1.807 milliseconds (cumulative count 403)
43.400% <= 1.903 milliseconds (cumulative count 434)
46.500% <= 2.007 milliseconds (cumulative count 465)
49.600% <= 2.103 milliseconds (cumulative count 496)
77.700% <= 3.103 milliseconds (cumulative count 777)
88.200% <= 4.103 milliseconds (cumulative count 882)
93.200% <= 5.103 milliseconds (cumulative count 932)
95.700% <= 6.103 milliseconds (cumulative count 957)
95.900% <= 7.103 milliseconds (cumulative count 959)
96.800% <= 8.103 milliseconds (cumulative count 968)
98.400% <= 9.103 milliseconds (cumulative count 984)
100.000% <= 10.103 milliseconds (cumulative count 1000)Summary:
throughput summary: 15384.62 requests per second
latency summary (msec):
avg min p50 p95 p99 max
2.493 0.184 2.119 5.895 9.215 9.575
故障切换测试
先获取集群的信息：
[root@k8sMaster redis-lab]# kubectl exec -it pod/redis-cluster-0 -n redis-cluster -- \redis-cli -a openlab --cluster check \$(kubectl get pod -l app.kubernetes.io/name=redis-cluster -n redis-cluster \-o jsonpath='{.items[0].status.podIP}:6379')
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
10.244.185.204:6379 (1a625719...) -> 0 keys | 5461 slots | 1 slaves.
10.244.249.9:6379 (e806f51f...) -> 0 keys | 5462 slots | 1 slaves.
10.244.185.206:6379 (9e8e783b...) -> 0 keys | 5461 slots | 1 slaves.
[OK] 0 keys in 3 masters.
0.00 keys per slot on average.
>>> Performing Cluster Check (using node 10.244.185.204:6379)
M: 1a6257194ef74a241b6c260d3c20915de2a20f3f 10.244.185.204:6379slots:[0-5460] (5461 slots) master1 additional replica(s)
S: 2f3238bd7f1ec19effb65b335fcdc9c6f8b967aa 10.244.249.14:6379slots: (0 slots) slavereplicates e806f51fa1fb67c16c87bf6d98e5c4fdadae0758
S: 5c12cbb6f6627439de3819f6b5828ce68cc2d43c 10.244.249.13:6379slots: (0 slots) slavereplicates 9e8e783b21b428f04d312566536453357e4f08cd
M: e806f51fa1fb67c16c87bf6d98e5c4fdadae0758 10.244.249.9:6379slots:[5461-10922] (5462 slots) master1 additional replica(s)
M: 9e8e783b21b428f04d312566536453357e4f08cd 10.244.185.206:6379slots:[10923-16383] (5461 slots) master1 additional replica(s)
S: e77e7ce8c99ef7636e5cbdd9f9c382b599afc921 10.244.185.208:6379slots: (0 slots) slavereplicates 1a6257194ef74a241b6c260d3c20915de2a20f3f
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.随便嘎掉一个slave，比如这里的10.244.185.208是10.244.185.204的slave，找到名称
[root@k8sMaster redis-lab]# kubectl get pod -n redis-cluster -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
redis-cluster-0 1/1 Running 0 10m 10.244.185.204 k8snode2 <none> <none>
redis-cluster-1 1/1 Running 0 10m 10.244.249.9 k8snode1 <none> <none>
redis-cluster-2 1/1 Running 0 10m 10.244.185.206 k8snode2 <none> <none>
redis-cluster-3 1/1 Running 0 9m58s 10.244.249.13 k8snode1 <none> <none>
redis-cluster-4 1/1 Running 0 9m55s 10.244.185.208 k8snode2 <none> <none>
redis-cluster-5 1/1 Running 0 9m52s 10.244.249.14 k8snode1 <none> <none>也就是redis-cluster-4为redis-cluster-0的slave，这里删掉slave：
[root@k8sMaster redis-lab]# kubectl delete pod/redis-cluster-4 -n redis-cluster
pod "redis-cluster-4" deleted查看集群是否依旧：
[root@k8sMaster redis-lab]# kubectl exec -it pod/redis-cluster-0 -n redis-cluster -- redis-cli -a openlab --cluster check $(kubectl get pod -l app.kubernetes.io/name=redis-cluster -n redis-cluster \-o jsonpath='{.items[0].status.podIP}:6379')
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
10.244.185.204:6379 (1a625719...) -> 0 keys | 5461 slots | 1 slaves.
10.244.249.9:6379 (e806f51f...) -> 0 keys | 5462 slots | 1 slaves.
10.244.185.206:6379 (9e8e783b...) -> 0 keys | 5461 slots | 1 slaves.
[OK] 0 keys in 3 masters.
0.00 keys per slot on average.
>>> Performing Cluster Check (using node 10.244.185.204:6379)
M: 1a6257194ef74a241b6c260d3c20915de2a20f3f 10.244.185.204:6379slots:[0-5460] (5461 slots) master1 additional replica(s)
S: 2f3238bd7f1ec19effb65b335fcdc9c6f8b967aa 10.244.249.14:6379slots: (0 slots) slavereplicates e806f51fa1fb67c16c87bf6d98e5c4fdadae0758
S: 5c12cbb6f6627439de3819f6b5828ce68cc2d43c 10.244.249.13:6379slots: (0 slots) slavereplicates 9e8e783b21b428f04d312566536453357e4f08cd
M: e806f51fa1fb67c16c87bf6d98e5c4fdadae0758 10.244.249.9:6379slots:[5461-10922] (5462 slots) master1 additional replica(s)
M: 9e8e783b21b428f04d312566536453357e4f08cd 10.244.185.206:6379slots:[10923-16383] (5461 slots) master1 additional replica(s)
S: e77e7ce8c99ef7636e5cbdd9f9c382b599afc921 10.244.185.211:6379slots: (0 slots) slavereplicates 1a6257194ef74a241b6c260d3c20915de2a20f3f
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.[root@k8sMaster redis-lab]# kubectl get pod/redis-cluster-4 -n redis-cluster -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
redis-cluster-4 1/1 Running 0 77s 10.244.185.211 k8snode2 <none> <none>可以看到这个IP发生了改变变为了10.244.185.211，但是对应的replicates依旧是10.244.185.204，不变。
同理删掉master，也就是redis-cluster-0
[root@k8sMaster redis-lab]# kubectl delete pod/redis-cluster-0 -n redis-cluster
pod "redis-cluster-0" deleted
[root@k8sMaster redis-lab]# kubectl get pod/redis-cluster-0 -n redis-cluster -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
redis-cluster-0 1/1 Running 0 11s 10.244.185.212 k8snode2 <none> <none>[root@k8sMaster redis-lab]# kubectl exec -it pod/redis-cluster-0 -n redis-cluster -- redis-cli -a openlab --cluster check $(kubectl get pod -l app.kubernetes.io/name=redis-cluster -n redis-cluster \-o jsonpath='{.items[0].status.podIP}:6379')
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
10.244.185.212:6379 (1a625719...) -> 0 keys | 5461 slots | 1 slaves.
10.244.185.206:6379 (9e8e783b...) -> 0 keys | 5461 slots | 1 slaves.
10.244.249.9:6379 (e806f51f...) -> 0 keys | 5462 slots | 1 slaves.
[OK] 0 keys in 3 masters.
0.00 keys per slot on average.
>>> Performing Cluster Check (using node 10.244.185.212:6379)
M: 1a6257194ef74a241b6c260d3c20915de2a20f3f 10.244.185.212:6379slots:[0-5460] (5461 slots) master1 additional replica(s)
S: 5c12cbb6f6627439de3819f6b5828ce68cc2d43c 10.244.249.13:6379slots: (0 slots) slavereplicates 9e8e783b21b428f04d312566536453357e4f08cd
S: 2f3238bd7f1ec19effb65b335fcdc9c6f8b967aa 10.244.249.14:6379slots: (0 slots) slavereplicates e806f51fa1fb67c16c87bf6d98e5c4fdadae0758
M: 9e8e783b21b428f04d312566536453357e4f08cd 10.244.185.206:6379slots:[10923-16383] (5461 slots) master1 additional replica(s)
M: e806f51fa1fb67c16c87bf6d98e5c4fdadae0758 10.244.249.9:6379slots:[5461-10922] (5462 slots) master1 additional replica(s)
S: e77e7ce8c99ef7636e5cbdd9f9c382b599afc921 10.244.185.211:6379slots: (0 slots) slavereplicates 1a6257194ef74a241b6c260d3c20915de2a20f3f
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.可以看到即使删掉它还是master
监控与管理
大部分开发、运维人员还是喜欢图形化的 Redis 管理工具，所以介绍一下 Redis 官方提供的图形化工具 RedisInsight。
由于 RedisInsight 默认并不提供登录验证功能，因此，在系统安全要求比较高的环境会有安全风险，请慎用！个人建议生产环境使用命令行工具。
这里使用到镜像：docker.io/redislabs/redisinsight:2.56 - 镜像下载 | docker.io
apiVersion: apps/v1
kind: Deployment
metadata:labels:app.kubernetes.io/name: redisinsightname: redisinsightnamespace: redis-cluster
spec:replicas: 1selector:matchLabels:app.kubernetes.io/name: redisinsighttemplate:metadata:labels:app.kubernetes.io/name: redisinsightspec:containers:- image: OpenLabTest/redis/redisinsight:2.56name: redisinsightports:- name: redisinsightcontainerPort: 5540protocol: TCPresources:limits:cpu: "2"memory: 2Girequests:cpu: 100mmemory: 500Mi
---
apiVersion: v1
kind: Service
metadata:name: redisinsight-svcnamespace: redis-clusterlabels:app.kubernetes.io/name: redisinsight
spec:type: LoadBalancerports:- name: redisinsightprotocol: TCPport: 8080targetPort: 5540selector:app.kubernetes.io/name: redisinsight注意：redisinsight监听端口就是5540，其他的都可以改
控制台初始化
[root@k8sMaster redis-lab]# kubectl get svc -n redis-cluster
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cluster-proxy LoadBalancer 10.105.98.112 192.168.118.120 6379:30256/TCP 53m
headless-redis ClusterIP None <none> 6379/TCP 76m

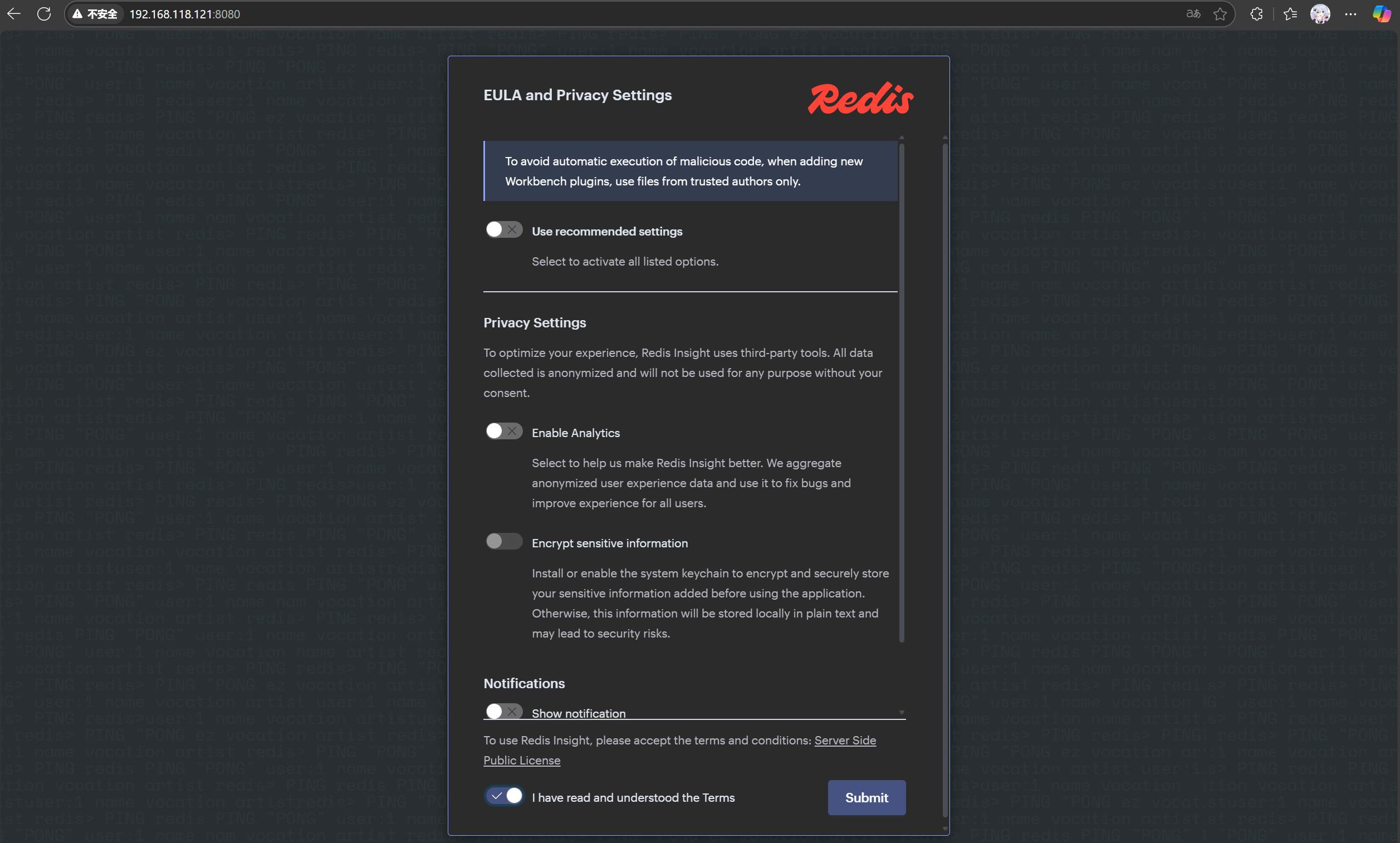

redisinsight-svc LoadBalancer 10.100.63.211 192.168.118.121 8080:31041/TCP 112s进入http://192.168.118.121:8080，只勾选最后一个按钮，然后点击submit

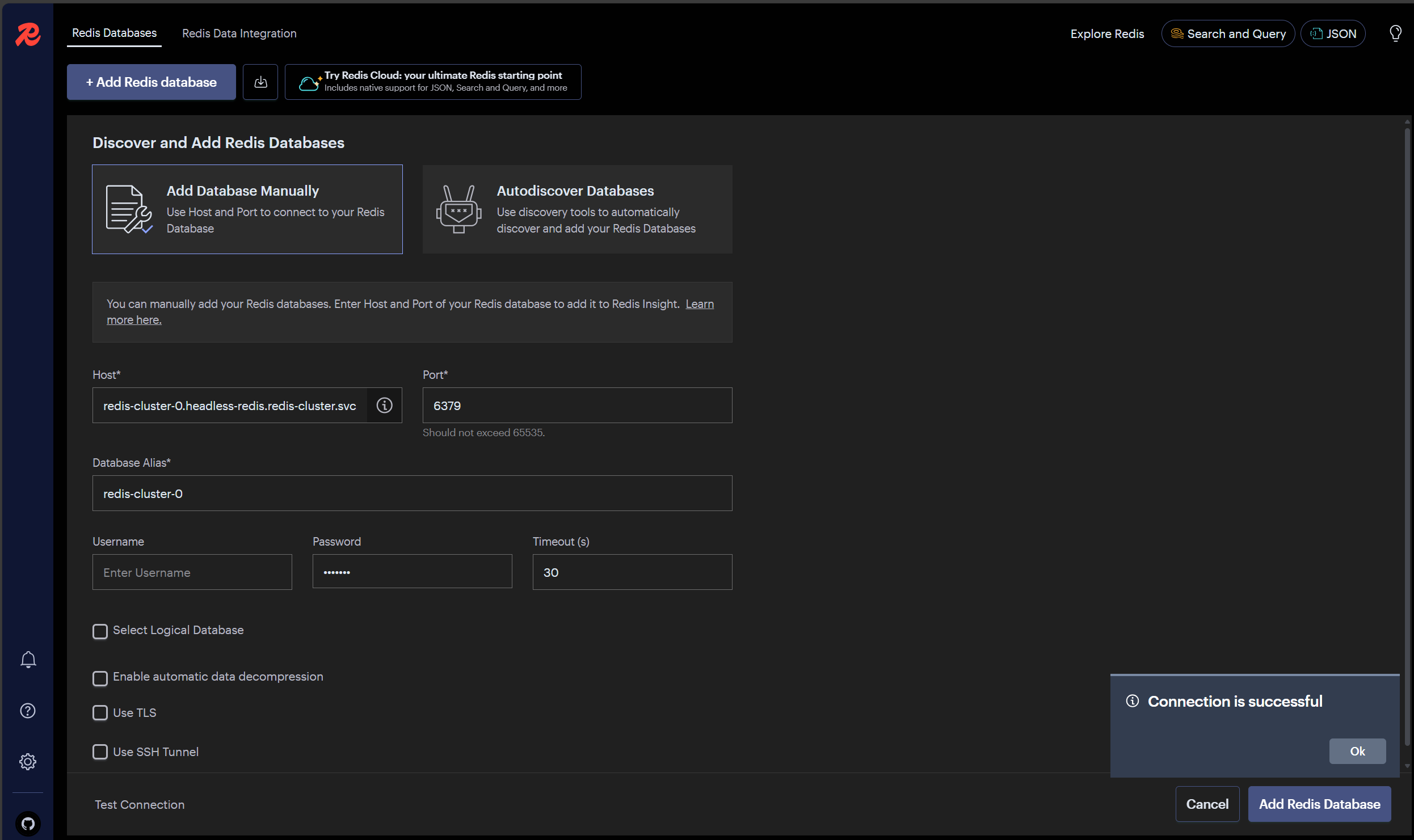

点击"Add Database manually",然后输入提示信息：
host写我们的无头服务代理的pod域名即可(这里可不敢写redis-cluster-proxy的暴露的loadbalancer IP)，Database Alias随便，password写我们sts-redis.yml指定的用户和密码，我这里都是openlab
然后点击左下角的Test Connection测试连接，ok即可，然后点击右下角的[Add redis Database]

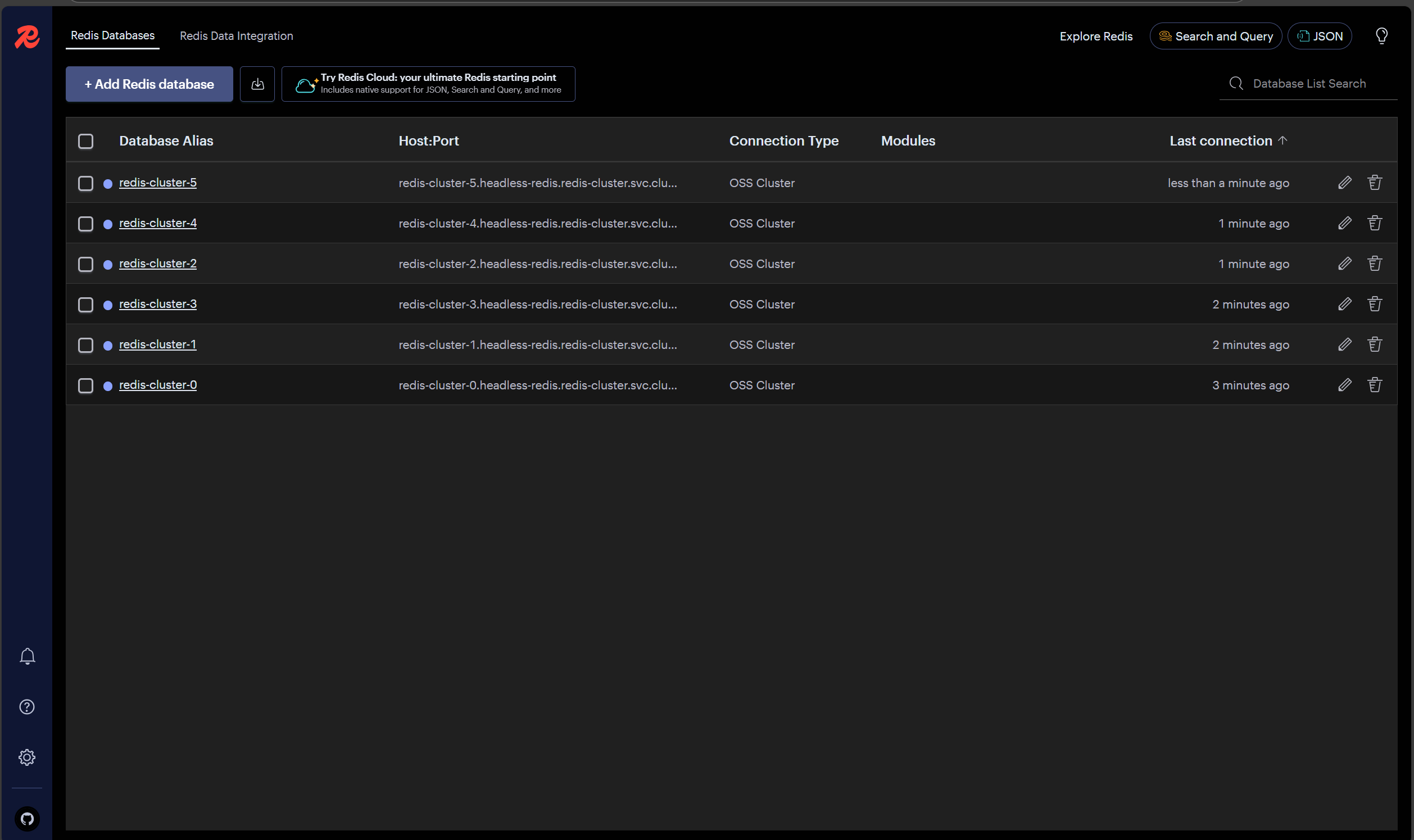

然后统统加入

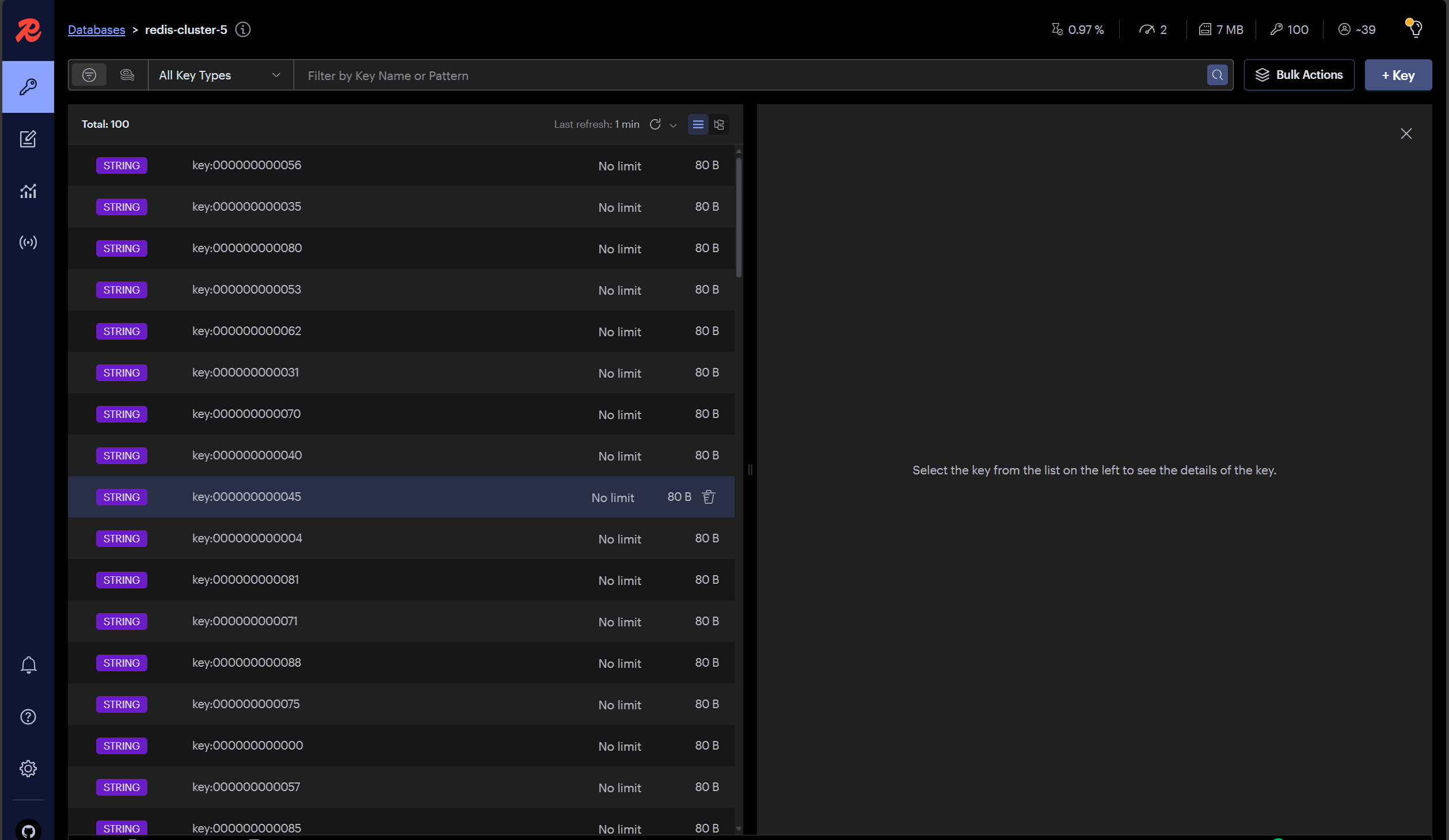

然后直接点击我们的数据库名称，就可以查看里面所有的数据，右上角可以添加数据

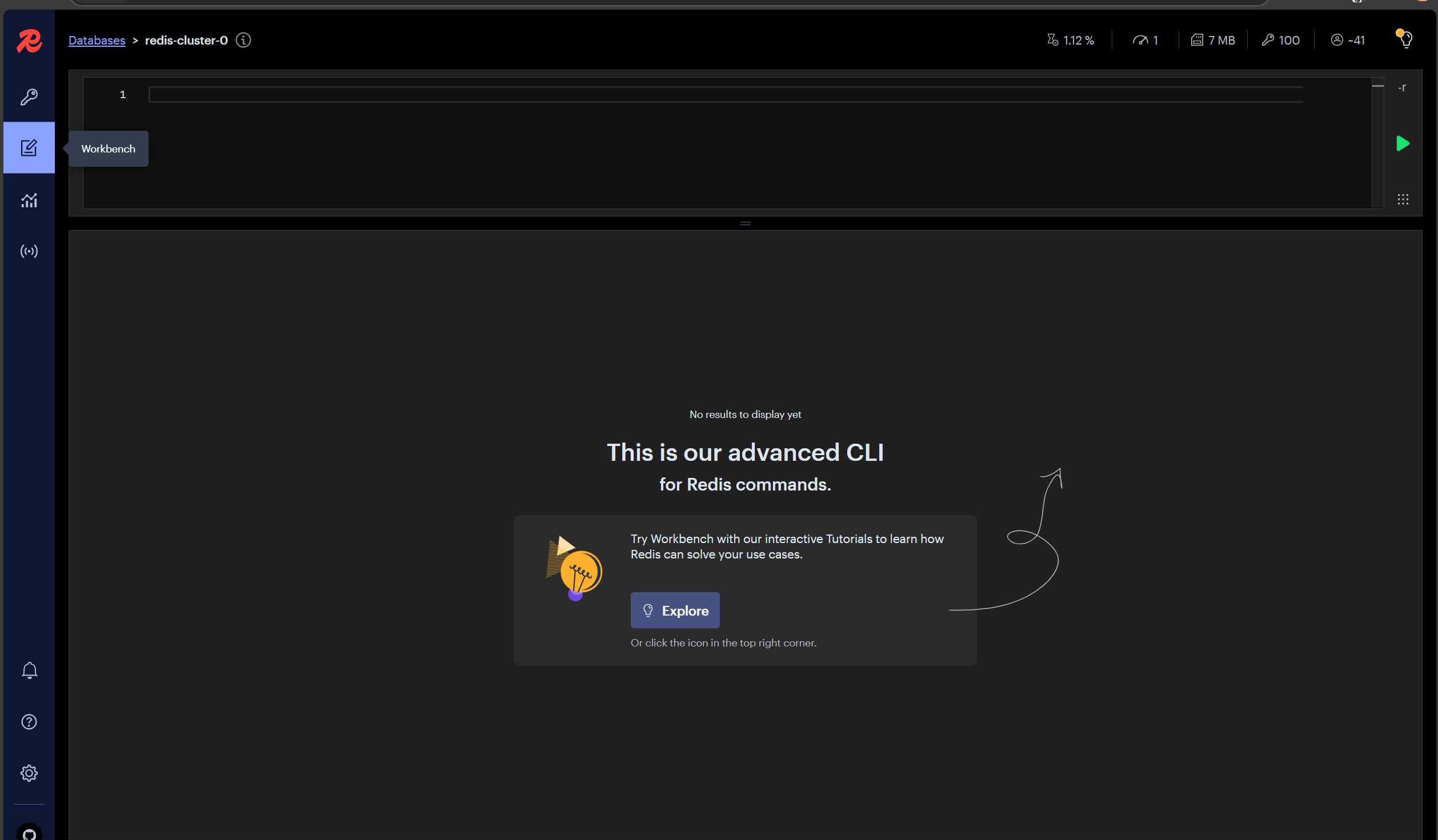

Workbench（可以执行 Redis 管理命令）

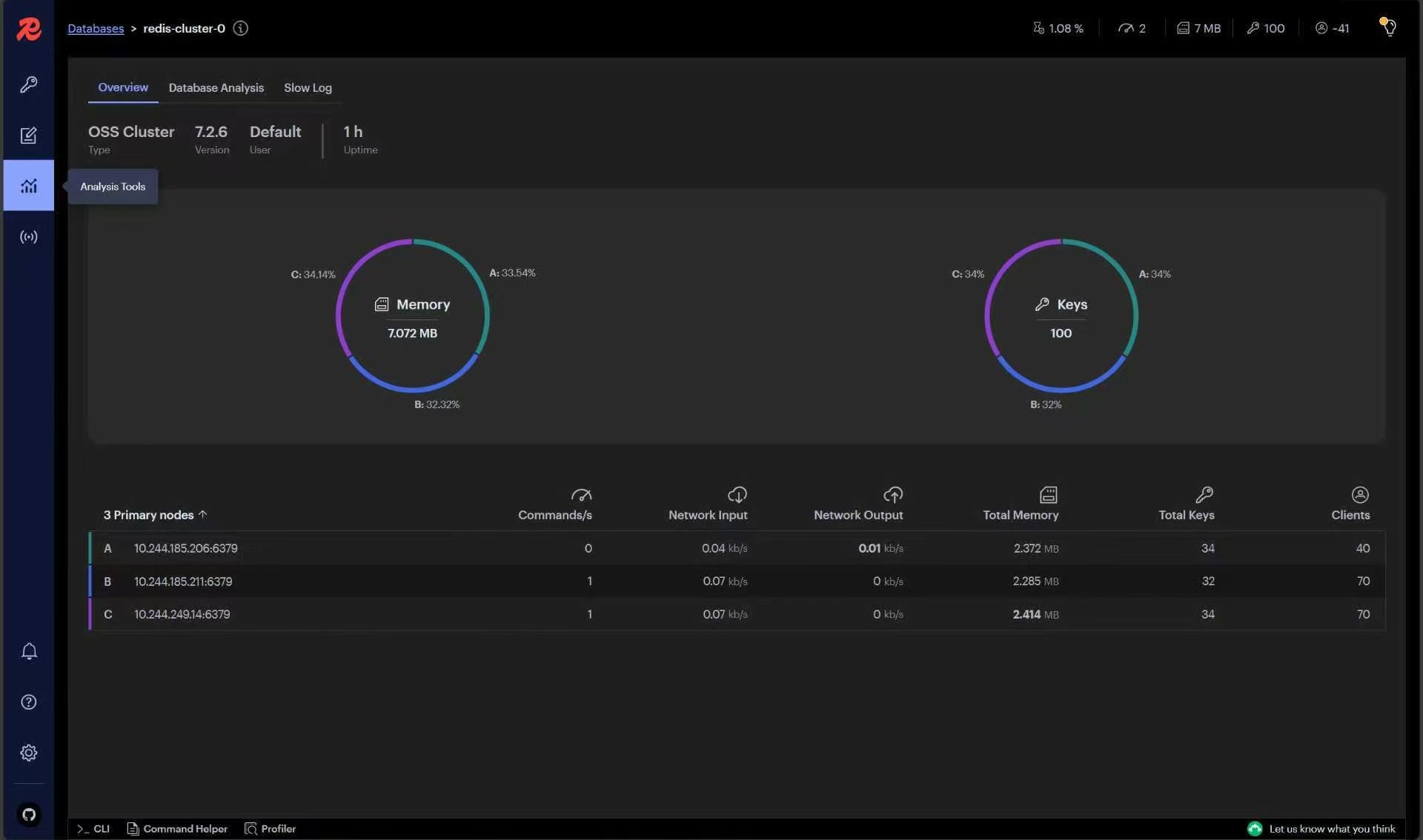

Analytics (里面存有的key是我们之前做的测试)
