利用Prometheus监控服务器相关数据

ds 2025/8/24 5:13:49

需求分析

最近有个需求，需要监控服务器的相关指标，如CPU、内存、磁盘等，还有几个不太常见的如风扇转速、CPU温度等，经过一番调研，发现Prometheus这个开源监控平台，记录一下前后的开发历程。

简单了解Prometheus

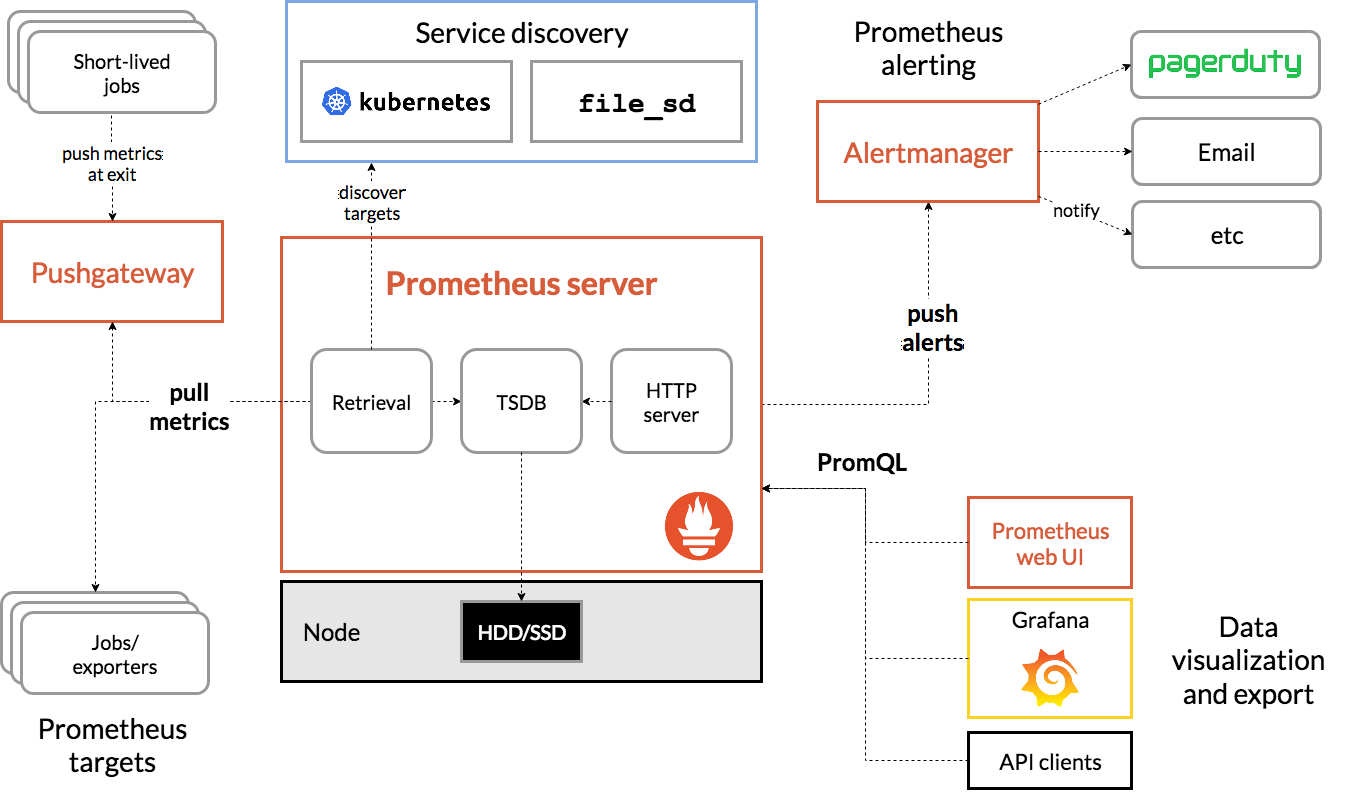

这个网上资料很多，这里简单贴一张图，Prometheus只是其中监控的一个环节，一般利用Prometheus + Grafana + Alertmanager这三个来搭建。具体参考：https://www.iocoder.cn/Prometheus/install/?yudao
简单理解，比如B服务器作为业务服务器，我要要完成监控服务器A的功能，大概需要部署这几个东西：

1.在服务器A上部署一个expoter节点，负责从A服务器上收集原始数据，转化成Prometheus的metric格式供Prometheus来抓取。
2.在B服务器上部署Prometheus、grafna、通过修改Prometheus的配置文件，将要监控的服务器关联起来。
3.如果还需要告警，比如你希望在检测到某个服务器宕机的时候，通过webhook推送一条告警，那就要部署alertmanager，这个服务配置文件主要配置告警规则和推送信息。
4.因为还需要检测服务器的硬件参数，还部署了​​IPMI Exporter​​，这个服务可以监控硬件参数。Exporter 内部会调用标准的命令行工具（最常用的是 ipmitool）或使用专门的库（如 Go 的 go-ipmi）来执行 IPMI 命令（例如 ipmitool sensor）。

在这里插入图片描述

尝试嵌入grafna图表

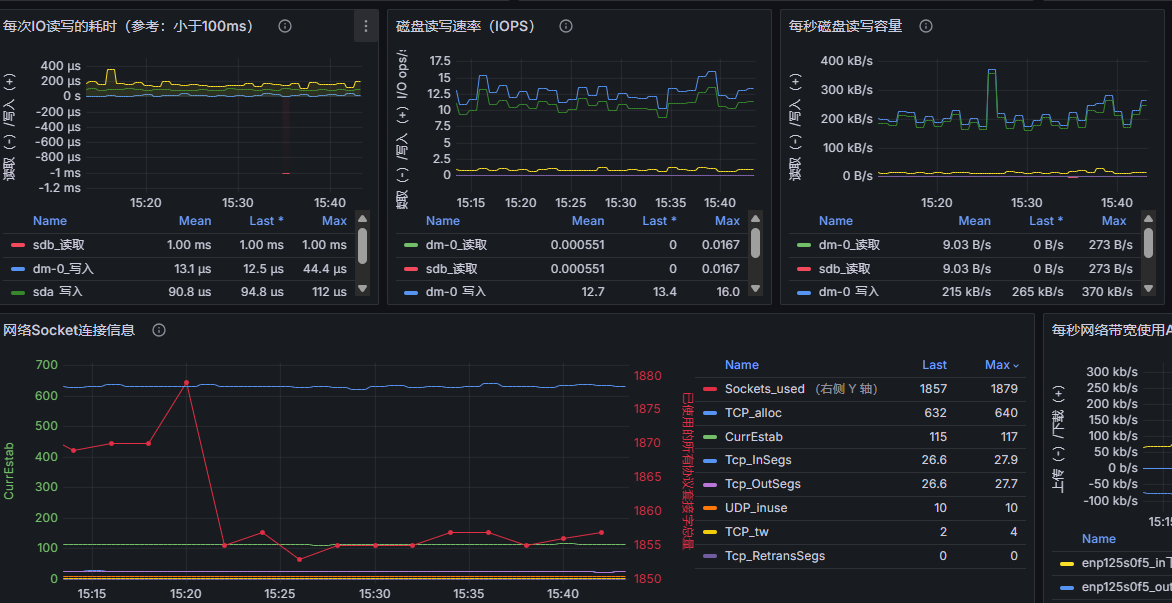

因为最终要给客户展示的是图表信息，grafna的图表刚好满足需求，而且还是很好看的：
在这里插入图片描述

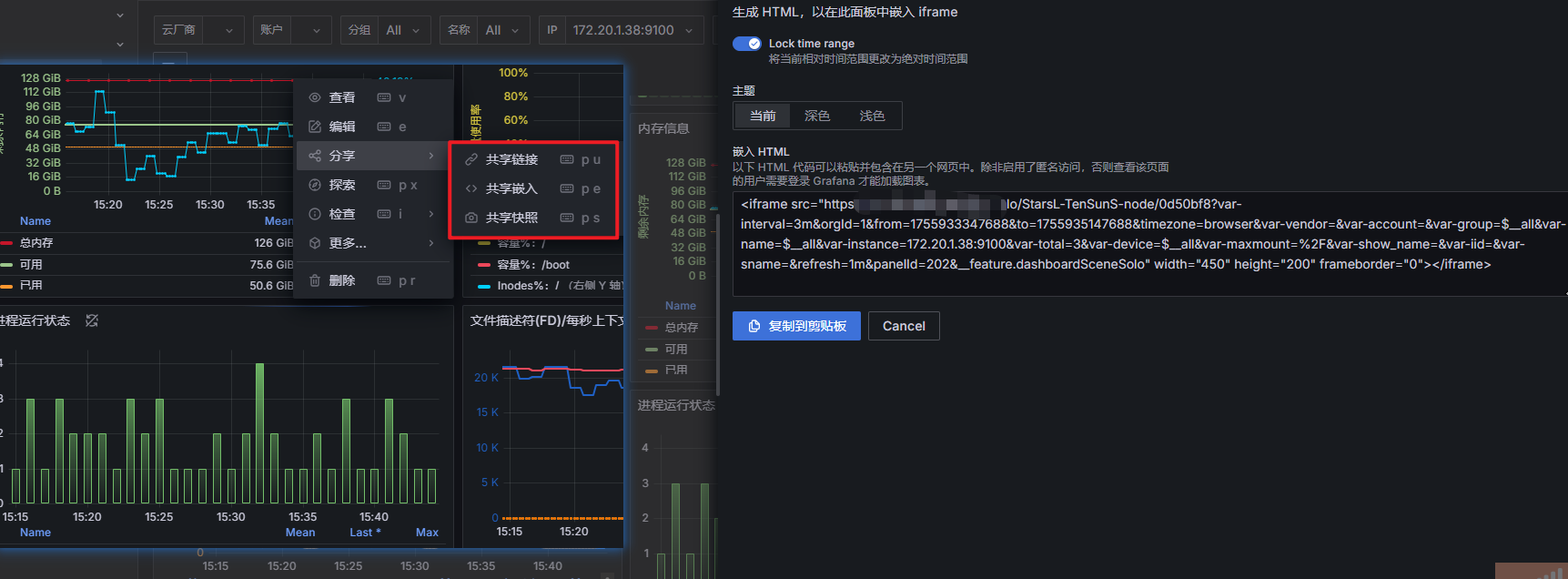

所以一开始尝试直接通过前端嵌入iframe 的方式，实现这个功能，再就是看到grafna中针对每一张图表都提供了共享嵌入，这个实在是太方便了，非常节省前端工作量。
在这里插入图片描述
问题：但是实际做完了几张图之后，发现每次从我们自己的平台加载这些图片变得非常卡，并且加载过程中会有grafna本身的logo。

在经过多番尝试之后，无法解决卡顿问题，最终放弃了这种开发模式。

Prometheus API

然后经过一段时间的摸索，发现Prometheus提供了API调用，可以通过拼接promQL的方式，获取到grafna图表中的数据，而且经过测试，查询速度非常快，完全可以接受，于是尝试利用api调用的方式，实现了这个功能。

接口很简单，我这里简单贴一下：

api调用获取实时数据:

范围查询API：

  • 请求地址：http://ip:9090/api/v1/query
  • 请求方式：GET
  • 请求参数：
参数是否必传含义
query是查询的promQL表达式
start是开始时间（2025-08-19T19:10:30.781Z）
end是结束时间（2025-08-20T20:20:30.781Z）
step是步长

api调用获取历史数据：

范围查询API：

  • 请求地址：http://ip:9090/api/v1/query_range
  • 请求方式：GET
  • 请求参数：
参数是否必传含义
query是查询的promQL表达式
start是开始时间（2025-08-19T19:10:30.781Z）
end是结束时间（2025-08-20T20:20:30.781Z）
step是步长

网上有一些关于这个api的一些使用方式，大部分都是从Prometheus官网直译过来的，不过也有些帮助：
https://blog.csdn.net/u013235026/article/details/39833223
这里直接贴一下我开发这个流程获所用到的一些请求指标：

api调用获取实时数据

范围查询API：

  • 请求地址：http://ip:9090/api/v1/query
  • 请求方式：GET
  • 请求参数：
参数是否必传含义
query是查询的promQL表达式
start是开始时间（2025-08-19T19:10:30.781Z）
end是结束时间（2025-08-20T20:20:30.781Z）
step是步长

服务器指标

  • 内存总大小：

    • GET
    • http://ip:9090/api/v1/query?query=node_memory_MemTotal_bytes{instance="ip:9100"}
    {"status": "success","data": {"resultType": "vector","result": [{"metric": {"__name__": "node_memory_MemTotal_bytes","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753868141.687,"134598856704"]}]}
}

  • 服务器启动天数

    • GET

    • http://ip:9090/api/v1/query?query=time() - node_boot_time_seconds{instance="ip:9100"}

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753870023.095,"5286545.095000029"]}]}
}

  • CPU核数

    • GET

    • http://ip:9090/api/v1/query?query=count(node_cpu_seconds_total{mode="idle",instance="ip:9100"})

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {},"value": [1753870172.652,"64"]}]}
}

  • CPU利用率（5分钟内）

    • GET

    • http://ip:9090/api/v1/query?query=100 - (avg by(instance)(irate(node_cpu_seconds_total{mode="idle",instance="ip:9100"}[5m])) * 100)

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"instance": "ip:9100"},"value": [1753870280.965,"1.5908854165900266"]}]}
}

  • 内存利用率

    • GET

    • http://ip:9090/api/v1/query?query=(node_memory_MemTotal_bytes{instance="ip:9100"} - node_memory_MemAvailable_bytes{instance="ip:9100"}) / node_memory_MemTotal_bytes{instance="ip:9100"} * 100

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753870419.388,"35.561521483991584"]}]}
}

  • 磁盘读速率

    • GET

    • http://ip:9090/api/v1/query?query=irate(node_disk_read_bytes_total{instance="ip:9100",device="sda"}[5m])

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753870514.682,"0"]}]}
}

  • 磁盘写速率

    • GET

    • http://ip:9090/api/v1/query?query=irate(node_disk_written_bytes_total{instance="ip:9100",device="sda"}[5m])

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753870654.165,"858794.6666666666"//字节/秒 (B/s)]}]}
}

  • 链接数

    • GET

    • http://ip:9090/api/v1/query?query=node_netstat_Tcp_CurrEstab{instance="ip:9100"}

      {"status": "success","data": {"resultType": "vector","result": [{"metric": {"__name__": "node_netstat_Tcp_CurrEstab","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753870741.001,"640"//建立的所有TCP链接数]}]}
}

组合参数

  • 查询基本参数
http://ip:9090/api/v1/query?query={instance="ip:9100", __name__=~"node_memory_MemTotal_bytes|node_netstat_Tcp_CurrEstab|node_boot_time_seconds|node_memory_MemAvailable_bytes"}{"status": "success","data": {"resultType": "vector","result": [{"metric": {"__name__": "node_boot_time_seconds","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753926624.297,"1748583478"]},{"metric": {"__name__": "node_memory_MemAvailable_bytes","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753926624.297,"86579154944"]},{"metric": {"__name__": "node_memory_MemTotal_bytes","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753926624.297,"134598856704"]},{"metric": {"__name__": "node_netstat_Tcp_CurrEstab","environment": "production","instance": "ip:9100","job": "node-exporter3","server": "server-ip"},"value": [1753926624.297,"616"]}]}
}
  • 可行参数
node_memory_MemTotal_bytes{instance="ip:9100"} or count(node_cpu_seconds_total{mode="idle",instance="ip:9100"}) or 100 - (avg by(instance)(irate(node_cpu_seconds_total{mode="idle",instance="ip:9100"}[5m])) * 100)

or参数：当使用 or 运算符组合 三个及以上 的查询时，Prometheus 的处理逻辑存在特殊行为：

or 操作是左关联的（从左到右执行）
如果后续查询返回的标签组合与已有结果完全匹配，会覆盖前面的值

Prometheus 要求在同一结果集中，完全相同的标签组合只能存在一个时间序列。当多个查询返回相同标签组时，or 操作按从左到右的顺序保留第一个匹配值，后续匹配值会被丢弃（不是报错，而是静默忽略）。建议在设计指标时添加可区分的标签（如 metric_type）来规避此类问题。

  • 最终组合参数：

    • 入参：
    # 系统运行时间（添加类型标签）
label_replace(time() - node_boot_time_seconds{instance="ip:9100"},"metric_type", "系统运行总时长", "", ""
)
# TCP连接数（添加不同类型标签）
or label_replace(node_netstat_Tcp_CurrEstab{instance="ip:9100"},"metric_type", "TCP连接数", "", ""
)or label_replace(#内存总大小node_memory_MemTotal_bytes{instance="ip:9100"},"metric_type", "内存总大小", "", ""
)or label_replace(#CPU总核数count(node_cpu_seconds_total{mode="idle",instance="ip:9100"}),"metric_type", "CPU总核数", "", ""
)or label_replace(#CPU利用率100 - (avg by(instance)(irate(node_cpu_seconds_total{mode="idle",instance="ip:9100"}[5m])) * 100),"metric_type", "CPU利用率", "", ""
)or label_replace(#内存利用率(node_memory_MemTotal_bytes{instance="ip:9100"} - node_memory_MemAvailable_bytes{instance="ip:9100"}) / node_memory_MemTotal_bytes{instance="ip:9100"} * 100,"metric_type", "内存利用率", "", ""
)or label_replace(#磁盘读速率irate(node_disk_read_bytes_total{instance="ip:9100",device="sda"}[5m]),"metric_type", "磁盘读速率", "", ""
)or label_replace(#磁盘写速率irate(node_disk_written_bytes_total{instance="ip:9100",device="sda"}[5m]),"metric_type", "磁盘写速率", "", ""
)
    • 请求地址&返回值：
    http://ip:9090/api/v1/query?query=
label_replace(time() - node_boot_time_seconds{instance="ip:9100"},"metric_type", "系统运行总时长", "", ""
)
or label_replace(node_netstat_Tcp_CurrEstab{instance="ip:9100"},"metric_type", "TCP连接数", "", ""
)or label_replace(node_memory_MemTotal_bytes{instance="ip:9100"},"metric_type", "内存总大小", "", ""
)or label_replace(count(node_cpu_seconds_total{mode="idle",instance="ip:9100"}),"metric_type", "CPU总核数", "", ""
)or label_replace(100 - (avg by(instance)(irate(node_cpu_seconds_total{mode="idle",instance="ip:9100"}[5m])) * 100),"metric_type", "CPU利用率", "", ""
)or label_replace((node_memory_MemTotal_bytes{instance="ip:9100"} - node_memory_MemAvailable_bytes{instance="ip:9100"}) / node_memory_MemTotal_bytes{instance="ip:9100"} * 100,"metric_type", "内存利用率", "", ""
)or label_replace(irate(node_disk_read_bytes_total{instance="ip:9100",device="sda"}[5m]),"metric_type", "磁盘读速率", "", ""
)or label_replace(irate(node_disk_written_bytes_total{instance="ip:9100",device="sda"}[5m]),"metric_type", "磁盘写速率", "", ""
)((1-(1 - avg(irate(node_cpu_seconds_total{mode="idle",instance="ip:9100"}[5m])) by (instance))^1.3)^(1/3)*0.5 +
(1-(1 - avg(node_memory_MemAvailable_bytes{instance="ip:9100"} / node_memory_MemTotal_bytes{instance="ip:9100"})by (instance))^6)^(1/3)*0.3 +
(1 - max(irate(node_disk_io_time_seconds_total{instance="ip:9100"}[5m]))by (instance)^1.1)^(1/2)*0.2)*100结果：
{"status": "success","data": {"resultType": "vector","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "系统运行总时长","server": "server-ip"},"value": [1753930316.288,"5346838.288000107"]},{"metric": {"__name__": "node_netstat_Tcp_CurrEstab","environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "TCP连接数","server": "server-ip"},"value": [1753930316.288,"628"]},{"metric": {"__name__": "node_memory_MemTotal_bytes","environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "内存总大小","server": "server-ip"},"value": [1753930316.288,"134598856704"]},{"metric": {"metric_type": "CPU总核数"},"value": [1753930316.288,"64"]},{"metric": {"instance": "ip:9100","metric_type": "CPU利用率"},"value": [1753930316.288,"1.7414062501241716"]},{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "内存利用率","server": "server-ip"},"value": [1753930316.288,"35.69893645208953"]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "磁盘读速率","server": "server-ip"},"value": [1753930316.288,"273.06666666666666"]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter3","metric_type": "磁盘写速率","server": "server-ip"},"value": [1753930316.288,"960170.6666666666"]}]}
}

api调用获取历史数据

范围查询API：

  • 请求地址：http://ip:9090/api/v1/query_range
  • 请求方式：GET
  • 请求参数：
参数是否必传含义
query是查询的promQL表达式
start是开始时间（2025-08-19T19:10:30.781Z）
end是结束时间（2025-08-20T20:20:30.781Z）
step是步长

重要参数概览

总CPU使用率

  • 表达式：(1 - avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="idle"}[5m])) by (instance))*100

    • 含义：1-计算5分钟CPU内空闲时间的比例
    • node_cpu_seconds_total：CPU 时间累计计数器（Counter）
    • mode="idle"：筛选空闲状态的 CPU 时间
    • irate()[interval]：计算时间窗口内的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="idle"}[5m])) by (instance))*100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"instance": "ip:9100"},"values": [[1755717030.781,"5.37638888885138"],[1755720630.781,"7.025000000075021"]]}]}
}

内存使用率

  • 表达式：(1 - (node_memory_MemAvailable_bytes{instance="ip:9100"} / (node_memory_MemTotal_bytes{instance="ip:9100"})))* 100

    • 含义：内存使用率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - (node_memory_MemAvailable_bytes{instance="ip:9100"} / (node_memory_MemTotal_bytes{instance="ip:9100"})))* 100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"38.715711476735024"],[1755720630.781,"38.63129705705032"]]}]}
}

磁盘使用率

  • 表达式：(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}+(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))

    • 含义：用户视角的磁盘使用率，已经使用空间/用户可操作总空间
    • fstype=~"ext.*|xfs|nfs"：监控主流文件系统（排除 tmpfs 等内存文件系统）
    • mountpoint !~".*pod.*"：排除 Kubernetes Pod 挂载点（容器化环境特有）
    • 注意：+会被转移为空格，需要用%2B替代

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}%2B(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "/dev/mapper/centos-home","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/home","server": "server-ip"},"values": [[1755717030.781,"6.383665437345736"],[1755720630.781,"6.400828182136928"]]},{"metric": {"device": "/dev/mapper/centos-root","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/","server": "server-ip"},"values": [[1755717030.781,"36.219364650253205"],[1755720630.781,"36.311770803426654"]]},{"metric": {"device": "/dev/sda2","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/boot","server": "server-ip"},"values": [[1755717030.781,"16.144092728832007"],[1755720630.781,"16.144092728832007"]]}]}
}

交换分区使用率

  • 表达式：(1 - ((node_memory_SwapFree_bytes{instance="ip:9100"} %2B 1)/ (node_memory_SwapTotal_bytes{instance="ip:9100"} %2B 1))) * 100

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - ((node_memory_SwapFree_bytes{instance="ip:9100"} %2B 1)/ (node_memory_SwapTotal_bytes{instance="ip:9100"} %2B 1))) * 100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"2.1484702825546154"],[1755720630.781,"2.1484702825546154"]]}]}
}

分区可用空间

文件系统总大小

  • 表达式：node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-0

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-0&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "/dev/mapper/klas-root","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter1","mountpoint": "/","server": "server-ip"},"values": [[1755717030.781,"4417954775040"],[1755720630.781,"4417954775040"]]},{"metric": {"device": "/dev/sda2","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter1","mountpoint": "/boot","server": "server-ip"},"values": [[1755717030.781,"1063256064"],[1755720630.781,"1063256064"]]}]}
}

文件系统可用大小(重复)

  • 表达式：(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}+(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))

    • 含义：用户视角的磁盘使用率，已经使用空间/用户可操作总空间
    • fstype=~"ext.*|xfs|nfs"：监控主流文件系统（排除 tmpfs 等内存文件系统）
    • mountpoint !~".*pod.*"：排除 Kubernetes Pod 挂载点（容器化环境特有）
    • 注意：+会被转移为空格，需要用%2B替代

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}%2B(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "/dev/mapper/centos-home","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/home","server": "server-ip"},"values": [[1755717030.781,"6.383665437345736"],[1755720630.781,"6.400828182136928"]]},{"metric": {"device": "/dev/mapper/centos-root","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/","server": "server-ip"},"values": [[1755717030.781,"36.219364650253205"],[1755720630.781,"36.311770803426654"]]},{"metric": {"device": "/dev/sda2","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/boot","server": "server-ip"},"values": [[1755717030.781,"16.144092728832007"],[1755720630.781,"16.144092728832007"]]}]}
}

CPU利用率

总使用率(重复)

  • 表达式：(1 - avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="idle"}[5m])) by (instance))*100

    • 含义：1-计算5分钟CPU内空闲时间的比例
    • node_cpu_seconds_total：CPU 时间累计计数器（Counter）
    • mode="idle"：筛选空闲状态的 CPU 时间
    • irate()[interval]：计算时间窗口内的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="idle"}[5m])) by (instance))*100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"instance": "ip:9100"},"values": [[1755717030.781,"5.37638888885138"],[1755720630.781,"7.025000000075021"]]}]}
}

系统使用率

  • 表达式：avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="system"}[5m])) by (instance) *100

    • 含义：计算5分钟内CPU执行系统程序的比率
    • node_cpu_seconds_total：计算CPU在不同模式下累计消耗的时间
    • mode="system"：筛选 CPU 在内核态（执行操作系统内核代码）的时间
    • irate()[interval]：计算时间窗口内的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="system"}[5m])) by (instance) *100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"instance": "ip:9100"},"values": [[1755717030.781,"0.3062499999999899"],[1755720630.781,"0.65833333333324"]]}]}
}

用户使用率

  • 表达式：avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="user"}[5m])) by (instance) *100

    • 含义：计算5分钟内CPU执行应用程序的比率
    • node_cpu_seconds_total：计算CPU在不同模式下累计消耗的时间
    • mode="system"：筛选 CPU 在用户态（执行应用程序代码）的时间
    • irate()[interval]：计算时间窗口内的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="user"}[5m])) by (instance) *100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"instance": "ip:9100"},"values": [[1755717030.781,"4.801388888888849"],[1755720630.781,"6.027083333332131"]]}]}
}

磁盘IO使用率

  • 表达式：avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="iowait"}[5m])) by (instance) *100

    • 含义：计算5分钟内CPU的I/O等待时间占比
      • I/O等待：CPU 空闲但因等待磁盘 I/O 操作而无法执行其他任务的时间占比。
      • 当进程发起磁盘读写请求后，CPU 会暂停当前任务并等待 I/O 完成。
      • 此时 CPU 处于“空闲但被阻塞”状态，该状态时间被记为 iowait。
    • node_cpu_seconds_total：计算CPU在不同模式下累计消耗的时间
    • mode="iowait"：I/O 等待时间的累计计数器
    • irate()[interval]：计算时间窗口内的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=avg(irate(node_cpu_seconds_total{instance="ip:9100",mode="iowait"}[5m])) by (instance) *100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"instance": "ip:9100"},"values": [[1755717030.781,"0.040277777777777655"],[1755720630.781,"0"]]}]}
}

内存信息图表

总内存

  • 表达式：node_memory_MemTotal_bytes{instance="ip:9100"}

    • 含义：内存总量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_memory_MemAvailable_bytes{instance="ip:9100"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_memory_MemAvailable_bytes","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"83072385024"],[1755720630.781,"83186810880"]]}]}
}

可用内存

  • 表达式：node_memory_MemAvailable_bytes{instance="ip:9100"}

    • 含义：可用内存

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_memory_MemAvailable_bytes{instance="ip:9100"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_memory_MemAvailable_bytes","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"83072385024"],[1755720630.781,"83186810880"]]}]}
}

已用内存

  • 表达式：node_memory_MemTotal_bytes{instance="ip:9100"} - node_memory_MemAvailable_bytes{instance="ip:9100"}

    • 含义：已用内存

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_memory_MemTotal_bytes{instance="ip:9100"} - node_memory_MemAvailable_bytes{instance="ip:9100"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"52480114688"],[1755720630.781,"52365688832"]]}]}
}

内存使用率(重复)

  • 表达式：(1 - (node_memory_MemAvailable_bytes{instance="ip:9100"} / (node_memory_MemTotal_bytes{instance="ip:9100"})))* 100

    • 含义：内存使用率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - (node_memory_MemAvailable_bytes{instance="ip:9100"} / (node_memory_MemTotal_bytes{instance="ip:9100"})))* 100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"38.715711476735024"],[1755720630.781,"38.63129705705032"]]}]}
}

磁盘使用率

磁盘使用率(重复)

  • 表达式：(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}+(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))

    • 含义：用户视角的磁盘使用率，已经使用空间/用户可操作总空间
    • fstype=~"ext.*|xfs|nfs"：监控主流文件系统（排除 tmpfs 等内存文件系统）
    • mountpoint !~".*pod.*"：排除 Kubernetes Pod 挂载点（容器化环境特有）
    • 注意：+会被转移为空格，需要用%2B替代

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}%2B(node_filesystem_size_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{instance="ip:9100",fstype=~"ext.*|xfs|nfs",mountpoint !~".*pod.*"}))&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "/dev/mapper/centos-home","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/home","server": "server-ip"},"values": [[1755717030.781,"6.383665437345736"],[1755720630.781,"6.400828182136928"]]},{"metric": {"device": "/dev/mapper/centos-root","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/","server": "server-ip"},"values": [[1755717030.781,"36.219364650253205"],[1755720630.781,"36.311770803426654"]]},{"metric": {"device": "/dev/sda2","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter3","mountpoint": "/boot","server": "server-ip"},"values": [[1755717030.781,"16.144092728832007"],[1755720630.781,"16.144092728832007"]]}]}
}

文件系统 inode 使用率百分比

  • 表达式：(1 - node_filesystem_files_free{instance="ip:9100",fstype=~"ext.?|xfs|nfs",mountpoint !~".*pod.*"} / node_filesystem_files{instance="ip:9100",fstype=~"ext.?|xfs|nfs",mountpoint !~".*pod.*"}) * 100

    • 含义：inode 是文件系统中用于存储文件元数据（如大小、权限、位置等）的数据结构。每个文件/目录都占用一个 inode。
    • fstype=~"ext.*|xfs|nfs"：监控主流文件系统（排除 tmpfs 等内存文件系统）
    • mountpoint !~".*pod.*"：排除 Kubernetes Pod 挂载点（容器化环境特有）

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=(1 - node_filesystem_files_free{instance="ip:9100",fstype=~"ext.?|xfs|nfs",mountpoint !~".*pod.*"} / node_filesystem_files{instance="ip:9100",fstype=~"ext.?|xfs|nfs",mountpoint !~".*pod.*"}) * 100&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "/dev/mapper/klas-root","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter1","mountpoint": "/","server": "server-ip"},"values": [[1755717030.781,"0.9976753455840592"],[1755720630.781,"0.998009876234407"]]},{"metric": {"device": "/dev/sda2","environment": "production","fstype": "xfs","instance": "ip:9100","job": "node-exporter1","mountpoint": "/boot","server": "server-ip"},"values": [[1755717030.781,"0.02384185791015625"],[1755720630.781,"0.02384185791015625"]]}]}
}

磁盘读写速率

磁盘读取速率

  • 表达式：irate(node_disk_reads_completed_total{instance="ip:9100"}[5m])

    • 含义：磁盘读取速率。

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_disk_reads_completed_total{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "dm-0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1.8333333333333333"],[1755720630.781,"0.016666666666666666"]]},{"metric": {"device": "dm-1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "dm-2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1.85"],[1755720630.781,"0"]]},{"metric": {"device": "sdb","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0.016666666666666666"]]}]}
}

磁盘写入速率

  • 表达式：irate(node_disk_writes_completed_total{instance="ip:9100"}[5m])

    • 含义：磁盘写入速率。

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_disk_writes_completed_total{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "dm-0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"27.3"],[1755720630.781,"22.483333333333334"]]},{"metric": {"device": "dm-1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0.08333333333333333"],[1755720630.781,"0"]]},{"metric": {"device": "dm-2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"24.85"],[1755720630.781,"20.233333333333334"]]},{"metric": {"device": "sdb","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1.65"],[1755720630.781,"0.8333333333333334"]]}]}
}

磁盘的实时负载深度

  • 表达式：node_disk_io_now{instance="ip:9100"}

    • 含义：当前未完成的 I/O 请求数量：表示在查询时刻，目标磁盘设备上正在处理中或排队等待的 I/O 操作数量（瞬时值）

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_disk_io_now{instance="ip:9100"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_disk_io_now","device": "dm-0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"__name__": "node_disk_io_now","device": "dm-1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"__name__": "node_disk_io_now","device": "dm-2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"__name__": "node_disk_io_now","device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"__name__": "node_disk_io_now","device": "sdb","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]}]}
}

每秒磁盘读写容量

磁盘读取容量

  • 表达式：irate(node_disk_read_bytes_total{instance='ip:9100'}[5m])

    • 含义：磁盘读取容量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_disk_read_bytes_total{instance='ip:9100'}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "dm-0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"334233.6"],[1755720630.781,"273.06666666666666"]]},{"metric": {"device": "dm-1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "dm-2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"334233.6"],[1755720630.781,"0"]]},{"metric": {"device": "sdb","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"273.06666666666666"]]}]}
}

磁盘写入容量

  • 表达式：irate(node_disk_written_bytes_total{instance="ip:9100"}[5m])

    • 含义：磁盘写入容量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_disk_written_bytes_total{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "dm-0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1687825.0666666667"],[1755720630.781,"947746.1333333333"]]},{"metric": {"device": "dm-1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"5461.333333333333"],[1755720630.781,"0"]]},{"metric": {"device": "dm-2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "sda","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1652940.8"],[1755720630.781,"933410.1333333333"]]},{"metric": {"device": "sdb","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"40345.6"],[1755720630.781,"14336"]]}]}
}

网络Socket连接信息

当前TCP连接数

  • 表达式：node_netstat_Tcp_CurrEstab{instance="ip:9100"}

    • 含义：磁盘写入容量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_netstat_Tcp_CurrEstab{instance="ip:9100"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_netstat_Tcp_CurrEstab","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"100"],[1755720630.781,"100"]]}]}
}

TIME_WAIT状态TCP连接数

  • 表达式：node_sockstat_TCP_tw{instance='ip:9100'}

    • 含义：TIME_WAIT状态TCP连接数
      • 在 TCP 协议中，TIME_WAIT是连接关闭后的一个必经状态，作用是：
        • 确保最后一个 ACK 到达对端，避免旧连接的数据包干扰新连接。
        • 默认等待 2MSL（60秒） 后自动释放资源（MSL = Maximum Segment Lifetime，报文最大生存时间）。

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_sockstat_TCP_tw{instance='ip:9100'}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_sockstat_TCP_tw","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"8"],[1755720630.781,"8"]]}]}
}

正在使用的 socket 数量

  • 表达式：node_sockstat_sockets_used{instance='ip:9100'}

    • 含义：正在使用的 socket 数量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_sockstat_sockets_used{instance='ip:9100'}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_sockstat_sockets_used","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"1813"],[1755720630.781,"1812"]]}]}
}

当前正在使用的 UDP 套接字（Socket）数量

  • 表达式：node_sockstat_UDP_inuse{instance='ip:9100'}

    • 含义：正在使用的 socket 数量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_sockstat_UDP_inuse{instance='ip:9100'}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_sockstat_UDP_inuse","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"10"],[1755720630.781,"10"]]}]}
}

系统分配的 TCP 套接字（Socket）总量

  • 表达式：node_sockstat_TCP_alloc{instance='ip:9100'}

    • 含义：系统分配的 TCP 套接字（Socket）总量

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=node_sockstat_TCP_alloc{instance='ip:9100'}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "node_sockstat_TCP_alloc","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"554"],[1755720630.781,"554"]]}]}
}

TCP 被动连接（Passive Opens）的瞬时增长率

  • 表达式：irate(node_netstat_Tcp_PassiveOpens{instance="ip:9100"}[5m])

    • 含义：TCP 被动连接（Passive Opens）的瞬时增长率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_Tcp_PassiveOpens{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0.16666666666666666"],[1755720630.781,"0.16666666666666666"]]}]}
}

主动发起 TCP 连接的瞬时速率

  • 表达式：irate(node_netstat_Tcp_ActiveOpens{instance='ip:9100'}[5m])

    • 含义：主动发起 TCP 连接的瞬时速率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_Tcp_ActiveOpens{instance='ip:9100'}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0.18333333333333332"],[1755720630.781,"0.18333333333333332"]]}]}
}

TCP 输入数据段（TCP segments received）的瞬时接收速率

  • 表达式：irate(node_netstat_Tcp_InSegs{instance='ip:9100'}[5m])

    • 含义：TCP 输入数据段（TCP segments received）的瞬时接收速率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_Tcp_InSegs{instance='ip:9100'}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"23.466666666666665"],[1755720630.781,"24.983333333333334"]]}]}
}

发送的 TCP 数据段（segments）的瞬时速率

  • 表达式：irate(node_netstat_Tcp_OutSegs{instance='ip:9100'}[5m])

    • 含义：发送的 TCP 数据段（segments）的瞬时速率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_Tcp_OutSegs{instance='ip:9100'}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"23.75"],[1755720630.781,"25.466666666666665"]]}]}
}

TCP 重传数据段的瞬时速率

  • 表达式：irate(node_netstat_Tcp_RetransSegs{instance="ip:9100"}[5m])

    • 含义：TCP 重传数据段的瞬时速率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_Tcp_RetransSegs{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]}]}
}

因监听队列溢出导致的 TCP 连接丢弃的瞬时速率

  • 表达式：irate(node_netstat_TcpExt_ListenDrops{instance="ip:9100"}[5m])

    • 含义：因监听队列溢出导致的 TCP 连接丢弃的瞬时速率

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_netstat_TcpExt_ListenDrops{instance="ip:9100"}[5m])&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]}]}
}

每秒网络带宽使用

网卡接收带宽

  • 表达式：irate(node_network_receive_bytes_total{instance=~"ip:9100",device!~"docker.*|veth.*|lo|br-.*|virbr.*|tun.*|tap.*"}[5m])*8

    • 含义：网卡接收带宽
      • 排除虚拟网卡

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_network_receive_bytes_total{instance=~"ip:9100",device!~"docker.*|veth.*|lo|br-.*|virbr.*|tun.*|tap.*"}[5m])*8&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "endvnic","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f3","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f4","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f5","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"59909.6"],[1755720630.781,"2704437.2"]]}]}
}

网卡发送带宽

  • 表达式：irate(node_network_transmit_bytes_total{instance=~"ip:9100",device!~"docker.*|veth.*|lo|br-.*|virbr.*|tun.*|tap.*"}[5m])*8

    • 含义：网卡发送带宽
      • 排除虚拟网卡

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=irate(node_network_transmit_bytes_total{instance=~"ip:9100",device!~"docker.*|veth.*|lo|br-.*|virbr.*|tun.*|tap.*"}[5m])*8&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"device": "endvnic","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f0","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f1","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f2","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f3","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f4","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"0"],[1755720630.781,"0"]]},{"metric": {"device": "enp125s0f5","environment": "production","instance": "ip:9100","job": "node-exporter1","server": "server-ip"},"values": [[1755717030.781,"64835.73333333333"],[1755720630.781,"124779.33333333333"]]}]}
}

风扇转速

  • 表达式：ipmi_fan_speed_rpm{instance='ip:9290'}

    • 含义：风扇转速

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=ipmi_fan_speed_rpm{instance='ip:9290'}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "ipmi_fan_speed_rpm","id": "31","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "FAN1 Speed"},"values": [[1755717030.781,"10425"],[1755720630.781,"10200"]]},{"metric": {"__name__": "ipmi_fan_speed_rpm","id": "32","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "FAN2 Speed"},"values": [[1755717030.781,"10500"],[1755720630.781,"10200"]]},{"metric": {"__name__": "ipmi_fan_speed_rpm","id": "33","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "FAN3 Speed"},"values": [[1755717030.781,"10500"],[1755720630.781,"10275"]]},{"metric": {"__name__": "ipmi_fan_speed_rpm","id": "34","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "FAN4 Speed"},"values": [[1755717030.781,"10500"],[1755720630.781,"10200"]]}]}
}

CPU温度

  • 表达式：ipmi_temperature_celsius{instance='ip:9290', name=~"CPU.*|.*Core.*"}

    • 含义：CPU温度

  • 请求示例：

    http://ip:9090/api/v1/query_range?query=ipmi_temperature_celsius{instance='ip:9290', name=~"CPU.*|.*Core.*"}&start=2025-08-20T19:10:30.781Z&end=2025-08-20T20:20:30.781Z&step=3600s
返回值
{"status": "success","data": {"resultType": "matrix","result": [{"metric": {"__name__": "ipmi_temperature_celsius","id": "27","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "CPU1 VDDQ Temp"},"values": [[1755717030.781,"9"],[1755720630.781,"9"]]},{"metric": {"__name__": "ipmi_temperature_celsius","id": "28","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "CPU1 VRD Temp"},"values": [[1755717030.781,"9"],[1755720630.781,"9"]]},{"metric": {"__name__": "ipmi_temperature_celsius","id": "3","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "CPU1 Core Rem"},"values": [[1755717030.781,"42"],[1755720630.781,"43"]]},{"metric": {"__name__": "ipmi_temperature_celsius","id": "4","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "CPU1 MEM Temp"},"values": [[1755717030.781,"37"],[1755720630.781,"38"]]},{"metric": {"__name__": "ipmi_temperature_celsius","id": "9","instance": "ip:9290","job": "ipmi_monitor_1.38","name": "1711 Core Temp"},"values": [[1755717030.781,"35"],[1755720630.781,"36"]]}]}
}
http://www.xdnf.cn/news/18681.html

相关文章：

  • 本地文件夹即时变身 Web 服务器（文件服务器）
  • 01数据结构-归并排序和计数排序
  • 用 Ansible 优雅部署 Kubernetes 1.33.3（RedHat 10）
  • 文件相关操作的函数和文件操作
  • AlexNet读取数据集 与VGG-11网络
  • 视频编码异常的表现
  • `strchr` 字符串查找函数
  • C++中的右值引用与通用引用：std::move与std::forward的正确使用 (Effective Modern C++ 条款25)
  • 《CF1245D Shichikuji and Power Grid》
  • 嵌入式学习 day57 驱动-驱动框架
  • 国产CANFD芯片技术特性与应用前景综述：以ASM1042系列为例
  • Java试题-选择题（14）
  • 番茄（西红柿）叶片病害检测数据集：12k+图像，10类，yolo标注
  • 2025-08-22 Python进阶10——魔术方法
  • 从原理到实践：朴素贝叶斯算法的魅力解析
  • 构建城市数字孪生底座：深度解析智慧城市全景视频拼接融合解决方案
  • ingress和service区别
  • 未来已来？AI 预测技术在气象、金融领域的应用现状与风险警示
  • python3GUI--Joy音乐播放器 在线播放器 播放器 By:PyQt5（附下载地址）
  • Java面试-== 和 equals() 方法的区别与实现原理
  • Unreal Engine UE_LOG
  • 电脑芯片大的32位与64位指的是什么
  • 【数据结构】B+ 树——高度近似于菌丝网络——详细解说与其 C 代码实现
  • 面向RF设计人员的微带贴片天线计算器
  • AI领域的语义空间是什么？
  • ES6变量与解构：let、const与模板字符串全解析
  • 「越短越合法」型滑动窗口
  • 解释一下，Linux，shell，Vmware，Ubuntu，以及Linux命令和shell命令的区别
  • 111、【OS】【Nuttx】【周边】效果呈现方案解析：-print0 选项
  • Linux操作系统编程——网络
