血缘元数据采集开放标准：OpenLineage Dataset Facets

ai 2025/8/22 7:33:52

OpenLineage

OpenLineage 是一个用于元数据和血缘采集的开放标准，专为在作业运行时动态采集数据而设计。它通过统一的命名策略定义了由作业（Job）、运行实例（Run）和数据集（Dataset） 组成的通用模型，并通过可扩展的Facets机制对这些实体进行元数据增强。
该项目是 LF AI & Data 基金会的毕业级项目，处于活跃开发阶段，欢迎社区贡献。

数据集 Facets

Dataset Facets

数据集 Facets 一般由在 OpenLineage 事件的 inputs 与 outputs 中共同使用的通用 facet 组成，也存在专为输入或输出数据集设计的 facet。

{..."inputs": [{"namespace": "postgres://workshop-db:None","name": "workshop.public.taxes-in","facets": {# 通用数据集 facets 位于此处},"inputFacets": {# 输入数据集 facets 位于此处}}],"outputs": [{"namespace": "postgres://workshop-db:None","name": "workshop.public.taxes-out","facets": {# 通用数据集 facets 位于此处},"outputFacets": {# 输出数据集 facets 位于此处}}],...
}

在上述示例中，请注意区分适用于输入与输出数据集的通用 facets，以及仅针对输入或输出的特定 facets。通用 facets 均位于 facets 属性下；而输入或输出特定的 facets 则分别位于 inputFacets 或 outputFacets 属性中。

目录数据集 Facet

Catalog Dataset Facet

该 facet 包含处理引擎在访问此数据集时所使用的目录信息。

字段说明：

  • framework：为该目录配置的存储框架（例如：iceberg、delta、hive）。
  • type：目录的类型（例如：jdbc、glue、polaris）。
  • name：在源系统中配置的目录名称（例如：my_iceberg_catalog）。
  • metadataUri：指向目录的 URI 或连接字符串（如适用）（例如：jdbc:mysql://host:3306/iceberg_database）。
  • warehouseUri：指向该目录所描述数据的物理位置的 URI 或连接字符串（例如：s3://bucket/path/to/iceberg/warehouse）。
  • source：配置目录的源系统（例如：spark、flink、hive）。

framework、type 与 name 为必填字段。

示例：

{..."inputs": {"facets": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/CatalogDatasetFacet.json","framework": "iceberg","type": "polaris","name": "my_iceberg_catalog","metadataUri": "http://host:1234/iceberg_database","warehouseUri": "s3://bucket/path/to/iceberg/warehouse","source": "spark"}}...
}

该 facet 的规范可在此处找到。

数据质量断言 Facet

Data Quality Assertions Facet

示例：

{..."inputs": {"facets": {"dataQualityAssertions": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DataQualityAssertionsDatasetFacet.json","assertions": [{"assertion": "not_null","success": true,"column": "user_name"},{"assertion": "is_string","success": true,"column": "user_name"}]}}}...
}

该 facet 的规范可在此处找到。

列级血缘数据集 Facet

Column Level Lineage Dataset Facet

列级血缘（Column level lineage）提供了数据集依赖关系的细粒度信息。我们不仅能知道依赖存在，还能了解哪些输入列被用于生成哪些输出列，以及具体的转换方式。由此可以回答诸如 构建列 x 的源输入列有哪些？ 的问题。

例如，某作业执行以下 SQL：

INSERT INTO top_delivery_times (order_id,order_placed_on,order_delivered_on,order_delivery_time
)
SELECTorder_id,order_placed_on,order_delivered_on,DATEDIFF(minute, order_placed_on, order_delivered_on) AS order_delivery_time
FROM delivery_7_days
ORDER BY order_delivery_time DESC
LIMIT 1;

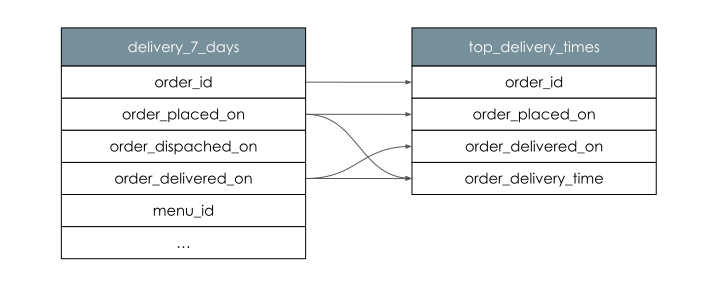

这将在 delivery_7_days 表与 top_delivery_times 表之间建立如下关系：

在这里插入图片描述

使用列级血缘 facet 表示该查询的 OpenLineage run state update 示例如下：

{"eventType": "START","eventTime": "2020-02-22T22:42:42.000Z","run": ...,"job": ...,"inputs": [{"namespace": "food_delivery","name": "public.delivery_7_days"}],"outputs": [{"namespace": "food_delivery","name": "public.top_delivery_times","facets": {"columnLineage": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json","fields": {"order_id": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_id","transformations": [{"type": "DIRECT","subtype": "IDENTITY","description": "","masking": false}]}]},"order_placed_on": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "DIRECT","subtype": "IDENTITY","description": "","masking": false}]}]},"order_delivered_on": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_delivered_on","transformations": [{"type": "DIRECT","subtype": "IDENTITY","description": "","masking": false}]}]},"order_delivery_time": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "DIRECT","subtype": "TRANSFORMATION","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_delivered_on","transformations": [{"type": "DIRECT","subtype": "TRANSFORMATION","description": "","masking": false}]}]}},"dataset": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_delivered_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]}]}}}],...
}

该 facet 的规范可在此处找到。

Transformation Type

为尽可能提供每个字段血缘的详细信息，每个输出的 inputField 可包含 transformations 字段。该字段描述输入列与输出列之间的关系性质。
每个转换由 4 个字段描述：type、subtype、description 和 masking。

Type

指示关系的直接程度，例如在查询

SELECTsource AS result
FROM TAB
WHERE pred = true;

中：

  1. DIRECT — 输出列值以某种方式源自 inputField 值。上例中 result 的值源自 source。
  2. INDIRECT — 输出列值受 inputField 列值影响，但并非由其派生。上例中 result 的值没有任何部分源自 pred，但 pred 影响输出数据集中 result 的值。

Subtype

包含更具体的转换信息

Direct：

  • IDENTITY — 输出值直接取自输入
  • TRANSFORMATION — 输出值是对输入行源值的转换
  • AGGREGATION — 输出值是对多行源值的聚合

Indirect：

  • JOIN — 输入用于连接条件
  • GROUP_BY — 输出基于输入进行聚合（如 GROUP BY 子句）
  • FILTER — 输入作为过滤条件（如 WHERE 子句）
  • SORT — 输出基于输入字段排序（如 ORDER BY 子句）
  • WINDOW — 输出基于输入字段开窗
  • CONDITIONAL — 输入值用于 IF、CASE WHEN 或 COALESCE 语句

Masking

布尔值，指示在转换过程中输入值是否被脱敏。
示例：TRANSFORMATION 的 hash、AGGREGATION 的 count。
具体哪些方法被视为脱敏，取决于源系统。

Legacy representation

对于 Spark，上述结果通过配置选项
spark.openlineage.columnLineage.datasetLineageEnabled=True 产生。
默认值为 False，此时所有列从 "dataset" 字段移至 "fields"：

{"columnLineage": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json","fields": {"order_id": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_id","transformations": [{"type": "DIRECT","subtype": "IDENTITY","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_delivered_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]}]},"order_placed_on": {"inputFields": [{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "DIRECT","subtype": "IDENTITY","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_placed_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]},{"namespace": "food_delivery","name": "public.delivery_7_days","field": "order_delivered_on","transformations": [{"type": "INDIRECT","subtype": "SORT","description": "","masking": false}]}]}// ... other fields},"dataset": [] // empty}
}

因此每个目标数据集字段都通过 INDIRECT 列级血缘依赖于每个源数据集字段，几乎产生所有数据集字段的笛卡尔积，极为低效。

建议始终启用 spark.openlineage.columnLineage.datasetLineageEnabled=True，以获得更紧凑的列级血缘表示。未来版本的 OpenLineage 可能会更改默认值。

数据源 Facet

Datasource Facet

示例：

{..."inputs": {"facets": {"dataSource": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasourceDatasetFacet.json","name": "datasource_one","url": "https://some.location.com/datsource/one"}}}...
}

该 facet 的规范可在此处找到。

数据集文档 Facet

Dataset Documentation Facet

包含数据集的文档或描述。

示例：

{..."job": {"facets": {"documentation": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/DocumentationDatasetFacet.json","description": "This is the documentation of something.","contentType": "text/markdown"}}}...
}

该 facet 的规范可在此处找到。

生命周期状态变更 Facet

Lifecycle State Change Facet

示例：

{..."outputs": {"facets": {"lifecycleStateChange": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/LifecycleStateChangeDatasetFacet.json","lifecycleStateChange": "CREATE"}}}...
}

{..."outputs": {"facets": {"lifecycleStateChange": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/LifecycleStateChangeDatasetFacet.json","lifecycleStateChange": "RENAME","previousIdentifier": {"namespace": "example_namespace","name": "example_table_1"}}}}...
}

该 facet 的规范可在此处找到。

所有权数据集 Facet

Ownership Dataset Facet

示例：

{..."inputs": {"facets": {"ownership": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/OwnershipDatasetFacet.json","owners": [{"name": "maintainer_one","type": "MAINTAINER"}]}}}...
}

该 facet 的规范可在此处找到。

数据集 Schema Facet

Schema Dataset Facet

数据集 Schema Facet 用于描述特定数据集的 schema。除字段名称外，还可为每个字段提供可选的类型与描述。支持嵌套字段。

示例：

{..."inputs": {"facets": {"schema": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json","fields": [{"name": "id","type": "int","description": "Customer's identifier"},{"name": "name","type": "string","description": "Customer's name"},{"name": "is_active","type": "boolean","description": "Has customer completed activation process"},{"name": "phones","type": "array","description": "List of phone numbers","fields": [{"name": "_element","type": "string","description": "Phone number"}]},{"name": "address","type": "struct","description": "Customer address","fields": [{"name": "type","type": "string","description": "Address type, g.e. home, work, etc."},{"name": "country","type": "string","description": "Country name"},{"name": "zip","type": "string","description": "Zip code"},{"name": "state","type": "string","description": "State name"},{"name": "street","type": "string","description": "Street name"}]},{"name": "custom_properties","type": "map","fields": [{"name": "key","type": "string"},{"name": "value","type": "union","fields": [{"name": "_0","type": "string"},{"name": "_1","type": "int64"}]}]}]}}}...
}

该 facet 的规范可在此处找到。

存储 Facet

Storage Facet

示例：

{..."inputs": {"facets": {"storage": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/StorageDatasetFacet.json","storageLayer": "iceberg","fileFormat": "csv"}}}...
}

该 facet 的规范可在此处找到。

Symlinks Facet

示例：

{..."inputs": {"facets": {"symlinks": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/SymlinksDatasetFacet.json","identifiers": ["namespace": "example_namespace","name": "example_dataset_1","type": "table"]}}}...
}

该 facet 的规范可在此处找到。

标签数据集 Facet

Tags Dataset Facet

该 facet 包含与数据集关联的标签。

示例：

{..."inputs": {"facets": {"tags": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/TagsDatasetFacet.json","tags": [{"key": "environment","value": "production","source": "CONFIG"},{"key": "classification","value": "PII","source": "CONFIG","field": "tax_id"}]}}}...
}

该 facet 的规范可在此处找到。

数据集类型 Facet

Dataset Type Facet

该 facet 描述数据集在数据库中的类型。

字段说明：

  • datasetType：数据集类型，如 TABLE、VIEW、TOPIC、MODEL。
  • subType：在 datasetType 内的子类型，如 MATERIALIZED、EXTERNAL。

示例：

{..."inputs": {"facets": {"datasetType": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetTypeDatasetFacet.json","datasetType": "VIEW","subType": "MATERIALIZED"}}}...
}

该 facet 的规范可在此处找到。

版本 Facet

Version Facet

示例：

{..."inputs": {"facets": {"version": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetVersionDatasetFacet.json","datasetVersion": "1"}}}...
}

该 facet 的规范可在此处找到。

数据质量指标 Facet

Data Quality Metrics Facet

示例：

{..."inputs": {"inputFacets": {"dataQualityMetrics": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-2/DataQualityMetricsInputDatasetFacet.json","rowCount": 123,"fileCount": 5,"bytes": 35602,"columnMetrics": {"column_one": {"nullCount": 132,"distincCount": 11,"sum": 500,"count": 234,"min": 111,"max": 3234,"quantiles": {"0.1": 12,"0.5": 22,"1": 123,"2": 11}},"column_two": {"nullCount": 132,"distinctCount": 11,"sum": 500,"count": 234,"min": 111,"max": 3234,"quantiles": {"0.1": 12,"0.5": 22,"1": 123,"2": 11}},"column_three": {"nullCount": 132,"distincCount": 11,"sum": 500,"count": 234,"min": 111,"max": 3234,"quantiles": {"0.1": 12,"0.5": 22,"1": 123,"2": 11}}}}}}...
}

该 facet 的规范可在此处找到。

输入统计 Facet

Input Statistics Facet

示例：

{..."inputs": {"inputFacets": {"inputStatistics": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-0/InputStatisticsInputDatasetFacet.json","rowCount": 123,"fileCount": 5,"size": 35602}}}...
}

该 facet 的规范可在此处找到。

输出统计 Facet

Output Statistics Facet

示例：

{..."outputs": {"outputFacets": {"outputStatistics": {"_producer": "https://some.producer.com/version/1.0","_schemaURL": "https://openlineage.io/spec/facets/1-0-2/OutputStatisticsOutputDatasetFacet.json","rowCount": 123,"fileCount": 5,"size": 35602}}}...
}

该 facet 的规范可在此处找到。
