ABAP 导入Excel形成内表

web 2025/5/6 7:21:33

在这里插入图片描述

文章目录

创建导入模板
程序实现
代码
代码解析

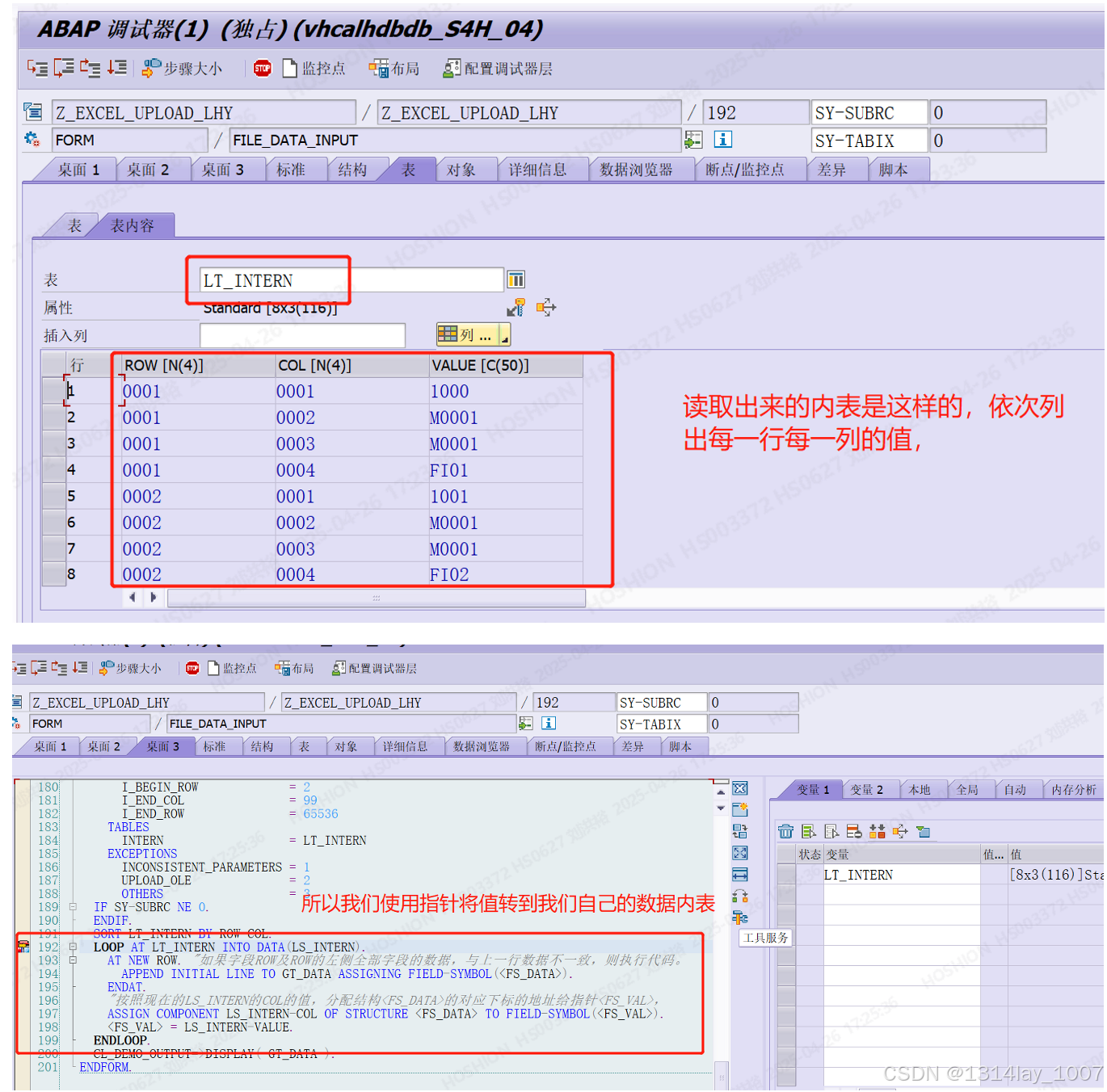

运行结果

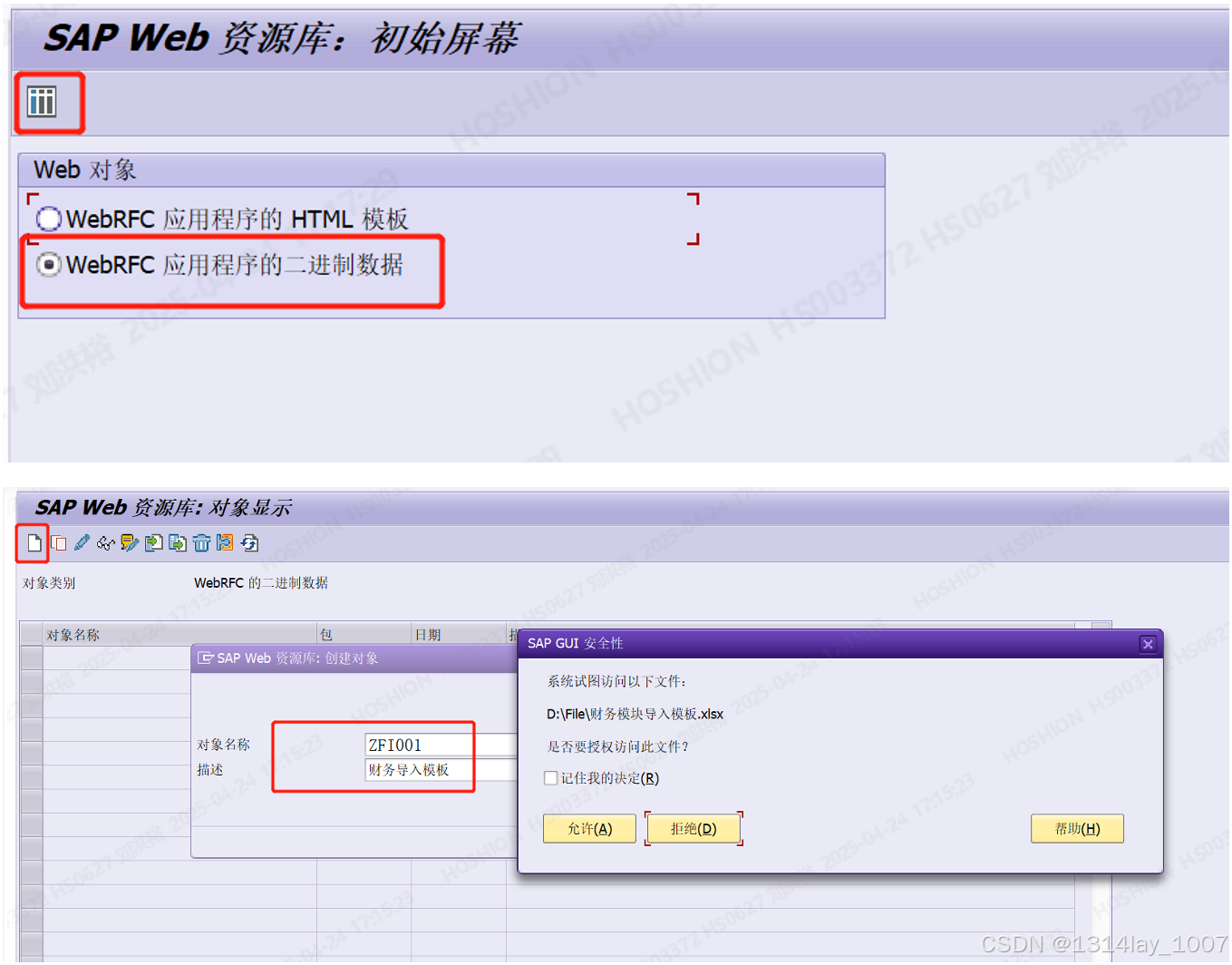

创建导入模板

在这里插入图片描述

程序实现

在这里插入图片描述

代码

*&---------------------------------------------------------------------*
*& Report Z_EXCEL_UPLOAD_LHY
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT Z_EXCEL_UPLOAD_LHY.
TABLES SSCRFIELDS.DATA: LS_FUNCTXT TYPE SMP_DYNTXT.
CONSTANTS:COS_TEMPLATE TYPE W3OBJID VALUE 'ZFI001',COS_FILENAME TYPE STRING VALUE '财务导入模板.xlsx'.
TYPES: BEGIN OF T_MARC,MATNR TYPE MARC-MATNR, "物料编号WERKS TYPE MARC-WERKS, "工厂MAKTX TYPE MAKT-MAKTX,  "物料描述MATKL TYPE MARA-MATKL,  "物料组END   OF T_MARC.
DATA GT_DATA TYPE TABLE OF T_MARC.SELECTION-SCREEN BEGIN OF BLOCK BK1.PARAMETERS P_FILE TYPE RLGRAP-FILENAME  MODIF ID M1.
SELECTION-SCREEN END OF BLOCK BK1.
**--按钮定义
SELECTION-SCREEN FUNCTION KEY 1.AT SELECTION-SCREEN ON VALUE-REQUEST FOR  P_FILE. "按选择帮助<F4>键时触发该事件PERFORM FRM_GET_FILE_NAME CHANGING P_FILE.INITIALIZATION.
**--按钮定义-初始化CLEAR LS_FUNCTXT.LS_FUNCTXT-ICON_ID   = ICON_IMPORT. "图标，可以通过ICON查找LS_FUNCTXT-ICON_TEXT = '下载文件'."描述SSCRFIELDS-FUNCTXT_01 = LS_FUNCTXT.AT SELECTION-SCREEN.
**--按钮响应CASE SSCRFIELDS-UCOMM.WHEN 'FC01'.PERFORM FRM_DOWNLOAD_TEMPLATE USING COS_TEMPLATE COS_FILENAME.WHEN OTHERS.ENDCASE.START-OF-SELECTION."解析Excel文件到内表PERFORM FILE_DATA_INPUT.**&---------------------------------------------------------------------*
**& Module STATUS_9000 OUTPUT
**&---------------------------------------------------------------------*
**&
**&---------------------------------------------------------------------*
*MODULE STATUS_9000 OUTPUT.
*  SET PF-STATUS 'STANDARD'.
** SET TITLEBAR 'xxx'.
*ENDMODULE.
*&---------------------------------------------------------------------*
*& Form frm_get_file_name
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      <-- P_FILE
*&---------------------------------------------------------------------*
FORM FRM_GET_FILE_NAME  CHANGING CV_FILE.DATA: LT_FILETABLE TYPE FILETABLE,  "表类型LS_FILETABLE TYPE FILE_TABLE, "结构类型LV_RC        TYPE I.FREE LT_FILETABLE.CLEAR: LV_RC.CALL METHOD CL_GUI_FRONTEND_SERVICES=>FILE_OPEN_DIALOGEXPORTING
*     window_title            =DEFAULT_EXTENSION       = CL_GUI_FRONTEND_SERVICES=>FILETYPE_EXCEL
*     default_filename        =FILE_FILTER             = CL_GUI_FRONTEND_SERVICES=>FILETYPE_EXCEL
*     with_encoding           =
*     initial_directory       =
*     multiselection          =CHANGINGFILE_TABLE              = LT_FILETABLERC                      = LV_RC
*     user_action             =
*     file_encoding           =EXCEPTIONSFILE_OPEN_DIALOG_FAILED = 1CNTL_ERROR              = 2ERROR_NO_GUI            = 3NOT_SUPPORTED_BY_GUI    = 4OTHERS                  = 5.READ TABLE LT_FILETABLE INTO LS_FILETABLE INDEX 1.IF SY-SUBRC <> 0.
*     Implement suitable error handling hereENDIF.IF SY-SUBRC EQ 0.CV_FILE = LS_FILETABLE-FILENAME.ENDIF.ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_DOWNLOAD_TEMPLATE
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> COS_TEMPLATE
*&      --> COS_FILENAME
*&---------------------------------------------------------------------*
FORM FRM_DOWNLOAD_TEMPLATE  USING   U_OBJID TYPE W3OBJIDU_FILE_NAME TYPE STRING.DATA: LS_KEY      TYPE WWWDATATAB,LV_FILENAME TYPE STRING,LV_PATH     TYPE STRING,LV_FULLPATH TYPE STRING."判断模板是否存在SELECT SINGLE * FROM WWWDATAWHERE RELID EQ 'MI'AND OBJID EQ @U_OBJIDINTO CORRESPONDING FIELDS OF @LS_KEY.IF SY-SUBRC NE 0.
*   模板&1不存在MESSAGE 'ZFI001下载模板不存在' TYPE 'E'."ZFI001RETURN.ENDIF.
*   调用函数打开文件选择框CALL METHOD CL_GUI_FRONTEND_SERVICES=>FILE_SAVE_DIALOGEXPORTING
*     window_title              =DEFAULT_EXTENSION         = CL_GUI_FRONTEND_SERVICES=>FILETYPE_EXCELDEFAULT_FILE_NAME         = U_FILE_NAME
*     with_encoding             =
*     file_filter               =
*     initial_directory         =
*     prompt_on_overwrite       = 'X'CHANGINGFILENAME                  = LV_FILENAMEPATH                      = LV_PATHFULLPATH                  = LV_FULLPATH
*     user_action               =
*     file_encoding             =EXCEPTIONSCNTL_ERROR                = 1ERROR_NO_GUI              = 2NOT_SUPPORTED_BY_GUI      = 3INVALID_DEFAULT_FILE_NAME = 4OTHERS                    = 5.IF SY-SUBRC <> 0.
*   Implement suitable error handling hereENDIF.CHECK LV_FULLPATH NE ''.
*   下载SMW0模版CALL FUNCTION 'DOWNLOAD_WEB_OBJECT'EXPORTINGKEY         = LS_KEYDESTINATION = CONV LOCALFILE( LV_FULLPATH ).ENDFORM.
*&---------------------------------------------------------------------*
*& Form FILE_DATA_INPUT
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FILE_DATA_INPUT .CLEAR GT_DATA. "清空内表DATA: LT_INTERN TYPE STANDARD TABLE OF ALSMEX_TABLINE.DATA: ERROR_STR TYPE STRING.FREE: LT_INTERN.CALL FUNCTION 'ALSM_EXCEL_TO_INTERNAL_TABLE'EXPORTINGFILENAME                = P_FILEI_BEGIN_COL             = 1I_BEGIN_ROW             = 2I_END_COL               = 99I_END_ROW               = 65536TABLESINTERN                  = LT_INTERNEXCEPTIONSINCONSISTENT_PARAMETERS = 1UPLOAD_OLE              = 2OTHERS                  = 3.IF SY-SUBRC NE 0.ENDIF.SORT LT_INTERN BY ROW COL.LOOP AT LT_INTERN INTO DATA(LS_INTERN).AT NEW ROW. "如果字段ROW及ROW的左侧全部字段的数据，与上一行数据不一致，则执行代码。APPEND INITIAL LINE TO GT_DATA ASSIGNING FIELD-SYMBOL(<FS_DATA>).ENDAT."按照现在的LS_INTERN的COL的值，分配结构<FS_DATA>的对应下标的地址给指针<FS_VAL>，ASSIGN COMPONENT LS_INTERN-COL OF STRUCTURE <FS_DATA> TO FIELD-SYMBOL(<FS_VAL>).<FS_VAL> = LS_INTERN-VALUE.CLEAR LS_INTERN.ENDLOOP.CL_DEMO_OUTPUT=>DISPLAY( GT_DATA ).
ENDFORM.
