rk3568安全启动功能实践
本文主要讲述笔者在rk3568芯片上开发安全启动功能实践的流程。其中主要参考瑞芯微官方文档《Rockchip_Developer_Guide_Secure_Boot_for_UBoot_Next_Dev_CN.pdf》。文档中描述逻辑不是很清晰而且和当前瑞芯微的sdk中安全启动的流程匹配度不高。本文就不再对瑞芯微官方文档的内容进行赘述,读者可以先查看官方文件后再阅读本文章。
所谓的安全验证引导流程分为安全性校验与完整性校验。安全性校验是加密公钥的校验，流程为从安全存储(OTP & efuse)中读取公钥 hash，与计算的公钥 hash 对比，是否一致，然后公钥用于解密固件hash。完整性校验为校验固件的完整性，流程为从存储里加载固件，计算固件的hash与解密出来的hash对比是否一致。
1、使用什么方案?

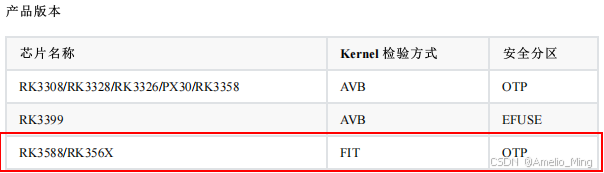

Linux 系统中，提供了新旧2种Secure Boot方案，FIT和AVB方案，效果是一样的，两种方案不可混用，各个芯片具体选用那种方案，请参考产品版本。
从上面的图中可知RK356X kernel校验方式为FIT，安全分区为OTP。AVB和FIT的差异以及EFUSE和OTP的差异在瑞芯微官方文档中有详细描述这里不再赘述,只是希望读者不要使用错误的方案。在配置时设置RK_SECUREBOOT_FIT=y ，不要配置RK_SECUREBOOT_AVB=y，因为rk3568芯片不支持AVB方案。
FIT(flattened image tree)是U-Boot⽀持的⼀种新固件类型的引导⽅案，⽀持任意多个image打包和校验。FIT使⽤its(image source file)⽂件描述image信息，最后通过mkimage⼯具⽣成itb(flattened image tree blob)镜像。its⽂件使⽤DTS的语法规则，⾮常灵活，可以直接使⽤libfdt 库和相关⼯具。同时自带一套全新的安全检验方式。
2、对uboot进行签名
2.1、生成密钥对
在对镜像进行签名之前,需要生成秘钥对，作为对进行签名的密钥对。
U-Boot工程下执行如下三条命令可以生成签名用的RSA密钥对。通常情况下只需要生成一次，此后都用这对密钥签名和验证固件，请妥善保管。
第一步:放key的目录：keys
mkdir -p keys
第二步:使用RK的"rk_sign_tool"工具生成RSA2048的私钥privateKey.pem和publicKey.pem,分别更名存放为：keys/dev.key和keys/dev.pubkey。命令为：
../rkbin/tools/rk_sign_tool kk --bits 2048 --out .
ln -s privateKey.pem keys/dev.key
ln -s publicKey.pem keys/dev.pubkey
第三步:使用-x509和私钥生成一个自签名证书：keys/dev.crt （效果本质等同于公钥）
openssl req -batch -new -x509 -key keys/dev.key -out keys/dev.crt
注意：上述的"keys"、"dev.key"、"dev.crt" 、"dev.pubkey"名字都不可变。因为这些名字已经在its
文件中静态定义，如果改变则会打包失败。
当然上面的步骤可以通过 build.sh security-createkeys命令来实现。
2.2、uboot配置
U-Boot的defconfig打开如下配置：
CONFIG_FIT_SIGNATURE=y
CONFIG_SPL_FIT_SIGNATURE=y
2.3、buildroot的配置
在瑞芯微sdk目录下执行 make menuconfig->Security feature (secureboot, encryption, verity, etc.) 来进行安全启动相关配置的配置，配置了这些内容后,编译SDK时会自动对uboot和kernel进行签名。
如果想这些配置一开始就生效，可以在 SDK所在目录的device/rockchip/rk3566_rk3568/rockchip_rk3568_evb1_ddr4_v10_defconfig 中添加fit相关的配置(rockchip_rk3568_evb1_ddr4_v10_defconfig 是笔者当前系统使用的配置,读者需要根据自己编译SDK时选择的配置项修改对应的配置文件):
RK_UBOOT_SPL=y
RK_SECURITY=y
#
# Security check method (system-verity) needs squashfs rootfs type
#
RK_SECUREBOOT_METHOD="fit"
RK_SECUREBOOT_FIT=y
# RK_SECUREBOOT_AVB is not set
RK_SECURITY_OPTEE_STORAGE="rpmb"
RK_SECURITY_OPTEE_STORAGE_RPMB=y
# RK_SECURITY_OPTEE_STORAGE_SECURITY is not set
RK_SECURITY_CHECK_METHOD="base"
RK_SECURITY_CHECK_BASE=y
# RK_SECURITY_CHECK_SYSTEM_ENCRYPTION is not set
# RK_SECURITY_BURN_KEY is not set
3、对kernle进行签名
在kernel内核配置文件rockchip_linux_defconfig文件中添加如下配置:
CONFIG_BLK_DEV_DM=y
CONFIG_DM_CRYPT=y
CONFIG_BLK_DEV_CRYPTOLOOP=y
CONFIG_DM_VERITY=y
将optee设备树配置信息添加到rk3568.dtsi设备树中
optee: optee {
compatible = "linaro,optee-tz";
method = "smc";
status = "okay";
};
内核开启CONFIG_DM_VERITY=y的情况下,parameter-buildroot-fit.txt分区配置脚本中GROW_ALIGN: 1必须设置为1.具体可以查看SDK中的check-grow-align.sh 脚本,该脚本存在如下程序进行检查:
# DM_VERITY存在且非空并并且GROW_ALIGN_VAL值为1,则exit 0
if [ "$DM_VERITY" -a "$GROW_ALIGN_VAL" = "1" ]; then
# DM verity + grow align
exit 0
fi
不配置的话,编译时也会报错提醒,根据提示信息修改即可。感兴趣的同学可以通读这个脚本。
4、验证
注意，我们还没有烧录公钥的hash值到OTP区。执行SDK的全编译,将编译后的固件烧录到设备中。公钥hash是否烧写，只会影响Maskrom是否校验loader，且烧录后，无法撤销。loader验证uboot以及后续验证流程还是一致的。因此，调试阶段建议先不用burn-key-hash。
进行验证，关键打印信息如下:
Trying fit image at 0x4000 sector
## Verified-boot: 0
sha256,rsa2048:dev## Verified-boot: 0
+
## Checking atf-1 0x00040000 (gzip @0x00240000) ... sha256(ee9d731c06...) + sha256(b5946ac63d...) + OK
## Checking uboot 0x00a00000 (gzip @0x00c00000) ... sha256(49f841525c...) + sha256(30f02600a8...) + OK
## Checking fdt 0x00b53b50 ... sha256(f133b1d7de...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
## Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
## Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
## Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
## Checking optee 0x08400000 (gzip @0x08600000) ... sha256(8f745f9f51...) + sha256(ac96eda7b3...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 174.537/261.748 ms
......
## Loading kernel from FIT Image at 7925ce00 ...
Using 'conf' configuration
optee api revision: 2.0
find partition misc ok
find partition security_a error
find partition security error
TEEC: Waring: Could not find security partition
## Verified-boot: 0
Verifying Hash Integrity ... sha256,rsa2048:dev+ OK
Trying 'kernel' kernel subimage
Description: unavailable
Type: Kernel Image
Compression: uncompressed
Data Start: 0x7928be00
Data Size: 39238144 Bytes = 37.4 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x00280000
Entry Point: 0x00280000
Hash algo: sha256
Hash value: 6d75cfb71d410f9099cceddbb1b07a86528ba57a41f4fc67c2676e412fcf026e
Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at 7925ce00 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description: unavailable
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x7925e000
Data Size: 187611 Bytes = 183.2 KiB
Architecture: AArch64
Load Address: 0x08300000
Hash algo: sha256
Hash value: acb7a59d28a3fb7893ab6a08dcad1bb17f404c0e4cca8d2fb13ed8a7614ee472
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x08300000 to 0x08300000
Booting using the fdt blob at 0x08300000
Loading Kernel Image from 0x7928be00 to 0x00280000 ... OK
kernel loaded at 0x00280000, end = 0x027eba00
Using Device Tree in place at 0000000008300000, end 0000000008330cda
## reserved-memory:
ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0x80000000 (size: 0x76c00000)
board seed: Pseudo
......
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 882.698/929.496 ms
Starting kernel ...
将公钥的哈希值烧录到OTP区,需要设置将
# RK_SECURITY_BURN_KEY is not set修改为RK_SECURITY_BURN_KEY=y，这样第一次上电时loader阶段会自动将哈希值烧写到OTP区。
5、sdk签名流程分析
下面将分析下SDK中是如何来对uboot和kernel进行签名的流程。主要在 check-security.sh脚本,mk-security.sh脚本分析.
在 check-security.sh脚本中会根据配置是AVB方案还是FIT方案来检查uboot和kernel的.config配置中上面对应的配置项是否进行了配置。
#!/bin/bash -e###################################################
RK_SCRIPTS_DIR="${RK_SCRIPTS_DIR:-$(dirname "$(realpath "$0")")}"
RK_SDK_DIR="${RK_SDK_DIR:-$RK_SCRIPTS_DIR/../../../..}"
UBOOT=$RK_SDK_DIR/u-boot
KERNEL=$RK_SDK_DIR/kernel
BUILDROOT=$RK_SDK_DIR/buildroot
RK_SIGN_TOOL=$RK_SDK_DIR/rkbin/tools/rk_sign_tool
###################################################ROOTFS_UPDATE_ENGINEBIN_CONFIGS=" \BR2_PACKAGE_RECOVERY \BR2_PACKAGE_RECOVERY_UPDATEENGINEBIN"ROOTFS_AB_FIXED_CONFIGS=" \$ROOTFS_UPDATE_ENGINEBIN_CONFIGS \BR2_PACKAGE_RECOVERY_BOOTCONTROL"UBOOT_FIT_FIXED_CONFIGS=" \CONFIG_FIT_SIGNATURE \CONFIG_SPL_FIT_SIGNATURE"UBOOT_AVB_FIXED_CONFIGS=" \CONFIG_ANDROID_AVB \CONFIG_AVB_LIBAVB \CONFIG_AVB_LIBAVB_AB \CONFIG_AVB_LIBAVB_ATX \CONFIG_AVB_LIBAVB_USER \CONFIG_RK_AVB_LIBAVB_USER \CONFIG_OPTEE_CLIENT \CONFIG_AVB_VBMETA_PUBLIC_KEY_VALIDATE \CONFIG_RK_AVB_LIBAVB_ENABLE_ATH_UNLOCK \CONFIG_OPTEE_V."# TODO: CONFIG_ROCKCHIP_PRELOADER_PUB_KEYRAMBOOT_FIXED_CONFIG=" \BR2_PACKAGE_TEE_USER_APP \BR2_PACKAGE_LUKSMETA"#检查keys是否存在
#可以使用 /build.sh createkeys 在rk3568_bsp/u-boot/keys 生成秘钥对。
rk_security_check_keys()
{if [ ! -d "$UBOOT/keys" ]; thenecho "ERROR: No root keys(u-boot/keys) found in u-boot"echo " Create it by ./build.sh security-createkeys or move your key to it"exit -1fiif echo "$1" | grep system ; thenif [ ! -f $UBOOT/keys/root_passwd ]; thenecho "ERROR: No root passwd(u-boot/keys/root_passwd) found in u-boot"echo " echo your root key for sudo to u-boot/keys/root_passwd"echo " some operations need supper user permission when create encrypt image"exit -1fiif [ "$1" = "system-encryption" ] && \[ ! -f $UBOOT/keys/system_enc_key ]; thenecho "ERROR: No enc key(u-boot/keys/system_enc_key) found in u-boot"echo " Create it by ./build.sh security-createkeys or move your key to it"exit -1fifi
}BOOT_FIXED_CONFIGS=" \CONFIG_BLK_DEV_DM \CONFIG_DM_CRYPT \CONFIG_DM_VERITY"BOOT_FIXED_UNDER_6_1_CONFIG="CONFIG_BLK_DEV_CRYPTOLOOP"BOOT_OPTEE_FIXED_CONFIGS=" \CONFIG_TEE \CONFIG_OPTEE"#检查uboot或者kernel的配置文件是否有对应的配置项
config_check()
{# 1. config 2. match itemecho debug-$1for i in $2doecho "look for $i"result=$(cat $1 | grep "${i}=y" -w || echo "No found")if [ "$result" = "No found" ]; thenecho -e "\e[41;1;37mSecurity: No found config ${i} in $1 \e[0m"echo "make sure your config include this list"echo "---------------------------------------"echo "$2" | xargs -n1echo "---------------------------------------"exit -1;fidonereturn 0
}rk_security_match_overlay()
{result=$(cat "$2" | grep "$3" || echo "No found")if [ "$result" = "No found" ]; thenecho -e "\e[41;1;37mSecurity: No found BR2_ROOTFS_OVERLAY+=\"board/rockchip/common/$3/\" in $1 config\e[0m"exit -1fi
}# 检查system
rk_security_check_system()
{case $1 insystem-encryption|system-verity) rk_security_match_overlay system $2 security-system-overlay;;# base是不校验system分区base) return 0;;*) exit -1;;esac
}# 检查内核配置
rk_security_check_kernel_config()
{# RK_SECURITY=y# 开启rk安全启动配置情况下才作检查[ ! -z "$RK_SECURITY" ] || return 0# 内核版本小于 6.1if [ $(echo "$RK_KERNEL_VERSION_RAW < 6.1" | bc) -eq 1 ]; thenBOOT_FIXED_CONFIGS="$BOOT_FIXED_CONFIGS $BOOT_FIXED_UNDER_6_1_CONFIG"ficase $1 insystem-encryption) BOOT_FIXED_CONFIGS="$BOOT_FIXED_CONFIGS $BOOT_OPTEE_FIXED_CONFIGS" ;& # fallthroughsystem-verity) config_check $2 "$BOOT_FIXED_CONFIGS" ;;base) return 0;;*) exit -1;;esac
}#检查内核dts文件是否配置了optee 节点且enbable
rk_security_check_kernel_dts()
{test "$1" = "system-encryption" || return 0# ${ ## } 从变量开头开始匹配最长的.(点),然后删除if [ "${2##*.}" = "dtb" ]; thendtsfile=$(mktemp)# dtc 是 Linux 系统中用于编译或反编译设备树(Device Tree)文件的工具# -I:Input formats 输入文件格式# -O:Output formats 输出文件格式# -o:Output file 输出文件# 将输入的dtb文件反编译为dts输出到dtsfile文件中dtc -q -I dtb -O dts -o $dtsfile $2elsedtsfile=$2fitmp_file=$(mktemp)#-P：启用 Perl 兼容正则（支持更复杂的语法）。#-z：将文件视为单行(用 NULL 分隔),便于跨行匹配。#-o：仅输出匹配内容#\t：转义符#\s*{(\n|\w|-|;|=|<|>|\"|_|\s|,)*};#\s*：匹配0或多个空白字符(空格、制表符、换行等)#{：匹配左花括号。# (\n|\w|-|;|=|<|>|\"|_|\s|,)*：这是一个分组，包含多个选项，用|分隔，匹配任意次。这个部分意图是匹配花括号内的内容，直到遇到结束的};#\n：换行符，允许跨行匹配。#\w：单词字符（字母、数字、下划线）。#-：直接匹配短横线。#; = < > " _ \s ,：这些字符分别匹配。#使用*量词可能会导致贪婪匹配，直到无法继续为止，但由于后面有};作为结束，所以正则引擎会尽可能匹配到最近的};#};：匹配右花括号和分号，结束整个结构。if ! grep -Pzo "\toptee \s*{(\n|\w|-|;|=|<|>|\"|_|\s|,)*};" $dtsfile 1>$tmp_file 2>/dev/null; then# 匹配失败则打印提示信息echo -e "\e[41;1;37mNo found optee node in dts\e[0m"echo "Please add: "echo " optee: optee {"echo " compatible = \"linaro,optee-tz\";"echo " method = \"smc\";"echo " status = \"okay\";"echo " };"echo "To kernel dts"rm -f $tmp_file# 如果dtsfile是使用dtc反编译出来的就将其删除test "$2" = "$dtsfile" || rm $dtsfileexit -1fistatus=$(cat $tmp_file | grep -a status || true)if [ "$(echo $status | grep disabled)" ]; thenrm -f $tmp_filetest "$2" = "$dtsfile" || rm $dtsfileecho -e "\e[41;1;37mOptee Found, but disabled!!!\e[0m"exit -1firm -f $tmp_filetest "$2" = "$dtsfile" || rm $dtsfile
}# kernel内核配置检查
rk_security_check_kernel()
{append=$1shiftcase $append in# linux内核配置和设备树进行检查:rk_security_check_kernel_config/dtsconfig|dts) rk_security_check_kernel_$append $@;;*) exit -1;;esac
}# 检查ramboot
rk_security_check_ramboot()
{# 只有 RK_SECURITY_CHECK_METHOD为system-encryption情况下才作ramdisk的处理# 我们项目中RK_SECURITY_CHECK_METHOD="base",未使用该选项,可以不关注if [ "$1" != "system-encryption" ]; thenreturn 0fishiftif [ ! -f "$1" ]; thenecho -e "\e[41;1;37m$1 is not found\e[0m"exit -1fiecho "check ramdisk config"config_check $1 "$(echo $ROOTFS_UPDATE_ENGINEBIN_CONFIGS $RAMBOOT_FIXED_CONFIG)"rk_security_match_overlay ramboot $1 security-ramdisk-overlay
}# 检查uboot
rk_security_check_uboot()
{METHOD=$1shift# fit配置下的uboot检查if [ "$METHOD" = "fit" ]; then config_check $1 "$UBOOT_FIT_FIXED_CONFIGS"else# avb情况config_check $1 "$UBOOT_AVB_FIXED_CONFIGS"fi
}rk_security_check_main()
{CHECK_LIST="keys kernel system uboot ramboot"for item in $CHECK_LISTdo# $1必须在 keys kernel system uboot ramboot 参数列表中if [ "$item" = "$1" ]; thenappend=$1shift# 调用对应的函数rk_security_check_keys/kernel/system/uboot/ramboot"rk_security_check_$append" $@fidone
}# -----------------------------------
# For SDK
# -----------------------------------# 根据镜像来检查uboot,kernel中的配置以及设备树是否配置正确
rk_security_check_sdk()
{# $RK_SECURITY 非空则返回0,即如果要继续执行下去,那么$RK_SECURITY的值应该为空 # RK_SECURITY=y[ ! -z "$RK_SECURITY" ] || return 0# 添加打印信息发现,$1的值应该为system# RK_SECURITY_CHECK_METHOD="base"case $1 inkeys) rk_security_check_main keys $RK_SECURITY_CHECK_METHOD ;;kernel)case $2 in#检查kernle 的.config文件config) rk_security_check_main $@ $RK_SECURITY_CHECK_METHOD $RK_SDK_DIR/kernel/.config ;;dts) rk_security_check_main $@ $RK_SECURITY_CHECK_METHOD $RK_KERNEL_DTB ;;esac;;#检查buildroot/output/.config文件system) rk_security_check_main system $RK_SECURITY_CHECK_METHOD $RK_SDK_DIR/buildroot/output/$RK_BUILDROOT_CFG/.config ;;ramboot) rk_security_check_main ramboot $RK_SECURITY_CHECK_METHOD $RK_SDK_DIR/buildroot/output/$RK_SECURITY_INITRD_CFG/.config ;;#检查uboot的 .config文件uboot) rk_security_check_main uboot $RK_SECUREBOOT_METHOD $RK_SDK_DIR/u-boot/.config ;;esac
}# RK_SESSION="${RK_SESSION:-$(date +%F_%H-%M-%S)} 2025-04-15_10-58-34
# 如果 $RK_SESSION 存在且非空则执行 rk_security_check_sdk
if [ "$RK_SESSION" ]; thenrk_security_check_sdk $@
elserk_security_check_main $@
fi
mk-security.sh 脚本则是根据配置是AVB方案还是FIT方案来对boot,img进行签名
#!/bin/bash -e# TODO: Almost product have enabled bl32.
# AVB Config should be set in AVB tools dir.
# include keys / product id / efuse# For flash device, encryption-system remain space should be config
###################################################
RK_SCRIPTS_DIR="${RK_SCRIPTS_DIR:-$(dirname "$(realpath "$0")")}"
RK_SDK_DIR="${RK_SDK_DIR:-$RK_SCRIPTS_DIR/../../../..}"
UBOOT=$RK_SDK_DIR/u-boot
KERNEL=$RK_SDK_DIR/kernel
BUILDROOT=$RK_SDK_DIR/buildroot
RK_SIGN_TOOL=$RK_SDK_DIR/rkbin/tools/rk_sign_tool
RK_SIGN_INI=$RK_SDK_DIR/rkbin/tools/setting.ini
RK_AVB_TOOL_DIR=$RK_SDK_DIR/tools/linux/Linux_SecurityAVB/
RK_AVB_TOOL=$RK_AVB_TOOL_DIR/avb_user_tool.sh
###################################################
# 1 -> input misc # 2 -> output misc
# 3 -> size # 4 -> enc_keycheck_var_in_list()
{# 在$2中查找$1的值,成功返回0，否则返回1echo $2 | fgrep -wq $1 && return 0 || return 1
}assert_var_in_list()
{if ! check_var_in_list "$@" ; thenecho -e "\e[41;1;37m$1 not in List \"$2\" -- $(basename "${BASH_SOURCE[1]}") - ${FUNCNAME[1]}\e[0m"return 1fi
}rk_security_setup_misc()
{SRC=$1DST=$2size=$3buf=$4echo buf=$bufbig_end=$[size / 256]lit_end=$[size - (big_end * 256)]big_end=$(echo "ibase=10;obase=16;$big_end" | bc)lit_end=$(echo "ibase=10;obase=16;$lit_end" | bc)IMAGE_DIR="${RK_OUTDIR:-$UBOOT}/security"mkdir -p "$IMAGE_DIR"IMAGE="$IMAGE_DIR/misc-security.img"rm -rf "$IMAGE"ln -rsLf "$SRC" "$IMAGE_DIR/misc.img"dd if="$IMAGE_DIR/misc.img" of="$IMAGE" bs=1k count=10echo -en "\x$lit_end\x$big_end" >> "$IMAGE"echo -n "$buf" >> "$IMAGE"skip=$[10 * 1024 + size + 2]dd if="$IMAGE_DIR/misc.img" of="$IMAGE" seek=$skip skip=$skip bs=1ln -rsf "$IMAGE" "$DST"
}# 使用RK_SIGN_TOOL生成签名loader,uboot的密钥。
# 因为Loader到Uboot的校验，由RK私有方案完成,所有使用rk_sign_tool工具进行签名操作。
rk_security_setup_createkeys()
{mkdir -p $UBOOT/keyscd $UBOOT/keys# 生成的密钥对放在uboot/keys目录下$RK_SIGN_TOOL kk --bits 2048 --out ./ln -rsf private_key.pem dev.keyln -rsf public_key.pem dev.pubkey# TODO: Some rk_sign_tool may create privateKey.pem / publicKey.pem# 生成签名证书openssl req -batch -new -x509 -key $UBOOT/keys/dev.key \-out $UBOOT/keys/dev.crt# system使用加密方式 if [ "$1" == "system-encryption" ]; thenopenssl rand -out $UBOOT/keys/system_enc_key -hex 32fi
}rk_security_setup_system_verity()
{target_image=$(readlink -f $1)outdir=$(cd $(dirname $target_image);pwd)security_system=$outdir/security_system.imgif [ -f "$outdir/security.info" ]; thensource $outdir/security.infoif [ "$(ls -l --time-style=long-iso $target_image | cut -d ' ' -f 6,7)" == "$touch" ]; thenecho "security_system.img not be updated!!!"return 0fifisectors=$(ls -l "$target_image" | awk '{printf $5}')hash_offset=$[(sectors / 1024 / 1024 + 2) * 1024 * 1024]tmp_file=$(mktemp)cp "$target_image" "$security_system"veritysetup --hash-offset=$hash_offset format "$security_system" "$security_system" > $tmp_fileecho "touch=\"$(ls -l --time-style=long-iso $target_image | cut -d ' ' -f 6,7)\"" > $outdir/security.infoecho "hash_offset=$hash_offset" >> $outdir/security.inforoot_hash=$(cat $tmp_file)echo "root_hash=$(echo ${root_hash##*:})" >> $outdir/security.info# cat "$tmp_file" >> $outdir/inform $tmp_file
}rk_security_setup_system_encryption()
{target_image=$(readlink -f $1)outdir=$(cd $(dirname $target_image);pwd)security_system=$outdir/security_system.imgkey=$(cat $UBOOT/keys/system_enc_key)cipher=aes-cbc-plainif [ -f "$outdir/security.info" ]; thensource $outdir/security.infoif [ "$(ls -l --time-style=long-iso $target_image | cut -d ' ' -f 6,7)" == "$touch" ]; thenecho "security_system.img not be updated!!!"return 0fifisectors=$(ls -l "$target_image" | awk '{printf $5}')sectors=$[(sectors + (1 * 1024 * 1024) - 1) / 512] # Align 1M / unit: 512 bytesloopdevice=$(losetup -f)mappername=encfs-$(shuf -i 1-10000000000000000000 -n 1)dd if=/dev/null of="$security_system" seek=$sectors bs=512sudo -S losetup $loopdevice "$security_system" < $UBOOT/keys/root_passwdsudo -S dmsetup create $mappername --table "0 $sectors crypt $cipher $key 0 $loopdevice 0 1 allow_discards" < $UBOOT/keys/root_passwdsudo -S dd if="$target_image" of=/dev/mapper/$mappername conv=fsync < $UBOOT/keys/root_passwdif sync; thensudo -S dmsetup remove $mappername < $UBOOT/keys/root_passwdfisudo -S losetup -d $loopdevice < $UBOOT/keys/root_passwdecho "touch=\"$(ls -l --time-style=long-iso $target_image | cut -d ' ' -f 6,7)\"" > $outdir/security.infoecho "sectors=$sectors" >> $outdir/security.infoecho "cipher=$cipher" >> $outdir/security.infoecho "key=$key" >> $outdir/security.info
}rk_security_setup_system()
{case $1 insystem-verity) shift; rk_security_setup_system_verity $@ ;;system-encryption) shift; rk_security_setup_system_encryption $@ ;;base) ;;*) exit -1;;esac
}rk_security_setup_ramboot_prebuild()
{check_method=$1shiftinit_in=$1shiftsecurity_file=$1shiftoptee_storage=$1case $check_method insystem-encryption) echo encryption ;;system-verity) echo verity ;;base) return ;;*) exit -1;;esacif [ ! -f "$init_in" ] || [ ! -f "$security_file" ]; thenecho -e "\e[41;1;37minit_in or security_file is missed\e[0m"exit -1fiinit_file="$(dirname $init_in)/init"cp $init_in $init_fileif [ "$check_method" == "system-encryption" ]; thensource "$security_file"sed -i "s/ENC_EN=/ENC_EN=true/" "$init_file"sed -i "s/CIPHER=/CIPHER=$cipher/" "$init_file"sed -i "s/SECURITY_STORAGE=RPMB/SECURITY_STORAGE=$optee_storage/" "$init_file"elsesource "$security_file"sed -i "s/ENC_EN=/ENC_EN=false/" "$init_file"sed -i "s/OFFSET=/OFFSET=$hash_offset/" "$init_file"sed -i "s/HASH=/HASH=$root_hash/" "$init_file"fised -i "s/# exec busybox switch_root/exec busybox switch_root/" "$init_file"echo "Generate ramdisk init for security"
}# 配置RK_SIGN_TOOL工具,导入需要使用的密钥对,以及sign_flag配置值
rk_security_setup_sign_tool()
{# CHIP取$1的2~4字节内容,因为一般为rk开头,如rk3568,所以要过滤掉前面的rk字段CHIP=${1: 2: 4}${RK_SIGN_TOOL} cc --chip $CHIP${RK_SIGN_TOOL} lk --key $UBOOT/keys/dev.key --pubkey $UBOOT/keys/dev.pubkey# RK_SIGN_INI为setting.ini配置文件if [ "$2" != "--burn-key-hash" ]; then# 将查找sign_flag = 开始的行,将该行替换为sign_flag =,即删除后面的内容sed -i "/sign_flag=/s/.*/sign_flag=/" ${RK_SIGN_INI}else# 将查找sign_flag = 开始的行,将该行替换为sign_flag=0x20sed -i "/sign_flag=/s/.*/sign_flag=0x20/" ${RK_SIGN_INI}fi
}# 使用RK_SIGN_TOOL 工具签名loader,uboot.img或者trust.img
rk_security_setup_uboot_avb_sign()
{# assert_var_in_list 查看$1是否在 "loader uboot trust"列表中assert_var_in_list $1 "loader uboot trust"# 如果 $3存在,拷贝$2到$3,因为$3为签名后的文件,所以先拷贝一份过去,避免失败后出问题if [ "$3" ]; thencp $2 $3DST=$3elseDST=$2ficase $1 inloader) ${RK_SIGN_TOOL} sl --loader $DST;;uboot|trust) ${RK_SIGN_TOOL} si --img $DST;;esac
}# AVB签名,签名boot或者recovery镜像文件
rk_security_setup_avb_sign()
{assert_var_in_list $1 "boot recovery"STAGE=$1# 镜像绝对路径SRC=$(realpath $2)DST_DIR=$3 IMAGE_DIR="${RK_OUTDIR:-$UBOOT}/security"mkdir -p "$IMAGE_DIR"IMAGE="$IMAGE_DIR/$STAGE-security.img"rm -rf "$IMAGE"cd $RK_AVB_TOOL_DIR$RK_AVB_TOOL -s -${STAGE} $SRCcp ${RK_AVB_TOOL_DIR}/out/${STAGE}.img ${IMAGE_DIR}/${STAGE}-security.img[ "$STAGE" != "boot" ] || \cp ${RK_AVB_TOOL_DIR}/out/vbmeta.img ${IMAGE_DIR}/vbmeta.imgif [ "$DST_DIR" ]; thenDST_DIR=$(realpath $DST_DIR)ln -rsf ${IMAGE} $DST_DIR/${STAGE}.img[ "$STAGE" != "boot" ] || \cp ${IMAGE_DIR}/vbmeta.img $DST_DIR/vbmeta.imgficd -
}# FIT方案的签名
rk_security_setup_sign()
{assert_var_in_list $1 "boot recovery"STAGE=$1SRC=$(realpath $2)DST_DIR=$3IMAGE_DIR="${RK_OUTDIR:-$UBOOT}/security"mkdir -p "$IMAGE_DIR"IMAGE="$IMAGE_DIR/$STAGE-security.img"rm -rf "$IMAGE"cd $UBOOTln -rsLf "$SRC" "$IMAGE_DIR/$STAGE.img"./scripts/fit.sh --${STAGE}_img "$(realpath $IMAGE_DIR/$STAGE.img)"mv $STAGE.img "$IMAGE"ln -rsf ${IMAGE} $DST_DIR/${STAGE}.imgcd "${RK_SDK_DIR:-..}"
}# -----------------------------------
# For SDK
# -----------------------------------
build_security_system()
{[ "$RK_ROOTFS_SYSTEM_BUILDROOT" ] || warning "rootfs is not buildroot!""$RK_SCRIPTS_DIR/mk-rootfs.sh"[ -z "$RK_SECURITY_CHECK_SYSTEM_VERITY" ] ||"$RK_SCRIPTS_DIR/mk-security.sh" security-rambootnotice "Security rootfs.img has update in output/firmware/rootfs.img"finish_build $@
}build_security_ramboot()
{check_config RK_SECURITY_INITRD_CFG || falsemessage "=========================================="message " Start building security ramboot(buildroot)"message "=========================================="if [ ! -r "$RK_FIRMWARE_DIR/rootfs.img" ]; thennotice "Rootfs is not ready, building it for security...""$RK_SCRIPTS_DIR/mk-rootfs.sh"fiif [ "$RK_SECURITY_OPTEE_STORAGE_SECURITY" ]; thenOPTEE_STORAGE=SECURITYelseOPTEE_STORAGE=RPMBfi"$RK_SCRIPTS_DIR/mk-security.sh" ramboot_prebuild \$RK_SECURITY_CHECK_METHOD \$RK_SDK_DIR/buildroot/board/rockchip/common/security-ramdisk-overlay/init.in \$RK_OUTDIR/buildroot/images/security.info $OPTEE_STORAGEDST_DIR="$RK_OUTDIR/security-ramboot"IMAGE_DIR="$DST_DIR/images""$RK_SCRIPTS_DIR/mk-buildroot.sh" $RK_SECURITY_INITRD_CFG "$IMAGE_DIR"if [ "$RK_USE_FIT_IMG" ]; then"$RK_SCRIPTS_DIR/mk-ramboot.sh" "$DST_DIR" \"$IMAGE_DIR/rootfs.$RK_SECURITY_INITRD_TYPE" \"$RK_SECURITY_FIT_ITS"else"$RK_SCRIPTS_DIR/mk-ramboot.sh" "$DST_DIR" \"$IMAGE_DIR/rootfs.$RK_SECURITY_INITRD_TYPE"fi"$RK_SCRIPTS_DIR/mk-security.sh" sign boot \$DST_DIR/ramboot.img $RK_FIRMWARE_DIR/notice "Security boot.img has update in output/firmware/boot.img"finish_build $@
}# HooksBUILD_CMDS="security-createkeys security-misc security-ramboot security-system"# sign参数后面跟 需要进行前面的镜像名称，比如sing loader
HID_CMDS="createkeys misc system ramboot_prebuild sign"build_avb_sign()
{case $1 inloader|uboot|trust)# rk_security_setup_sign_tool,配置RK_SIGN_TOOL工具,导入需要使用的密钥对,以及sign_flag配置值# RK_SECURITY_BURN_KEY=y 在buildroot中进行配置rk_security_setup_sign_tool $RK_CHIP \"$(test $RK_SECURITY_BURN_KEY && \echo --burn-key-hash || \echo --debug-key-hash)"# rk_security_setup_uboot_avb_sign,使用RK_SIGN_TOOL 工具签名loader,uboot.img或者trust.img # 在对uboot.img进行签名时失败,# Image is /home/mingl/VRC-AE05-01-gerrit/rk3568_bsp/output/firmware/uboot.img# the image did not support to signrk_security_setup_uboot_avb_sign $@ ;;recovery)# rk_security_setup_avb_sign,AVB签名,签名boot或者recovery镜像文件rk_security_setup_avb_sign $@ \$[ $(rk_partition_size_kb recovery) * 1024 ];;*)# 默认情况走这个分支rk_security_setup_avb_sign $@;;esac
}build_hook()
{case $1 insecurity-createkeys) #使用RK_SIGN_TOOL生成签名loader,uboot的密钥。rk_security_setup_createkeys $RK_SECURITY_CHECK_METHOD;;security-misc)if [ "$RK_SECURITY_CHECK_SYSTEM_ENCRYPTION" ]; then"$RK_SCRIPTS_DIR/mk-misc.sh"fi;;security-ramboot) build_security_ramboot ;;security-system) build_security_system ;;esac# $1 参数必须是 createkeys misc system ramboot_prebuild sign内的选项,否则return 0;echo $HID_CMDS | fgrep "$1" -wq || return 0append=$1shiftcase $append insign)# RK_SECUREBOOT_AVB=y 需要在buildroot中进行配置,表明开启AVB安全功能# 调用build_avb_sign,失败则调用rk_security_setup_$append 函数继续进行处理test "$RK_SECUREBOOT_AVB" && \build_avb_sign $@ || \rk_security_setup_$append $@ #rk_security_setup_sign 函数继续进行处理;;*) rk_security_setup_$append $@ ;;esac
}usage_hook()
{echo -e "security-createkeys \tcreate keys for security"echo -e "security-misc \tbuild misc with system encryption key"echo -e "security-ramboot \tbuild security ramboot"echo -e "security-system \tbuild security system"
}clean_hook()
{rm -rf $RK_OUTDIR/security*
}# RK_SESSION_DIR="$RK_OUTDIR/sessions"
[ -z "$RK_SESSION" ] || \source "${RK_BUILD_HELPER:-$(dirname "$(realpath "$0")")/../build-hooks/build-helper}"[ -z "$1" ] || build_hook $@
由于笔者使用的是linux,其中没有要求对只读分区的签名校验。 安卓系统的话,可能需要对system分区进行签名和校验,就需要将瑞芯微官方文档中对只读分区进行签名校验的流程完成，
