Python训练营---DAY54

news 2025/6/16 6:48:48

DAY 54 Inception网络及其思考

知识点回顾：

传统计算机视觉发展史：LeNet-->AlexNet-->VGGNet-->nceptionNet-->ResNet
inception模块和网络
特征融合方法阶段性总结：逐元素相加、逐元素相乘、concat通道数增加等
感受野与卷积核变体：深入理解不同模块和类的设计初衷

作业：一次稍微有点学术感觉的作业：

对inception网络在cifar10上观察精度
消融实验：引入残差机制和cbam模块分别进行消融

1、对inception网络在cifar10上观察精度

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import numpy as np# 设置替代中文字体（适用于Linux）
plt.rcParams["font.family"] = ["WenQuanYi Micro Hei"]
plt.rcParams['axes.unicode_minus'] = Falseclass Inception(nn.Module):def __init__(self, in_channels):"""Inception模块初始化，实现多尺度特征并行提取与融合参数:in_channels: 输入特征图的通道数"""super(Inception, self).__init__()# 1x1卷积分支：降维并提取通道间特征关系# 减少后续卷积的计算量，同时保留局部特征信息self.branch1x1 = nn.Sequential(nn.Conv2d(in_channels, 64, kernel_size=1),  # 降维至64通道nn.ReLU()  # 引入非线性激活)# 3x3卷积分支：通过1x1卷积降维后使用3x3卷积捕捉中等尺度特征# 先降维减少计算量，再进行空间特征提取self.branch3x3 = nn.Sequential(nn.Conv2d(in_channels, 96, kernel_size=1),  # 降维至96通道nn.ReLU(),nn.Conv2d(96, 128, kernel_size=3, padding=1),  # 3x3卷积，保持空间尺寸不变nn.ReLU())# 5x5卷积分支：通过1x1卷积降维后使用5x5卷积捕捉大尺度特征# 较大的感受野用于提取更全局的结构信息self.branch5x5 = nn.Sequential(nn.Conv2d(in_channels, 16, kernel_size=1),  # 大幅降维至16通道nn.ReLU(),nn.Conv2d(16, 32, kernel_size=5, padding=2),  # 5x5卷积，保持空间尺寸不变nn.ReLU())# 池化分支：通过池化操作保留全局信息并降维# 增强特征的平移不变性self.branch_pool = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=1, padding=1),  # 3x3最大池化，保持尺寸nn.Conv2d(in_channels, 32, kernel_size=1),  # 降维至32通道nn.ReLU())def forward(self, x):"""前向传播函数，并行计算四个分支并在通道维度拼接参数:x: 输入特征图，形状为[batch_size, in_channels, height, width]返回:拼接后的特征图，形状为[batch_size, 256, height, width]"""# 注意，这里是并行计算四个分支branch1x1 = self.branch1x1(x)  # 输出形状: [batch_size, 64, height, width]branch3x3 = self.branch3x3(x)  # 输出形状: [batch_size, 128, height, width]branch5x5 = self.branch5x5(x)  # 输出形状: [batch_size, 32, height, width]branch_pool = self.branch_pool(x)  # 输出形状: [batch_size, 32, height, width]# 在通道维度(dim=1)拼接四个分支的输出# 总通道数: 64 + 128 + 32 + 32 = 256outputs = [branch1x1, branch3x3, branch5x5, branch_pool]return torch.cat(outputs, dim=1)class InceptionNet(nn.Module):def __init__(self, num_classes=10):super(InceptionNet, self).__init__()self.conv1 = nn.Sequential(nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3),nn.ReLU(),nn.MaxPool2d(kernel_size=3, stride=2, padding=1))self.inception1 = Inception(64)self.inception2 = Inception(256)self.avgpool = nn.AdaptiveAvgPool2d((1, 1))self.fc = nn.Linear(256, num_classes)def forward(self, x):x = self.conv1(x)x = self.inception1(x)x = self.inception2(x)x = self.avgpool(x)x = torch.flatten(x, 1)x = self.fc(x)return x# 检查GPU是否可用
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")# 数据预处理（与原代码一致）
train_transform = transforms.Compose([transforms.RandomCrop(32, padding=4),transforms.RandomHorizontalFlip(),transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2, hue=0.1),transforms.RandomRotation(15),transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])test_transform = transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])# 加载数据集（与原代码一致）
train_dataset = datasets.CIFAR10(root='./cifar_data/cifar_data', train=True, download=True, transform=train_transform)
test_dataset = datasets.CIFAR10(root='./cifar_data/cifar_data', train=False, transform=test_transform)
train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=64, shuffle=False)# 初始化模型、损失函数、优化器
model = InceptionNet().to(device)
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer,        # 指定要控制的优化器（这里是Adam）mode='min',       # 监测的指标是"最小化"（如损失函数）patience=3,       # 如果连续3个epoch指标没有改善，才降低LRfactor=0.5        # 降低LR的比例（新LR = 旧LR × 0.5）
)# 5. 训练模型（记录每个 iteration 的损失）
def train(model, train_loader, test_loader, criterion, optimizer, scheduler, device, epochs):model.train()  # 设置为训练模式# 记录每个 iteration 的损失all_iter_losses = []  # 存储所有 batch 的损失iter_indices = []     # 存储 iteration 序号# 记录每个 epoch 的准确率和损失train_acc_history = []test_acc_history = []train_loss_history = []test_loss_history = []for epoch in range(epochs):running_loss = 0.0correct = 0total = 0for batch_idx, (data, target) in enumerate(train_loader):data, target = data.to(device), target.to(device)  # 移至GPUoptimizer.zero_grad()  # 梯度清零output = model(data)  # 前向传播loss = criterion(output, target)  # 计算损失loss.backward()  # 反向传播optimizer.step()  # 更新参数# 记录当前 iteration 的损失iter_loss = loss.item()all_iter_losses.append(iter_loss)iter_indices.append(epoch * len(train_loader) + batch_idx + 1)# 统计准确率和损失running_loss += iter_loss_, predicted = output.max(1)total += target.size(0)correct += predicted.eq(target).sum().item()# 每100个批次打印一次训练信息if (batch_idx + 1) % 100 == 0:print(f'Epoch: {epoch+1}/{epochs} | Batch: {batch_idx+1}/{len(train_loader)} 'f'| 单Batch损失: {iter_loss:.4f} | 累计平均损失: {running_loss/(batch_idx+1):.4f}')# 计算当前epoch的平均训练损失和准确率epoch_train_loss = running_loss / len(train_loader)epoch_train_acc = 100. * correct / totaltrain_acc_history.append(epoch_train_acc)train_loss_history.append(epoch_train_loss)# 测试阶段model.eval()  # 设置为评估模式test_loss = 0correct_test = 0total_test = 0with torch.no_grad():for data, target in test_loader:data, target = data.to(device), target.to(device)output = model(data)test_loss += criterion(output, target).item()_, predicted = output.max(1)total_test += target.size(0)correct_test += predicted.eq(target).sum().item()epoch_test_loss = test_loss / len(test_loader)epoch_test_acc = 100. * correct_test / total_testtest_acc_history.append(epoch_test_acc)test_loss_history.append(epoch_test_loss)# 更新学习率调度器scheduler.step(epoch_test_loss)print(f'Epoch {epoch+1}/{epochs} 完成 | 训练准确率: {epoch_train_acc:.2f}% | 测试准确率: {epoch_test_acc:.2f}%')# 绘制所有 iteration 的损失曲线plot_iter_losses(all_iter_losses, iter_indices)# 绘制每个 epoch 的准确率和损失曲线plot_epoch_metrics(train_acc_history, test_acc_history, train_loss_history, test_loss_history)return epoch_test_acc  # 返回最终测试准确率# 6. 绘制每个 iteration 的损失曲线

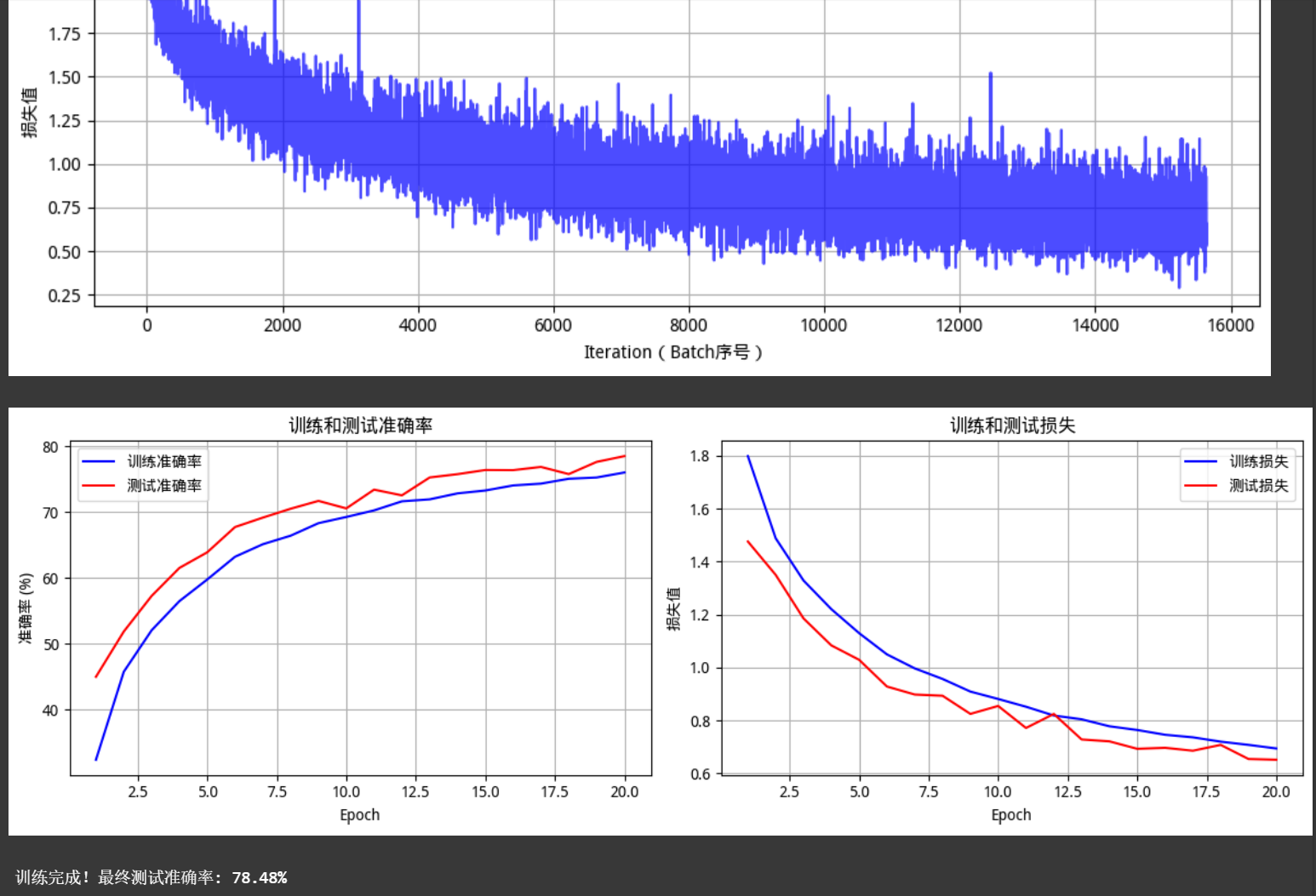

def plot_iter_losses(losses, indices):plt.figure(figsize=(10, 4))plt.plot(indices, losses, 'b-', alpha=0.7, label='Iteration Loss')plt.xlabel('Iteration（Batch序号）')plt.ylabel('损失值')plt.title('每个 Iteration 的训练损失')plt.legend()plt.grid(True)plt.tight_layout()plt.show()# 7. 绘制每个 epoch 的准确率和损失曲线
def plot_epoch_metrics(train_acc, test_acc, train_loss, test_loss):epochs = range(1, len(train_acc) + 1)plt.figure(figsize=(12, 4))# 绘制准确率曲线plt.subplot(1, 2, 1)plt.plot(epochs, train_acc, 'b-', label='训练准确率')plt.plot(epochs, test_acc, 'r-', label='测试准确率')plt.xlabel('Epoch')plt.ylabel('准确率 (%)')plt.title('训练和测试准确率')plt.legend()plt.grid(True)# 绘制损失曲线plt.subplot(1, 2, 2)plt.plot(epochs, train_loss, 'b-', label='训练损失')plt.plot(epochs, test_loss, 'r-', label='测试损失')plt.xlabel('Epoch')plt.ylabel('损失值')plt.title('训练和测试损失')plt.legend()plt.grid(True)plt.tight_layout()plt.show()# 8. 执行训练和测试
epochs = 20  # 增加训练轮次以获得更好效果
print("开始使用CNN训练模型...")
final_accuracy = train(model, train_loader, test_loader, criterion, optimizer, scheduler, device, epochs)
print(f"训练完成！最终测试准确率: {final_accuracy:.2f}%")

2、消融实验：引入残差机制和cbam模块分别进行消融

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import numpy as np# 设置替代中文字体（适用于Linux）
plt.rcParams["font.family"] = ["WenQuanYi Micro Hei"]
plt.rcParams['axes.unicode_minus'] = Falseimport torch
import torch.nn as nn
import torch.nn.functional as F# 通道注意力
class ChannelAttention(nn.Module):def __init__(self, in_channels, ratio=16):super().__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.max_pool = nn.AdaptiveMaxPool2d(1)self.fc = nn.Sequential(nn.Linear(in_channels, in_channels // ratio, bias=False),nn.ReLU(),nn.Linear(in_channels // ratio, in_channels, bias=False))self.sigmoid = nn.Sigmoid()def forward(self, x):b, c, h, w = x.shapeavg_out = self.fc(self.avg_pool(x).view(b, c))max_out = self.fc(self.max_pool(x).view(b, c))attention = self.sigmoid(avg_out + max_out).view(b, c, 1, 1)return x * attention# 空间注意力模块
class SpatialAttention(nn.Module):def __init__(self, kernel_size=7):super().__init__()self.conv = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)self.sigmoid = nn.Sigmoid()def forward(self, x):avg_out = torch.mean(x, dim=1, keepdim=True)max_out, _ = torch.max(x, dim=1, keepdim=True)pool_out = torch.cat([avg_out, max_out], dim=1)attention = self.conv(pool_out)return x * self.sigmoid(attention)# CBAM模块
class CBAM(nn.Module):def __init__(self, in_channels, ratio=16, kernel_size=7):super().__init__()self.channel_attn = ChannelAttention(in_channels, ratio)self.spatial_attn = SpatialAttention(kernel_size)def forward(self, x):x = self.channel_attn(x)x = self.spatial_attn(x)return x# 集成CBAM的Inception模块
class InceptionWithCBAM(nn.Module):def __init__(self, in_channels, use_cbam=True):"""集成CBAM注意力机制的Inception模块参数:in_channels: 输入特征图的通道数use_cbam: 是否使用CBAM，默认为True"""super(InceptionWithCBAM, self).__init__()# 1x1卷积分支self.branch1x1 = nn.Sequential(nn.Conv2d(in_channels, 64, kernel_size=1),nn.ReLU())# 为1x1分支添加CBAM（如果启用）self.branch1x1_cbam = CBAM(64) if use_cbam else nn.Identity()# 3x3卷积分支self.branch3x3 = nn.Sequential(nn.Conv2d(in_channels, 96, kernel_size=1),nn.ReLU(),nn.Conv2d(96, 128, kernel_size=3, padding=1),nn.ReLU())# 为3x3分支添加CBAM（如果启用）self.branch3x3_cbam = CBAM(128) if use_cbam else nn.Identity()# 5x5卷积分支self.branch5x5 = nn.Sequential(nn.Conv2d(in_channels, 16, kernel_size=1),nn.ReLU(),nn.Conv2d(16, 32, kernel_size=5, padding=2),nn.ReLU())# 为5x5分支添加CBAM（如果启用）self.branch5x5_cbam = CBAM(32) if use_cbam else nn.Identity()# 池化分支self.branch_pool = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=1, padding=1),nn.Conv2d(in_channels, 32, kernel_size=1),nn.ReLU())# 为池化分支添加CBAM（如果启用）self.branch_pool_cbam = CBAM(32) if use_cbam else nn.Identity()# 是否使用CBAMself.use_cbam = use_cbamdef forward(self, x):# 计算各个分支branch1x1 = self.branch1x1(x)# 应用CBAM注意力if self.use_cbam:branch1x1 = self.branch1x1_cbam(branch1x1)branch3x3 = self.branch3x3(x)if self.use_cbam:branch3x3 = self.branch3x3_cbam(branch3x3)branch5x5 = self.branch5x5(x)if self.use_cbam:branch5x5 = self.branch5x5_cbam(branch5x5)branch_pool = self.branch_pool(x)if self.use_cbam:branch_pool = self.branch_pool_cbam(branch_pool)# 拼接输出return torch.cat([branch1x1, branch3x3, branch5x5, branch_pool], dim=1)# 集成CBAM的InceptionNet
class InceptionNetWithCBAM(nn.Module):def __init__(self, num_classes=10, use_cbam=True):super(InceptionNetWithCBAM, self).__init__()self.conv1 = nn.Sequential(nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3),nn.ReLU(),nn.MaxPool2d(kernel_size=3, stride=2, padding=1))# 第一个Inception模块（带CBAM）self.inception1 = InceptionWithCBAM(64, use_cbam)# 第二个Inception模块（带CBAM）self.inception2 = InceptionWithCBAM(256, use_cbam)# 为整个网络添加全局CBAM（可选）self.global_cbam = CBAM(256) if use_cbam else nn.Identity()self.avgpool = nn.AdaptiveAvgPool2d((1, 1))self.fc = nn.Linear(256, num_classes)def forward(self, x):x = self.conv1(x)x = self.inception1(x)x = self.inception2(x)# 应用全局CBAM（可选）if hasattr(self, 'global_cbam'):x = self.global_cbam(x)x = self.avgpool(x)x = torch.flatten(x, 1)x = self.fc(x)return x# 检查GPU是否可用
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")# 数据预处理（与原代码一致）
train_transform = transforms.Compose([transforms.RandomCrop(32, padding=4),transforms.RandomHorizontalFlip(),transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2, hue=0.1),transforms.RandomRotation(15),transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])test_transform = transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])# 加载数据集（与原代码一致）
train_dataset = datasets.CIFAR10(root='./cifar_data/cifar_data', train=True, download=True, transform=train_transform)
test_dataset = datasets.CIFAR10(root='./cifar_data/cifar_data', train=False, transform=test_transform)
train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=64, shuffle=False)# 初始化模型、损失函数、优化器
model = InceptionNetWithCBAM().to(device)
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer,        # 指定要控制的优化器（这里是Adam）mode='min',       # 监测的指标是"最小化"（如损失函数）patience=3,       # 如果连续3个epoch指标没有改善，才降低LRfactor=0.5        # 降低LR的比例（新LR = 旧LR × 0.5）
)# 5. 训练模型（记录每个 iteration 的损失）
def train(model, train_loader, test_loader, criterion, optimizer, scheduler, device, epochs):model.train()  # 设置为训练模式# 记录每个 iteration 的损失all_iter_losses = []  # 存储所有 batch 的损失iter_indices = []     # 存储 iteration 序号# 记录每个 epoch 的准确率和损失train_acc_history = []test_acc_history = []train_loss_history = []test_loss_history = []for epoch in range(epochs):running_loss = 0.0correct = 0total = 0for batch_idx, (data, target) in enumerate(train_loader):data, target = data.to(device), target.to(device)  # 移至GPUoptimizer.zero_grad()  # 梯度清零output = model(data)  # 前向传播loss = criterion(output, target)  # 计算损失loss.backward()  # 反向传播optimizer.step()  # 更新参数# 记录当前 iteration 的损失iter_loss = loss.item()all_iter_losses.append(iter_loss)iter_indices.append(epoch * len(train_loader) + batch_idx + 1)# 统计准确率和损失running_loss += iter_loss_, predicted = output.max(1)total += target.size(0)correct += predicted.eq(target).sum().item()# 每100个批次打印一次训练信息if (batch_idx + 1) % 100 == 0:print(f'Epoch: {epoch+1}/{epochs} | Batch: {batch_idx+1}/{len(train_loader)} 'f'| 单Batch损失: {iter_loss:.4f} | 累计平均损失: {running_loss/(batch_idx+1):.4f}')# 计算当前epoch的平均训练损失和准确率epoch_train_loss = running_loss / len(train_loader)epoch_train_acc = 100. * correct / totaltrain_acc_history.append(epoch_train_acc)train_loss_history.append(epoch_train_loss)# 测试阶段model.eval()  # 设置为评估模式test_loss = 0correct_test = 0total_test = 0with torch.no_grad():for data, target in test_loader:data, target = data.to(device), target.to(device)output = model(data)test_loss += criterion(output, target).item()_, predicted = output.max(1)total_test += target.size(0)correct_test += predicted.eq(target).sum().item()epoch_test_loss = test_loss / len(test_loader)epoch_test_acc = 100. * correct_test / total_testtest_acc_history.append(epoch_test_acc)test_loss_history.append(epoch_test_loss)# 更新学习率调度器scheduler.step(epoch_test_loss)print(f'Epoch {epoch+1}/{epochs} 完成 | 训练准确率: {epoch_train_acc:.2f}% | 测试准确率: {epoch_test_acc:.2f}%')# 绘制所有 iteration 的损失曲线plot_iter_losses(all_iter_losses, iter_indices)# 绘制每个 epoch 的准确率和损失曲线plot_epoch_metrics(train_acc_history, test_acc_history, train_loss_history, test_loss_history)return epoch_test_acc  # 返回最终测试准确率# 6. 绘制每个 iteration 的损失曲线
def plot_iter_losses(losses, indices):plt.figure(figsize=(10, 4))plt.plot(indices, losses, 'b-', alpha=0.7, label='Iteration Loss')plt.xlabel('Iteration（Batch序号）')plt.ylabel('损失值')plt.title('每个 Iteration 的训练损失')plt.legend()plt.grid(True)plt.tight_layout()plt.show()# 7. 绘制每个 epoch 的准确率和损失曲线
def plot_epoch_metrics(train_acc, test_acc, train_loss, test_loss):epochs = range(1, len(train_acc) + 1)plt.figure(figsize=(12, 4))# 绘制准确率曲线plt.subplot(1, 2, 1)plt.plot(epochs, train_acc, 'b-', label='训练准确率')plt.plot(epochs, test_acc, 'r-', label='测试准确率')plt.xlabel('Epoch')plt.ylabel('准确率 (%)')plt.title('训练和测试准确率')plt.legend()plt.grid(True)# 绘制损失曲线plt.subplot(1, 2, 2)plt.plot(epochs, train_loss, 'b-', label='训练损失')plt.plot(epochs, test_loss, 'r-', label='测试损失')plt.xlabel('Epoch')plt.ylabel('损失值')plt.title('训练和测试损失')plt.legend()plt.grid(True)plt.tight_layout()plt.show()# 8. 执行训练和测试
epochs = 20  # 增加训练轮次以获得更好效果
print("开始使用CNN训练模型...")
final_accuracy = train(model, train_loader, test_loader, criterion, optimizer, scheduler, device, epochs)
print(f"训练完成！最终测试准确率: {final_accuracy:.2f}%")
